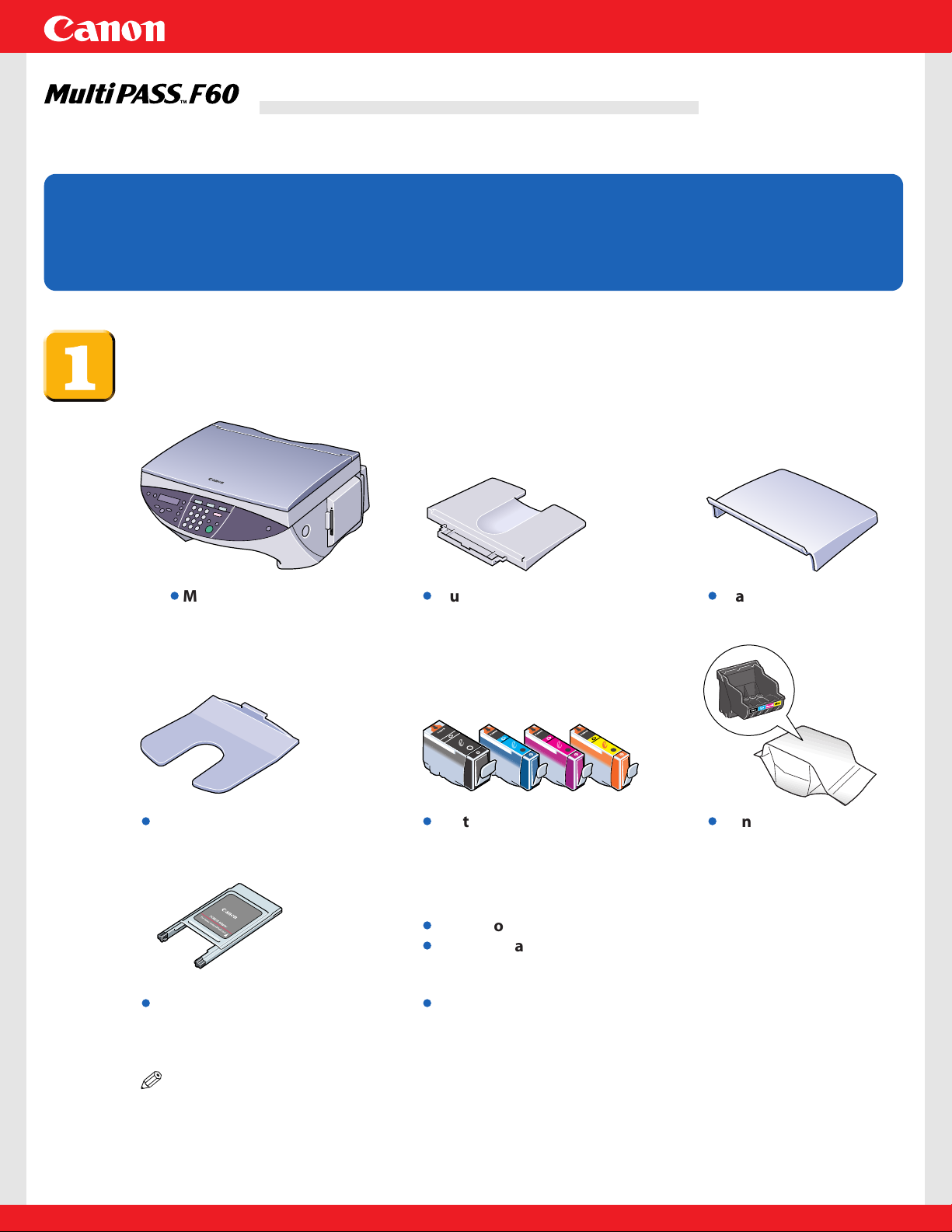

Unpack the machine and its components.

Check that you have the following:

NOTE

• A printer cable is not included.You must purchase a USB cable (less than 16.4 ft./5 m) to

connect your machine to a computer.

Machine

Multi-purpose tray

Tray cover

Printhead

Ink tanks

(Black, cyan, magenta, yellow)

Paper output tray

PCMCIA card adapter

Power cord

Documentation

(Set-Up Sheet, Basic Guide, Extended

Service Plan, Registration Card)

MultiPASS Suite software CD-ROM

Thank you for purchasing the Canon MultiPASS F60.

To get your machine ready for use, please follow the instructions in this Set-Up Sheet

before referring to any other documentation.

READ THIS SHEET FIRSTREAD THIS SHEET FIRST

Set-Up Sheet

Remove the shipping material from the machine.

1Place the machine on a flat surface.

2Remove all shipping tapes from the exterior of the machine.

NOTE

• DO NOT remove the USB label Aat this stage.

Assemble the machine.

Top rear view of

attachment slots

2Hook the center tab on the

paper output tray to the center

opening, then lower the tray.

1Attach the multi-purpose tray.

USB label A

Load paper.

Place a stack of paper (print side up) in the multi-purpose tray qand adjust the

paper guide Ato the width of the stack w.Make sure the stack does not exceed

the paper limit mark B.Then place the tray cover Cover the multi-purpose tray.

Connect the power cord.

ON/OFF(1sec.)

PLEASE WAIT

PUT IN CARTRIDGE

Approx. 30 seconds

1Plug the power cord into

a socket.

2When you connect

the machine, the

Alarm light blinks,

and the messages

below should

appear in the LCD.

3If nothing appears in

the LCD, press [ON/OFF

(1 sec.)] to turn on the

machine.

•If you need to turn off the

machine, press [ON/OFF

(1 sec.)] for one second.

Install the printhead.

IMPORTANT

•To turn off the machine, be sure to always press [ON/OFF(1sec.)].This will ensure

that the printhead is capped and prevent it from drying up.

•If you are not using the machine for a long period of time, we recommend that you

print (in black and color) or clean the printhead approximately once a month to

maintain the printhead in good working condition.

1Press [Open] qand lift up the scanning unit w.Then remove the tape A.

IMPORTANT

• Do not touch the metal rod or any

parts inside the machine.

• Do not turn off the machine when

opening the scanning unit.

2Remove the printhead from its packaging, then remove the orange protective

cap B.

IMPORTANT

• Do not touch the electrical contacts C.

3Raise the lock lever D,then gently slide the printhead into the holder.

Lower the lock lever.

IMPORTANT

• Do not touch the lock lever once the printhead has been installed.

Turn over to

continue

Turn over to

continue

Install the ink tanks.

1Start with the yellow ink tank. Pull the orange tape in the direction of the arrow

and remove the plastic wrapper so you can see the air hole A.Turn the ink tank

over so that the protective cap Bis facing up. Then hold the ink tank as shown

below and remove the protective cap B.

NOTE

•To avoid spilling ink, never press on the long sides of the ink tank C.

•Once you remove the protective cap B,do not touch the ink port D.

2Insert the ink tank (label-side up) into the correct slot (refer to the color guide on

the printhead). Press down gently on the ink tank until an audible click is heard.

3Repeat steps 1 and 2 to install the remaining magenta, cyan, and black ink tanks.

4Close the scanning unit until it locks into place.

Be sure to now align the printhead as explained in step 8.

PUSU

Yellow

MadeinJapan

Ink Tank

BCI-3eY

PULL

BCI-3eY

Ink Tank

Align the printhead.

NOTE

• If you will be installing the MultiPASS Suite software, you can also align the printhead

from the software. For details, see p. 10-8 of the Basic Guide.

1When the LCD displays the following, press [Set].

The machine will print a horizontal line pattern, and the LCD will display:

2In column A on the printout, note which box has the most solid image. Note the

value next to this box and use [2] or [3] on the operation panel to enter it.

Then press [Set].

3Repeat step 2 for columns B to F.

4When values for all columns have been entered and the LCD displays the

following, press [#] to return to standby mode.

NOTE

•If streaks appear on the printed

surface when you use the machine,

perform the vertical printhead

alignment. For details, see p. 10-7 of

the Basic Guide.

123

456

789

  





Most solid

box

Least solid

box

BAD

SAMPLE

GOOD

SAMPLE

Column A Value for column A

  



ALIGN PRINT HEAD

PRESS SET KEY

Install the software.

IMPORTANT

• DO NOT connect the USB cable before installing the software.

NOTE

• When installing the software in Windows XP or Windows 2000, log onto the system as a

member of the Administrator group.

• If you have previously installed an earlier version of the MultiPASS Suite software

(version 4.1 or earlier), you must remove it before installing this version. For details on

uninstalling the software, refer to the documentation of the previous version.

1Make sure both your machine and computer are turned on.

2On your computer, close any open applications, including virus checkers.

3Insert the MultiPASS Suite CD-ROM into your CD-ROM drive.

• The setup program should start automatically. If it does not, double-click [My

Computer] in the Windows screen, double-click the CD-ROM icon, then double-click

[csplash] or [csplash.exe].

4When the next screen appears, click

INSTALL MULTIPASS SUITE.

5Follow the on-screen instructions.

6When the message below appears, remove the label Afrom the USB port B

located on the back of the machine. Then connect a USB cable C(not included)

to the machine and computer.

Windows 98/Me/2000 Windows XP

NOTE

•If you cannot continue with

the installation after

connecting the USB cable,

refer to p. 11-1 of the Basic

Guide.

USB label A

• Windows 98/Me/2000 users: Once connected, the USB driver will automatically be

installed.

• Windows XP users: Once connected, the “Found New Hardware Wizard” dialog box

appears. Click [Install the software automatically], then click [Next].

7Follow the on-screen instructions to complete installation.

If you wish to install any other software included in

the CD-ROM, click [Install Easy-PhotoPrint] or [Install

ScanSoft Omnipage SE].

8When installation is complete, restart your computer before using the MultiPASS

Suite software.

Once installed, the MultiPASS Toolbar will be displayed on the desktop:

For details on using the MultiPASS Toolbar, see p. 9-1 of the Basic Guide.

NOTE

• Remember to register your machine to ensure product support.The serial number is

located on the back of the machine.

Congratulations! You have now completed your machine

setup.

Where to from here...

Once you have completed all steps in this Set-Up Sheet, refer to the Basic Guide for

basic operation instructions of all functions of your machine.

If after reading the Basic Guide you require more detailed information, refer to the

Comprehensive Guide or Software Guide (included in the CD-ROM). Part no. HT3-2121-000-V.2.0

Canon, MultiPASS, and BCI are trademarks of Canon Inc.

All other products and brand names are registered

trademarks or trademarks of their respective owners.

Specifications subject to change without notice.

PRINTED IN THAILAND
