Getting

Started

=Read Me First=

Make sure to read this manual before using the machine. Please keep it

hand for future reference.

IIIIIIIIIIIIIIIIIIIIIIIIIIIIIIII~IIII

QT52134VOl

Preparation

Install the

FINE

Cartridges

Set Up for Fax Reception

Install the Software

8Loading Paper

(After Installing the Machine )

•

Symbols

The following symbols are used to mark important instructions. Observe

these instructions.

ACaution

Instructions that, if ignored, could result

personal injury or

material damage.

Instructions that must

observed for safe operation.

Additional explanations.

Descriptions for operations that take some time

complete.

•Microsoft is aregistered trademark of Microsoft Corporation.

•Windows

atrademark or registered trademark of Microsoft Corporation

the U.S.

and/or other countries.

•Windows Vista is atrademark or registered trademark

Microsoft Corporation

the

U.S. and/or other countries.

•Macintosh and Mac are trademarks ofApple Inc., registered

the U.S. and other

countries.

Model Number: K10332 (MX330)

•

Check

the Included

Items

Choosing

Location

~------------

•

not install the machine where

object may fall

it.

The

object may fall into the Rear

Tray,

resulting

malfunction.

•Do not place any object

the Document Cover.

may

fall into the Rear Tray when opening the Document Cover,

resulting

malfunction.

telephone line cable

power cord

Black

FINE cartridges

Color

•Manuals

•Setup CD-ROM (containing the drivers, applications and on-screen manuals)

•Warranty

w _

• A USB cable is necessary to connect the machine with your computer.

Open the Paper Output

Tray (A). Lift the Scanning Unit (Cover) (B) until it

locks into place.

The Scanning Unit Support (C) is fixed

automatically.

Pull the orange protective tape

(0)

and remove the protective

material (E).

Then, lift the Scanning Unit (Cover) (B) slightly

and fold the Scanning Unit Support (C), then

gently close the Scanning Unit (Cover) (B).

For other connection methods, refer to the on-

screen manual:

Basic

Guide.

use the machine as afax, atelephone

line needs to be connected.

This section describes the basic method

telephone line connection.

Only when connecting atelephone:

Remove the telephone connector cap (8), then

connect atelephone with the telephone line

cable.

Connect the machine with atelephone line using the

supplied telephone line cable (A).

When using as afax only:

to "4 Turn the Power On" on page 4.

to "4 Turn

the Power On"

on page 4.

_',

When not using

as afax:

1'"

When using as

',R",'~",

both afax and

telephone:

1:,

", When using as

afax only: , .

Oonly

~---------

•If you cannot send faxes after installing the

machine, check the telephone line type. For

details, refer to "Confirming the Telephone Line

Connection"

the on-screen manual:

Basic

Guide.

~----------

•

not connect the machine and atelephone

parallel

the same telephone line using adistribution adapter.

The machine may not operate properly.

:Set the

ink

cartridge

The standby screen is

displayed.

81Janguage

selection.

Englil;;h

Deutsch

!!an_l~ais

itallano

espaAol

I'Jederlands

E+JI"Set

Use the

or'"

button (C) on the Operation

Panel

select the language for the LCD, then

press the

button.

•If

unintended language

displayed on the LCD, press the Back button (D) to return to the

Language selection screen.

~------------------

•Make sure that the Document

Cover (B) is closed.

~------

ITurn on the machine (A).

(

Plug the power cord into the left side

the machine, then connect the other end

to the wall outlet.

•Do NOT connect the USB cable at this stage.

~---------

Lift the Scanning Unit (Cover) (A) until it locks into place.

Close the Document Cover (D) and lift it with the Scanning Unit (Cover).

The Scanning Unit Support (E) is fixed automatically.

The FINE Cartridge Holder (F) comes out. (This is where you install the cartridges.)

~---------

oHandle the FINE Cartridges carefully.

not

drop or apply excessive pressure to them.

oBe sure

use the supplied FINE Cartridges.

~----------------------

oIf the FINE Cartridge Holder returns to the right, close the Scanning Unit (Cover) and reopen

it.

oIf the FINE Cartridge Holder does not come out, make sure that the machine

turned

on.

Open the Ink Cartridge Locking Cover ®on the right side.

Pinch (G) firmly and pull up the cover.

Remove the Black FINE Cartridge

®from its box. Pull the orange protective tape (H)

the direction

the arrow and remove

gently.

~----------------------

•

careful not to stain your hands or surrounding work area with ink

the removed protective tape.

2".3"

Place the Black FINE Cartridge ®into the right slot ®'

~------------------

•

not knock the FINE Cartridge against the sides of the holder.

•Install

awell-lit environment.

•Install the Black FINE Cartridge into the right slot,

and

the Color FINE Cartridge into the left

slot.

,Push down ®

the Ink Cartridge Locking Cover until you hear aclick to

close it completely.

View the Ink Cartridge Cover ®straight on and check that it is locked correctly (not

an angle).

Insert the Color FINE Cartridge ©into the left FINE Cartridge Holder ©

the same

way.

eco v

cOPiesiQI:~

()

100%

~DI~_~

8.5"x

"(L

TR)

Plain

paper

Stan,jard

mU+Start

copy

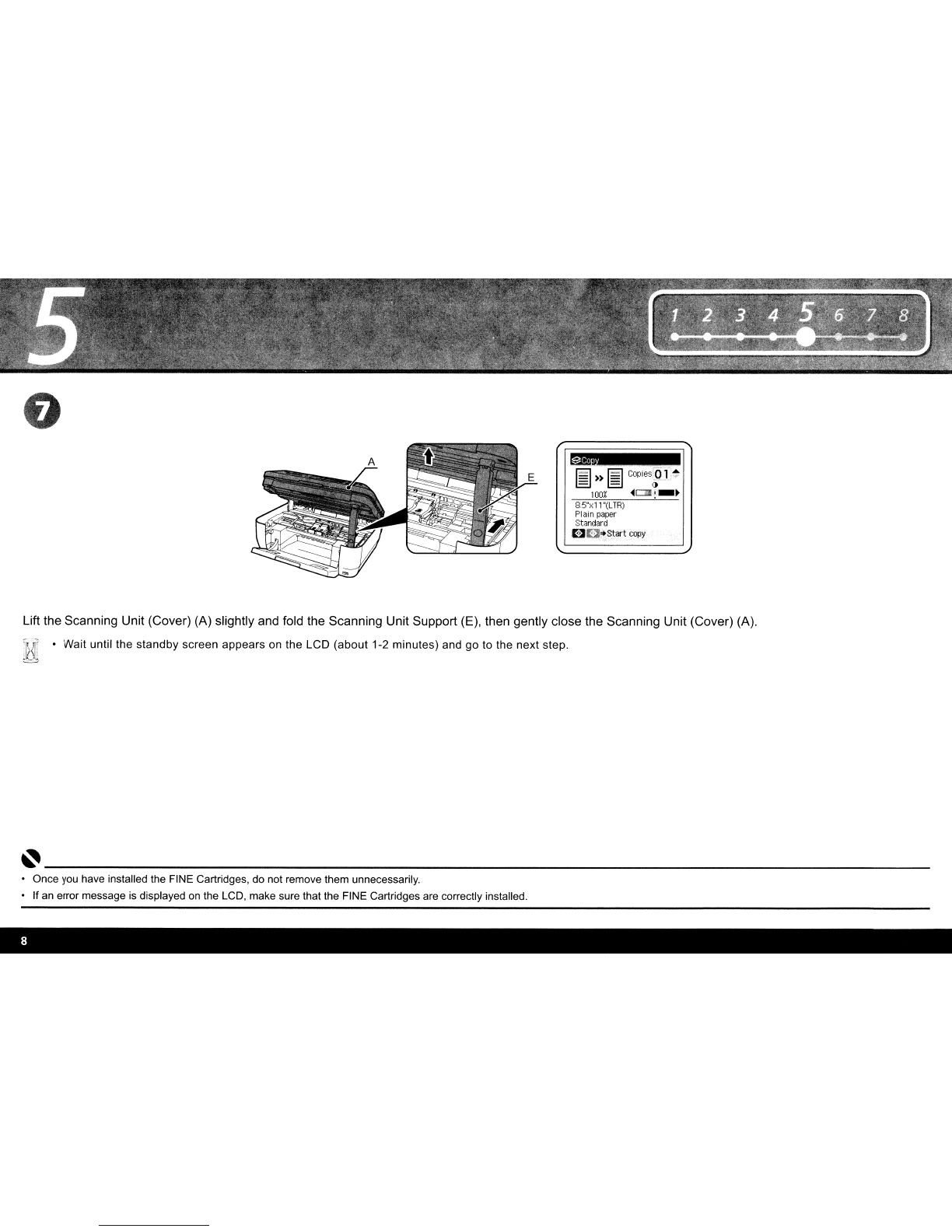

Lift the Scanning Unit (Cover) (A) slightly and fold the Scanning Unit Support (E), then gently close the Scanning Unit (Cover) (A).

•Wait until the

standby

screen

appears

the

LCD

(about

1-2 minutes) and

to the

step.

~------------------------------------

•Once

you

have installed the FINE Cartridges,

not remove them unnecessarily.

•If

error message

displayed

the

LCD,

make sure that the FINE Cartridges are correctly installed.
