Plug-inModule FS 3.6

for CanoScan FS2710/CanoScan 2700F Film Scanner

Users Guide

f o r M a c i n t o s h

How to Use this Guide

This guide describes how to use the Canon Plug-in module FS for Canon film scanners

(CanoScan FS2710/CanoScan 2700F).

Plug-in module FS is a plug-in module which can be used with Adobe®

Photoshop®(hereafter referred to as Photoshop). A plug-in module is used within an

application program to expand its functionality and cannot be used as a stand-alone

application. Before you use Plug-in module FS, read this guide and keep it close at hand

so you can use it for reference.

Where to Look

Quick Start Instructions p. 8

The Quick Start Instructions are a brief summary of commands and procedures that

will assist in using Plug-in module FS immediately.

Installing Plug-in module FS (Required Reading) p. 11

All users should read this section to learn the procedures for installing Plug-in module

FS software.

Scanning Preparations (Required Reading) p. 15

All users should read this section to learn the procedures for adjusting film type,

magnification and scan mode settings in preparation for scanning.

Scanning (Required Reading) p. 37

All users should read this section to learn the procedures for scanning and saving images.

Adjusting and Editing Scanned Images (Optional Reading) p. 44

Read this section as necessary to learn how to adjust image attributes, such as

brightness and color tone.

About the Conventions Used in this Guide

The following symbols appear in this guide.

CAUTION:

This symbol is used to highlight procedural precautions and limitations. Always

read these topics to avoid errors.

HINT:

This symbol is used to present helpful hints and supplemental information.

Reading these topics is recommended to enhance your enjoyment of

Plug-in module FS.

Table of Contents

How to Use this Guide ........................................................................................... 2

Table of Contents ................................................................................................... 3

Control Panel Features ........................................................................................... 5

Scanning Procedures .............................................................................................. 6

Plug-in module FS Special Features ......................................................................... 7

Quick Start Instructions .......................................................................................... 8

STEP 1 Installing Plug-in module FS ........................................................ 11

Installing Plug-in module FS .................................................................................. 12

STEP 2 Scanning Preparations ................................................................ 15

Displaying the Plug-in module FS Control Panel .................................................... 16

Selecting a Film Type ............................................................................................ 18

Previewing ........................................................................................................... 19

Setting the Scan Mode ......................................................................................... 20

Selecting the Output Device ................................................................................. 23

Setting the Magnification ..................................................................................... 24

Setting Preferences............................................................................................... 26

Output Device ................................................................................................. 26

Aspect Ratio.................................................................................................... 28

Unit ................................................................................................................ 30

Preview Window Size ...................................................................................... 31

Selecting the Scan Settings.............................................................................. 32

Return to Default Settings ............................................................................... 33

Setting the Auto Eject Function ............................................................................ 34

Verifying the Image Before Scanning .................................................................... 35

STEP 3 Scanning ....................................................................................... 37

Scan Area Settings ............................................................................................... 38

Zooming .............................................................................................................. 39

Scanning .............................................................................................................. 41

Rotating or Reversing Images Before Scanning ..................................................... 42

Saving Scanned Images ........................................................................................ 43

STEP 4 Adjusting and Editing Scanned Images ..................................... 44

Optimum Adjustments for Image Quality ............................................................. 45

Color Correction .................................................................................................. 46

Color Correction - Histogram Setting.................................................................... 48

Color Correction - Brightness and Contrast Settings ............................................. 50

Color Correction - Color Balance .......................................................................... 52

Color Correction - Tone Curve Settings ................................................................. 54

Color Correction - Gamma Value Settings ............................................................ 56

Color Correction - Threshold ................................................................................ 58

Film Correction - Focus Correction........................................................................ 60

Film Correction — Exposure Adjustment .............................................................. 62

Auto Tone Correction (ColorSync™) ..................................................................... 64

Saving / Recalling Settings .................................................................................... 65

Editing Scanned Images ....................................................................................... 67

Appendices................................................................................................ 68

Troubleshooting ................................................................................................... 69

Error Messages ..................................................................................................... 71

List of Film Types <2700F only> ............................................................................ 72

Glossary ............................................................................................................... 73

Index (A - F) ......................................................................................................... 75

Index (G - S) ......................................................................................................... 76

Index (T - Z) .......................................................................................................... 77

Canon Customer Support Help Desk .................................................................... 78

HINT

In this guide, menu items are marked in the following manner:

Select [Load] from the [File] menu.

Control Panel Features

Refer to the following pages for descriptions of the control panel menus and buttons

that you will be using in Plug-in module FS.

Zoom In Button ➜p. 39

Zoom Out Button ➜p. 40

Eject Button ➜p. 34

180˚ and 90˚ Clockwise Rotation, 90˚ Counterclockwise

Rotation, and Reverse Buttons ➜p. 42

➜p. 61

➜p. 34

➜p. 62

➜p. 26

Close Box

➜p. 16

Preview

Window

➜ p. 19

➜p. 18

➜p. 20

➜p. 23

➜p. 24

➜p. 30

➜p. 22

➜p. 46

➜p. 64

➜p. 65

Auto Correction Button ➜p. 49

Color Correction Button ➜p. 46

Browser Button ➜p. 35

Zoom Reset Button ➜p. 40

Preview Button

➜p. 19

Scan Button

➜p. 41

Scanning Procedures

Follow these procedures to use Plug-in module FS.

STEP 3

STEP 2

STEP 1

Has the scanner been attached?

Prepare for Scanning ➜ p. 15

•

Select a Film Type

•

Preview

•

Set the Scan Mode

•

Select the Output Device

•

Set the Magnification

•

Set Preferences

•

Set the Auto Eject Function

p. 18

p. 19

p. 20

p. 23

p. 24

p. 26

p. 34

•

Scan Area Settings

•

Zooming

•

Scanning

•

Rotate or Revers the Image

Before Scanning

•

Save the Scanned Image

If the current brightness

and color pose no problem,

there is no need to adjust

these settings.

Scan ➜ p. 37

Adjust and Edit Scanned Images

➜ p. 44

Verify the Image Before Scanning

(Browser Window) ➜ p. 35

Are the Brightness and Color Satisfactory?

Refer to the Getting Started

Guide that accompanied

your scanner for attachment

instructions.

p. 38

p. 39

p. 41

p. 42

p. 43

•

Histogram

•

Brightness and Contrast

•

Color Balance

•

Tone Curve

•

Gamma Value

•

Threshold

•

Focus Correction

•

Exposure Adjustment

•

Auto Tone Correction

p. 48

p. 50

p. 52

p. 54

p. 56

p. 58

p. 60

p. 62

p. 64

Install the Plug-in module FS Software ➜ p. 11

STEP 4

Plug-in module FS Special Features

• See the Results of Adjustments Immediately (Dynamic Preview)

Once in preview mode, the results of adjustments to scan mode settings and colors are

promptly reflected in the preview image. Highly detailed adjustments can be performed

easily because you can see the results of your changes as they are executed.

▼ ▼ ▼

• Supports ColorSync™ 2.0 Auto Tone Correction

Supports the ColorSync™ function. Achieves superior color quality by automatically

compensating for and aligning the tones of various devices, such as scanners, color

displays and color printers.

▼ ▼ ▼

• Browser Function Permits Confirmation of the Real Image

Before Scanning

The Browser function lets you check the image to be scanned in detail before com-

mencing the scan. This function presents a much higher quality image than the pre-

view function.

▼ ▼ ▼

• Histogram Function Generates Clear Contrast

Easy procedures produce half-tone gradations that are remarkably crisp and clear.

▼ ▼ ▼

• Tone Manipulation Function Lets You Fine-Tune Color

Balance colors with the Tone Curve. Plug-in module FS provides you with three ways to

set the Tone Curve and achieve accurate, detailed color balance.

▼ ▼ ▼

• Edit Scanned Images With Adobe Photoshop

Images scanned with Plug-in module FS can be processed directly by Adobe Photoshop

because Plug-in module FS is a plug-in module used within the Photoshop program.

Quick Start Instructions

Those who wish to start scanning immediately should follow the procedures below. If

you require further information at any stage, read the pages referenced at each step.

Installing Plug-in module FS p. 12

1. Install Plug-in module FS.

(1) Place the CanoScan Setup Utility CD-ROM in the CD-ROM Drive.

(2) Follow the instructions on the screen to complete the installation of

PhotoShop LE and Plug-in module FS.

Starting Plug-in module FS p. 17

1. Select [CanonPI FS 3.6] from within Photoshop and display the

Plug-in module FS control panel.

• Plug-in module FS is a plug-in module and cannot be run as a stand-

alone application. Photoshop Ver. 3.0 or later or Photoshop LE pro-

vided with the package must be previously installed before you can run

Plug-in module FS.

Selecting the Film Type p. 18

1. Select the film type that you intend to use.

Previewing p. 19

1. Place the film in the scanner.

2. Click on the [Preview] button.

• Plug-in module FS will read the film and show the results in the Preview

window.

Preview Window

➟

Determining the type of image that is required. pp. 20 - 34

• Here are a few things you should consider when you determine the

type of image you need.

Image type (p. 18), Output device (p. 23), Size (p. 24),

Preferences (p. 26), Film position after scanning (p. 34)

Verifying Image Quality with the Browser Function Before Scanning

p. 35

1. Click on the [Browser] button.

• The selection tool will appear on the Preview window to enable a

portion of the image to be selected.

2. Move the selection tool to specify the area of the image you

want verified and click the mouse button.

• Plug-in module FS will read the image and display the browser image.

3. After you have examined the browser image, click the mouse

anywhere.

• The browser image will close.

Specifying the Area of the Image to be Scanned p. 38

1. Select the area to be scanned by clicking and dragging the

mouse pointer over the image.

• You may find it convenient to use the zoom feature to select small areas

or to select specific scan areas with precision (p.39).

➟

Pointer

When you move the

pointer, the selected frame

also moves.

Selection Frame

10 10

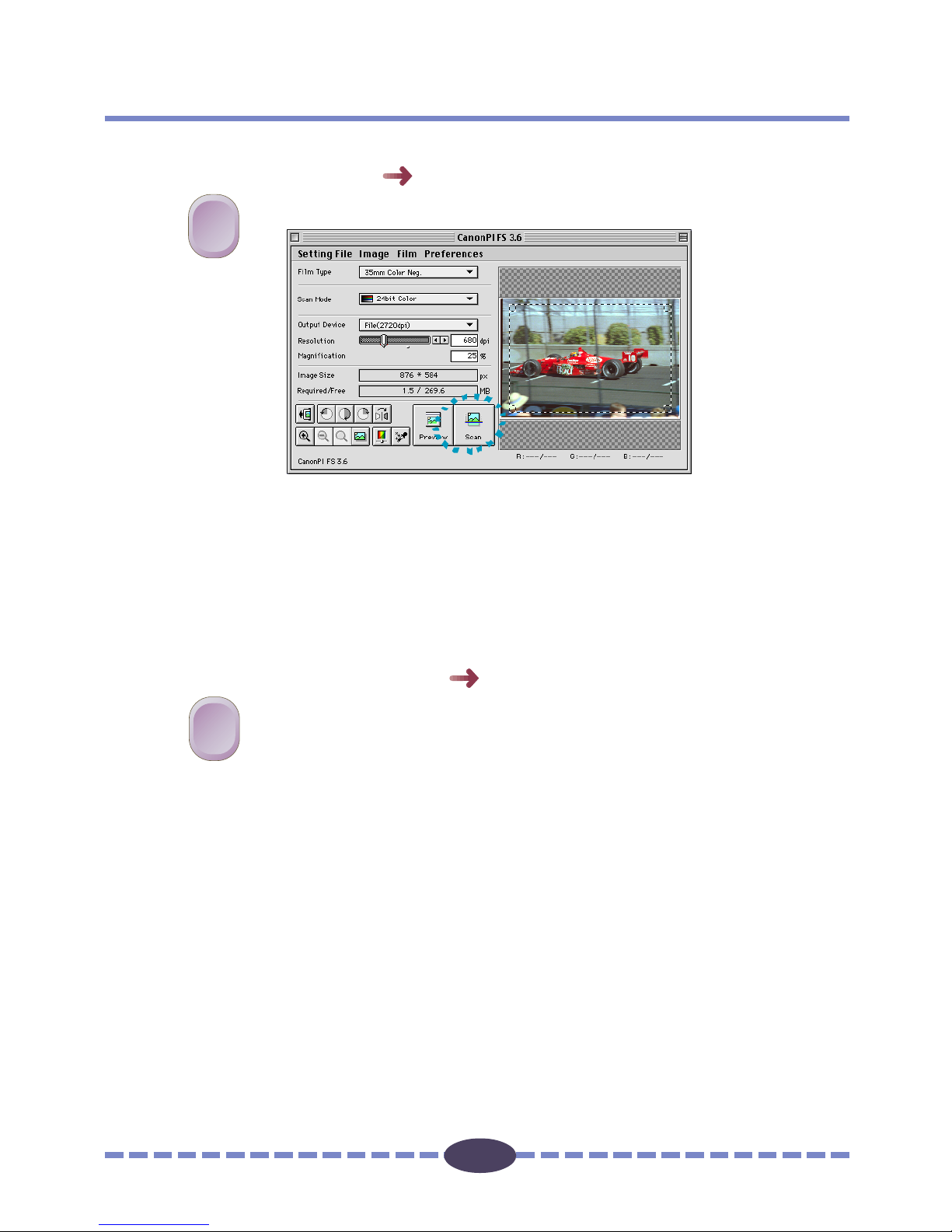

Scanning the Image p. 41

1. Click on the [Scan] button.

• Plug-in module FS will scan the image.

• When the image is acquired, the control panel closes if it is set for

closing after scanning in Plug-in module FS. If the control panel is not

set for closing after scanning in Plug-in module FS, the control panel

remains open so you can continue to scan. (p. 27)

• You may rotate the image using Plug-in module FS and then initiate the

scan (p. 42).

Saving the Scanned Image p. 43

1. Save to the target folder with the file name, file type, and

other file options you have selected in Photoshop.

➟

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali Canon Software

Canon

Canon HV10 - Camcorder - 1080i Manuale utente

Canon

Canon REALIS WUX10 MARK II D Manuale utente

Canon

Canon PowerShot SD880 IS Digital ELPH Istruzioni per il montaggio

Canon

Canon SELPHY CP760 Guida rapida

Canon

Canon CanoScan FB 1200S Manuale utente

Canon

Canon CanoScan D646U Manuale utente

Canon

Canon 40D - EOS 40D DSLR Guida di sicurezza

Canon

Canon Powershot S80 Guida di sicurezza

Canon

Canon Optura 30 - Optura 30 MiniDV Camcorder Manuale utente

Canon

Canon Selphy CP510 Istruzioni per il montaggio

Canon

Canon Cloud Portal Manuale utente

Canon

Canon PowerShot A40 Istruzioni per il montaggio

Canon

Canon Optura 200 MC Manuale utente

Canon

Canon 1629B001 - XH G1 Camcorder Manuale utente

Canon

Canon Selphy CP600 Istruzioni per il montaggio

Canon

Canon EOS 30D - 8.2MP Digital SLR Camera Manuale utente

Canon

Canon DR-5060F Manuale utente

Canon

Canon ELURA 100 - Camcorder - 1.3 MP Manuale utente

Canon

Canon ZR90 Manuale utente

Canon

Canon 9540A003 - Optura 400 Camcorder Manuale utente

Canon

Canon PowerShot SD10 Digital ELPH Istruzioni per il montaggio

Canon

Canon VIXIA HR10 Manuale utente

Canon

Canon FAXPHONE L170 Guida rapida

Canon

Canon 28 135 - EOS 50D 15.1MP Digital SLR Camera Manuale utente

Manuali Software popolari di altre marche

COMPRO

COMPRO COMPROFM Manuale utente

Muratec

Muratec OFFICEBRIDGE ONLINE Manuale utente

Oracle

Oracle Contact Center Anywhere 8.1 Manuale utente

Adobe

Adobe 65007312 - Photoshop Lightroom Manuale

Avaya

Avaya NULL One-X for RIM Blackberry Manuale utente

HP ProLiant BL420c Manuale utente

PS Audio

PS Audio PowerPlay Manuale del proprietario

Brady

Brady LOCKOUT PRO 3.0 Manuale di servizio

Avaya

Avaya Interaction Center Manuale utente

Texas Instruments

Texas Instruments TI-83 Plus Silver Edition Manuale

Novell

Novell GROUPWISE 8 - INTERNET AGENT Manuale utente

Oracle

Oracle Application 9i Manuale utente

Acer

Acer RDM Manuale utente

Samsung

Samsung Auto Backup Manuale utente

Polycom

Polycom Vortex EF2201 Istruzioni per l'installazione e il funzionamento

Brocade Communications Systems

Brocade Communications Systems Brocade 8/12c Manuale utente

Novell

Novell SP2 - S Manuale di istruzioni

Lexmark

Lexmark Apps Manuale di servizio
