Introduction
"Projector Monitoring Software" (hereafter referred to as "this software") is a software that uniformly
manages network-connected compliant Canon Projectors, via network. Operating conditions and
maintenance information of up to 253 projectors can be monitored and managed.
This manual describes the introduction of this software, and its routine operation.
Microsoft, Windows, Windows XP, Windows Vista and .NET Framework are registered trademarks•
or trademarks of Microsoft Corporation in the United States and/or other countries.
Table of Contents
CHAPTER 1 • Introduction.................................................................................................. 3
1.1 Introduction Process.....................................................................................3
1.2 System Requirements ...................................................................................4
1.3 Installing the Software ..................................................................................4
1.4 Conguring the Network Settings of the Software..................................... 5
1.4.1 Starting the Software ......................................................................... 5
1.4.2 ConguringtheDiscoverySettings.................................................... 5
1.4.3 ConguringthePollingIntervalSettings..........................................10
CHAPTER 2 • Routine Operation ..................................................................................... 11
2.1 Running the Software.................................................................................. 11
2.2 Exiting the Software .................................................................................... 11
2.3 Main Screen.................................................................................................. 12
2.4 Using the Projector Group List ..................................................................13
2.4.1 About Projector Groups ................................................................... 13
2.4.2 Creating a Projector Group..............................................................13
2.4.3 Changing Projector Group Settings .................................................15
2.4.4 DeletingaProjectorGroup ..............................................................16
2.5 Using the Projector List .............................................................................. 17
2.5.1 ConrmingtheStatusofaProjector................................................17
2.5.2 Entering Comments ......................................................................... 18
2.5.3 DisplayingtheProjectorSettingsdialog ..........................................19
2.5.4 Setting the Projector List.................................................................. 19
2.5.5 DiscoveringProjectors.....................................................................20
2.5.6 RefreshingProjectorInformation .....................................................20
2.5.7 Setting the Protocol of a Projector ...................................................21
CHAPTER 3 • Appendix.....................................................................................................22
3.1 Troubleshooting...........................................................................................22
3.2 WUX10 Usage Precaution ...........................................................................24
3.3 LV Series Projectors Usage Precaution ....................................................24
COPY
3
CHAPTER1•Introduction
IntroductionCHAPTER 1
Introduction Process1.1
Prepare for introduction of this software as shown below.
1 Preparing an administrative
computer
Prepare an administrative computer that is
connected to a network. Projectors connected to
the local area network can be managed.
Ifthe networkismanagedunderasubnet,
network settings on the administrative computer
mustbeconguredtogainaccesstothetarget
projector. Contact the system administrator for
details.
▼
2 Preparing the Projector Connect a projector for management to the
network,and configureits networksettings. In
addition,youmustconguretheSNMPsettings
of the projector when using SNMP protocol. For
proceduresonconguringtheprojector,seethe
instruction manual that came with the projector.
▼
3 Installing the Software Installthis softwareontotheadministrative
computer.
(see p. 4, 1.3 Installing the Software)
▼
4 Conguring Network
Settings of the Software
Configure the protocol settings and the polling
interval settings for discovery.
(see p. 5, 1.4 Conguring the Network Settings
of the Software)
COPY
4
CHAPTER1•Introduction
System Requirements1.2
To install this software on a computer, following requirements must be met.
Category Essential Requirements
OS Microsoft Windows XP Professional SP2 or later,
Microsoft Windows Vista Ultimate
Supported Languages Japanese, English
CPU IntelPentium42.4GHzorbetter
Memory 1 GB or more
Display XGA or more
.NET Framework Windows XP: .NET Framework 2.0 SP1 or more
Windows Vista : .NET Framework 3.0 or more
Installing the Software1.3
Installthis softwarewith thefollowing procedures.Youmust haveauthorization asa
Computer Administrator to install programs.
Run the installer for this software.
1
Follow the instructions provided by the installer to proceed with the installation.
2

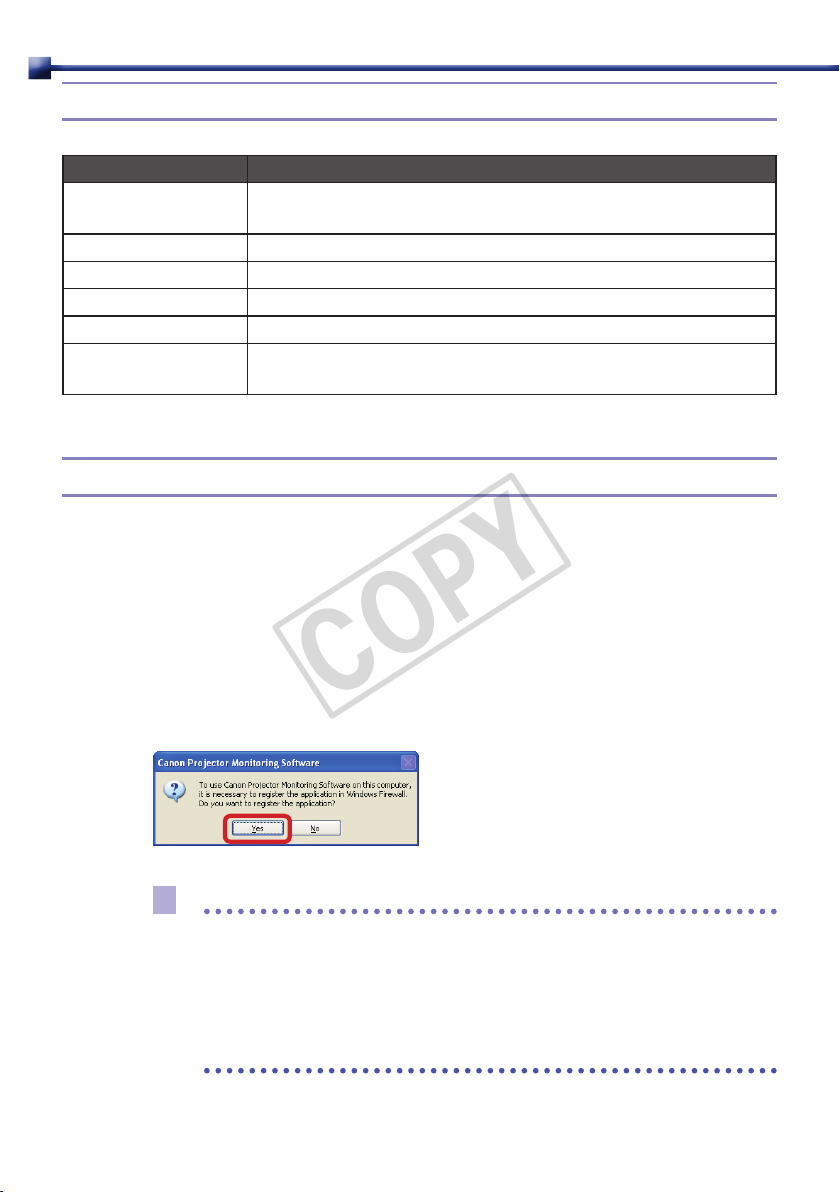

Duringinstallation, besure toregister thissoftware inWindows Firewallto allow
communication with the projector. Click [OK] if the following dialog displays.
Note
If.NETFramework versionerrordisplays,stoptheinstallation.Install-
the latest version of .NET Framework using Windows Update, and then
reinstall this software.
To uninstall this software, click the Windows [Start] menu, select [Control-
Panel], and [Add or Remove Programs]. Select the name of this software in
the list, and click [Remove].
COPY
5
CHAPTER1•Introduction
Conguring the Network Settings of the Software1.4
Wheninstallationofthissoftwareiscomplete,runthesoftwareandcongurethediscovery
settings of the network for discovery.
Starting the Software1.4.1
Click the Windows [Start] menu and select [All Programs], followed by
1
[Projector Monitoring Software] and [Projector Monitoring Software].
Main screen of this software will display.
Conguring the Discovery Settings1.4.2
Congurethenetworkrangefordiscoveringprojectors.Methodsvarydependingon"SNMP
V1/V2c/V3"and"LVSeries".Congureeachprotocolsrespectively.
For SNMP V1/V2c/V3■
When using "SNMP V1" / "SNMP V2c" / "SNMP V3", you can specify a broadcast address or
IPaddressrangefordiscovery.Selectaprotocoltypeandconguretherangefordiscovery.
CongureSNMPV1/V2c/V3withthefollowingprocedures.Congurationcanbedonewith
the same procedures. SNMP V3 is used in this example.
From[Discoverysettings]ofthe[Option]menu,selectanameofprotocol
1
([SNMPV1]/[SNMPV2c]/[SNMPV3])tocongure.
[Discoverysettings]dialogwilldisplay.

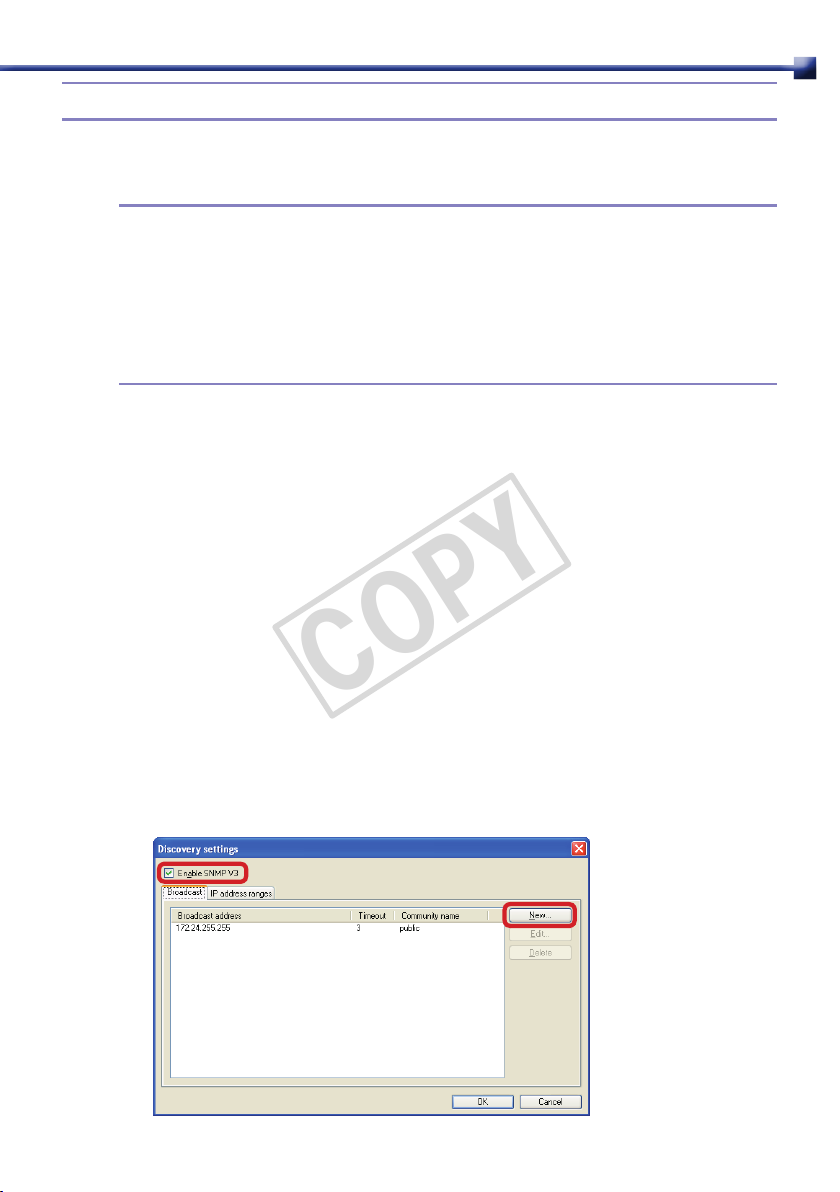

Place a checkmark in [Enable (Protocol Name)].
2
Remove a checkmark if protocol is not used for discovery.
COPY
6
CHAPTER1•Introduction
Tocongureabroadcastaddress,selectthe[Broadcast]tabandclickthe[New]
3
button.
[Specify broadcast discovery settings] dialog will display.
Note
As default, broadcast settings configured on the network card of the-
administrative computer will display in the discovery range list.

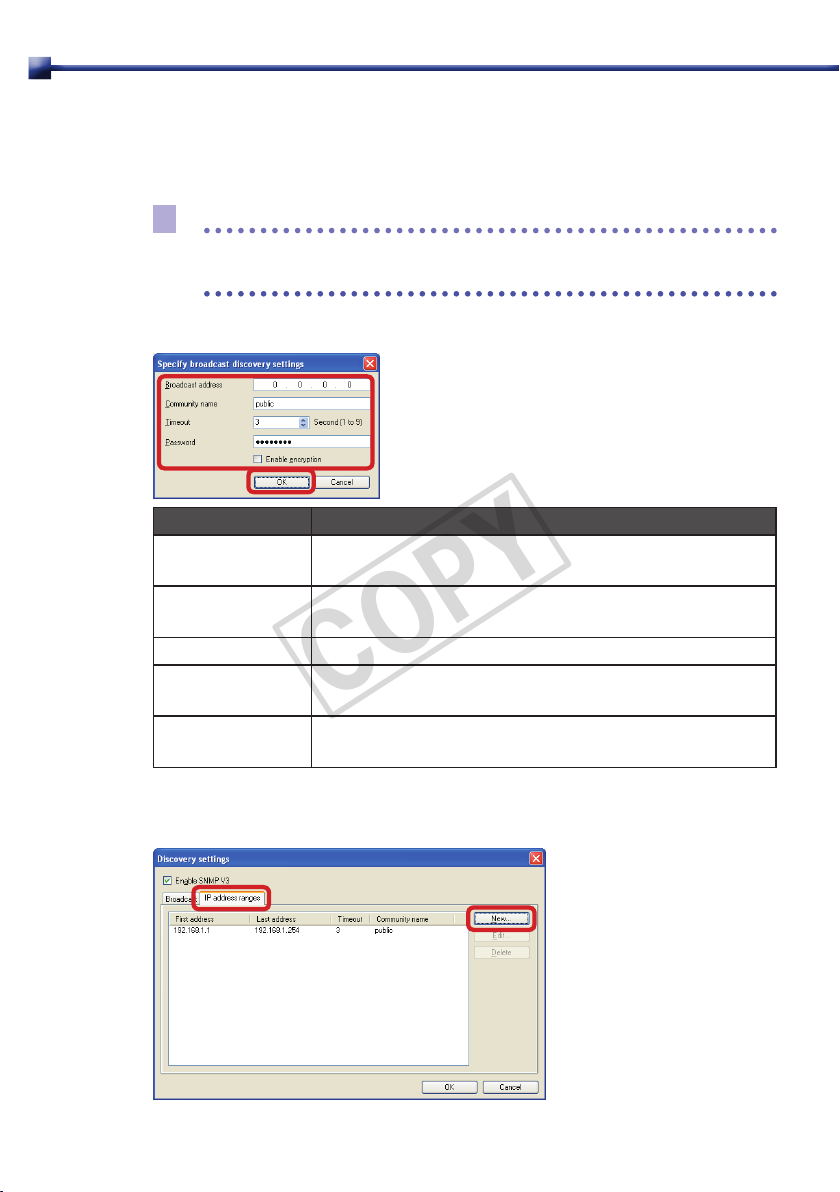

Complete the dialog with necessary information and click the [OK] button.
4
Category Description
Broadcast address Enter a broadcast address of the network to discover in "XXX.
XXX.XXX.XXX" form.
Community Name Enter a community name within 15 one-byte alphanumeric
characters and symbols.
Timeout Enter a number of seconds to time out, from 1 to 9.
Password
(SNMP V3 only)
Enter a password within 8 to 15 one-byte alphanumeric
characters and symbols.
Enable encryption
(SNMP V3 only)
Place a checkmark if encrypted. Remove a checkmark if not.
TospecifyanIPaddressrange,selectthe[IPaddressranges]tabandclick
5
the [New] button.
[SpecifyIPaddressrange]dialogwilldisplay.
COPY
7
CHAPTER1•Introduction

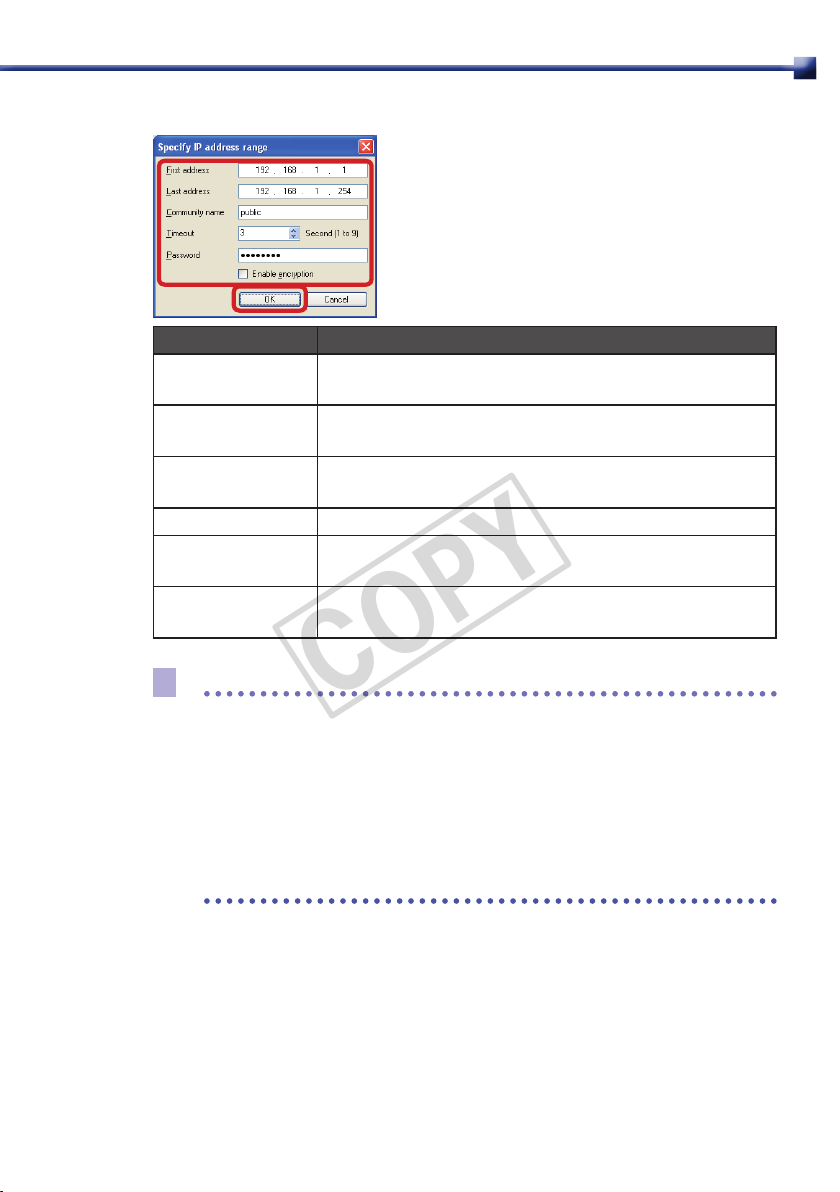

Complete the dialog with necessary information and click the [OK] button.
6
Category Description
First address EnterafirstIPaddressintherangefordiscovery,in"XXX.
XXX.XXX.XXX" form.
Last address EnteralastIPaddressintherangefordiscovery,in"XXX.XXX.
XXX.XXX" form.
Community name Enter a community name within 15 alphanumeric characters
and symbols.
Timeout Enter a number of seconds to time out, from 1 to 9.
Password
(SNMP V3 only)
Enter a password within 8 to 15 one-byte alphanumeric
characters and symbols.
Enable encryption
(SNMP V3 only)
Place a checkmark if encrypted. Remove a checkmark if not.
Note
An error message will appear and settings will not be registered if a value-
ofanentryisinvalidorinsufcient.Correctitasrequired.
Entries will be cancelled if [X] (Close) or [Cancel] button is clicked before-
clicking the [OK] button.
To change a discovery range, select an item from the discovery range list-
andclickthe[Edit]buttontorecongurethesettings.
To delete an unnecessary discovery range, select an item from the-
discoveryrangelistandclick[Delete].
COPY
8
CHAPTER1•Introduction
For LV Series■
WhenusingLVseries,specifyanIPaddressoftheprojectorfordiscovery.
Note
WithLVseries,youcannotdiscoverusingbroadcastaddresses orIP-
address ranges.
WithLVseries,itisrecommendedtouseafixed IPaddressfor the-
projector.IfDHCPisconguredtoautomaticallyassignIPaddresses,you
willneedtorecongurethis softwareeverytimethe projector'sIPaddress
changes.
CongureLVserieswiththefollowingprocedures.
From[Discoverysetting]ofthe[Option]menu,select[LVseries]tocongure.
1
[Discoverysettings]dialogwilldisplay.
Place a checkmark in [Enable LV series].
2
Remove a checkmark if it is not used for discovery.
Selectthe[IPaddress]tabandclickthe[New]button.
3
[SpecifyIPaddress]dialogwilldisplay.
COPY
9
CHAPTER1•Introduction
Complete the dialog with necessary information and click the [OK] button.
4
Category Description
IPaddress EnteranIPaddressoftheprojector,in"XXX.XXX.XXX.XXX"form.
Port number Enteraportnumbertobeused,inone-bytenumbers.Default
value is set to "7142."
Timeout Enter a number of seconds to time out, from 1 to 9.
Note
An error message will appear and settings will not be registered if a value-
ofanentryisinvalidorinsufcient.Correctitasrequired.
Entries will be cancelled if [X] (Close) or [Cancel] button is clicked before-
clicking the [OK] button.
TochangeanIPaddress,selectanitemfromthediscoveryrangelistand-
clickthe[Edit]buttontorecongurethesettings.
TodeleteanunnecessaryIPaddress,selectanitemfromthediscovery-
rangelistandclick[Delete].
Projectorsmay doublydisplaywhentheIPaddressofaprojectoris-
changed.Inthiscase,deletetheprojectorwithanoldIPaddress.
COPY
10
CHAPTER1•Introduction
Conguring the Polling Interval Settings1.4.3
Defaultpolling intervalforthissoftwareissetto"Notspecied"fordiscovering projectors,
and "1 hour" for receiving status of the projector.
Change the polling interval with the following procedures.
Select [Polling interval settings] from the [Option] menu.
1
[Polling interval settings] dialog will display.

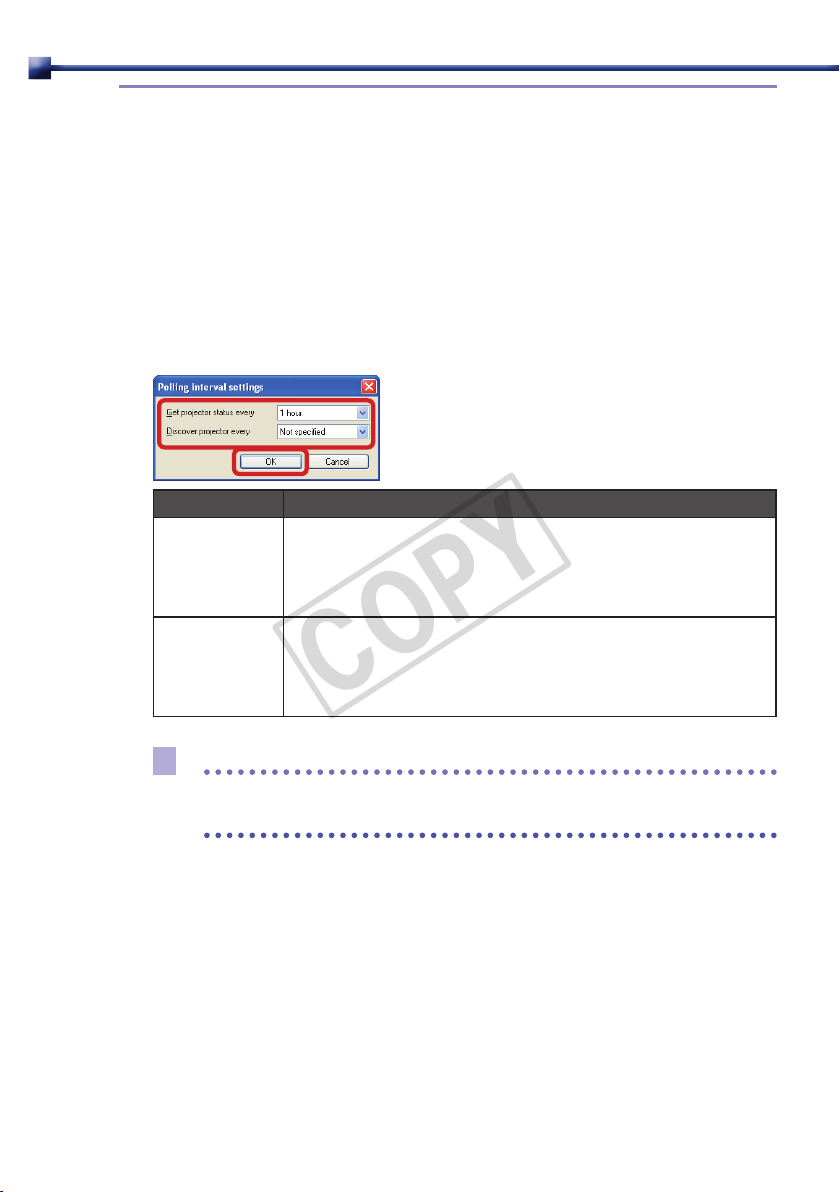

Select a polling interval from the pop-up menu beside [Get projector status
2
every]and[Discoverprojectorevery],andclick[OK].
Category Description
Get projector
status every
Select a polling interval from "10 minutes/15 minutes/30 minutes/1
hour/Notspecified",forreceivingstatusoftheprojector.If"Not
specied"ischosen,pollmanuallywith[Refreshprojectorstatus]
from the [View] menu.
Discover
projector every
Select a polling interval from "1 hour/2 hour/3 hour/6 hour/12
hour/24hour/Notspecied",fordiscoveringnewprojectors. If"Not
specied"ischosen,pollmanuallywith[Discoverprojector]fromthe
[View] menu.
Note
Settings will be cancelled if [X] (Close) or [Cancel] button is clicked before-
clicking the [OK] button.
COPY
Altri manuali per REALiS SX80 Mark II D
7
Questo manuale è adatto per i seguenti modelli
5
Indice
Altri manuali Canon Software
Canon
Canon PowerShot G3 Manuale utente
Canon
Canon VIXIA HF11 Manuale utente
Canon
Canon EOS-1D Manuale utente
Canon
Canon EOS 5D Mark II - EOS 5D Mark II 21.1MP Full Frame CMOS Digital SLR... Manuale utente
Canon
Canon FS10 Manuale utente
Canon
Canon Elura 60 - Elura 60 MiniDV Camcorder Manuale utente
Canon
Canon DC22 - 2.2MP DVD Camcorder Manuale utente
Canon
Canon WebView LivescopeMV Manuale utente
Canon
Canon 3508B001 - PowerShot D10 Digital Camera Guida di sicurezza
Canon
Canon CanoScan FS4000US Manuale utente
Canon
Canon PowerShot A520 Istruzioni per il montaggio
Canon
Canon 0286B001 - Optura S1 Camcorder Manuale utente
Canon
Canon Powershot S2 IS - Powershot S2 IS 5MP Digital... Manuale utente
Canon
Canon HV10 - Camcorder - 1080i Manuale utente
Canon
Canon EOS Digital Photo Professional Manuale utente
Canon
Canon Studio Solution Manuale utente
Canon
Canon ELURA 100 - Camcorder - 1.3 MP Manuale utente
Canon
Canon CR-DGi Manuale utente
Canon
Canon POWERSHOT A75 Guida di sicurezza
Canon
Canon PowerShot A200 Istruzioni per il montaggio
Manuali Software popolari di altre marche
PS Audio
PS Audio PowerPlay Manuale del proprietario
Brady
Brady LOCKOUT PRO 3.0 Manuale di servizio
Avaya
Avaya Interaction Center Manuale utente
Texas Instruments
Texas Instruments TI-83 Plus Silver Edition Manuale
Novell
Novell GROUPWISE 8 - INTERNET AGENT Manuale utente
Oracle
Oracle Application 9i Manuale utente
Acer
Acer RDM Manuale utente
Samsung
Samsung Auto Backup Manuale utente
Polycom
Polycom Vortex EF2201 Istruzioni per l'installazione e il funzionamento
Brocade Communications Systems
Brocade Communications Systems Brocade 8/12c Manuale utente
Novell
Novell SP2 - S Manuale di istruzioni
Lexmark
Lexmark Apps Manuale di servizio
