Caple C995T Manuale utente
GB
Instruction manual for
TEPPANYAKI
Model code: C995T
Contact Caple on 0117 938 7420 or for spare parts www.caple.co.uk
www.caple.co.uk
2
EN
WARNING:
•The appliance and its accessible parts become
hot during use. Care should be taken to avoid
touching heating elements. Children less
than 8 years of age shall be kept away unless
continuously supervised.
•This appliance can be used by children aged
from 8 years and above and persons with
reduced physical, sensory or mental capabilities
or lack of experience and knowledge if they
have been given supervision or instruction
concerning use of the appliance in a safe way
and understand the hazards involved. Children
shall not play with the appliance. Cleaning
and user maintenance shall not be made by
children without supervision.
•Unattended cooking on a hob with fat or oil
can be dangerous and may result in fire. NEVER
try to extinguish a fire with water, but switch
off the appliance and then cover flame e.g.
with a lid or a fire blanket.
•Danger of fire: do not store items on the
cooking surfaces.
•Don’t use a steam cleaner for the cleaning the
hob.
3
EN
•The appliance is not intended to be operated
by means of an external timer or separate
remote-control system.
•Do not use the hob during cleaning
•These instructions apply only if the symbol of
the country appears on the appliance. If the
symbol not appear on the device you need
to refer to the technical instructions required
that the manufacturer will provide for the
amendment of the appliance in terms of use of
the destination country.
•Carefully read the instructions before installing
and using the appliance. The manufacturer is
not responsible if the installation and improper
use of the device causing injury or damage.
Keep the instructions handy as a reference for
the future.
•Never leave the appliance unattended during
food preparation because oil and grease could
cause a fire.
•When the unit is connected directly to the
power supply, you need a switch insulating
omnipolar. It is necessary that the appliance
can be completely disconnected from the
network in accordance with the conditions of
the category III on the overvoltage. The earth
cable is not included.
4
EN
•If the power cable is damaged, it must
be replaced by the manufacturer, by an
authorized technician or by a qualified person
to avoid danger.
•When connecting the power cable, make sure
it is not in direct contact (eg. through the use
of insulation sleeves) with parts that can reach
temperatures of over 50 ° C.
5
EN
1 / INSTALLATION INSTRUCTIONS
2 / FITTING
3 / USING THE APPLIANCE
4 / SOME HINTS
5 / MAINTENANCE
6 / AFTER SALES SERVICE
INDEX
6
7
9
11
13
13
Disposal of old electrical appliances
Consumers should contact their local authority or retailer for information
concerning the correct disposal of their old appliance
The European Directive on Waste Electrical and Electronic
Equipment (WEEE), requires that old household electrical appliances
must not be disposed of in the normal unsorted municipal waste stream.
Old appliances must be collected separately in order to optimise the
recovery and recycling of the materials they contain and reduce the
impact on human health and the environment.
The crossed out “wheeled bin” symbol on the product reminds you
of your obligation, that when you dispose of the appliance it must be
separately collected.
6
EN
IT IS ABSOLUTELY IMPERATIVE TO LEAVE A SPACE OF AT LEAST 5 CM
BETWEEN THE BOTTOM OF THE TEPPAN YAKI AND THE FIRST SHELF OF THE
KITCHEN UNIT.
DO NOT STORE INFLAMMABLE GOODS IN THE SPACE BELOW THIS
APPLIANCE.
WARNING : If the teppan yaki malfunctions in any way, unplug the
appliance or remove the fuse corresponding to the sector where the teppan
yaki is hooked up.
1 / INSTALLATION INSTRUCTIONS
•The appliance must be connected by an approved engineer in accordance with
the regulations in force.
•The installer is responsible for the good operation of the appliance. He must
explain its operation to the user, with the aid of this manual.
•The plug must be accessible after installation.
•If the supply lead is damaged, it must be replaced by an equivalent lead
(H05GG-F or H05SS-F 3x1,5mm²) available from the after-sales department.
•It is also necessary to provide a bipolar cut-off device in your power supply
circuit, where the opening of the contacts is more than 3 mm.
•A 16-ampere fuse is necessary.
•Your teppan yaki uses 2.500 watts. It is therefore absolutely necessary for your
electric wiring system to be able to supply that power without danger.
•Your teppan yaki MUST be connected to earth.
•Cooking with the teppan yakki necessarily involves the emission of fumes. This
factor will have to be taken into account when choosing the place where your
teppan yaki is to be fitted.
7
EN
2 / FITTING
This teppan yaki is built into a work surface or kitchen unit by simply cutting a
hole the corresponding shape.
Any support may be suitable: brickwork, timber, metal, granite, laminate, etc.
Dimensions of appliance: 520 x 380 mm
Dimensions of hole cut in work surface: 495 x 350 mm.
•Electrical connection:
8
EN
The appliance is fixed to the work surface with four fixing pins delivered in the
package..
520
495
350
380
80
9
EN
3 / USING THE APPLIANCE
•Special precautions:
This appliance is exclusively intended for domestic use. Any other use will nullify
the guarantee.
Do not forget that the teppan yaki reaches very high temperatures when
operational.
Never leave the appliance in operation without supervision.
Do not allow children to operate the appliance.
No guarantee will be given for damage caused by non-observance of this
document.
This appliance complies with the EN 60335-2-6 standard with regard to the
heating of cabinets.
•The controls:
The control knob enables you to regulate the cooking temperature.
The warning lights give you information on the operation of the appliance:
This warning light shows when the appliance is ON.
This warming light turns off when the selected temperature
is reached.
This warming light enables you to check the residual heat of
the cooking panel.
10
EN

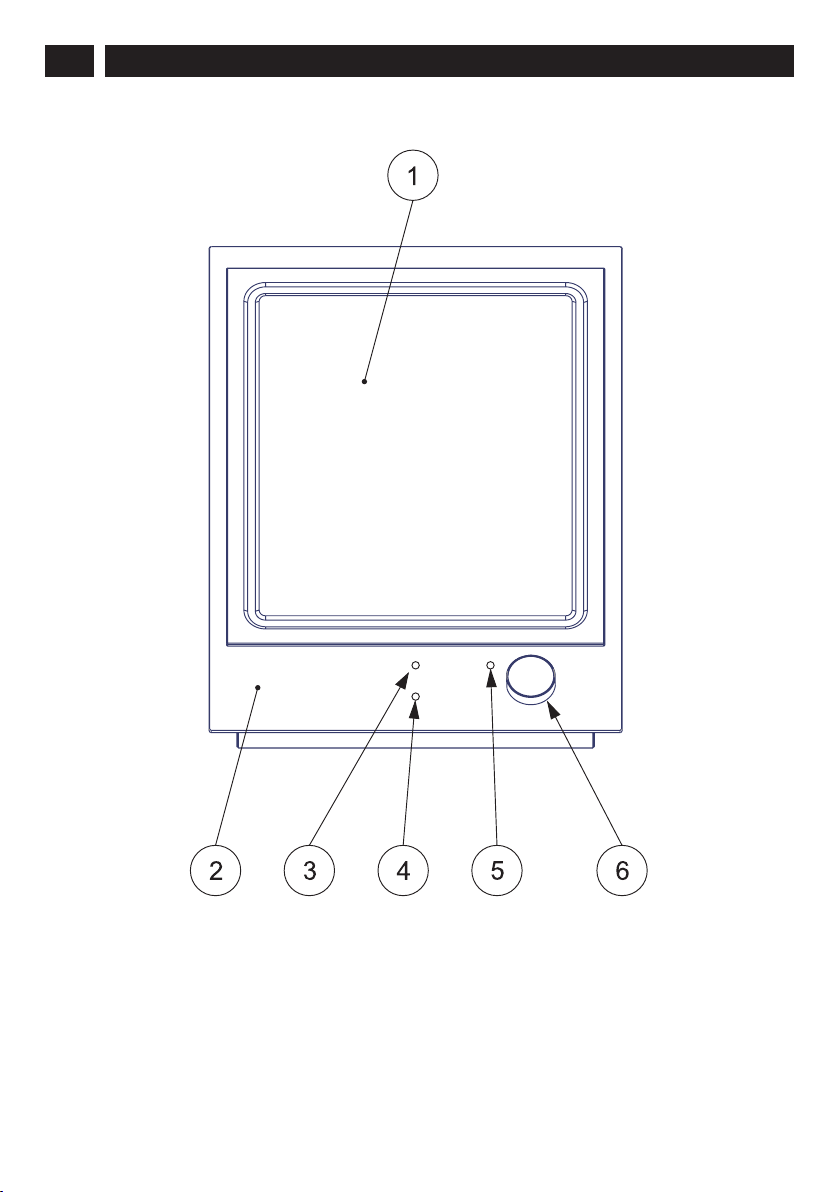

•The appliance:
1
2
3
4
5
6
Stainless steel plate
Glass frame
Residual heat warning light
ON/OFF warning light
Heating warning light
Thermostat knob
