Car-Interface CI-RL4-R40-E Manuale utente

Version 26.07.2019 HW CAM(V98)/(V12) CI-RL4-R40-E

r.LiNK Video-inserter

CI-RL4- R40-E

Compatible with

Chevrolet vehicles

with MyLink infotainment and 7inch monitor

with separated radio unit

Opel vehicles

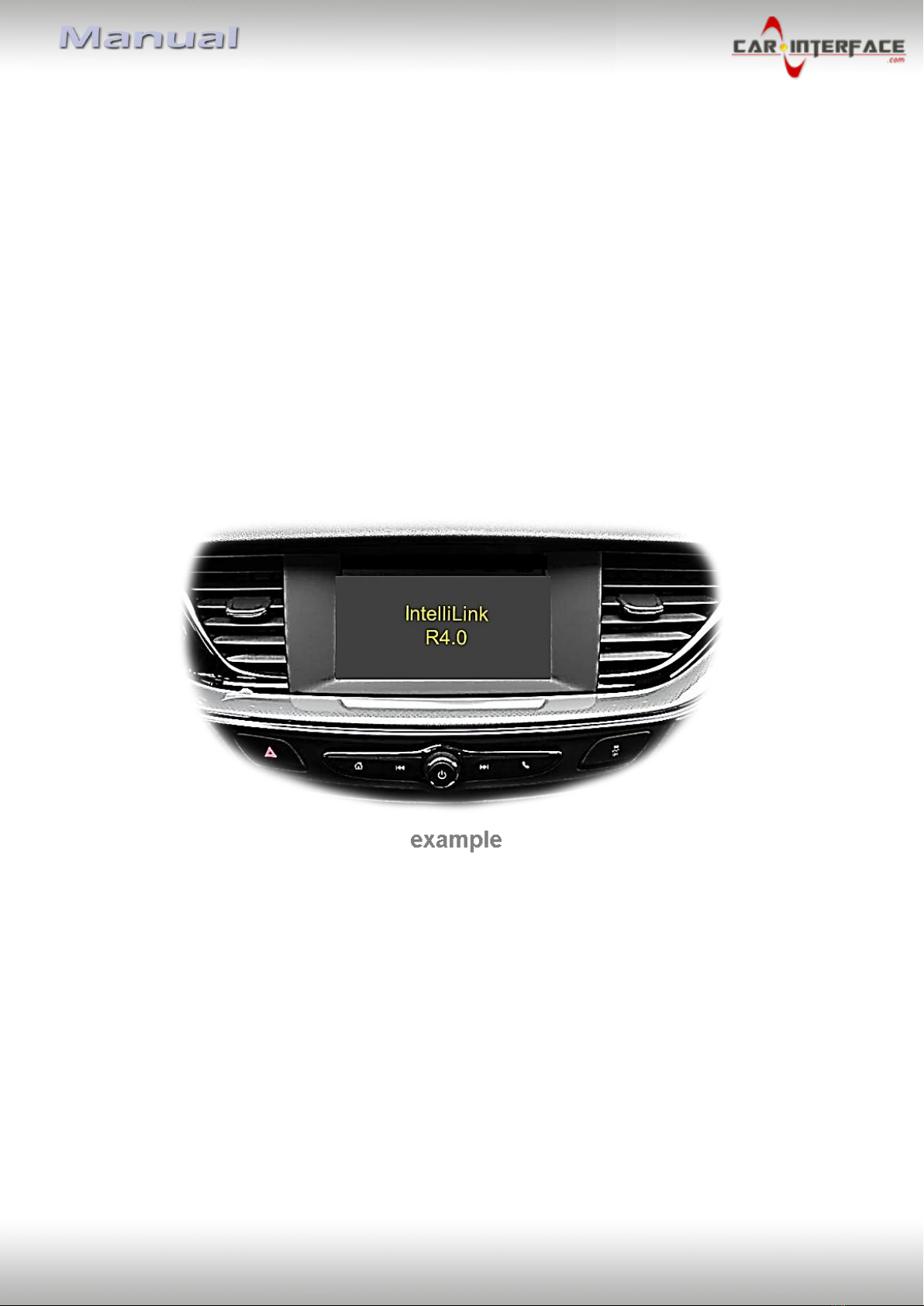

with R4.0 IntelliLink infotainment and 7inch monitor

with separated radio unit

Video-inserter for front- and rear-view camera

and two additional video sources

Product features

Video-inserter for factory-infotainment systems

1 CVBS Input for rear-view camera

1 CVBS Input for front camera

2 CVBS video-inputs for after-market devices (e.g. USB-Player, DVB-T2 tuner)

Automatic switching to rear-view camera input on engagement of the reverse gear

Automatic front camera switching after reverse gear for 10 seconds

Activatable parking guide lines for rear-view camera (not available for all vehicles)

Video-in-motion (ONLY for connected video-sources)

Video-inputs NTSC and PAL compatible

Version 26.07.2019 HW CAM(V98)/(V12) CI-RL4-R40-E

Page2

Contents

1. Prior to installation

1.1. Delivery contents

1.2. Checking the interface compatibility of vehicle and accessories

1.3. Connectors Video Interface

1.4. Dip-switch settings

1.4.1. 8 dip –black

1.4.1.1. Activating the front camera input (dip 1)

1.4.1.2. Enabling the interface’s video inputs (dip 2-3)

1.4.1.3. Rear-view camera setting (dip 5)

1.4.1.4. Guide lines (dip 6)

1.4.1.5. Vertical picture mirroring (dip7)

1.4.2. 4 dip - red

2. Installation

2.1. Place of installation

2.2. Connection scheme

2.3. Connection - picture signal cable

2.4. Connection –20pin PNP harnes

2.5. Analogue power supply

2.6. Power supply output

2.7. Connection –video sources

2.7.1. Audio insertion

2.7.2. After-market front camera

2.7.3. After-market rear-view camera

2.7.3.1. Case 1: Interface receives the reverse gear signal

2.7.3.2. Case 2: Interface does not receive the reverse gear signal

2.8. Connection –external keypad

3. Interface operation

3.1. By infotainment button

3.2. By external keypad

4. Picture settings

5. Specifications

6. Frequently asked questions

Version 26.07.2019 HW CAM(V98)/(V12) CI-RL4-R40-E

Page3

Legal Information

By law, watching moving pictures while driving is prohibited, the driver must not be

distracted. We do not accept any liability for material damage or personal injury resulting,

directly or indirectly, from installation or operation of this product. This product should only

be used while standing or to display fixed menus or rear-view-camera video when the

vehicle is moving, for example the MP3 menu for DVD upgrades.

Changes/updates of the vehicle’s software can cause malfunctions of the interface. We

offer free software-updates for our interfaces for one year after purchase. To receive a free

update, the interface must be sent in at own cost. Labour cost for and other expenses

involved with the software-updates will not be refunded.

1. Prior to installation

Read the manual prior to installation.

Technical knowledge is necessary for installation. The place of installation must be free of

moisture and away from heat sources.

1.1. Delivery contents

Version 26.07.2019 HW CAM(V98)/(V12) CI-RL4-R40-E

Page4

Requirements

Brand

Compatible vehicles

Infotainment

Chevrolet

Camaro model years since 2016

MyLink - 7" monitor

with separate radio-bo

Opel

Astra K (Sports Tourer + 5-Türer) model year since 2016

Insignia B model year 2017 - 06/2018

Karl up to 03/2018

R4.0 IntelliLink - 7" monitor

with separate radio-box

Limitations

Video only The interface inserts ONLY video signals into the infotainment.

For inserting Audio signals either the possibly existing factory audio-AUX-input

or a FM-modulator can be used.

In case that 2 AV sources shall be connected, a desired audio switching will

require additional electronic.

Factory rear-view camera Automatically switching-back from inserted video to factory rear-view camera

is only possible while the reverse gear is engaged. To delay the switch-back an

additional electronic part is required.

After market front camera The front camera will automatically be switched for 10 seconds after

disengaging the reverse gear. A manually front camera switching is possible by

external keypad.

Guide lines Displayed guide lines are not available in all vehicles.

1.2. Checking the compatibility of vehicle and accessories

1.3. Connectors Video Interface

The video-interface converts the video signals of connected after-market sources in a factory

monitor compatible picture signal which is inserted in the factory monitor, by using separate

trigger options.

Version 26.07.2019 HW CAM(V98)/(V12) CI-RL4-R40-E

Page5

1.4. Dip-switch settings

1.4.1. 8 dip - black

Some settings have to be selected by the dip-switches on the

video interface.

Dip position down is ON and position up is OFF.

After each Dip-switch-change a power-reset of the Video interface has to be performed!

*The front camera will automatically be switched for 10 seconds after disengaging the

reverse gear.

See the following chapters for detailed information.

Dip

Function

ON (down)

OFF (up)

Front camera

enabled*

disabled

Power supply

output

(red wire)

+12V (max. 3A) when reverse gear

is engaged incl. 10 seconds delay

and +12V by manual switching to

front camera by keypad

No function

CVBS AV1-input

enabled

disabled

CVBS AV2-input

enabled

disabled

No function

set to OFF

Rear-view cam type

after-market

factory or none

Guide lines

enabled

disabled

Vertikale

Bildspiegelung

enabled

disabled

No function

set to OFF

Version 26.07.2019 HW CAM(V98)/(V12) CI-RL4-R40-E

Page6

1.4.1.1. Activating the front camera input (dip 1)

If set to ON, the interface switches for 10 seconds from the rear-view camera to the front

camera input after having disengaged the reverse gear. In addition, a manual switch-over to

the front camera input is possible via keypad (short press) from any image mode.

Description of the power supply output: see chapter “Power supply output”.

1.4.1.2. Enabling the interface’s video inputs (dip 2-3)

Only the enabled video inputs can be accessed when switching through the interface’s video

sources. It is recommended to enable only the required inputs, disabled inputs

will be skipped when switching through the video-interfaces inputs.

1.4.1.3. Rear-view camera setting (dip 5)

If set to OFF, the interface switches to factory picture while the reverse gear is engaged to

display factory rear-view camera.

If set to ON, the interface switches to its rear-view camera input „Camera-IN“ while the

reverse gear is engaged.

1.4.1.4. Guide lines (Dip 6)

If set to ON, the interface is activated to show the guide lines for the rear-view camera while

the vehicle is in reverse mode (not available for all vehicles).

Note: Some vehicles have a different code on the CAN-bus which the video-interface is not

compatible with. If the interface does not completely communicate with the vehicle CAN

bus, the reverse gear guide-lines can`t be shown during the vehicle’s operation, even if they

in some vehicles once appear after having switched the system to powerless!

1.4.1.5. Vertical picture mirroring (dip7)

Dip 7 adjusts a vertical mirroring of the inserted videos on the monitor. If the monitor

representation of inserted videos should be shown 180° twisted, the setting for dip7 has to

be ON.

Note: Dips 4 and 8 are out of function and have to be set to OFF.

After each Dip-switch-change a power-reset of the Video Interface has to be performed!

Version 26.07.2019 HW CAM(V98)/(V12) CI-RL4-R40-E

Page7

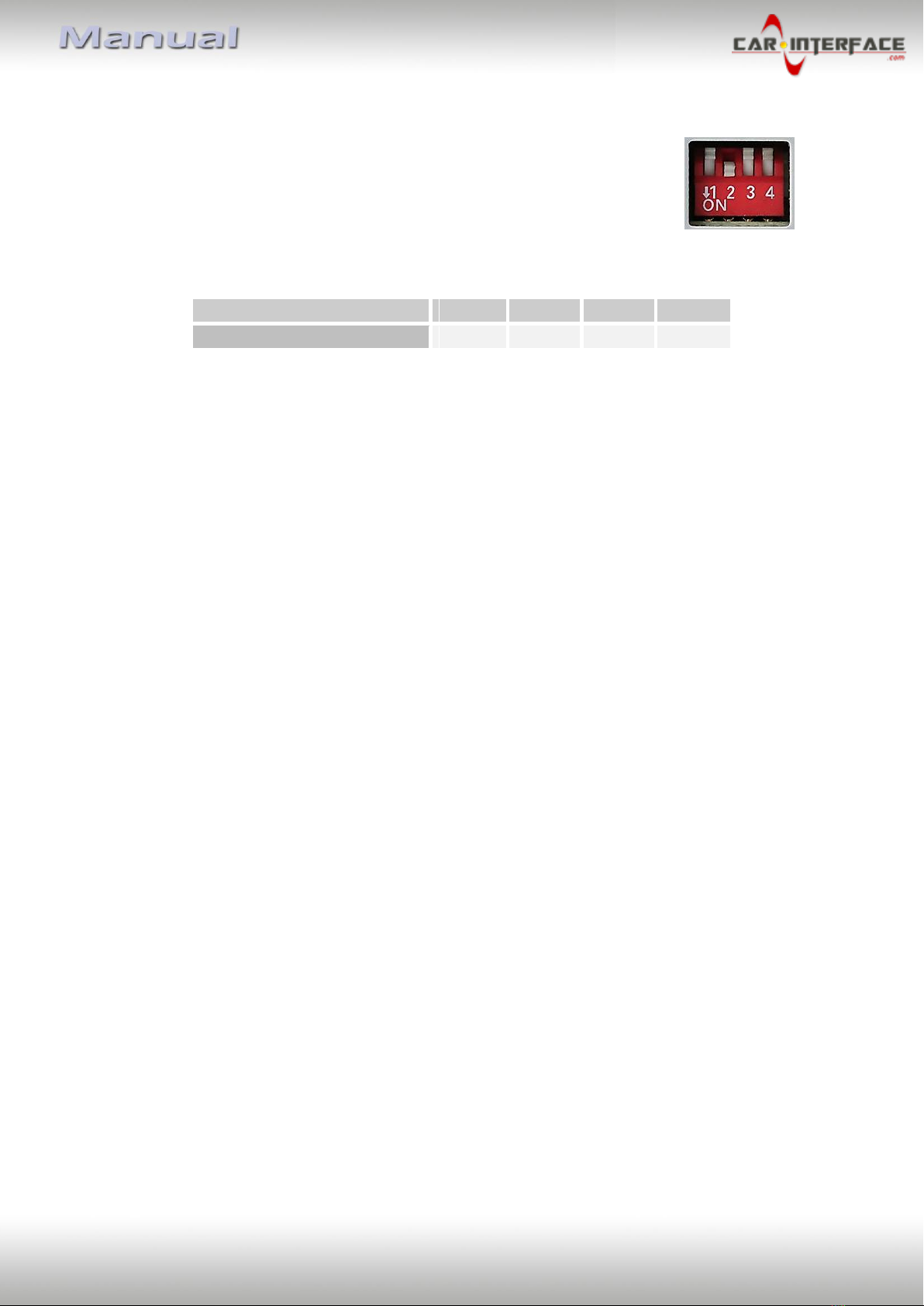

1.4.2. 4 dip - red

By using the Dip-switches, the factory Head-unit or vehicle can be chosen

which the interface will be connected to.

Dip position down is ON and position up is OFF.

Set all dip switches to off

Vehicle/Navigation

Dip 1

Dip 2

Dip 3

Dip 4

All vehicles

OFF

2. Installation

To install the interface, first switch off the ignition and disconnect the vehicle’s battery.

Please read the owner`s manual of the car, regarding the battery`s disconnection! If

required, enable the car`s Sleep-mode (hibernation mode)

In case the sleep-mode does not succeed, the disconnection of the battery can be done

with a resistor lead.

If the necessary stabilized power supply for the interface is not taken directly from the

battery, the chosen connection has to be checked for being constantly stabile.

The interface needs a permanent 12V source!

2.1. Place of installation

The video interface is designated to be connected behind the vehicle`s head unit.

Version 26.07.2019 HW CAM(V98)/(V12) CI-RL4-R40-E

Page8

2.2. Connection Scheme

Version 26.07.2019 HW CAM(V98)/(V12) CI-RL4-R40-E

Page9

2.3. Connection –picture signal cable

Disconnect the factory picture signal cable’s female USB connector with the blue coloured

cable from the rear-side of the head unit and connect it to the black coloured male USB

connector of the enclosed picture signal cable.

Connect the opposite black coloured female connector of the enclosed picture signal cable

to the previously become free male HSD+2 connector of the video interface.

Connect the female waterblue coloured HSD+2 connector of the picture signal cable to the

waterblue coloured male HSD+2 connector of the video interface.

Version 26.07.2019 HW CAM(V98)/(V12) CI-RL4-R40-E

Page10

2.4. Connection –20pin PNP harness

Connect the female 10pin connector of the 20pin PNP harness cable to the

10pin Power / CAN connector of the video interface.

Disconnect the female 20pin connector of the factory harness at the rear-side of the

head-unit and connect it to the male 20pin connector of the 20pin PNP harness.

Connect the opposite female 20pin connector of the 20pin PNP harness to the

previously become free male 20pin connector at the rear-side of the head unit.

Note: If, after connecting the 10pin Power / CAN cable, no interface LED lightens up while

the ignition is turned on, refer to chapter “Analogue power supply for the video interface”.

Please carry out the following checks:
