Basic Operation:
1. Turn ON the remote control by pressing the ON/OFF button.
2. Select the MODE be pressing the MODE (F1) button.
•AUTO, HEAT, DRY, COOL, FAN are selectable modes of operation.
3. Select FAN speed by pressing Fan Speed (F2).
•AUTO, HIGH, MED+, MED, LOW+, LOW are selectable fan speeds.
4. OnceAUTO, COOL, DRY or HEAT mode is selected, set desired
temperature using the UP/DOWN arrow button. InAUTO mode set both
the HEAT & COOL set points, see next page for additional information.
More detailed information on these items and more can be found in the
Installation and Operation Manual that came with the remote controller.
If lost contact CE Tech Service with model number for replacement.
Page 1 of 8Ver. 1.0
Carrier Toshiba VRF Remote
Control Quick Startup Guide
1 – MONITOR: Displays the monitoring
screen.
2 –MENU: Displays the menu screen.
3 –CANCEL: Functions as indicated on
the display, such as returning to the
previous menu screen.
4 –UP: During normal operation, adjusts
the temperature. On the menu screen,
selects menu item.
5 –DOWN: During normal operation,
adjusts the temperature. On the menu
screen, selects menu item.
6 –F1: Varies its function according to the
setting screen.
7 –F2: Varies its function according to the
setting screen.
8 –ON/OFF: Turns system ON or OFF
More display icons are explained on page
3 of this document.
RBC-AMS54E-UL –Remote Controller
1
4
3
7
2
6
5
8
Carrier Enterprise
Technical Services
Page 2of 8
Auto Mode & Dual Set Points:
In dual set point setting, the temperature set point of individual cooling and
heating can be set to adjust the indoor temperature.
Carrier Toshiba VRF Remote
Control Quick Startup Guide

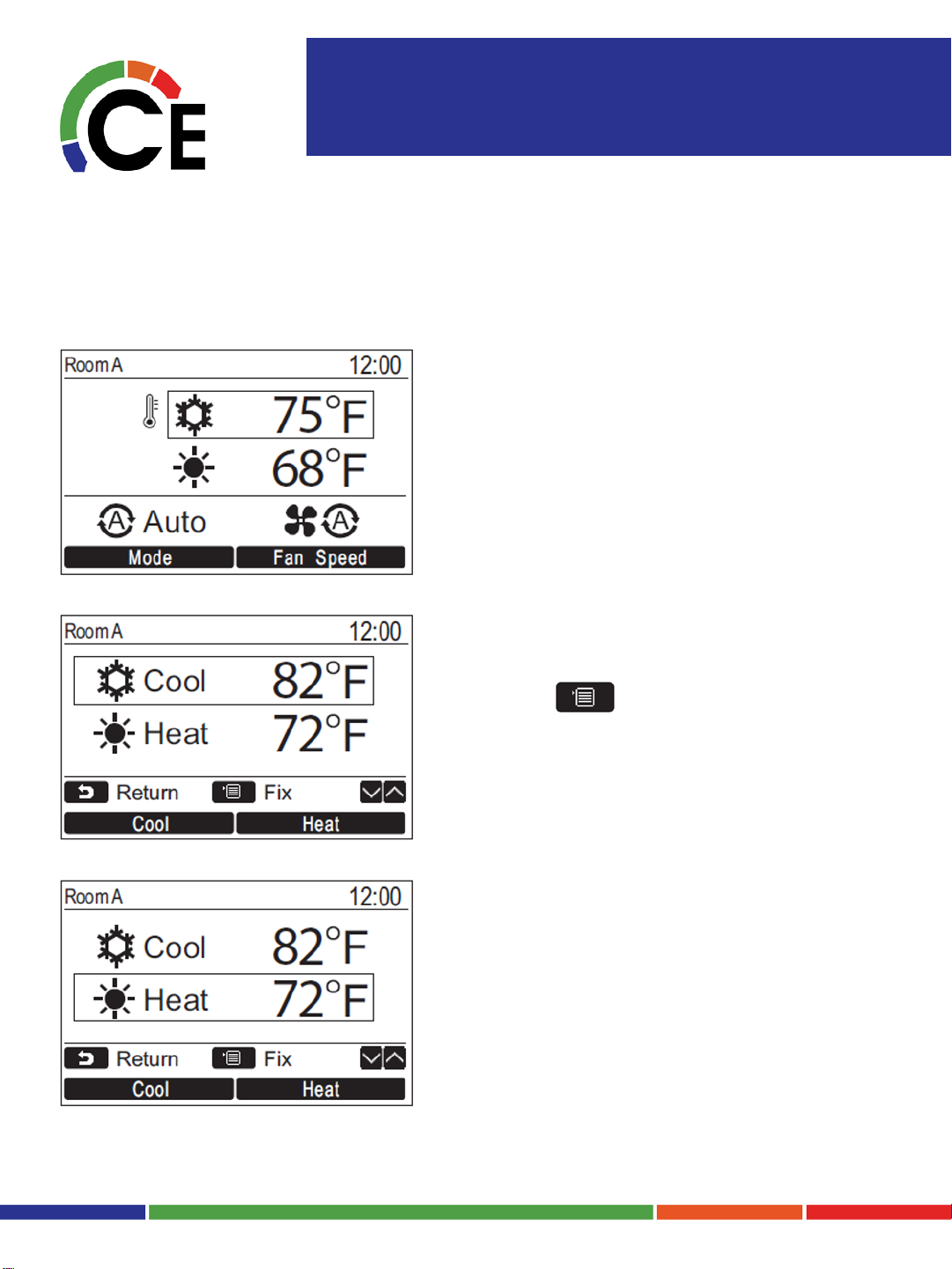

1. Push the UP or DOWN button to switch
to the display shown on the left.
2. To set the cooling temperature set
point, push [Cool] and adjust the
setting with UP/DOWN buttons.A box
will surround [ Cool] and
[Temperature set point]. To set the
heating temperature set point, push
[Heat] and adjust the setting with
UP/DOWN buttons.A box will surround
[ Heat] and [Temperature set point].
Push [ MENU] to confirm the
settings and return to the normal
display.
Push [ CANCEL] to cancel the
settings and return to the normal
display.
Carrier Enterprise
Technical Services
Page 3of 8
Display Modes:
To switch between displays: Push and hold the [CANCEL] button and
the [ Monitor] button at the same time for more than 4 seconds.
1. Normal Display (factory default)
2. Detailed Display
Carrier Toshiba VRF Remote
Control Quick Startup Guide
Carrier Enterprise
Technical Services
Page 4of 8
Initial Settings:
1. Press the [MENU] button. Once the Menu is displayed press the
UP/DOWN buttons to highlight Initial Setting and then press
[ F2] button to select.
Initial Settings Menu:
Carrier Toshiba VRF Remote
Control Quick Startup Guide
Carrier Enterprise
Technical Services
Page 5of 8
Field Settings:
1. Press the [ MENU] button to display the menu screen.
2. Push and hold the [ MENU] button and the [DOWN] button at
the same time to display the “Field setting menu”.
Push and hold the buttons for more than 4 seconds.
3. Push the [ CANCEL]button to return.
4. Press the UP/DOWN buttons to highlight and then press
[ F2] button to select field setting to adjust.
•Commonly used:
• 5. Setting louver position
• 7. DN setting
For full list of DN codes, see page 6 ~ 8.
Carrier Toshiba VRF Remote
Control Quick Startup Guide
Carrier Enterprise
Technical Services
Page 6of 8
DN Codes:
Carrier Toshiba VRF Remote
Control Quick Startup Guide
Carrier Enterprise
Technical Services
Page 7of 8
DN Codes (cont.):
Carrier Toshiba VRF Remote
Control Quick Startup Guide
Carrier Enterprise
Technical Services
Page 8of 8
DN Codes (cont.):
Carrier Toshiba VRF Remote
Control Quick Startup Guide
