01/19/2008 CAS (USA) Corporation 99 Murray Hill Parkway East Rutherford, NJ 07073 CL5000-Series

Installation for Lantronix Internal

Ethernet

1. The internal Ethernet installation kit will contain an Ethernet I/O

board, internal Ethernet board, crossover Ethernet cable, power and

indicator lights cable, and the necessary hardware. Remove the top

cover of the CL5000. There are four chrome screws on the top. One is

under the sealing plate. On the bottom of the scale there are four

brass colored screws along the front edge of the scale. There are

also two at the rear edge of the scale, one in each corner.

2. If the scale has the old style Ethernet set up then the slot PCB as

shown in the left hand picture must be removed. Disconnect the ribbon cable

from the board. Unplug the other end of the ribbon cable from the main

board where it is plugged into the NETWORK BOARD connector. Remove the

cable.

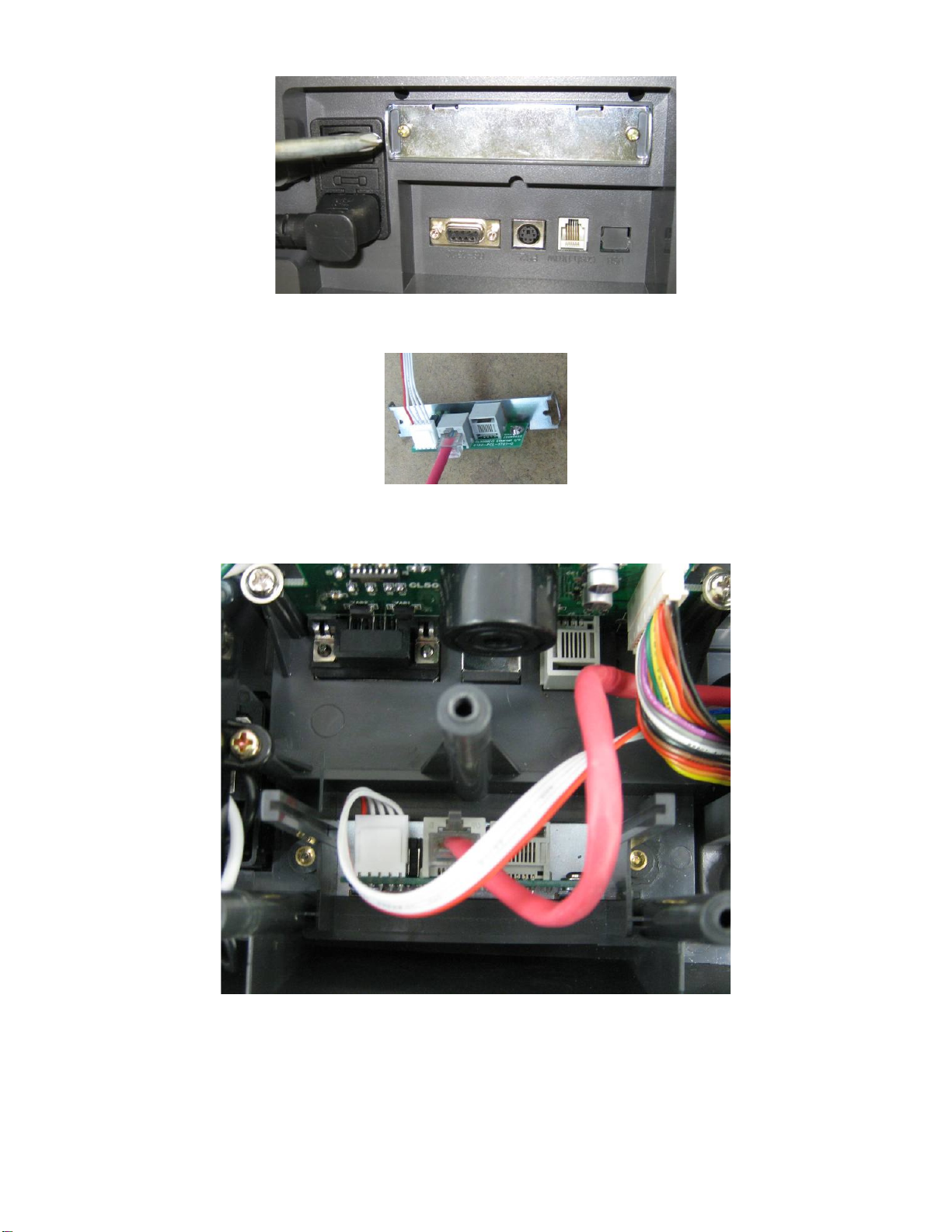

3. Remove the dummy cover from the bottom of the scale.

4. Plug the Ethernet cable and the power/indicator light cable onto the

Ethernet I/O board.

5. Install the Ethernet I/O board into the hole where the dummy plate was

removed threading the cables up into the scale. Secure the mounting plate

with two Phillips head screws included in the hardware package.

6. If standoffs are not installed on the main board at the locations

indicated by the arrows then remove the main board and install the

standoffs using the nuts and standoffs that are part of the hardware

package.

7. Plug the internal Ethernet board into J3, the grey connector. Secure the

board with two Philips head screws included in the hardware package. If the

main board had to be removed reinstall it now.

8. Thread the cables from the Ethernet I/O board to the internal Ethernet

board. Make sure to run the cables under the load cell support bracket as

shown in the picture. When done reassemble the scale.
