DATA PROJECTOR

XJ-S38/XJ-S48

XJ-S58/XJ-S68

Data Projector

USB Function Guide

zBe sure to read the precautions in the separate User’s Guide (Basic Operation). For

details about setting up the Data Projector and about lamp replacement, see the

User’s Guide (Basic Operation).

zBe sure to keep all user documentation handy for future reference.

• Microsoft, Windows, Windows Vista and PowerPoint are registered trademarks or

trademarks of Microsoft Corporation in the United States and other countries.

• Other company and product names may be registered product names or trademarks of

their respective owners.

• The contents of this manual are subject to change without notice.

• Copying of this manual, either in part or its entirety, is forbidden. You are allowed to

use this manual for your own personal use. Any other use is forbidden without the

permission of CASIO COMPUTER CO., LTD.

• CASIO COMPUTER CO., LTD. shall not be held liable for any lost profits or claims

from third parties arising out of the use of this product or this manual.

• CASIO COMPUTER CO., LTD. shall not be held liable for any loss or lost profits due

to loss of data due to malfunction or maintenance of this product, or any other reason.

• The sample screens shown in this manual are for illustrative purposes only, and may

differ somewhat from the screens actually produced by the product.

Contents

About this manual........................................................... 4

Terms and Conventions ................................................................................. 4

About the Data Projector’s USB Functions .................. 5

Connecting a USB Device to the Data Projector.......... 8

Turning On the Data Projector after Connecting a USB Device .................... 8

Connecting to a USB Device while the Data Projector is On ......................... 9

Changing the Input Source while a USB Device is Connected...................... 9

Installing Data Projector Software............................... 10

Minimum System Requirements .................................................................. 10

To install software ........................................................................................ 11

Projecting Presentation Images from

a USB Memory Device or Memory Card...................... 13

Supported USB Memory Devices.........................................................13

Supported Playback Data Types ..........................................................14

Preparing a Presentation by Saving Image Files to

a Memory Device or Memory Card.......................................................14

Using EZ-Converter PRO............................................................................. 14

Using EZ-Converter PRO Launcher............................................................. 18

Using EZ-Converter 1.1 ............................................................................... 19

EZ-Converter 1.1 Menu and Button Reference ....................................26

Playing a Presentation with Viewer ......................................................27

To connect a USB memory device to the Data Projector............................. 27

Connecting a USB Card Reader to the Data Projector ................................ 28

Drive Menu Operations ................................................................................ 29

File Menu Operations................................................................................... 30

Using the Presentation Menu....................................................................... 35

Operations during Image File Content Projection ........................................ 37

Operations during a Slideshow .................................................................... 38

Slideshow Start Error ................................................................................... 39

Using Viewer to Play a Movie ...................................................................... 39

Configuring Viewer Setup Menu Settings .................................................... 41

Viewer Error Messages................................................................................ 45

Viewer Troubleshooting........................................................................46

Performing a Presentation Using the

YC-400/YC-430 Document Camera .............................. 47

YC Camera Application Function and Operation Overview..................47

Connecting the Document Camera to the Data Projector............................ 47

YC Camera Application Operations......................................................50

YC Camera Application Projection Operations ............................................ 50

Configuring YC Camera Application Setup Menu Settings .......................... 55

Projecting the Screen Image of

a Graphing Calculator................................................... 59

To project the screen image of a graphing calculator .................................. 59

About this manual...

This manual explains function and operations when any one of the following devices is

connected to the USB port of the CASIO XJ-S38/XJ-S48/XJ-S58/XJ-S68 Data Projector.

USB memory device or USB card reader

CASIO Multi Projection Camera (YC-400/YC-430)

CASIO Graphing Calculator (fx-9860G Series)

Important!

For information about functions and operations when a YW-2 Wireless Adapter is

connected to the Data Projector’s USB port, see page 6 of this manual and the user

documentation on the CD-ROM that comes with the separate YW-2L*Wireless Adapter.

*The YW-2L comes packaged with a YW-2 Wireless Adapter and the Wireless

Connection 2 software for your computer.

Terms and Conventions

In this manual, there are many procedures that require parallel operations on the Data

Projector and your computer. The following are special terms and conventions used in this

manual to differentiate between the Data Projector and computer.

• projection area

This is the entire rectangular area that is projected by the Data Projector. Certain Data

Projector operations will cause messages and menus to appear within the projection

area.

• computer screen

This is the physical display device of your computer.

About the Data Projector’s USB Functions

The USB port that is built into the Data Projector lets you connect an external USB

device and use it as an input source for image projection.

USB Memory Device or Memory Card

You can connect a commercially available USB memory device or USB card reader to the

USB port and project images and movies stored on the USB memory device or memory

card.

Refer to the following for details.

For more information about this: Refer to this section of this manual:

Supported USB memory devices “Supported USB Memory Devices” (page 13)

Supported image and movie file formats “Supported Playback Data Types” (page 14)

Saving image data to a USB memory device or

memory card

“Preparing a Presentation by Saving Image

Files to a Memory Device or Memory Card”

(page 14)

Projecting image and movie data from a USB

memory device

“Playing a Presentation with Viewer” (page 27)

USB memory device

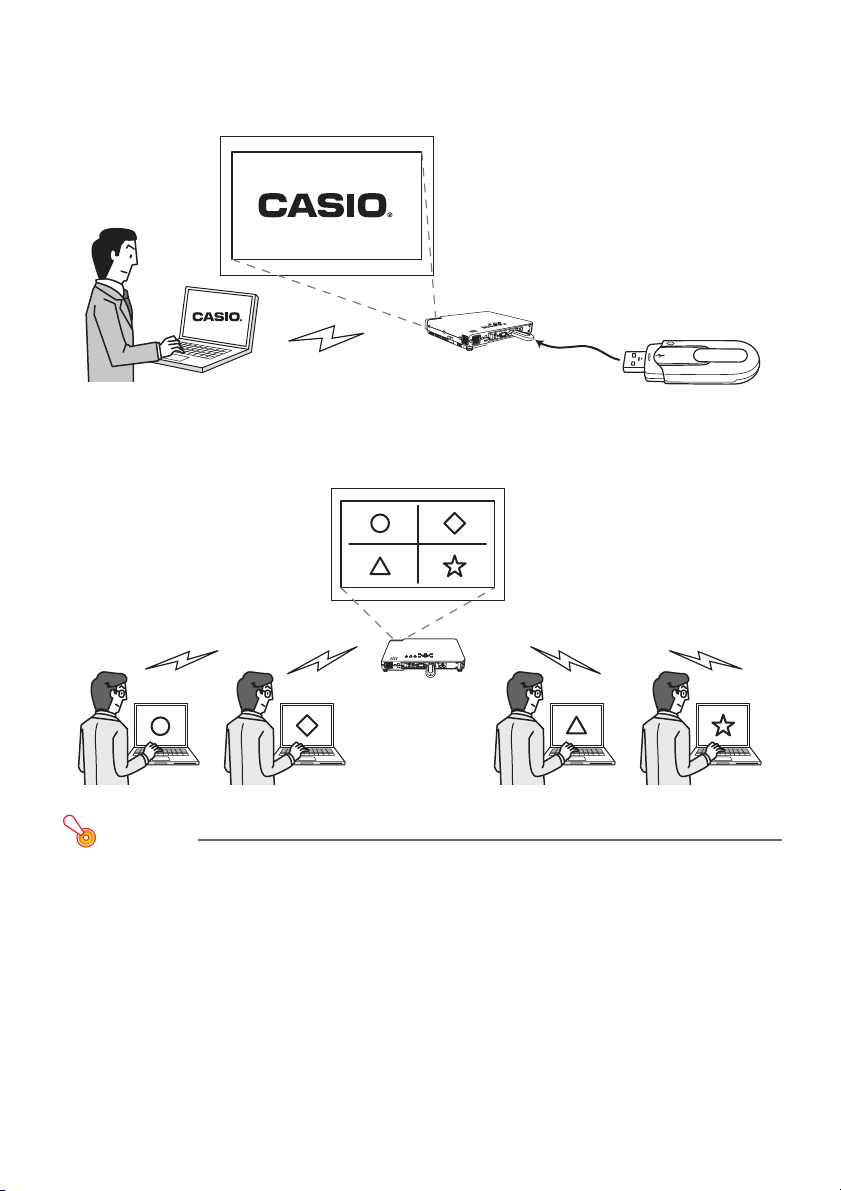

Wireless Adapter (CASIO YW-2)

Establishing a connection between the Data Projector and a computer over a wireless LAN

makes it possible to project the display contents of the computer’s screen from the Data

Projector.

You can have up to four computers connected to the Data Projector over a wireless LAN

at the same time. Use the remote controller that comes with the Data Projector to select

which of the four computer screens you want to project.

Important!

zThe optional YW-2L Wireless Adapter is required in order to perform the above

procedure. The YW-2L package includes a YW-2 wireless adapter for the Data

Projector and Wireless Connection 2 software for establishing a LAN connection

between the Data Projector and a computer.

zFor details about the operation required to establish a wireless LAN connection

between the Data Projector and a computer, see the user documentation on the CD-

ROM that comes with the YW-2L.

CASIO YW-2

Document Camera (CASIO YC-400/YC-430)

You can connect a CASIO Document Camera to the Data Projector’s USB port and project

the images of documents placed on the document stage of the YC-400/YC-430.

For more information, see “Performing a Presentation Using the YC-400/YC-430 Document

Camera” on page 47.

Graphing Calculator (CASIO fx-9860G Series)

You can use USB port to connect the CASIO fx-9860G series graphing calculator to the

Data Projector and project calculator screen images with the projector.

For details, see “Projecting the Screen Image of a Graphing Calculator” (page 59).

USB

YC-400/YC-430

USB

Connecting a USB Device to the Data Projector

What happens when you connect a USB device to the Data Projector depends on the

current configuration of the Data Projector’s plug-and-play setting. Plug-and-play is enabled

under the Data Projector’s initial default settings. For more details about the plug-and-play

setting, see “Setup Menu Contents” in the User’s Guide.

Turning On the Data Projector after Connecting a USB

Device

Normally when you turn on the Data Projector without a USB device connected, the Data

Projector will check the RGB terminal and then the VIDEO terminal for a signal. If it finds

a signal, the Data Projector will select it automatically and project the signal contents.

If you turn the Data Projector on while a USB device is connected to its USB port, it will

perform one of the following operations (depending on its current plug-and-play setting).

When plug-and-play is enabled:

When plug-and-play is disabled:

Turning on the Data Projector with a USB device connected while plug-and-play is disabled

will cause it to perform the same initial operation it performs when no device is connected.

That is, it checks the RGB terminal and then the VIDEO terminal for an input signal. If it

detects an input signal, the Data Projector will select it automatically and project the signal

contents. In this case, however, either Viewer or Wireless will start up in the background,

depending upon the type of USB device that is connected to the Data Projector.

When this type of device is

connected:

The Data Projector does this automatically when turned on:

USB memory device or USB card

reader with memory card loaded

Starts up Viewer (page 27) and projects the Viewer screen.

YW-2 Wireless Adapter Starts up Wireless and projects the Wireless screen.

YC-400/YC-430 Document Camera

Checks the RGB terminal and then the VIDEO terminal for an

input signal. If it finds a signal, the Data Projector will select

it automatically and project the signal contents. Note that the

Document Camera is not detected automatically.

Connecting to a USB Device while the Data Projector is

If you connect a USB device to the Data Projector’s USB port while it is turned on, it will

perform one of the following operations (depending on its current plug-and-play setting).

When plug-and-play is enabled:

When plug-and-play is disabled:

In this case, the image that is currently being projected does not change. However, Viewer,

Wireless, or the YC Camera Application will start up in the background, depending upon

the type of USB device that is connected to the Data Projector.

Changing the Input Source while a USB Device is

Connected

On the Data Projector’s remote controller, press the [INPUT] key to change the input

source. Each time you press the [INPUT] key, the Data Projector will check the RGB

terminal, VIDEO terminal, and USB port for an input signal. If it finds a signal, it will

select it as the input source automatically and project its contents.

When this type of device is

connected: The Data Projector does this automatically:

USB memory device or USB card

reader with memory card loaded

Starts up Viewer (page 27) and projects the Viewer screen.

YW-2 Wireless Adapter Starts up Wireless and projects the Wireless screen.

YC-400/YC-430 Document Camera Starts up the YC Camera application (page 47) when the

Document Camera is turned on and projects the YC Camera

application screen.

Installing Data Projector Software

Use the procedures in this section to install the software that comes bundled with the

Data Projector onto your computer.

Minimum System Requirements

The following describes minimum computer system requirements to run the bundled

software.

• Operating System: Microsoft®Windows Vista®SP1, Windows®XP SP3, or

2000 Professional SP4

• Computer: IBM PC/AT or compatible that conforms to the following conditions.

• Windows Vista®, Windows®XP, or 2000 Professional pre-installed

• PowerPoint 2000, 2002, 2003, or 2007 installed (to use EZ-Converter 1.1)

• CPU: Pentium®III 800MHz or higher; CPU recommended for your computer’s

operating system

• Memory: 256MB minimum or amount of memory recommended for operating system

being run

• Hard Disk: At least 40MB for installation or at least 60MB when running

• Display: Full-color display with resolution of at least 800 × 600 that is supported by

above operating systems and the computer being used.

• Input Device: Keyboard or other pointing device (mouse supported above operating

system or equivalent device)

• Normal operation may not be possible under certain hardware configurations.

• Operation is not supported on a computer running Windows®NT, Me, 98SE, 98, 95, or

3.1, or on a Macintosh or Mac OS computer.

• Operation on a computer upgraded to Windows Vista®, Windows®XP, or 2000

Professional from another operating system is not supported.

• Operation is not supported under Windows Vista®64-bit version.

• Operation on a computer running Windows®XP Professional x64 Edition is not

supported.

When you want to do this: Install this software:

Convert a PowerPoint file, PDF file, Web page, or other data to an

image file that can be projected from the projector, and store it on a

USB memory device or memory card

EZ-Converter PRO

zConvert PowerPoint files to image files, arrange the sequence of

image files, and store data to a USB memory device or memory

card

zConvert image files to monochrome negatives for projection onto a

blackboard

EZ-Converter 1.1

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali Casio Proiettore

Casio

Casio XJ-H1650 Manuale di istruzioni e di sicurezza

Casio

Casio XJ-A245V SERIES Manuale utente

Casio

Casio XJ-UT331X Manuale utente

Casio

Casio XJ-UT311WN SERIES Manuale elenco delle parti

Casio

Casio XJ-A146 Manuale di istruzioni e di sicurezza

Casio

Casio CX-E1 Manuale utente

Casio

Casio XJ-450 Guida alla risoluzione dei problemi

Casio

Casio XJ-H2600 Manuale utente

Casio

Casio XJ-S43W - WXGA DLP Projector Manuale utente

Casio

Casio XJ-SK600 Manuale utente

Casio

Casio XJ-S36 - XGA DLP Projector Manuale di istruzioni e di sicurezza

Casio

Casio YC-400 - Document Camera Manuale utente

Casio

Casio XJ-S42/XJ-S47 Manuale utente

Casio

Casio XJ-M145 Manuale di istruzioni e di sicurezza

Casio

Casio XJ-360 Manuale di riferimento

Casio

Casio YC-400 - Document Camera Manuale utente

Casio

Casio XJ-S33 series Manuale utente

Casio

Casio XJ-460 - XGA DLP Projector Manuale di istruzioni

Casio

Casio XJ-450 Manuale utente

Casio

Casio XJ-M140/XJ-M145* Manuale utente

Casio

Casio XJ-A130V/XJ-A135V* Manuale utente

Casio

Casio SLIM XJ-A141 Manuale utente

Casio

Casio XJ-F Series Manuale utente

Casio

Casio SLIM XJ-A141 Manuale utente

Manuali Proiettore popolari di altre marche

iEmmet

iEmmet MP-312 Manuale utente

Epson

Epson VS400 Manuale utente

Sony

Sony VPL-HS10 Marketing Specifications & Features Manuale utente

Sony

Sony VPL-HW65ES Manuale di servizio

Toshiba

Toshiba TLP-791U Manuale utente

Philips

Philips LC1341 Guida di riferimento

Panasonic

Panasonic PTL735NTU - LCD PROJECTOR-NETWORK IB Manuale utente

NEC

NEC NP600S EDU Manuale utente

BenQ

BenQ SH753P Manuale utente

Eiki

Eiki EK-623U series Manuale utente

Epson

Epson PowerLite Pro Cinema 6020UB Manuale utente

Epson

Epson PowerLite Home Cinema 705HD Manuale utente

Christie

Christie LHD700 Manuale utente

Navitar

Navitar FX Manuale utente

InFocus

InFocus LitePro 560 Manuale utente

Sony

Sony SRX-R815P Manuale utente

Vivitar

Vivitar DP1500 X Manuale utente

Acer

Acer C20 Series Manuale utente
