Cavalry CADA-C32A Series Manuale utente

User's Manual

CADA-C32A Series

Preface

Copyright

Please respect copyrighted content. Duplication or modification of this publication in whole or in

part is prohibited without written authorization.

Usage

Strong impacts or dropping the product may cause damage. Only allow qualified personnel to

repair this product. Disassembling or opening this product will void your warranty.

Disclaimer

Cavalry is not liable for compensation for data loss which may result from a malfunction of the

product or changes due to improper use, repairs, defects, or battery change. Please back up

your data to avoid unexpected losses. Cavalry reserves the right to make changes to the content

of this manual without notice. The most current manuals and software are available for download

at our download page: www.cavalrystorage.com/su_download.htm

2 2

Thank you for choosing Cavalry.

We at Cavalry extend our sincere gratitude for your purchase of this product.

We hope our dedication to delivering high quality products with excellent

customer service will ensure your continued interest in our products.

This manual will assist in the operation of the product. To optimize your

experience with this product, we recommend reading this entire manual

before usage. Please keep this manual for future reference.

3 3

Table of Contents

Preface .................................................................................................... 2

List of Accessories ............................................................................. 5

Product Illustrations ........................................................................... 6

Features ............................................................................................. 8

Setup Instructions .............................................................................. 9

RAID .................................................................................................. 13

Troubleshooting ................................................................................. 16

Warranty and Contact ........................................................................ 19

44

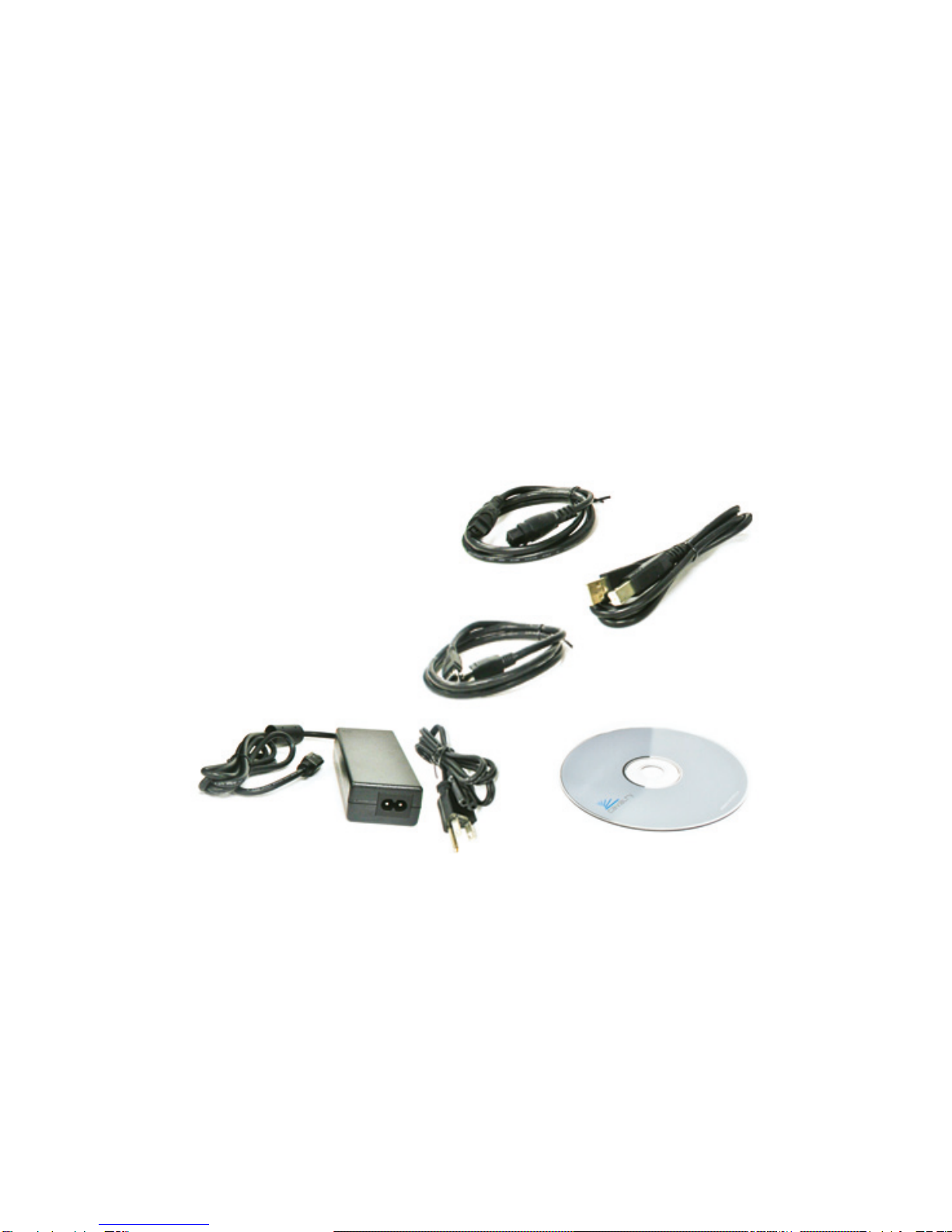

List of Accessories

1. External power adapter / power cord (look may vary with product)

2. FireWire 400 cable

3. FireWire 800 cable

4. USB 2.0 cable

5. Resources CD

55

3

1

24

5

Front

1

1. LED status indicators

66

Back

3

6

4

5

2. Power switch

3. Power jack

4. FireWire 400 port

5. FireWire 800 port (2)

6. USB 2.0 port

7. Ventilation fan

77

2

7

8

Features

Plug-and-play for Mac OS X and above

USB 2.0 and FireWire 400/800 capability

Pre-formatted in Mac OS X Extended

Supports RAID

Exceptional heat dissipating ability

LED light indicators

Nearly silent operation

8

Setup Instructions

Follow the steps below to successfully setup your Cavalry External Hard

Drive with your computer.

Step 1. Start your computer and wait for the Mac OS to load completely.

Step 2. Connect the power adapter to the drive. Then

plug the power adapter into an electrical outlet.

NOTE: Make sure the flat end of the plug is facing

toward the power switch to prevent damage to the pins.

99

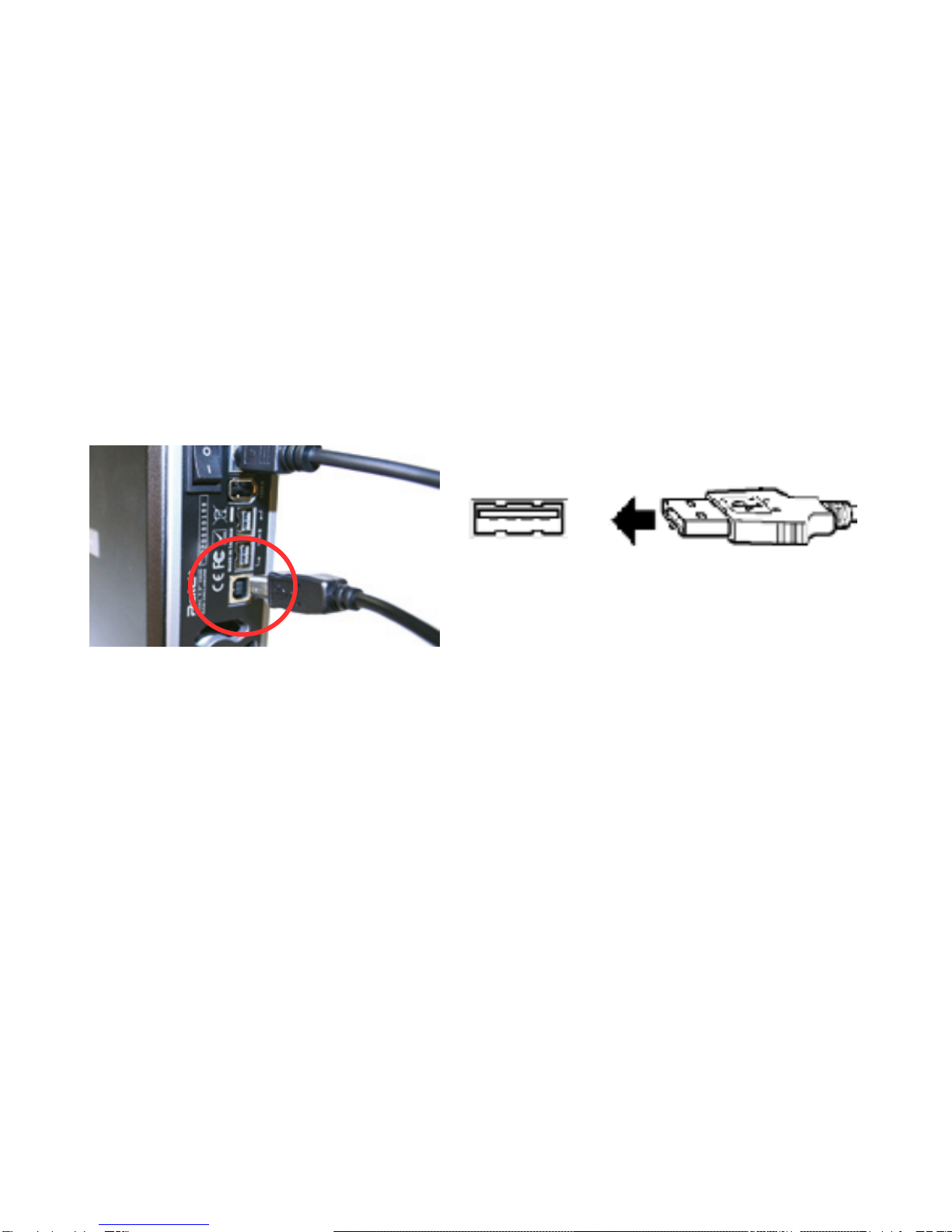

Step 3. Connect the square end of the USB cable to the hard drive. Then

connect the flat end of the USB cable to the USB port on your computer.

NOTE: The same procedure applies for FireWire users.

Step 4. Turn the power switch on.

NOTE: Connect the USB cable to the drive before connecting the cable to

the computer. To disconnect, remove the cable from the computer first.

1110

USB Cable Plug

USB Port
