Cavalry CAXR SERIES Manuale utente

User's Manual

CAXR Series

Preface

Copyright

Please respect copyrighted content. Duplication or modification of this publication in whole or in

part is prohibited without express or written authorization.

Usage

Strong impacts or dropping the product may cause damage. Only allow qualified personnel to

repair this product. Disassembling or opening this product will void your warranty.

Disclaimer

Cavalry is not liable for compensation for data loss which may result from a malfunction of the

product or from changes due to improper use, repairs, defects, or battery change. Please back

up your data to avoid unexpected losses. Cavalry reserves the right to make changes to the

content of this manual without notice. The most current manuals and software are available for

download at our download page: www.cavalrystorage.com/su_download.htm

2 2

Thank you for choosing Cavalry.

We at Cavalry extend our sincere gratitude for your purchase of this product.

We hope our dedication to delivering high quality products with excellent

customer service will ensure your continued interest in our products.

This manual will assist in the operation of the product. To optimize your

experience with this product, we recommend reading this entire manual

before usage. Please keep this manual for future reference.

3 3

Table of Contents

Preface .................................................................................................... 2

List of Accessories ............................................................................. 5

Product Illustrations ........................................................................... 6

Features ............................................................................................. 8

Setup Instructions .............................................................................. 9

Troubleshooting ................................................................................. 13

Warranty and Contact ........................................................................ 15

44

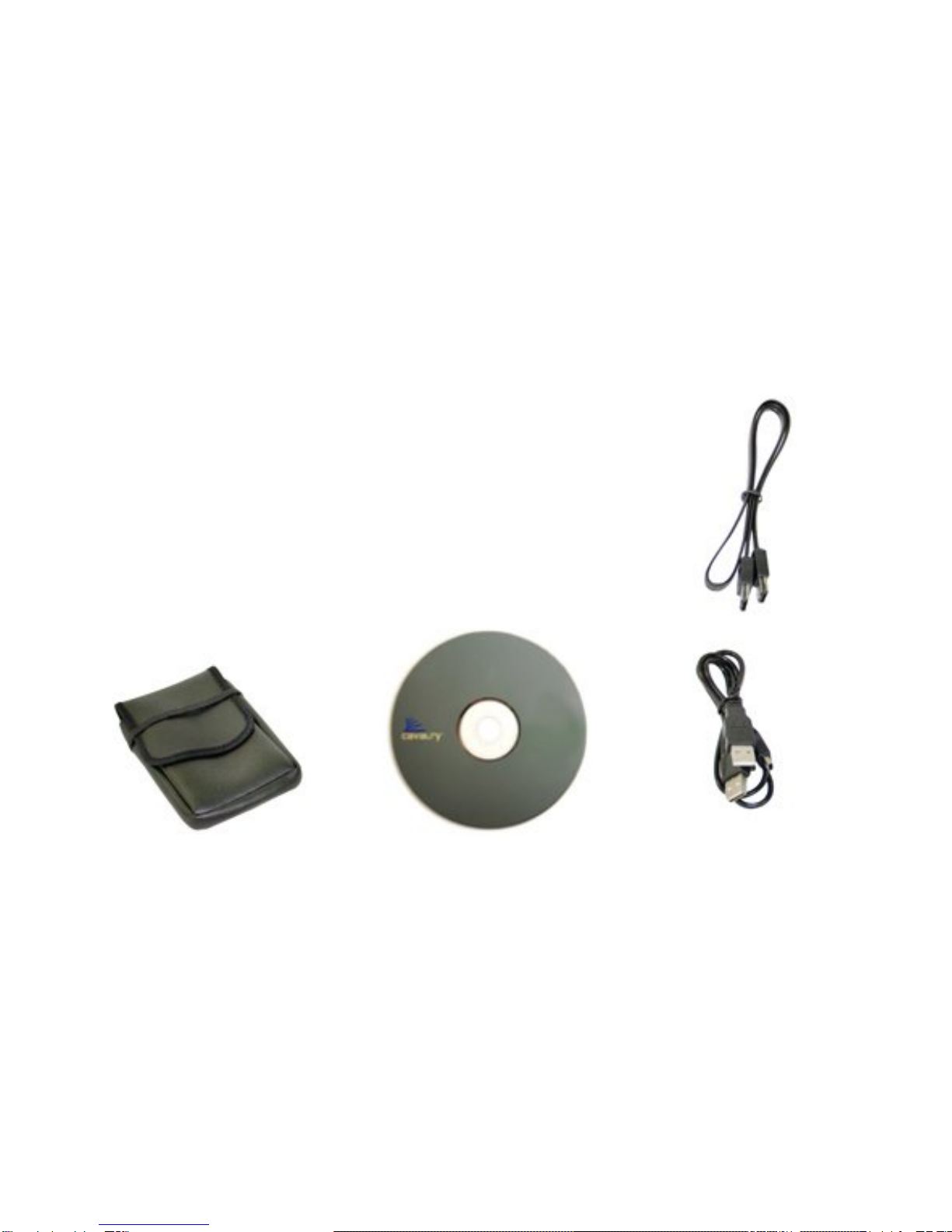

List of Accessories

1. Protective case

2. Resources CD

3. USB 2.0 "Y" cable

4. eSATA cable

55

123

4

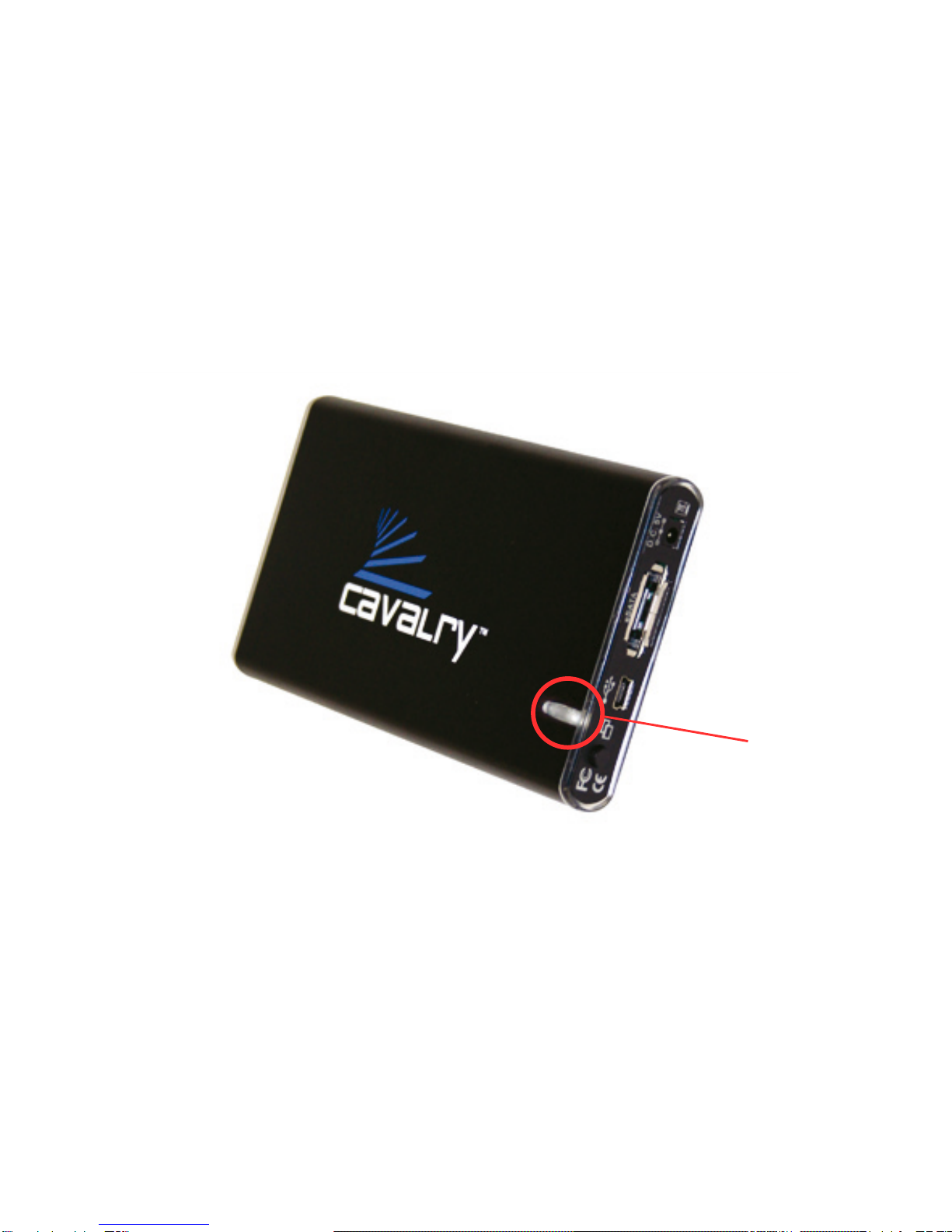

Top

66

1

1. LED light indicator

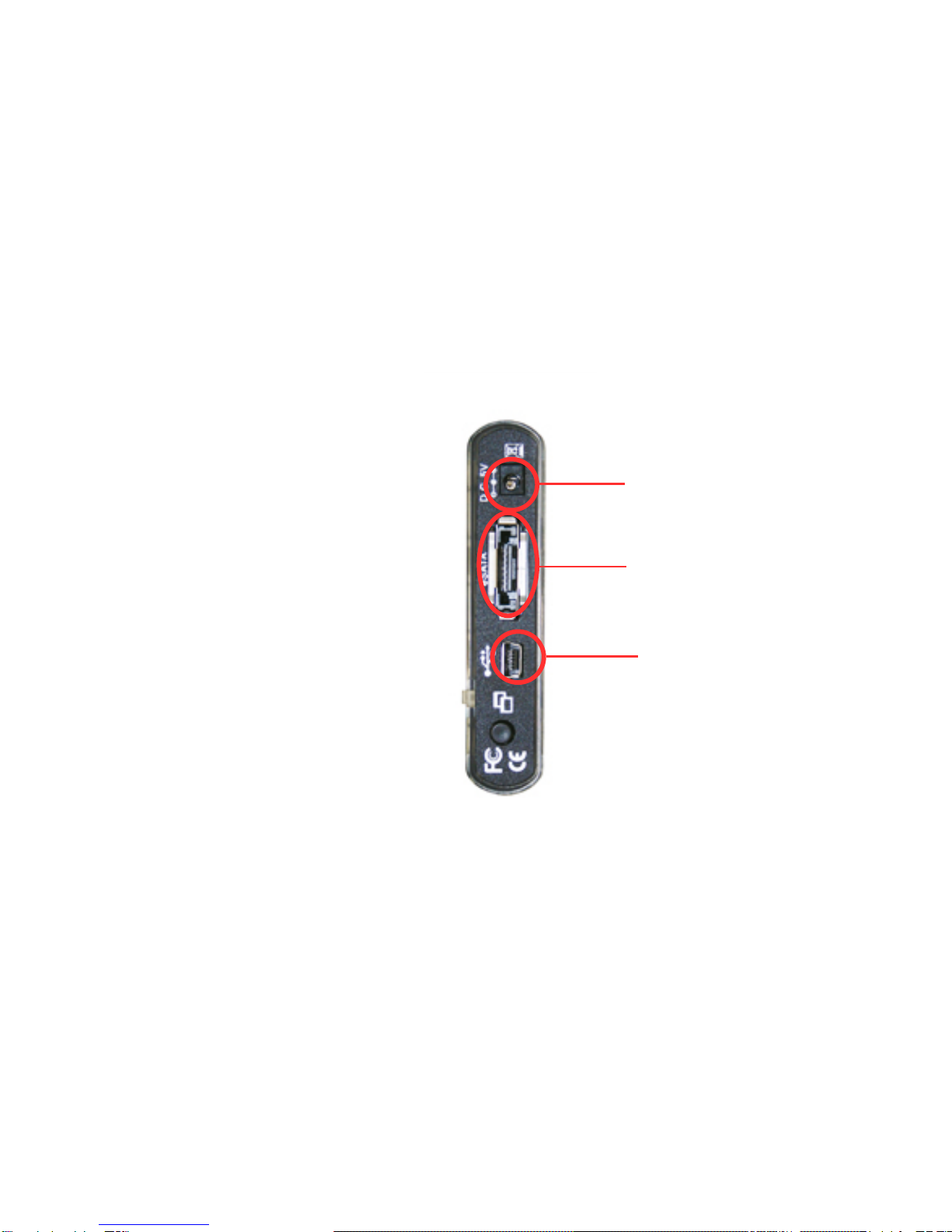

Back

2

4

77

2. Power jack

3. eSATA port

4. USB 2.0 port 3

8

Features

Plug-and-play for Windows 2000/XP/Vista

USB 2.0 and eSATA interface

Pre-formatted to NTFS

Exceptional heat dissipating ability

LED light indicator

Nearly silent operation

Slim and lightweight portable design

Designed for use with a PC, formattable for use with a Mac

8

Setup Instructions

Follow the steps below to successfully set up your Cavalry External Hard

Drive with your computer.

Step 1. Start your computer and wait for Windows to load completely.

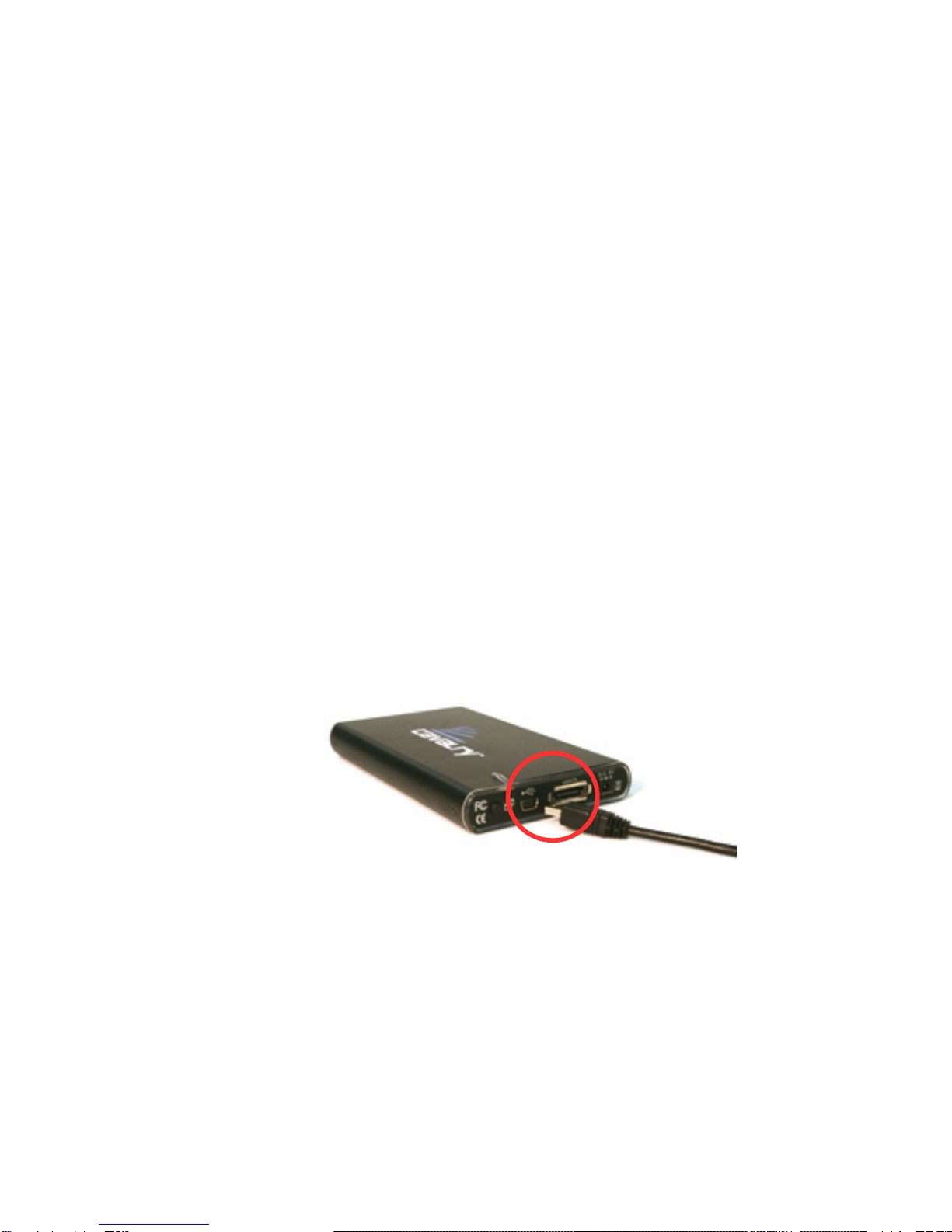

Step 2. Connect the small end of the USB 2.0 "Y" cable to the drive. Then

plug the large end of the cable into the computer's USB port for power. For

additional portability and your convenience, an additional power adapter is

not required.

99

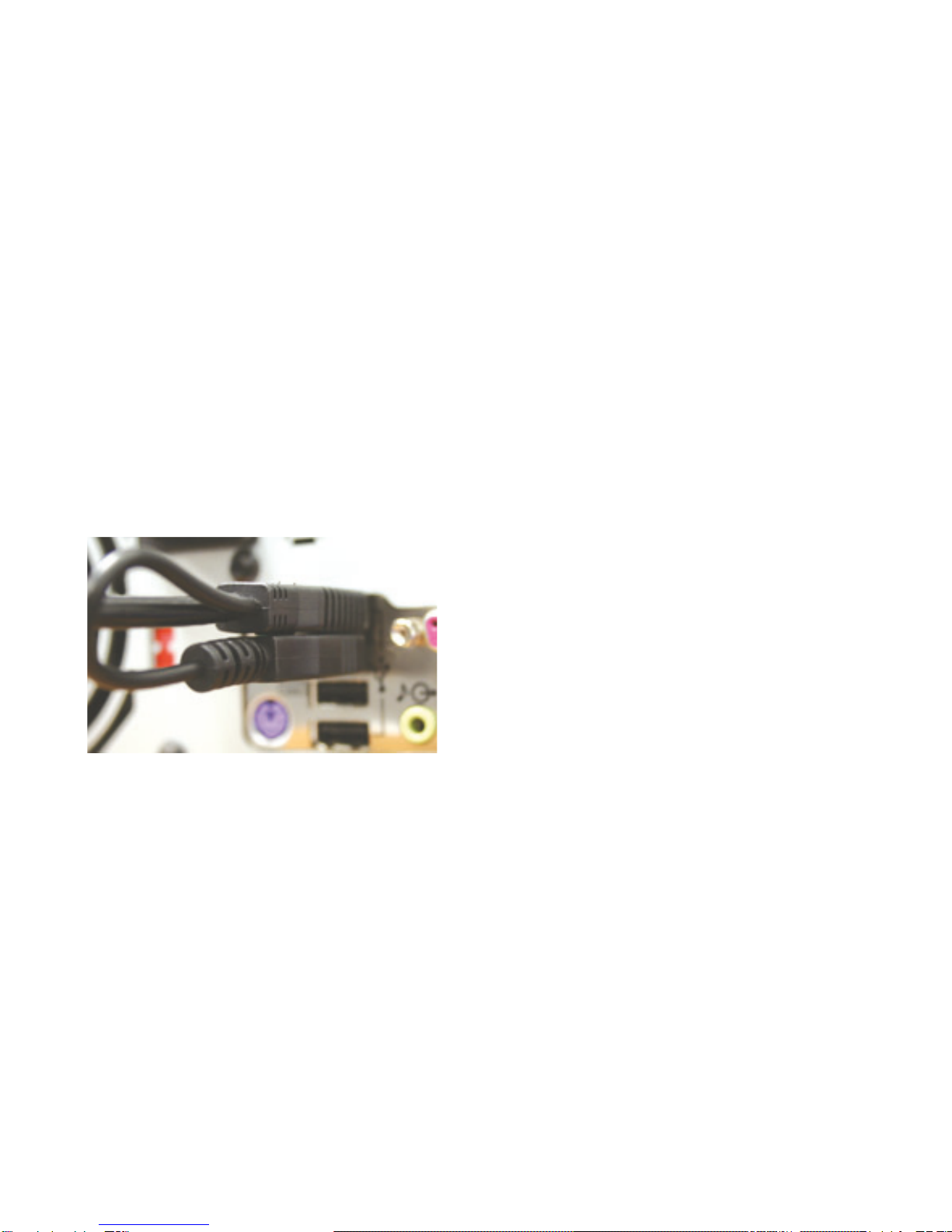

NOTE: Some USB ports do not supply enough electricity to power the hard

drive. If you notice the drive is not appearing on your computer with only one

USB plug inserted, then insert both USB plugs into 2 available USB ports. In

most cases, this should be sufficient. Please contact customer support for

additional questions.

NOTE: eSATA users, first make sure the computer is turned off. Since the

eSATA cable does not provide power to the unit, you must first insert the

1110
