Introduction
The programmer controls your central heating system.
It will enable you to select the times when heating and
hot water are switched ON and OFF.
Features
•Weekday/weekend heating programme.
•
Weekday/weekend hot water programme.
•Three ON/OFF switching times per day.
•
Built-in programme with typical ON/OFF times.
•ADVANCE buttons for heating and hot water.
•BOOST buttons for heating and hot water, giving
up to 3 hours of boost.
•Settings stored in non-volatile memory to prevent
loss of programme during power cuts.
•12 hour am/pm or 24 hour clock format.
The programmer and other controls in your
central heating system will provide comfortable
temperatures in your home when you want them.
12 hour am/pm or 24 hour clock display
Your programmer can operate on 12 hour am/pm or
24 hour clock formats. To change the format, ensure
the slider is in the Run Programme position then press
the +and
-
buttons together for about 3 seconds. All
the displayed times will be automatically changed to
the new format.
Repeating this procedure will change the clock display
back to the original format.
Weekday/Weekend Programming
When setting the programme times (slider is in Set
Heating or Set Hot Water positions) the applicable
days will be displayed as a block of days (Mon...Fri or
Sat...Sun). The Day button will switch between the
Weekday and Weekend programmes when pressed.

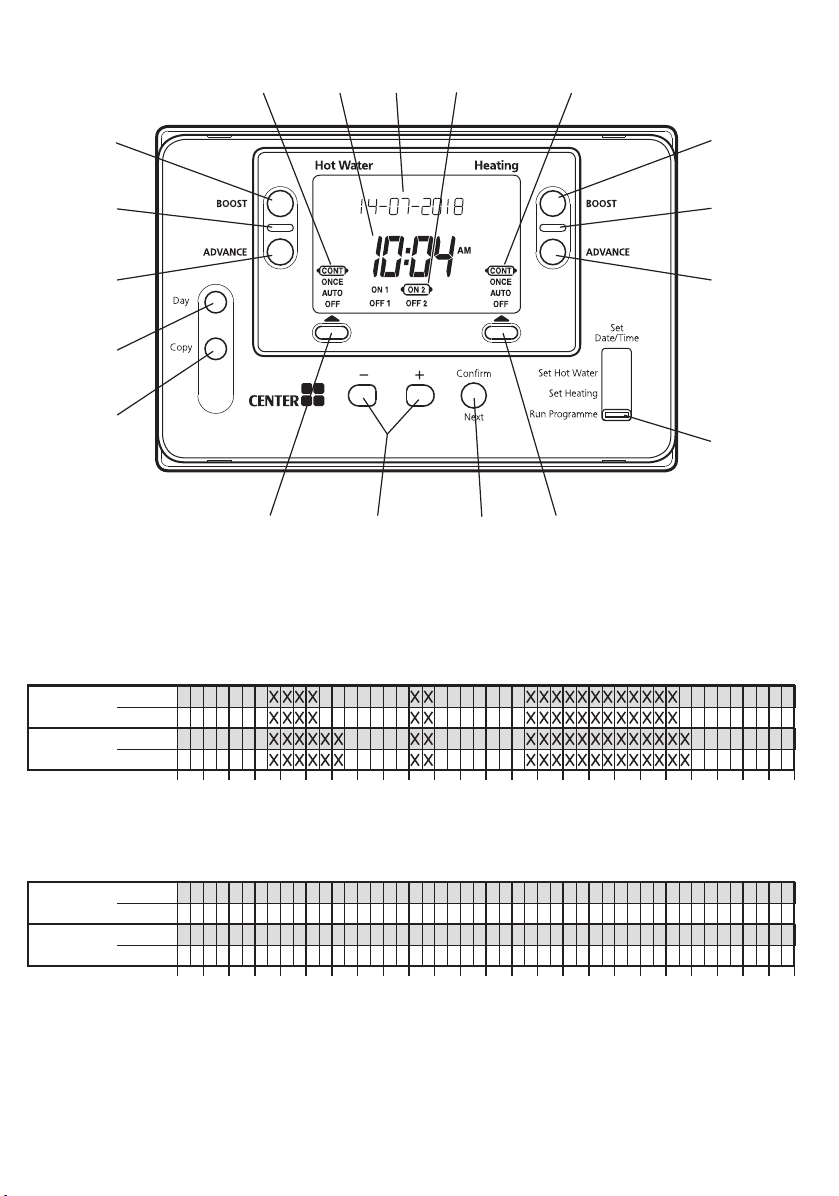

Operating Your Controller
Normal Operation
For normal operation the slider must be in the Run
Programme position.
A red indicator lamp shows when the heating or hot
water is switched ON.
Two Mode buttons are provided to select how the
heating and hot water are controlled.
Keep pressing the
Heating
Mode button to scroll
through the 4 possible modes:
Off - The heating will remain OFF.
Auto - The heating will be switched ON and OFF
automatically according to the heating programme.
Once - The heating will come ON at the first
programmed ON time and go OFF at the last
programmed OFF time.
Cont. - The heating will remain ON continuously.
The Hot Water
Mode
button operates in the same
manner as described above for the Heating Mode
button.
Boost
The BOOST buttons switch the heating or hot water
ON for up to 3 hours without altering the programme.
Pressing either button once will give one hour boost,
and the words HEATING +1 HR or HOT WATER +1 HR
show on the display to confirm the button has been
pressed.
When the red indicator lamp is OFF, pressing the
BOOST button switches the heating or hot water ON
for just one hour.
When the red indicator lamp is ON, pressing the
BOOST button extends the programmed ON period
by one hour.
Further presses of the BOOST buttons will increase
the boost period by one hour for each button press,
up to a maximum of 3 hours. The display will change
to show the number of hours of boost, for example
HEATING +3 HR or HOT WATER +2 HR.
To cancel the boost hours, keep pressing the BOOST
button until the HEATING + (1, 2 or 3) HR or HOT
WATER + (1,2 or 3) HR disappears from the display.
Advance
The ADVANCE buttons switch the heating or hot
water ON or OFF without altering the programme.
When the indicator lamp is ON, pressing the ADVANCE
button switches the heating or hot water OFF until the
next programmed ON time.
When the indicator lamp is OFF, pressing the
ADVANCE button switches the heating or hot water
ON until the next programmed OFF time.
Power Failure
Your programmer stores the programme in non-volatile
memory to ensure correct operation after a mains
supply power cut. Date/time/mode are saved regularly
so you may only need to correct the time after a power
cut of more than a few minutes. Follow the instructions
for “Setting the Correct Date/Time” overpage.

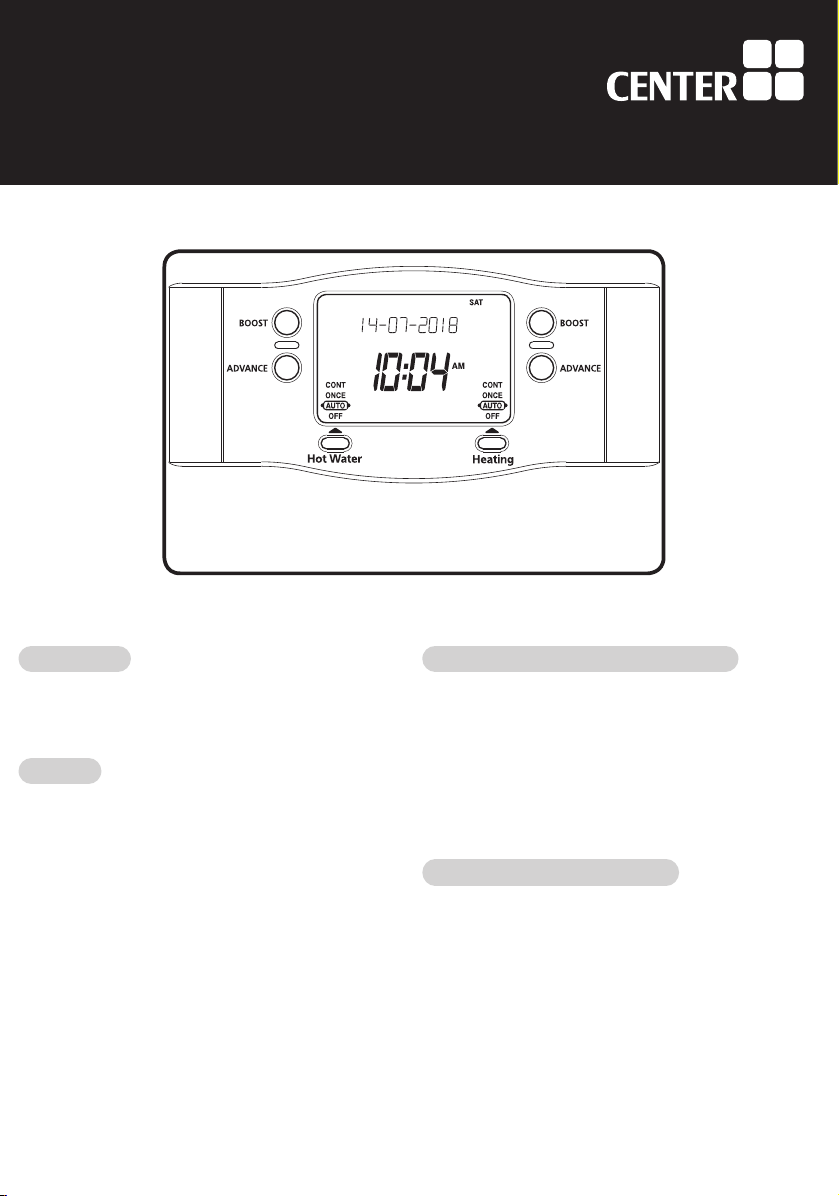

User Guide
for 340006 (EHE0200363) Programmer
Ref: 4277
Whilst every care has been taken to ensure that the information included in
this document was accurate at the time of printing, we reserve the right to
change specifications at any time.
The photographs reproduced in this publication are within the constraints of
the printing process and are NOT to be used for matching purposes. E&OE.
Wolseley UK, The Wolseley Center, Harrison Way, Spa Park,
Royal Leamington Spa, CV31 3HH
For further information telephone 0344 292 7062
WEEE Directive 2012/19/EU
At the end of the product life dispose
of the packaging and product in a
corresponding recycling centre. Do
not dispose of the unit with the usual
domestic refuse. Do not burn the product.
