Central Pneumatic 47915 Manuale utente

5 HP AIR COMPRESSOR – 20 GALLON

Model 47915

ASSEMBLY AND OPERATING INSTRUCTIONS

3491 Mission Oaks Blvd., Camarillo, CA 93011

Visit our Web site at http://www.harborfreight.com

manual or any artwork contained herein may be reproduced in any shape or form

without the express written consent of Harbor Freight Tools.

For technical questions, please call 1-800-444-3353.

 

 



 

 

 

 

 

 

 

 

 

SPECIFICATIONS TABLE

SAVE THIS MANUAL

You will need this manual for the safety warnings and precautions, assembly,

operating, inspection, maintenance and cleaning procedures, parts list and

assembly diagram. Keep your invoice with this manual. Write the invoice

number on the inside of the front cover. Keep this manual and invoice in a safe

and dry place for future reference.

GENERAL SAFETY WARNINGS AND PRECAUTIONS

1. KEEP WORK AREA CLEAN AND DRY. Cluttered, damp, or wet work areas

invite injuries.

2. KEEP CHILDREN AWAY FROM WORK AREA. Do not allow children to handle

this product.

3. STORE IDLE EQUIPMENT. When not in use, tools and equipment should be

stored in a dry location to inhibit rust. Always lock up tools and equipment, and

keep out of reach of children.

4. DO NOT USE THIS PRODUCT IF UNDER THE INFLUENCE OF ALCOHOL OR

DRUGS. Read warning labels on prescriptions to determine if your judgement or

reflexes are impaired while taking drugs. If there is any doubt, do not attempt to

use this product.

SKU 47915 PAGE 2 Rev 01/03

5. USE EYE AND HAND PROTECTION. Wear ANSI approved safety impact

eyeglasses and heavy-duty work gloves when using this product. ANSI

approved safety impact eyeglasses and heavy-duty work gloves are available

from Harbor Freight Tools.

6. DRESS SAFELY. Do not wear loose clothing or jewelry, as they can become

caught in moving parts. Wear a protective hair covering to prevent long hair from

becoming caught in moving parts. If wearing a long-sleeve shirt, roll sleeves up

above elbows.

7. DO NOT OVERREACH. Keep proper footing and balance at all times to prevent

tripping, falling, back injury, etcetera.

8. INDUSTRIAL APPLICATIONS MUST FOLLOW OSHA REQUIREMENT.

9. STAY ALERT. Watch what you are doing at all times. Use common sense. Do

not use this product when you are tired or distracted from the job at hand.

10. CHECK FOR DAMAGED PARTS. Before using this product, carefully check that

it will operate properly and perform its intended function. Check for damaged

parts and any other conditions that may affect the operation of this product.

Replace or repair damaged or worn parts immediately.

11. REPLACEMENT PARTS AND ACCESSORIES: When servicing, use only

identical replacement parts. Only use accessories intended for use with this

product. Approved accessories are available from Harbor Freight Tools.

12. MAINTAIN THIS PRODUCT WITH CARE. Keep this product clean and dry for

better and safer performance.

13. MAINTENANCE: For your safety, service and maintenance should be performed

regularly by a qualified technician.

14. USE THE RIGHT TOOL FOR THE JOB. Do not attempt to force a small tool or

attachment to do the work of a larger industrial tool. There are certain applica-

tions for which this tool was designed. It will do the job better and more safely at

the rate for which it was intended. Do not modify this tool, and do not use this

tool for a purpose for which it was not intended.

15. WARNING: The warnings, precautions, and instructions discussed in this manual

cannot cover all possible conditions and situations that may occur. The operator

must understand that common sense and caution are factors, which cannot be

built into this product, but must be supplied by the operator.

SKU 47915 PAGE 3

SPECIFIC PRODUCT WARNINGS AND PRECAUTIONS

1. MAINTAIN A SAFE WORKING ENVIRONMENT. Keep the work area well lit.

Make sure there is adequate surrounding workspace. Always keep the work

area free of obstructions, grease, oil, trash, and other debris. Do not use the Air

Compressor in areas near flammable chemicals, dusts, and vapors.

2. ALWAYS DISCONNECT THE AIR COMPRESSOR FROM ITS ELECTRICAL

POWER SUPPLY SOURCE, RELEASE ITS AIR PRESSURE, AND

DISCONNECT ALL PNEUMATIC TOOLS FROM THE MACHINE BEFORE

PERFORMING ANY SERVICES OR MAINTENANCE.

3. WHEN CHECKING THE OIL LEVEL: Make sure to unscrew (do not pull) the

Dip Stick out.

4. WARNING: Make sure to fill the Air Compressor with a premium quality,

30-weight, non-detergent, compressor oil before each use. Running the Air

Compressor with no oil or low oil will cause damage to the equipment and

void the warranty.

5. MAKE SURE ALL TOOLS AND EQUIPMENT USED WITH THE AIR

COMPRESSOR ARE RATED TO THE APPROPRIATE PSI CAPACITY. Do not

use any tool or equipment that operates over 145 PSI.

6. DRAIN AIR COMPRESSOR EVERY DAY. Do not allow moisture to build up

inside the Air Compressor. Do not allow the Air Compressor to sit pressurized for

longer than one hour.

7. DO NOT REMOVE THE FACTORY SEALED TOOL PRESSURE VALVE

ADJUSTER (part #59).

8. DO NOT OPEN THE DRAIN VALVE (part #44) SO THAT MORE THAN FOUR

THREADS ARE SHOWING.

9. CAUTION: The Internal Pressure Switch (part #55) should not be adjusted. Any

change to the automatic ON/OFF pressure levels will cause additional stress on

the motor, which may result in shortened motor life.

10. THIS AIR COMPRESSOR DOES NOT COME EQUIPPED WITH AN

ELECTRICAL POWER PLUG. For your safety, only a qualified, certified

electrician should attach the Power Plug onto the Power Cord. Never remove the

grounding prong or modify the Plug in any way. Do not use adapter plugs with the

Power Plug.

SKU 47915 PAGE 4

11. GROUND THIS PRODUCT. To comply with the National Electric Code, and to

provide additional protection from the risk of electrical shock, this product should

only be connected to an electrical outlet that is protected by a Ground Fault Circuit

Interrupter (GFCI).

12. DO NOT ABUSE THE POWER CORD. Do not use the Power Cord (part #72) to

pull the Power Plug from a power outlet. Keep the Power Cord away from heat,

oil, sharp edges, and moving parts. Route the Power Cord safely. Do not route

the Power Cord where it can be walked on or tripped over. Replace a damaged

Power Cord immediately.

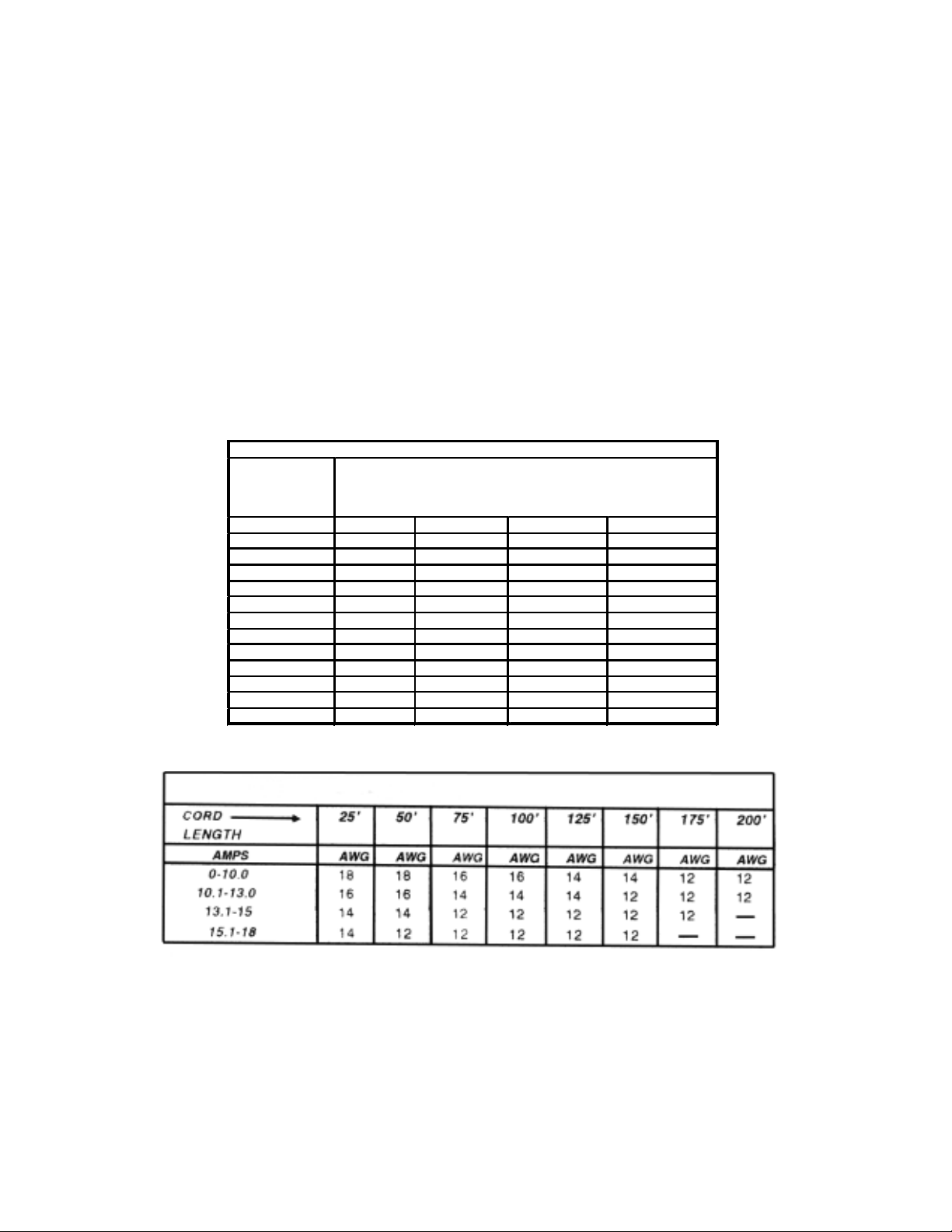

13. IF AN EXTENSION CORD (not provided) IS USED, MAKE SURE TO USE

ONLY UL APPROVED CORDS HAVING THE CORRECT GAUGE AND

LENGTH. (See Figure A.)







EXTENSION CORD LENGTH







   

 

 

    

    

    

    

    

    

    

    

    

    

    

FIGURE A

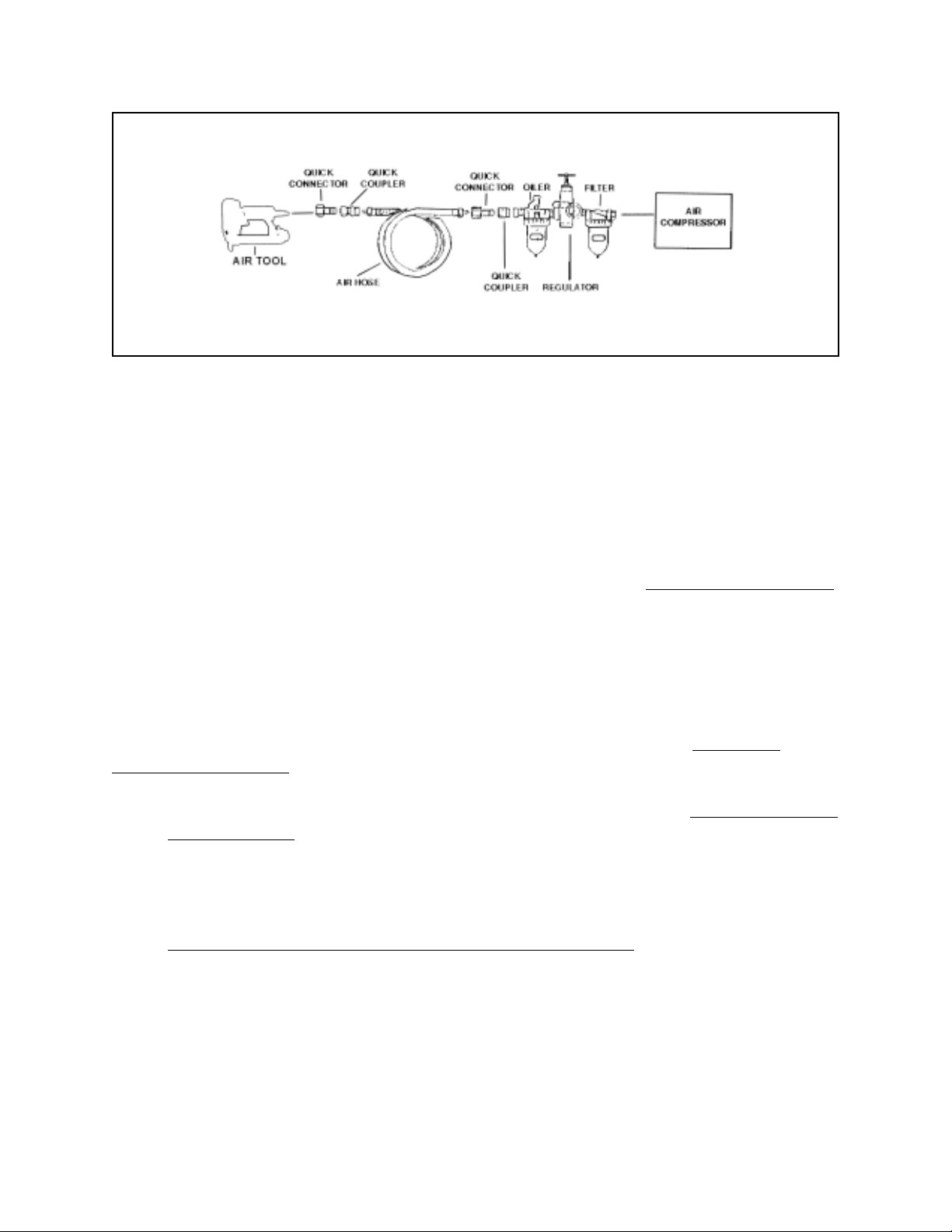

14. TO EXTEND THE LIFE OF YOUR AIR TOOLS AND EQUIPMENT, it is

recommended to install an oiler and water filter in series with the Air Output Line

of the Air Compressor. (See Figure C, next page.)

15. WARNING: This product contains or produces a chemical known to the State of

California to cause cancer and birth defects (or other reproductive harm).

(California Health & Safety Code 25249.5 et seq.)

SKU 47915 PAGE 5

FIGURE B

FIGURE C

16. WARNING: People with pacemakers should consult their physician(s) before

using this product. Operation of electrical equipment in close proximity to a heart

pacemaker could cause interference or failure of the pacemaker.

UNPACKING

When unpacking, check to make sure all the parts shown on the Parts List on page 14

are included. If any parts are missing or broken, please call Harbor Freight Tools at the

number shown on the cover of this manual as soon as possible.

ASSEMBLY INSTRUCTIONS

NOTE: For additional references to the parts listed below, refer to the Assembly

Diagram on page 15.

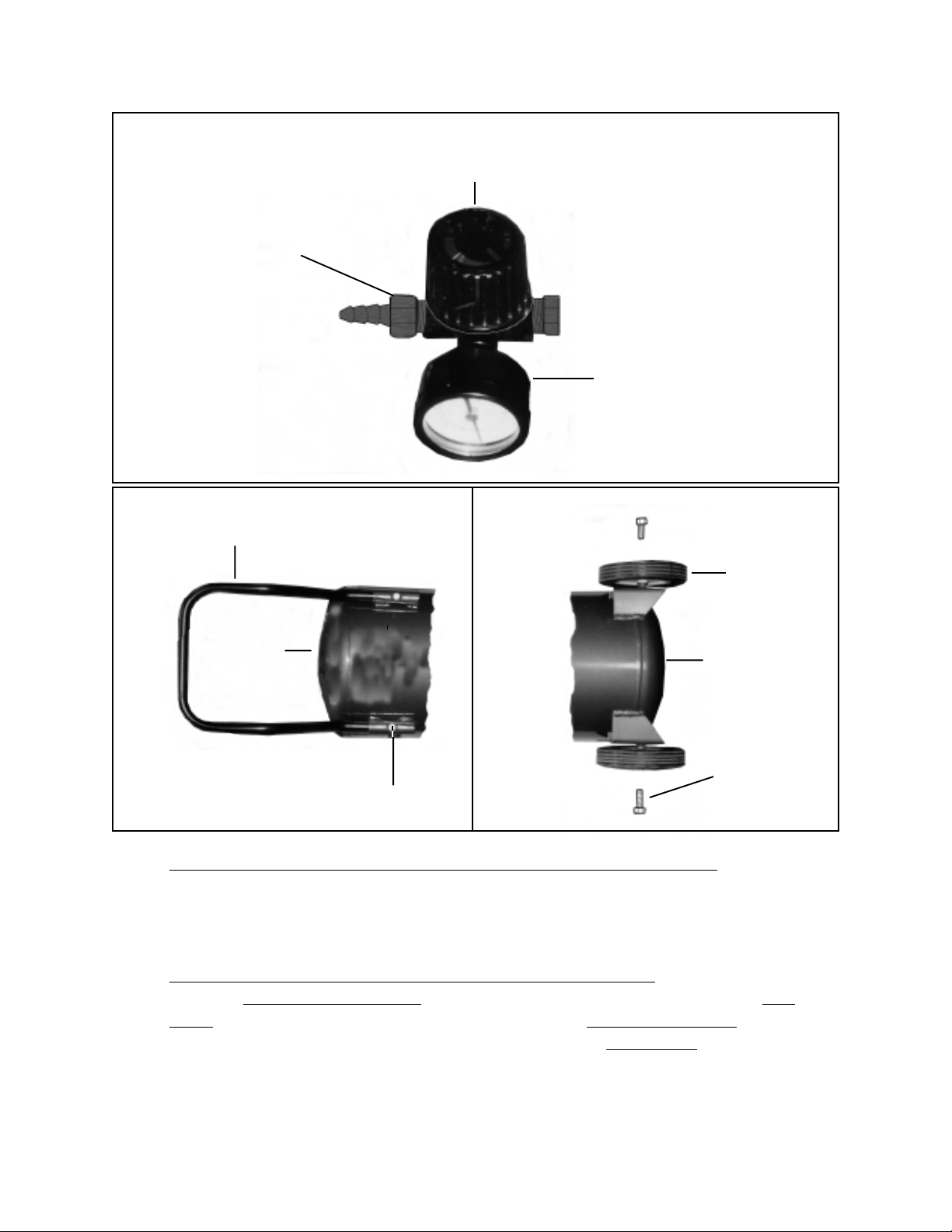

1. Prior to using, the Air Compressor requires the attachment of a 1/4” NPT Female

Quick Coupler (not provided) to the Tool Pressure Adjuster Valve (part #59). To

do so, wrap approximately 4” of thread seal tape around the male threads of the

Tool Pressure Valve Adjuster. Then, wrench tighten the Quick Coupler onto the

Tool Pressure Valve Adjuster. (See Figure D, next page.)

2. To attach the Handle (part #50) to the Air Tank (part #41), insert each end of the

Handle into the mounting brackets on the Air Tank. Then, secure the Handle to

the Air Tank with two Plate Washers (part #65) and two Hex Head Bolts

(part #68). (See Figure E, next page.)

SKU 47915 PAGE 6

TOOL PRESSURE

ADJUSTER VALVE

(#59)

1/4” NPT

FEMALE QUICK COUPLER

(NOT PROVIDED)

TOOL PRESSURE GAUGE

(#60)

HEX HEAD BOLT (#68)

PLATE WASHER (#65)

HANDLE (#50)

AIR TANK

(#41)

FIGURE F

FIGURE D

TANK WHEEL

BOLT (#42)

AIR TANK (#41)

3. To attach the two Tank Wheels (part #43) to the Air Tank (part #41), insert a Tank

Wheel Bolt (part #42) through the hub of a Tank Wheel. Then, wrench tighten the

Tank Wheel Bolt onto the wheel bracket located at the back of the Air Tank.

Repeat this procedure for the remaining Tank Wheel. (See Figure F.)

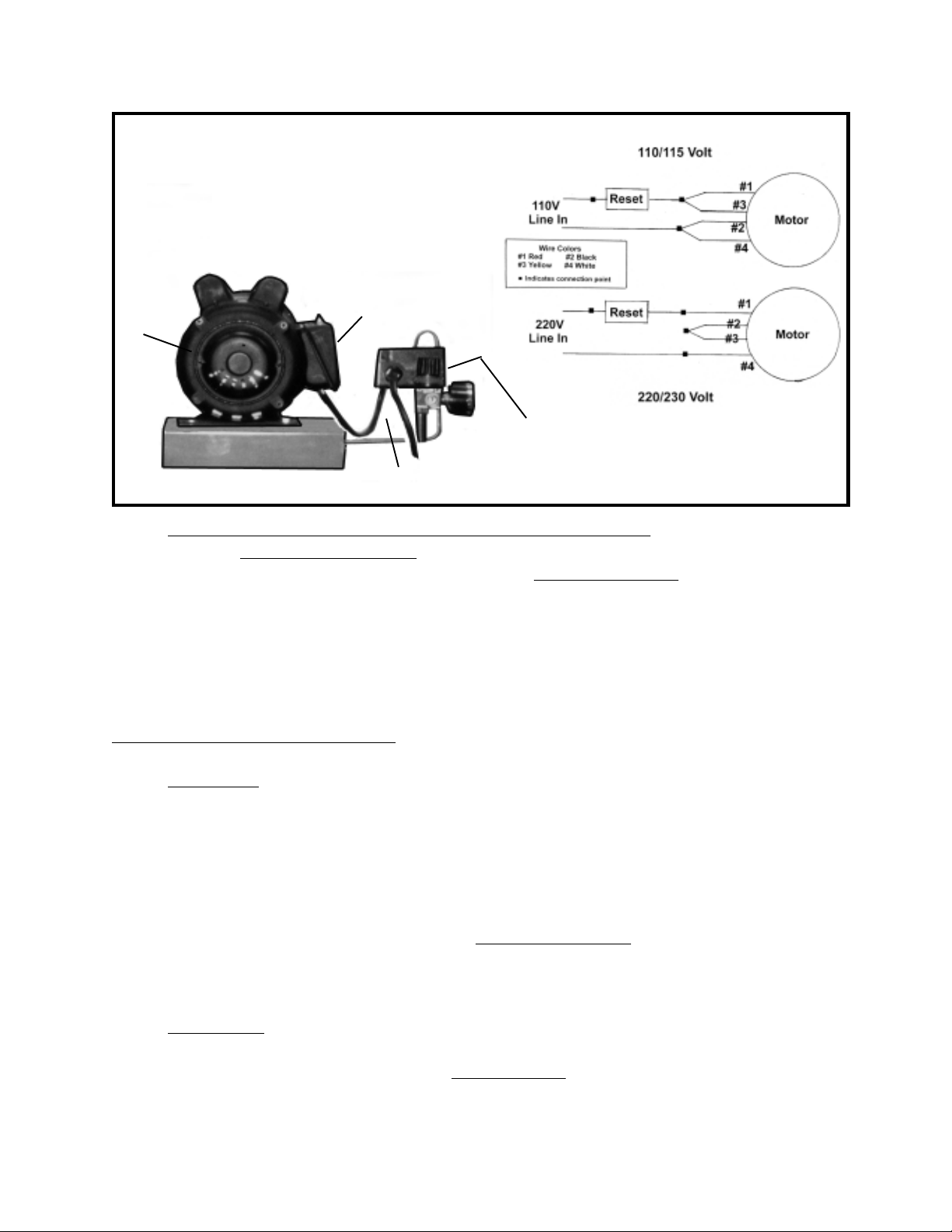

4. To wire the Motor to accept 220 Volt electrical power supply, remove the cover

from the electrical junction box on the Motor. Next, connect each of the four

wires within the Wire Cable (part #71) to its proper electrical terminal in the junc-

tion box. Then, reattach the cover to its junction box. CAUTION: For your safety,

only a qualified, certified electrician should attach the Wire Cable to the

Motor’s junction box. (See Figure G, next page.)

FIGURE E

SKU 47915 PAGE 7

TANK WHEEL

(#43)

Rev 01/03

FIGURE G

OPERATING INSTRUCTIONS

To Check And Fill The Oil Level:

1. CAUTION: ALWAYS make sure the Air Compressor is filled to the proper

level with a premium quality, 30-weight, non-detergent compressor oil prior

to turning on the machine. Failure to do so will result in damage to the Air

Compressor and void its warranty.

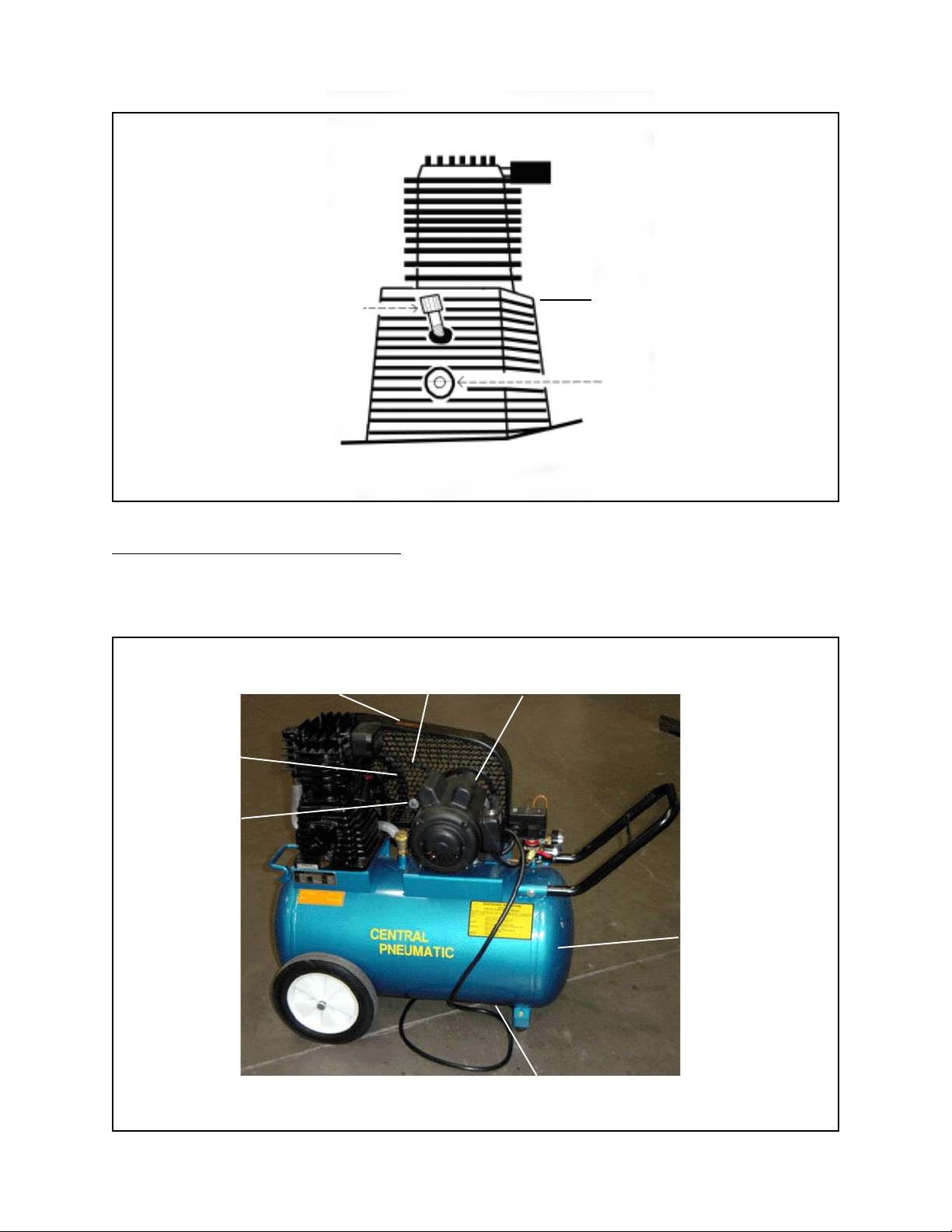

2. To check the level of oil in the Air Compressor, observe the Oil Sight Gauge

(part #26) located on the Crankcase (part #31). Proper oil level is

indicated when the oil appears in the middle of the circle in the Oil Sight Gauge.

(See Figure H, next page.)

3. If the oil level is below the middle of the circle in the Oil Sight Gauge (part #26),

UNSCREW (do not pull) the Dip Stick (part #29) out of the Oil Fill Hole. Next,

add oil into the Oil Fill Hole until the level of oil reaches the middle of the circle as

indicated on the Oil Sight Gauge. Do not overfill. Then screw the Dip Stick back

into the Oil Fill Hole, being careful not to strip the plastic threads.

(See Figure H.)

SKU 47915 PAGE 8

JUNCTION BOX

5. To wire the Motor to accept 120 Volt electrical power supply, remove the cover

from the electrical junction box on the Motor. Next, connect each of the four wires

within the wire Cable (part #71) to its proper electrical terminal in the junction

box. Then, reattach the cover to its junction box. CAUTION: For your safety,

only a qualified, certified electrician should attach the Wire Cable to the

Motor’s junction box. (See Figure G)

WIRE CABLE (#72)

MOTOR

PRESSURE

SWITCH (#55)

Rev 01/03

DIP STICK

(#29)

CRANKCASE (#31)

OIL SIGHT GAUGE (#26)

(PROPER OIL LEVEL)

FIGURE H

To Turn The Air Compressor On:

1. Check to make sure the Drain Valve (part #44) is fully closed. (See Figure I)

V-BELT (#66)

MOTOR PULLEY

(#62)

SAFETY NET (#69)

PULLEY (#38)

HEX HEAD

BOLT (#68)

PLATE WASHER

(#65)

AIR TANK (#41)

DRAIN VALVE

(#44) FIGURE I

SKU 47915 PAGE 9

2. Turn the Tool Pressure Adjuster Valve (part #59) clockwise all the way to allow

compressed air to build up in the Air Tank (part #41). (See Figures D, and J.)

3. Connect the air hose (not provided) to the previously installed 1/4” NPT Female

Quick Coupler on the Tool Pressure Adjuster Valve (part #59). Then, connect the

other end of the air hose to the pneumatic tool (not provided) that is to be used.

(See Figures C and D)

4. Plug the Power Cord (part #72) into a grounded, three-hole electrical outlet. (See

Assy. Diagram.)

5. Pull up on the Tool Pressure Adjuster Valve (part #59) to turn the Air Compressor

on. (Push down on the Tool Pressure Adjuster Valve to turn the Air Compressor

off.) (See Figures C and J)

6. Allow sufficient time for the Tank Pressure Gauge (part #56) to indicate 80 PSI

before using the Air Compressor. (See Figure I)

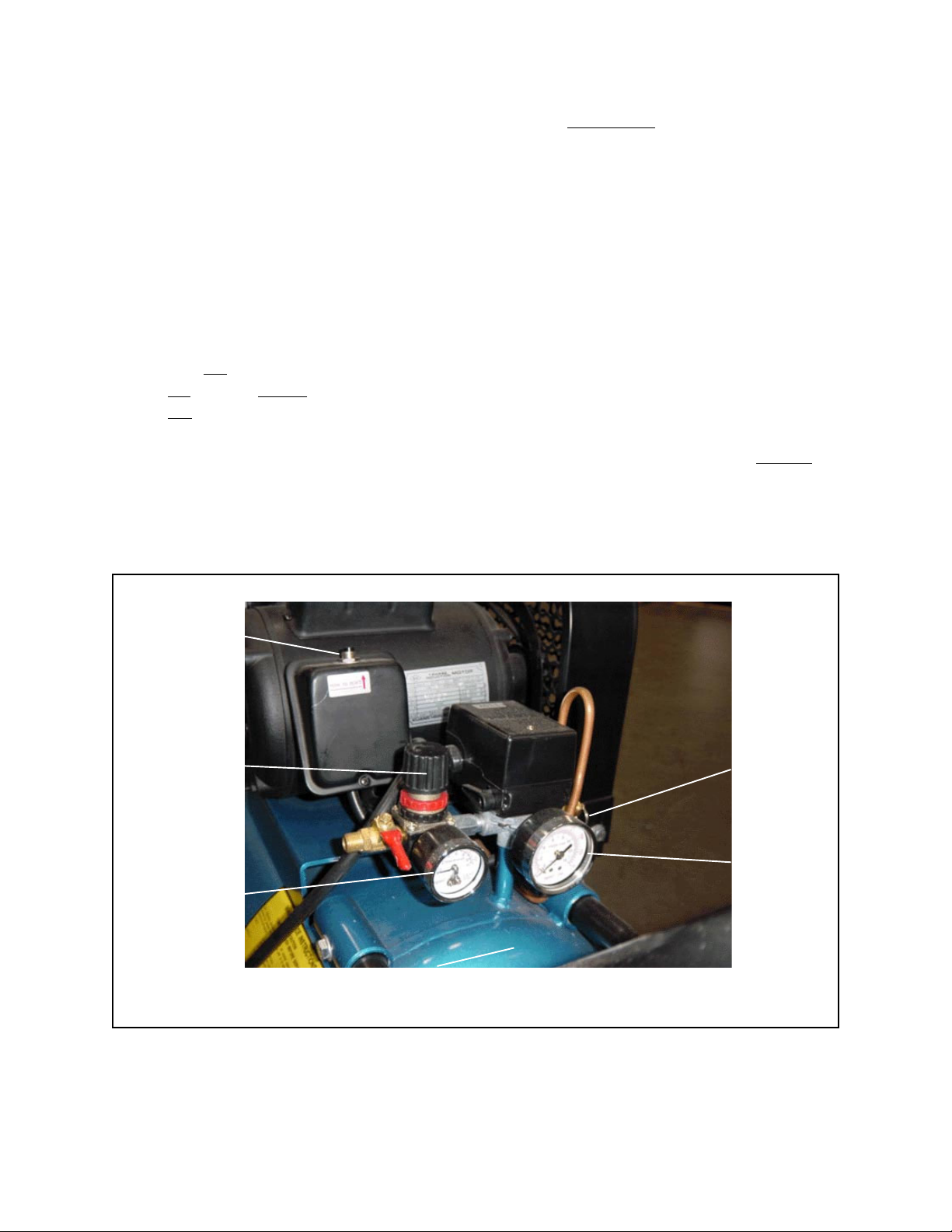

RESET BUTTON

TOOL

PRESSURE

GAUGE

(#60)

SAFETY

RELIEF

VALVE (#57)

TANK

PRESSURE

GAUGE

(#56)

AIR TANK (#41)

FIGURE J

SKU 47915 PAGE 10

TOOL

PRESSURE

ADJUSTER

VALVE (#59)

Indice

Altri manuali Central Pneumatic compressore d'aria

Central Pneumatic

Central Pneumatic 92403 Manuale elenco delle parti

Central Pneumatic

Central Pneumatic 60567 Manuale di istruzioni originale

Central Pneumatic

Central Pneumatic 61489 Manuale utente

Central Pneumatic

Central Pneumatic 95370 Manuale elenco delle parti

Central Pneumatic

Central Pneumatic 94667 Manuale utente

Central Pneumatic

Central Pneumatic 96087 Manuale elenco delle parti

Central Pneumatic

Central Pneumatic 60637 Guida utente

Central Pneumatic

Central Pneumatic 67698 Manuale utente

Central Pneumatic

Central Pneumatic FP202800 Manuale di servizio

Central Pneumatic

Central Pneumatic 67847 Manuale di istruzioni originale

Central Pneumatic

Central Pneumatic 95386 Manuale di installazione

Central Pneumatic

Central Pneumatic CENTRAL PNEUMATIC 95499 Manuale elenco delle parti

Central Pneumatic

Central Pneumatic 93271 Manuale di installazione

Central Pneumatic

Central Pneumatic 93657 Manuale utente

Central Pneumatic

Central Pneumatic 93657 Istruzioni per il montaggio

Central Pneumatic

Central Pneumatic 69667 Istruzioni per il montaggio

Central Pneumatic

Central Pneumatic 42321 Manuale utente

Central Pneumatic

Central Pneumatic 61454 Manuale utente

Central Pneumatic

Central Pneumatic 98635 Manuale di installazione

Central Pneumatic

Central Pneumatic 90385 Manuale utente

Central Pneumatic

Central Pneumatic 95630 Manuale di installazione

Central Pneumatic

Central Pneumatic 99659 Manuale di installazione

Central Pneumatic

Central Pneumatic 95275 Manuale di installazione

Central Pneumatic

Central Pneumatic 68067 Istruzioni per il montaggio

Manuali compressore d'aria popolari di altre marche

Sparmax

Sparmax DC-25XR Manuale utente

KAESER

KAESER M122 Manuale utente

GMC

GMC GAC1500 Manuale utente

Briggs & Stratton

Briggs & Stratton Air Compressor Manuale utente

Fini

Fini F3GST2TK Manuale utente

Industrial Air

Industrial Air CP1580325 Manuale di programmazione

Campbell Hausfeld

Campbell Hausfeld RP3300 Guida rapida

Ingersoll-Rand

Ingersoll-Rand UP6 20 HP Manuale utente

Hitachi

Hitachi EC99S Manuale dell'operatore

Parkside

Parkside PKO 270 A1 Manuale utente

Sullair

Sullair 185 Manuale utente

Clas Ohlson

Clas Ohlson QIE-ZTH-15 Manuale utente

Ferm

Ferm CRM1046 Manuale utente

BE AC153 Manuale utente

RIDGID

RIDGID OF25150A Manuale utente

Johnson Controls

Johnson Controls QUANTUM LX Manuale

Sears

Sears Craftsman 919.167463 Manuale utente

Ring Automotive

Ring Automotive RAC700 Manuale utente
