Central Pneumatic 93271 Manuale utente

21 GALLON, 230 VAC,

CAST IRON VERTICAL

AIR COMPRESSOR

OPERATING INSTRUCTIONS

3491 Mission Oaks Blvd., Camarillo, CA 93011

Visit ourWeb site at http://www.harborfreight.com

this manual or any artwork contained herein may be reproduced in any shape

or form without the express written consent of Harbor Freight Tools.

For technical questions, please call 1-800-444-3353.

93271

SKU 93271 For technical questions, please call 1-800-444-3353. PAGE 2

SPECIFICATIONS

metInoitpircseD

erusserPriAmumixaMffO-tuhSotuAhtiwISP511

yticapaCknaTriAsnollaG12

yticapaCwolFriA ISP09taMFC

5.3 ISP04taMFC8.8

stnemeriuqeRlacirtcelE /zH06/tloV032/rotoMdetaRPH3 spmA7/esahPelgniS

egatSpmuPelgniS

eziSt

eltuOriATPN81-”4/1

thgieWgnippihSsdnuoP251

droCrewoP’02

SAVE THIS MANUAL

You will need this manual for the safety warnings and precautions, assembly,

operating, inspection, maintenance and cleaning procedures, parts list and

assembly diagram. Keep your invoice with this manual. Write the invoice

number on the inside of the front cover. Keep this manual and invoice in a safe

and dry place for future reference.

GENERAL SAFETY WARNINGS AND PRECAUTIONS

1. KEEP WORK AREA CLEAN AND DRY. Cluttered, damp, or wet work areas invite

injuries.

2. KEEP CHILDREN AWAY FROM WORK AREA. Do not allow children to handle

this product.

3. STORE IDLE EQUIPMENT. When not in use, tools and equipment should be stored

in a dry location to inhibit rust. Always lock up tools and equipment, and keep out of

reach of children.

4. DO NOT USE THIS PRODUCT IF UNDER THE INFLUENCE OF ALCOHOL OR

DRUGS. Read warning labels on prescriptions to determine if your judgement or

reflexes are impaired while taking drugs. If there is any doubt, do not attempt to

use this product.

5. USE EYE, HAND, AND HEARING PROTECTION. Wear ANSI approved safety

impact goggles, hearing protection, and heavy-duty work gloves when using this

product.

REV 10/05

SKU 93271 For technical questions, please call 1-800-444-3353. PAGE 3

6. DRESS SAFELY. Do not wear loose clothing or jewelry, as they can become caught

in moving parts. Wear a protective hair covering to prevent long hair from becoming

caught in moving parts. If wearing a long-sleeve shirt, roll sleeves up above el-

bows.

7. DO NOT OVERREACH. Keep proper footing and balance at all times to prevent

tripping, falling, back injury, etcetera.

8. INDUSTRIAL APPLICATIONS MUST FOLLOW OSHA REQUIREMENTS.

9. STAY ALERT. Watch what you are doing at all times. Use common sense. Do not

use this product when you are tired or distracted from the job at hand.

10. CHECK FOR DAMAGED PARTS. Before using this product, carefully check that it

will operate properly and perform its intended function. Check for damaged parts

and any other conditions that may affect the operation of this product. Replace or

repair damaged or worn parts immediately.

11. REPLACEMENT PARTS AND ACCESSORIES: When servicing, use only identi-

cal replacement parts. Only use accessories intended for use with this product.

Approved accessories are available from Harbor Freight Tools.

12. MAINTAIN THIS PRODUCT WITH CARE. Keep this product clean and dry for

better and safer performance.

13. MAINTENANCE: For your safety, service and maintenance should be performed

regularly by a qualified technician.

14. USE THE RIGHT TOOL FOR THE JOB. Do not attempt to force a small tool or

attachment to do the work of a larger industrial tool. There are certain applications

for which this tool was designed. It will do the job better and more safely at the rate

for which it was intended. Do not modify this tool, and do not use this tool for a

purpose for which it was not intended.

15. WARNING: The warnings, precautions, and instructions discussed in this manual

cannot cover all possible conditions and situations that may occur. The operator

must understand that common sense and caution are factors, which cannot be built

into this product, but must be supplied by the operator.

SKU 93271 For technical questions, please call 1-800-444-3353. PAGE 4

SPECIFIC PRODUCT WARNINGS AND PRECAUTIONS

1. CAUTION: Make sure to fill the Air Compressor with a premium quality, 30-weight,

non-detergent oil before each use. Running the Air Compressor with no oil or low

oil will cause damage to the equipment. Note: The oil reservoir has an optimal

capacity of 30 ounces of oil.

2. MAKE SURE ALL TOOLS AND EQUIPMENT USED WITH THE AIR COMPRES-

SOR ARE RATED TO THE APPROPRIATE CAPACITY. Do not use any tool or

equipment that does not operate at or above the PSI that the compressor’s regulator

is set to.

3. DRAIN AIR COMPRESSOR EVERY DAY. Do not allow moisture to build up inside

the Air Compressor. (See

“INSPECTION, MAINTENANCE, AND CLEANING”

section of this manual.)

4. MAINTAIN A SAFEWORKING ENVIRONMENT. Keep the work area well lit. Make

sure there is adequate surrounding workspace. Always keep the work area free of

obstructions, grease, oil, trash, and other debris. Do not use the Air Compressor in

areas near flammable chemicals, dusts, and vapors.

5. AVOID INJURY: Never direct the pressurized air stream at people or animals.

6. DO NOT ALTER OR REMOVE THE FACTORY SEALED PRESSURE RELEASE

VALVE (5A). (See Assy. Diagram A.)

7. DO NOT OPEN THE WATER DRAIN VALVE (10A) SOTHAT MORE THAN FOUR

THREADS ARE SHOWING. (See Assy. Diagram A.)

8. AN EXTENSION CORD MUST NEVER BE USEDWITHTHIS ITEM. Connecting

this item to an outlet through an extension cord MAY CAUSE ELECTRICAL

DAMAGETO THE MOTOR and could present a FIRE HAZARD. Longer air hoses

are typically safer and more effective than extension cords.

9. THIS UNIT REQUIRES A 230 VAC, UL LISTED, TWISTLOCK PLUG TO BE

INSTALLED BY A LICENSED TECHNICIAN BEFORE SETUP OR USE.

10. THIS COMPRESSOR MAY REQUIRE A DEDICATED ELECTRICAL CIRCUIT

AS THE AMPERAGE DRAW UNDER FULL LOAD COMBINED WITH USE OF

ANY OTHER ITEM MAY OVERLOAD YOUR CIRCUIT.

11. WARNING: This product contains or produces a chemical known to the State of

California to cause cancer and birth defects (or other reproductive harm).

(California Health & Safety Code § 25249.5,

et seq.

)

12. People with pacemakers should consult their physician(s) before using this prod-

uct. Operation of electrical equipment in close proximity to a heart pacemaker could

cause interference to or failure of the pacemaker.

SKU 93271 For technical questions, please call 1-800-444-3353. PAGE 5

UNPACKING

When unpacking, check to make sure all the parts shown on the Parts Lists on pages 10,

and 11 are included. If any parts are missing or broken, please call Harbor Freight Tools at

the number shown on the cover of this manual as soon as possible.

OPERATING INSTRUCTIONS

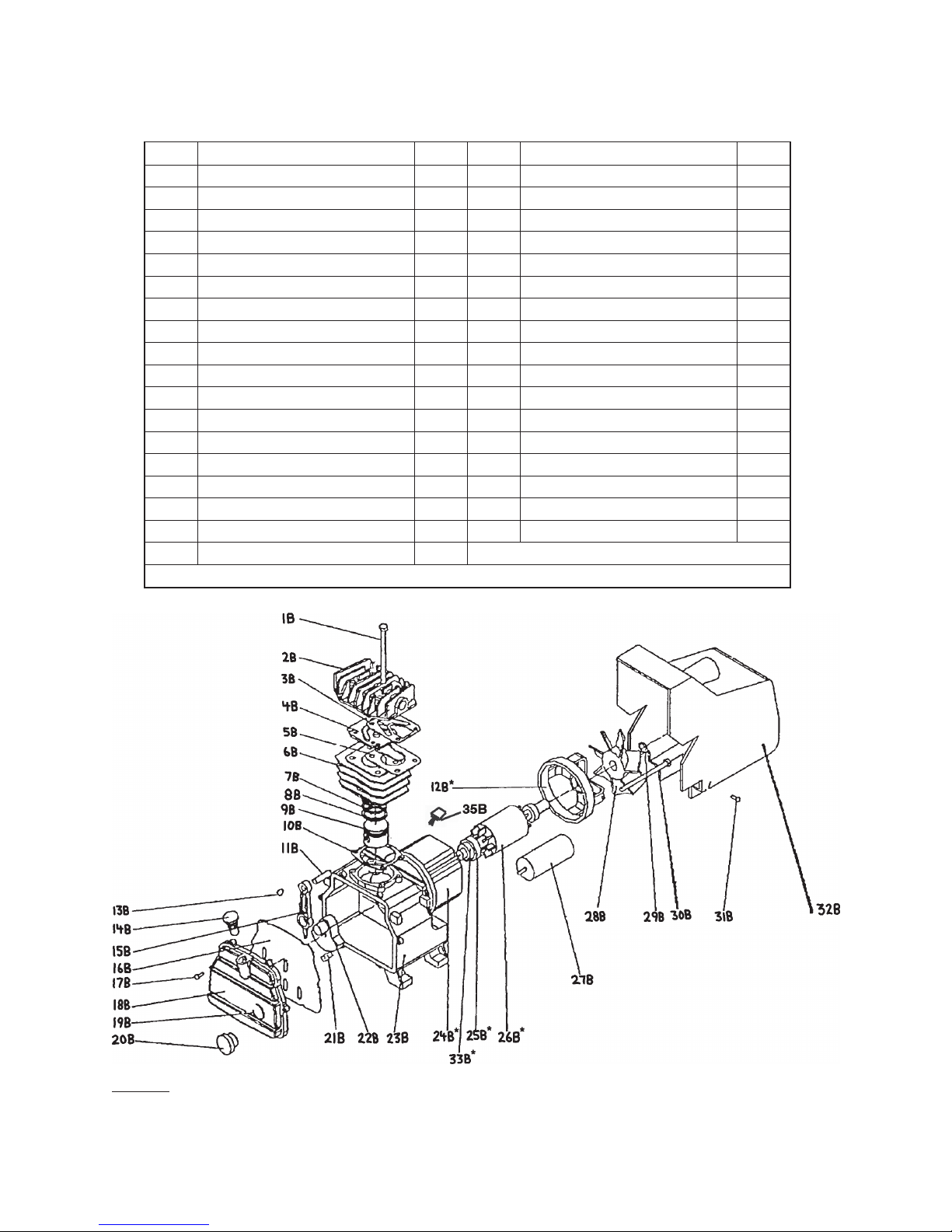

NOTE: For additional references to the parts listed below, refer to the Assembly

Diagrams on pages 10, and 11.

To CheckThe Oil Level:

1. The Oil Window (20B) is used to determine if oil is needed. The oil level should

always be at the maximum level (red line on the Oil Window). (See Figure A, and

Assy. Diagram B.)

2. WHEN OPENING THE DIP STICK: Make sure to unscrew(do not pull) the Dip

Stick (14B) out. (See Figure A.)

3. If necessary, add a

premium quality, 30-weight, non-detergent oil

into the Oil Fill

Hole until the level of oil reaches the maximum level as indicated on the Oil Window

(20B). The optimal capacity of the oil reservoir is 30 ounces. Do not overfill. Then

thread the Dip Stick back into the Oil Fill Hole, being careful not to strip the plastic

threads.

FIGURE A

Dip Stick (14B)

OilWindow (20B)

Front Cover (18B)

To Turn The Air Compressor On:

1. Check to make sure the Water Drain Valve (10A) is fully closed.

(See Assy. Diagram A.)

SKU 93271 For technical questions, please call 1-800-444-3353. PAGE 6

2. Pull on the Pressure Relief Valve (5A) briefly to ensure that it does not stick.

3. Turn the Air Flow Valve (6A) to its “OFF” position.

3. Connect the air hose (not provided) to the Air Flow Valve (6A) of the Air Compres-

sor. Then, connect the other end of the air hose to the pneumatic tool (not provided)

that is to be used.

4. To extend the life of your air tools and equipment, it is recommended to install

an oiler and water filter in series (available from Harbor Freight Tools) with the Air

Output Line of the Air Compressor. (See Figure B.)

5. Note: Always plug the Power Cord of the Air Compressor into a 230V electri-

cal source.

6. Pull up on the “ON/OFF” Power Switch (1A) to turn the Air Compressor on.

(Push down on the “ON/OFF” Power Switch to turn the Air Compressor off.)

7. Allow sufficient time for the Tank Pressure Gauge (4A) to indicate 80 PSI before

using the Air Compressor.

8. Turn the Air Flow Valve (6A) to its “ON” position to allow air to the pneumatic tool.

9. With the Air Compressor turned on, the operation is automatic and under the control

of the automatic switches inside the box under the Power Switch (1A).

NEVER open the power switch box or adjust the controls within.

To AdjustThe Air Output To The Pneumatic Tool:

1. NOTE: When adjusting the air pressure being forwarded to the pneumatic tool, you

will need to compare the pressure readings of both the Tank Pressure Gauge (3A)

and the Tool Pressure Gauge (4A). The reading on the Tank Pressure Gauge dic-

tates the maximum/minimum air pressure at which the Tool Pressure Gauge may

also be set.

2. With the Air Compressor running, and the air hose and pneumatic tool hooked up to

the Air Compressor, pull up on the Tool Pressure Adjuster (2A). Turn the Tool Pres-

TOOL

AIR

COMPRESSOR

FIGURE B

SKU 93271 For technical questions, please call 1-800-444-3353. PAGE 7

sure Adjuster clockwise to increase the air output to the tool, up to the working air

pressure (115 PSI) as indicated on the Tank Pressure Gauge (3A). Never exceed

the maximum PSI for the tool being used or any component of the air system.

3. Turn the Tool Pressure Adjuster (2A) counterclockwise to decrease the air output

to the tool.

To Use The Tank Pressure Relief Valve:

1. The Tank Pressure Relief Valve Ring (5A) is used when decompression is needed

quickly and efficiently. It is also designed to release automatically if the compressor

pressurizes up to or beyond it’s safe limit.

2. To decompress the Air Tank (9A) pressure, press the “ON/OFF” Power Switch (1A)

down to turn off the Air Compressor.

3. Pull out on the Tank Pressure Relief Valve Ring (5A) to immediately release air

pressure in the Air Tank (9A).

To Empty Moisture From TheTank:

1. The Water DrainValve (10A) is located underneath the Air Tank (9A), and should be

used daily to release all trapped moisture through this valve. If this is not done,

condensation may cause Air Tank corrosion. (See Assy. Diagram A.)

2. WARNING: Do not open the Water Drain Valve (10A) so that more than four

threads are showing.

3. Push down on the “ON/OFF” Power Switch (1A) to turn off the Air Compressor. Then,

unplug the Air Compressor’s Power Cord from the electrical outlet.

4. You may wish to lay a pan under the drain to collect the dirty water trapped within.

Slowly and carefully unscrew (no more than four threads) the Water Drain Valve

(10A) until the compressed air and condensation begins to be released from the Air

Tank (9A). Allow sufficient time for all of the air and condensation to escape from

the Air Tank. Then, firmly retighten the Water Drain Valve.

IMPORTANT!

IF THE MOTOR STOPS UNEXPECTEDLY, the overload breaker may have

sensed an over-current condition, and stopped the motor to protect it. If this occurs,

shut off the pressure switch and wait at least 5 minutes. Release the air pressure in the

tank to ease restarting. Then press the breaker button to reset it, and turn on the pressure

switch. To help prevent this, ensure that this compressor is set up on a dedicated circuit

(one with no other equipment running on it), and that the distance from the compressor to

the circuit breaker panel is as short as possible (Extension cords should not be used, and

the outlet should not be far from the panel.).

SKU 93271 For technical questions, please call 1-800-444-3353. PAGE 8

INSPECTION, MAINTENANCE, AND CLEANING

1. WARNING: Always disconnect the Air Compressor from its electrical supply source

before performing any inspection, maintenance, or cleaning.

2. BEFORE EACH USE, inspect the general condition of the Air Compressor. Check

all air fittings for leaks. Check for loose screws, misalignment or binding of moving

parts, cracked or broken parts, damaged power cord and plug, and any other con-

dition that may affect the safe operation of this tool. If abnormal noise or vibration

occurs, immediately disconnect the Air Compressor from its electrical supply source

and have the problem corrected before further use.

Do not use damaged equipment.

3. DAILY: Check the Air Compressor oil level. If necessary, fill with a premium quality,

30-weight, non-detergent oil. NOTE: When checking the oil level, make sure to

unscrew(do not pull) the Dip Stick (14B). (See Assy. Diagram B.)

4. DAILY: Purge the Air Tank (9A) of all air and moisture to prevent corrosion. To do

so, slowly and carefully unscrew (no more than four threads) the Water Drain Valve

(10A) until the compressed air and condensation begins to be released from the Air

Tank. Allow sufficient time for all of the air and condensation to escape from the Air

Tank. Then, firmly retighten the Water Drain Valve. (See Assy. Diagram A.)

5. EVERY 100 HOURS OF USE: Clean the Air Filter (7A) with a mild solvent. Then,

dry and reattach the Air Filter. NOTE: Replace the Air Filter if it is too dirty to

properly clean. (See Assy. Diagram A.)

6. EVERY 500 HOURS OR 12 MONTHS: Drain and replace the old oil with new,

premium quality, 30-weight, non-detergent oil. When the Oil Drain (16A) is removed,

the old oil needs to be collected and disposed of in full accord with all applicable

waste disposal ordinances.

7. TO CLEAN: wipe with a damp cloth, using a mild detergent or mild solvent.

8. WHEN STORING: Keep the Air Compressor in a clean, dry location.

PLEASE READ THE FOLLOWING CAREFULLY

THE MANUFACTURER AND/OR DISTRIBUTOR HAS PROVIDEDTHE PARTS DIAGRAM IN THIS MANUAL AS A

REFERENCE TOOL ONLY. NEITHERTHE MANUFACTURER NOR DISTRIBUTOR MAKES ANY REPRESENTA-

TION OR WARRANTY OF ANY KINDTOTHE BUYER THAT HE OR SHE IS QUALIFIED TO MAKE ANY REPAIRS

TOTHE PRODUCT ORTHAT HE OR SHE IS QUALIFIEDTO REPLACE ANY PARTS OFTHE PRODUCT. IN FACT,

THE MANUFACTURER AND/OR DISTRIBUTOR EXPRESSLY STATES THAT ALL REPAIRS AND PARTS RE-

PLACEMENTS SHOULD BE UNDERTAKEN BY CERTIFIED AND LICENSED TECHNICIANS AND NOT BY THE

BUYER. THE BUYER ASSUMES ALL RISK AND LIABILITY ARISING OUT OF HIS OR HER REPAIRS TO THE

ORIGINAL PRODUCT OR REPLACEMENT PARTS THERETO, OR ARISING OUT OF HIS OR HER INSTALLA-

TION OF REPLACEMENT PARTS THERETO.

SKU 93271 For technical questions, please call 1-800-444-3353. PAGE 9

PARTS LIST A / ASSEMBLY DIAGRAM

traPnoitpircseD.ytQtraPnoitpircseD.ytQ

A1hctiwSrewoPFFO/NO1A11relpuoCesaeleRkciuQ1

A2retsujdAerusserPlooT1A21leehWreb

buR2

A3eguaGerusserPknaT1A31rehsaW2

A4eguaGerusserPlooT1A41tuN2

A5evlaVesaeleRerusserP1A51gnittiF1

A6evlaVwolFriA1A61teksaGht

iwgulPniarDliO1

A7retliFriA1A71tooF2

A8diLwolFriA1A81evlaVredaolnU1

A9knaTriA1A91ebuTredaolnUenahteruyloP1

A01evlaVniarDre

taW1A02ebuTriAreppoC1

10A

12A

13A

14A

15A

11A

16A

17A

18A 19A

20A

(Rear View with motor cover removed.)

SKU 93271 For technical questions, please call 1-800-444-3353. PAGE 10

NOTE: Some parts are listed and shown for illustration purposes only, and are not

available individually as replacement parts.

PARTS LIST B / ASSEMBLY DIAGRAM B

traPnoitpircseD.ytQtraPnoitpircseD.ytQ

B1tloB4B91teksaG1

B2esaCrednilyC1B02wodniWliO1

B3teksaG1B12tloBtfahsknarC1

B4taeSevlaV1B2

2tfahsknarC1

B5teksaG1B32esaCtfahsknarC1

B6rednilyC1*B42rotatS1

B7gniRnoisserpmoC2*B52gniraeB2

B8gniRgniparcSliO1*B62erutamrA1

9notsiP1B72roticapaC1

B01teksaG1B82leehWnaFgnitaidaR1

B11niPnotsiP1B92gniRreniateR1

*B21revoCdnE1B03tloB4

B31reniateRtfahsknar

C2B13wercS2

B41kcitSpiD1B23revoCgnitaidaR1

B51doRgnitcennoC1*B33rehsaWlaeS1

B61teksaG1B43ylbmessArotoM1

B71tloB6B53hctiwSdaolrev

B81revoCtnorF1

.)B43#trapeeS(ylbmessArotoMeritnesaderedroebtsuM.yllaudividnielbaliavatoN*

Altri manuali per 93271

Indice

Altri manuali Central Pneumatic compressore d'aria

Central Pneumatic

Central Pneumatic 92403 Manuale elenco delle parti

Central Pneumatic

Central Pneumatic 61489 Guida utente

Central Pneumatic

Central Pneumatic 60567 Manuale di istruzioni originale

Central Pneumatic

Central Pneumatic 97080 Manuale di installazione

Central Pneumatic

Central Pneumatic 43520 Manuale utente

Central Pneumatic

Central Pneumatic 95275 Manuale di installazione

Central Pneumatic

Central Pneumatic 62913 Istruzioni per il montaggio

Central Pneumatic

Central Pneumatic 97080 Manuale utente

Central Pneumatic

Central Pneumatic 67696 Manuale di installazione

Central Pneumatic

Central Pneumatic 65903 Manuale di installazione

Central Pneumatic

Central Pneumatic CENTRAL PNEUMATIC 47407 Manuale elenco delle parti

Central Pneumatic

Central Pneumatic 95386 Manuale utente

Central Pneumatic

Central Pneumatic 93785 Manuale utente

Central Pneumatic

Central Pneumatic 92097 Manuale utente

Central Pneumatic

Central Pneumatic 93657 Istruzioni per il montaggio

Central Pneumatic

Central Pneumatic 67696 Manuale di installazione

Central Pneumatic

Central Pneumatic 95630 Manuale di installazione

Central Pneumatic

Central Pneumatic 96469 Manuale di installazione

Central Pneumatic

Central Pneumatic 62380 Istruzioni per il montaggio

Central Pneumatic

Central Pneumatic 9592 Manuale utente

Central Pneumatic

Central Pneumatic CentralPneumatic 17 GAL Istruzioni per il montaggio

Central Pneumatic

Central Pneumatic 60754 Manuale utente

Central Pneumatic

Central Pneumatic Central Pneumatic 30 Gallon, 180 PSI Gas Powered Two-Stage Air... Manuale utente

Central Pneumatic

Central Pneumatic 61693 Istruzioni per il montaggio

Manuali compressore d'aria popolari di altre marche

Sparmax

Sparmax DC-25XR Manuale utente

KAESER

KAESER M122 Manuale utente

GMC

GMC GAC1500 Manuale utente

Briggs & Stratton

Briggs & Stratton Air Compressor Manuale utente

Fini

Fini F3GST2TK Manuale utente

Industrial Air

Industrial Air CP1580325 Manuale di programmazione

Campbell Hausfeld

Campbell Hausfeld RP3300 Guida rapida

Ingersoll-Rand

Ingersoll-Rand UP6 20 HP Manuale utente

Hitachi

Hitachi EC99S Manuale dell'operatore

Parkside

Parkside PKO 270 A1 Manuale utente

Sullair

Sullair 185 Manuale utente

Clas Ohlson

Clas Ohlson QIE-ZTH-15 Manuale utente

Ferm

Ferm CRM1046 Manuale utente

BE AC153 Manuale utente

RIDGID

RIDGID OF25150A Manuale utente

Johnson Controls

Johnson Controls QUANTUM LX Manuale

Sears

Sears Craftsman 919.167463 Manuale utente

Ring Automotive

Ring Automotive RAC700 Manuale utente
