Central Pneumatic 45214 Manuale utente

HOTDOG COMPRESSOR

4 GALLON - 2 HP

ASSEMBLY and OPERATING

INSTRUCTIONS

3491 Mission Oaks Blvd., Camarillo, CA 93011

Visit ourWeb site at http://www.harborfreight.com

this manual or any artwork contained herein may be reproduced in any shape or

form without the express written consent of Harbor Freight Tools.

For technical questions and replacement parts,please call 1-800-444-3353

Model 45214

Page 2

SKU 45214

Specifications

Save This Manual

You will need the manual for the safety warnings and precautions, assembly instructions,

operating and maintenance procedures, parts list and diagram. Keep your invoice with this

manual. Write the invoice number on the inside of the front cover. Keep the manual and

invoice in a safe and dry place for future reference.

Safety Warnings and Precautions

WARNING: When using tool, basic safety precautions should always be followed to

reduce the risk of personal injury and damage to equipment.

Read all instructions before using this tool!

1. Keep work area clean. Cluttered areas invite injuries.

2. Observe work area conditions. Do not use machines or power tools in damp or wet

locations. Don’t expose to rain. Keep work area well lighted. Do not use electrically

powered tools in the presence of flammable gases or liquids.

3. Keep children away. Children must never be allowed in the work area. Do not let

them handle machines, tools, or extension cords.

4. Store idle equipment. When not in use, tools must be stored in a dry location to

inhibit rust. Always lock up tools and keep out of reach of children.

5. Do not force tool. It will do the job better and more safely at the rate for which it was

intended. Do not use inappropriate attachments in an attempt to exceed the tool

capacity.

6. Use the right tool for the job. Do not attempt to force a small tool or attachment to

do the work of a larger industrial tool.There are certain applications for which this tool

was designed. Do not modify this tool and do not use this tool for a purpose for which

it was not intended. Do not use to fill air/breathing tanks.

Motor Power 2 HP, 3450 rpm

Electrical 120V, 12 amps, 1400 watts, Single Phase, 60 Hz

NPT Air Outlet 1/4” NPT

Air Tank Size 3.5 Gallon

Maximum PSI 125 psi

Pressure Range Pressure Switch on at 80 psi, off at 110 psi

Air Delivery (cfm) 5 @ 40 psi / 4.5 @ 70 psi / 3.8 @ 90 psi / 3.0 @ 110 psi

Pressure Disconnect Automatic at 170 psi

Pump Stage Single

Oil Requirement Standard non-detegent, 30 weight compressor or motor oil

Optimal capacity for oil tank is 7.8 ounces.

REV 02/04

Page 3

SKU 45214

7. Dress properly. Do not wear loose clothing or jewelry as they can be caught in

moving parts. Protective, electrically non-conductive clothes and non-skid footwear

are recommended when working. Wear restrictive hair covering to contain long hair.

8. Use eye and ear protection. Always wear ANSI approved impact safety goggles.

Wear a full face shield if you are producing metal filings or wood chips.Wear an ANSI

approved dust mask or respirator when working around metal, wood, and chemical

dusts and mists.

9. Do not overreach. Keep proper footing and balance at all times. Do not reach over

or across running machines. Be careful not to trip on air hose.

10. Maintain tools with care. Keep tools clean for better and safer performance. Follow

instructions for lubricating and changing accessories. Inspect tool cords periodically

and, if damaged, have them repaired by an authorized technician.The handles must

be kept clean, dry, and free from oil and grease at all times.

11. Disconnect power. Unplug when not in use.

12. Remove adjusting keys and wrenches. Check that keys and adjusting wrenches

are removed from the tool or machine work surface before plugging it in.

13. Avoid unintentional starting. Be sure the switch is in the Off position when not in

use and before plugging in. Do not carry any tool with your finger on the trigger,

whether it is plugged in or not.

14. Stay alert. Watch what you are doing, use common sense. Do not operate any tool

when you are tired.

15. Check for damaged parts. Before using any tool, any part that appears damaged

should be carefully checked to determine that it will operate properly and perform its

intended function. Check for alignment and binding of moving parts; any broken parts

or mounting fixtures; and any other condition that may affect proper operation. Any

part that is damaged should be properly repaired or replaced by a qualified

technician. Do not use the tool if any switch does not turn On and Off properly.

16. Guard against electric shock. Prevent body contact with grounded surfaces such as

pipes, radiators, ranges, and refrigerator enclosures.

17. Replacement parts and accessories. When servicing, use only identical

replacement parts. Use of any other parts will void the warranty. Only use accessories

intended for use with this tool. Approved accessories are available from Harbor

Freight Tools.

18. Do not operate tool if under the influence of alcohol or drugs. Read warning

labels on prescriptions to determine if your judgment or reflexes are impaired while

taking drugs. If there is any doubt, do not operate the tool.

19. Use proper size and type extension cord. If an extension cord is required, it must

be of the proper size and type to supply the correct current to the tool without heating

up. Otherwise, the extension cord could melt and catch fire, or cause electrical

Page 4

SKU 45214

damage to the tool.This tool requires use of an extension cord of 0 to 10 amps

capability (up to 50 feet), with wire size rated at 18 AWG. Longer extension cords

require larger size wire. If you are using the tool outdoors, use an extension cord

rated for outdoor use. (signified by “WA” on the jacket).

20. Maintenance. For your safety, maintenance should be performed regularly by a

qualified technician.

21. Only use compressor with air. Never use with any other type of gas.

22. Powerful airstream. Never aim the compressor at humans or animals. Severe skin

damage may occur.

23. Transporting compressor. Use handle and wheels to move compressor. Never

move the compressor by pulling on the hoses. Never transport under pressure.

Release pressure in storage tank prior to moving.

Note: Your compressor comes with a grounded three-prong plug. If using an extension cord,

it must be a 3-prong type. Do not remove or disable the third prong (grounding prong).

Note: Performance of this tool (if powered by line voltage) may vary depending on

variations in local line voltage. Extension cord usage may also affect tool performance.

Warning:The warnings,cautions,and instructions discussed in this instruction manual

cannot cover all possible conditions and situations that may occur. It must be under-

stood by the operator that common sense and caution are factors which cannot be

built into this product, but must be supplied by the operator.

Unpacking

When unpacking, check to make sure the parts listed on pages 7 and 8 are included. If any

parts are missing or broken, please call Harbor Freight Tools at the number on the cover of

this manual as soon as possible.

Page 5

SKU 45214

Operation

Warning!! Never attempt to adjust or removeValve Air Outlet (#A-9). It is pre-set at 170

psi. Removal of valve voids warranty.

Warning!! Before using your compressor for the first time,fill with oil.Running the com-

pressor with low,or no oil,voids the warranty.

1. Carefully and slowly unscrew the Oil Dipstick (#B-19) from the oil reservoir.The assembly

is made of plastic and will break if you are too forceful.

2. Check that oil reaches the full mark on the Oil Dipstick (#B-19). If not, fill with a standard,

non-detergent, 30-weight motor oil. Do not overfill. If overfilled, remove the drain plug and

drain appropriate amount.

Tool

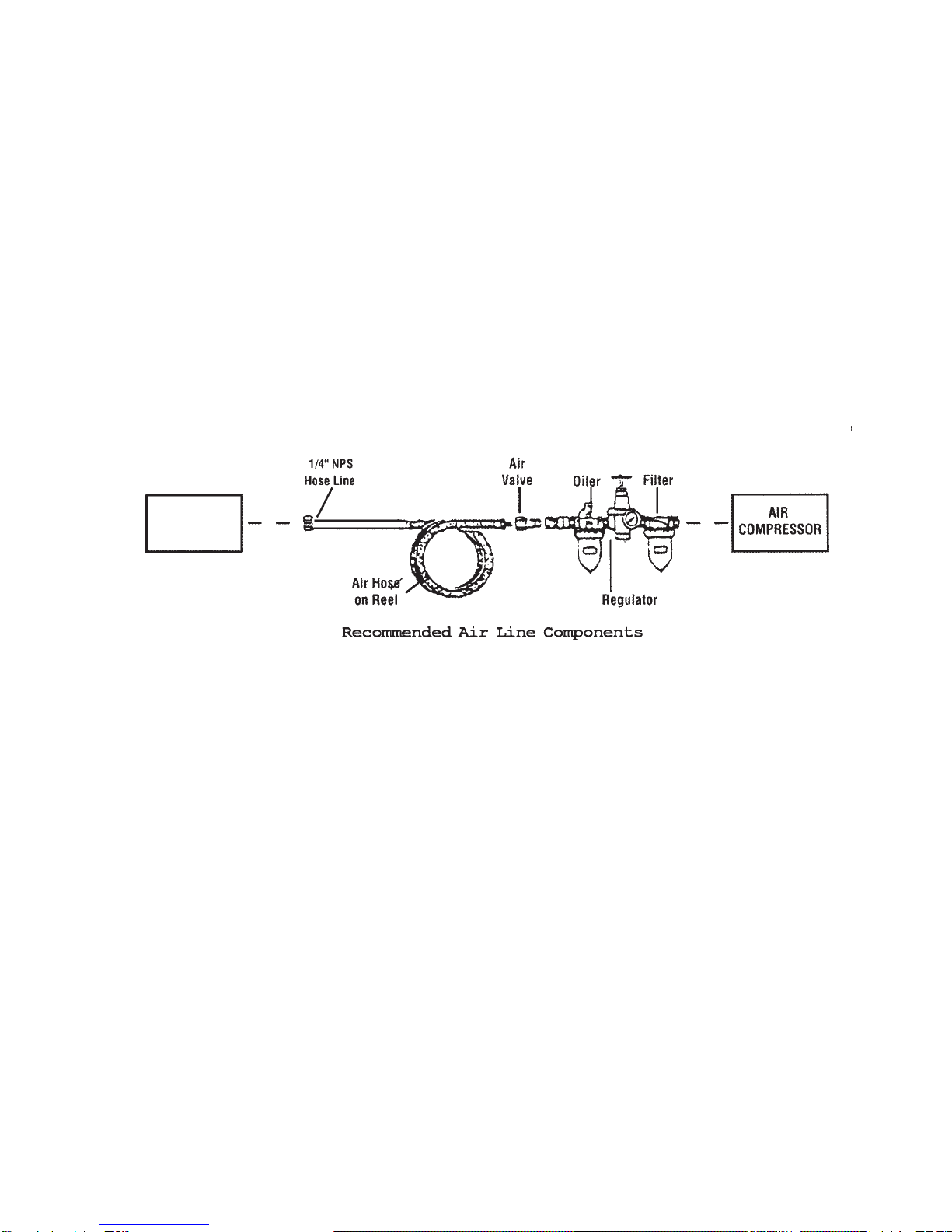

For best service, you should incorporate an oiler, regulator, and filter, in line, as shown in the

diagram below. Hoses, couplers, oilers, regulators, and filters are all available from Harbor

Freight Tools.

1. Conncect your air hose to the 1/4” NPT.

2. Safety pre-check:

a. Make sure the drain valve at the bottom of the tank is closed.

b. Re-check the oil level.

c. Make sure the Valve Air Outlet (#A-9) is undamaged and functional.

3. Turn the Valve Air Outlet (#A-9) to the off position. In the off position, the handle is

perpendicular to the air hose fitting.

4. Turn on the compressor by pulling up the Air Pressure Switch (A-10). (To turn it off, push

the Air Pressure Switch (A-10) down.

5. Watch the Pressure Guage (#A-6) and allow the compressor to build up at least 80 psi.

6. After reaching 80 psi, open the Valve Air Outlet (#A-9) by turning it parallel to the air hose

fitting.This will pressurize the hoses and air tools. Check for air leaks and test your air tool.

7. When the Air Pressure Switch(A-10) is in the on position, the compressor is automati-

cally controlled by an internal pressure switch.The compressor automatically turns on when

the pressure drops to 80 psi, and turns back off when it reaches 110 psi.

Warning! Although the internal pressure switch is adjustable, changing the pressure

setting is not recommended; any change to the on/off pressure levels will cause addi-

tional stress to the motor, resulting in shortened motor life.

Note: If you need to quickly depressurize the air compressor, turn it off by pressing the Air

Pressure Switch (A-10) down, then, pull out the SafetyValve Ring (#A-4).

REV 02/04

Page 6

SKU 45214

Operation (continued)

Operational Warnings:

1. To reduce the risk of explosion or fire, never spray flammable liquids in a confined area.

Make sure the work area is well ventilated. Never smoke while spraying. Never spray near

flames or sparks. Keep compressor away from all flammable objects.

2. Air from a compressor is not suitable for breathing purposes. Never inhale air from the

compressor.

3. Never alter or weld on the air compressor tank. Welding on a tank is extremely hazardous

and could affect tank strength; this may result in an explosion, causing severe injury or death.

4. Never use the compressor outdoors in the rain, or on a wet surface. Electric shock may

result.

5. Never make adjustments or work on the compressor when it is pressurized.

6. Never service or perform maintenance on the air compressor until it is depressurized and

unplugged.

7. When not in use, always put the Air Pressure Switch (A-10) in the off, or down position.

Maintenance

Warning! Make sure the compressor tank is drained and the compressor is unplugged

before attempting any maintenance.

Never use flammable liquids or solvents to clean the compressor. Clean with a mild detergent

and water. Be careful to not spill water onto electrical components.

Each use.

1. Check oil level. If needed, fill according to instructions on page 5.

2. Drain air tank. Turn the Water Valve (#A-5) clockwise. Reverse to close. It is good prac-

tice to leave it open between uses, to keep tank dry.

3. Check for worn or damaged cords or plugs.

After first 50 hours or 30 days.

1. Replace the oil. See the top of page 5.

2. Check to make sure fittings are tight.

3. Blow air and clean out the cylinder cooling fins on Cylinder Head (#B-5).

Weekly.

1. Remove the Air Filter (#B-4), wash it with water, allow it to dry, then install it. To remove

filter, remove the Screw (#B-2) and Washer (#B-3). Reverse procedure to re-install.

REV 02/04

Page 7

SKU 45214

NOTE: Some parts are listed and shown for illustration purposes only and are not available

individually as replacement parts.

PLEASE READTHE FOLLOWING CAREFULLY

THEMANUFACTURER AND/OR DISTRIBUTORHASPROVIDEDTHEPARTSDIAGRAMINTHIS

MANUAL AS A REFERENCE TOOL ONLY. NEITHER THE MANUFACTURER NOR DISTRIBU-

TOR MAKES ANY REPRESENTATION ORWARRANTYOFANY KINDTOTHE BUYERTHATHE

OR SHE IS QUALIFIED TO MAKE ANY REPAIRS TO THE PRODUCT OR THAT HE OR SHE IS

QUALIFIED TO REPLACE ANY PARTS OF THE PRODUCT. IN FACT, THE MANUFACTURER

AND/ORDISTRIBUTOREXPRESSLYSTATESTHATALLREPAIRSANDPARTSREPLACEMENTS

SHOULD BE UNDERTAKEN BY CERTIFIED AND LICENSEDTECHNICIANS AND NOT BYTHE

BUYER. THE BUYER ASSUMES ALL RISK AND LIABILITY ARISING OUT OF HIS OR HER

REPAIRS TO THE ORIGINAL PRODUCT OR REPLACEMENT PARTS THERETO, OR ARISING

OUT OF HIS OR HER INSTALLATION OF REPLACEMENT PARTS THERETO.

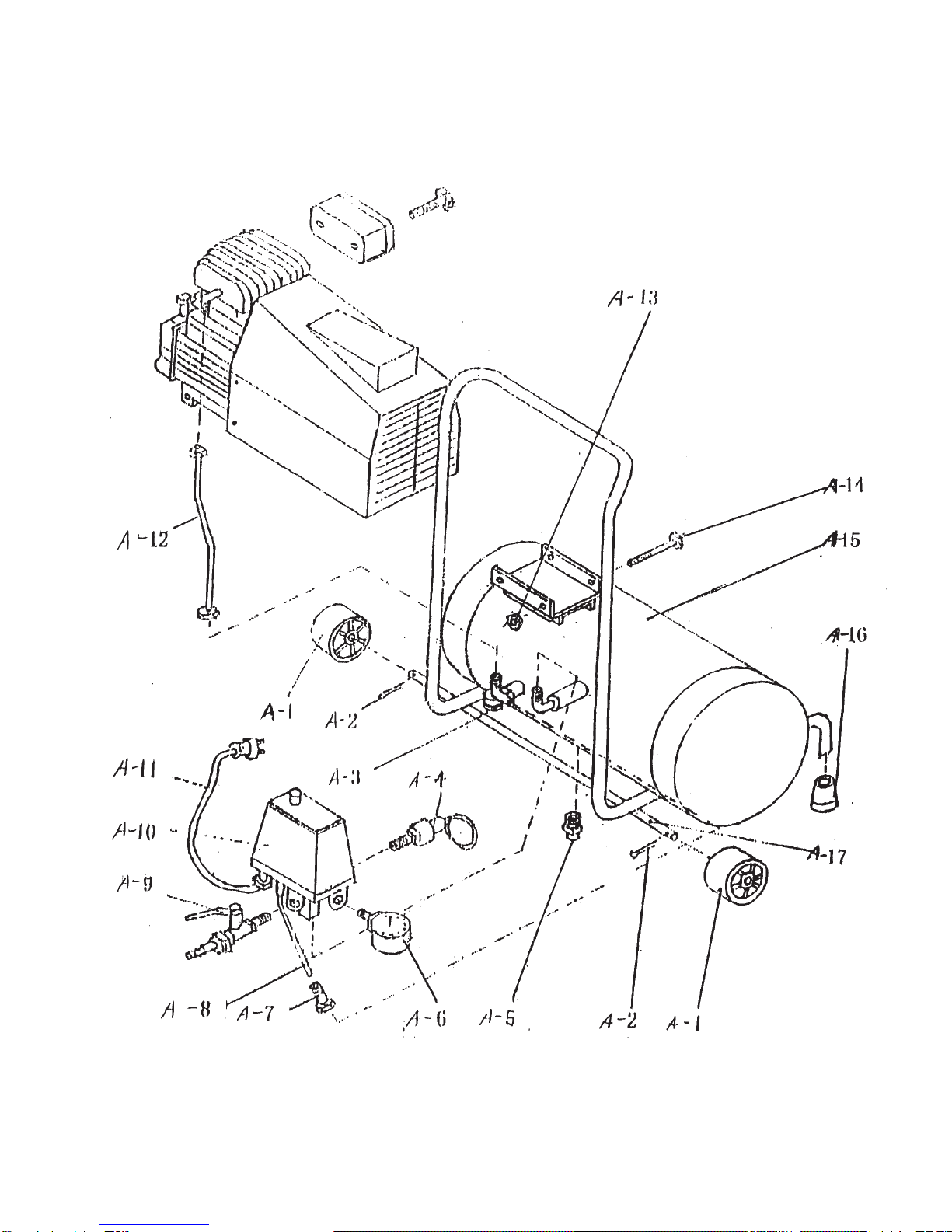

Parts List 1

Part No. Description Qty.

A-1 Wheel 2

A-2 Pin 2

A-3 One Way Valve 1

A-4 Safety Valve Ring 1

A-5 Water Valve 1

A-6 Pressure Guage 1

A-7 Non-return valve 1

A-8 PVC Tube 1

A-9 Valve Air Outlet 1

A-10 Air Pressure Switch 1

A-11 Cord and Plug 1

A-12 Pipe 1

A-13 Nut 2

A-14 Bolt 2

A-15 Tank and Handle 1

A-16 Rubber Foot 2

A-17 Axle 1

Page 8

SKU 45214

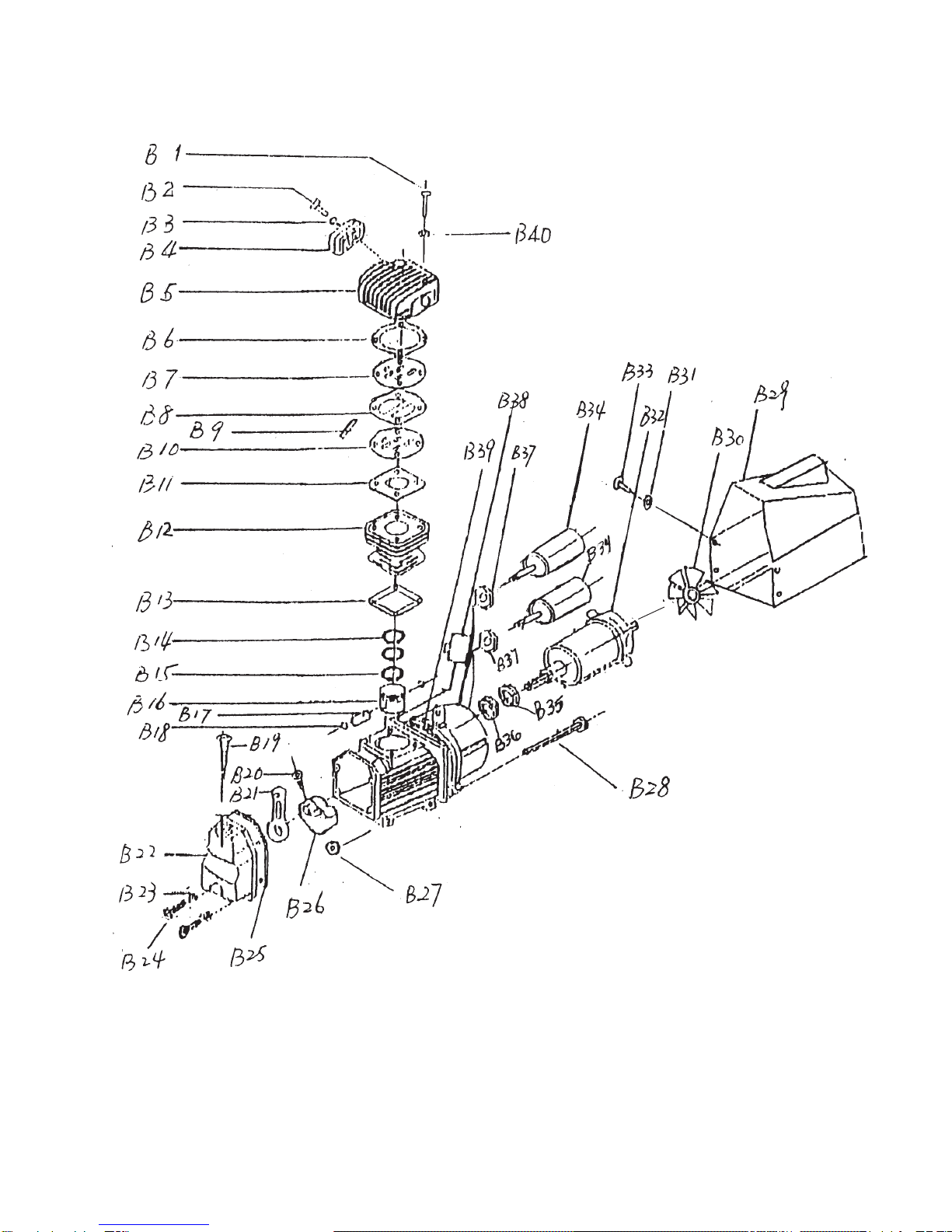

Parts List 2

Part No. Description Qty. Part No. Description Qty.

B-1 Bolt 4 B-21 Connecting Rod 1

B-2 Screw 2 B-22 Front Cover 1

B-3 Washer 2 B-23 Washer 4

B-4 Air Filter 1 B-24 Screw 4

B-5 Cylinder Head 1 B-25 Gasket 1

B-6 Gasket 1 B-26 Crankshaft 1

B-7 Valve Seat 1 B-27 Nut 4

B-8 Gasket 1 B-28 Bolt 4

B-9 Valve Plate 1 B-29 Cover 1

B-10 Valve Seat 1 B-30 Fan Wheel 1

B-11 Gasket 1 B-31 Washer 4

B-12 Cylinder 1 B-32 Motor 1

B-13 Gasket 1 B-33 Screw 4

B-14 Compression Ring 2 B-34 Capacitor 2

B-15 Oil Ring 1 B-35 Bearing 1

B-16 Piston 1 B-36 Oil Seal 1

B-17 Piston Pin 1 B-37 Nut 2

B-18 Crankshaft Retainer 2 B-38 Thermal Switch 1

B-19 Dipstick 1 B-39 Crankshaft Case 1

B-20 Screw 1 B-40 Washer 4

REV 11/01 REV 02/04

Page 9

SKU 45214

Assembly Drawing 1

Page 10

SKU 45214

Assembly Drawing 2

REV 11/01 REV 02/04

Indice

Altri manuali Central Pneumatic compressore d'aria

Central Pneumatic

Central Pneumatic 95386 Manuale utente

Central Pneumatic

Central Pneumatic 62913 Istruzioni per il montaggio

Central Pneumatic

Central Pneumatic 42321 Manuale utente

Central Pneumatic

Central Pneumatic 92097 Manuale utente

Central Pneumatic

Central Pneumatic 95275 Manuale di installazione

Central Pneumatic

Central Pneumatic CentralPneumatic 17 GAL Istruzioni per il montaggio

Central Pneumatic

Central Pneumatic 47915 Manuale utente

Central Pneumatic

Central Pneumatic 60328 Manuale di istruzioni originale

Central Pneumatic

Central Pneumatic 04169 Manuale utente

Central Pneumatic

Central Pneumatic 61615 Istruzioni per il montaggio

Central Pneumatic

Central Pneumatic 95630 Manuale di installazione

Central Pneumatic

Central Pneumatic 68067 Istruzioni per il montaggio

Central Pneumatic

Central Pneumatic 95498 Manuale di installazione

Central Pneumatic

Central Pneumatic 93657 Istruzioni per il montaggio

Central Pneumatic

Central Pneumatic 61489 Manuale utente

Central Pneumatic

Central Pneumatic 90385 Manuale utente

Central Pneumatic

Central Pneumatic 99659 Manuale di installazione

Central Pneumatic

Central Pneumatic 21 Manuale utente

Central Pneumatic

Central Pneumatic 67847 Guida utente

Central Pneumatic

Central Pneumatic Central Pneumatic 30 Gallon, 180 PSI Gas Powered Two-Stage Air... Manuale utente

Central Pneumatic

Central Pneumatic 56101 Istruzioni per il montaggio

Central Pneumatic

Central Pneumatic 61454 Manuale utente

Central Pneumatic

Central Pneumatic 93657 Istruzioni per il montaggio

Central Pneumatic

Central Pneumatic 67847 Manuale di istruzioni originale

Manuali compressore d'aria popolari di altre marche

Sparmax

Sparmax DC-25XR Manuale utente

KAESER

KAESER M122 Manuale utente

GMC

GMC GAC1500 Manuale utente

Briggs & Stratton

Briggs & Stratton Air Compressor Manuale utente

Fini

Fini F3GST2TK Manuale utente

Industrial Air

Industrial Air CP1580325 Manuale di programmazione

Campbell Hausfeld

Campbell Hausfeld RP3300 Guida rapida

Ingersoll-Rand

Ingersoll-Rand UP6 20 HP Manuale utente

Hitachi

Hitachi EC99S Manuale dell'operatore

Parkside

Parkside PKO 270 A1 Manuale utente

Sullair

Sullair 185 Manuale utente

Clas Ohlson

Clas Ohlson QIE-ZTH-15 Manuale utente

Ferm

Ferm CRM1046 Manuale utente

BE AC153 Manuale utente

RIDGID

RIDGID OF25150A Manuale utente

Johnson Controls

Johnson Controls QUANTUM LX Manuale

Sears

Sears Craftsman 919.167463 Manuale utente

Ring Automotive

Ring Automotive RAC700 Manuale utente
