Ceta 101 Manuale utente

Operating manual

101

Double differential temperature control

Version 1043-22

Art. 0450021015 GB

All manuals and user guides at all-guides.com

all-guides.com

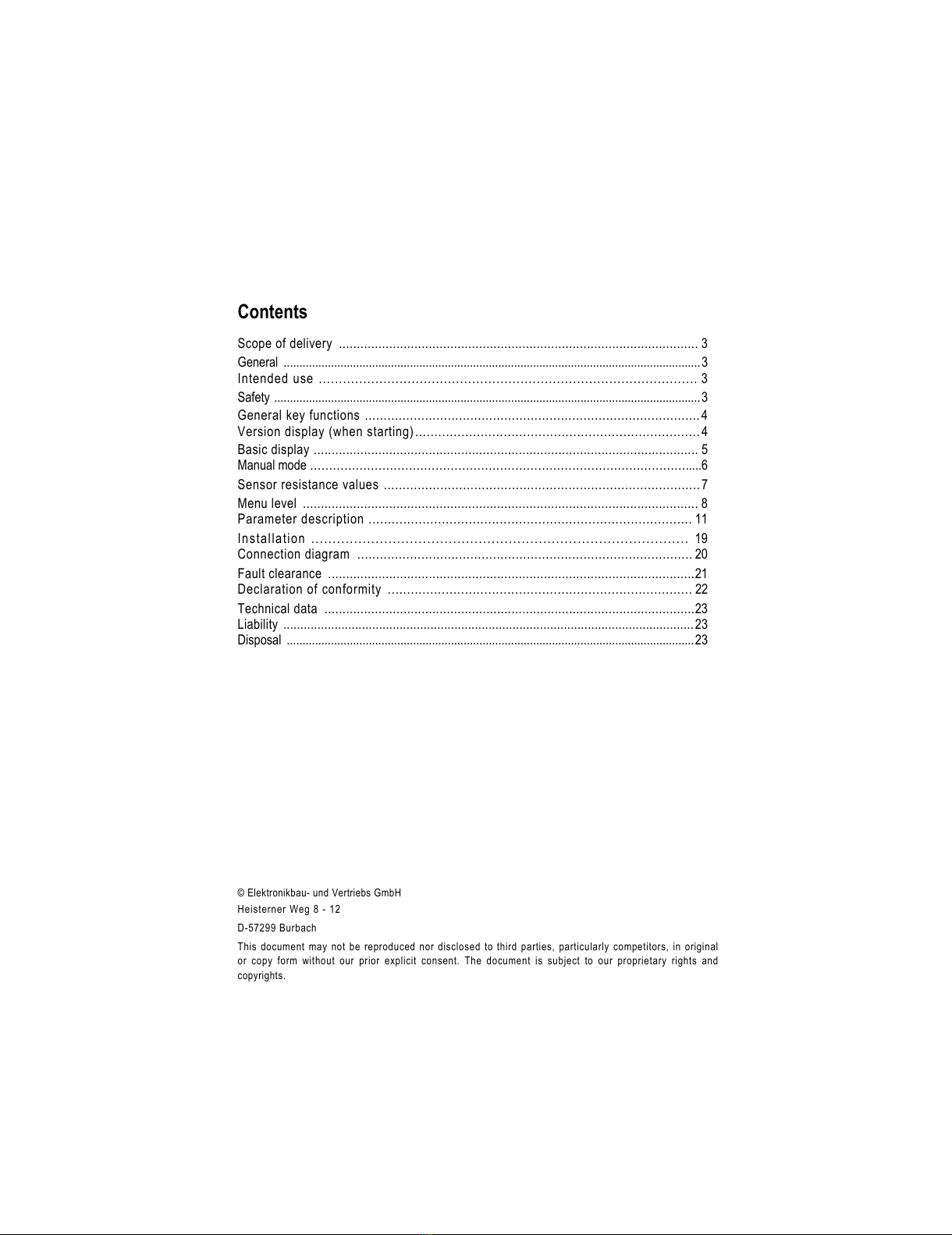

Contents

Scope of delivery .................................................................................................... 3

General ....................................................................................................................................3

Intended use .............................................................................................. 3

Safety .......................................................................................................................................3

General key functions .........................................................................................4

Version display (when starting)..........................................................................4

Basic display ........................................................................................................... 5

Manual mode ……………………………………………………………………………………….....6

Sensor resistance values ....................................................................................7

Menu level .............................................................................................................. 8

Parameter description .................................................................................... 11

Installation ........................................................................................ 19

Connection diagram ......................................................................................... 20

Fault clearance ......................................................................................................21

Declaration of conformity ............................................................................... 22

Technical data .......................................................................................................23

Liability ........................................................................................................................23

Disposal .................................................................................................................................23

Heisterner Weg 8 - 12

D-57299 Burbach

This document may not be reproduced nor disclosed to third parties, particularly competitors, in original

or copy form without our prior explicit consent. The document is subject to our proprietary rights and

copyrights.

All manuals and user guides at all-guides.com

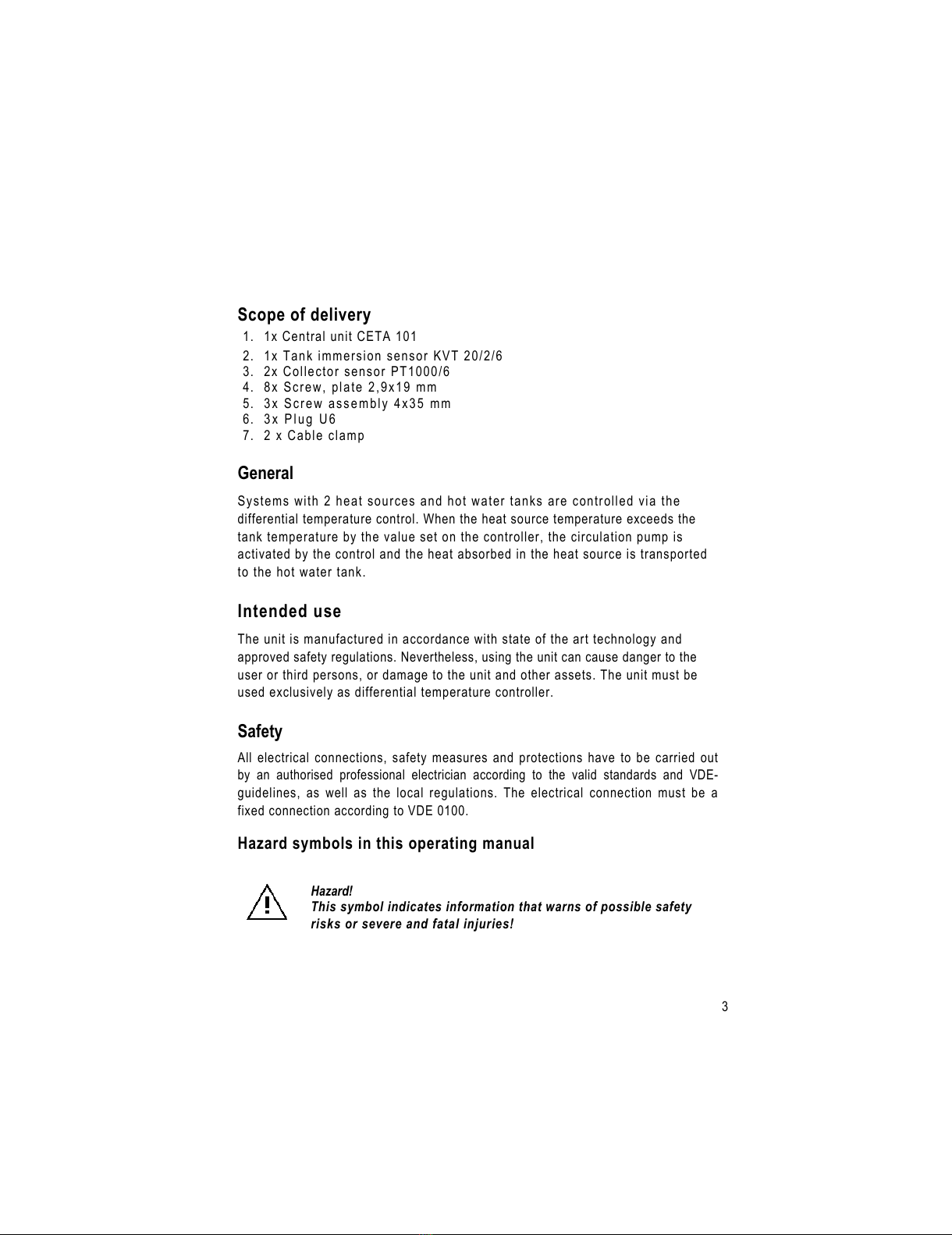

Scope of delivery

1. 1x Central unit CETA 101

2. 1x Tank immersion sensor KVT 20/2/6

3. 2x Collector sensor PT1000/6

4. 8x Screw, plate 2,9x19 mm

5. 3x Screw assembly 4x35 mm

6. 3x Plug U6

7. 2 x Cable clamp

General

Systems with 2 heat sources and hot water tanks are controlled via the

differential temperature control. When the heat source temperature exceeds the

tank temperature by the value set on the controller, the circulation pump is

activated by the control and the heat absorbed in the heat source is transported

to the hot water tank.

Intended use

The unit is manufactured in accordance with state of the art technology and

approved safety regulations. Nevertheless, using the unit can cause danger to the

user or third persons, or damage to the unit and other assets. The unit must be

used exclusively as differential temperature controller.

Safety

All electrical connections, safety measures and protections have to be carried out

by an authorised professional electrician according to the valid standards and VDE-

guidelines, as well as the local regulations. The electrical connection must be a

fixed connection according to VDE 0100.

Hazard symbols in this operating manual

Hazard!

This symbol indicates information that warns of possible safety

risks or severe and fatal injuries!

All manuals and user guides at all-guides.com

General key functions

1. General key functions

Prog

Change selected submenus

Change (parameter) setting

Save value

+ (Plus) or - (Minus)

Change parameter

Change menu item

Esc

Exit setting

Keep old value

Select next higher menu level

Esc-Lang

Return to basic display

2. Version display (when starting)

c 101= Type designation Ceta 101

24.02= Version display (due to update it can

differ from example shown)

All manuals and user guides at all-guides.com

Basic display

3. Basic display

1= Basic display 1

80.5°C= Temperature F3 heat supplier 1

(e.g. collector or solid fuel boiler)

44.0°C= Temperature F1 heat storage tank 1

AT1= Display pump function P1

AT2= Display pump function P2

H-GEN= Display burner block

Use + / - to switch to:

2= Basic display 2

75.5°C= Temperature F4 heat supplier 2

(e.g. collector or solid fuel boiler)

51.5°C= Temperature F2 heat storage tank 2

(if sensor F2 is available)

AT1= Display pump function P1

AT2= Display pump function P2

H-GEN= Display burner block

All manuals and user guides at all-guides.com

3b. Mannual switch – on pump

Mannual mode

+ Mannual mode

0... 1 Pump function

— Activated when keep pressed

— Switch – on / switch – off pump

— Escape from mannual mode

Function: Mannual mode pump activation for inspection purposes

0 = Pump off.

1 = Pump on.

Attention!

This function must be used only by the technician. When the

manual mode is on, the safety settings of the CETA 101 are de-

activated! In case of faulty usage, may cause damage to the

installation (e.g stagnation)

All manuals and user guides at all-guides.com

all-guides.com

Sensor resistance values

4. Sensor resistance values

Depending on temperature:

PT1000 KVT 20

T (°C) R (kOhm)

40 1.155

50 1.194

60 1.232

70 1.271

80 1.309

90 1.347

100 1.385

110 1.423

120 1.461

130 1.498

140 1.536

150 1.573

160 1.611

170 1.648

180 1.685

190 1.722

200 1.758

210 1.795

220 1.832

230 1.868

240 1.905

250 1.941

T (°C) R (kOhm)

10 1.783

12 1.812

14 1.840

16 1.869

18 1.898

20 1.928

25 2.002

30 2.078

35 2.155

40 2.234

45 2.314

50 2.395

55 2.478

60 2.563

65 2.648

70 2.735

75 2.824

80 2.914

85 3.005

90 3.098

95 3.192

100 3.287

All manuals and user guides at all-guides.com

Menu level

5. Menu level

General menu structure Ceta series

Esc

Select menu level

Prog

Basic display

Calibration

Relay test

Menu 01

Menu 02

Prog

Esc

Set parameter value

02:01

Parameter 01

Select parameters

02:02

Parameter 02

Prog

Value n

Value 2

Value1

Esc

Return

withou

saving

Prog

02:nn

Last parameter

Return

and save

All manuals and user guides at all-guides.com

Menu level

Overview of menu level

X1: Only displayed during active heat balancing

X2: F

unction

only in

bus

connecti

ESC

Prog

Basic displa

Calibration

Relay test

System

Info

Prog

08:

Burner block

Heat generato

08:01

Heat capacity

09:

Burner block

Heat generator
