Chamberlain GCU Manuale utente

Carton Inventory

Overview

The Gate Control Unit (GCU) can be paired with the

Gate Access Panel (GAPLM) to wirelessly control a

gate operator.

The GCU is compatible with various Liftmaster

Wireless Products.

Step 2

Install 4 AA Alkaline batteries

(not provided). (Lithium

batteries recommended for

colder environments.)

Model GCU

Gate Control Unit

Step 1

Remove cover.

Assembly

Gate Control Unit (GCU)

Within 20 seconds enter Master PIN Number on

GAPLM:

Followed by GCU Identity as determined in Step 3:

OR OR OR

The GCU LED will blink 3 times indicating

programming is successful. If error tone is heard or

GCU LED emits 3 double blinks, then programming

has failed.

Repeat for additional GCUs.

“BEEP” “BEEP”

Step 3

NOTE: This step applies only if more than one GCU

is being used.

Up to four GCUs can be used. Each GCU will need a

different Identity. Set the Identity of the GCU by

changing the Dipswitches as shown in the chart

below.

GCU ID Switch #1 Switch #2

1 OFF OFF

2 ON OFF

3 OFF ON

4 ON ON

Dipswitches

Learn

Button

Step 4

Press the Learn button on the

GCU for one second. The LED

will light for 20 seconds.

LED

Programming to GAPLM

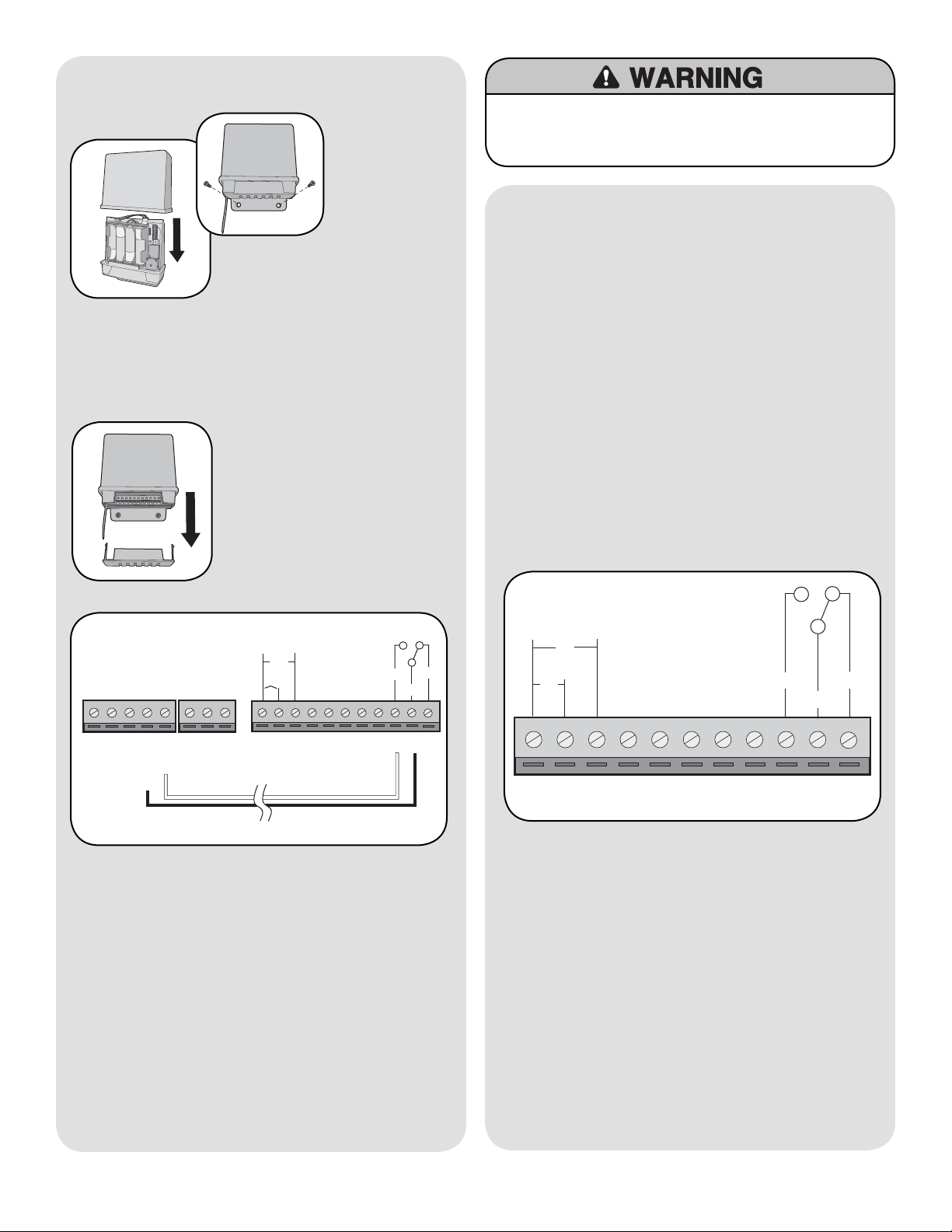

Replace GCU cover and mount

near gate operator control box.

Remove bottom panel of GCU.

Connect Terminal 10 on GCU

to Common on gate operator

(shown below).

Connect Terminal 9 to Cycle on

gate operator (shown below).

132 4567891011

COM

N/C

EXIT

SAFETY

EDGE

COMMON

OPEN

GRN

BLK

RED

RECR

N/O

GATE OPERATOR

GCU

Installation

Wiring to Gate Operator

Operation

To open a gate enter any valid PIN Number on

GAPLM. For multiple GCU’s, enter the PIN Number

followed by the GCU Identity (1-4).

For a remote control transmitter, press the

corresponding button for 3 seconds (within 75' of

GAPLM).

On an Intercom, press the Remote button while

talking to a visitor. At other times, hold the intercom’s

Remote button for 10 seconds, to activate the Primary

GCU.

NOTE: If the gate operator is not set to automatically

close the gate, any of the above methods can be

repeated to close the gate.

Open/Close Gate

132 4567891011

N/O

COM

N/C

Gate Terminals

Optional Power Inputs:

• Terminals 1 and 2: Optional 10-24 Vac power input.

• Terminals 1 and 3: Optional 9-24 Vdc power input.

Ensure that the gate’s DC power supply “Ground” is

wired to terminal 3.

Relay Outputs:

• Terminal 9: Relay Normally Open contact.

• Terminal 10: Relay Common.

• Terminal 11: Relay Normally Closed contact.

Relay connections typically wire to Open Gate input

on gate operator.

NOTE: Output switching capacity is low voltage (24V

max, ac or dc).

Unused Contacts:

• Terminals 4-8: Not used.

To prevent possible SERIOUS INJURY or DEATH from

electrocution, outputs are suitable ONLY for controlling low

voltage devices, 24V max, ac or dc.

Step 5

Step 6

Gate Operator “ON” Time Troubleshooting

There is an error tone when the GCU is activated.

The GAPLM or DAILM is not communicating with the

GCU. The GCU may be out of range. If the units work

properly when close together, the GCU may need to

be mounted higher off the ground or on a different

surface. Metal, trees, or masonry cause the most

interference.

If the units do not work when close together, the

GAPLM or DAILM has not been programmed to the

GCU. Double-check the GCU’s Identity (1-4) and

reprogram it.

Memory needs to be cleared.

Hold down the Learn button until the LED blinks a

total of 8 times.

Dipswitches

Learn

Button

LED

“ON” Time Switch #3 Switch #4

1/2 second OFF OFF

1/2 second ON OFF

10 seconds OFF ON

30 seconds ON ON

For most connections the default setting of 1/2 second

is best. However, for connection to low voltage yard

lights, cameras, etc. the device can be adjusted as to

how long it stays on.

NOTE: Output switching capacity is low voltage (24V

max, ac or dc).

NOTE: For most gate system wiring, dipswitch #4

should be left “OFF”.

Open Gate Configuration

Use this configuration when using the Gate System

as an open-only system, which automatically closes,

based on timer or a magnetic loop.

Enable the Auto-close feature on Gate Operator.

Connect the GCU as shown in Wiring to Operator

section. Refer to product-specific manual for wiring

information. On the Intercom, disable Gate Status

checking.

NOTICE: To comply with FCC and or Industry Canada rules (IC), adjustment or modifications of this receiver and/or transmitter are prohibited,

except for changing the code setting or replacing the battery. THERE ARE NO OTHER USER SERVICEABLE PARTS.

Tested to Comply with FCC Standards FOR HOME OR OFFICE USE. Operation is subject to the following two conditions: (1) this device may not

cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

FOR TECHNICAL SUPPORT DIAL OUR TOLL FREE NUMBER:

1-800-528-2806

www.liftmaster.com
