Chamberlain TriCode TCR2 Manuale utente

TriCodeTM

TCR2 Dual Channel Receiver

The TriCodeTM digital receivers are designed for use

with automatic garage/gate operators and access

control systems. All TriCodeTM products may be

matched with Linear/Delta-3TM, Multi-CodeTM, and

StanleyTM radio products which may already be

installed.

The TriCodeTM radio format provides a potential of

1024 different digital codes. For Linear/Delta-3TM

compatible products, 256 different digital codes are

available. The codes are set using 10-position DIP

switch system.

U.S. Patent Pending

SPECIFICATIONS

Output Rating: 5 Amps 28VAC or DC Max.

Power: 12VDC or 18 to 34VAC/DC, @ 30ma

RF Frequency: 300 or 310MHz

Accessory Transmitters:

TC1, TC2 and TC4

Children operating or playing with a garage door

/gate opener can injure themselves and others.

The door/gate could close and cause serious

injury or death.

Do not allow children to operate

the door control push button or the remote

control transmitters.

Install the receiver (and all door control push

buttons) out of the reach of children and away

from all moving parts of the door and door

hardware, but

where the door/gate is visible.

Disconnect power to opener before installing

receiver or removing/replacing receiver cover.

This device complies with FCC Rules Part 15 and IC

Canada Rules and Regulations. Operation is subject

to the following two conditions: (1) This device may

not cause harmful interference and (2) this device

must accept any interference received, including

interference that may cause undesired operation.

F.C.C. rules prohibit adjustments to or modification of

receiver and/or remote control transmitter circuitry

except for changing the code setting and replacing

remote control transmitter battery. THERE ARE NO

OTHER SERVICEABLE PARTS.

INSTALLATION AND SERVICE INFORMATION ARE AVAILABLE

6 DAYS A WEEK CALL OUR TOLL FREE NUMBER

1-800-528-3536

HOURS 7:00 TO 3:30 p.m. (Mountain Std. Time)

MONDAY Through SATURDAY

OR CONTACT US THROUGH THE WEB AT

WWW. CHAMBERLAINGROUP.COM

TABLE OF CONTENTS

DESCRIPTION PAGE

Setting Power Supply Selection..........................2

Setting Output Relay Mode.................................3

Setting the Configuration Switch.........................3

Setting DIP Switch...............................................4

Power Supply Connections.................................4

Step 1 Power Supply Selection Setting

The TriCodeTM receiver is factory set for 24 volt power

input if 12 volt is required.

Remove back cover of receiver by removing screws.

Set jumper to the 12 volt setting (Refer to figure 1).

CAUTION:

To avoid possibility of duplicating

codes in adjacent systems, all transmitters and

receivers should be re-coded prior to operation.

Unless using maximum number of codes the

following four codes should not be used:

· All DIP Switches ON

· All DIP Switches OFF

· DIP Switches alternating ON/OFF

· DIP Switches alternating OFF/ON.

Receivers should be installed at least 5 feet apart to

avoid cross-talk. After completing installation,

operate transmitter outside of building to make

certain the chosen DIP switch setting does not

operate with nearby garage door operators and/or

security systems. If so, select another DIP switch

setting and check the coded signal again. Repeat as

necessary.

RECEIVER MOUNTING

Mount receiver to wall using #6 hardware (Not

Supplied). Hardware used will depend on mounting

application. (Refer to figure 1 for receiver mounting

hole locations).

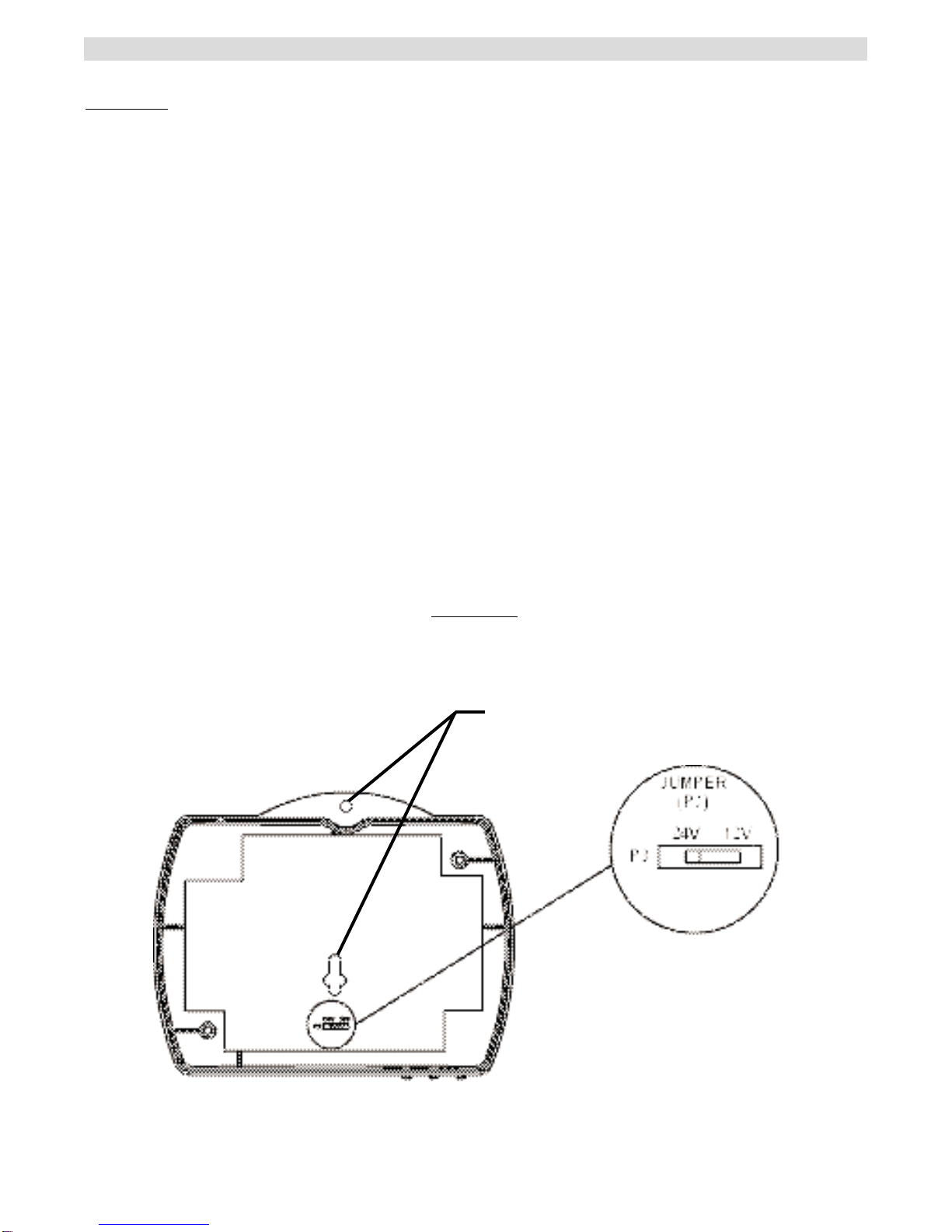

POWER SWITCH SETTINGS

FIGURE 1

BACK VIEW

MOUNTING HOLES

Step 2 Setting Output Relay Mode

The TriCodeTM receiver is factory set for momentary

relay output “MNT”.

(a) Momentary mode: The output relay will be on for

.5 seconds before turning off.

(b) Constant pressure mode: Output relay is

continuously on while receiving matching/valid ID

code from transmitter. The output relay will turn off

immediately once receiver does not receive a

matching/valid ID code from the transmitter (Refer to

figure 3).

NOTE: If constant pressure mode is desired, open

front cover and move mode jumper from “MNT” to

“CST” (Refer to figure 2).

FRONT VIEW

FIGURE 3

OUTPUT RELAYS & CONFIGURATION SWITCH SETTINGS

Step 3 Setting the Configuration Switch

The TriCodeTM receiver is factory set for Linear/Delta-

3TM.

Locate the configuration switch and set it to the desired

RF mode of operation

(Refer to figures 2 and 3)

. Modes

are as follows:

Linear/Delta-3

works with all “Linear/Delta-3TM”

transmitters transmitted at 310 MHz using 8-bits ID

system.

Multi

works with all “Multi-CodeTM” transmitters

transmitted at 300 MHz using 10-bits ID system.

Stanley

works with all “StanleyTMradio” transmitters

transmitted at 310 MHz using 10-bits ID system..

FIGURE 2

01-17468C All Ri hts Reserved

DIP SWITCH SETTINGS & POWER CONNECTIONS

Step 5 Power Supply and Relay out Connections

There are six wires exitin the housin (Refer to fi ure

6):

RED & BLACK - POWER INPUT

BROWN & BLUE - CHANNEL 1 RELAY OUTPUT

WHITE & GREEN - CHANNEL 2 RELAY OUTPUT

FIGURE 6

Step 4 Setting DIP Switch

The TriCodeTM Receiver DIP switch CH1 is factory set

OFF (1-10) and CH2 is factory set ON (1-10).

Locate the 10 position DIP switch. If this is a new

installation using TriCodeTM transmitters, randomly set

switches matching those of the transmitter. Never use

factory settings. If receiver is used with Linear/Delta 3TM,

Multi-codeTM or StanleyTM transmitters, match the

receiver DIP switch to the above transmitters. Some

transmitters may use toggle switches and it may be

difficult to determine on & off. If so, try reversing the

setting on the TriCodeTM DIP switch (Refer to figures 4

and 5).

Note: In 'LINEAR/DELTA-3TM' mode (8-bits system)

the last 2 bits (DIP #9 & 10) settings are ignored.

They can be left in either ‘ON’ or ‘OFF’ settings.

FIGURE 4

FIGURE 5
