Cirris CH2 Manuale utente

CH2 Connector Saver

Allows quick and repeated connections to the Cirris® CH2 Tester.

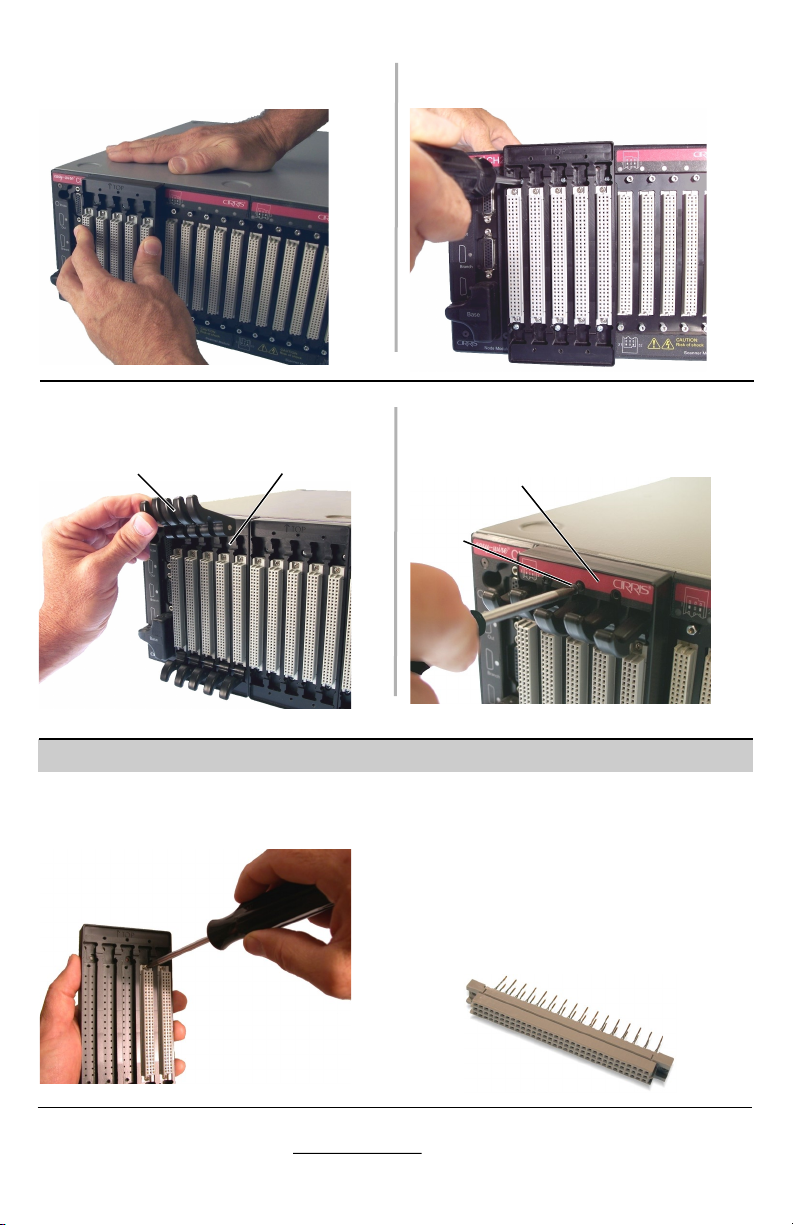

Installing the Connector Saver

Using a straight edge, align the top and side

edges of the Connector Saver Frame Assembly

to the top and side edges of the corresponding

CH2 Scanner. Make sure the top indicator is up.

Tools required for Install:

Before You Start

When properly aligned the

top pins insert in the second

row of the CH2 Scanner

connector as shown below.

First row

Second row

Connector Saver

Frame Assembly

Straight edge

Straight Edge

Medium Phillips

Screw Driver

Frame Assembly

Six #4 x 3/8”

Screws

Lever

Assemblies

Hold Down

Plates

ADCS-C2

Each CH2 Connector Saver kit should

include:

Top indicator

Six M2.5 x

5mm Screws

Cirris Systems | 1-800-441-9910 | cirris.com

Copyright  2006 Cirris Systems Corp. Salt Lake City, Utah 84116

Insert each lever assembly into the

corresponding slot in the frame.

Replacement connectors may be

obtained from Cirris or from connector

manufacturers. The following are

approved connectors:

Attach hold down plates with the six

black #4 x 3/8” screws.

If the interface Connectors become

worn, they may be replaced by

removing the connector screws.

When you feel the pins have aligned

press the frame fully against the CH2

Scanner Assembly.

Screw the frame to the testers using

the six M2.5 x 5mm screws captured

in the frame.

Hold down plate

lever assembly

Replacing Connectors

slot

black

#4 x 3/8”

screw

Harting p/n: 09 03 232 2861

Harting p/n: 09 03 232 6861

Robinson Nugent (3M) p/n:

DIN32CSB-CES70305-KV
