CHAPTER

2-1

Cisco ONS 15530 Hardware Installation Guide

OL-7706-01

Installing the Cisco ONS 15530

This chapter describes the installation procedures for the Cisco ONS 15530 chassis and its components.

This chapter includes the following sections:

•Before Installing, page 2-1

•Chassis-Lifting Guidelines, page 2-2

•Rack-Mounting the Shelf, page 2-4

•Grounding the Shelf, page 2-14

•Installing and Removing Line Cards or Motherboards, page 2-17

•Installing and Removing Modules, page 2-24

•Replacing the Fan Assembly, page 2-27

•Power Guidelines, page 2-29

•Powering Up the Shelf, page 2-31

Note Before you install, operate, or service the system, read the Regulatory Compliance and Safety

Information for the Cisco ONS 15500 Series for important safety information you should know before

working with the system.

Note To ensure that your Cisco IOS software release supports your hardware, see the “New and Changed

Information” section on page vii. Also refer to the “Hardware Supported” section of the latest release

notes for the Cisco ONS 15530.

Before Installing

Before you install the Cisco ONS 15530, you must complete the following tasks:

•Unpack and inspect the shelf.

•Maintain a network record.

•Assemble required tools and equipment.

•Mount the shelf.

2-2

Cisco ONS 15530 Hardware Installation Guide OL-7706-01

Chapter 2 Installing the Cisco ONS 15530

Chassis-Lifting Guidelines

Caution Use extreme care when removing or installing connectors so you do not damage the connector housing

or scratch the end-face surface of the fiber. Always install protective covers on unused or disconnected

components to prevent contamination. Always clean fiber connectors before installing them.

Unpacking and Inspecting the Shelf

The Cisco ONS 15530 comes with the standard mounting set. The shelf is thoroughly inspected before

shipment. If any damage has occurred during transportation or if any item is missing, notify your Cisco

customer service representative immediately.

Upon receipt, inspect the equipment as follows:

Step 1 Take inventory.

Compare the equipment inside with the packing slip and the equipment list provided by customer

service. If there are any discrepancies, notify the Customer Service Center.

Step 2 Check for external damage.

Visually check all components and immediately report any shipping damage to your customer service

representative. Have the following information ready:

•Invoice number of shipper (see packing slip)

•Model and serial number of the damaged unit

•Description of damage

•Effect of damage on the installation

Keep a record of all of your hardware, configuration options, and network settings.

Mounting the Shelf

The unit is designed for rack-mounting in a cabinet rack. Use star-type lock washers on the rack screws

to ensure a good conductive connection between the chassis and the rack. For information about

installing the units in a customer cabinet, see the instructions from the cabinet manufacturer.

Chassis-Lifting Guidelines

The fully configured system weighs approximately 71 pounds. The chassis is not intended to be moved

frequently. Before you install the system, ensure that your site is properly prepared so you can avoid

having to move the chassis later to accommodate power sources and network connections.

Two or more people are required to lift the chassis. Each time you lift the chassis or any heavy object,

follow these guidelines:

•Never attempt to lift the chassis by yourself. Because of the size and weight of the chassis, use at

least two people to safely lift and move it without causing injury or damaging the equipment.

•Ensure that your footing is solid, and balance the weight of the chassis between your feet.

2-3

Cisco ONS 15530 Hardware Installation Guide

OL-7706-01

Chapter 2 Installing the Cisco ONS 15530 Chassis-Lifting Guidelines

•Lift the chassis slowly; never move suddenly or twist your body as you lift.

•Keep your back straight and lift with your legs, not your back. If you must bend down to lift the

chassis, bend at the knees, not at the waist, to reduce the strain on your back muscles.

•Do not remove installed components from the chassis.

•Always disconnect all external cables before lifting or moving the chassis.

To safely lift the chassis, follow these steps:

Warning

Two people are required to lift the chassis. To prevent injury, keep your back straight and lift with

your legs, not your back.

Step 1 Each person should stand on either side of the chassis, and place one hand under the air intake at the

bottom front of the chassis.

Step 2 With the other hand, grasp the handle on the chassis and carefully lift the chassis as shown in Figure 2-1

and Figure 2-2.

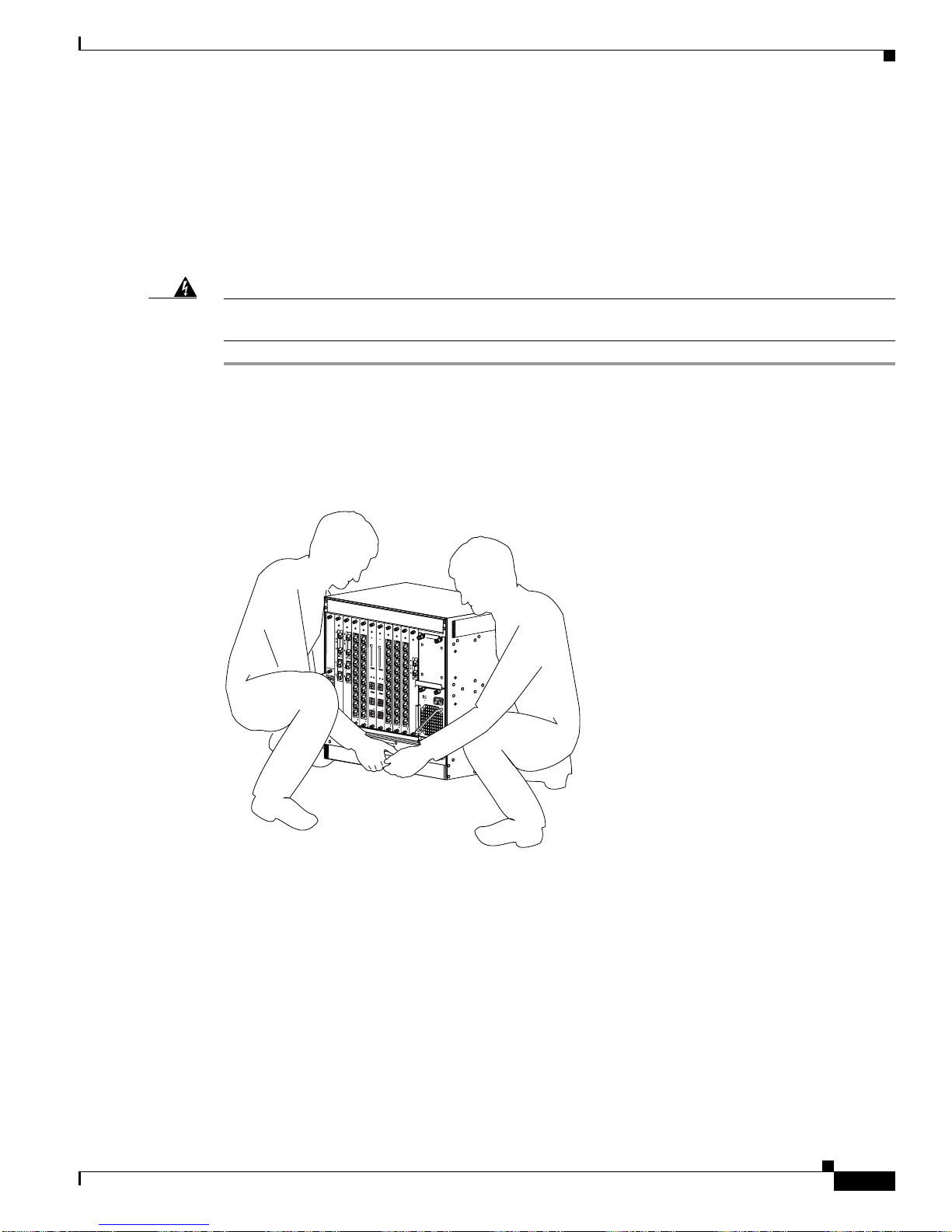

Figure 2-1 Lifting the Cisco ONS 15530 CHAS-E

77694

FASTENERSMUST BE

FULLYENGAGED PRIOR TO

OPERATINGTHE POWER SUPPLY

FAIL

100-240V

8.0-3.5A

50-60HZ

GOOD

STATUS

15530-LCMB-0200

STATUS

15530-LCMB-0200

STATUS

15530-LCMB-0200

STATUS

15530-LCMB-0200

STATUS

15530-LCMB-0200

STATUS

RESET

ACTIVE

COMPACT

FLASH

CIRTICAL

MAJOR

FDX

100MBPS

CUTOFF

HIST

CLR

15530-CPU

RESET

ACTIVE

COMPACT

FLASH

CIRTICAL

MAJOR

FDX

100MBPS

LINK

AUX

CON

CUTOFF

HIST

CLR

CUTOFF

MINOR

15530-CPU

AUX

CON

STATUS

2-4

Cisco ONS 15530 Hardware Installation Guide OL-7706-01

Chapter 2 Installing the Cisco ONS 15530

Rack-Mounting the Shelf

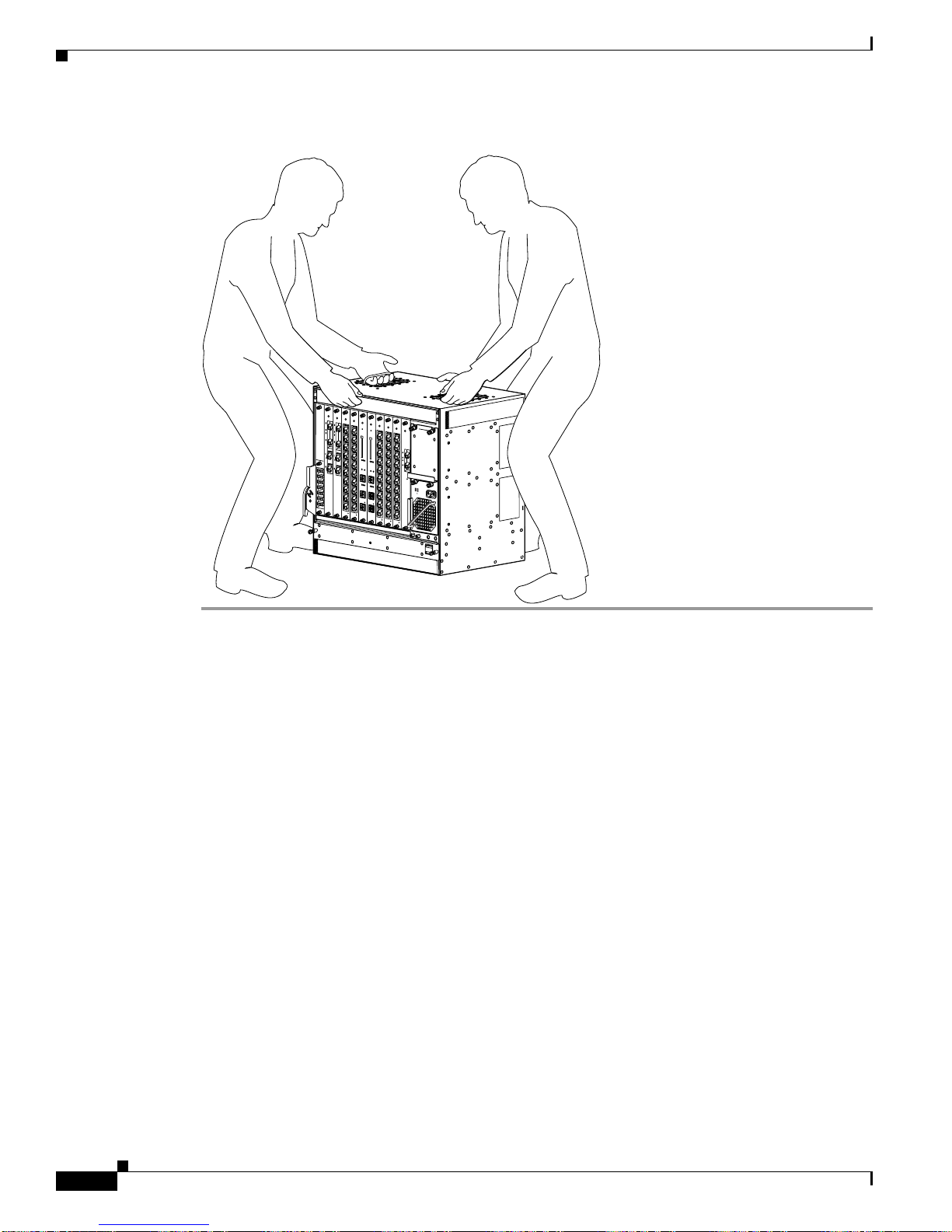

Figure 2-2 Lifting the Cisco ONS 15530 CHAS-N

Rack-Mounting the Shelf

Rack-mounting the shelf is the preferred method of installation for the Cisco ONS 15530. This section

gives general rack-mount installation guidelines and explains how to install the rack-mount and

cable-management brackets on the Cisco ONS 15530 for the following types of installations:

•General Rack-Mount Installation Guidelines, page 2-5

•Flush-Mounting the Cisco ONS 15530 CHAS-N in a 19-Inch Rack, page 2-5

•Flush-Mounting the Cisco ONS 15530 CHAS-E in a 21-Inch Rack, page 2-7

FASTENERSMUST BE

FULLYENGAGED PRIOR TO

OPERATINGTHE POWER SUPPLY

FAIL

100-240V

8.0-3.5A

50-60HZ

GOOD

STATUS

15530-LCMB-0200

STATUS

15530-LCMB-0200

STATUS

15530-LCMB-0200

STATUS

15530-LCMB-0200

STATUS

15530-LCMB-0200

STATUS

RESET

ACTIVE

COMPACT

FLASH

CIRTICAL

MAJOR

FDX

100MBPS

CUTOFF

HIST

CLR

15530-CPU

RESET

ACTIVE

COMPACT

FLASH

CIRTICAL

MAJOR

FDX

100MBPS

LINK

AUX

CON

CUTOFF

HIST

CLR

CUTOFF

MINOR

15530-CPU

AUX

CON

STATUS

77693

2-5

Cisco ONS 15530 Hardware Installation Guide

OL-7706-01

Chapter 2 Installing the Cisco ONS 15530 Rack-Mounting the Shelf

General Rack-Mount Installation Guidelines

When planning your rack-mount installation, consider the following guidelines:

•Allow a minimum of 11 rack units (17.7 inches or 45.0 cm) of vertical rack space for the

Cisco ONS 15530 CHAS-E chassis with the air ramp baffle. The Cisco ONS 15530 CHAS-N

chassis requires a minimum of 9 rack units (15.7 inches or 39.9 cm) of vertical rack space. Measure

the proposed rack location before mounting the chassis in the rack.

Note The Cisco ONS 15530 CHAS-E chassis cannot be installed in a 19-inch rack.

•Check for obstructions (such as a power strip) that could impair rack-mount installation before using

a particular rack. If a power strip does impair a rack-mount installation, remove the power strip

before installing the chassis, and then replace it after the chassis is installed.

•Allow sufficient clearance around the rack for maintenance. If the rack is mobile, you can push it

back near a wall or cabinet for normal operation and pull it out for maintenance (installing or moving

line cards, connecting cables, or replacing or upgrading components). Otherwise, allow 19 inches

(48.3 cm) of clearance to remove FRUs (field replaceable units).

•Maintain a minimum clearance of 3 inches (7.62 cm) on the front, top, and sides of the chassis for

the cooling air inlet and exhaust ports, respectively. Avoid placing the chassis in an overly congested

rack or directly next to another equipment rack; otherwise, the heated exhaust air from other

equipment can enter the inlet air vents and cause an over temperature condition inside the chassis.

Caution To prevent chassis overheating, never install a Cisco ONS 15530 in an enclosed rack or room

that is not properly ventilated or air conditioned.

Caution Always install the air ramp baffle below the Cisco ONS 15530 CHAS-E.

•Always install heavier equipment in the lower half of a rack to maintain a low center of gravity to

prevent the rack from falling over.

•Install and use the cable-management brackets included with the Cisco ONS 15530 to keep cables

organized and out of the way of the line cards and CPU switch modules. Ensure that cables from

other equipment already installed in the rack do not impair access to the line cards, or require you

to disconnect cables unnecessarily to perform equipment maintenance or upgrades.

•Install rack stabilizers (if available) before you mount the chassis.

•Provide an adequate chassis ground (earth) connection for your chassis.

Flush-Mounting the Cisco ONS 15530 CHAS-N in a 19-Inch Rack

The Cisco ONS 15530 CHAS-N can be flush-mounted in a 19-inch equipment rack using the

rack-mounting kit provided with your system. The rack-mounting kit contains the following parts:

•Two mounting brackets and screws

•Cable management brackets

•Optional 23-inch rack-mount brackets

2-6

Cisco ONS 15530 Hardware Installation Guide OL-7706-01

Chapter 2 Installing the Cisco ONS 15530

Rack-Mounting the Shelf

Note The Cisco ONS 15530 CHAS-E chassis cannot be installed in a 19-inch rack.

Warning

At least three people are required to mount the chassis in the equipment rack: two people are needed

to hold the chassis in place while a third person tightens the mounting screws. When handling the

chassis,alwaysfollowproperliftingpracticesasoutlinedinthe“Chassis-LiftingGuidelines”section

on page 2-2.

To flush-mount the Cisco ONS 15530 CHAS-N chassis in a 19-inch equipment rack, follow these steps :

Step 1 Attach the mounting brackets to the shelf (see Figure 2-3).

Step 2 Lift the shelf into position between the rack posts (requires two people).

Step 3 Align the mounting bracket holes with the rack post holes (see Figure 2-4) and attach the shelf to the

rack (performed by the third person).

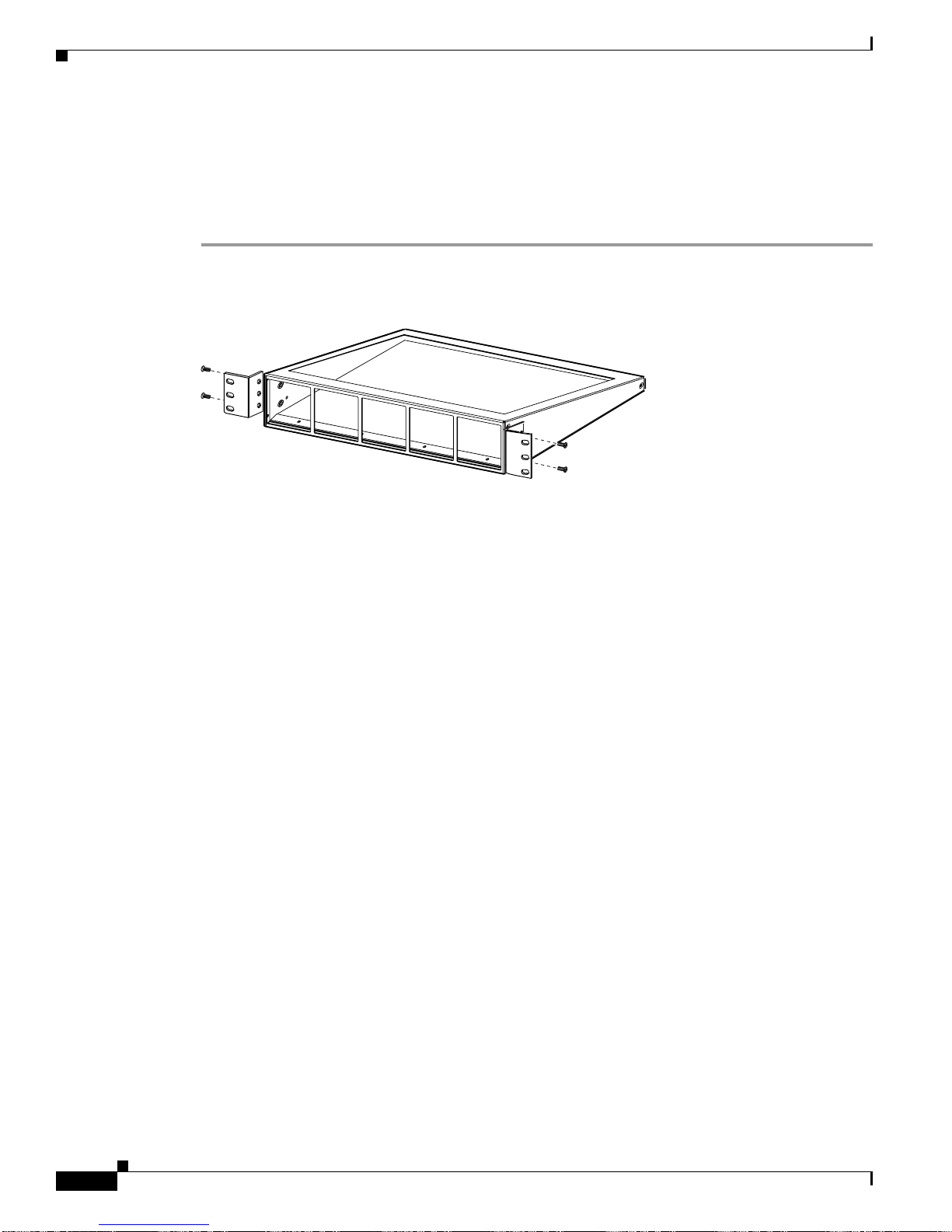

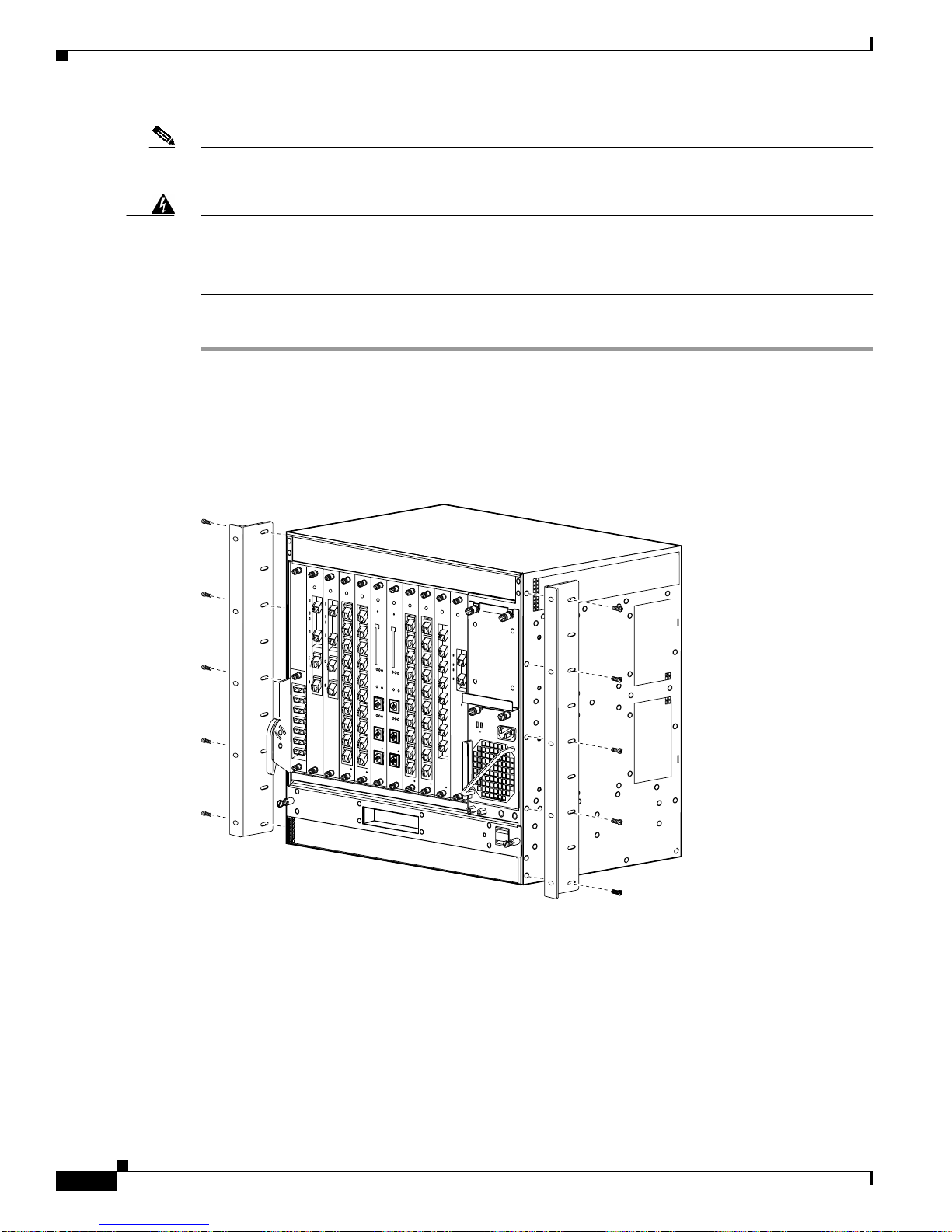

Figure 2-3 Attaching Mounting Brackets to Shelf

15530-FCGE-8P

77898

FASTENERS MUST BE

FULLYENGAGED PRIOR TO

OPERATINGTHE POWER SUPPLY

FAIL

100-240V

8.0-3.5A

50-60HZ

GOOD

STATUS

15530-LCMB-0200

STATUS

15530-LCMB-0200

STATUS

15530-LCMB-0200

STATUS

15530-LCMB-0200

STATUS

RESET

ACTIVE

COMPACT

FLASH

CIRTICAL

MAJOR

FDX

100MBPS

CUTOFF

HIST

CLR

15530-CPU

RESET

ACTIVE

COMPACT

FLASH

CIRTICAL

MAJOR

FDX

100MBPS

LINK

AUX

CON

CUTOFF

HIST

CLR

CUTOFF

MINOR

15530-CPU

AUX

CON

STATUS

FAN

STATUS

2-7

Cisco ONS 15530 Hardware Installation Guide

OL-7706-01

Chapter 2 Installing the Cisco ONS 15530 Rack-Mounting the Shelf

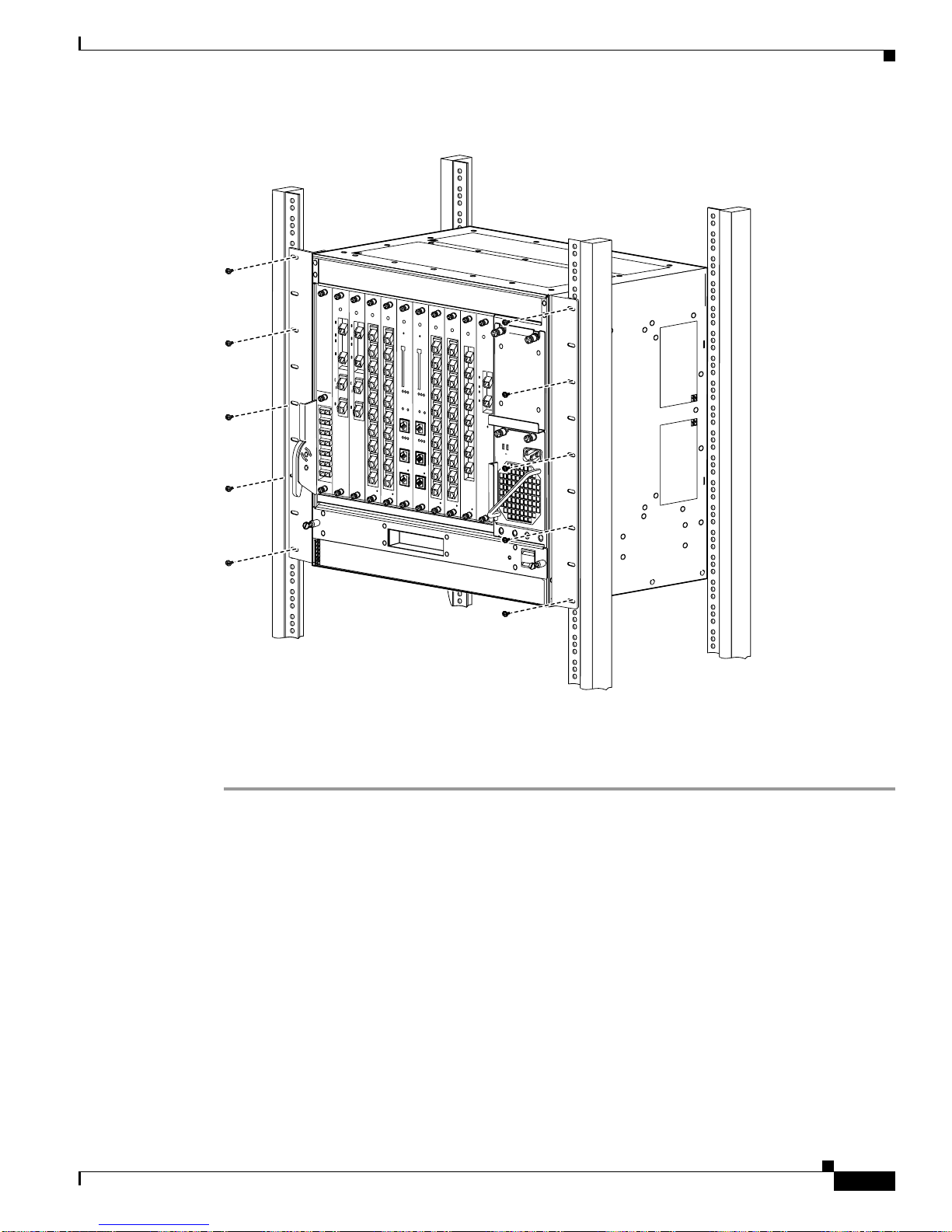

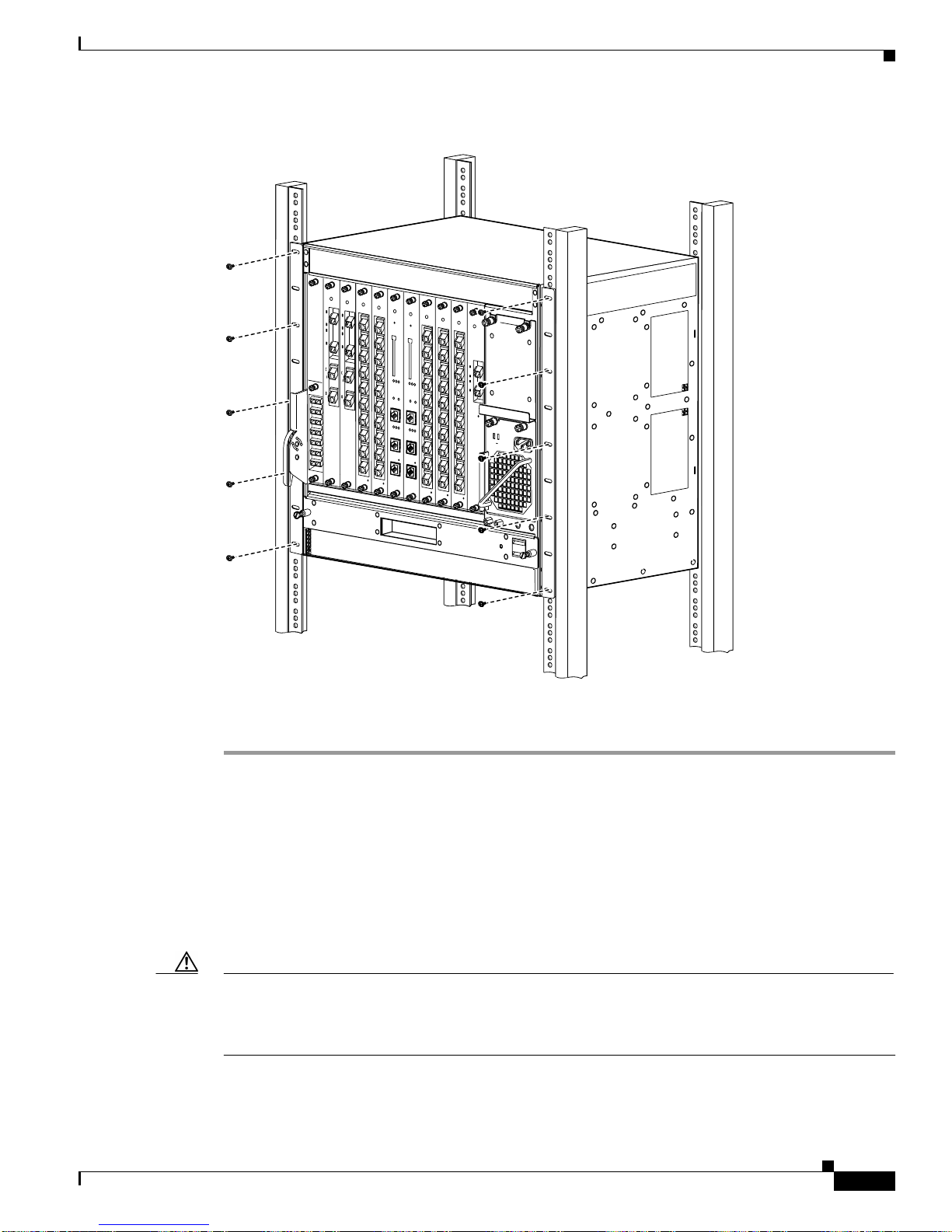

Figure 2-4 Attaching Shelf to Equipment Rack

Step 4 Check that all release levers are in the closed position, the chassis mounting screws are tight, and all

CPU switch module and line card captive screws are tight.

Flush-Mounting the Cisco ONS 15530 CHAS-E in a 21-Inch Rack

The Cisco ONS 15530 CHAS-E can be flush-mounted in a 21-inch equipment rack using the

rack-mounting kit provided with your system. The rack-mounting kit contains the following parts:

•Two mounting brackets and screws

•Cable management brackets

Caution At least three people are required to mount the chassis in the equipment rack: two people are needed to

hold the chassis in place while a third person tightens the mounting screws. When handling the chassis,

always follow proper lifting practices as outlined in the “Chassis-Lifting Guidelines” section on

page 2-2.

77899

FASTENERS MUST BE

FULLYENGAGED PRIOR TO

OPERATINGTHE POWER SUPPLY

FAIL

100-240V

8.0-3.5A

50-60HZ

GOOD

STATUS

15530-LCMB-0200

STATUS

15530-LCMB-0200

STATUS

15530-LCMB-0200

STATUS

15530-LCMB-0200

STATUS

15530-LCMB-0200

STATUS

RESET

ACTIVE

COMPACT

FLASH

CIRTICAL

MAJOR

FDX

100MBPS

CUTOFF

HIST

CLR

15530-CPU

RESET

ACTIVE

COMPACT

FLASH

CIRTICAL

MAJOR

FDX

100MBPS

LINK

AUX

CON

CUTOFF

HIST

CLR

CUTOFF

MINOR

15530-CPU

AUX

CON

STATUS

FAN

STATUS

2-8

Cisco ONS 15530 Hardware Installation Guide OL-7706-01

Chapter 2 Installing the Cisco ONS 15530

Rack-Mounting the Shelf

To flush-mount the Cisco ONS 15530 CHAS-N chassis in a 19-inch equipment rack, use the following

steps:

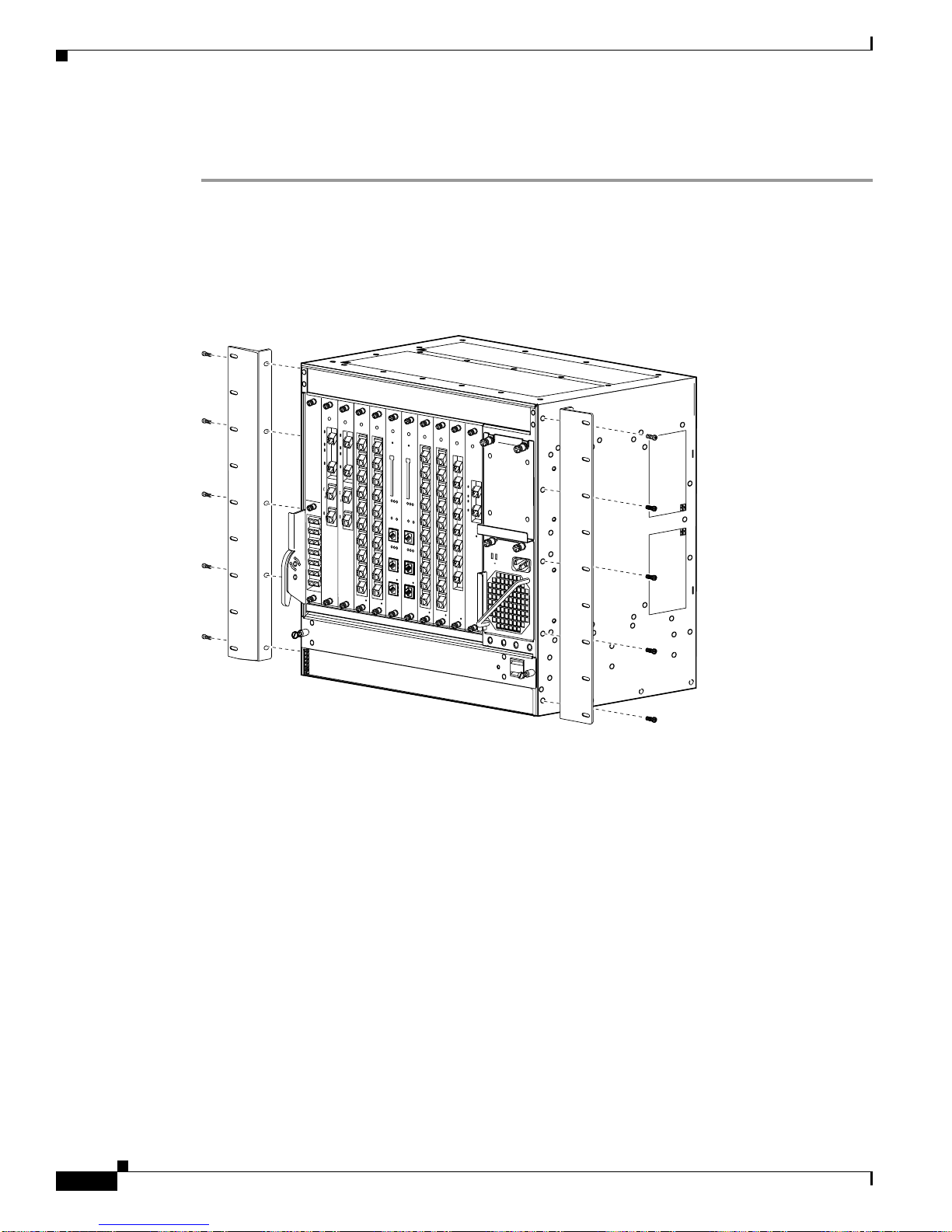

Step 1 Attach the mounting brackets to the shelf (see Figure 2-5).

Step 2 Lift the shelf into position between the rack posts (requires two people).

Step 3 Align the mounting bracket holes with the rack post holes (see Figure 2-6) and attach the shelf to the

rack (performed by the third person).

Figure 2-5 Attaching Mounting Brackets to Shelf

91396

15530-FCGE-8P

  

  

   



1

3

6







15530-C-000















15530-C-000















15530-C-000















15530-C-000

















 







1





15530-CP







 







1















15530-CP













E



















E





























































E









2-9

Cisco ONS 15530 Hardware Installation Guide

OL-7706-01

Chapter 2 Installing the Cisco ONS 15530 Rack-Mounting the Shelf

Figure 2-6 Attaching Shelf to Equipment Rack

Step 4 Check that all release levers are in the closed position, the chassis mounting screws are tight, and all

CPU switch module and line card captive screws are tight.

Step 5 Proceed to the “Attaching the Air Ramp Baffle” section on page 2-10.

15530-FCGE-8P

FASTENERS MUST BE

FULLYENGAGED PRIOR TO

OPERATINGTHE POWER SUPPLY

FAIL

A

H

GOOD

STATUS



15530-C-000











STATUS



15530-C-000











STATUS



15530-C-000











STATUS



15530-C-000











STATUS

RESET

ATIE

OMPAT

FLASH

IRTIAL

MAOR

FD

MBPS

UTOFF

HIST

LR

15530-CP



RESET

ATIE

OMPAT

FLASH

IRTIAL

MAOR

FD

MBPS

LIN

AU

ON

UTOFF

HIST

LR

UTOFF

MINOR

15530-CP



AU

ON

STATUS





E













STATUS





E













STATUS









































STATUS





E











FAN

STATUS

2-10

Cisco ONS 15530 Hardware Installation Guide OL-7706-01

Chapter 2 Installing the Cisco ONS 15530

Rack-Mounting the Shelf

Attaching the Air Ramp Baffle

The air ramp baffle redirects the intake of cooling air from directly below, to the front of the

Cisco ONS 15530 CHAS-E chassis, while deflecting hot exhaust air from equipment installed below.

To attach the air ramp baffle to the Cisco ONS 15530 CHAS-E chassis, follow these steps:

Step 1 Attach the mounting brackets to the air ramp baffle as shown in Figure 2-7.

Figure 2-7 Air Ramp Bafﬂe Mounting Brackets

Step 2 Position the air ramp baffle directly under the Cisco ONS 15530 CHAS-E chassis.

Step 3 Screw the air ramp baffle to the equipment rack as shown in Figure 2-8.

79553

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali Cisco Hardware di rete

Cisco

Cisco ONS 15454 Foglio di istruzioni

Cisco

Cisco Cisco ONS 15600 SDH Manuale utente

Cisco

Cisco Physical Access 1125 Appliance Manuale utente

Cisco

Cisco AGS+ Manuale di istruzioni

Cisco

Cisco ONS 15600 Manuale utente

Cisco

Cisco ONS 15310-CL Manuale utente

Cisco

Cisco 8540 - Catalyst Campus Switch Router Modular Expansion... Manuale utente

Cisco

Cisco CX-TRIP2 Manuale dell'operatore

Cisco

Cisco CATALYST RPS 2300 Guida rapida

Cisco

Cisco ON100 Network Agent Manuale utente

Cisco

Cisco Aironet 1000 Series Manuale

Cisco

Cisco SOURCEfire 3D500 Manuale utente

Cisco

Cisco CiscoWorks Wireless LAN Solution Engine Manuale dell'operatore

Cisco

Cisco Edge Concentrator MGX 8220 Manuale di riferimento

Cisco

Cisco Firepower 1010 Manuale utente

Cisco

Cisco Meraki MX65W Manuale utente

Cisco

Cisco VIP-4R/4T Istruzioni operative e di manutenzione

Cisco

Cisco CE-507 - Content Engine 507 Manuale utente

Cisco

Cisco Linksys Business Series Network Storage System... Manuale utente

Cisco

Cisco NTP-E157 Manuale elenco delle parti

Cisco

Cisco WS-CE500 - Catalyst Express 500-24PC Manuale di istruzioni

Cisco

Cisco ESR-PRE2 Manuale utente

Cisco

Cisco Aironet 1430 Series Manuale utente

Cisco

Cisco Aironet 340 Series Manuale utente

Manuali Hardware di rete popolari di altre marche

Matrix Switch Corporation

Matrix Switch Corporation MSC-HD161DEL Manuale utente

B&B Electronics

B&B Electronics ZXT9-IO-222R2 Manuale utente

Yudor

Yudor YDS-16 Manuale utente

D-Link

D-Link ShareCenter DNS-320L Manuale utente

Samsung

Samsung ES1642dc Istruzioni per l’uso

Honeywell Home

Honeywell Home LTEM-PV Istruzioni per il montaggio

evertz

evertz 7700 Series Manuale utente

D-Link

D-Link ShareCenter DNS-343 Manuale utente

Asante

Asante AsanteBridge 1012 Manuale utente

FireBrick

FireBrick FB2700 Manuale utente

Audiovox Electronics

Audiovox Electronics ARWH2T Manuale utente

ADC

ADC DSX-1 Manuale

NetComm

NetComm NF2 Manuale utente

Alcatel-Lucent

Alcatel-Lucent 5620 Manuale utente

Dell EMC

Dell EMC XC6420 Series Manuale utente

Lanner

Lanner NCA-1020A Manuale utente

Allied Telesis

Allied Telesis AT-TN121-A Manuale utente

Arista

Arista CCA-ETM-Q12 Manuale utente
