Install, Remove, and Replace the Network Module

You can remove and replace the network module in the Firepower 2130 and 2140. Although the hardware

supports removing and replacing the network module while the system is running, the software does not

currently support hot swapping. You must power down the chassis to remove and replace network modules.

See Network Modules for more information.

This procedure describes how to install a network module into an empty slot that has never contained a network

module, and how to remove an installed network module and replace it with another network module.

Safety Warnings

Take note of the following component replacement safety warnings:

Statement 1028—More Than One Power Supply

This unit might have more than one power supply connection. To reduce risk of electric shock, remove

all connections to de-energize the unit.

Warning

Installation, Maintenance, and Upgrade

Statement 1030—Equipment Installation

Only trained and qualified personnel should be allowed to install, replace, or service this equipment.

Warning

Statement 1073—No User-Serviceable Parts

There are no serviceable parts inside. To avoid risk of electric shock, do not open.

Warning

Statement 1089—Instructed and Skilled Person Definitions

An instructed person is someone who has been instructed and trained by a skilled person and takes the

necessary precautions when working with equipment.

A skilled person or qualified personnel is someone who has training or experience in the equipment

technology and understands potential hazards when working with equipment.

Warning

Statement 1090—Installation by Skilled Person

Only a skilled person should be allowed to install, replace, or service this equipment. See statement 1089

for the definition of a skilled person.

Warning

Statement 1091—Installation by an Instructed Person

Only an instructed person or skilled person should be allowed to install, replace, or service this equipment.

See statement 1089 for the definition of an instructed or skilled person.

Warning

Step 1 To install a new network module for the first time into an empty slot, do the following:

a) Power down the chassis by moving the power switch to the OFF position.

See Rear Panel for more information about the power switch.

b) Follow Steps 4 through 7 to install the new network module.

c) Power on the chassis by moving the power switch to the ON position.

Step 2 To remove and replace an existing network module, do the following:

a) Save your configuration.

b) Power down the chassis by moving the power switch to the OFF position.

See Rear Panel for more information about the power switch.

c) Continue with Step 3.

Step 3 To remove a network module, loosen the captive screw on the lower left side of the network module and pull out the

handle that is connected to the screw. This mechanically ejects the network module from the slot.

Installation, Maintenance, and Upgrade

Install, Remove, and Replace the Network Module

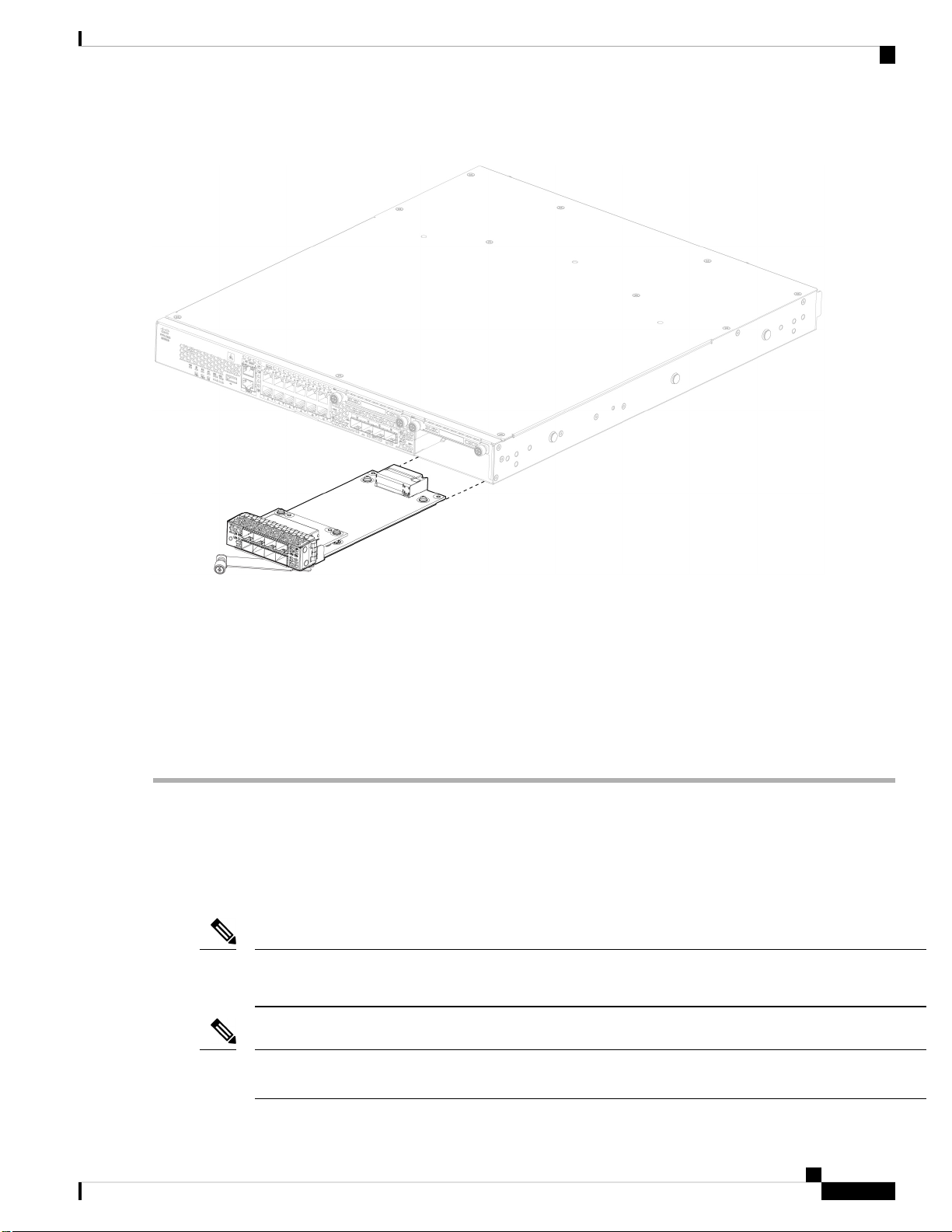

Figure 1: Remove the Network Module

If the slot is to remain empty, install a blank faceplate to ensure proper airflow and to keep dust out of the chassis;

otherwise, install another network module.

Step 4 To replace a network module, hold the network module in front of the network module slot on the right of the chassis

and pull the network module handle out.

Step 5 Slide the network module into the slot and push it firmly into place until the handle is flush with the front of the network

module.

Step 6 Tighten the captive screw on the lower left side of the network module.

Step 7 Power on the chassis so that the new network module is recognized.

Remove and Replace the SSD

Although the hardware supports removing and replacing SSDs while the system is running, the software does

not currently support hot swapping. You must power down the chassis to remove and replace SSDs.

The 100-GB SSD is restricted to the 2110 and 2120. The 200-GB SSD is restricted to the 2130 and 2140. Do

not mix them.

Note

We may ship larger capacity SSDs depending on component supply availability. The larger capacity SSDs

are formatted to 100-GB for the 2110 and 2120 and formatted to 200-GB for the 2130 and 2140.

Note

Installation, Maintenance, and Upgrade

Remove and Replace the SSD

You can install a Malware Storage Pack (MSP) in slot 2. The MSP stores threat detection data for use in future

analysis. It supports the Advanced Malware Protection (AMP) software feature. It is used as both storage and

as the Malware application repository. RAID is not supported.

Do not switch the two SSDs. You must install the MSP in slot 2. If you remove it and install it in slot 1, all

stored capture data are lost.

Caution

Safety Warnings

Take note of the following component replacement safety warnings:

Statement 1028—More Than One Power Supply

This unit might have more than one power supply connection. To reduce risk of electric shock, remove

all connections to de-energize the unit.

Warning

Statement 1030—Equipment Installation

Only trained and qualified personnel should be allowed to install, replace, or service this equipment.

Warning

Statement 1073—No User-Serviceable Parts

There are no serviceable parts inside. To avoid risk of electric shock, do not open.

Warning

Statement 1089—Instructed and Skilled Person Definitions

An instructed person is someone who has been instructed and trained by a skilled person and takes the

necessary precautions when working with equipment.

A skilled person or qualified personnel is someone who has training or experience in the equipment

technology and understands potential hazards when working with equipment.

Warning

Statement 1090—Installation by Skilled Person

Only a skilled person should be allowed to install, replace, or service this equipment. See statement 1089

for the definition of a skilled person.

Warning

Installation, Maintenance, and Upgrade

Remove and Replace the SSD

Statement 1091—Installation by an Instructed Person

Only an instructed person or skilled person should be allowed to install, replace, or service this equipment.

See statement 1089 for the definition of an instructed or skilled person.

Warning

Step 1 Save your configuration.

Step 2 Power down the chassis by moving the power switch to the OFF position. See Rear Panel for more information on the

power switch.

Step 3 To remove the SSD in slot 1, face the front of the chassis, loosen the two captive screws on the SSD, and gently pull it

out of the chassis. See Front Panel for the location of the SSD slots for each model. The figure below shows the 2130

and 2140 front panel.

Figure 2: Remove the SSD

Step 4 To replace the SSD in slot 1, make sure the power switch is still in the OFF position, and then hold the SSD in front of

slot 1 and push it in gently until it is seated.

Step 5 To install the MSP SSD, make sure the power switch is still in the OFF position, and then remove the blank faceplate in

Slot 2 by loosening the captive screws on either side of the faceplate.

Step 6 Hold the MSP SSD in front of slot 2 and push it in gently until it is seated.

Do not switch the two SSDs. The MSP must be installed in slot 2. If you remove it and install it in slot 1, all

stored file capture data are lost.

Caution

Step 7 Tighten the captive screws on either side of the SSD.

Installation, Maintenance, and Upgrade

Remove and Replace the SSD

Step 8 Check the SSD LED to make sure the SSD is operative. See Front Panel LEDs for a description of the SSD LEDs.

Remove and Replace the Power Supply Module

Power supply modules are hot-swappable. You can remove and replace power supply modules while the

system is running.

Safety Warnings

Take note of the following power and component removal safety warnings:

Statement 1003—DC Power Disconnection

To reduce risk of electric shock or personal injury, disconnect DC power before removing or replacing

components or performing upgrades.

Warning

Statement 1005—Circuit Breaker

This product relies on the building’s installation for short-circuit (overcurrent) protection. To reduce risk

of electric shock or fire, ensure that the protective device is rated not greater than:

AC: 20A

DC: 40A

Warning

Statement 1017—Restricted Area

This unit is intended for installation in restricted access areas. Only skilled, instructed, or qualified

personnel can access a restricted access area.

Warning

Statement 1018—Supply Circuit

To reduce risk of electric shock and fire, take care when connecting units to the supply circuit so that

wiring is not overloaded.

Warning

Statement 1022—Disconnect Device

To reduce risk of electric shock and fire, a readily accessible two-poled disconnect device must be

incorporated in the fixed wiring.

Warning

Installation, Maintenance, and Upgrade

Remove and Replace the Power Supply Module

Statement 1025—Use Copper Conductors Only

To reduce risk of fire, use copper conductors only.

Warning

Statement 1028—More Than One Power Supply

This unit might have more than one power supply connection. To reduce risk of electric shock, remove

all connections to de-energize the unit.

Warning

Statement 1029—Blank Faceplates and Cover Panels

Blank faceplates and cover panels serve three important functions: they reduce the risk of electric shock

and fire, they contain electromagnetic interference (EMI) that might disrupt other equipment, and they

direct the flow of cooling air through the chassis. Do not operate the system unless all cards, faceplates,

front covers, and rear covers are in place.

Warning

Statement 1030—Equipment Installation

Only trained and qualified personnel should be allowed to install, replace, or service this equipment.

Warning

Statement 1073—No User-Serviceable Parts

There are no serviceable parts inside. To avoid risk of electric shock, do not open.

Warning

Statement 1046—Installing or Replacing the Unit

To reduce risk of electric shock, when installing or replacing the unit, the ground connection must always

be made first and disconnected last.

Warning

Installation, Maintenance, and Upgrade

Remove and Replace the Power Supply Module

Statement 1089—Instructed and Skilled Person Definitions

An instructed person is someone who has been instructed and trained by a skilled person and takes the

necessary precautions when working with equipment.

A skilled person or qualified personnel is someone who has training or experience in the equipment

technology and understands potential hazards when working with equipment.

Warning

Statement 1090—Installation by Skilled Person

Only a skilled person should be allowed to install, replace, or service this equipment. See statement 1089

for the definition of a skilled person.

Warning

Statement 1091—Installation by an Instructed Person

Only an instructed person or skilled person should be allowed to install, replace, or service this equipment.

See statement 1089 for the definition of an instructed or skilled person.

Warning

Step 1 Unplug the power supply cable before removing the power supply module. You cannot disengage the power supply

module latch without first removing the cable.

Step 2 To remove a power supply module, face the back of the chassis and grasp the handle.

Step 3 Press the latch found on the right of the power supply to disengage the power supply.

Step 4 Place your other hand under the power supply module to support it while you slide it out of the chassis.

Installation, Maintenance, and Upgrade

Remove and Replace the Power Supply Module

Figure 3: Remove the Power Supply Module

Power supply module handle2Power supply module 11

Power supply module 2Power supply module latch3

If the slot is to remain empty, install a blank faceplate to ensure proper airflow and to keep dust out of the chassis;

otherwise, install another power supply module.

Step 5 To replace a power supply module, hold the power supply module with both hands and slide it into the power supply

module bay.

Step 6 Push in the power supply module gently until you hear the latch engage and it is seated.

Step 7 Plug in the power supply cable.

Step 8 Check the LED on the power supply to make sure the power supply is operative. See Power Supply Modules.

Connect the DC Power Supply Module

For the Firepower 2130 and 2140, the input connector and plug must be UL-recognized under UL 486 for

field wiring. The connection polarity is from left to right: negative (–), positive (+), and ground.

Use the handle on the power supply for installation and removal. You must support the module with one hand

because of its length.

Installation, Maintenance, and Upgrade

Connect the DC Power Supply Module

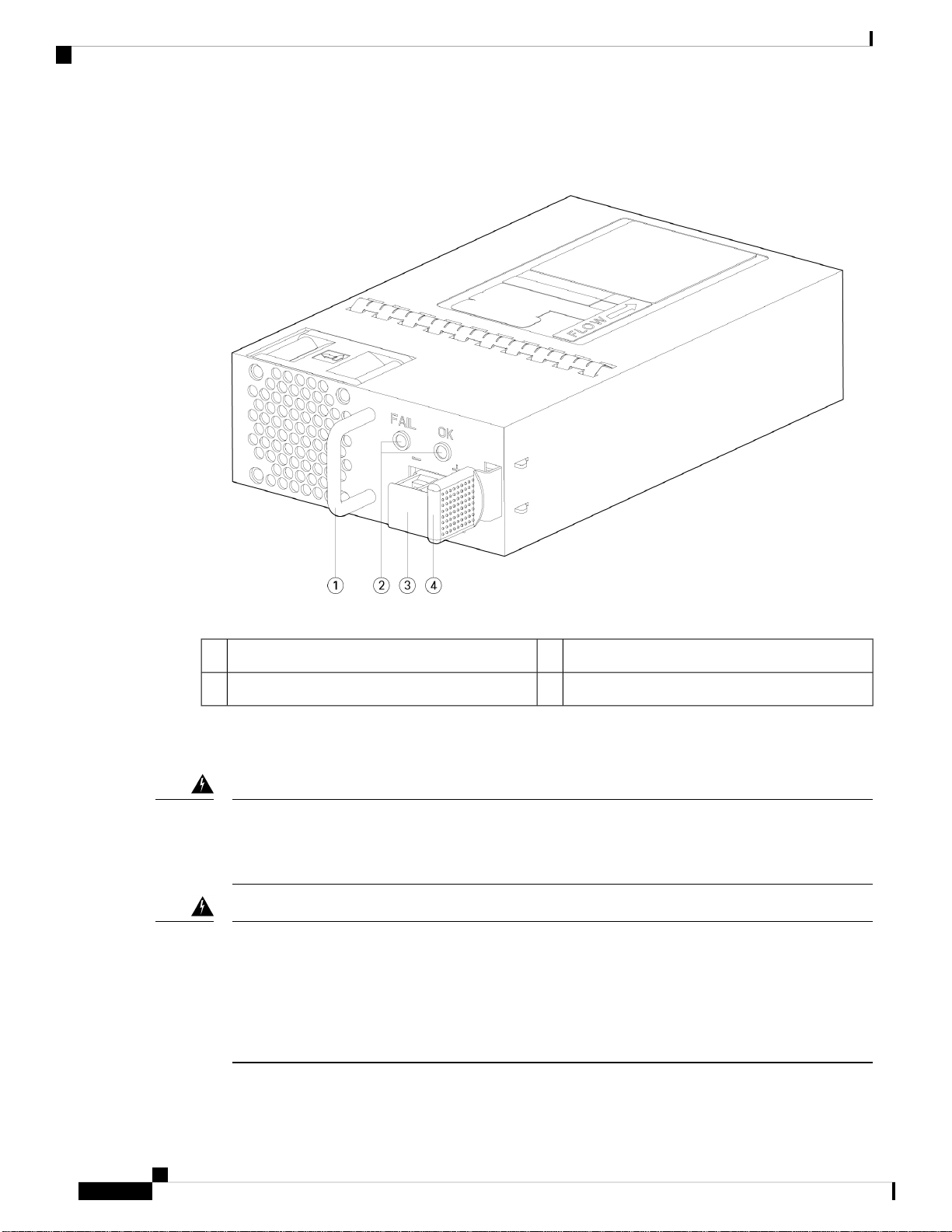

Figure 4: Firepower 2100 DC Power Supply Module

FAIL and OK LEDs2Handle1

Ejector latch4DC power connector3

Safety Warnings

Take note of the following warnings:

Statement 1003—DC Power Disconnection

To reduce risk of electric shock or personal injury, disconnect DC power before removing or replacing

components or performing upgrades.

Warning

Statement 1005—Circuit Breaker

This product relies on the building’s installation for short-circuit (overcurrent) protection. To reduce risk

of electric shock or fire, ensure that the protective device is rated not greater than:

AC: 20A

DC: 40A

Warning

Installation, Maintenance, and Upgrade

Connect the DC Power Supply Module

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali Cisco Hardware di rete

Cisco

Cisco NCS 2000 series Manuale utente

Cisco

Cisco TelePresence Manuale di servizio

Cisco

Cisco ON100 Network Agent Manuale utente

Cisco

Cisco IPS-4240-K9 - Intrusion Protection Sys 4240 Manuale utente

Cisco

Cisco Prisma EtherLinX Manuale utente

Cisco

Cisco Firepower 2100 Series Manuale utente

Cisco

Cisco OSM-12CT3/T1 - Optical Services Module... Guida rapida

Cisco

Cisco ASR 5000 Manuale di istruzioni

Cisco

Cisco MA-UMNT-MR-A3 Manuale utente

Cisco

Cisco Wide Area Virtualization Engine 274 Manuale

Cisco

Cisco WAE-674-K9 - Wide Area Application Engine... Manuale

Cisco

Cisco MX60 Manuale utente

Cisco

Cisco SCE 2000 4/8xFE Manuale utente

Cisco

Cisco NCS 1004 Manuale utente

Cisco

Cisco Secure Firewall Management Center 1700 Manuale utente

Cisco

Cisco 15530-LCMB-0200 - ESCON Multiplexing Line Card... Manuale

Cisco

Cisco MultiRIP Ethernet Card Manuale utente

Cisco

Cisco ISE - Line Card ISE Manuale utente

Cisco

Cisco SCE 2000 4/8xFE Manuale dell'operatore

Cisco

Cisco IP/VC 3500 Istruzioni originali

Cisco

Cisco AIR-BR350-A-K9 - Aironet 350 Wireless Bridge Manuale

Cisco

Cisco CTM GateWay Guida all'installazione

Cisco

Cisco CMX 3375 Manuale utente

Cisco

Cisco ASR 5500 Manuale utente

Manuali Hardware di rete popolari di altre marche

Matrix Switch Corporation

Matrix Switch Corporation MSC-HD161DEL Manuale utente

B&B Electronics

B&B Electronics ZXT9-IO-222R2 Manuale utente

Yudor

Yudor YDS-16 Manuale utente

D-Link

D-Link ShareCenter DNS-320L Manuale utente

Samsung

Samsung ES1642dc Istruzioni per l’uso

Honeywell Home

Honeywell Home LTEM-PV Istruzioni per il montaggio

evertz

evertz 7700 Series Manuale utente

D-Link

D-Link ShareCenter DNS-343 Manuale utente

Asante

Asante AsanteBridge 1012 Manuale utente

FireBrick

FireBrick FB2700 Manuale utente

Audiovox Electronics

Audiovox Electronics ARWH2T Manuale utente

ADC

ADC DSX-1 Manuale

NetComm

NetComm NF2 Manuale utente

Alcatel-Lucent

Alcatel-Lucent 5620 Manuale utente

Dell EMC

Dell EMC XC6420 Series Manuale utente

Lanner

Lanner NCA-1020A Manuale utente

Allied Telesis

Allied Telesis AT-TN121-A Manuale utente

Arista

Arista CCA-ETM-Q12 Manuale utente
