Maintenance

This section describes maintenance procedures for the 1.2 GHz GS7000 Remote PHY Device (RPD) 2X2

Segmentable Node.

•Opening and Closing the Housing, on page 1

•Preventative Maintenance, on page 2

•Removing and Replacing Modules, on page 5

•Care and Cleaning of Optical Connectors, on page 10

Opening and Closing the Housing

Installation or maintenance of the node requires opening the housing to access the internal modules.

Proper housing closure is important to maintaining the node in good working condition. Proper closure ensures

a good seal against the environment, protecting the internal modules.

Opening the Housing

Open the housing as follows.

1. Remove the bolts securing the lid to the base.

2. Carefully open the lid to allow access to the inside of the housing.

3. Inspect gaskets on the cover flange and on the test port plugs.

4. Replace any gaskets showing signs of wear (cracked, twisted, pinched, or dry) with new, silicon-lubricated

gaskets.

Closing the Housing

Close the housing as follows.

1. Ensure any worn gaskets are replaced, and the gaskets are clean and in the correct position.

2. Carefully close the lid.

Maintenance

Use caution when closing housing. Improper closing may result in the unit not being sealed from the

environment.

Caution

3. For strand-mounted housings, pull the lid away from the base and remove the slack from the hinge before

rotating the lid up toward the base.

4. Ensure no cables are pinched between lid and base.

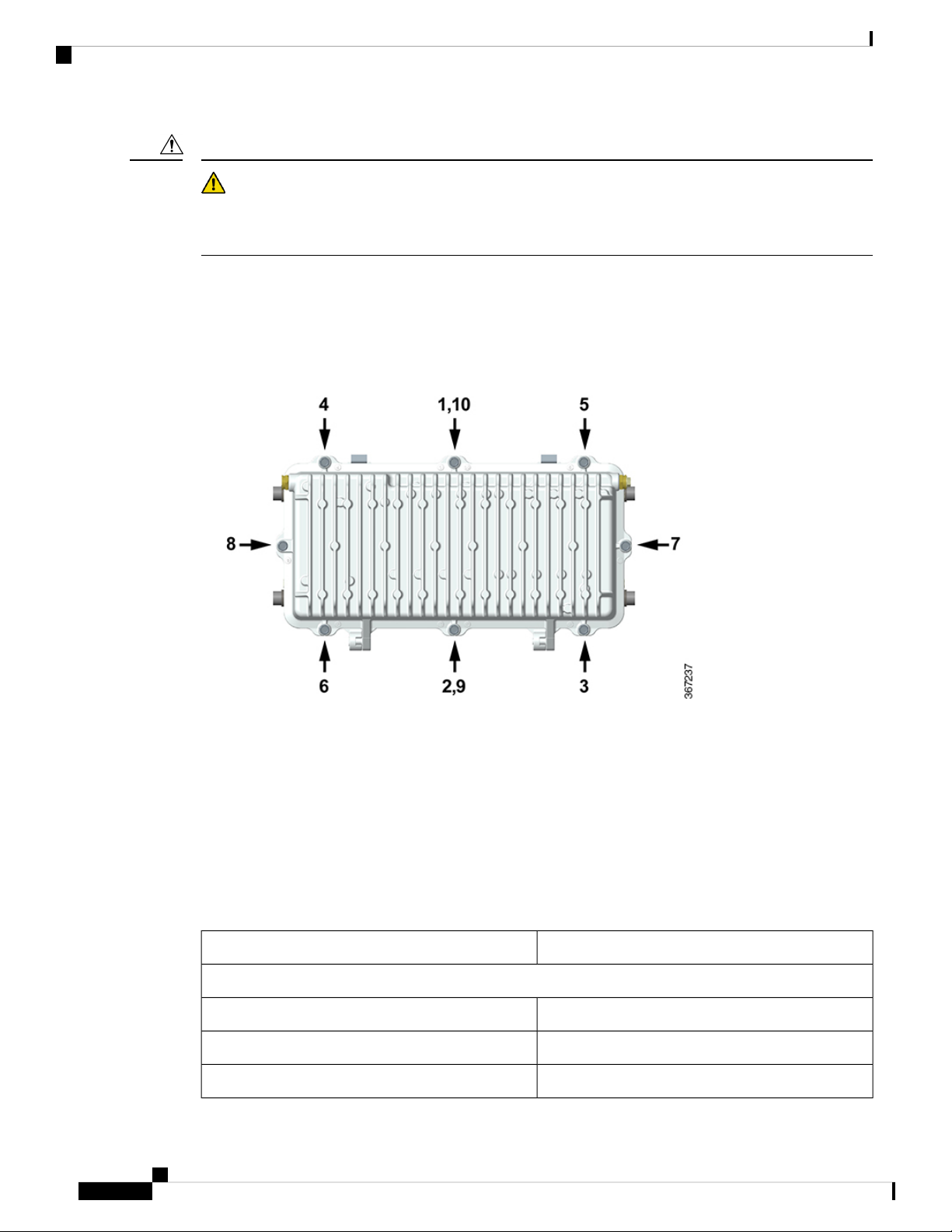

5. Secure lid to base with bolts. Tighten from 5 to 12 ft-lbs (6.8 to 16.3 Nm) in the sequence shown in the

following illustration. Repeat the sequence twice, ending with the final torque specification.

Preventative Maintenance

Preventive maintenance procedures are regularly scheduled actions that help prevent failures and maintain

the appearance of the equipment.

Schedule

Perform the preventive maintenance procedures at these intervals.

IntervalProcedure

Visual Inspection:

Semiannually

External Surfaces

SemiannuallyConnectors

SemiannuallyIndicators

Maintenance

Preventative Maintenance

IntervalProcedure

AnnuallyWiring/Cable Assemblies

Cleaning:

Annually

External Surfaces

AnnuallyExternal Controls/Connectors

AnnuallyInternal Connectors/Circuit Cards

Visual Inspection

Visually inspect the following items.

How to InspectWhat to Inspect

Inspect for:

• dust, dirt, lubricants, or other foreign matter worn spots or deep scratches

on surfaces

• corrosion

• marred protective finish exposing bare metal

• missing, incorrect or obliterated marking, decals, or reference designators

Exterior surfaces

Inspect for:

• broken, loose, bent, corroded, or missing pins

• cracked insulator inserts

Connectors

Inspect for:

• cuts, nicks, burns, or abrasions

• exposed bare conductors

• sharp bends

• pinched or damaged wires

• broken or loose lacing or clamps

Wiring and cables

Cleaning

Clean exterior surfaces of the equipment at least annually.

Maintenance

Visual Inspection

Consumable Materials

Use the materials listed below (or equivalent) when cleaning the equipment.

SpecificationItem

TT-I-735Isopropyl alcohol

CC-C-440Cheesecloth

(none)Spray-type contact cleaner

Procedure

Clean the equipment as described below.

1. Use a small paintbrush to brush dust from connectors.

2. Wipe surfaces dry with clean, dry cheesecloth.

3. Clean exterior surfaces with clean cheesecloth moistened with isopropyl alcohol or general-purpose

detergent. Do not let alcohol or detergent get inside equipment or connectors.

Isopropyl alcohol is flammable. Use isopropyl alcohol only in well-ventilated areas away from energized

electrical circuits and heated objects such as soldering irons or open flames. Avoid excessive inhalation of

vapors or prolonged or repeated contact with skin. Wear industrial rubber gloves and industrial safety goggles

to avoid contact with skin. Do not take internally. Failure to comply with this admonishment can cause injury,

physical disorder, or death.

Warning

Do not use cleaning fluids containing trichloroethylene, trichloroethane, acetone or petroleum-based cleaners

on equipment. Failure to comply with this caution could harm equipment surfaces.

Caution

4. Clean electrical contacts with spray-type contact cleaner.

5. Clean internal connectors and circuit boards with hand-controlled, dry-air jet. Do not use pressure exceeding

15 lb/in2 (1.05 kg/cm2, or 103.43 kPa).

6. Clean interior surfaces with clean cheesecloth moistened with isopropyl alcohol or general-purpose

detergent.

7. Clean internal electrical contacts with clean cheesecloth moistened with spray-type contact cleaner.

8. Dry interior with clean, dry cheesecloth.

Maintenance

Consumable Materials

Removing and Replacing Modules

This procedure describes how to remove and replace the internal modules of the node. All field-replaceable

modules can be removed and replaced without removing power from the node.

Field-replaceable modules include:

• Forward optical receiver modules

• Reverse optical transmitter modules

• Status monitor/local control module

• Forward configuration module

• Reverse configuration module

• Equalizers

• Node signal directors

• Power supply modules

• RF amplifier assembly

• RPD Module

Removing power from the node will interrupt customer service. Removing any module, except for the status

monitor/local control module, will interrupt customer service unless that module has a redundant backup.

Caution

Module Replacement Procedure

Follow this procedure to remove and replace an optical receiver, optical transmitter, optical amplifier, optical

switch, status monitor/local control module, or power supply module.

1. Open the housing. See Opening and Closing the Housing, on page 1.

2. Carefully tag and remove any optical fibers from RPD, receiver or transmitter module.

Laser light hazard. Never look into the end of an optical fiber or connector. Failure to observe this warning

can result in eye damage or blindness.

Warning

3. Loosen the screws securing the module.

4. Lift the module straight up out of the housing to unplug it.

Maintenance

Removing and Replacing Modules

Pull up on the built-in handle on RPD, receiver module, transmitter module, status monitor/local control

module, or power supply module.

Note

5. Position the new module in the same location and carefully slide the module into its slot until connected

to the optical interface board.

6. Tighten the screws securing the module. Torque screws to 25 to 30 in-lbs (2.8 to 3.4 Nm).

7. Carefully reconnect any optical fibers that were removed from the original module. Clean optical connectors

before reconnecting. See Care and Cleaning of Optical Connectors, on page 10 for cleaning procedure.

Laser light hazard. Never look into the end of an optical fiber or connector. Failure to observe this warning

can result in eye damage or blindness.

Warning

8. Close the housing. See Opening and Closing the Housing, on page 1.

If you are using a Local Control Module in the node be sure to press the Auto Set-Up button on the cover of

the LCM before you close the node housing. This allows the LCM to check for, and detect, installed modules.

If the modules are not detected during this discovery process, they cannot be monitored and controlled by the

LCM. The node must be powered and the modules operating properly in order to be detected.

Important

9. Perform the setup procedure in Setup and Operation to verify node performance.

Accessing the Receiver/Transmitter Module Fiber Spool and Connector

Optical receivers and transmitter modules have an integrated fiber spool inside the module housing. This

allows the fiber pigtail to be spooled up and contained within the module housing.

You may need to access this spool to clean or replace a fiber pigtail or connector.

Follow this procedure to access the module fiber spool and connector.

1. Pull up on the two module cover knurled tabs. Use a slight rocking motion.

If the module is out of the housing, it is easier to hold the module in both hands and push up on the two module

cover knurled tabs with your thumbs. You can also insert a flat blade screwdriver into the cover release tab

slot on the right side of the module housing to assist with opening the cover.

Note

The module cover opens as shown.

Maintenance

Accessing the Receiver/Transmitter Module Fiber Spool and Connector

2. Pull the fiber connector straight out from the side of the module cover to remove it.

3. Disassemble the fiber connector and pigtail for cleaning if necessary.

4. Reattach the fiber connector to the module cover and close the cover.

Maintenance

Accessing the Receiver/Transmitter Module Fiber Spool and Connector

Forward/Reverse Configuration Module, Equalizer, and Node Signal Director

Replacement Procedure

The forward and reverse configuration modules, equalizers, and node signal directors plug into the RF amplifier

assembly through cut-outs in its cover.

To remove these modules, pull up carefully on their integrated handles until they separate from the RF amplifier

assembly.

RF Amplifier Assembly Replacement Procedure

Follow this procedure to remove and replace the RF amplifier assembly.

1. Open the housing. See Opening and Closing the Housing, on page 1.

2. Remove the AC power shunts and make a note of their location for reinstallation in the replacement RF

amplifier assembly.

Damage to the node may result if AC power shunts are not removed before replacing the RF amplifier assembly.

Caution

3. Unplug AC1/DC connector, forward path connector, reverse path connector and AC2 connector on the

RF amplifier assembly.

4. Loosen the seven shoulder screws securing the RF amplifier assembly to the housing.

Maintenance

Forward/Reverse Configuration Module, Equalizer, and Node Signal Director Replacement Procedure

The screw locations are identified by number, 1 through 7.

Note

5. Insert a flat-blade screwdriver into the small holes in the metal handles on each side of the RF amplifier

assembly and pry up carefully to disconnect the RF amplifier assembly’s rear panel connectors.

Be careful not to damage the housing with the screwdriver.

Important

Maintenance

RF Amplifier Assembly Replacement Procedure

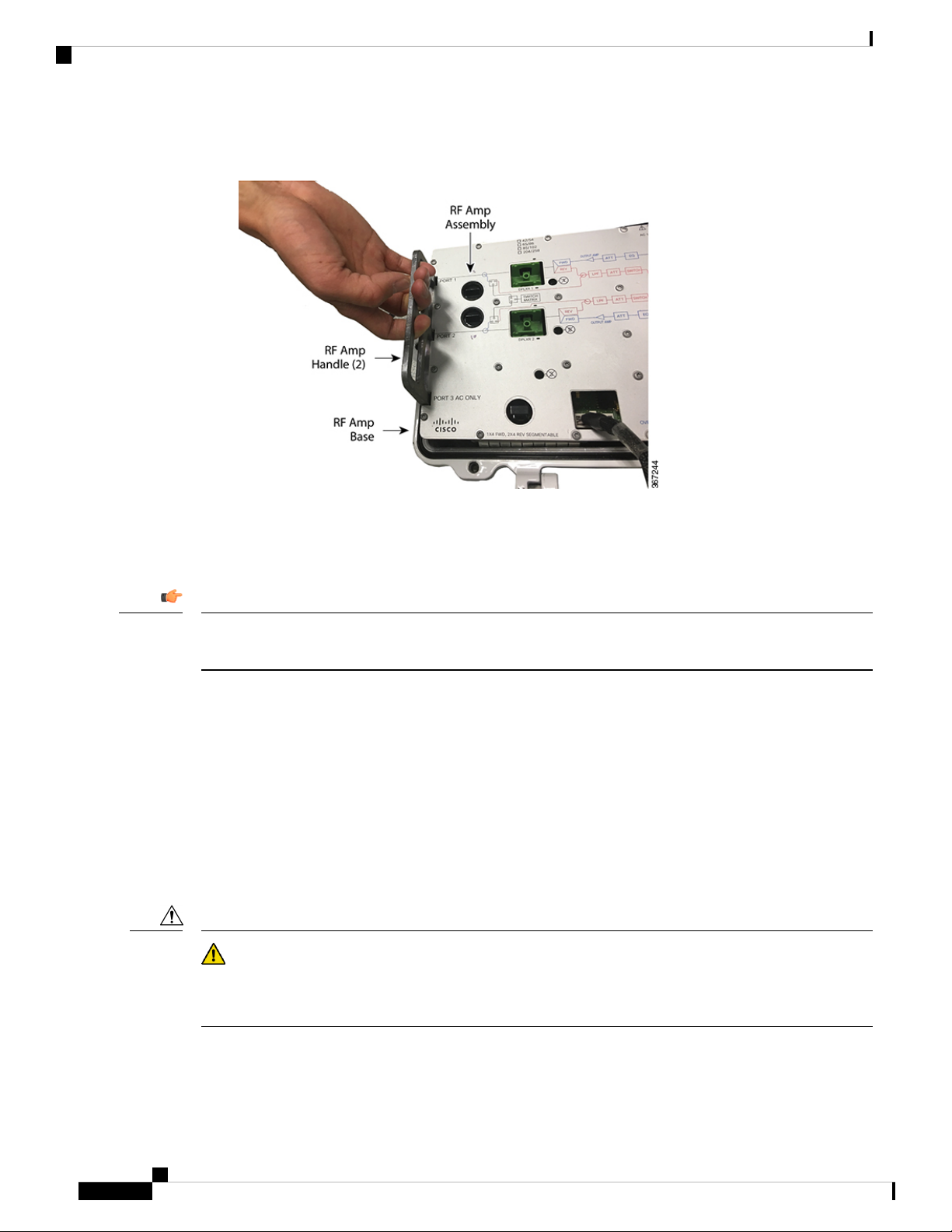

6. Grasp the two metal handles on the RF amplifier assembly and carefully lift the RF assembly out of the

housing.

7. To replace the RF amplifier assembly in the housing, carefully align the assembly in the housing, lower

it into place and push down to reconnect the rear panel connectors.

8. Secure the RF amplifier assembly to the housing with the seven cross-head shoulder screws.

Tighten the screws in order by number, 1 through 7. Repeat the sequence twice, ending with a torque of 18

to 20 in-lbs (2.0 to 2.25 Nm).

Important

9. Plug AC1/DC connector, forward path connector, reverse path connector and AC2 connector on the RF

amplifier assembly.

10. Reinstall the AC power shunts in their proper locations on the RF amp assembly.

11. Close the housing. See Opening and Closing the Housing, on page 1.

12. Perform the setup procedure in Setup and Operation to verify node performance.

Care and Cleaning of Optical Connectors

Proper operation of this equipment requires clean optical fibers. Dirty fibers will adversely affect performance.

Proper cleaning is imperative.

Caution

The proper procedure for cleaning optical connectors depends on the connector type. The following describes

general instructions for fiber-optic cleaning. Use your company's established procedures, if any, but also

consider the following.

Maintenance

Care and Cleaning of Optical Connectors
