Cisco IR1101 Manuale utente

Product Overview

This chapter provides an overview of the features available for the Cisco IR1101 Industrial Integrated Services

Router and its Expansion Module. It contains the following sections:

•Product Overview, on page 1

Product Overview

This chapter provides an overview of the features available for the Cisco IR1101 Industrial Integrated Services

Router and its Expansion Module. It contains the following sections:

Prior to installing this device read the Regulatory Compliance and Safety Information .

Note

General Description

The Cisco IR1101 Industrial Integrated Services Router is a next generation modular industrial router which

has a base module with additional Pluggable Modules that can be added. The Pluggable Module provides the

flexibility of adding different interfaces to the IR1101 platform, for example, a cellular module.

The IR1101 ISR also has an Expansion Module that adds key capabilities such as dual LTE Pluggables,

mSATA SSD FRU, SFP, and Digital GPIO connections.

Product Overview

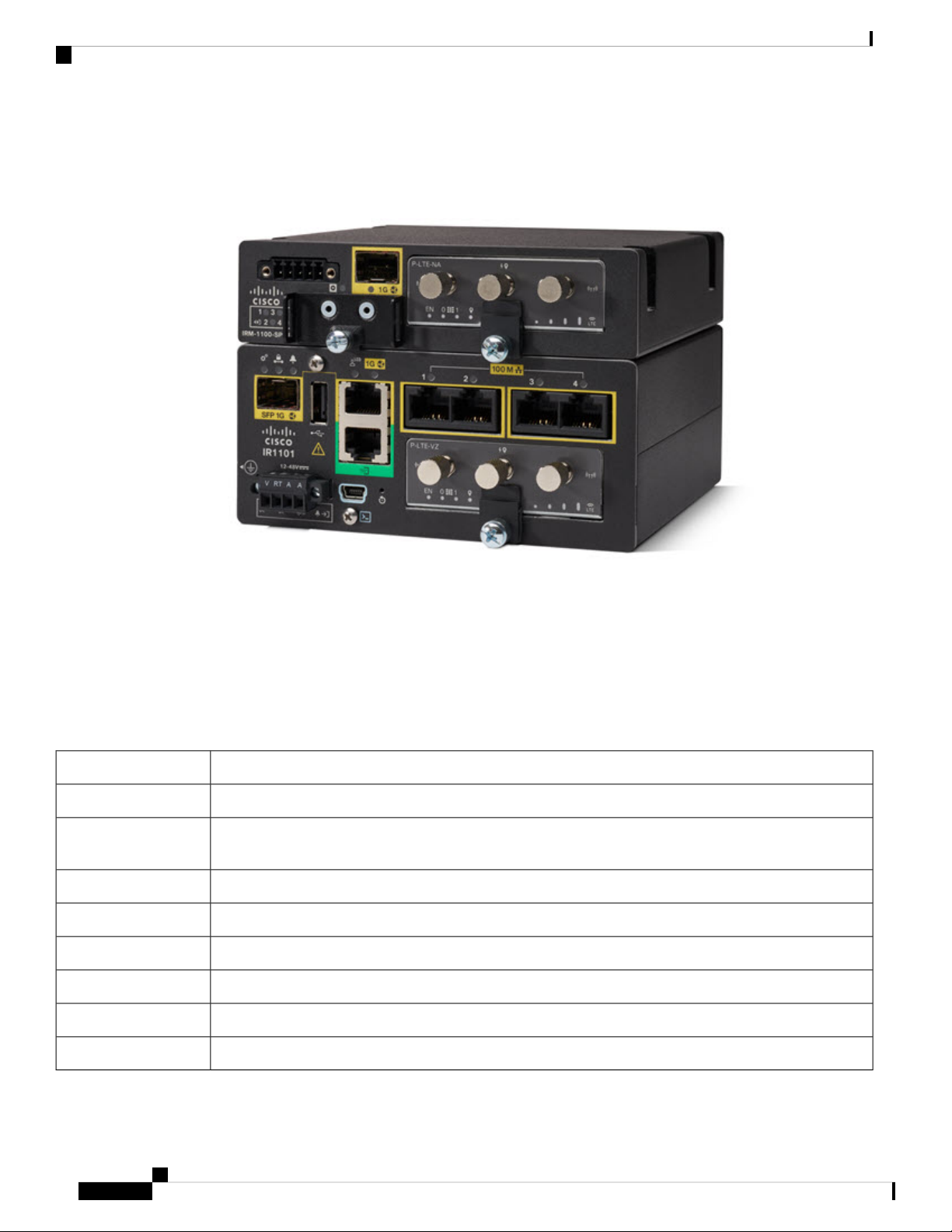

Figure 1: The IR1101 Industrial Integrated Services Router

SKU Information

Table 1 lists the different SKUs available for the Cisco IR 1101.

Table 1: Supported SKUs for Cisco IR1101

DescriptionSKU ID

IR1101 Base UnitIR1101-K9

Expansion Module with 1 GE SFP, 1 Pluggable Module, 1 Digital I/O Connector, and 1 mSATA SSD

Slot.

IRM-1100-SPMI

Expansion Module with 1 GE SFP and1 Pluggable Module.IRM-1100-SP

100 GB mSATA SSDIR1100-SSD-100G

Optional AC power adapter with 110/220V AC and 88-300V DC input (Temperature: -40C to 60C)PWR-IE50W-AC

Din rail kit and mounting screws for horizontal and vertical mountingIR1101-DINRAIL(=)

Din rail kit for the Expansion ModuleIRM-1100-DINRAIL

Wall mount kitIR1101-WALLMNT(=)

Product Overview

SKU Information

Cisco IR1101 Series Platform Features

This section describes the different components of the router.

Cisco IR1101 Base Router

The following lists the hardware platform features for the Cisco IR1101.

• External Power Entry

• Nominal: 12 to 48VDC

• Absolute min/max: 9.6 to 60VDC

• Typical current: 0.82A to 0.22A

• Maximum current: 0.91A to 0.28A

• 4-pin 3.8 mm EURO power connector

• External Reset/Recovery Push Button

• Gigabit Ethernet Combo RJ45+SFP connector.

• RJ45 connector will support IEEE802.3 Ethernet over copper wiring standards of 10Base-T,

100Base-TX, and 1000Base-T

• SFP port will support 1000Base-X or 100Base-FX Fiber Ethernet standard SFP (see the supported

list of SFP’s here: SFP Module, page 26 )

• LAN Ports

• 4x RJ45 10/100 Fast Ethernet

• Serial Port

• 1 x RJ45 RS232 Port (DTE)

• USB Ports

• 1x USB 2.0 Type A Host Port

• 1x USB 2.0 mini USB Type B console port

• Compliance

• Class A EMC or better

• IP30 compliant when vertical and ports downward

• Industrial temperature [-40ºC to +60ºC, 13.8Kft (operating), 15Kft (non-operating)]

• One alarm input

Figure 2 Shows the IR1101 ISR base router.

Product Overview

Cisco IR1101 Series Platform Features

Figure 2: Cisco IR1101 Industrial Integrated Services Router

Figure 3 and Figure 4 shows the IR1101 Base Module Front.

Figure 3: Cisco IR1101 Integrated Services Router with USB covers in place

DetailsItem

USB 2.0 Port Cover1

Mini-USB Console Cover2

Product Overview

Cisco IR1101 Base Router

Figure 4 shows the front panel details of the Cisco IR1101.

Figure 4: Cisco IR1101 Front Panel

Grounding Point (on side of device)6SFP GE WAN1

DC Power and Alarm Input7USB 2.02

Mini-USB Console8RJ45 GE WAN3

Reset Button9Serial Port4

Pluggable Module10FE LAN Ports 1-45

Cisco IRM-1100-SPMI Expansion Module

Figure 5 shows the IR-1100-SPMI Expansion Module.

Product Overview

Cisco IRM-1100-SPMI Expansion Module

Figure 5: IR-1100-SPMI Expansion Module

The following lists the hardware platform features for the Cisco IR-1100-SPMI:

• 1 GE SFP (see the supported list of SFP’s here: SFP Module, page 26 )

• 1 Pluggable slot

• 1 Digital I/O connector

• 1 mSATA SSD slot

Figure 6: IR-1100-SPMI Expansion Module Details

Product Overview

Cisco IRM-1100-SPMI Expansion Module

4 GPIO + 1 Return (Digital I/O)1

SFP Connector2

Pluggable Module3

mSATA SSD Slot4

Digital I/O LEDs5

Digital I/O Connector

The Digital I/O connector has 4 GPIO connections plus 1 Return connection. The Digital I/O supports Both

Dry and Wet contacts up to 60Volts.

• Dry contact is isolated from a voltage source (or “No Volt”), with an embedded relay function (NPN

transistor), usually used to indicate an event. For example: open/close, alarm.

• Wet contact is a contact with external power (+3.3V to +60V, max 150mA of current allowed at high

voltage) applied, usually used to energize something. For example: solenoid, light.

Figure 7 shows the connector.

Digital I/O is only supported on IOS-XE version 16.12.1 and above.

Note

The default state of the Digital I/O is input, the open-collector is open (off).

Note

Figure 7: Digital I/O connector

The pinouts for the Digital I/O are described in Table 2 .

Table 2: Digital I/O Pinouts

DescriptionDirectionNamePin #

Digital IO 1I/ODIO11

Digital IO 2I/ODIO22

Digital IO 3I/ODIO33

Digital IO 4I/ODIO44

Product Overview

Digital I/O Connector

DescriptionDirectionNamePin #

Digital IO Common ReturnReturnReturn5

Digital Input and Output Specifications are described in Table 3 and Table 4 .

Table 3 is considered “dry contact”, and Table 4 is considered “wet contact”.

Table 3: Digital Input Specification

UnitMaximumMinimumSpecification

Volts602.2Input Voltage High

Volts1.2-Input Voltage Low

uA0.68mA

Note1

-Input Current

Note1: Current is flowing out of the terminal although it is an input, i.e. sourcing. The current is flowing in

the terminal for the output, i.e. sinking.

Table 4: Digital Output Specification

NotesUnitMaximumMinimumSpecification

No external voltage

applied.

Volts2.5Output Voltage High

No external voltage

applied.

Volts0.4-Output Voltage Low

Ohms3.3K – 1%3.3K – 1%Internal Pull-up

Resistance

Volts3-Internal Pull-up Voltage

External resistance

required to limit current

to 200mA.

Volts603.3External Pull-up Voltage

mA200Sink Current

Common features of the Digital I/O are:

• Withstands up to 60V applied at the terminal.

• Reverse voltage protected and causes no damage to the equipment.

• Digital input and output can coexist on different channel.

• LED Indicator: provision-able, On: Active, Off: Non-active.

• Electrical isolation: 2000 VDC.

• 4kV Surge protected (IEC 61000-4-5).

Product Overview

Digital I/O Connector

IR-1100-SPMI Expansion Module LEDs

There are 6 LEDs in the Expansion Module. Four LEDs show the status of digital input and output. One LED

shows the SFP port status and one LED shows the mSATA status. The LED behavior is shown in Table 5 .

Table 5: Expansion Module LEDs

DefinitionLED

Off - InactiveSolid Yellow- ActiveDigital I/O as Input

Off - InactiveSolid Yellow- ActiveDigital I/O as Output

Off - No LinkSolid Yellow - Port link with no activityFlashing Yellow - Port link healthy with activitySFP

Off - Not powered on or no activityFlashing Green - mSATA being accessedmSATA

Cisco IR-1100-SP Expansion Module

The IR-1100-SP Expansion Module is the same as the IR-1100-SPMI module, without the Digital I/O and

mSATA components.

The following lists the hardware platform features for the Cisco IR-1100-SP:

• 1 GE SFP (see the supported list of SFP’s here: SFP Module, page 26 )

• 1 Pluggable slot

Cisco Pluggable Module

The Pluggable Module provides the flexibility of adding different interfaces to the IR1101 platform, for

example, a cellular module.

Pluggable LTE Module

Highlights of the LTE Pluggable Module are:

• All Cellular interfaces are supported through a Pluggable Module

• Micro-Sim, 3FF size. Cisco recommends Industrial Temp micro SIMs that are rated from -40C to +105C.

Figures Figure 8 and Figure 9 show an example of a Pluggable Module. In this case, the LTE Pluggable

Module.

Figure 8: LTE Pluggable Module (front)

LTE-Main SMA1

GPS SMA2

Product Overview

IR-1100-SPMI Expansion Module LEDs

LTE-Main SMA1

Micro USB Debug Port3

LTE-Div SMA4

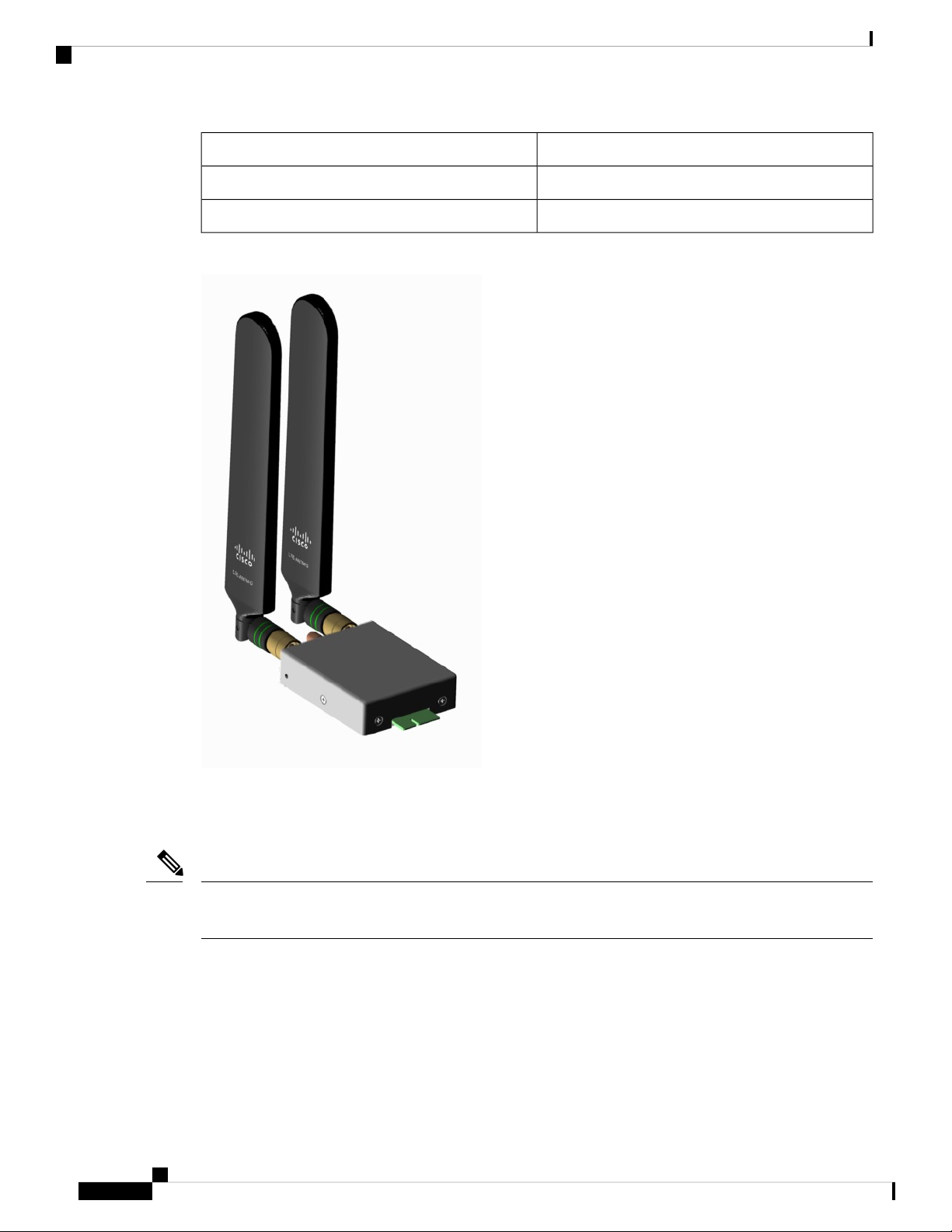

Figure 9: LTE Pluggable Module (with antennas)

LTE Category 18 Pluggable Module

This module has a new smaller form factor SMA Diversity Antenna for usability and Micro-USB port access.

The P-LTEAP18-G pluggable module must be installed in the IR1101 Base. It cannot be used in the IRM-1100

Expansion Module.

Note

Product Overview

LTE Category 18 Pluggable Module
