Application Note

Avaya S8500 Communications Manager 4.0 using Cisco IOS

Voice Gateways to Tunnel T1 QSIG over SIP (with CUBE)

October 01, 2008 Initial Version

Table of Contents

Introduction..............................................................................................................................................................................................................2

Network Topology....................................................................................................................................................................................................3

Limitations................................................................................................................................................................................................................3

System Components .................................................................................................................................................................................................3

Hardware Components........................................................................................................................................................................................3

Software Requirements........................................................................................................................................................................................4

Features ....................................................................................................................................................................................................................4

Features Supported..............................................................................................................................................................................................4

Features Not Supported.......................................................................................................................................................................................5

Configuration............................................................................................................................................................................................................5

Avaya S8500 Communications Manager 4.0: Switch 1 configuration................................................................................................................5

Avaya S8500 Communications Manager 4.0: Switch 2 configuration..............................................................................................................16

Cisco IOS Gateway #1 Configuration ...............................................................................................................................................................27

Cisco IOS Gateway # 2 configuration...............................................................................................................................................................32

Cisco Unified Border Element (CUBE) Configuration.....................................................................................................................................37

Acronyms................................................................................................................................................................................................................42

Important notices, privacy statements, and trademarks of Cisco Systems, Inc. can be found on cisco.com

Page 2 of 45

Introduction

•This application note provides interoperability information and documented configurations for a toll bypass solution using Cisco IOS Voice

Gateways tunneling QSIG over SIP between two Avaya PBXs. The integration consists of two Cisco IOS Voice Gateways connecting to the

Avaya PBXs using T1 QSIG trunks. The IOS gateways establish the QSIG connection between the two PBXs via SIP. Since QSIG is not

dependant of the physical layer interface, this app note applies to both T1 and E1. This integration also demonstrates use of the

Cisco Unified Border Element (CUBE) in the SIP connection between the two Cisco IOS Voice Gateways. Figure 1 shows the integration

topology.

•Interoperability was verified using a single CUBE. In a production deployment, two CUBEs will be required: one at either side of the toll

bypass network. Each CUBE is acting as a point of demarcation between the service provider network and the privately managed networks.

The topology in Figure 1 reflects this deployment. This application note includes a sample CUBE configuration that was used in the

verification with a single CUBE. It can be used as a guide in a production deployment with two CUBEs. The outcome of limitations and

features will not change with a second CUBE in the topology. However, modifications to CUBE and/or IOS Voice Gateway configurations

are necessary to point VoIP dial-peers to the proper session target IP addresses, based upon the implemented dial plan.

•The following basic call and supplementary services features were verified: proper establishing and disconnecting of calls, calling name and

number presentation and restriction, alerting name, call transfer (consult and blind), call forwarding (all, busy, and no reply), callback

functionality, and voicemail access with MWI de/activation. All of the above features are tested with join or reroute schema in both internal

(local) and external network. Please note that this document does not address performance and scalability, which are part of a broader criteria

for a deployment-ready solution.

•This application note uses the C3825 and C3845 IOS-voice-gateway. However other Cisco voice gateways are also an option to use since the

voice gateway implementation does not depend on the platform. Below is a list of Cisco platforms capable of voice gateway functionality

and CUBE functionality: Care must be taken when selecting a voice gateway platform depending on the capacity and capability required

for the intended deployment.

- Cisco 1861 Integrated Services Router

- Cisco IAD2400 Series Integrated Access Device

- Cisco 2800 Series Integrated Services Routers

- Cisco 3700 Series Multi-service Access Routers

- Cisco 3800 Series Integrated Services Routers

- Cisco AS5350XM Universal Gateway

- Cisco AS5400XM Universal Gateway

Important notices, privacy statements, and trademarks of Cisco Systems, Inc. can be found on cisco.com

Page 3 of 45

Network Topology

Figure 1: Network Topology for Service Provider SIP Network

Limitations

The following section lists known limitations, caveats, or integration issues.

•Call Forwarding by Join, Local and Network/External: The Forwarding called numbers are not displayed on Final Destination phones

and the Final Destination Connected numbers are not updated at the Original side. These are the normal behavior on Avaya digital

display telephones.

•Call Forwarding by Reroute, Network/External: The Original Calling number and the Forwarding Called Name and Number are not

displayed on Final Destination phone. Also, The Final Destination Connected Name and number are not updated at the Original side.

This is the normal behavior on Avaya digital display telephones.

System Components

Hardware Components

The following hardware components were used:

•Cisco IOS 3825 Voice Gateway

Important notices, privacy statements, and trademarks of Cisco Systems, Inc. can be found on cisco.com

Page 4 of 45

•Cisco IOS 3845 Voice Gateway

•Cisco IOS 3825 Voice Gateway platform configured for Cisco Unified Border Element (CUBE)

•(2) Avaya S8500 PBXs with DS1 circuit packs

•(1) Octel Voice Mail System Version 4.1

•(4) Avaya digital station telephones

Software Requirements

The following software is required:

•Cisco IOS Voice Gateway 3825 Version 12.4(15)XZ

•Cisco IOS Voice Gateway 3845 Version 12.4(15)XZ

•Cisco IOS Voice Gateway C3825-IPVOICE-M Version 12.4(15)XZ for CUBE

•Avaya S8500 Communication Manager 4.0

Features

This section lists new and changed features and features that are not supported.

Features Supported

•Basic Calls (Enbloc Sending)

•Basic Calls with proper disconnect method

•Calling Line (Number) Identification Presentation (CLIP)

•Calling Line (Number) Identification Restriction (CLIR)

•Calling Name Identification Presentation (CNIP)

•Calling Name Identification Restriction (CNIR)

•Connected Line (Number) Identification Presentation (COLP)

•Connected Line (Number) Identification Restriction (COLR)

•Connected Name Identification Presentation (CONP)

•Connected Name Identification Restriction (CONR)

•Alerting name

•Call Transfer blind

•Call Transfer Consultation

•Call Forward Unconditional by join (See Limitations)

•Call Forward Busy by join (See Limitations)

•Call Forward No Reply by join (See Limitations)

•Call Forward Unconditional by Reroute (See Limitations)

•Call Forward Busy by Reroute (See Limitations)

•Call Forward No Reply by Reroute (See Limitations)

Important notices, privacy statements, and trademarks of Cisco Systems, Inc. can be found on cisco.com

Page 5 of 45

•Call Completion to Busy Subscriber (Call Back)

•Call Completion on No Answer (Call Back)

•Path replacement for trombone Call Transfer

•Voice Mail Access, leave a message and QSIG MWI Activate/Deactivate.

Features Not Supported

•All tested features were supported

Configuration

This section contains configuration menus and commands, and describes configuration sequences and tasks

Avaya S8500 Communications Manager 4.0: Switch 1 configuration

Figure 1. Uniform Dial Plan screenshot (1 of 1)

Important notices, privacy statements, and trademarks of Cisco Systems, Inc. can be found on cisco.com

Page 6 of 45

Figure 2. AAR Analysis screenshot (1 of 1)

Figure 3. Designated Route Pattern (21) screenshot (1 of 1)

Important notices, privacy statements, and trademarks of Cisco Systems, Inc. can be found on cisco.com

Page 7 of 45

Figure 4. System software version

Figure 5. System Parameters

Important notices, privacy statements, and trademarks of Cisco Systems, Inc. can be found on cisco.com

Page 8 of 45

Figure 6. Signaling Group (14) screenshot (1 of 1)

Important notices, privacy statements, and trademarks of Cisco Systems, Inc. can be found on cisco.com

Page 9 of 45

Figure 7. DS1 Board screenshot (1 of 2)

Important notices, privacy statements, and trademarks of Cisco Systems, Inc. can be found on cisco.com

Page 10 of 45

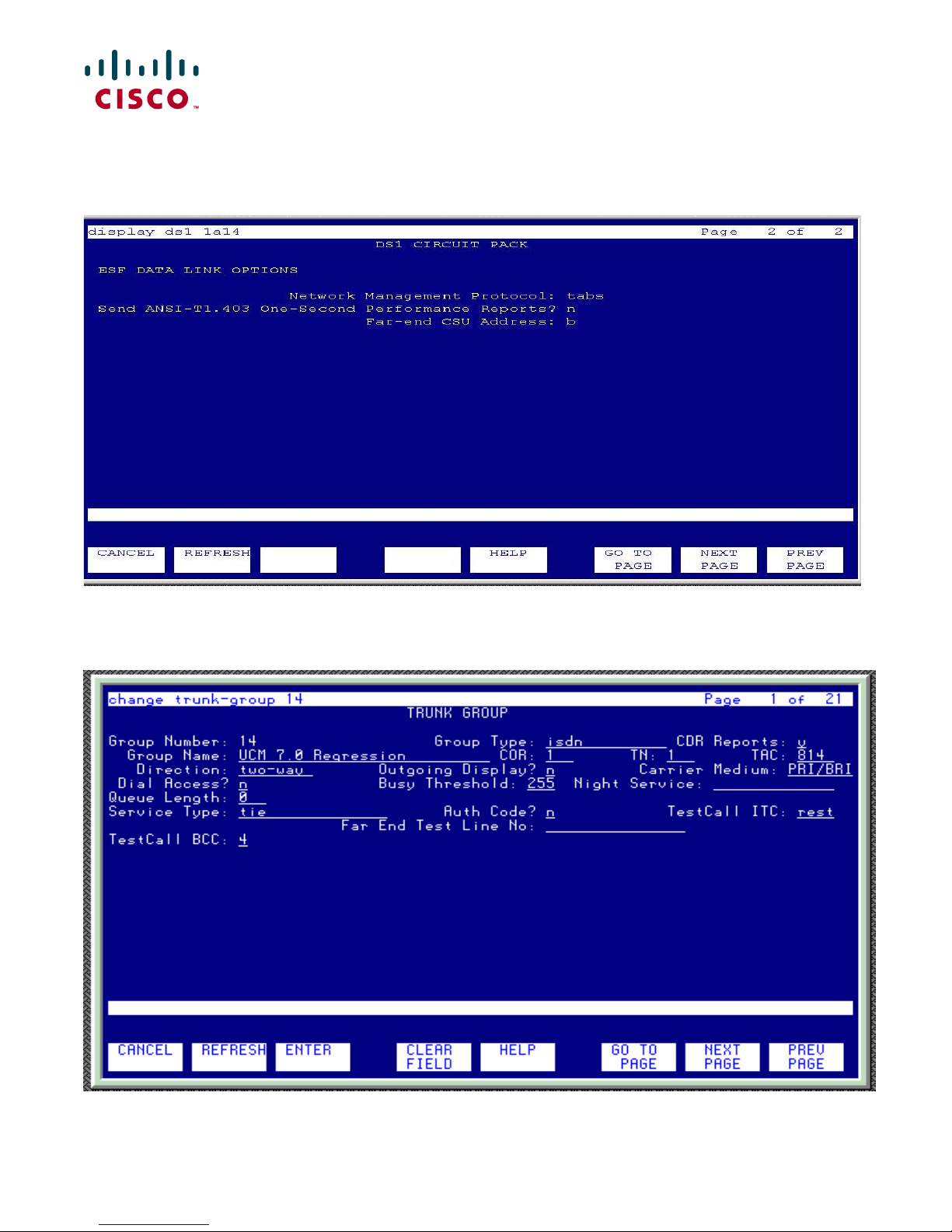

Figure 8. DS1 Board screenshot (2 of 2)

Figure 9. QSIG trunk-group 14 configuration
