Catalyst 3560-C and 2960-C Switch Getting Started Guide

OL-23802-02

Catalyst 3560-C and 2960-C Switch

Getting Started Guide

• About This Guide

• Box Contents

• Running Express Setup

• Managing the Switch

• Installing the Switch

• Connecting to the Switch Ports

• In Case of Difficulty

• Obtaining Documentation and Submitting a Service Request

Catalyst 3560-C and 2960-C Switch Getting Started Guide

OL-23802-02

About This Guide

This guide describes how to use Express Setup to initially configure your

Catalyst 3560-C and 2960-C switches. It also covers switch management options,

basic installation, port and module connection procedures, and troubleshooting.

For additional installation and configuration information for the switch, see the

Catalyst 3560-C and 2960-C documentation on Cisco.com. For system

requirements, important notes, limitations, open and resolved bugs, and

last-minute documentation updates, see the release notes, also on Cisco.com. For

translations of the warnings that appear in this publication, see the Regulatory

Compliance and Safety Information for the Catalyst 3560-C and 2960-C switches

on Cisco.com.

When using the online publications, see the documents that match the Cisco IOS

software version running on the switch.

Catalyst 3560-C and 2960-C Switch Getting Started Guide

OL-23802-02

Catalyst 3560-C and 2960-C Switch Getting Started Guide

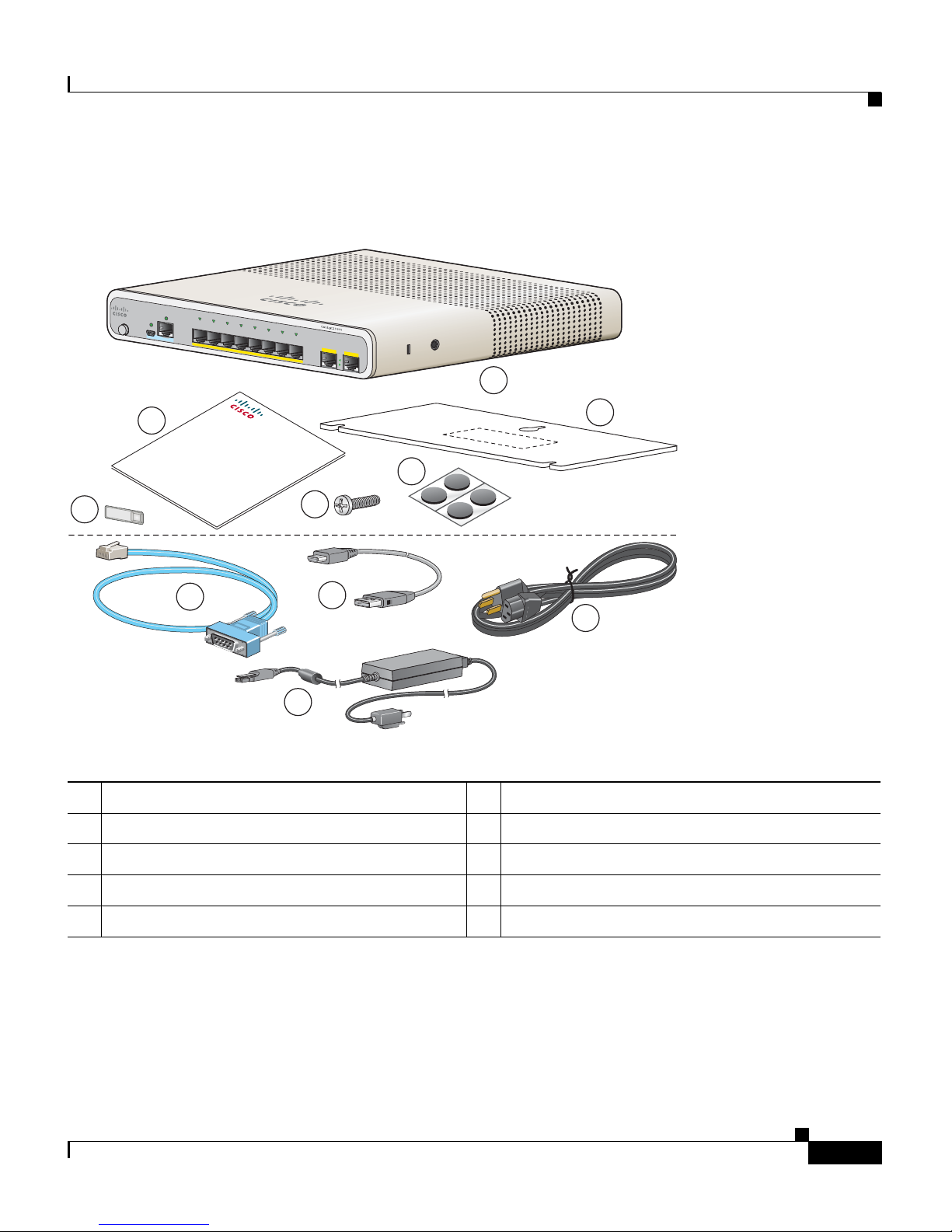

Box Contents

1Catalyst 2960-C switch1

1. Catalyst 2960CPD-8PT-L switch shown for example. Your switch model might look different.

6Reset button cover

2Mounting template 7(Optional) Console cable2

2. Orderable on all Catalyst 2960-C and 3560-C switches.

3Four rubber mounting feet 8(Optional) USB cable2

4Three number 8 Phillips pan-head screws 9AC power cord3

3. Orderable for switches with an AC power connector.

5Documentation 10 Power adapter4

4. Orderable for switches with an AUX power connector.

Product Documentation

and Compliance for the

3560-C and 2960-C

Switches

330856

MODE

CON SO LE

Series

POW ER

OVER

ETHERNET

12345678

SPD

PoE

DPLX

STAT

SYST

Catalyst 3560-C and 2960-C Switch Getting Started Guide

OL-23802-02

Running Express Setup

You should use Express Setup to enter the initial IP information. You can then

access the switch through the IP address for further configuration.

Note To use the CLI-based initial setup program, see Appendix C, “Configuring the

Switch with the CLI Setup Program,” in the switch hardware guide.

You need this equipment:

• PC with Windows 2000, XP, Vista, or Windows Server 2003

• Web browser (Internet Explorer 6.0, 7.0, or Firefox 1.5, 2.0, or later) with

JavaScript enabled

• Straight-through or crossover Category 5 or 6 cable

Note Before running Express Setup, disable any pop-up blockers or proxy settings on

your browser and any wireless client running on your PC.

Step 1 Make sure that nothing is connected to the switch.

During Express Setup, the switch acts as a DHCP server. If your PC has a static IP address,

temporarily configure your PC settings to use DHCP before going to the next step.

Note Write down the static IP address. You will need this IP address in Step 10.

Step 2 Power the switch:

For switch models with an AC power connector

• Plug the AC power cord into the AC power connector and into an AC power outlet.

For switch models with an AUX power connector

• Connect a 10/100/1000 uplink port to a PoE switch, such as a Catalyst 3750-X.

• Plug the auxiliary power adapter cord into the AUX power connector and into an AC

power outlet.

Note For more information on powering the switches, see the “Switch Installation” chapter

in the hardware guide.

Catalyst 3560-C and 2960-C Switch Getting Started Guide

OL-23802-02

Catalyst 3560-C and 2960-C Switch Getting Started Guide

Step 3 Approximately 30 seconds after the switch powers on, it begins the power-on self-test

(POST), which can take up to 5 minutes.

During POST, the SYSTEM LED blinks green, and the other LEDs turn green.

When POST is complete, the SYSTEM LED turns green, and the other LEDs turn off.

Troubleshooting:

If the SYSTEM LED blinks green, does not turn green, or turns amber, contact your Cisco

representative or reseller. The switch failed the POST.

Step 4 Press and hold the Mode button until all of the

LEDs next to the console port turn green. You

might need to hold the button for 3 to 5

seconds.

The switch is now in Express Setup mode.

Before going to the next step, make sure that

all LEDs next to the console port are green.

Troubleshooting:

If the LEDs blink after you press the Mode

button, release it. Blinking LEDs mean that

the switch is already configured and cannot

go into Express Setup mode. For more

information, see the “Resetting the Switch”

section on page 21. You can also use the CLI

setup program described in the switch

hardware guide.

MODE

CONSO LE

SPD

PoE

DPLX

STAT

SYST

208780

Catalyst 3560-C and 2960-C Switch Getting Started Guide

OL-23802-02

Step 5 Connect a Category 5 or 6 Ethernet cable to

any 10/100 or 10/100/1000 Ethernet downlink

port (such as port 1) on the switch front panel.

Connect the other end of the cable to the

Ethernet port on your PC.

Before going to the next step, wait until the

port LEDs on the switch and your PC or

laptop are green or blinking green. The green

port LEDs mean a successful connection.

Troubleshooting:

If the port LEDs do not turn green after about

30 seconds, make sure that:

• You connected the Ethernet cable to one

of the downlink switch ports (not to an

uplink port such as the dual-purpose

port).

• You are using an undamaged Category 5

or 6 Ethernet cable.

• The other device is turned on.

Step 6 Enter the IP address 10.0.0.1 in a web

browser, and press Enter.

When prompted, enter the default password,

cisco.

Note The switch ignores text in the

username field.

The Express Setup window appears.

Troubleshooting:

If the Express Setup window does not appear,

make sure that any pop-up blockers or proxy

settings on your browser are disabled and that

any wireless client is disabled on your PC or

laptop.

MODE

CONSOLE

S eries

POW ER

OVER

ETH ERN ET

1234567 8

SPD

PoE

DPLX

STAT

SYST

208787

Catalyst 3560-C and 2960-C Switch Getting Started Guide

OL-23802-02

Catalyst 3560-C and 2960-C Switch Getting Started Guide

Step 7 Enter the required settings in the Express Setup window.

Note All entries must be in English letters.

Required Fields

In the Network Settings fields:

• In the Management Interface (VLAN ID) field, the default is 1.

Note We recommend that you use the default VLAN value. During Express Setup,

VLAN 1 is the only VLAN on the switch.

Enter a new VLAN ID only if you want to change the management interface through

which you manage the switch. The VLAN ID range is 1 to 1001.

• In the IP Address field, enter the IP address of the switch.

• In the Subnet Mask field, click the drop-down arrow, and select a subnet mask.

• In the Default Gateway field, enter the IP address for the default gateway (router).

• In the Switch Password field, enter your password. The password can be from 1 to 25

alphanumeric characters, can start with a number, is case sensitive, allows embedded

spaces, but does not allow spaces at the beginning or end. In the Confirm Switch

Password field, enter your password again.

Note You must change the password from the default password, cisco.

Additional Fields

You can enter the optional information now, or enter it later by using the device manager.

For more information about the Express Setup fields, see the online help for the Express Setup

window.

Click Submit to save your changes and to complete the initial setup.

Step 8 After you click Submit, these events occur:

• The switch is configured and exits Express Setup mode.

• The browser displays a warning message and tries to connect with the earlier switch IP

address. Typically, connectivity between the PC and the switch is lost because the

configured switch IP address is in a different subnet from the IP address on the PC.

Step 9 Disconnect the switch from the PC, and install the switch in your network. See the “Installing

the Switch” section on page 12.

Catalyst 3560-C and 2960-C Switch Getting Started Guide

OL-23802-02

Step 10 If you changed the static IP address on your PC in Step 1, change it to the previously

configured static IP address.

Step 11 You can now manage the switch by using the Cisco Network Assistant, the device manager,

or both. See the “Managing the Switch” section on page 9 for information about configuring

and managing the switch.

You can display the device manager by following these steps:

1. Start a web browser on your PC or laptop.

2. Enter the switch IP address, username, and password (assigned in Step 7) in the web

browser, and press Enter. The device manager page appears.

Troubleshooting:

If the device manager page does not appear:

• Confirm that the port LED for the switch port connected to your network is green.

• Confirm that the PC or laptop that you are using to access the switch has network

connectivity by connecting it to a well-known web server in your network. If there is no

network connection, troubleshoot the network settings on the PC or laptop.

• Make sure that the switch IP address in the browser is correct.

• If the switch IP address in the browser is correct, the switch port LED is green, and the

PC or laptop has network connectivity, continue troubleshooting by reconnecting the PC

or laptop to the switch. Configure a static IP address on the PC or laptop that is in the

same subnet as the switch IP address. For example:

–

If your switch IP address is 172.20.20.85 and your PC or laptop IP address is

172.20.20.84, both devices are in the same network.

–

If your switch IP address is 172.20.20.85 and your PC or laptop IP address is

10.0.0.2, the devices are in different networks and cannot communicate directly.

• When the LED on the switch port connected to the PC or laptop is green, re-enter the

switch IP address in a web browser to display the device manager. When the device

manager appears, you can continue with the switch configuration.

Catalyst 3560-C and 2960-C Switch Getting Started Guide

OL-23802-02

Catalyst 3560-C and 2960-C Switch Getting Started Guide

Managing the Switch

After completing Express Setup and installing the switch in your network, you

can use one of these options for further configuration:

• Device Manager

• Cisco Network Assistant

• Command-Line Interface

• Other Management Options

Device Manager

The simplest way to manage the switch is by using the device manager in the

switch memory. This web interface offers quick configuration and monitoring.

You can access the device manager from anywhere in your network through a web

browser.

1. Launch a web browser on your PC or workstation.

2. Enter the switch IP address in the web browser, and press Enter. The device

manager page appears.

3. Use the device manager to perform basic switch configuration and

monitoring. See the device manager online help for more information.

4. For more advanced configuration, download and run the Cisco Network

Assistant, which is described in the next section.

Catalyst 3560-C and 2960-C Switch Getting Started Guide

OL-23802-02

Cisco Network Assistant

Cisco Network Assistant is a software program that you download from

Cisco.com and run on your PC. It offers advanced options for configuring and

monitoring multiple devices, including switches, switch clusters, switch stacks,

routers, and access points. Network Assistant is free—there is no charge to

download, install, or use it.

1. Go to this Web address:

http://www.cisco.com/en/US/products/ps5931/index.html

You must be a registered Cisco.com user, but you need no other access

privileges.

2. Click the Download Software link, and select the version you want to

download.

3. Download the Network Assistant installer, and run it. (You can run it directly

from the Web if your browser offers this choice.)

4. When you run the installer, follow the displayed instructions. In the final

panel, click Finish to complete the Network Assistant installation.

See the Network Assistant online help and the getting started guide for more

information.

Command-Line Interface

You can enter Cisco IOS commands and parameters through the CLI. Access the

CLI by using one of these options:

• Switch RJ-45 Console Port

• Switch USB Mini-Type B Console Port

Altri manuali per Catalyst 3560-C

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali Cisco Interruttore

Cisco

Cisco 6500 - Catalyst Series 10 Gigabit EN Interface Module... Manuale di installazione e funzionamento

Cisco

Cisco SRW2008-K9-NA Manuale utente

Cisco

Cisco CSS5 SSL K9 - Syst. CSS11500 SSL MODULE Manuale

Cisco

Cisco Nexus 7000 Series Manuale utente

Cisco

Cisco SG350XG-2F10 Manuale utente

Cisco

Cisco Catalyst 2820 Manuale di istruzioni

Cisco

Cisco MDS 9000 Series Manuale utente

Cisco

Cisco IGX 8400 Series Manuale dell'operatore

Cisco

Cisco Catalyst 2960 Series Manuale utente

Cisco

Cisco Catalyst Express 520 Manuale utente

Cisco

Cisco Nexus 93108TC-FX3 Manuale

Cisco

Cisco LRE CPE Manuale

Cisco

Cisco 4948 Series Manuale utente

Cisco

Cisco Nexus 2000 Series Guida di riferimento rapido

Cisco

Cisco Business 250 Series Istruzioni operative e di manutenzione

Cisco

Cisco Catalyst X6324 Manuale utente

Cisco

Cisco MGX 8850 PXM1E Manuale di installazione

Cisco

Cisco Catalyst 3850 Manuale utente

Cisco

Cisco N9K-C93128TX Manuale

Cisco

Cisco Catalyst 4500 Series Manuale di installazione e funzionamento

Cisco

Cisco SRW224G4P - Small Business Managed Switch Manuale utente

Cisco

Cisco WS-C3750G-24TS-S1U - Catalyst Switch -... Manuale utente

Cisco

Cisco ESW 500 Series Manuale utente

Cisco

Cisco ME 3400G-2CS - Ethernet Access Switch Manuale utente

Manuali Interruttore popolari di altre marche

URC

URC Total Control MFS-8 Manuale utente

Azbil

Azbil HPQ-D11 Manuale utente

Sony

Sony DFS-900M Manuale utente

SICK

SICK i17S Manuale utente

F&F

F&F SZR-277 Manuale utente

Shure

Shure UAMS/BK Manuale utente

Dräger

Dräger X-zone Switch Off Manuale utente

Asco

Asco Joucomatic 349 Series Manuale utente

BT Mini Hub Manuale utente

D-Link

D-Link DES-1226G Manuale utente

Johnson Controls

Johnson Controls FS80-C Manuale utente

Alcatel-Lucent

Alcatel-Lucent 7450 ESS-12 Manuale utente

MicroNet

MicroNet SP1200A Manuale utente

Ruijie

Ruijie RG-PF2920 Series Manuale di installazione e funzionamento

Altinex

Altinex DA1914SX Manuale utente

MiLAN

MiLAN MIL-SM2401M Manuale utente

RJM

RJM MASTERMIND PBC/6X Manuale utente

Atlas

Atlas MMK-KVM8 Manuale utente
