Cisco Small Business WAP44 Manuale di istruzioni

Cisco Small Business

WAP4410N Wireless-N Access Point with Power Over

Ethernet

ADMINISTRATION

GUIDE

Cisco and the Cisco logo are trademarks or registered trademarks of Cisco and/or its affiliates in the U.S. and other countries. To view a list of Cisco trademarks,

go to this URL: www.cisco.com/go/trademarks. Third-party trademarks mentioned are the property of their respective owners. The use of the word partner

does not imply a partnership relationship between Cisco and any other company. (1110R)

WAP4410N Wireless-N Access Point with Power Over Internet Administration Guide 3

Contents

Chapter 1: Introduction 6

Audience 6

Organization 7

Chapter 2: Planning Your Wireless Network 8

Network Topology 8

Roaming 8

Network Layout 9

Example of a Simple Wireless Network 10

Protecting Your Network 11

Chapter 3: Getting to Know the Wireless-N Access Point 13

Front Panel 13

Back Panel 14

Antennas and Positions 14

Chapter 4: Connecting the Cisco WAP4410N Access Point 15

Placement Options 15

Desktop Option 15

Wall-Mount Option 16

Stand Option 16

Connecting the Cisco WAP4410N Access Point to the Network 17

Using a PoE Switch or Router 17

Using a Standard Switch or Router 18

Chapter 5: Setting Up the Cisco WAP4410N Wireless-N Access Point 19

Launching the Web-Based Configuration Utility 19

Navigating the Utility 20

Setup 21

Wireless 21

AP Mode 21

WAP4410N Wireless-N Access Point with Power Over Internet Administration Guide 4

Contents

Administration 21

Status 22

Chapter 6: Configuring the Cisco WAP4410N Wireless-N Access Point 23

Setup 23

Basic Setup 24

Time 26

Advanced 27

Wireless 28

Basic Settings 28

Security 30

Connection Control 37

Wi-Fi Protected Setup 39

VLAN and QoS 39

Advanced Settings 41

AP Mode 43

Administration 44

Management 44

Log 46

Diagnostics 47

Factory Default 48

Firmware Upgrade 48

Reboot 49

Configuration Management 49

SSL Certification Management 50

Status 50

Local Network 50

Wireless 51

System Performance 52

Appendix A: Troubleshooting 54

WAP4410N Wireless-N Access Point with Power Over Internet Administration Guide 5

Contents

Appendix B: Where to Go From Here 61

WAP4410N Wireless-N Access Point with Power Over Internet Administration Guide 6

Introduction

The Cisco WAP4410N access point allows for greater range and mobility within

your wireless network while also allowing you to connect the wireless network to

a wired environment. It also supports the Wi-Fi Protected Setup (WPS) feature to

help you simplify the setting up of security on a wireless network. The Cisco

WAP4410N offers the convenience of Power over Ethernet (PoE), in addition to

regular 12VDC power adaptor, so it can receive data and power over a single

Ethernet network cable.

The Cisco WAP4410N supports the 802.11n Draft 2.0 Specification by IEEE. It also

supports 802.11g and 802.11b clients in a mixed environment. In addition, this

access point provides longer coverage by using multiple antennas to transmit and

receive data streams in different directions.

Use the instructions in this guide to help you connect the access point, set it up,

and configure it to bridge your different networks. These instructions should be all

you need to get the most out of the access point.

Audience

The audience for this document includes wireless network users, administrators,

and managers.

Introduction

Organization

WAP4410N Wireless-N Access Point with Power Over Internet Administration Guide 7

Organization

This table describes the contents of each chapter in this document.

Chapter Title Description

“Introduction” on page

Introduces the access point and its capabilities.

“Planning Your

Wireless Network” on

page 8

Describes how to connect the access point to the

network.

“Getting to Know the

Wireless-N Access

Point” on page 13

Describes the physical features of the access point.

“Connecting the Cisco

WAP4410N Access

Point” on page 15

Explains how to place and connect the access point.

“Setting Up the Cisco

WAP4410N Wireless-N

Access Point” on page

Explains how to use the web-based utility to

configure the basic settings of the access point

through your web browser.

“Configuring the Cisco

WAP4410N Wireless-N

Access Point” on page

Describes how to configure and manage your

WAP4410 access point.

“Troubleshooting” on

page 54

Provides solutions to problems that may occur

during the installation and operation of the access

point.

“Where to Go From

Here” on page 61

Provides links to related sources of information.

WAP4410N Wireless-N Access Point with Power Over Internet Administration Guide 8

Planning Your Wireless Network

Network Topology

A wireless network is a group of computers, each equipped with one or more

wireless adapters. Computers in a wireless network must be configured to share

the same radio channel to talk to each other. Several computers equipped with

wireless cards or adapters can communicate with each other to form an ad-hoc

network without the use of an access point.

Cisco also provides products to allow wireless adaptors to access wired network

through a bridge such as the wireless access point, or wireless router. An

integrated wireless and wired network is called an infrastructure network. Each

wireless computer in an infrastructure network can talk to any computer in a wired

or wireless network via the access point or wireless router.

An infrastructure configuration extends the accessibility of a wireless computer to

a wired network, and may double the effective wireless transmission range for

two wireless adapter computers. Since an access point is able to forward data

within a network, the effective transmission range in an infrastructure network may

be more than doubled since access point can transmit signal at higher power to

the wireless space.

Roaming

Infrastructure mode also supports roaming capabilities for mobile users. Roaming

means that you can move your wireless computer within your network and the

access points will pick up the wireless computer’s signal, providing that they both

share the same wireless network (SSID) and wireless security settings.

Before you consider roaming, choose a feasible radio channel and optimum

access point position. Proper access point positioning combined with a clear

radio signal will greatly enhance performance.

Planning Your Wireless Network

Network Layout

WAP4410N Wireless-N Access Point with Power Over Internet Administration Guide 9

Network Layout

The Wireless-N Access Point has been designed for use with 802.11n, 802.11g

and 802.11b products. The access point is compatible with 802.11n, 802.11g and

802.11b adapters, such as the notebook adapters for your laptop computers, PCI

adapters for your desktop PCs, and USB adapters for all PCs when you want to

enjoy wireless connectivity. These wireless products can also communicate with a

802.11n, 802.11g or 802.11b wireless print server (if available).

To link your wired network with your wireless network, connect the access point’s

Ethernet network port to any switch or router that uses Power over Ethernet (PoE).

It can also connect to a non-PoE switch or router by using the access point’s

power adaptor.

With these, and many other, Cisco products, your networking options are limitless.

Go to the Cisco website at www.cisco.com for more information about wireless

products.

Planning Your Wireless Network

Example of a Simple Wireless Network

WAP4410N Wireless-N Access Point with Power Over Internet Administration Guide 10

Example of a Simple Wireless Network

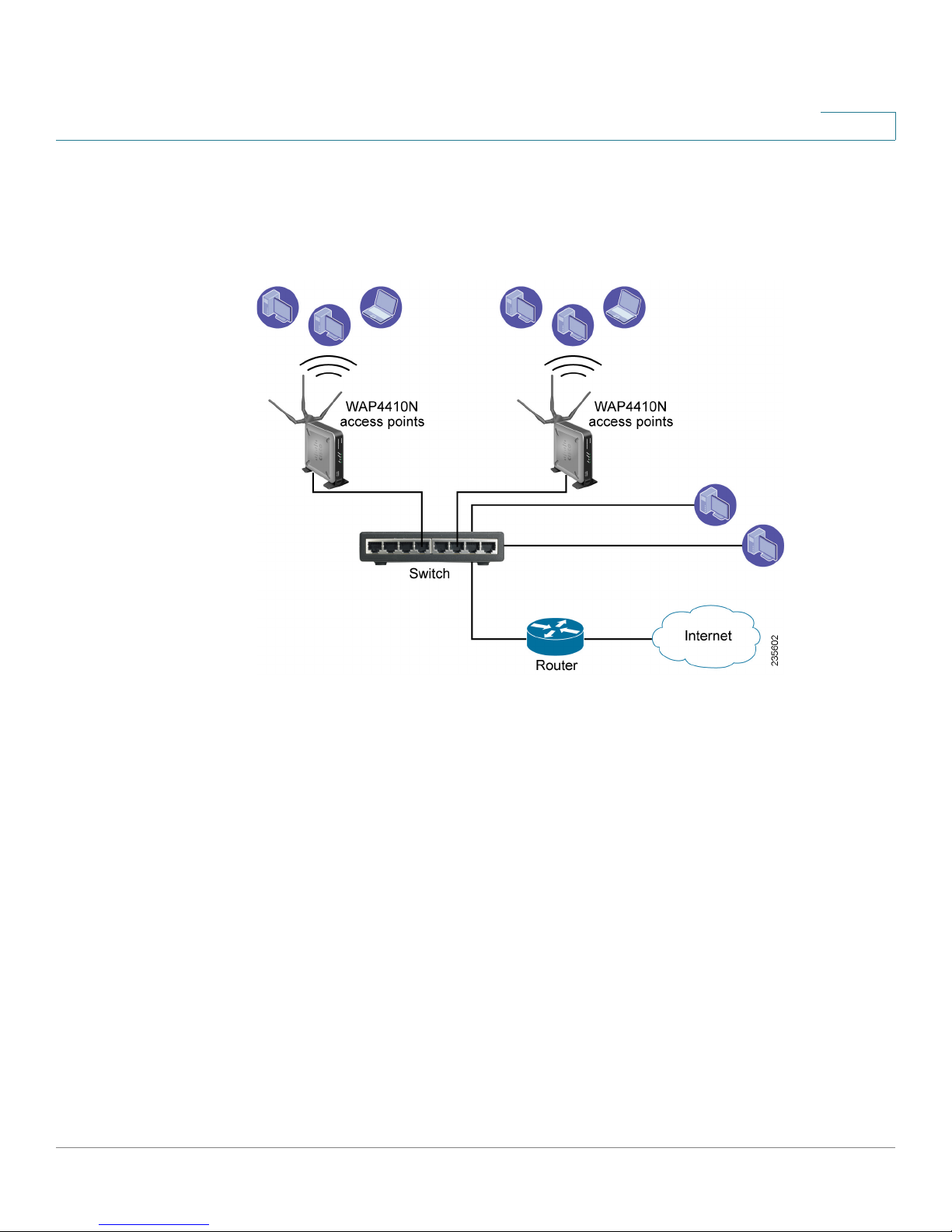

The diagram below shows a typical infrastructure wireless network setup.

In this illustration, the switch connects to a router that connects to the Internet. The

network provides connectivity among wireless network devices and computers

that have a wired connection to the switch. The wireless access points connect to

a Cisco switch that provides them with power. Each access point connects

multiple wireless devices to the network.
