Clarke Air Series Manuale di istruzioni

OPERATION & MAINTENANCE

INSTRUCTIONS

GC0414

24 & 30 INCH DRUM FANS

MODEL NO: CAM24 & CAM30

PART NO: 3231560 / 3231565

Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com

INTRODUCTION

Thank you for purchasing this CLARKE Drum Fan.

Before attempting to use this product, please read this manual thoroughly and

follow the instructions carefully. In doing so you will ensure the safety of yourself

and that of others around you, and you can look forward to your purchase

giving you long and satisfactory service.

GUARANTEE

This product is guaranteed against faulty manufacture for a period of 12

months from the date of purchase. Please keep your receipt which will be

required as proof of purchase.

This guarantee is invalid if the product is found to have been abused or

tampered with in any way, or not used for the purpose for which it was

intended.

Faulty goods should be returned to their place of purchase, no product can

be returned to us without prior permission. This guarantee does not effect your

statutory rights.

SPECIFICATIONS

MODEL CAM24 CAM30

Part No: 3231560 3231565

Voltage: 230 V AC (50Hz) 230 V AC (50Hz)

Wattage: 230 W 350 W

Fan Speeds

Setting 1 1340 rpm 1070 rpm

Setting 2 1400 rpm 1180 rpm

Max Air Flow 155 cuM/min 248cuM/min

Dimensions (D x W x H): 676 x 433 x 682 mm 830 x 420 x 845mm

Weight: 13.3 kg 16.7 kg

Sound Power Measured 81.5 dB(A) LWa 82.6 dB(A) LWa

Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com

ELECTRICAL CONNECTIONS

Before switching the product on, make sure that the voltage of your electricity supply is

the same as that indicated on the rating plate. This product is designed to operate on

230VAC 50Hz. Connecting it to any other power source may cause damage.

This product may be fitted with a non-rewireable plug. If it is necessary to change the

fuse in the plug, the fuse cover must be refitted. If the fuse cover becomes lost or

damaged, the plug must not be used until a suitable replacement is obtained.

If the plug has to be changed because it is not suitable for your socket, or due to

damage, it should be cut off and a replacement fitted, following the wiring instructions

shown below. The old plug must be disposed of safely, as insertion into a mains socket

could cause an electrical hazard.

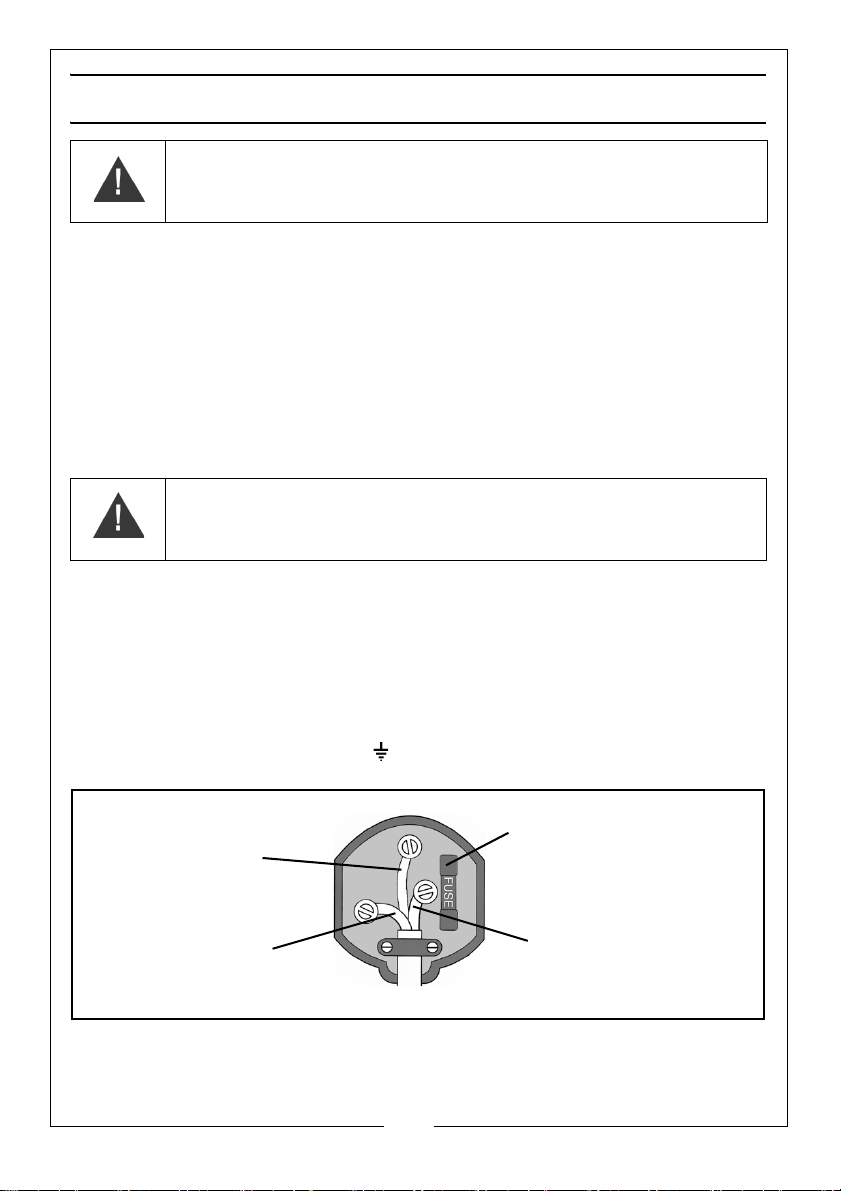

If the colours of the wires in the power cable of this product do not correspond with the

markings on the terminals of your plug, proceed as follows.

• The wire which is coloured Blue must be connected to the terminal which is

marked Nor coloured Black.

• The wire which is coloured Brown must be connected to the terminal which is

marked Lor coloured Red.

• The wire which is coloured Yellow and Green must be connected to the

terminal which is marked E or or coloured Green.

We strongly recommend that this machine is connected to the mains supply via a Residual

Current Device (RCD)

If in any doubt, consult a qualified electrician. DO NOT attempt any repairs yourself.

WARNING! READ THESE ELECTRICAL SAFETY INSTRUCTIONS

THOROUGHLY BEFORE CONNECTING THE PRODUCT TO THE

MAINS SUPPLY.

WARNING! THE WIRES IN THE POWER CABLE OF THIS PRODUCT

ARE COLOURED IN ACCORDANCE WITH THE FOLLOWING CODE:

Blue = Neutral Brown = Live Yellow and Green = Earth

Plug must be BS1363/A approved.

Always fit a 5 Amp fuse.

Ensure that the outer sheath of the cable is firmly held by the clamp

Neutral

(Blue)

Live

(Brown)

Earth

(Green and Yellow)

Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com

SAFETY PRECAUTIONS

1. Always read the manual before use.

2. Suitable for indoor use only.

3. Avoid using in dusty environments.

4. Do not use in environments containing chemical fumes etc.

5. Do not use as an extractor fan.

6. Do not use in areas of high humidity/water vapour, i.e. bathrooms etc.

7. Do not connect the fan to duct system.

8. Do not cover the fan with clothing or any material that will restrict free

airflow through the fan.

9. Never touch the blades with your hand or any loose object.

10. Always unplug the fan before moving it or performing maintenance. Don’t

touch the fan when your hands are wet.

11. Those who are not qualified electricians should not disassemble, repair or

rebuild the fan.

12. Always unplug the fan when it is not in use.

13. Never unplug the fan by holding the cable. Unplug by holding the plug.

14. Never use the fan if the cable or plug are damaged.

15. Never use the fan close to fires.

16. Do not use this fan with any solid-state speed control device to reduce the

risk of fire or electric shock.

ENVIRONMENTAL RECYCLING POLICY

Through purchase of this product, the customer is taking on the

obligation to deal with the WEEE in accordance with the WEEE

regulations in relation to the treatment, recycling & recovery and

environmentally sound disposal of the WEEE.

In effect, this means that this product must not be disposed of with general

household waste. It must be disposed of according to the laws governing

Waste Electrical and Electronic Equipment (WEEE) at a recognised disposal

facility.

Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com

ASSEMBLY

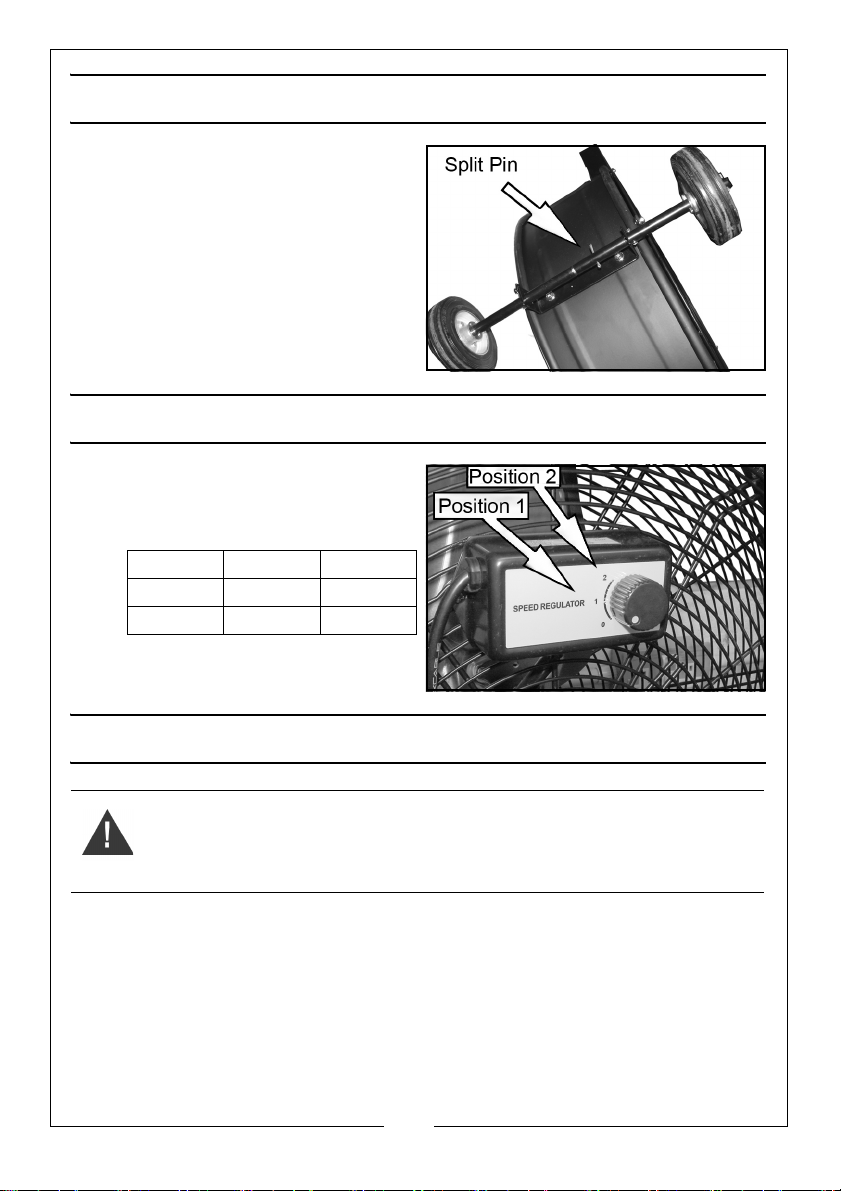

Insert each axle section into one of

the mounting brackets, twisting each

one so that the screws rest in the cut-

outs in the mounting brackets.

Insert the smaller diameter tube into

the larger and fasten in place with

the split pin provided. Bend it back

for full security.

ADJUSTING THE SPEED

Turn the switch on the speed

regulator to select the fan speed

required.

MAINTENANCE

Have any repairs carried out by a suitably qualified person.

• The motor bearings are permanently sealed for life and do not

require any additional lubrication.

CLEANING

If the fan has been operating for long periods in a very dusty environment, the

blades and motor assembly may eventually require cleaning.

CAM24 CAM30

Position 1 1340 1070

Position 2 1400 1180

WARNING: NEVER OPERATE THE FAN WITH THE FRONT GUARD

REMOVED.

Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com

1. Disconnect the power cable from the power supply.

2. Unscrew the front guard and lift it

away carefully.

3. Wipe the fan blades with dry cloth

and remove any dust from the

motor assembly with a soft

paintbrush, vacuum cleaner or jet

of compressed air.

• Never use polish or any

corrosive liquid that will

damage the surface finish.

4. Replace the guard securely before use.

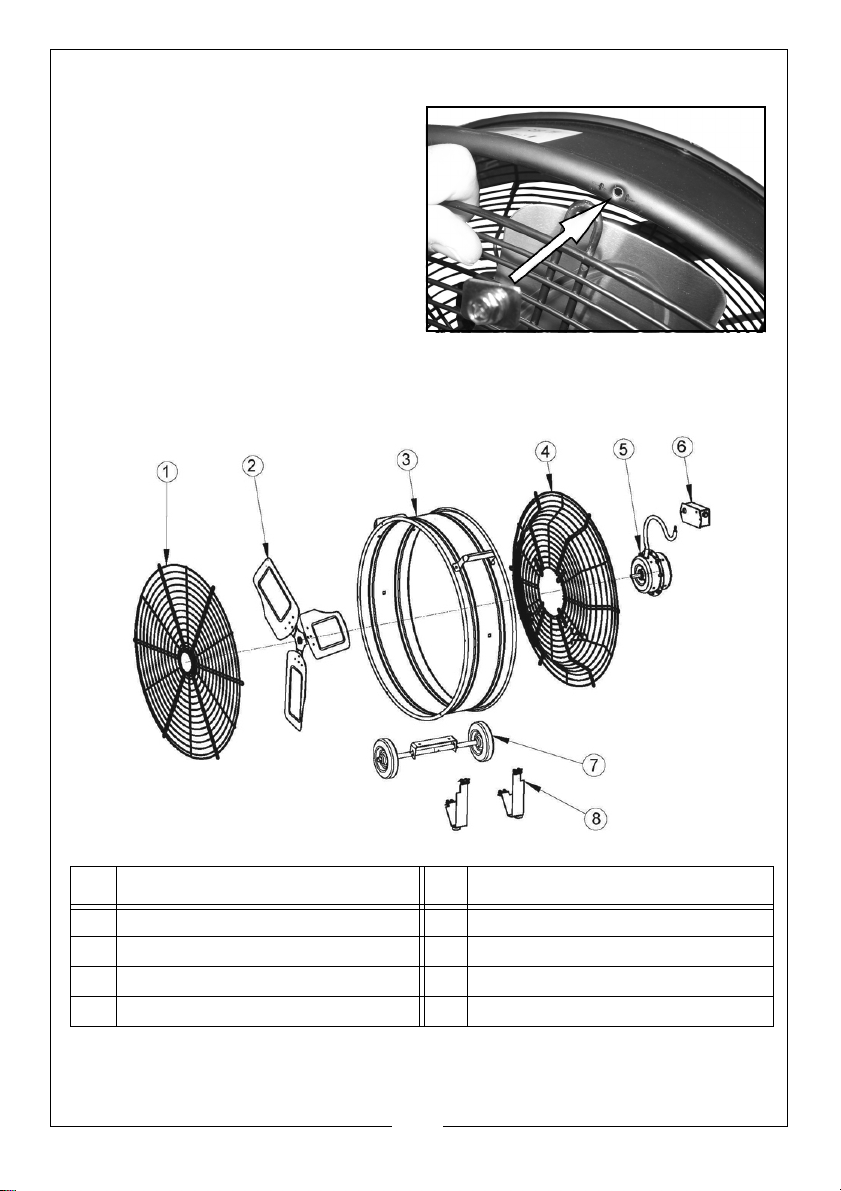

PARTS LIST AND DIAGRAM

When requesting spare parts please quote ref:JKE-CAM24 or 30 items 1-8.

NODESCRIPTION NODESCRIPTION

1 Front Guard 5 Motor Assembly

2 Blade Assembly 6 Switch Box

3 Drum 7 Wheel & Axle Assembly

4. Rear Guard 8 Supporting Foot

Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com

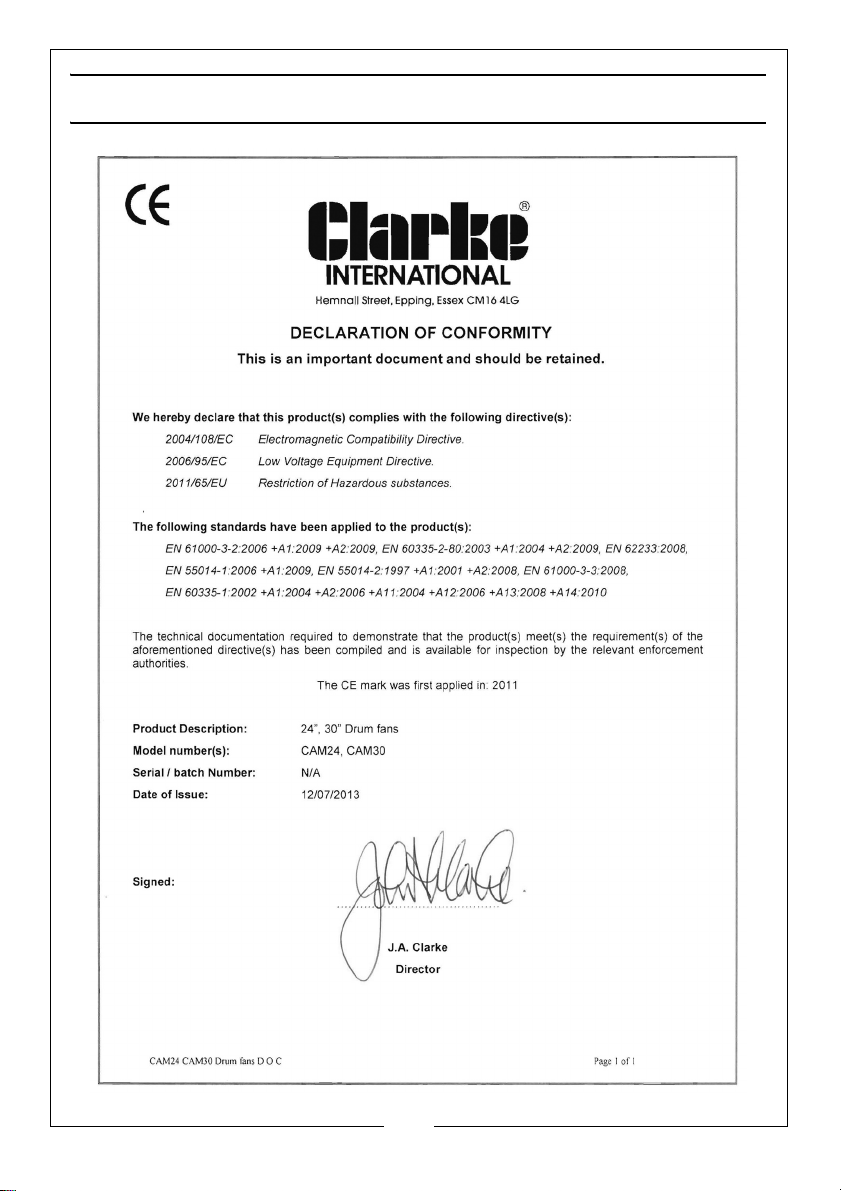

DECLARATION OF CONFORMITY
