OPERATING & MAINTENANCE

INSTRUCTIONS

GC0814

OIL FREE RIVETER

MODEL NO: CPR2

PART NO: 3110285

Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com

INTRODUCTION

Thank you for purchasing this CLARKE Riveter.

Before attempting to use this product, please read this manual thoroughly and

follow the instructions carefully. In doing so you will ensure the safety of yourself

and that of others around you, and you can look forward to your purchase

giving you long and satisfactory service.

SPECIFICATION

Please note that the details and specifications contained herein are correct at

the time of going to print. However CLARKE International reserve the right to

change specifications at any time without prior notice.

GUARANTEE

This product is guaranteed against faulty manufacture for a period of 12

months from the date of purchase. Please keep your receipt which will be

required as proof of purchase. This guarantee is invalid if the product is found

to have been abused or tampered with in any way, or not used for the

purpose for which it was intended.

Faulty goods should be returned to their place of purchase, no product can

be returned to us without prior permission. This guarantee does not effect your

statutory rights.

Model Numbers CPR2

Rivet Sizes 2.4 to 4.8 mm

Min. Hose Size (ID) 8 mm (5/16”)

Operating Pressure 90 psi (6.2 bar)

Air Consumption 0.03 cu.ft/stroke

Air Inlet Size 1/4“BSP Female

Sound Pressure Level (LpA dB) 77.3 dB(A)

Sound Power Level (LwA dB) 88.3 dB(A)

Vibration Levels 2.5 m/s2

Weight 1.4 kg

Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com

GENERAL SAFETY RULES

WORK ENVIRONMENT

1. Keep the work area clean and tidy.

2. Dress appropriately - Do not wear loose clothing or jewellery. Tie long hair

out of the way.

3. Keep children and visitors away - Do not let children handle the tool.

4. Do not operate the tool where there are flammable liquids or gases.

USE OF POWER TOOLS

1. Stay alert and use common sense - do not operate the tool when you are

tired or under the influence of alcohol, drugs or medication.

2. Always wear eye protectors when using the tool - Eye protectors must

provide protection from flying particles from the front and the side.

3. Always wear ear protectors when using the tool

4. Do not overreach - Keep proper footing and balance at all times.

5. Never use any type of bottled gas as a source of power for the tool.

6. Do not connect the air supply hose with your finger on the trigger of the

tool.

7. Do not exceed the maximum pressure of 90 psi / 6.2 bar.

8. Check hoses for leaks or worn condition before use, and ensure that all

connections are secure.

9. Keep the air supply hose away from heat, oil and sharp edges.

10. Do not use the tool for any other purpose than that described in this

manual.

11. Do not fit the tool to any stand or clamping device that may damage it.

12. Do not carry out any alterations or modifications to the tool.

13. Always disconnect from the air supply when:

• Performing any maintenance

• The drill is not in use.

CAUTION: FAILURE TO FOLLOW THESE PRECAUTIONS COULD RESULT IN

PERSONAL INJURY, AND/OR DAMAGE TO PROPERTY.

Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com

• The tool will be left unattended.

• Moving to another work area.

• Passing the drill to another person.

14. Never use the tool if it is defective or operating abnormally.

15. The drill should be serviced at regular intervals by qualified service

personnel.

16. Avoid damaging the tool, for example by applying excessive force of any

kind.

17. ALWAYS maintain the tool with care. Keep it clean for the best and safest

performance.

18. Quick change couplings should not be located at the tool. They add

weight and could fail due to vibration.

19. Do not force or misuse the tool. It will do a better and safer job at the rate

for which it was designed.

20. Do not remove any labels. Damaged labels should be replaced.

21. This tool vibrates with use. Vibration may be harmful to your hands or arms.

Stop using the tool if discomfort, a tingling feeling or pain occurs. Seek

medical advice before resuming use.

TRANSPORTATION

1. Never carry the drill by the air supply hose.

2. Never carry the drill with your finger on the trigger.

STORAGE

1. When not in use the drill must be disconnected from the air supply and

stored in a dry place out of the reach of children (preferably in a locked

cabinet).

2. Avoid storing the drill in environments where the temperature is below 0oC.

Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com

THE COMPRESSED AIR SUPPLY

AIR SUPPLY REQUIREMENTS

• Use only clean, dry, regulated compressed air as a power source.

• Air compressors used with the impact wrench must comply with the

appropriate European Community Safety Directives.

• A build-up of moisture or oil in the air compressor will accelerate

wear and corrosion in the impact wrench. ensure any moisture is

drained from the compressor daily and the inlet filter is kept clean.

• If an unusually long air hose is required, (over 8 metres), the line

pressure or the hose inside diameter may need to be increased.

• The air hose must be rated at least 150% of the maximum operating

pressure of the tool.

• A typical air line layout is shown above. If an automatic in-line filter/

regulator is used, it will keep the tool in good condition, but should

be regularly checked and topped up with oil. SAE 10 oil should be

used, and the lubricator adjusted to approx 2 drops per minute.

• The minimum hose diameter should be 5/16”(8mm) ID and fittings

should have the same internal dimensions.

WARNING: COMPRESSED AIR CAN BE DANGEROUS. ENSURE THAT YOU

ARE FAMILIAR WITH ALL PRECAUTIONS RELATING TO THE USE OF

COMPRESSORS AND COMPRESSED AIR SUPPLY.

Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com

• Never exceed the maximum operating pressure for the tool. It is

recommended that air pressure to this tool does not exceed 90 psi

at the tool when running. Higher pressures and unclean air will

shorten the life of the tool due to faster wear and is a possible safety

hazard.

BEFORE USE

NOTE: Ensure the air supply is turned off.

1. If required, connect an in-line mini oiler to the tool.

• A mini oiler helps to prolong the life of the air tool. Remove the oil fill

screw from the side of the mini oiler and fill with Air-line Oil available

from your CLARKE dealer. Replace the screw before using the tool.

2. If a mini-oiler is not being used, run a few drops of oil through the tool

before use. It can be entered through the air inlet.

3. Connect a suitable hose to the female air inlet

4. Connect the other end of the hose to the air supply.

5. Turn on the air supply and check for air leaks.

• Rectify any found before proceeding.

Your air tool is now ready for use.

You can fit a whip hose with a quick fit coupling if required (available from

your Clarke dealer.).

OPERATION

Before starting work drain any water from the air tank and blow condensation

from the air line. Drain compressor more frequently in hot humid weather.

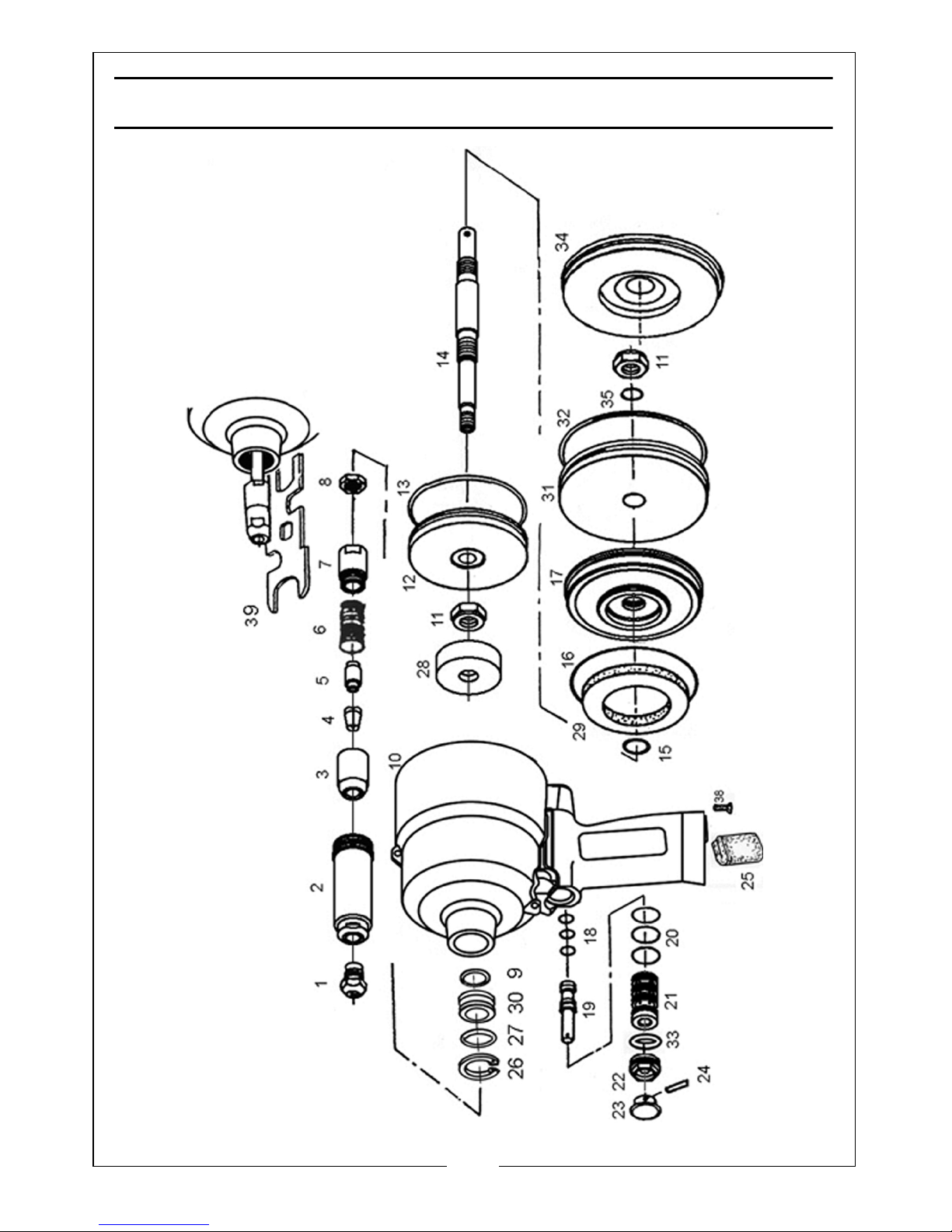

Note: item Nos refer to parts list, Page 10.

Ensure the correct nosepiece (item 1x) is installed for the size of the rivet

mandril being used, insert the mandril until the rivet buts snugly against the

nosepiece.

WARNING: COMPRESSED AIR CAN BE DANGEROUS. ENSURE THAT YOU

ARE FAMILIAR WITH ALL PRECAUTIONS RELATING TO THE USE OF AIR

COMPRESSORS AND COMPRESSED AIR SUPPLY.

Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com

Insert the rivet into the workpiece to be secured, pressing firmly depress the

trigger. The riveter will ‘fire’, breaking off the mandril, allowing the riveter to be

removed from the workpiece and re-loaded. Spent mandrills will be ejected

from the rear of the riveter.

To change the nosepiece, unscrew and remove the installed nosepiece, a

slight spring resistance will be felt.

Choose the nosepiece to be installed, push firmly against spring resistance into

the head (item 2), screw home and tighten with the wrench supplied.

DISCONNECTING THE AIR SUPPLY

Do not disconnect the air supply hose until the air supply has been shut down

and the compressed air released.

1. Refer to the compressor instruction manual for the procedure to shut down

and release the compressed air.

2. Once the pressure has been released, disconnect the air supply hose from

the air tool.

Store the tool safely in its box in a dry, secure environment.

MAINTENANCE

DAILY

1. Before use, drain water from the compressed air supply.

2. Pour a few drops of CLARKE airline oil, into the air inlet. This should be

carried out regardless of whether or not an in-line mini oiler is used. If an

inline mini oiler is not used, this procedure should be repeated after every

two to three hours of use.

CLEANING

1. Keep the body of the tool clean and free from debris. Grit or gum deposits

in the tool may reduce efficiency.

If the riveting action becomes erratic or the riveter operates but fails to form a

rivet successfully, it is possible that the jaw housing assembly (items 3 - 8)has

worked itself loose, and requires adjusting. Should this occur, proceed as

follows:

WARNING: MAKE SURE THAT THE TOOL IS DISCONNECTED FROM THE AIR

SUPPLY BEFORE STARTING ANY CLEANING, OR MAINTENANCE

PROCEDURES.

Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com

1. Unscrew and remove the head assy (item 2).

2. Using the wrench supplied, hold the jaw housing coupler (item 7), undo the

locknut (item 8).

3. Place the 56mm gauge (on the edge of the wrench provided), alongside

the jaw housing assembly (item 35 inset), and screw the jaw assy in or out,

so that the lip of the gauge is in line with the end face of the jaw housing

(item 3.) Secure in position with the locknut (item 8).

Additionally, following prolonged use, the jaws may fail to grip the mandril

effectively, and will therefore need replacing. Dis-assemble the jaw housing

assembly, and re-assemble using genuine parts supplied from your nearest

CLARKE dealer, ensure you carry out the adjustment above.

SERVICE AND REPAIR

If the tool runs erratically or becomes inefficient although the air supply is in

good order, it may be necessary to dismantle the tool. Such servicing and

repair work should be carried out by qualified service technicians.

PERFORMANCE

Please note that factors other than the tool may effect its operation and

efficiency such as reduced compressor output, excessive drain on the airline

moisture or restrictions in the air-line, or the use of connectors of improper size

or poor condition which will reduce air supply.

Grit or gum deposits inside the tool may also reduce its efficiency. This

condition can be corrected by cleaning out the air strainer and flushing out

the tool with gum solvent or oil, or failing this, the motor may require

dismantling.

**Clarke Air Line Oil (part no. 3050825) is available from your CLARKE dealer.

STORAGE

If the tool is to be stored, or is idle for longer than 24 hours, run a few drops of

Clarke air line oil into the air inlet, and run the tool for 5 seconds in order to

lubricate the internal parts.

When not in use, disconnect from air supply, clean tool and store in a safe, dry

place.

ACCESSORIES

A wide range of accessories is available including filter/regulators, lubricators,

high-pressure hoses (5 to 50 metres) etc.

Contact your CLARKE dealer for further information or CLARKE International

Service Department on 01992 565333.

Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com

TROUBLESHOOTING

SYMPTOM PROBLEM SOLUTION

Tool runs at normal

speed but slows down

under any load.

1. Excessive pressure on

tip.

2. Motor parts worn.

3. Worn or sticking

mechanism due to

lack of lubricant.

1. Reduce the force

applied

2. Return to Clarke dealer

for repair.

3. Drip air tool lubricating

oil into air inlet. Allow oil

to soak moving parts

before using.

Tool runs slowly. Air flows

weakly from exhaust.

1. Motor parts jammed

with gum/dirt.

2. Regulator in closed

position.

3. General airflow

blocked by dirt.

1. Examine inlet air filter for

cleanliness.

2. Adjust regulator to open

position.

3. Operate tool in short

bursts.

Tool will not run. Air flows

freely from exhaust.

1. Motor vanes stuck

due to buildup of

foreign material.

1. Disconnect air supply

and rotate tool assembly

manually.

2. Try operating tool in

short bursts.

3. Tap motor housing gently

with a rubber mallet.

4. Drip a few drops of air

tool lubricating oil into air

inlet to soak moving

parts.

Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com

PARTS DIAGRAM

Indice

Altri manuali Clarke Utensili elettrici

Clarke

Clarke Strong-Arm AP500B Manuale utente

Clarke

Clarke CBM 2 Manuale di installazione e funzionamento

Clarke

Clarke CAT134 Manuale di installazione e funzionamento

Clarke

Clarke Woodworker CPT600 Manuale di installazione e funzionamento

Clarke

Clarke ZX-R Pro Series Manuale di istruzioni

Clarke

Clarke CPSB100B Manuale di istruzioni

Clarke

Clarke CDP152B Manuale di istruzioni

Clarke

Clarke CAT22B Manuale di installazione e funzionamento

Clarke

Clarke CJS380 Manuale di installazione e funzionamento

Clarke

Clarke MetalWorker CDP151B Manuale di installazione e funzionamento

Clarke

Clarke CHG 1500B Manuale di installazione e funzionamento

Clarke

Clarke METALWORKER CDP201B Manuale

Clarke

Clarke CAT108 (1/2) Manuale

Clarke

Clarke Air CAT63 Manuale di installazione e funzionamento

Clarke

Clarke CBS43 Manuale di istruzioni

Clarke

Clarke CIR450B Manuale di installazione e funzionamento

Clarke

Clarke CPT1000 Manuale di istruzioni

Clarke

Clarke Air TPG30PTC Manuale utente

Clarke

Clarke CIR18Li Manuale di installazione e funzionamento

Clarke

Clarke CAT55 Manuale di installazione e funzionamento

Clarke

Clarke CHT259 Manuale di istruzioni

Clarke

Clarke PRO236 Manuale di installazione e funzionamento

Clarke

Clarke CMFT250 Manuale di installazione e funzionamento

Clarke

Clarke CAT21B Manuale di installazione e funzionamento

Manuali Utensili elettrici popolari di altre marche

AEG

AEG OMNI-JS Manuale utente

SIP

SIP 01533 Manuale utente

Ribimex

Ribimex PRS499 Manuale utente

3M Fiber Optic Connector Crimp Tool Manuale utente

Ryobi

Ryobi P524 Manuale utente

ROJEK

ROJEK FSN 300A Manuale utente

Kemper

Kemper 1740PRO Manuale utente

WABCO

WABCO OptiTire Manuale utente

EINHELL

EINHELL TE-MS 18/210 Li Manuale utente

Orgapack

Orgapack OR-T 85 Guida rapida

TOUGHCUT

TOUGHCUT Diamond 400 Manuale utente

Yaros

Yaros PB-3603 Manuale utente

Fein

Fein BSS 2.0 E Guida all'installazione

Baileigh Industrial

Baileigh Industrial SS-2725 Manuale utente

Milwaukee

Milwaukee 2674-20 Manuale utente

Fein

Fein BLs 1.6 Manuale utente

Princess

Princess Electric Multi Sharpener Manuale utente

FOREDOM

FOREDOM K.1050 Manuale
