Clarke RI150LI Manuale di istruzioni

OPERATION & MAINTENANCE

INSTRUCTIONS

ORIGINAL INSTRUCTIONS GC10/22

RECHARGEABLE INFLATOR

MODEL NO: RI150LI

PART NO: 7640291

Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com

INTRODUCTION

Thank you for purchasing this CLARKE Tyre Inflator. The RI150Li can be used for

inflating car, motorcycle and bicycle tyres, inflatable sports balls and other

inflatables. The compressor is not waterproof and should not be used in any

wet applications.

Before attempting to use the product it is essential that you read this manual

thoroughly and carefully follow all instructions given. In doing so you will ensure

the safety of yourself and that of others around you and you can also look

forward to the product giving you long and satisfactory service

PRODUCT SPECIFICATIONS

Model RI150Li

Hose length 150mm

Max working pressure 10.3 Bar/150 psi

Max flow rate 20L/min (zero load)

Ingress protection IP20

Duty cycle 20-25 mins running

Working temperature -10 to 45oC

Dimensions (L x W x H) 41 x 62 x 155 mm

Weight 415 g

Charging lead USB-C

Cable length 320mm

Battery Type Lithium Ion

Battery capacity 2000mAh/7.4V(14.8Whr)

Charging time Approx 3-4 hours

Sound output 85dB

Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or [email protected]

GENERAL SAFETY WARNINGS

PERSONAL SAFETY

1. ALWAYS thoroughly familiarise yourself with this product and its operation

and always read the instructions in this manual before using the product.

2. ALWAYS stay alert, watch what you are doing and use common sense

when operating the tyre inflator. DO NOT use while you are tired or under

the influence of medication, drugs or alcohol. A moment of inattention

can result in personal injury.

WORKING CONDITIONS

1. DO NOT use the tyre inflator in a damp or wet environment. The inflator

should only be used with good ventilation. There should be no dust, acids,

vapour, explosive or flammable gases in the room.

2. DO NOT cover the tyre inflator. ALWAYS use it with good all-round air

ventilation and that the air intake air is dry and dust free.

3. Keep the work area clean and well lit. Floors should always be kept clear.

Cluttered or dark areas invite accidents.

4. NEVER operate the tyre inflator in wet or damp locations.

5. NEVER over-reach. Keep your proper footing and balance at all times to

enable better control of the tyre inflator in unexpected situations.

6. ALWAYS use in a safe area away from traffic and other hazards.

GENERAL PRODUCT USE AND CARE

1. NEVER attempt to modify the fittings or attachments in any way. Doing so

will invalidate the guarantee and could result in personal injury.

2. NEVER abuse the charging cable. NEVER pull on the cable when removing

the plug from the socket or lift the tyre inflator by the power cable.

3. NEVER leave the inflator running while unattended.

4. Take care when using this tyre inflator to inflate small, low-pressure objects

such as children's toys or footballs can explode if over-inflated.

5. ALWAYS take care to maintain tyres to vehicle manufacturer’s

recommended pressures.

WARNING: WHEN USING BATTERY POWERED TOOLS, BASIC SAFETY

PRECAUTIONS SHOULD ALWAYS BE FOLLOWED TO REDUCE THE RISK OF

FIRE OR PERSONAL INJURY. PLEASE READ ALL THE SAFETY AND

OPERATING INSTRUCTIONS CAREFULLY BEFORE USING THIS PRODUCT

Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com

6. ALWAYS store the tyre inflator at moderate temperature and out of reach

of children.

7. NEVER use this product if it appears defective or is operating abnormally: If

the tyre inflator operates unusually or makes strange noises, switch off

immediately. Arrange repairs by your CLARKE dealer.

8. NEVER attempt any repairs yourself. If you have a technical problem

contact your local CLARKE dealer.

9. NEVER throw the product away with household garbage or allow to fall

into a fire.

SAFETY SYMBOLS

The following safety symbols are shown on the product and/or it’s packaging..

ENVIRONMENTAL RECYCLING POLICY

By purchasing this product, the customer is taking on the obligation

to comply with current WEEE regulations.

This means that this product must not be disposed of with general

household waste. It must be disposed of according to the laws

governing Waste Electrical and Electronic Equipment (WEEE) at a recognised

disposal facility.

This product contains valuable raw materials. Metal products should be taken

to your local civic amenity site for recycling of metal products.

Read this instruction

booklet carefully before

use

Lithium-Ion battery

supplied to be re-cycled

in accordance with

regulations.

Caution-hot surfaces. Do

not handle.

Do not immerse battery

in water. Harmful to

aquatic life.

Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or [email protected]

OVERVIEW

UNPACKING

After removing the tyre inflator from its packaging, check that it has not been

damaged in transit. Report any damage immediately to the CLARKE dealer

where the item was purchased.

ATTACHMENTS

Supplied with the tyre inflator are three adaptors for different uses. These are

provided to inflate car tyres, sports balls, air beds, small inflatables and bicycle

tyres etc. To avoid over-inflation, always follow manufacturer’s instructions for

the item to be inflated.

• Air Hose

• Toy/air bed adaptor

• Sports ball needle adaptor

• ‘Presta’ bicycle tyre valve adaptor

• C type charging cable

•Storagebag

Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com

OPERATION

THE DISPLAY PANEL

The display panel will illuminate and

display the following:

• Measured pressure value (1)

• Battery level (2)

• Unit of measurement (3)

• Progress bar (4)

• Preset pressure value (5)

•Operatingmode(6)

CHARGE AND DISCHARGE MODES

Connect the USB-C cable to an adaptor (not supplied) to charge the device.

• When charging, the battery indicator will flash.

• When fully charged, the battery indicator lights will remain on.

• After 10 seconds of no operation during charging, the display will

automatically turn off.

The device must not be used during charging.

After using a long press to turn the device on, the charging port (4) can supply

power to charge other electronic devices via the USB output. (5V/1.5A max).

The device will shut down if the battery becomes too low or when the battery

is fully charged.

POWER ON/OFF

Press the Power button (long press) to

turn the device on.

Press the Power button (long press of

3 seconds) to turn the device off.

• The progress bar will move across

the screen to the point of start-up.

• The USB port can now supply

power to charge another

electrical device.

Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or [email protected]

• The unit will automatically shut down when the battery becomes low and

will stop charging when fully charged.

SELECTING DIFFERENT MODES

A short press of the mode button can be used for the following different

applications.

USING THE PUSHBUTTONS

Use a short press of the preset button +/- to adjust the pre-set pressure.

Use a long press of the preset button +/- to rapidly adjust the pre-set pressure

value.

Use a long press of the LED light button to turn on/off the LED light.

Use a short press of the power button to actuate the inflation, real time

pressure valve changes during inflation.

NOTE: The mode and pre-set pressure value will be automatically saved

when the machine is turned off and the last pre-set pressure value

will be automatically restored for the next use.

Car mode;

Default pressure: 35psi Adjusting range;-0-65 psi

Motorcycle mode;

Default pressure: 40psi Adjusting range;-0-55 psi

Bicycle mode;

Default pressure: 38psi Adjusting range;-0-150 psi

Ball mode;

Default pressure: 8psi Adjusting range;-0-150 psi

Custom mode;

Default pressure: 100psi Adjusting range;-0-150 psi

Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com

PRESSURE DETECTION AND INFLATION

A short press on the power button will start

inflation. A second short press will stop inflation.

When the pressure reaches the pre-set pressure

value the pump will automatically stop. After

turning on, connect the hose to the object to be

measured. The real-time pressure (12) will show the

pressure value.

PRESSURE CALIBRATION

After turning on, if the displayed pressure value is

not 0, press button (+) and (-) simultaneously for 2

seconds to enter the calibration mode. The display

will flash quickly, meaning the reset is complete.

Note: The device has been calibrated at the factory but a Reset/calibration

can improve accuracy due to variations in air pressure due to altitude.

DO NOT attempt to re-calibrate while connected to inflatable objects.

COMMON INFLATION PRESSURES

• When inflating tyres with normal “Schrader” valves, no adaptors need to

be fitted to the hose.

• Presta valves require the adaptor to be screwed onto the valve before

attaching the hose.

Avoid inflating the objects above the recommended inflation pressure. This

could lead to damage and /or injuries.

Low pressure products such as balloons/swimming rings/balls are outside the

minimum pressure range of the product as the air pressure is very low and the

pressure value cannot be pre-set. Use the inflator with caution.

PSI KPA BAR

Car 35 - 50 240 - 350 2.4 - 3.5

Motorcycle 26 - 40 180 - 275 1.8-2.75

Bicycle 35 - 100 240 - 690 2.4-6.9

Ball 3-14 20-100 0.2-1.0

Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or [email protected]

TYRE INFLATION

1. Fix the tyre valve connector onto

the vehicle tyre valve, ensuring

the valve is clean.

• When connected correctly, the

digital display will show the

current pressure in the tyre. If this is

the correct tyre pressure as stated

in your vehicle handbook, remove

the valve connector.

2. If the tyre is below the

recommended pressure (as specified in your vehicle handbook), press

either the ‘-’ or ‘+’ pre-set button to adjust the pre-set value on the display

to the correct tyre pressure.

NOTE: The unit will default to the last tyre pressure set. You can then

adjust this using the ‘-’ or ‘+’ buttons.

3. Press the Power button to activate the inflator.

4. The tyre inflator will now inflate your tyre to the pre-set pressure and switch

off automatically when the pressure is reached. Towards final inflation, the

tyre pressure display reading will be slightly higher than the selected

pressure. When the tyre inflator stops, the final reading will be the selected

pressure. This is a normal function of the unit.

5. Press the power button to switch OFF the tyre inflator and remove the tyre

valve connector from the tyre valve, returning the hose to its storage

position.

6. Take care that the hose has not become hot to the touch when

disconnecting.

CARE & MAINTENANCE

Keep the tyre inflator free of dirt and dust as far as possible. Wipe with a clean

cloth or blow it down with compressed air at low pressure. DO NOT use

cleaning agents or solvents as these may be aggressive to the plastic parts.

Ensure that no water can get into the interior of the tyre inflator.

Your tyre inflator has been designed to give long and trouble free service. If,

however, having followed the instructions in this booklet carefully, you

encounter problems, take the tyre inflator to your local CLARKE dealer.

Store the tyre inflator in a dry location.

Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com

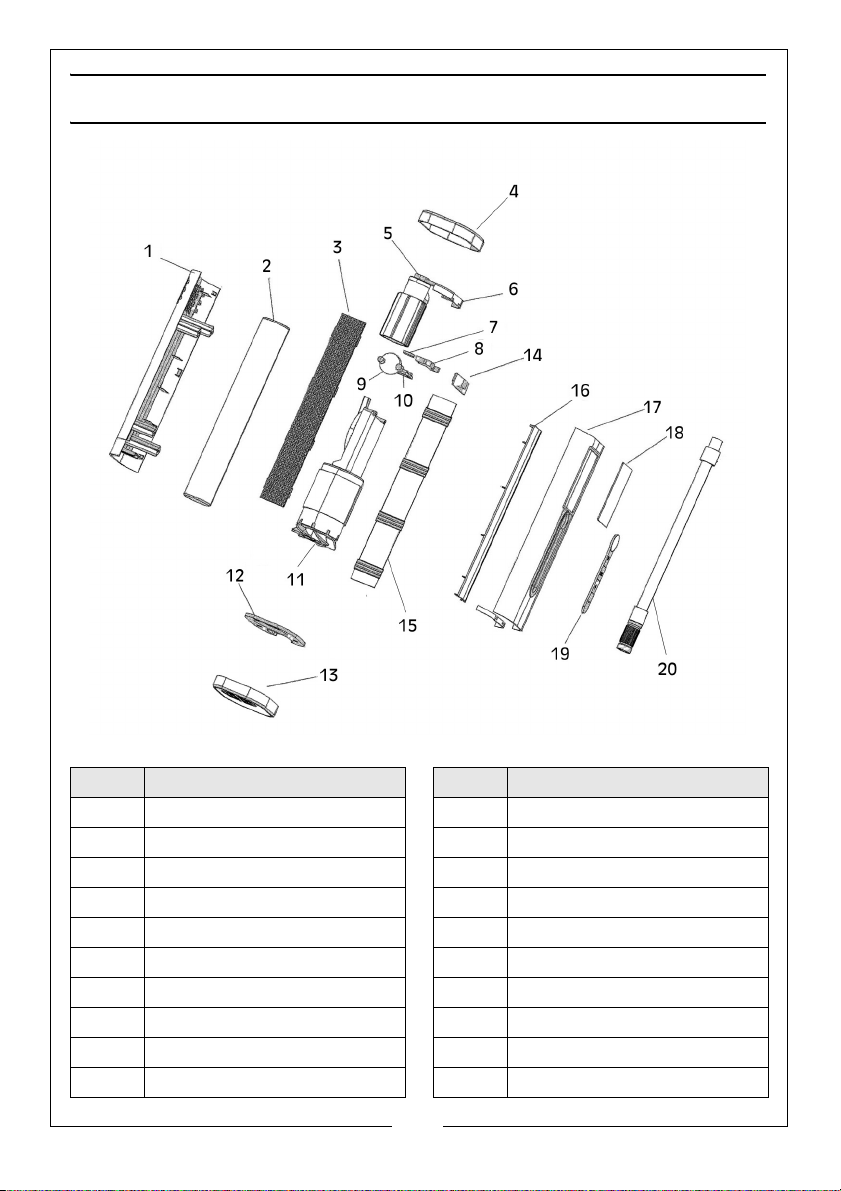

COMPONENT PARTS

No Description No Description

1 Housing - back 11 Motor

2 Battery 12 Support

3 Support 13 Housing-bottom

4 Housing-top 14 Silicone pad

5 Cylinder 15 Motor support

6 Support 16 Battery support

7 Sealing ring 17 Housing-front

8 Silicone pad 18 Lens

9 Pressure-sensitive film 19 Switch

10 Pressure sensor 20 Hose

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali Clarke Utensili elettrici

Clarke

Clarke Air CAT232 Manuale di installazione e funzionamento

Clarke

Clarke CDP152B Manuale di istruzioni

Clarke

Clarke CTC150LI Manuale di istruzioni

Clarke

Clarke Strong-Arm AP500B Manuale utente

Clarke

Clarke CCT48 Manuale di istruzioni

Clarke

Clarke ZX-R Pro Series Manuale di istruzioni

Clarke

Clarke CDP10B Manuale di installazione e funzionamento

Clarke

Clarke Metalworker CDP502F Manuale di istruzioni

Clarke

Clarke ECSS-1 Guida utente

Clarke

Clarke CAT52 Manuale di installazione e funzionamento

Clarke

Clarke STRONG-ARM CSA20EP Manuale di istruzioni

Clarke

Clarke PRO235 Manuale di installazione e funzionamento

Clarke

Clarke CAT126 Manuale di installazione e funzionamento

Clarke

Clarke Metalworker CDP202B Manuale di istruzioni

Clarke

Clarke Air CAT217 Manuale di installazione e funzionamento

Clarke

Clarke CAT141 Manuale di installazione e funzionamento

Clarke

Clarke Metalworker CDP301B Manuale di installazione e funzionamento

Clarke

Clarke Metalworker CL251MH Manuale di installazione e funzionamento

Clarke

Clarke CAT108 (1/2) Manuale

Clarke

Clarke CAT113 Guida all'installazione

Clarke

Clarke CDP5EB Manuale di istruzioni

Clarke

Clarke X-PRO CAT140 Manuale di installazione e funzionamento

Clarke

Clarke Contractor CON750 Manuale di istruzioni

Clarke

Clarke CHG1600 Manuale utente

Manuali Utensili elettrici popolari di altre marche

AEG

AEG OMNI-JS Manuale utente

SIP

SIP 01533 Manuale utente

Ribimex

Ribimex PRS499 Manuale utente

3M Fiber Optic Connector Crimp Tool Manuale utente

Ryobi

Ryobi P524 Manuale utente

ROJEK

ROJEK FSN 300A Manuale utente

Kemper

Kemper 1740PRO Manuale utente

WABCO

WABCO OptiTire Manuale utente

EINHELL

EINHELL TE-MS 18/210 Li Manuale utente

Orgapack

Orgapack OR-T 85 Guida rapida

TOUGHCUT

TOUGHCUT Diamond 400 Manuale utente

Yaros

Yaros PB-3603 Manuale utente

Fein

Fein BSS 2.0 E Guida all'installazione

Baileigh Industrial

Baileigh Industrial SS-2725 Manuale utente

Milwaukee

Milwaukee 2674-20 Manuale utente

Fein

Fein BLs 1.6 Manuale utente

Princess

Princess Electric Multi Sharpener Manuale utente

FOREDOM

FOREDOM K.1050 Manuale
