Clarke DWP210A Manuale di istruzioni

FOR USE WITH A 110V SUPPLY ONLY

OPERATION & MAINTENANCE

INSTRUCTIONS

LS0620 - ISS 5

ORIGINAL INSTRUCTIONS

SUBMERSIBLE DIRTY WATER PUMP

MODEL NO: DWP210A

PART NO: 7230102

Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com

INTRODUCTION

Thank you for purchasing this CLARKE Submersible Dirty Water Pump.

This pump is designed for pumping clean water only. It is NOT designed for

pumping slurry, sludge, mud or heavily polluted water, or any water

containing chemicals or other acidic contaminants including salt water.

The DWP210A has the ability to pump solids in suspension as large as 7 mm.

GUARANTEE

This product is guaranteed against faulty manufacture for a period of 12

months from the date of purchase. Please keep your receipt which will be

required as proof of purchase.

This guarantee is invalid if the product is found to have been abused or

tampered with in any way, or not used for the purpose for which it was

intended.

Faulty goods should be returned to their place of purchase, no product can

be returned to us without prior permission.

This guarantee does not effect your statutory rights.

ENVIRONMENTAL RECYCLING POLICY

Through purchase of this product, the customer is taking on the

obligation to deal with the WEEE in accordance with the WEEE

regulations in relation to the treatment, recycling & recovery and

environmentally sound disposal of the WEEE.

In effect, this means that this product must not be disposed of with general

household waste. It must be disposed of according to the laws governing

Waste Electrical and Electronic Equipment (WEEE) at a recognised disposal

facility.

Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com

SAFETY INSTRUCTIONS

GENERAL

1. Read all instructions before use

and store safely for future use.

2. The pump is to be supplied by an

isolating transformer or supplied

through a RCD having a rated

residual operating current not

exceeding 30mA.

3. The electrical supply must be the

same as that on the rating plate.

4. Always make sure that your

hands are dry when connecting

or disconnecting from the mains

supply.

5. Never pull the mains lead to

disconnect the pump from the

mains socket.

6. The mains plug must be kept

away from the water at all times.

7. Do not allow children or

unauthorised people to touch the

pump, cables or connections.

8. Disconnect the pump from the

mains supply when not in use.

9. If necessary have the pump

repaired by a qualified person.

10. Keep the mains lead away from

heat, oil and sharp edges.

11. If you have to use an extension

lead with this product, it must be

designed for outdoor use and

incorporate a cable suitable for

use with Class I appliances.

12. Disconnect the pump from the

electrical supply and wear gloves

during servicing or maintenance.

PUMP SPECIFIC

1. Do not pump explosive /

flammable liquids or chemicals.

2. Never allow the pump to run dry

or operate out of the water.

3. Submersible pumps should always

be submerged and stored

vertically.

4. Disconnect the pump from the

mains supply before placing it

into or removing it from the water.

5. Always check the plug, mains

cable and float switch cable for

damage before use.

6. Do not use the pump if

damaged. Refer to qualified

service personnel for repair.

7. Never carry the pump by the

power cable or float switch

always use the handle or a rope

tied securely to the handle.

8. Never insert your fingers into the

pump whilst it is connected to the

mains.

9. Never use the submersible pump

in a swimming pool when there

are people or animals in the pool.

10. Keep the pump clear of any

sediment by standing it on a

platform or brick or suspending it

at a suitable height.

11. Do not use the pump if the water

is liable to freeze, as this can

cause damage to the pump.

Remove the pump from the

water and store it in a frost free

location.

Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com

PART IDENTIFICATION

Remove all packaging and make sure that the unit displays no visible

damage. Dispose of all packaging appropriately.

1 WATER INLET 4 WATER OUTLET

2 FLOAT SWITCH 5 HANDLE

3CABLE

Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com

ELECTRICAL CONNECTIONS

This product can be connected to one of the following power supplies:

Connecting it to any other power source may cause damage.

This product requires a fitted industrial plug to BS-EN

60309 (not supplied), for use with a 110 volt supply. On

no account must a 230V, 13 amp (BS1363) plug be

used.

If using a portable 110V transformer make sure it has a

rated capacity sufficient to take the load of the

pump.

To fit the plug, proceed as follows:

1. Undo the socket screws & remove the rear section.

2. Rotate the cable clamp clear of the terminals.

3. Feed the cable through the rear gland in the plug.

4. Remove the cable sheath to the required lengths

as shown in the diagram.

5. Terminate the correct wires in the

correct terminal blocks.

6. Remove the cable clamp screws. Clip

the cable clamp back into position and

place the clamp around the outer

sheath of the cable. Replace the screws

and tighten until the cable is securely

held.

7. Replace the rear cover and tighten the cover screws.

If in any doubt, consult a qualified electrician. DO NOT attempt any repairs

yourself.

WARNING! READ THESE ELECTRICAL SAFETY INSTRUCTIONS

THOROUGHLY BEFORE CONNECTING THE PRODUCT TO A

POWER SUPPLY.

• 110V Generator • 110V Isolating Transformer

• 110V Site supply • 230V Generator via a 110V transformer.

Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com

USING THE PUMP

1. Fit the adaptor if required as shown,

then connect a suitable hose (not

supplied) to the pump outlet.

• Suitable hoses are available from

your local Clarke dealer.

2. Place the pump on a flat surface in

the area that you want to drain.

• If there is sediment in the water, the

pump should be placed vertically

on house bricks, or similar.

• Ensure the pump is positioned with adequate space so that the

movement of the float switch is not restricted - recommended minimum

area of 50 x 50 cm.

• ALWAYS raise and lower the pump using a rope attached to the lifting

handle.

• Take all necessary precautions as described on page 3.

• The pump inlet must be fully submerged before the pump is switched on.

3. Connect the plug to the power supply.

4. Switch the mains power supply on.

• The pump will begin to drain water.

• As the water level falls, so will the float switch, until it stops the pump.

• You can adjust the position at which the float switch lead clips to the

side of the pump, If the length of the float switch lead is short the pump

will turn on and off earlier.

5. When the pumping operation is finished, disconnect the pump from the

mains power supply.

WARNING: CHECK THE PUMP FOR DAMAGE BEFORE USE, DO NOT USE THE

PUMP IF IT IS DAMAGED IN ANY WAY.

WARNING: THE WATER BEING PUMPED WILL BE POLLUTED IF THIS PUMP

BECOMES DAMAGED AND LUBRICANT WITHIN THE PUMP ESCAPES.

CAUTION: DO NOT ALLOW THE PUMP TO RUN DRY

Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com

OVERLOAD SWITCH

These pumps are fitted with a thermal overload switch. If the pump overheats

for any reason, it will automatically switch the pump OFF. Once the pump has

cooled (at least 5-10 minutes), the pump will automatically restart.

MAINTENANCE

This pump should require no maintenance other than regular cleaning.

If the pump starts to show signs of wear or damage, contact your CLARKE

dealer for advice.

CLEANING

1. Check the pump installation regularly to ensure the water inlet is clear of

leaves or other debris.

2. Take extra care to remove any debris from around the impeller.

NOTE: Do not attempt to repair the pump yourself. Repairs must be carried

out by your CLARKE dealer, or contact the CLARKE Service

Department.

STORAGE

When the pump is not being used for extended periods, clean and dry it

thoroughly and stored indoors. if the pump is left in water, it must be run at

least once a week to prevent it from seizing up.

WARNING: BEFORE CHECKING THE CONDITION OF THE PUMP, ENSURE IT

IS UNPLUGGED FROM THE ELECTRICAL SUPPLY. IF THE UNIT IS HARD WIRED,

ENSURE THE CIRCUIT BREAKER IS OPEN.

Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com

SPECIFICATIONS

DWP210A

Voltage 110V~50Hz

Outlet Diameter 2“BSP (inc 2” Adaptor)

Rated input Power 940W

Power (at Maximum Flow) 1140 W

Maximum Head Height 10 m

Maximum Output 567 l/min.

Maximum Depth 2 m

Max Water Temperature 40oC

Maximum Particle Size 7 mm

Weight 22.3 kg

Dimensions (D x W x H) 190 x 270 x 550 mm

Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com

TROUBLESHOOTING

If this does not solve your problem, please contact the Clarke service

department.

PROBLEM SOLUTION

PUMP WILL

NOT START

1. Make sure that the power is switched on.

2. Check fuse (consult an electrician if in doubt).

3. If extension lead is fitted, check connections (consult an

electrician if in doubt).

4. Internal thermal cut-out has not re-set. Leave for 5-10

minutes and try again.

5. The impeller may be jammed. Disconnect from the mains

supply and remove any objects that may be obstructing

the impeller.

6. Float switch may be jammed against the side wall of the

pond/pool, or prevented from moving.

7. Water level too low - float switch in OFF position - lift float

to check switch.

8. If the pump still fails to start, consult your CLARKE dealer

for advice.

PUMP WILL

START BUT NOT

PUMP

1. Check that the inlet is not blocked.

2. Check that the discharge tube is not clogged or

obstructed.

3. The head may be too great, i.e. you are trying to lift the

water too great a distance for the pump to cope with.

(“Specifications” on page 8).

4. Air bubble in the pump, produced during the plunge.

Plunge the pump again, at an angle, and shake it whilst

lowering to remove any air trapped in the system.

5. Impeller may be damaged - Consult your CLARKE dealer.

PUMP WILL

NOT STOP

1. Float switch may be prevented from moving to the fully

down position.

2. Float switch may be faulty. Consult your CLARKE dealer

for advice.

PUMP STOPS

RUNNING

1. Thermal overload has operated. Leave for 5-10 minutes

and try again.

2. Pump has run dry, or float switch has cut in.

3. A foreign object has jammed the impeller.

Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com

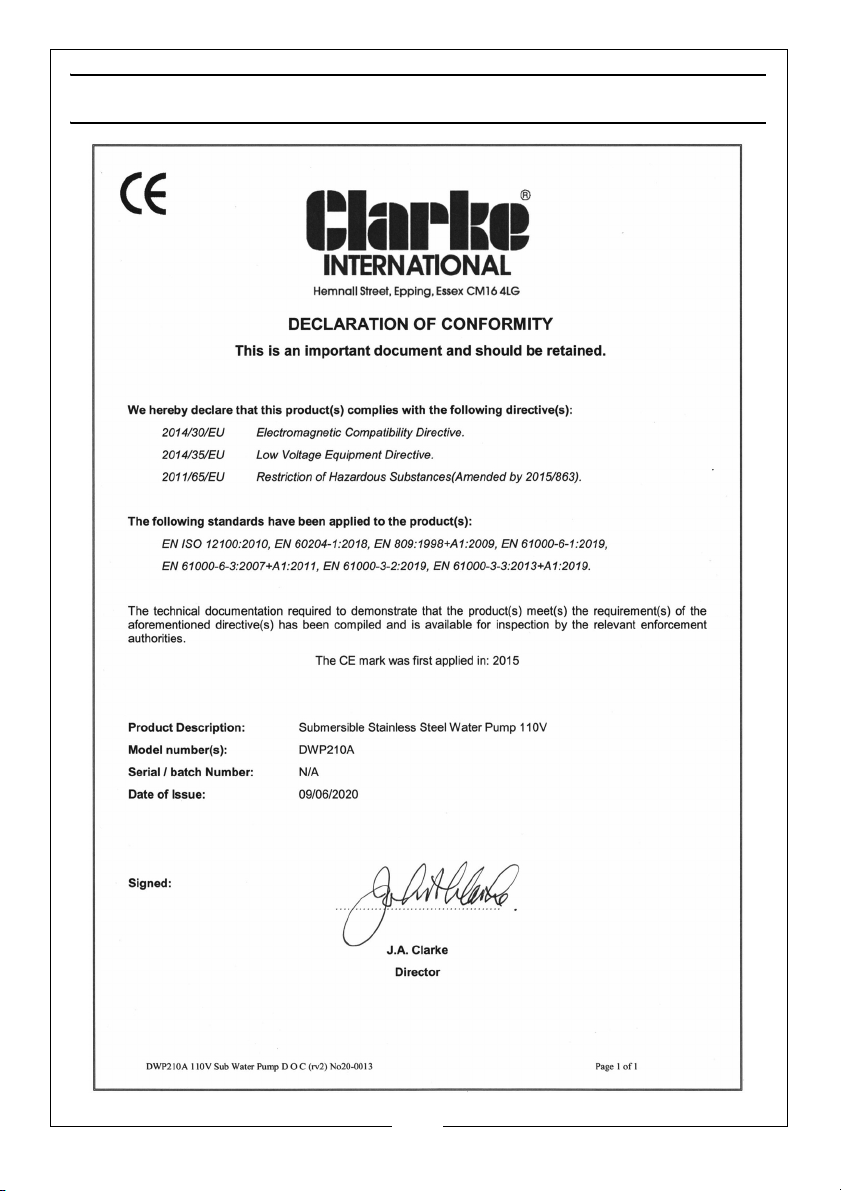

DECLARATION OF CONFORMITY

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali Clarke Pompa dell'acqua

Clarke

Clarke CHHDP830 Manuale di istruzioni

Clarke

Clarke CBP900 Manuale di istruzioni

Clarke

Clarke PSP195 Manuale di istruzioni

Clarke

Clarke CPRP560 Manuale di istruzioni

Clarke

Clarke HIPPO 2 Manuale di istruzioni

Clarke

Clarke PSP105 Manuale di istruzioni

Clarke

Clarke CD1 - 1 Manuale di installazione e funzionamento

Clarke

Clarke TAM100 7230035 Manuale di installazione e funzionamento

Clarke

Clarke SPE800 Manuale di installazione e funzionamento

Clarke

Clarke CWBP300 Manuale di istruzioni

Clarke

Clarke ISP14A Manuale di installazione e funzionamento

Clarke

Clarke PSV5A Manuale di istruzioni

Clarke

Clarke CSP1530 Manuale di istruzioni

Clarke

Clarke DW75 Manuale di istruzioni

Clarke

Clarke GSE1 Manuale di istruzioni

Clarke

Clarke CM1 Manuale di installazione e funzionamento

Clarke

Clarke CPP3000B Manuale utente

Clarke

Clarke CDDFTP Manuale utente

Clarke

Clarke BIP1000 Manuale di istruzioni

Clarke

Clarke PW50 Manuale di istruzioni

Clarke

Clarke HIPPO Jr Manuale di installazione e funzionamento

Clarke

Clarke PSV6A Manuale di istruzioni

Clarke

Clarke CSV4A Manuale di istruzioni

Clarke

Clarke LVP1A Manuale di istruzioni

Manuali Pompa dell'acqua popolari di altre marche

Neptun

Neptun NPHW 5500 Manuale utente

Sensidyne

Sensidyne Gilian BDX-II Istruzioni per l'installazione e il funzionamento

Draper

Draper 47808 Manuale utente

Trolla

Trolla 12820 Manuale utente

Sunfab

Sunfab SVH Series Manuale utente

WilTec

WilTec 50740 Manuale utente

Fieldmann

Fieldmann FVC 5015 EK Manuale utente

Everbilt

Everbilt EFSUB5-122HD Manuale utente

Graco

Graco Husky 3300e Manuale utente

esotec

esotec 101018 Manuale utente

moyno

moyno 2000 CC Manuale utente

Becker

Becker BASIC VASF 2.80/1-0.AC230 Manuale utente

Sykes AmeriPumps

Sykes AmeriPumps GP100M Guida alla risoluzione dei problemi

DUROMAX

DUROMAX XP WX Series Manuale utente

BRINKMANN PUMPS

BRINKMANN PUMPS SBF550 Manuale utente

Franklin Electric

Franklin Electric IPS Manuale utente

Xylem

Xylem e-1532 Series Manuale utente

Milton Roy

Milton Roy PRIMEROYAL Manuale utente
