ASSEMBLY & USER

INSTRUCTIONS

ORIGINAL INSTRUCTIONS GC1119 -ISSUE 2

HALOGEN WORKLIGHT

MODEL NO: HLC400

PART NO: SEE 5460680

Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com

INTRODUCTION

Thank you for purchasing this CLARKE 400W (230V halogen flood light with

handle and grill. This worklight is for domestic use and similar applications but

not to be used on construction sites. The unit has a fixed height at floor level.

Before attempting to use this product, please read this manual thoroughly and

follow the instructions carefully. In doing so you will ensure the safety of yourself

and that of others around you, and you can look forward to your purchase

giving you long and satisfactory service.

TECHNICAL INFORMATION

# - values given for the bulb supplied

Model HLC400

Model type 0203

Dimensions (L x W x H) 225 x 205 x 310 mm

Weight 1.5 kg

Tilt adjustment -90 to + 90o

Operating Temperature -20oC to + 50oC

Power Supply 230V 50Hz

Rated input current 1.74 A

Insulation Class I

IP Rating IP54 (exterior use)

Energy Efficiency Class# C class tube

Weighted energy consumption 400 kWh /1000h

Colour Temperature# 2900 K

Efficiency# 21.4 lm/W

Lumen output # (luminous flux) 8545

Bulb (Halogen Tube Type) R7s-J118

Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com

GUARANTEE

This product is guaranteed against faulty manufacture for a period of 12

months from the date of purchase. Please keep your receipt which will be

required as proof of purchase.

This guarantee is invalid if the product is found to have been abused or

tampered with in any way, or not used for the purpose for which it was

intended.

Faulty goods should be returned to their place of purchase, no product can

be returned to us without prior permission. This guarantee does not effect your

statutory rights.

SAFETY PRECAUTIONS

1. This worklight must never be immersed in water.

2. Do not look directly into the lamp when switched on as this can harm the

eyes.

3. If used with an extension cable always ensure that the extension cable is

fully unwound.

4. Do not use this worklight if it has a broken lens, casing or damaged cable

5. Always unplug the worklight before moving it or performing maintenance.

Do not touch the lamp when your hands are wet.

6. Do not attempt to disassemble or repair the worklight.

7. Always unplug the worklight when it is not in use.

8. Never unplug the worklight by pulling the cable, always hold the plug.

9. Never use the worklight if the cable or plug are damaged.

10. Always stand on firm, level ground.

11. Do not cover the halogen bulbs or place combustable materials on top of

the worklight.

12. Do not place within 1m of combustable materials.

SAFETY SYMBOLS

The following symbols appear on the unit.

Hot surface, do not touch. Do not cover

Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com

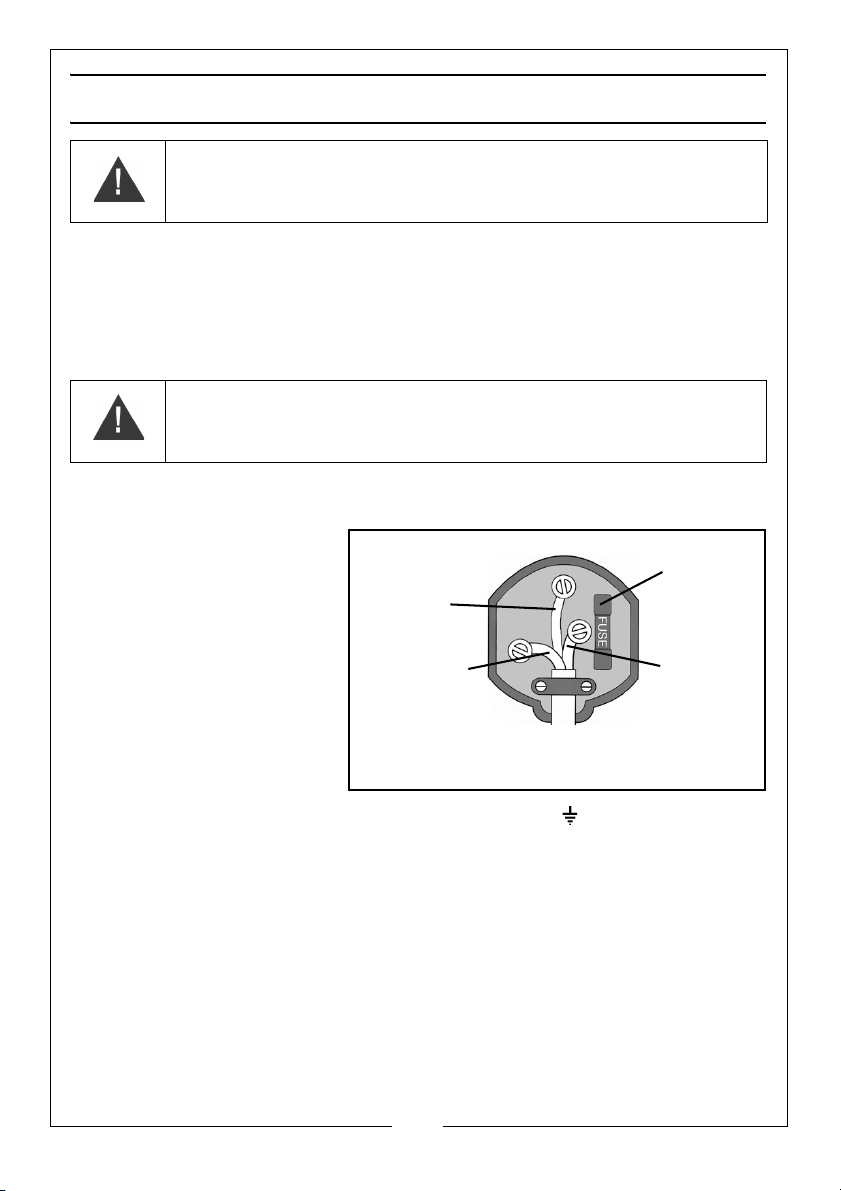

ELECTRICAL CONNECTIONS

Connect the mains lead to a standard, 230 Volt (50Hz) electrical supply

through an approved 13 amp BS 1363 plug, or a suitably fused isolator switch.

If the plug has to be changed because it is not suitable for your socket, or

because of damage, it must be removed and a replacement fitted, following

the wiring instructions shown below. The old plug must be discarded safely, as

insertion into a power socket could cause an electrical hazard.

If the colours of the wires in the power cable do not agree with the markings

on the plug.

• The BLUE wire must be

connected to the

terminal which is

marked N or coloured

black.

• The BROWN wire must

be connected to the

terminal which is

marked L or coloured

red.

• The YELLOW AND

GREEN wire must be

connected to the terminal which is marked E or or coloured green.

We strongly recommend that this product is connected to the mains supply

through a Residual Current Device (RCD)

If you are not sure, consult a qualified electrician.

WARNING: READ THESE ELECTRICAL SAFETY INSTRUCTIONS

THOROUGHLY BEFORE CONNECTING THE PRODUCT TO THE MAINS

SUPPLY.

WARNING: THE WIRES IN THE POWER CABLE OF THIS PRODUCT ARE

COLOURED IN ACCORDANCE WITH THE FOLLOWING CODE:

BLUE = NEUTRAL BROWN = LIVE YELLOW AND GREEN = EARTH

Plug must be BS1363/A approved.

Always fit

Ensure that the outer sheath of

Neutral

(Blue)

Live

(Brown)

Earth

(Green and

a 10 Amp

the cable is firmly held by the clamp

fuse.

Yellow)

Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com

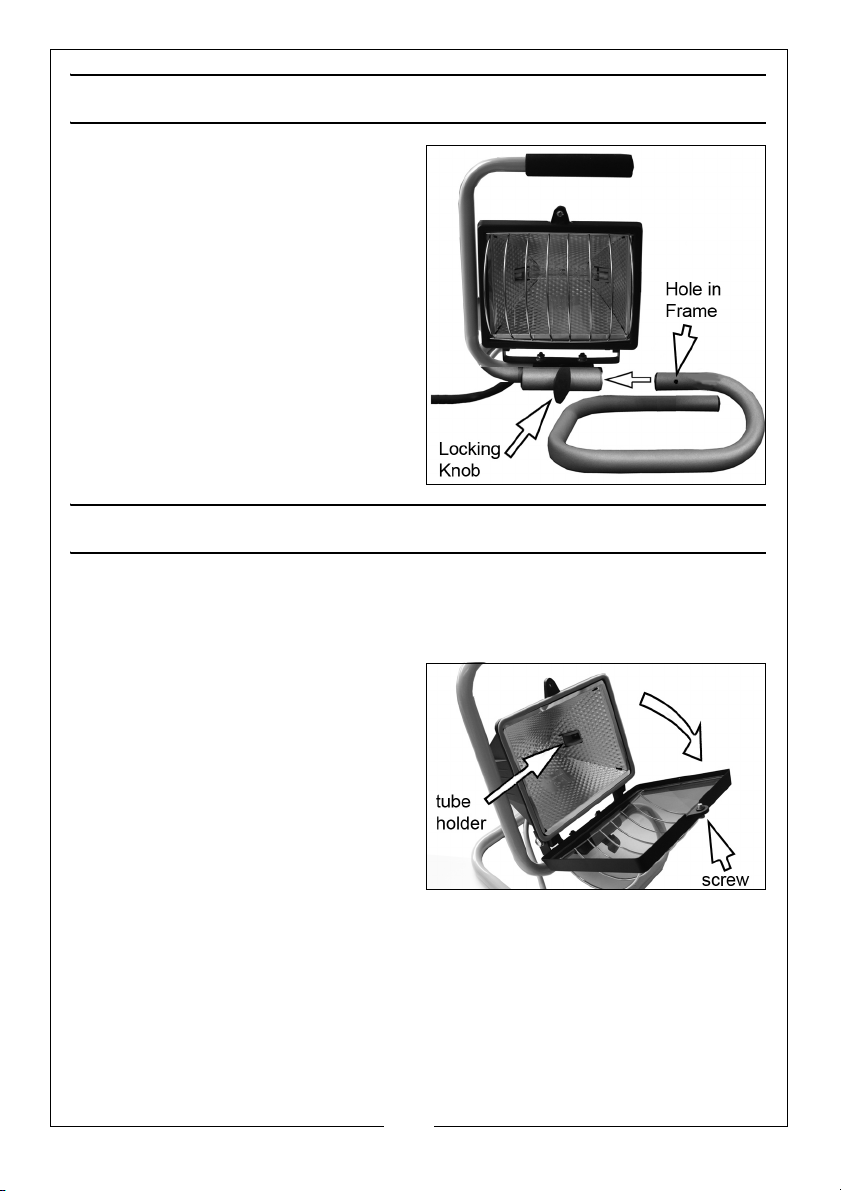

ASSEMBLY & MOUNTING

The worklight must be mounted on

the carry frame as shown:

1. Remove the locking knob from

the base section of the carry

frame, then insert the tubular base

into the frame attachment, as

shown.

2. Line up the holes in the two

sections of the frame then

replace and tighten the locking

knob.

MAINTENANCE

Always allow the lamp to cool before performing any maintenance.

The halogen tubes supplied have a life expectancy of approximately 2000

hours and can be fitted/replaced by the user.

1. Remove the screw holding the

front of the lamp closed and

hinge it away from the lamp.

• The tube is a simple press-fit in

the holder at each end.

2. Do not touch the tube if hot.

When handling the new tube use

clean paper or cloth...DO NOT

allow your fingers to come into

contact with the glass. If this

happens, clean the glass with methylated spirit.

3. Close the cover and re-tighten the screw.

4. Clean the lens at regular intervals using a non-abrasive glass cleaner.

Further replacement tubes can be obtained from your local dealer or Clarke

International Spares Department.

Type R7s-J118 - 230V -Max 400W Clarke Part No. 5460670

Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com

CARE & STORAGE

1. When not in use, switch off & unplug from the power supply.

2. Store this worklight in a secure, dry place, out of the reach of children. DO

NOT leave it exposed to the elements and avoid direct sunlight, direct

heat, rain/moisture etc.

3. Keep the external surfaces clean. Avoid impact damage & do not allow

this worklight to come into contact with abrasive or corrosive materials.

4. Do not use solvents, thinners or alcohol for cleaning (with the exception of

the halogen tubes), as these chemicals will damage the finish. With the

worklight unplugged from the power supply, use a dry cloth to wipe over

the components.

5. Only use extension leads that are of an appropriate power rating and

suitable for the work environment. Inspect the extension lead regularly and

replace if damaged.

6. Never use unauthorised accessories or attachments which may result in

personal injury or damage to the product.

7. Do not attempt to repair or modify this product or attempt any electrical

repair yourself beyond replacing halogen tubes. Consult the Clarke Service

Department on 020 8988 7400.

ENVIRONMENTAL RECYCLING POLICY

Through purchase of this product, the customer is taking on the

obligation to deal with the WEEE in accordance with the WEEE

regulations in relation to the treatment, recycling & recovery and

environmentally sound disposal of the WEEE.

In effect, this means that this product must not be disposed of with general

household waste. It must be disposed of according to the laws governing

Waste Electrical and Electronic Equipment (WEEE) at a recognised disposal

facility.

Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com

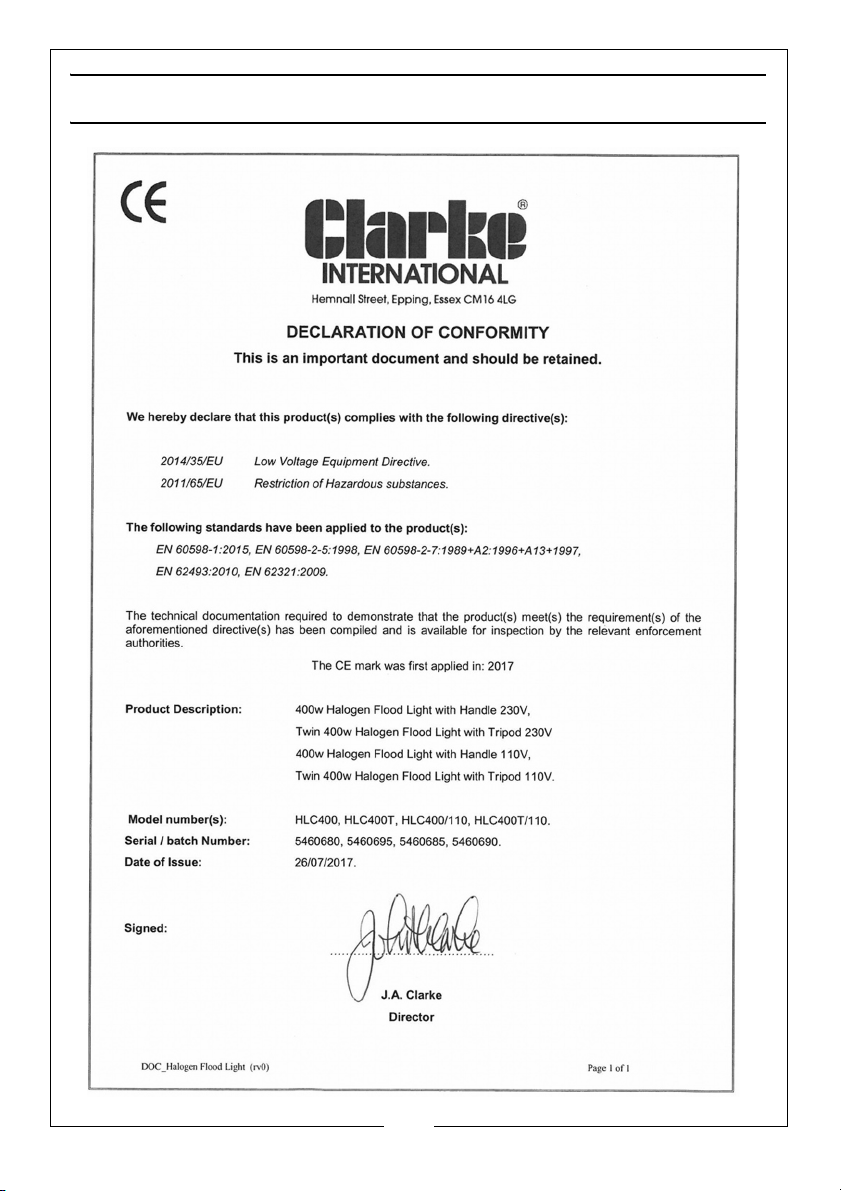

DECLARATION OF CONFORMITY
