InstallatIon Manual 1

Introduction

PRODUCT OVERVIEW

streamnet aVoIP™ VIDEo PlatforM

The StreamNet IP platform is designed to send high-quality audio and video over a TCP/IP network

(AVoIP™). An encoder, such as a VIEW Pro E120, takes digital video and audio from a source

device, such as a receiver, cable box or DVR, and makes the source available anywhere on the

StreamNet network. A decoder, such as the VIEW Pro D110, takes the combined video and audio

stream and decodes it. The D110 then sends the video and audio to a display such as a HDTV or

projector and sound system.

DEVICE aPPlICatIon

The D110 is a high-definition, Internet Protocol, Compressed Audio/Video decoder. The D110

connects to a TCP/IP network using a gigabit Ethernet connection. Used in connection with the

E120, the D110 decoder is designed to be installed at the location of the target video display.

Installation should be done by a qualified Dealer Service representative. Please consult the DigiLinX

Installation Manual for device use in system configuration.

InCluDED WIth Your VIEW Pro DECoDEr

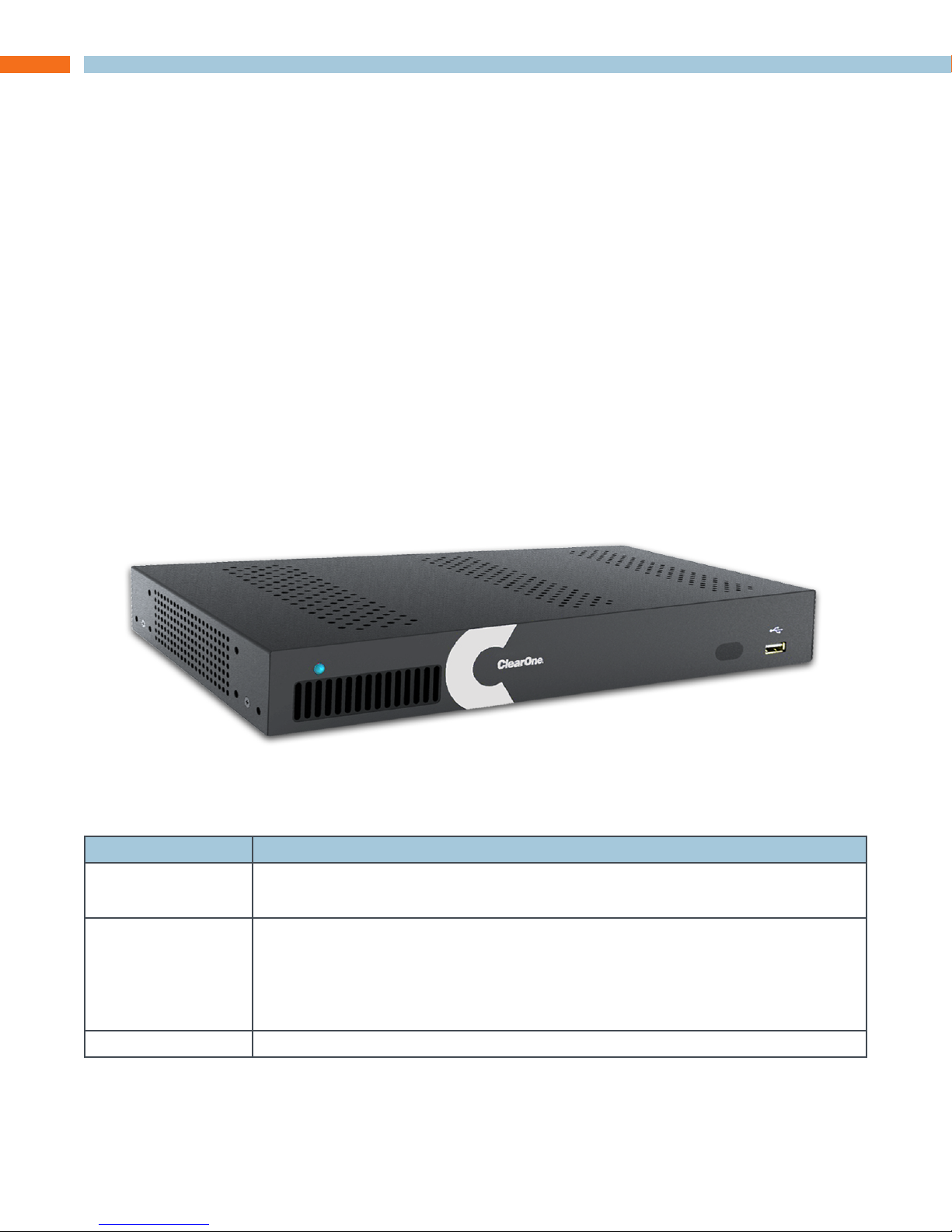

The following items are included with the VIEW Pro Decoder:

Item Description

910-0001-001 VIEW Pro Decoder D110

Power Supply, Power Cord

910-0002-001 Wall Mount Kit for VIEW Pro Encoder E120, Decoder D110

• Bracket 1Ru Rack/Wall Mount

• 2X - Screw, M3 x 6mm, Pan-head, Phillips, Thread Locking, Black

• 2X - Bracket, 19V PSU Wall mount

QSG-0010-001 VIEW PRO Encoder/Decoder Quick Start Guide

2 tEChnICal suPPort: 800.283.5936

Connections

The VIEW Pro D110 decoder has connectors as described below.

• 1x - IR Input connector compatible with StreamNet IR sensor (3.5mm)

• 1x - IR Input Receiver window on front panel

• 1x - IR Output connector compatible with StreamNet IR emitter (3.5mm)

• 1x - Balanced Audio Output (Modular Phoenix-type connector, left and right)

• 1x - Stereo 3.5mm Barrel Plug (Line Level) Input (Currently not used)

• 1x - Stereo 3.5mm Barrel Plug (Line Level) Output

• 1x - HDMI output connector.

• 2x - 10/100/1000 Ethernet jacks (Use only jack 1)

• 3x - General Purpose Input (General Purpose Inputs - Digital, 0/5V, Phoenix-type)

• 3x - General Purpose Output (Contact Closure Output, Latching, Relays, Phoenix-type)

• 2x - RS-232 DB-9 connector

• 3x - USB connectors (one USB connector on front panel not visible)

OUTPUTS AND CONNECTIONS

10/100/1000 EthErnEt JaCks

The 10/100/1000 Mb Ethernet connector allows connection to TCP/IP networks setup to run

StreamNet. Only Port 1 (Red Jack) is supported. The other is a service port that MUST NOT be

connected.

status lED

An LED on the front panel lights up when the unit is powered and to report status:

Off=Off

Yellow=Update process has started (e.g.: Update Devices)

Blue=Normal Operation

Green=System Startup/shutdown

Red=Error Condition

hDMI outPut

The HDMI connector on the D110 send digital video and audio.

InstallatIon Manual 3

Ir In

This jack allows connection of an optional infrared receiver. The infrared receiver can pick up IR

remote control signals. Port is also for IR Learning and IR Network pass-through.

Ir out

This jack allows connection of an optional infrared transmitter. The infrared transmitter can send IR

remote control signals.

rs -232 (CoM)

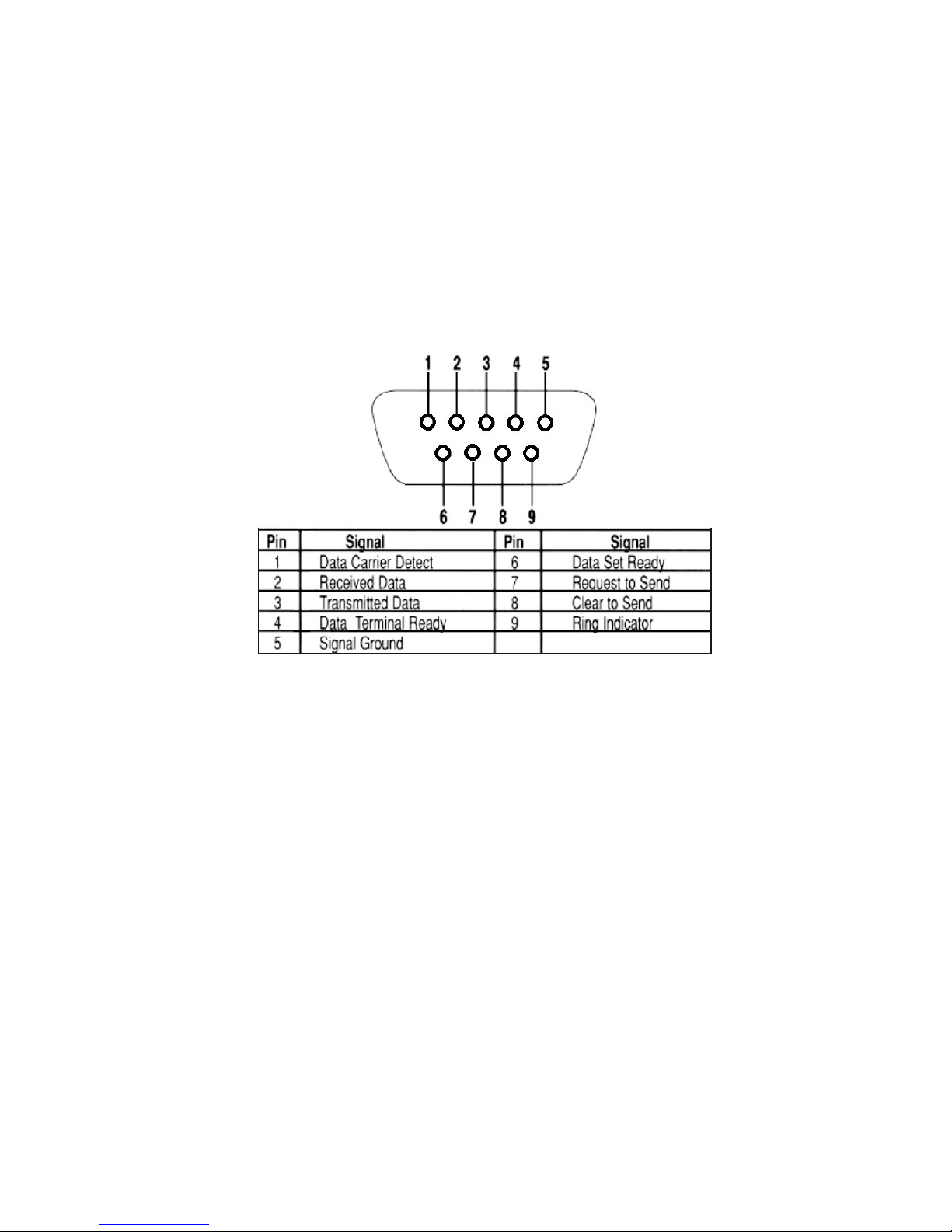

These jacks allow the D110 to control other connected devices. It supports sending RS-232

commands to control devices.

19VDC InPut

This connector provides power input for the D110. This power is available using the included power

supply.

4 tEChnICal suPPort: 800.283.5936

Installation

PHYSICAL CHARACTERISTICS

DIMEnsIons (ExCluDIng ConnECtors)

Width: 12.2 inches (310mm)

Length: 7.4 inches (188mm)

Height: 1.75 inch (44.4mm)

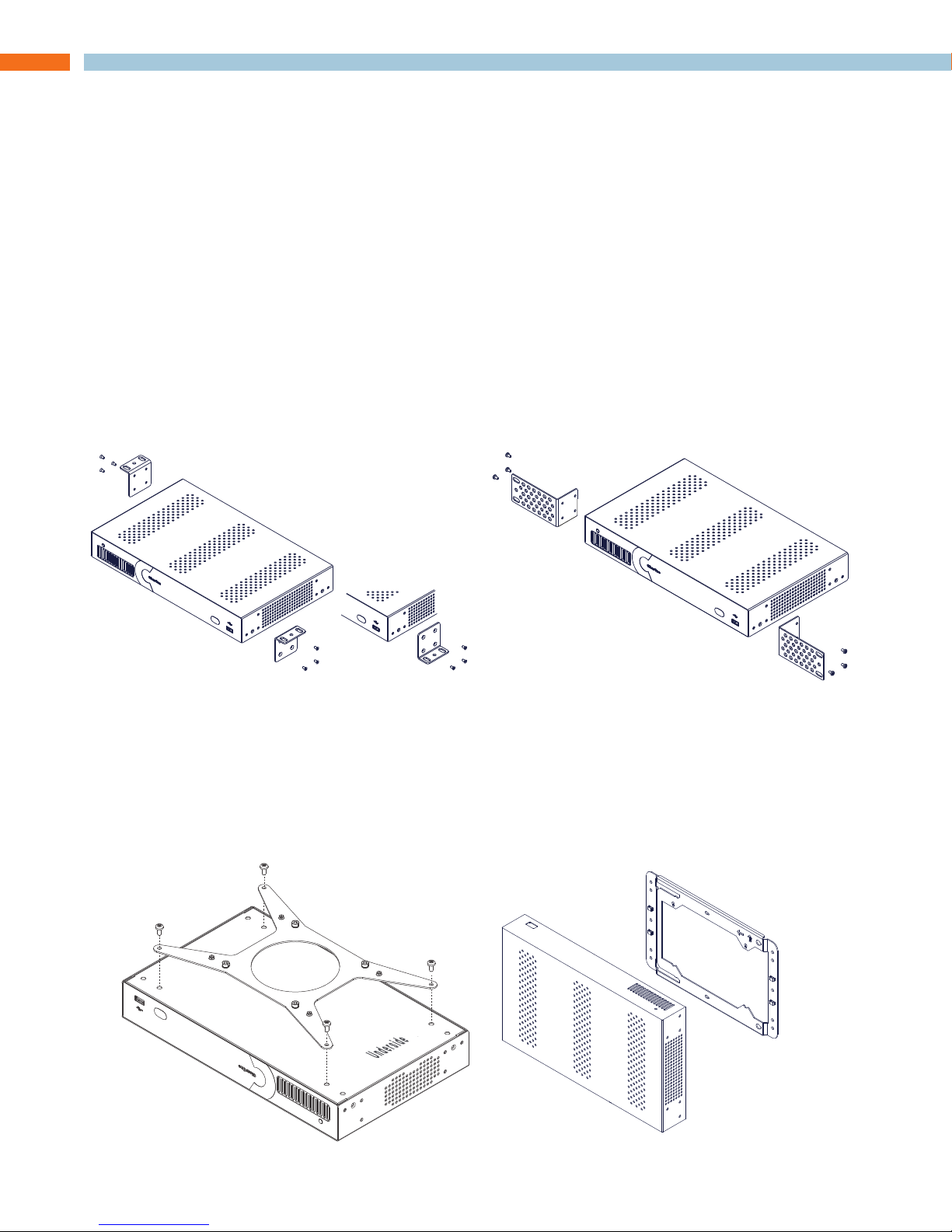

MOUNTING THE D110

The VIEW Pro Decoder includes a Wall Mount Kit (910-0002-002) with surface-mount ears that

attach to facilitate mounting on top of a surface, under a surface or on a wall. When mounted, all

the I/O connections on the D110 are accessible from the back of the unit. An optional rack mount

kit (910-0002-001) is available with longer ears fitting a standard rack. The rack mount ears can be

reversed so the VIEW Pro unit can be mounted either face forward or connections forward.

Surface Mounting

Rack Mounting

Surface Mounting

Rack Mounting

An optional VESA mount bracket Kit ( 910-0002-006) is available for applications where an decoder

must be located on a VESA mount.

»NOTE: The VESA adapter does not attach the decoder to the back of a monitor, but

allows the decoder to be attached to a separate VESA mount.

The VESA mount bracket kit contains a wall bracket that the VESA bracket fits for a wall mount

option.

VESA Bracket

Wall Bracket

(Mount to stud or

other solid surface)

Unit with VESA Bracket

hangs on Wall Bracket

InstallatIon Manual 5

The metal cover snaps onto

the wall-mounted brackets

Edge protectors prevent

cover from making contact with the cables.

Use included wire ties to secure

the cables to the wall bracket

Make 11 inch spacing between

top and bottom bracket mounting holes

Mount the wall brackets

to a solid surface.

(Wall screws not included)

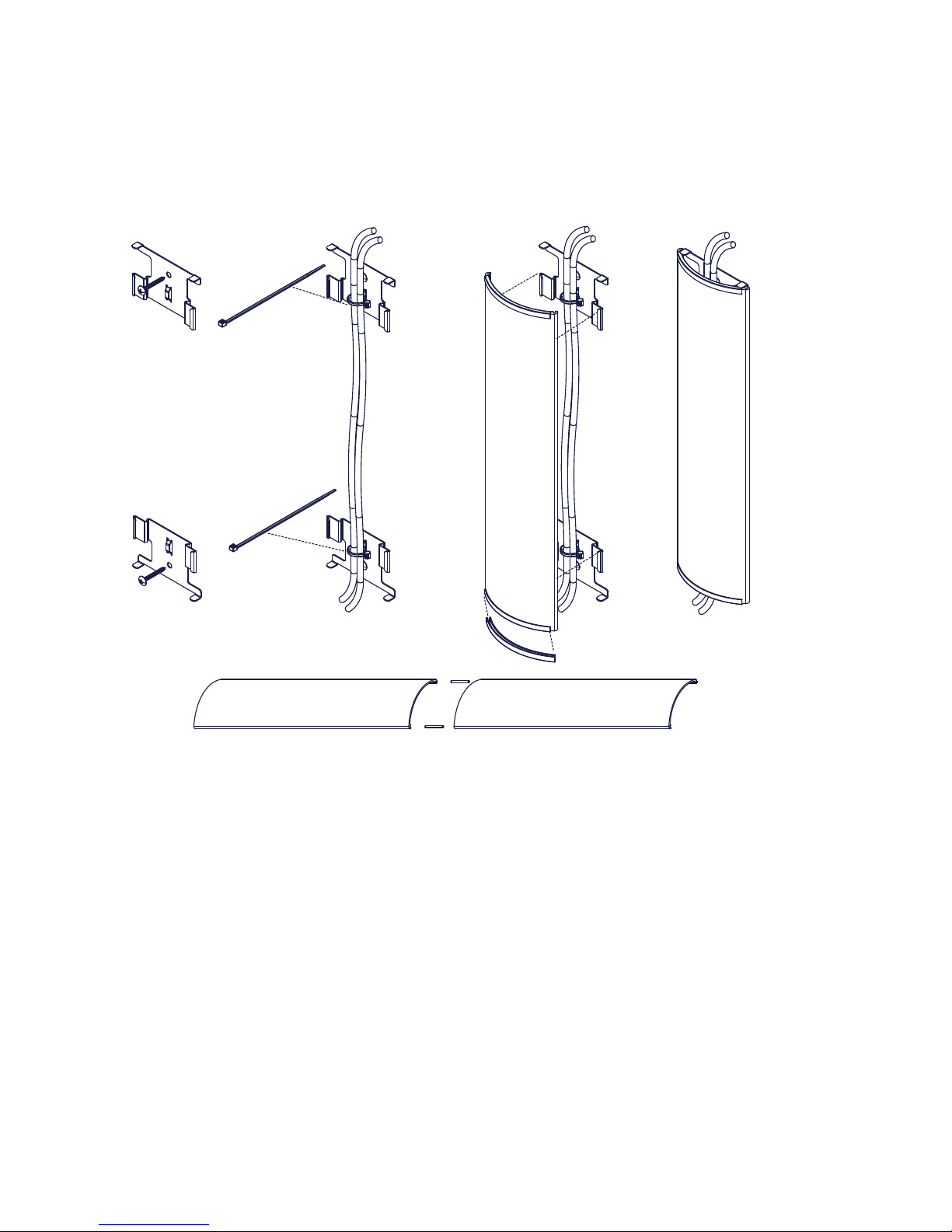

Two sections or more kits may be combined to make a longer raceway. Join them using the included spring pins.

The metal cover may be cut to size as needed.

There may some situations where the VIEW Pro cables cannot be concealed within a cabinet or in

a wall. These cables can be surface mounted and concealed using the optional VIEW Pro Cable

Raceway Kit (910-0002-003). This raceway, in 12-inch joinable lengths, can be mounted to the wall

to secure and secure the cables to the VIEW Pro devices.

6 tEChnICal suPPort: 800.283.5936

THE D110 IN A NETWORK

An E120 Encoder receives input from an AV Source Device such as BluRay Player or DVD Player,

then distributes it over a TCP/IP network using a standard 100 Mbit or gigabit Ethernet connection.

The D110 Decoders, as counterparts, are installed at the locations of the target video displays.

They operate together: the Encoder providing the IP data for the Decoders to deliver to the display.

The output of the D110 decoder to the display device is controlled by a configured TouchLinX de-

vice.

CONNECTING THE D110

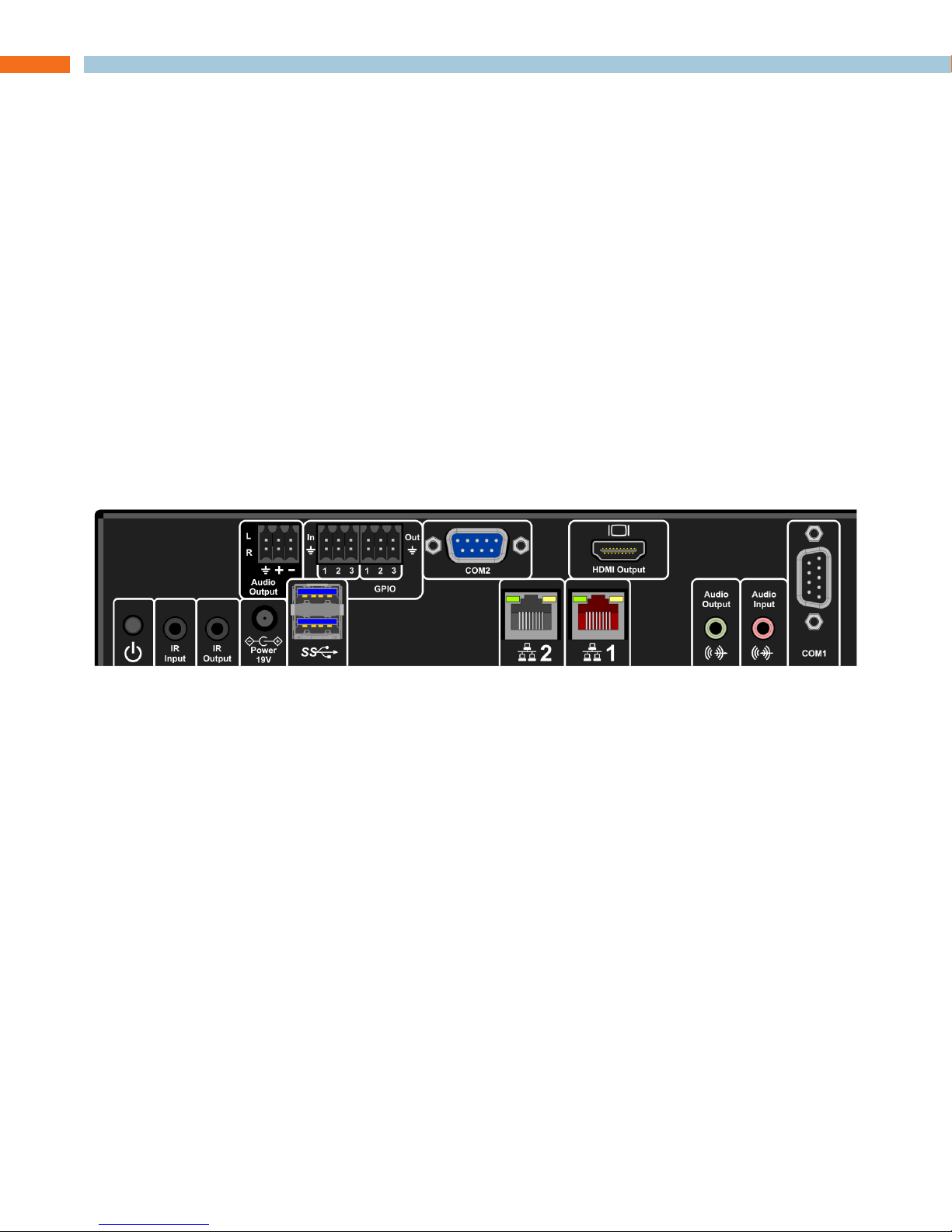

The D110 Decoder connections are from the back of the unit as shown in the following diagram.
