VIEW®Pro
High-definition, IP, Compressed Audio/Video Encoder, and Decoder
Quick-Start Guide
THE VIEW PRO ENCODER AND DECODER ....................................1
QUICK-START OVERVIEW ................................................................1
MOUNTING THE ENCODER AND DECODER ..................................2
THE ENCODER/DECODER IN NETWORK ......................................7
CONNECTING THE ENCODER.........................................................7
CONNECTING THE DECODER.........................................................8
CONFIGURING THE ENCODER/DECODER.....................................9
VIEW PRO ACCESSORY KITS........................................................10
PART NUMBERS..............................................................................12
CLEARONE CONTACTS..................................................................12
Table of Contents
QUICK-START GUIDE
1
THE VIEW PRO ENCODER AND DECODER
The VIEW Pro E120 encoder takes digital video and audio from source
devices, such as receivers, cable boxes or DVRs, and makes the source
available anywhere on the StreamNet IP network. The VIEW Pro D110
decoder takes the combined video and audio stream, decodes it, and
then sends the video and audio to a display such as a HDTV or projector
and sound system.
IMPORTANT: The VIEW Pro E120 encoder and D110 decoder can
only be used with a StreamNet network configured using StreamNet
Dealer Setup software.
The latest version of the StreamNet Dealer Setup software can be found
on the ClearOne website at:
http://www.clearone.com/resources#enterprise_streaming
QUICK-START OVERVIEW
These steps must be done in the following order to use the VIEW Pro
encoders and decoders in your StreamNet network:
1. Mounting the Encoder/Decoder.
2. The Encoder/Decoder in Network
3. Connecting the Encoder/Decoder
4. Configuring the Encoder/Decoder.
VIEW PRO ENCODER/DECODER
2
MOUNTING THE ENCODER AND DECODER

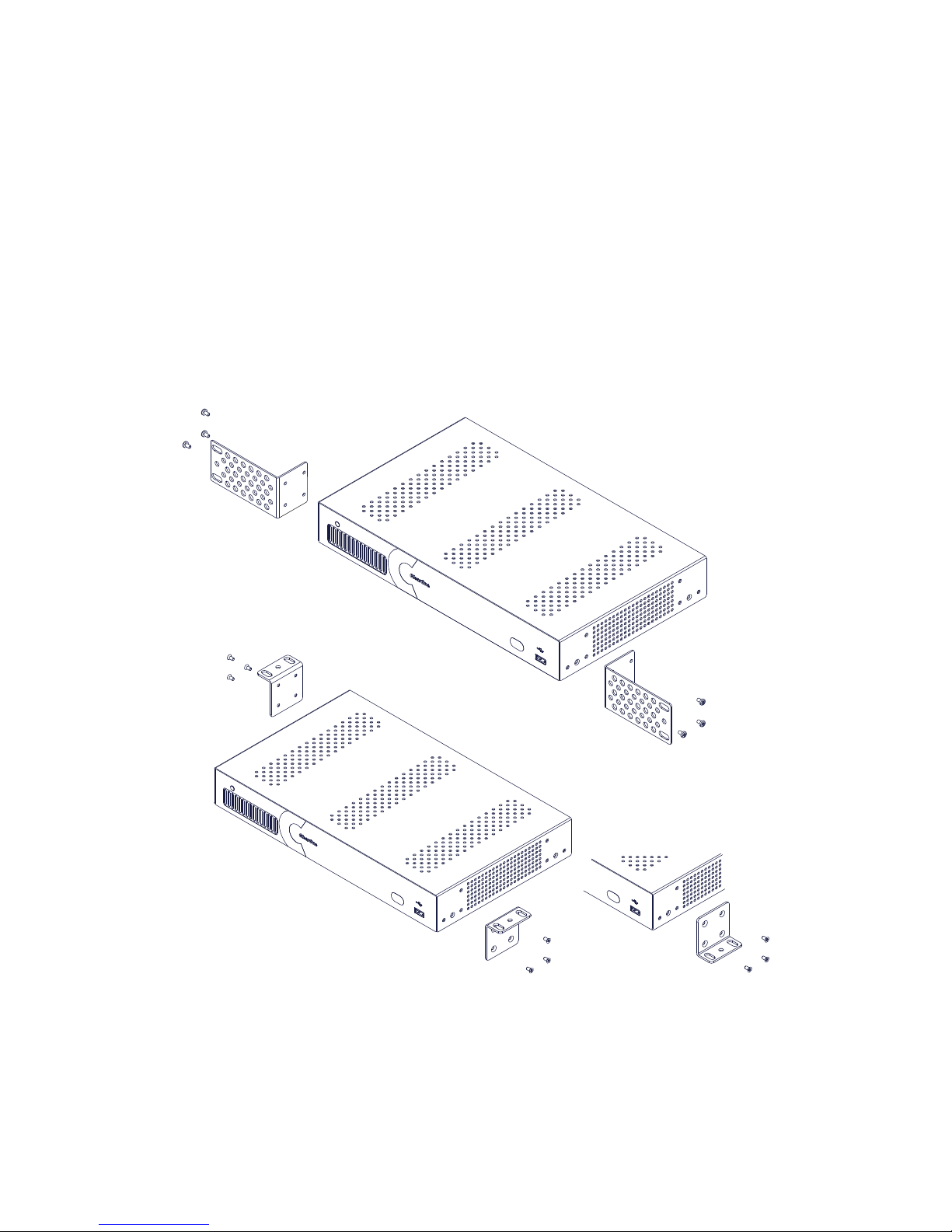

The VIEW Pro Encoder includes rack-mount ears that attach to the
encoder to facilitate mounting in a standard rack
The VIEW Pro Decoder includes surface-mount ears that attach to
the decoder to facilitate mounting on top of a surface, under a surface,
or on a wall. It also includes mounting clips for the power supply.
Decoder with
Surface Mounting Ears
Encoder with
Rack Mounting Ears
QUICK-START GUIDE
3

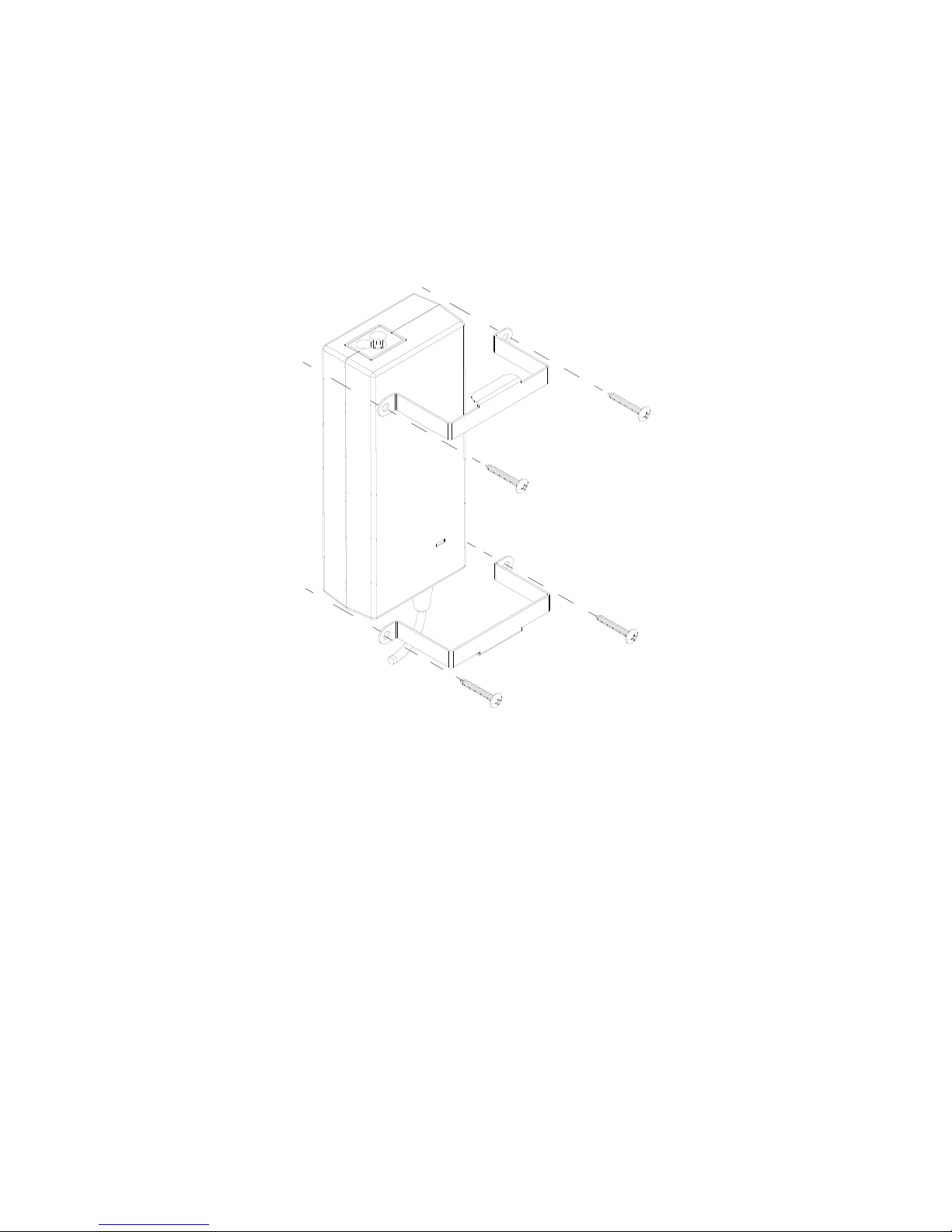

The power supply for the decoder can also be mounted to a wall using
the included mounting clips.

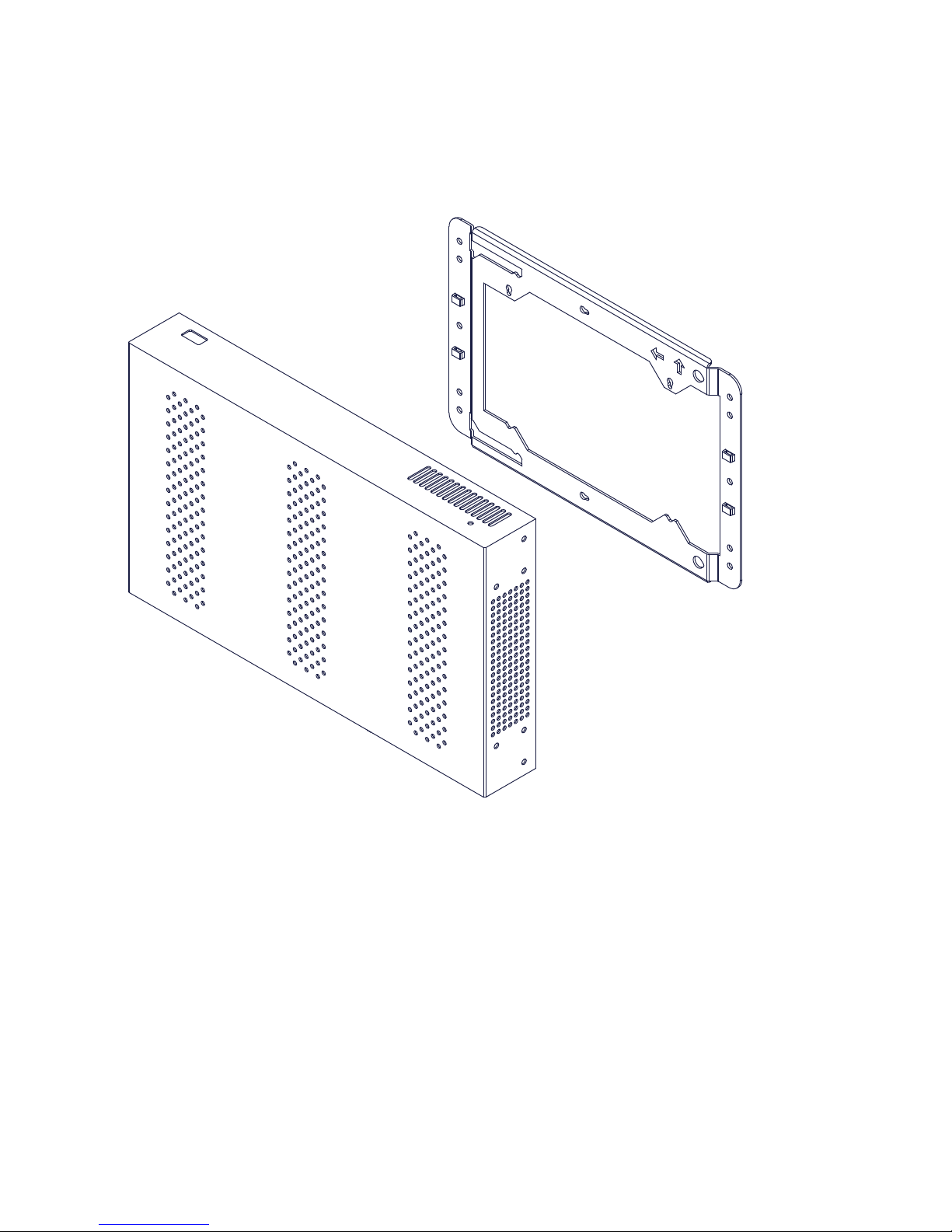

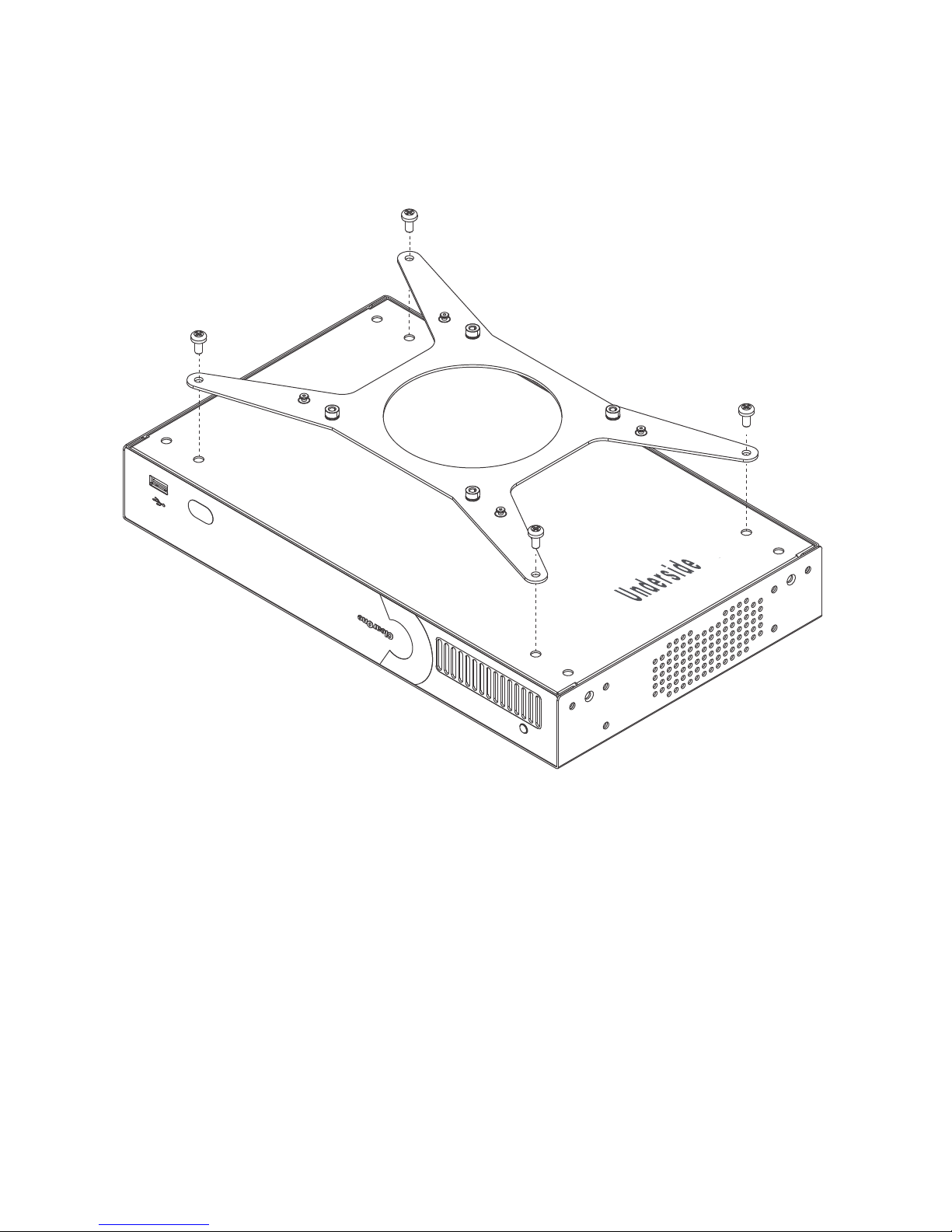

An optional VESA Mount Bracket Kit (910-0002-006) is available for
applications where an encoder/decoder must be located on a VESA
mount. The VESA Mount Bracket Kit (910-0002-006) includes a Wall
Bracket that the can VESA Bracket can attach to.
NOTE: The VESA adapter does not attach the decoder to the back of
a monitor, but allows the decoder to be attached to a separate VESA
mount.
VIEW PRO ENCODER/DECODER
4
VESA Bracket
QUICK-START GUIDE
5
Wall Bracket
(Mount to stud or
other solid surface)
Unit with VESA Bracket
hangs on Wall Bracket
VIEW PRO ENCODER/DECODER
6

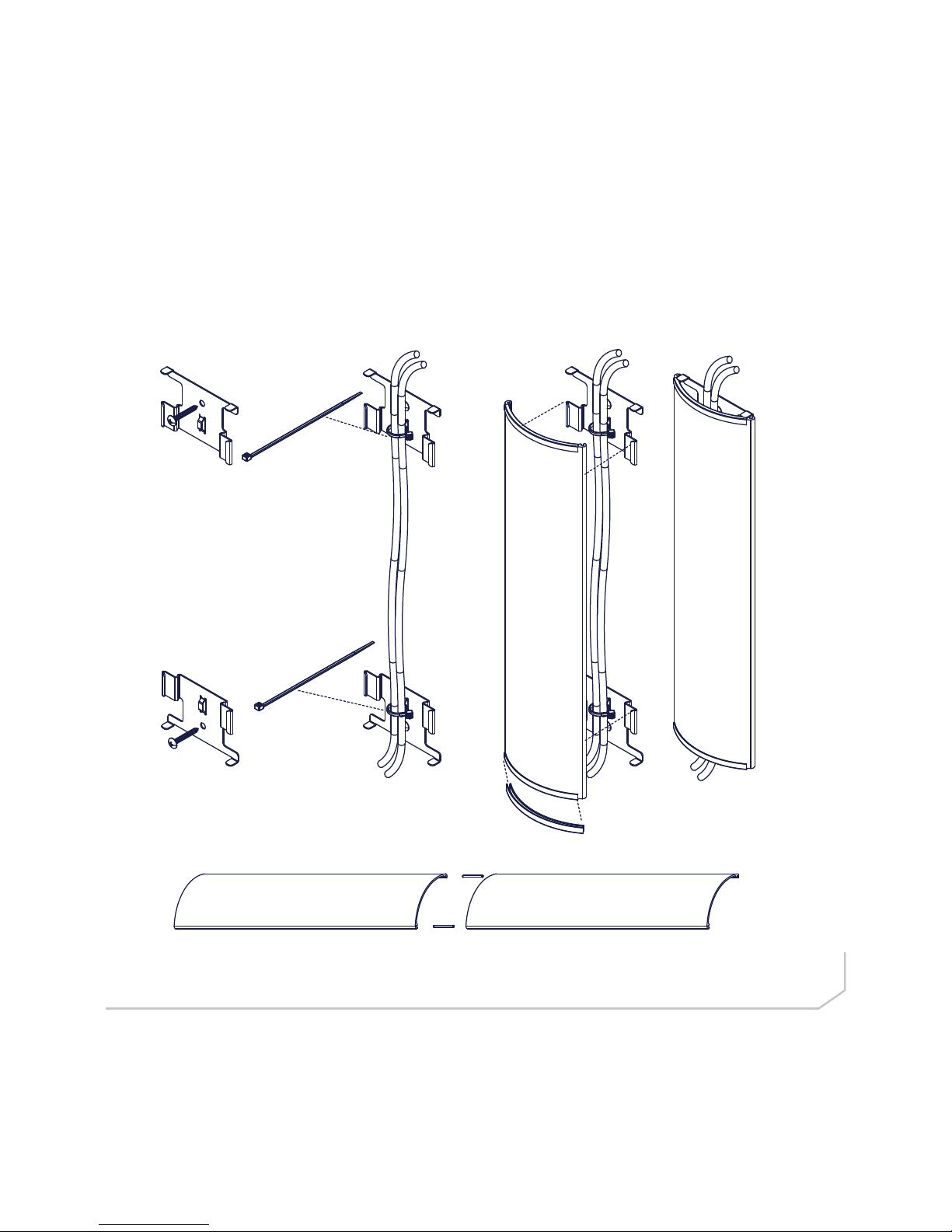

When the VIEW Pro cables cannot be concealed, cables can be surface
mounted using the optional 910-0002-003 VIEW Pro Cable Raceway Kit.
This raceway, in 12-inch joinable lengths, can be mounted to the wall to
secure and cover the cables to the VIEW Pro devices.
The metal cover
snaps onto the
wall brackets.
Edge protectors prevent
metal cover from making
contact with the cables.
Use included wire ties to
secure the cables to
the wall bracket.
Make 11 inch spacing
between top and bottom
wall bracket mounting
holes.
Mount the wall brackets
to a solid surface.
(Wall screws not included)
Two sections or more kits may be combined to make a longer raceway.
Join them using the included spring pins.
The metal cover may be cut to size as needed.
QUICK-START GUIDE
7
THE ENCODER/DECODER IN NETWORK

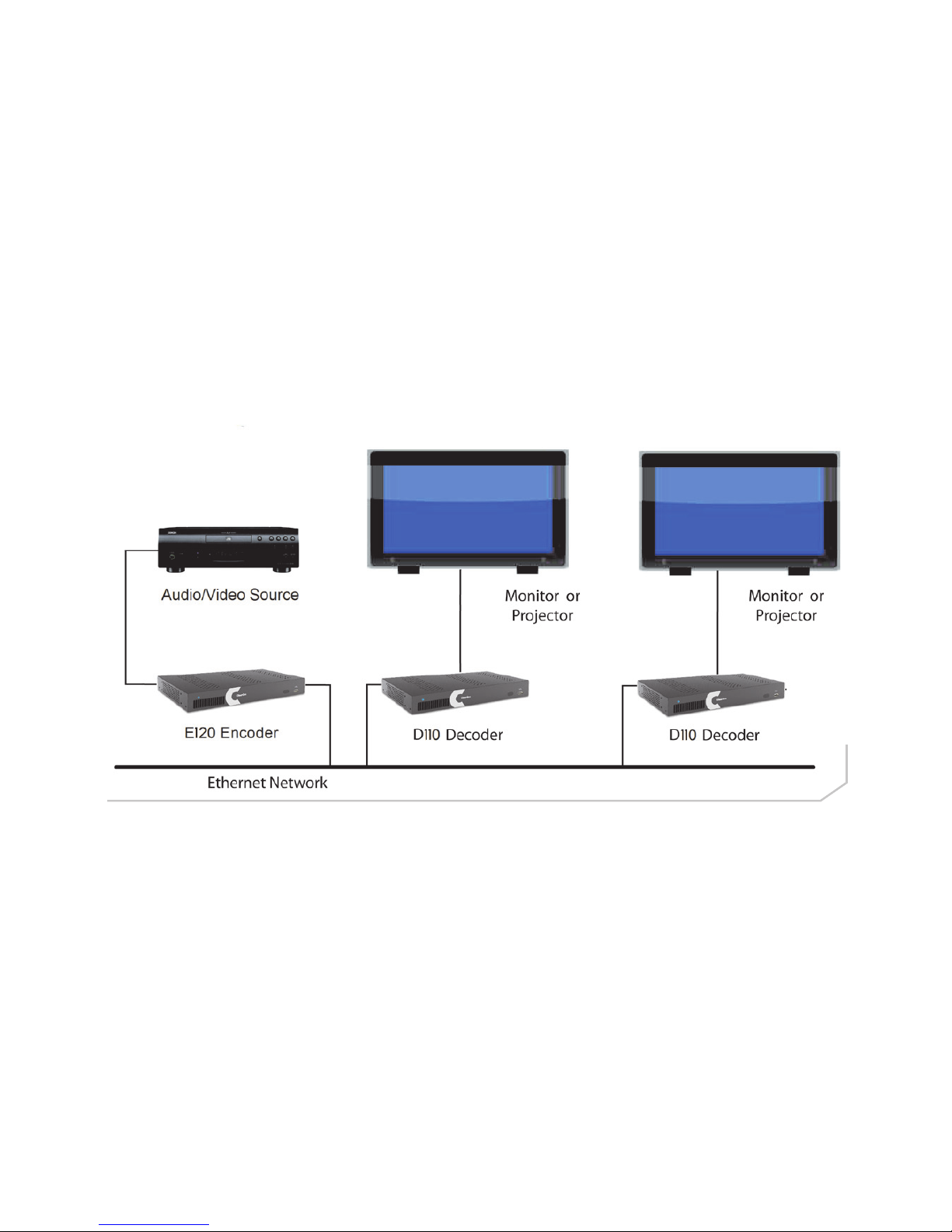

The VIEW Pro encoder receives input from an AV source device such as
BluRay Player, DVD Player, etc. and distributes it over a StreamNet TCP/
IP network using a standard 100 Mbit or Gbit Ethernet connection. The
decoders, as counterparts, are installed at the locations of the target
video displays. They operate together: the encoders providing the IP
data for the decoders to deliver to the displays.
CONNECTING THE ENCODER

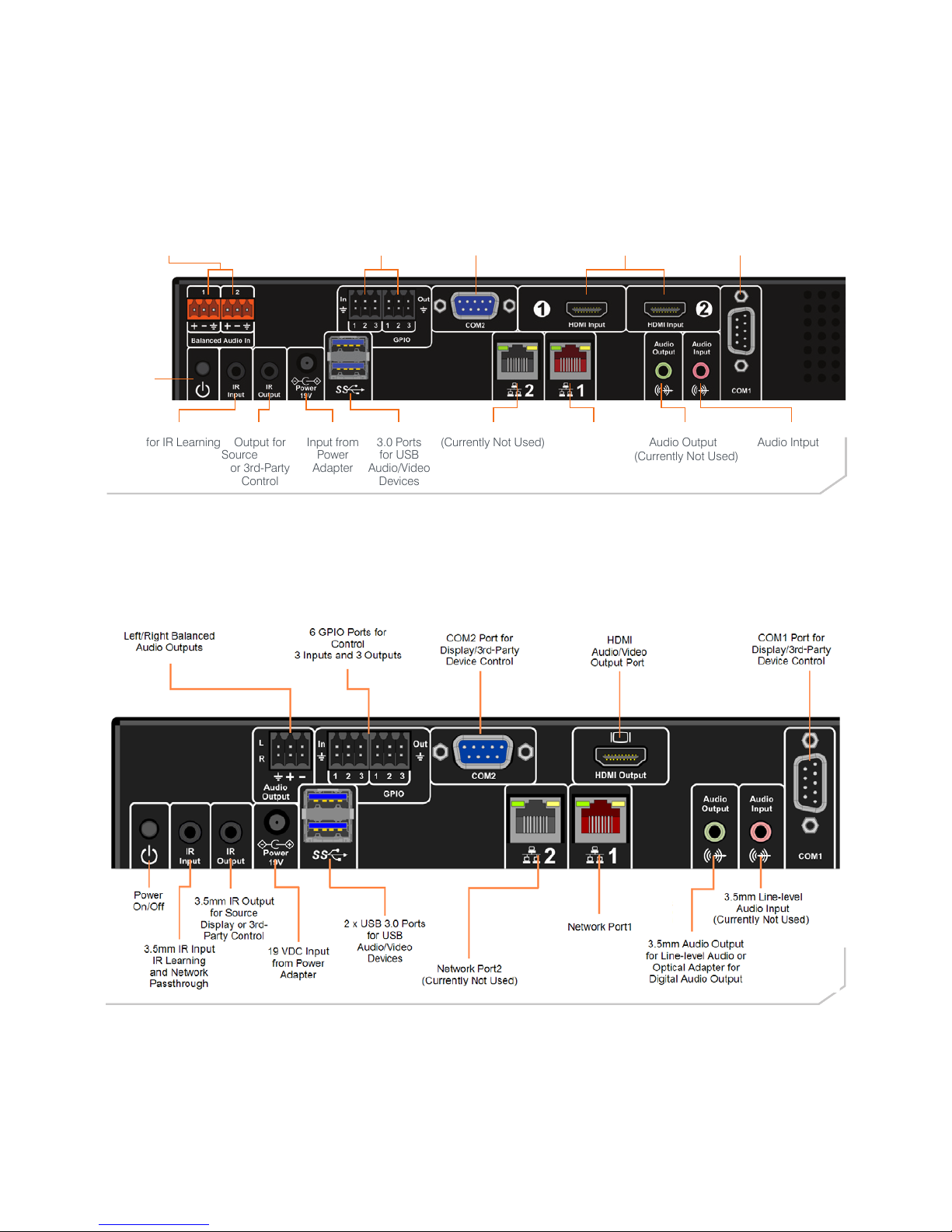

The VIEW Pro E120 Encoder connections are from the back of the unit as
shown in the following diagram:
VIEW PRO ENCODER/DECODER
8
Left/Right
Balanced
Audio Intputs
COM2 Port for
Source or 3rd-Party
Device Control
COM1 Port for
Source or 3rd-Party
Device Control
6 GPIO Ports
for Control
3 Inputs and
3 Outputs
3.5mm IR Input
for IR Learning
3.5mm IR
Output for
Source
or 3rd-Party
Control
Network Port2
(Currently Not Used)
Network Port1 3.5mm
Audio Output
3.5mm Line-level
Audio Intput
2 x USB
3.0 Ports
for USB
Audio/Video
Devices
19 VDC
Input from
Power
Adapter
Power
On/Off
2 HDMI
Audio/Video Port
DSP forced
air intake
(Currently Not Used)
CONNECTING THE DECODER
The VIEW Pro D110 Decoder connections are from the back of the unit
as shown in the following diagram:
