FieldShield FLATdrop
__________________________________________________________ Installation Manual
Direct: 763.476.6866 • National: 800.422.2537 • www
.SeeCleareld.com •
[email protected] Manual 018957 Rev C - July 2022

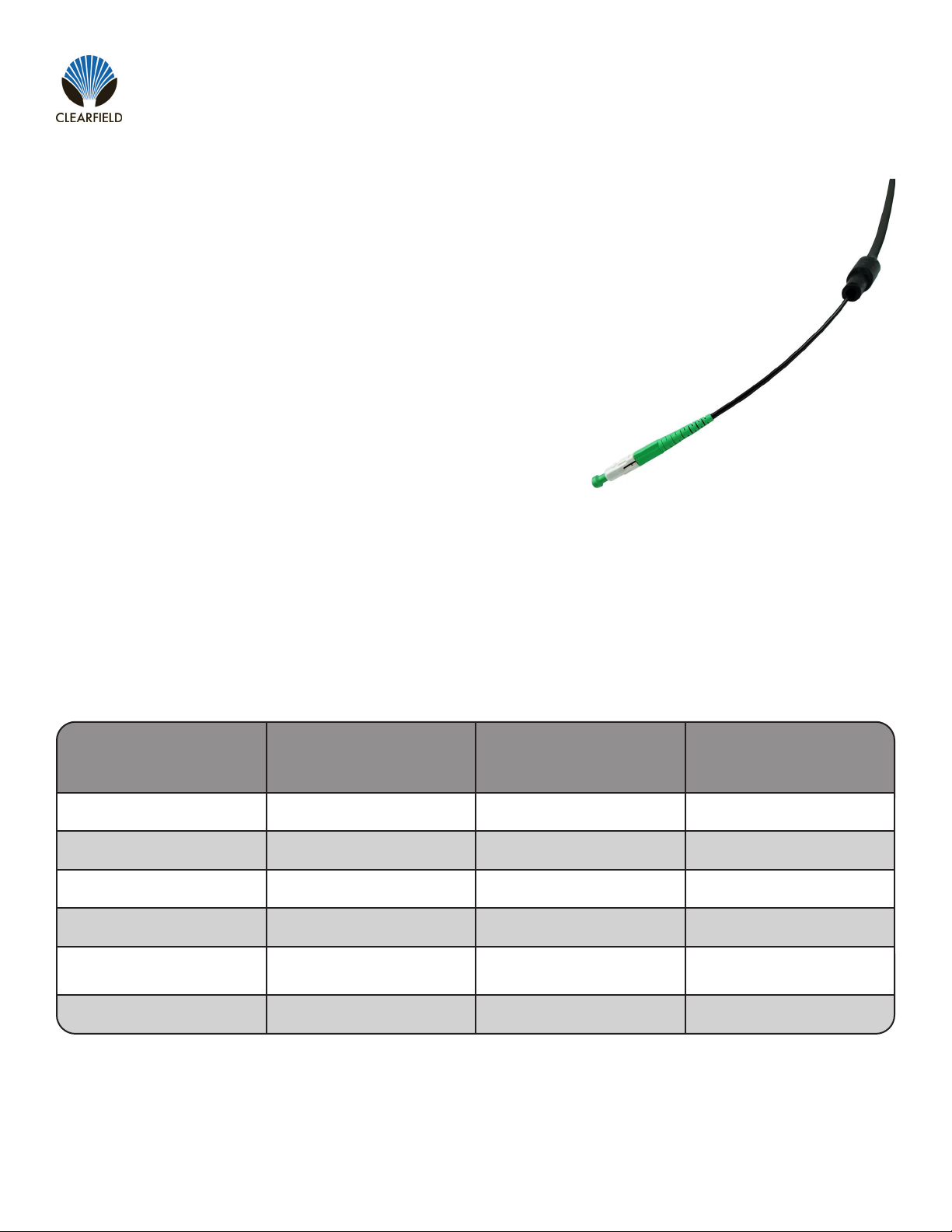

Application
Technical Specications
Description
FLATdrop options designed to save contractors and installers time

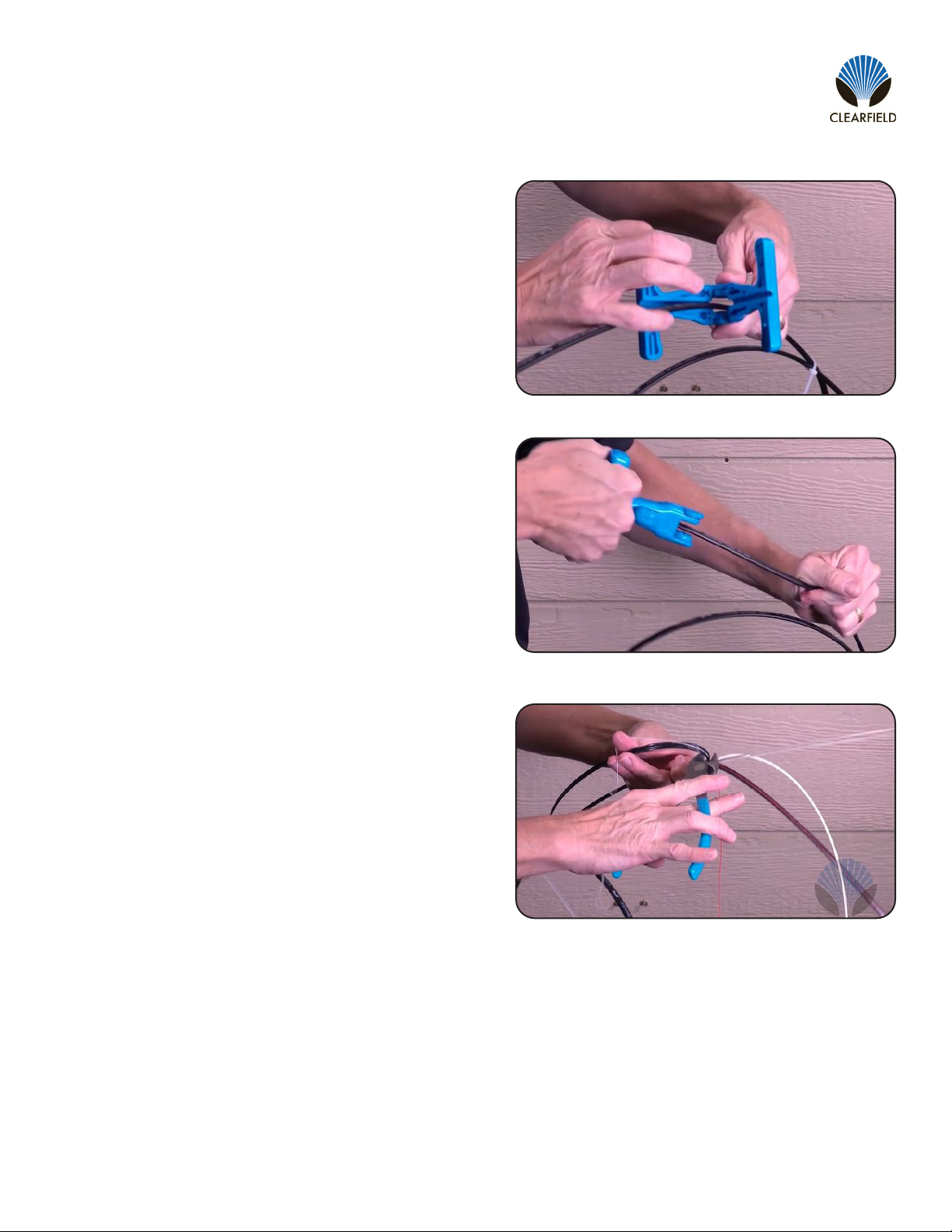

and space in almost any deployment environment. The peelable outer
sheath of FieldShield FLATdrops allow for easy access to the inner
ber elements (either 3mm or 900um) and each offer a large selection
of connector types in a pre-connectorized solution while allowing for up
to 100 feet of compact ber slack storage. Cleareld’s suite of at drop
solutions effectively meet the unique needs of your network deployment.
The FieldShield FLATdrop suite offers the rst pre-connectorized at
drop style cable to provide hardened environmental performance on a
peelable at drop style cable without the added cost or dependency on
the market’s existing bulky connector. Connectivity to access terminals

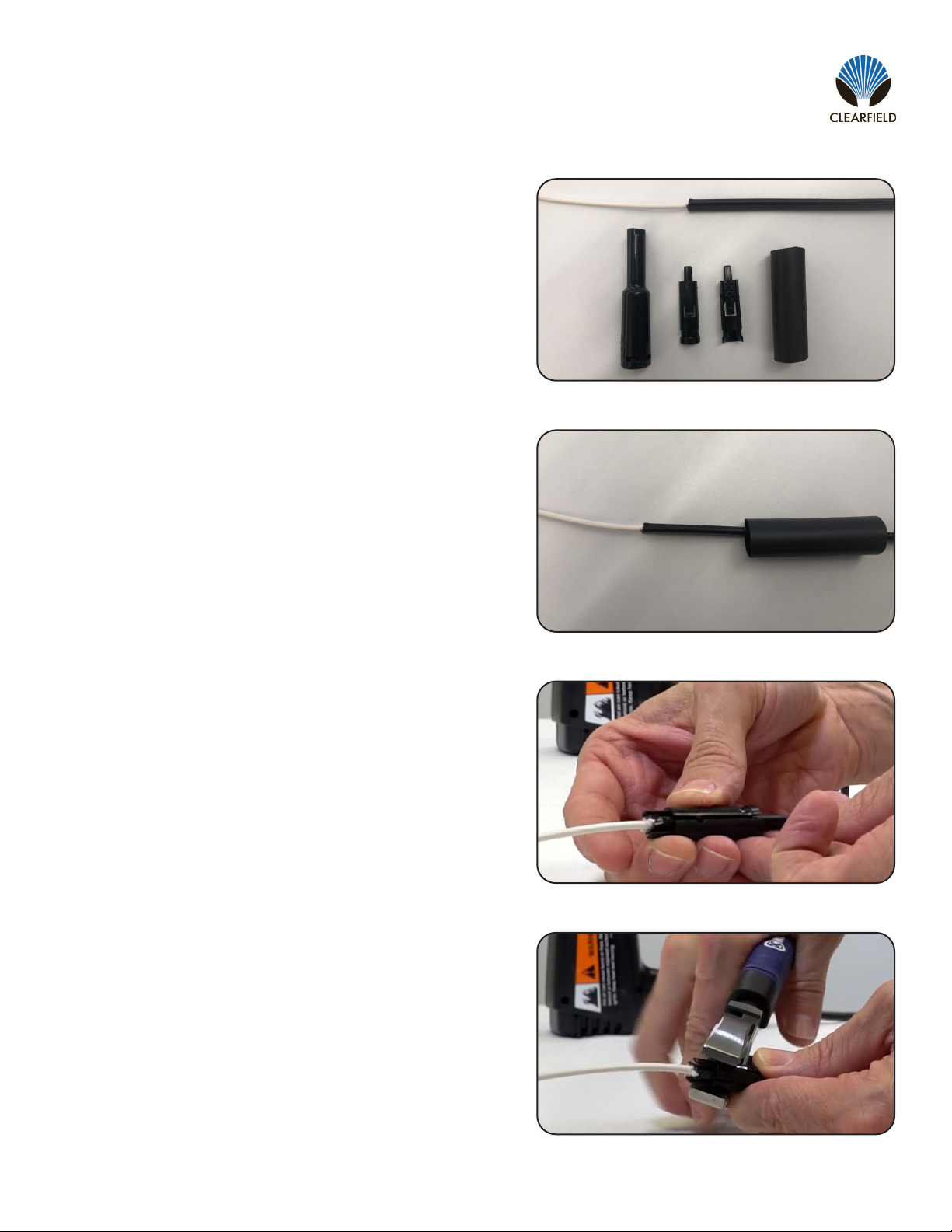

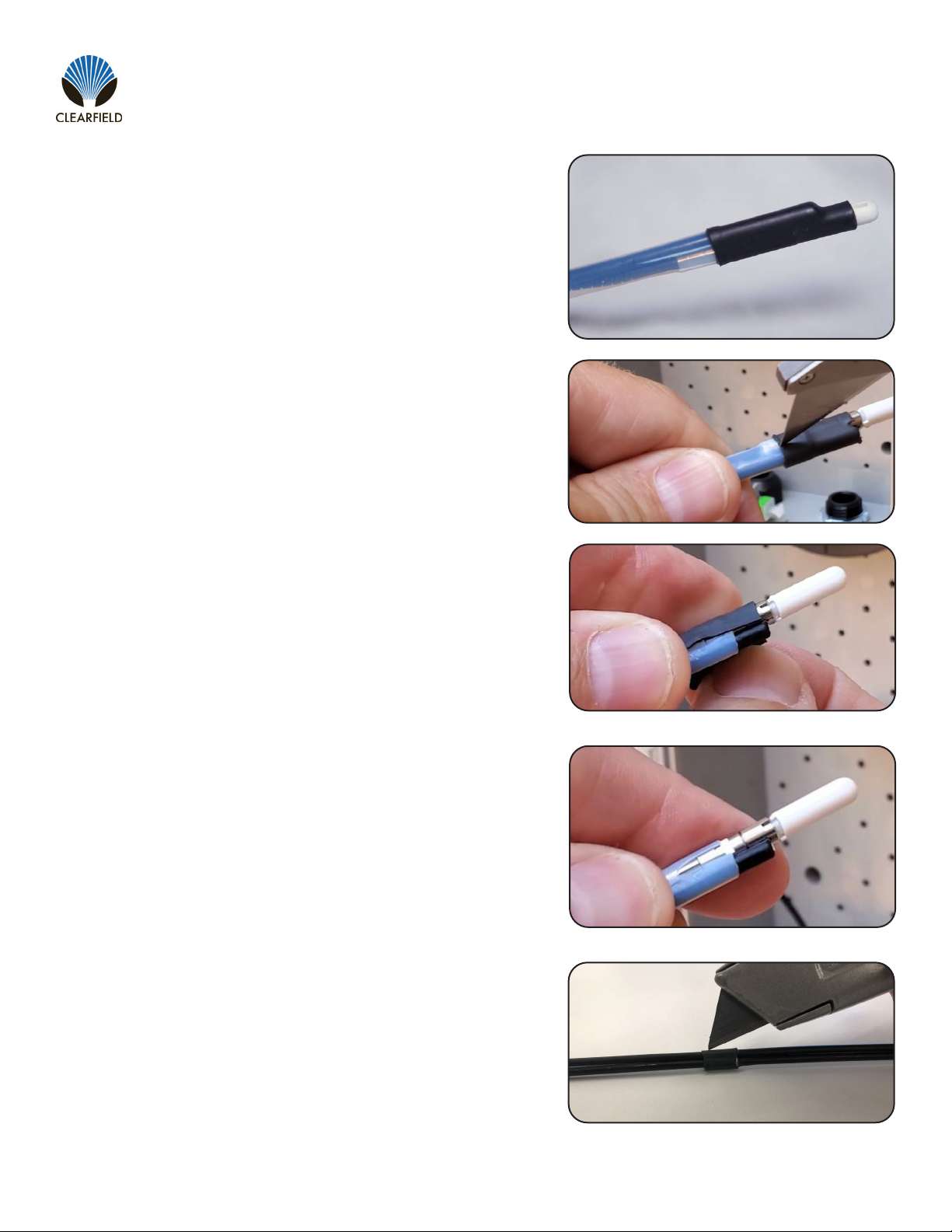

is achieved through the innovative FlexConnector, which snaps into the
FlexPort, providing an air-tight and water-tight connection.
The FieldShield FLATdrop suite offers the rst pre-connectorized at drop style cable to provide hardened environmental
performance on a peelable at drop style cable without the added cost or dependency on the market’s existing bulky con-
nector. Connectivity to access terminals is achieved through the innovative FlexConnector, which snaps into the FlexPort,
providing an air-tight and water-tight connection.
Standard Flat Drop
FieldShield Peelable FLAT-
drop (With and Without
Rip Cords)
FieldShield Peelable Small
Form Factor FLATdrop
Coil Diameter 12” 12” 8”
Slack Footprint of Sub-Unit N/A 100ft 100+ ft
Sheath Jacket Dims 8.3mm x 4.7mm 8.3mm x 4.7mm 5.4mm x 3mm
Sub-Unit 250μm 3mm 900μm
Connector Types SC/APC, SC/UPC, HFOC SC/APC, SC/UPC, HOFC,
Pushable
SC/APC, SC/UPC, HOFC,
Pushable
Deployment Environment Aerial, Buried, Conduit Aerial, Buried, Conduit Aerial, Buried, Conduit
