Clevertronics L10 LIFELIGHT PRO Istruzioni per l'installazione e il funzionamento

1942265

V1.0

24 February 2023

Instruction Sheet Template - V1.5 –Updated 09/06/2022

Clevertest Plus

Refer to the supplementary operation guide supplied with the product.

After Power ON, the Status LED on a Clevertest Plus enabled fitting will display a rapid Green or Red

flashing for a period up to 2 minutes.

Maintained fittings (LLIFEM-PRO-SM-WL-xx-yy-ww) cannot be scanned with a camera using the

CleverSparky App as the maintained light source interferes with the camera scanning function. To

and enter manually into CleverSparky.

Zoneworks, HIVE and DATA Monitored Options

Fittings with part numbers -ZW, -HV/-HVG, -DATA are fitted with Zoneworks communications modules

(nodes). These fittings are monitored using either Powerline Carrier Technology that utilize the power

cable to provide data communication, RF transceiver modules operating in the ISM band or a dedicated

data cable to/from data routers installed on a dedicated data trunk connected to a central Server (can also

be connected via Ethernet/Internet/Fibre). Zoneworks software on the server is used to monitor,

coordinate testing and collate test data from each fitting. Zoneworks Fittings can be commissioned by a

single push of the test switch or by scanning the supplied barcode. The LED Test Switch indicator provides

a multifunction indication of the status of the fitting during testing and normal operation:

Option

State

LED Operation

ZW, HV, HVG, DATA

Commissioned

LED on Solid (Green)

ZW, DATA

Un-commissioned

Batt plugged-in: yellow 1s, green 1s

Batt unplugged: red 1s, off 1s

HV, HVG

Un-commissioned

With network connectivity

Batt plugged-in: yellow 1s, green 1s

Batt unplugged: red 1s, off 1s

HV, HVG

Un-commissioned

Without network connectivity

Batt plugged-in: yellow 250mS,

green 250mS, yellow 250mS, green

250mS, green 1s

Batt unplugged: red 250mS, off

250mS, red 250mS,off 250mS, off 1s

ZW, DATA

Emergency Light Test In Progress

LED flashes at yellow 5s , 0ff 1s

HV, HVG

Emergency Light Test In Progress

LED flashes at yellow 1s , 0ff 1s

In the case of the DATA version a 2-way “figure 8” cable and terminal block facilitates the connection to

the DATA network via a multi-drop bus (daisy chain connection). For further information of installation of

a Zoneworks system, please refer to the Zoneworks Users Guide and Commissioning Guide (incl. DATA

version)

DALI EM Option

Luminaires with part numbers having -DALI are fitted with DALI modules (nodes)that facilitate connection

and integration to 3rd Party Lighting Control Systems. Before installing the -DALI luminaire, please confirm

that the Lighting Control System has the capability to monitor DALI Emergency Luminaires. The -DALI

fitting will be addressed and configured into the control system by the Lighting Control System

Commissioning Technicians and not Clevertronics.

State

LED Operation

Commissioned/ Un-commissioned

LED on Solid (Green)

Emergency Light Test in progress

LED flashes at 1s On (Yellow) & 1s Off

“IDENTIFY COMMAND”

Lamp and Status LED Flash for 30 seconds

A 2-way “figure 8” cable and terminal block facilitates the connection to the DALI network. DALI

connections are marked as Da Da.

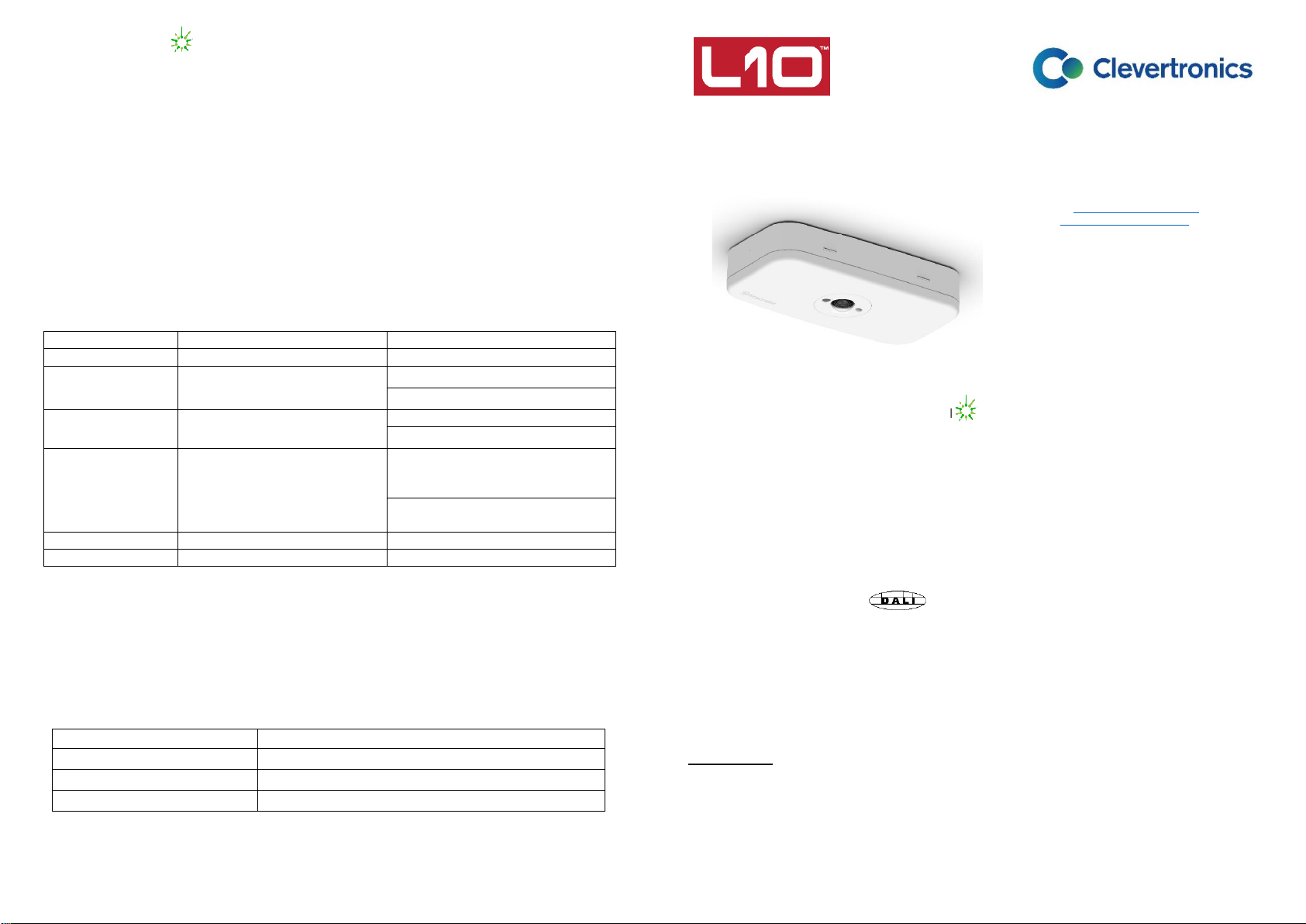

L10™LIFELIGHT PRO Surface Mount

Emergency Luminaire –Warehouse Lens

Installation & Maintenance Instruction Leaflet

Victoria (Head Office & Manufacturing)

Website: www.clevertronics.com.au

Email: info@clevertronics.com.au

Phone: +61 3 9559 2700

Fax: +61 3 9559 2799

New South Wales

Phone: +61 2 8805 6400

Fax: +61 2 8805 6444

Queensland

Phone: +61 7 3442 9700

Fax: +61 7 3442 9777

South Australia/Northern Territory

Phone: +61 8 8301 8800

Fax: +61 8 8351 8286

Western Australia

Phone: +61 8 9207 0000

Fax: +61 8 9207 0088

New Zealand

Phone: +64 800 548 448

Designed in Australia to comply with the

requirements of AS2293.3: 2018, AS CISPR15: 2017

NOTE: Standard product codes with this symbol are

enabled with Clevertest Plus capability. Please refer to

the operation guide supplied with the product for details.

Models:

LLIFEx-PRO-SM-WL-xx-yy-ww

Testing:

Options:

Manual Test

xx = Blank

Tamper Proof

yy=TP

Zoneworks

xx = ZW

Colour, Black

ww=BLK

Z/W DATA

xx = DATA

Non-Maintained

x=Blank

Zoneworks HIVE

xx = HV/HVG

Maintained

x=M

DALI Registered.

xx = DALI

Spare Parts:

1530231

Replacement Battery

8050880

Replacement Emergency LED Board

8002924

Replacement Emergency Driver

Important:

It is illegal for anyone, except for a licensed electrician to install or maintain this product. Before installation,

ensure that the electricity supply has been switched off and isolated. Installation must be carried out in

accordance with the relevant Australian and International Standards.

1942265

V1.0

24 February 2023

Instruction Sheet Template - V1.5 –Updated 09/06/2022

Installation:

Please follow the steps below to correctly install the product;

•Remove the Lid from the Base by using a flat screwdriver to release the snap fits (see below)

•Cut/Drill out Cable Entry points (A=End Entry, B=Rear Entry)

•Drill out the required fixing holes on the Base (see image below, C=Junction Box fixing)

•Mark holes on mounting surface (use drilled out holes on the Base as a template)

•Insert Mains Cables & mount Base using appropriate fixings to ensure a secure installation

(mounting points must be sealed appropriately to ensure proper protection from water ingress)

•Terminate the Mains Cables into terminal block. Ensure Active(Live) / L & Neutral / N wires are

connected as per Terminal Block Label.

•Re-attach Lid Assembly, ensuring to align Mains Connector Pins into Terminal Block

•If the CTP capabilities are activated, please affix the CTP status label to a visible surface and Four

Segment Marking on the product will include an ‘’F’’ in third segment block.

Networking:

When installing the product on a monitored network, (ZONEWORKS, HIVE, DATA, DALI) simply insert

the relevant Smart Node PCA.

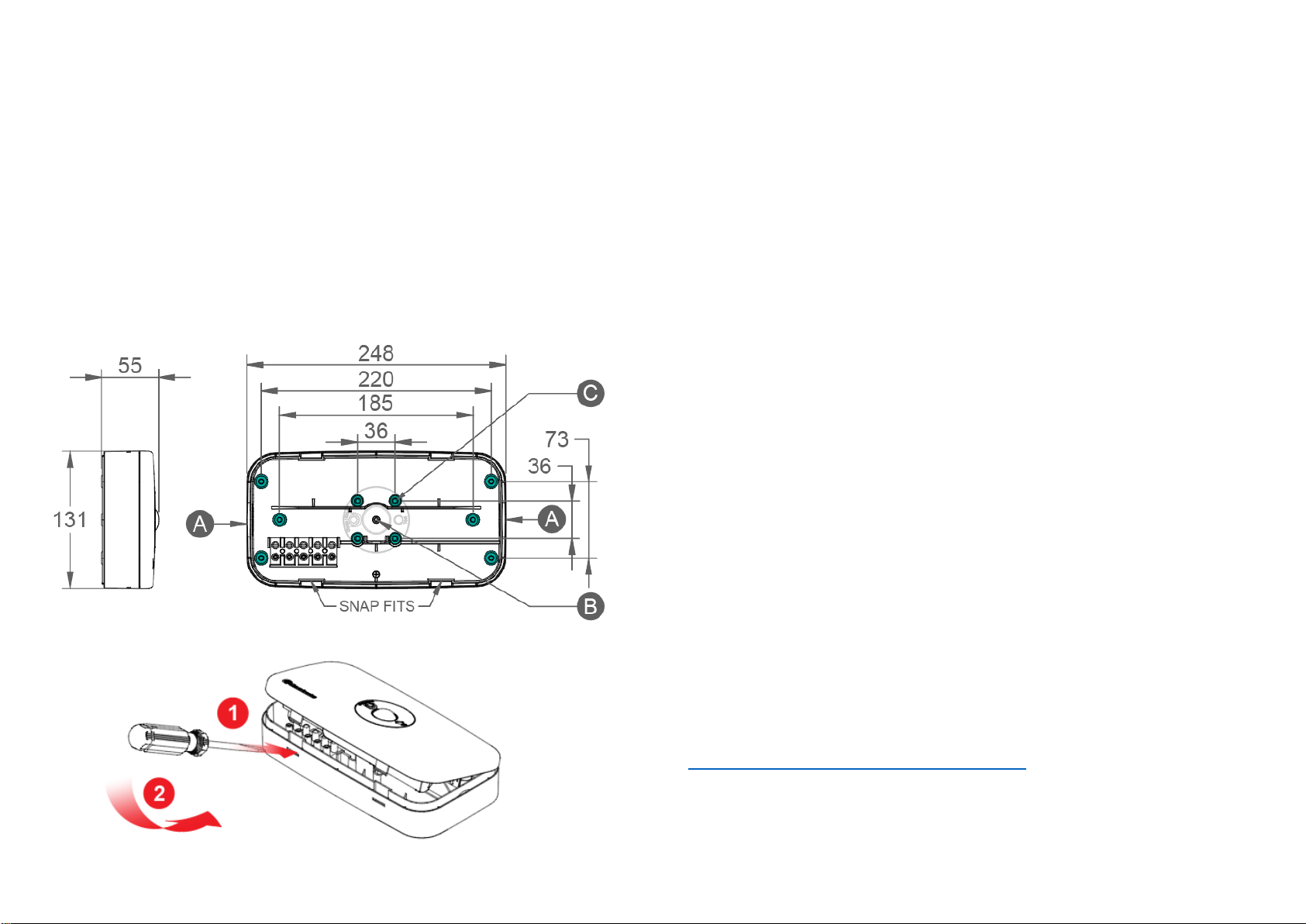

Dimensions:

LID Removal:

Testing:

Once connected to the 240V mains supply, the unit must be allowed to charge the battery for at least 24

hours. Conduct the following tests:

•For the first test, the emergency lamp must remain illuminated for at least 2 hours after

disconnection from the mains supply.

•Subsequent tests require the unit to illuminate for at least 90 minutes. The results of all tests are

required to be recorded in a service logbook, which is to be kept on-site at all times. If the unit fails

to remain illuminated for the requisite time, remedial action must be taken to repair the situation

and once completed, the unit must pass a subsequent test. For more specific information, please

refer to the current edition of the AS 2293.3 Standard.

Battery Replacement:

1. Prior to any work, isolate the power to the luminaire that requires battery replacement.

2. Open the fitting by removing the lid, which can be done by inserting a flat screw driver and lever at

the snap fit points.

3. Remove the battery connector from the Emergency Driver board.

4. Remove the battery from the lid, pressing out one end first.

5. Replace battery, reconnect battery connecter to Emergency Driver board.

6. Reinstall the Lid, ensure both ends are clipped in.

Trouble Shooting:

Below are a list of common problems and their possible causes.

Fault: The Green LED Test Switch indicator is not illuminated.

Check: A.C. is connected and is turned on.

Battery is connected

Test Switch for damage.

Fault: Lamp does not illuminate in emergency mode.

Check: A.C. is connected.

Lamp is correctly inserted.

Battery is connected

Fault: Lamp illuminates in emergency mode, but only stays on for a short period.

Check: Battery has been allowed to charge for at least 24 hours.

Battery for damage.

Rated Emergency Lumen Output in accordance with AS2293.1, (refer to

spacing tables for installation positions):

Refer to the Technical Label for classification information.

Caution:

On many building sites, power circuits may be cut off in an uncontrolled and repetitive basis during

construction. As a result, any Exit & Emergency Units, on these circuits, will have their batteries

discharged or “cycled”. The battery in this fitting has been selected to give excellent long-life

performance in a controlled AS2293 testing environment. Excessive battery cycling will reduce through-

life performance and may lead to premature battery failure. Battery warranty claims, as a result of such

abuse, are specifically EXCLUDED from Clevertronics warranty terms.

Warranty:

For Product Warranty information and Terms and Conditions of Sales please refer to our website

http://clevertronics.com.au/terms-conditions-sale-australia-nz/

This luminaire (with reinforced insulation between control/LED terminal and AC Supply) contains non-

user replaceable light source –to be replaced (if required) by the manufacturer or his service agent or a

similar qualified person.
