Coby CSTV-130 Manuale utente
R
Wireless TV Speaker
Altavoz de TV inalámbrico
User Manual Manual de Usuario
CSTV-130
EN ... 01
20
...
ES

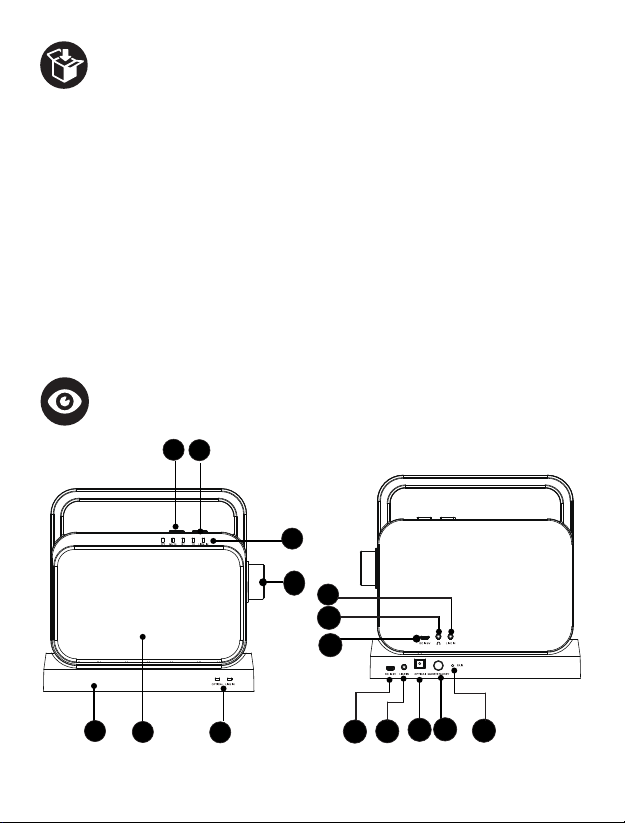

In the box
Overview
• 1 x CSTV-130 Wireless TV Speaker
• 1 x Speaker Dock
• 1 x AC Power Adapter
• 1 x RCA Cable
• 2 x Micro USB Cable
• 1 x Optical Cable
• 1 x AUX Cable
• 1 x User Manual
?
7
5
3
2
1
48
11
10
9
12 14 15
13
6
EN 1
Dock
TV Speaker
Dock LED Indicators - Indicates status of the Dock.
Power/Volume Knob - Turns the Speaker on/o and adjusts
volume level.
Speaker LED Indicators - Indicates status of the Speaker,
including 5 LEDS to indicate battery status, Mute Mode, Blue-
tooth mode, TV mode, Aux In mode.
Mode Button (Speaker) - Press repeatedly to toggle between
the Speaker’s Bluetooth mode, TV mode and Aux In mode.
Mute Button - Press to mute or resume sound for playback.
3.5 mm AUX Input Jack (Speaker) - For playing music from
headphone output or AUX Output of another device.
Headphone Output Jack - For listening TV audio with headphones.
Speaker Micro USB Charging Port -
For charging the Speaker.
Dock Power Input Port (Micro USB)-
Power input for the Dock.
3.5 mm AUX Input Jack (Dock) - For playing music from the
headphone output or AUX Output of another device.
Optical Input Port - Alternate connector to TV audio.
Mode/Standby Button (Dock) - Press repeatedly to toggle
between TV Mode and Aux In Mode, press and hold to enter
Standby Mode, the LED Indicator light of the dock will flash
slowly and the speaker sound will be muted. You can press
and hold this button again to resume Speaker sound.
Pair/Unpair button - For manually pairing the Speaker with
the Dock or disconnecting the Speaker with the Dock.
7
5
3
2
1
4
8
9
10
11
12
13
14
15
6
EN 2
Charging your Speaker
Method 1. Connecting to an AC Power source
?
Step 1. Connect the included power adapter to the USB end of the
included Micro USB cable.
Step 2. Plug the Micro USB end of the connected AC power cable to
the Speaker Micro USB Charging port, or to the Dock Power Input
Port and place the TV Speaker onto the Dock with the two metal pins
aligned.
Step 3. Plug the other end of the power cable to an AC power source
to begin charging.
There are two methods for charging the TV Speaker.
AC power
source
AC power
source
Dock Power
Input Port
Or
Speaker
Micro USB
Charging port
Power
Adapter
(Included)
USB Cable
(Included)
EN 3
Method 2. Connecting to a USB power source
Step1. Connect one end of the included Micro USB Cable to the
Speaker Mirco USB Charging Port, or to
the Dock Power Input Port
(5V, Micro USB Port) and place the TV Speaker onto the Dock.
Step 2. Connect the other end of the cable to a USB power source
to begin charging.
Battery status indication on Speaker LED
Slowly flashing green
Steady red
O
Charging
Fully charged
Low battery power
Dock Power
Input Port
Or
Speaker
Micro USB
Charging port
USB power source
USB power source
30
Note: Some TVs come with USB power output port, you can also direct-
ly plug the USB end of the included Micro USB cable into the TV’s USB
port to charge the speaker. Make sure your TV’s USB power output is
5V/1A so that it can power the dock on, refer to your TV’s user manual.
EN 4
Powering On/Off
Pairing your Speaker and the Dock
To power on the Speaker, turn the Power/Volume button clockwise
until you hear a click.
To power o the Speaker, turn the Power/Volume button counter
clockwise until you hear a click.
?
AUX
IN
1. Power the Speaker on/o
2. Power the Dock on/o
When the Speaker and Dock are both powered on, they will pair
together automatically. If they are successfully paired, you will
hear the sound for the audio playback from the TV speaker while
you connect the dock to an audio source.
EN 5
To power on the dock, connect the supplied charging cable to the
DC 5V Power Jack of the Dock and to an power source. If the Dock
is powered on, the Dock LED Indicator will light up.
To power o the Dock, disconnect the charging cable from the
power source.
To set the Dock to Standby Mode, press and hold the Mode/Standby
Button on the Dock until the Dock LED Indicator slowly flashes.
TV or DVD player
Optical Cable
Rubber
protector nubs
The Optical
Port of the
Dock
Optical Port
1.
Connect to the Optical port of the Dock through an optical cable
Connections
Step 1. Pull out and remove the rubber protector nubs on both ends
of the supplied Optical Cable.
Step 2. Connect the included Optical Cable to the Optical Port of the
Dock and to your TV’s Optical Port.
Step 3. Press the MODE Button on both the Speaker and Dock to sel
ect TV Mode, the TV LED Indicator on both the Speaker and Dock
will turn orange.
Step 4. Make sure the audio settings on your connected TV are set to PCM
or Optical audio format.
Note: If your TV has the sound settings set to Dolby
or another format, your Speaker may not function properly. You must change
the sound output to PCM or Optical audio. Refer to your TV’s user manual.
There are four methods available for connecting the TV speaker, you
can use any of the connection methods listed down to connect the
TV speaker to your desired audio source.
EN 6
RCA Audio
Out Ports
2.
Connect to the Line In port of the Dock through an AUX
cable or AUX+ RCA cable
AUX Cable
AUX Cable
RCA Cable
The Line In Port
of the Dock
The Line In Port
of the Dock
Step 1. Connect one end of the included AUX Cable to the Line In (AUX
In) port of the Dock and to the Headphone Output or AUX Out port of
your device (Like your TV, DVD player, smart phone, laptop etc.).
AUX Out
Port
If your TV or DVD player has RCA Audio Out ports, you can use
the included RCA cable (Red colored connector for right audio
channel, white colored connector for left audio channel) to connect
with the AUX cable, as shown in the following figure below.
EN 7
LR
TV or DVD player
TV or DVD player
The Line In Port
of the Speaker
3.
Connect to the Line In port of the Speaker through an
AUX cable or AUX+ RCA cable
Step 3. Make sure the audio settings on your connected TV are set
to PCM or Optical audio format.
Step 2. Press the Mode Button repeatedly on the Dock to select
Line In Mode and on the speaker to select TV Mode, the Line In LED
Indicator on the Dock will turn green, the TV LED indicator on the
speaker will turn orange.
AUX Cable
Headphone
Output Port
Smart
phone
Step 1. Connect one end of the included AUX Cable to the Line In (AUX
In) Port of the Speaker and to the Headphone Output or AUX Out port
of your device (Like your TV, DVD player, smart phone, laptop etc.).
EN 8

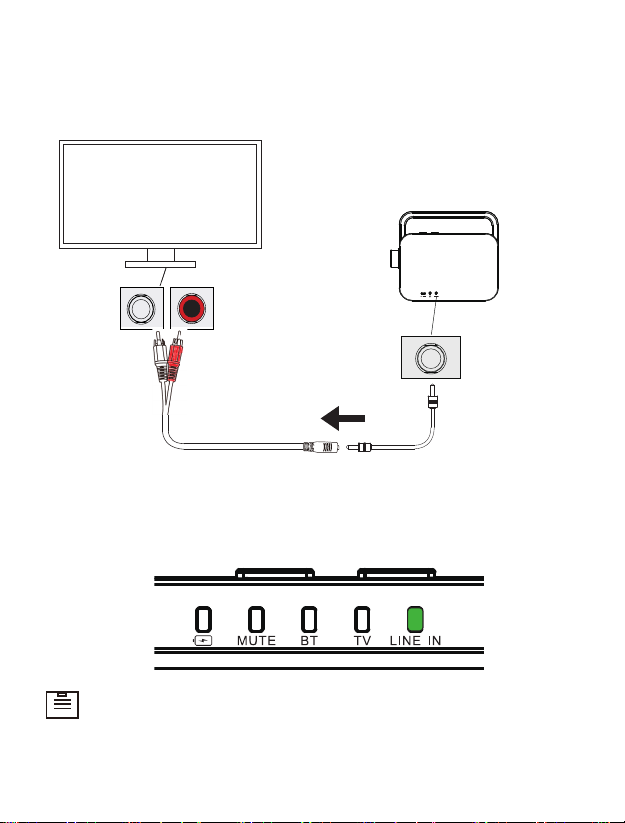

If your TV or DVD player has RCA Audio Out ports, you can use the
included RCA cable (Red colored connector for right audio channel
port, white colored connector for left audio channel port) to connect
with the AUX cable, as shown in the following figure below.
RCA Audio Out
Ports
RCA Cable AUX Cable
The Line In Port
of the Speaker
Step 2. Press the Mode Button repeatedly on the Speaker to select
Line In Mode, the Line In LED Indicator on the Speaker will turn green.
Note: When an AUX cable is connected, it will automatically
unpair from any actively paired Bluetooth® device.
EN 9
LR
TV or DVD player
