Security and Remote Start Installation Guide

for models:

CA 6151

CA 6551

CA 6551 SST

2 2010AudiovoxElectronicsCorporation.Allrightsreserved.

Before You Begin ......................................................................................4

Wire Connection Guide ...........................................................................5

4 Pin Main Harness ...................................................................................7

6 Pin Start Harness...................................................................................8

6 Pin Output Harness .............................................................................10

8 Pin Input Harness................................................................................. 11

4 Pin Alternate Output Harness .............................................................14

3 Pin Door Lock Output Harness ...........................................................16

Additional Ports ......................................................................................20

Antenna / LED / Programming Port .......................................................20

DBIPort....................................................................................................20

Tracking Port ...........................................................................................20

Set Up & Programming..........................................................................21

Transmitter Programming........................................................................21

Manual Feature Programming.................................................................21

Programming Feature Banks ..................................................................22

Tach Programming ..................................................................................23

Smart Tachless Mode .............................................................................24

Adjusting the Shock Sensor ..................................................................24

Testing the Shock Sensor ......................................................................24

Chirp Delete - User Accessible..............................................................24

Dome Light Delay / Theater Dimming .....................................................25

Table of Contents

32010AudiovoxElectronicsCorporation.Allrightsreserved.

Feature Descriptions ............................................................................. 25

Transmitter Button Functions .............................................................30

Security Trigger Zones .........................................................................31

Remote Start Shutdown Diagnostics ................................................31

System Layout.........................................................................................32

4 2010AudiovoxElectronicsCorporation.Allrightsreserved.

PROFESSIONALINSTALLATION

STRONGLYRECOMMENDED

Installation Precautions:

Roll down window to avoid locking keys in vehicle

during installation

Avoid mounting components or routing wires near

hot surfaces

Avoid mounting components or routing wires near

moving parts

Tape or loom wires under hood for protection and

appearance

Technical Support (800) 421-3209

or go to

http://techservices.codesystems.com

Use a Digital Multi Meter for testing and verifying

circuits. DO NOT USE A TEST LIGHT, OR

"COMPUTER SAFE PROBE" as these can set off air

bags or damage vehicle computers.

Use grommets when routing wires through metal

surfaces

BEFORE YOU BEGIN

52010AudiovoxElectronicsCorporation.Allrightsreserved.

6 Pin Start Harness

4 Pin Main Harness

6 Pin Output Harness

1WHITE/RED PARKING LIGHT INPUT

2WHITE PARKING LIGHT OUTPUT

3BLACK GROUND

4BROWN SIREN OUTPUT ( + )

4 PIN MAIN

1PURPLE STARTER OUTPUT - MOTOR SIDE

2RED BATTERY 12V ( + )

3ORANGE ACCESSORY 1 ( + )

4PINK/WHITE IGNITION 2 ( + )

5RED/WHITE BATTERY 12V ( + )

6PINK IGNITION 1 ( + )

6 PIN START

6 2010AudiovoxElectronicsCorporation.Allrightsreserved.

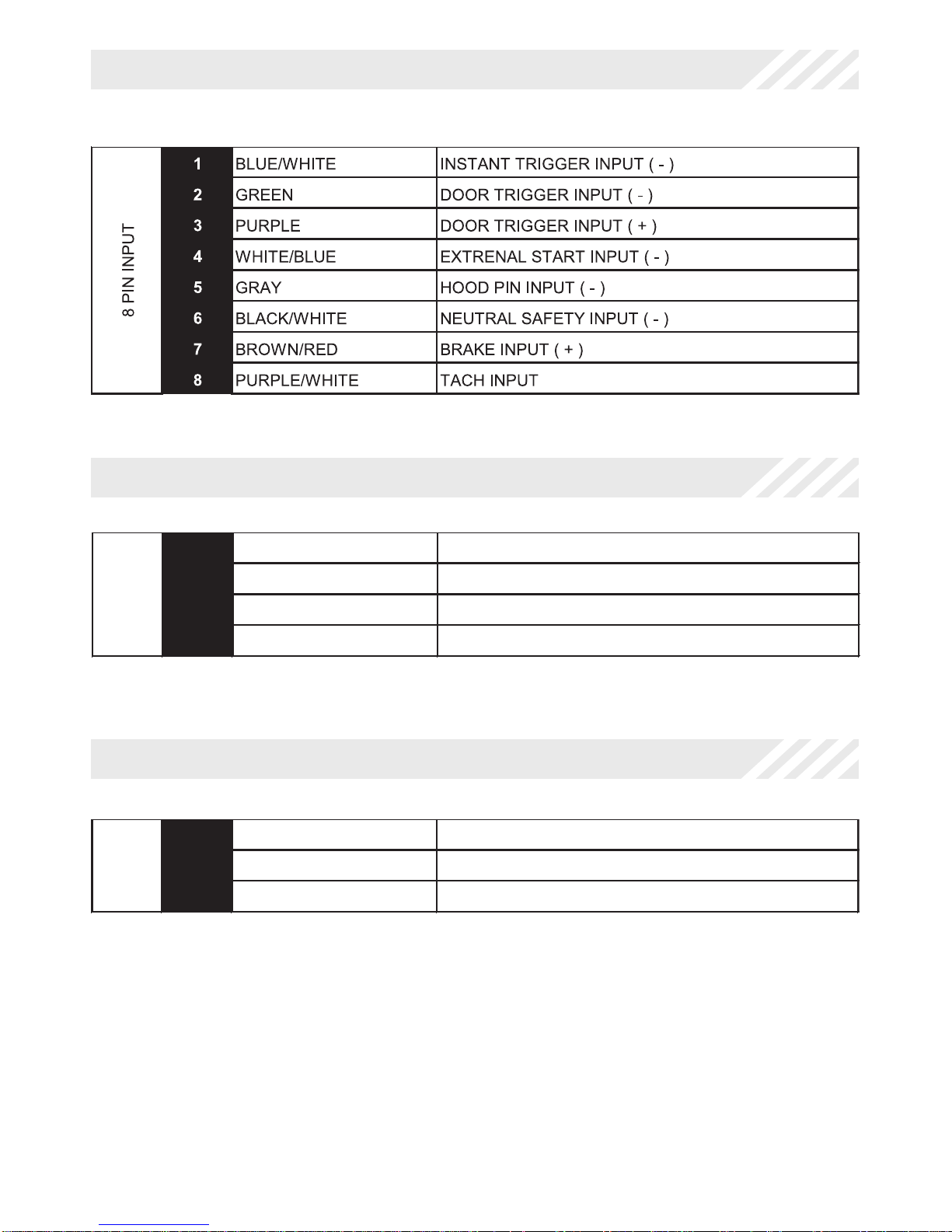

8 Pin Input Harness

3 Pin Lock Output Harness

4 Pin Alternate Output Harness

1BLUE UNLOCK ( - )

2OPEN

3GREEN LOCK ( - )

3 PIN

LOCK

1LT GREEN/BLACK FACTORY DISARM / PULSE BEFORE START ( - )

2LT BLUE FACTORY ARM / PULSE AFTER START ( - )

3GREEN/WHITE PULSE AFTER SHUTDOWN ( - )

4BLACK/YELLOW PULSE DURING CRANK ( - )

4 PIN

ALTERNATE

OUTPUT

72010AudiovoxElectronicsCorporation.Allrightsreserved.

3 BLACK GROUND

Connect the BLACK wire to a solid chassis ground point using a ring terminal and

self tapping screw (not supplied). Scrape away paint from the grounding point to

ensure a good connection. The recommended grounding point is a metal surface

in the driver’s side kick panel area.

NOTE: Do not ground the BLACK wire with any other vehicle components.

4 Pin Main Harness

1 WHITE/RED PARKING LIGHT INPUT

2 WHITE PARKINGLIGHTOUTPUT

Locate the parking light output wire at the vehicle’s light switch.

Verification: This wire registers positive voltage when the parking lights are

turned on.

Positive switching Parking Lights:

Connect the WHITE/RED wire to a 15 Amp max fused battery source.

Connect the WHITE wire to the parking light output wire.

Negative switching Parking Lights:

Connect the WHITE/RED wire to a good chassis ground.

Connect the WHITE wire to the parking light output wire.

4 BROWN SIREN OUTPUT ( + )

Locate a suitable mounting location in the engine compartment for the siren, away

from moving parts.

With the bell of the siren aiming downwards, secure the siren in place using self

tapping screws, being careful not do drill into any hoses, wiring or components.

Connect the BLACK siren wire to a chassis ground using a ring terminal and self

tapping screw (not supplied).

Route the BROWN siren output wire from the control module through the firewall

and connect to the RED wire on the siren.

NOTE: Be sure to loom the siren wires, and seal the grommet.

8 2010AudiovoxElectronicsCorporation.Allrightsreserved.

3 ORANGE ACCESSORY 1 ( + )

Locate the vehicle’s accessory wire at the ignition switch.

Verification: This wire registers voltage when the key is turned to ACC

(Accessory) and the ON (or RUN) position. The voltage drops out when the

key is turned to the START(or CRANK) position.

Connect the ORANGE wire to the vehicle’s accessory wire.

6 Pin Start Harness

1 PURPLE STARTER OUTPUT ( + )

Locate the vehicle starter wire.

Verification: This wire registers voltage only when the key is turned to the

START position. Cut the vehicle's starter wire in half when installing the

starter kill relay.

Verification after starter wire is cut:

KEY SIDE of starter wire registers voltage when the key is turned to the

START position.

MOTOR SIDE of starter wire registers no voltage.

Connect the PURPLE wire to the vehicle starter wire, use the MOTOR SIDE of the vehicle

starter wire when installing the starter kill relay.

2 RED BATTERY 12V ( + )

Locate 1 of the vehicle’s constant 12 Volt battery wires at the ignition switch.

Verification: This wire will register ( + ) voltage in all positions of the ignition

switch.

Connect the RED wire to the constant 12 Volt battery wire.

NOTE: Remove all fuses until all connections are made.

92010AudiovoxElectronicsCorporation.Allrightsreserved.

4 PINK/WHITE IGNITION2( +)

Locate the vehicle’s 2nd ignition wire at the ignition switch (if equipped).

Verification: This wire registers voltage when the key is turned to the ON (or

RUN) position, but not the ACC (Accessory) position. The voltage does not

drop out when the key is turned to the START(or CRANK) position.

Connect the PINK/WHITE wire to the vehicle’s ignition 2 wire.

Programmable output: IGN, ACC, Start.

6 PINK IGNITION1( +)

Locate the vehicle’s ignition wire at the ignition switch.

Verification: This wire registers voltage when the key is turned to the ON (or

RUN) position. The voltage does not drop out when the key is turned to the

START(or CRANK) position.

Connect the PINK wire to the vehicle’s Ignition wire.

This wire is also used for Ignition 1 Output.

5 RED/WHITE BATTERY 12V ( + )

Locate 1 of the vehicle’s constant 12 Volt battery wires at the ignition switch.

Verification: This wire will register ( + ) voltage in all positions of the ignition

switch.

Connect the RED/WHITE wire to the constant 12 Volt battery wire.

NOTE: Remove all fuses until all connections are made.

10 2010AudiovoxElectronicsCorporation.Allrightsreserved.

Fused +12 Volt

Battery Source

87a

86 85

BLUE/BLACK ActiveOutput

Wire

VATS Control Module

Matching Value

Resistor

Ignition Switch

VATS Wire #1, WHITE or WHITE/BLACK

VATS Wire #2, WHITE or VIOLET/WHITE

X CUT

GM VATS

Fused +12 Volt

Battery Source

87a

86 85

BLUE/BLACK Active Outpu

Wire

To Vehicle's 2nd or

3rd Ignition Wire

Jump To PINK

Ignition Output

Wire From

Control Module

Ignition 3 Accessory 2/3

Fused +12 Volt

Battery Source

87a

86 85

BLUE/BLACK Active Outpu

Wire

To Vehicle's 2nd or 3rd

Accessory Wire

Jump To ORANGE

Accessory Output

Wire From

Control Module

2 BLUE/BLACK IGNITION 3 / ACTIVE OUTPUT ( - )

The Active Output/Ignition 3 output wire provides a ground output when the remote

start function is activated and remains until 4 seconds after the remote start is

shutdown. The Ignition 3 output wire can be used for several functions listed

below. If this wire will be used for multiple application's a 1 amp diode is required

in-line with the stripe facing the control module.

Factory transponder (coded key) bypass.

General Motors VATS bypass, see the following diagram. Use an SPDT relay (not

supplied).

Ignition 3 output, see the following diagram. Use an SPDT relay (not supplied).

Accessory 2/3 output, see the following diagram. Use an SPDT relay (not

supplied).

6 Pin Output Harness

1 BROWN/BLACK HORN OUTPUT ( - )

Locate the vehicle’s horn wire.

Verification: This wire will register at positive voltage and register

ground when the horn switch is pressed.

Connect the BROWN/BLACK wire to the vehicle’s horn wire. This is a low current

output, 500mA.
