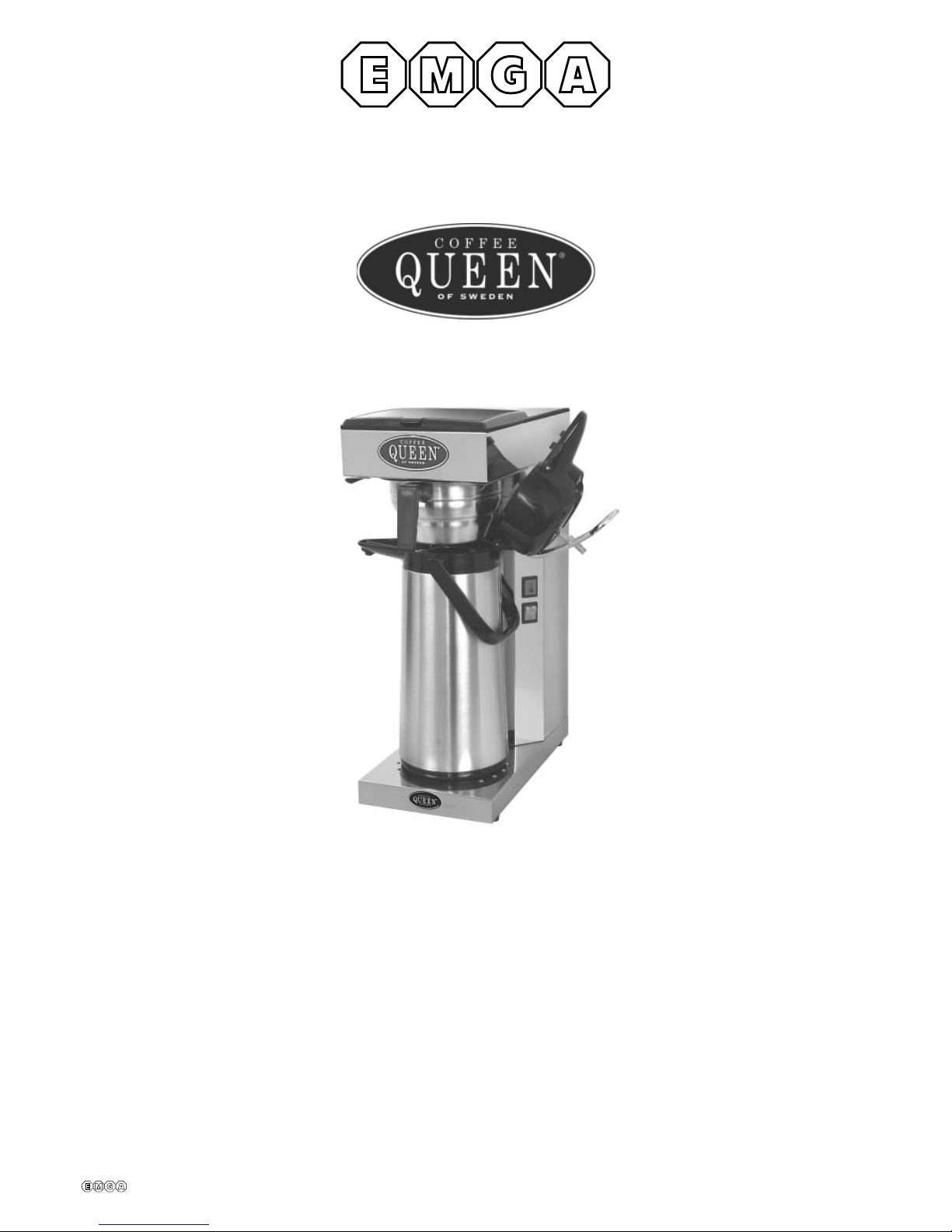

Coffee Queen 320.415 Manuale utente

Powersavingcoffeemachines.

Capacity 2,2 litres

Simpleinstallationandeasytouse.

User manual

COFFEE QUEEN



*320.415

320415 en ma 2012 04 1/11

320415 en ma 2012 04 2/11

2stnetnocfoelbaT/llåhennI.1 4-3snoitcurtsnI/gninvirksebsnoitknuF.2 6-5tratsdnanoitallatsn

I/gninttäsgnågihconoitallatsnI.3

8-7eeffocfogniwerB/effakvagninggyrB.4 01-9ecnanetniaM/dårlestökS.5

11tnatropmI/tgitkiV.6

21drägtÅ/llortnoK.7 31noituloselbissoP.7

GarantiochService

1. Table of contents

1. Table of contents 2

2. Instructions 3

3. Installation and start 4 - 5

4. Brewing of coffee 6 - 7

5. Maintenance 8 - 9

6. Important 10

7. Possible solution 11

320415 en ma 2012 04 3/11

.snoitcurtsnI.2

Starts brewing

Brewing lamp

Instructions

Coffeemachineformanualwaterfilling.

Inthetankthereisafloatwhichactivatesamicroswitchwhenwaterisfilled.

Microswitchactivateselementunitandbrewingstarts.

Duringbrewingthebrewlampislit.

Whenthetankisemptythecurrenttotheboileriscutandthebrewlampisswitchedoff.

Themachineisequippedwithanoverheatingprotectionwhichismanually restored when the

currenthas beencut.

320415 en ma 2012 04 4/11

3.1. Place the machine on a flat level

and waterproof surface.

3. 2.

CAUTION!

Connecttheplugtoaseparate wall socket.

240 V, 13 amp. (230 V, 10 amp).

3. Installation and start

Electrical coupling

Placing machine.

320415 en ma 2012 04 5/11

3. Installation and start

3.3.

Do the first brewings with water only

Tofillingupwatersystem.

1. Placefilterholderwithoutfilter and coffee.

Liftupthe cover and fill the machine with

freshtapwater.

Placethe pot under the filterholder.

Wait two minutes

Turnonswitch.

Thebrewlampwhichindicatesthat brewing is in

progressshallnow be lit and the water shall

startpouring throughthefilterholderintothethermos.

Brewing will take about 6 minutes.

320415 en ma 2012 04 6/11

4. Brewing of coffee.

4.1.

Placea90mmfilterinthefilter holder.

4.2.

Add coffee,restaurant/cateringgrounded coffee).

Makesurethat the coffee is evenly spread.

4.3.

Placethe filter holder.

4.4.

(2,2L).

Liftupthe cover and pour in a potof fresh tapwater

320415 en ma 2012 04 7/11

4.6.

Turnoncontrolswitch forbrewing.

Duringthebrewing, (about 6 minutes)thebrewlampislit.

4.5.

Place the thermos pot under the filterholder.

4. Brewing of coffee.

320415 en ma 2012 04 8/11

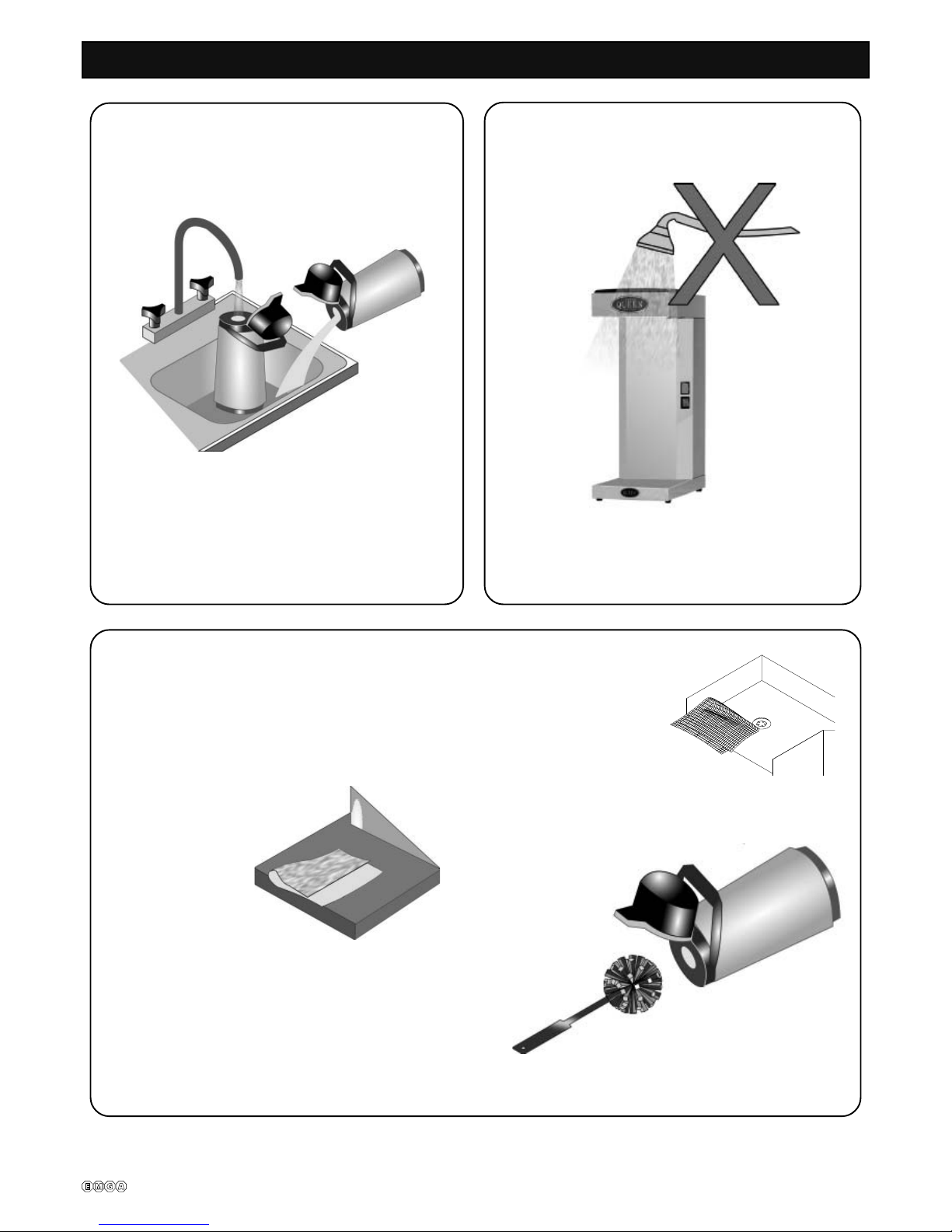

Before each brewing.

Rinsethethermos. CAUTION!

The machine should not be submerged in

water or washed in a dishwasher

Each day.

Washthe thermos andthefilterholderwith liquid solution for

coffeemachines.

Cleanthe spraynozzleandthe surrounding area.

Use a soft rag and liquid solution that does not scratch.

5. Maintenance

320415 en ma 2012 04 9/11

Each week.

Descaling and cleaning.

Pour 50 ml descaling / cleaning solution in a pot and fill it up with cold water.

Pour the mixture in the machine and proceed with a brewing without a filterpaper or coffee.

Rinse by brewing at least 3 times with clean water so that the particles from descaling

solution disappear.

Regular descaling will ensure optimum brewing performance and a longer life of the machine.

In areas with high level lime problem, a descaling filter should be mounted.

Surface cleaning. Use a soft rag and liquid solution that does not scratch.

5. Maintenance.

320415 en ma 2012 04 10/11

Important.

Themachine should standon a flat surface sothatitwillfunction properly.

Themachineshouldbeplacedon a water-proof surface so that any leakage is easily noticeable.

Donot leave the machineunattendedwhileusing.

Themachine must be disconnected fromelectricalsupplybeforeany maintenance.

All maintenance and installations must be done of an authorized personel.

6. Important.
