Multi Cell Wireless
Telephone User’s Guide
For Non-Comdial
Telephone Systems
This user’s guide applies to the following system and telephone models:
System Models:
• DXP systems with software 12A and later.
• DXP Plus systems with software 12A and later.
• FX Series systems with software 12A and later.
• DSU systems with software 20A and later.
• DSU II systems with software 4A and later.
Telephone Models:
• MCW-HS.
Contact your Comdial dealer for updates of this and other Comdial publications.
Comdial strives to design the features in our communications systems to
be fully interactive with one another. However, this is not always possible,
as the combinations of accessories and features are too varied and extensive
to insure total feature compatibility. Accordingly, some features identified
in this publication will not operate if some other feature is activated.
Comdial disclaims all liability relating to feature non-compatibility or
associated in any way with problems which may be encountered by
incompatible features. Notwithstanding anything contained in this
publication to the contrary, Comdial makes no representation herein as to
the compatibility of features.
Contents
1 MCW Handset...................................1–1
1.1 MCW Handset ...................................1–1
1.2 Handset Icons....................................1–2
1.3 Special Handset Keys .............................1–3
2 Powering On And Off.............................2–1
2.1 Powering On And Off .............................2–1
3 Making And Receiving Calls.......................3–1
3.1 Making And Receiving Calls........................3–1
3.2 Intercom Call Functions ...........................3–2
3.3 Outside Call Functions ............................3–5
3.3.1 Making Outside Calls .......................3–5
3.3.2 Answering Outside Calls .....................3–6
3.3.3 Parking Calls ..............................3–7
3.3.4 Using Screened Transfer .....................3–8
3.3.5 Using Unscreened Transfer ...................3–8
4 Adjusting Volume ................................4–1
4.1 Adjusting Volume ................................4–1
5 Mute ...........................................5–1
5.1 Voice Mute .....................................5–1
5.2 Ring Mute ......................................5–2
6 Locking The Keypad .............................6–1
6.1 Locking The Keypad ..............................6–3
MCW Handset User’s Guide – 1
GCA70–353 Contents
7 FCN Key Feature Access ..........................7–1
7.1 FCN Key Feature Access...........................7–1
8 Speed Dial Calling................................8–1
8.1 Speed Dial Calling................................8–1
9 Storing Speed Dial Numbers .......................9–1
9.1 Storing Speed Dial Numbers ........................9–1
9.2 Entering Names For Speed Dial Numbers..............9–3
10 Menu Operation ................................10–1
10.1 Menu Operation .................................10–1
10.2 Menu Options ..................................10–2
10.3 Setting Ringer Type..............................10–3
10.4 Setting Ringer Volume ...........................10–3
10.5 Setting Keypad Beeper Volume ....................10–4
10.6 Setting Time Format .............................10–4
10.7 Setting Auto-Answer .............................10–5
10.8 Setting Display Contrast ..........................10–5
10.9 Testing Icon Displays ............................10–6
10.10 Configuring System And Handset IDs ...............10–6
10.11 Deleting All Speed Dial Numbers ...................10–7
10.12 Deleting Last Number Dialed ......................10–8
10.13 Changing The Handset Idle Message ................10–9
11 Battery Operations ..............................11–1
11.1 Battery Operations ...............................11–1
11.2 Removing And Replacing Batteries .................11–2
11.3 Charging Batteries ...............................11–4
11.4 Handset Charger LEDs ...........................11–6
2 – MCW Handset User’s Guide
Contents GCA70–353
12 Multi-System Use ...............................12–1
12.1 Multi-System Use ...............................12–1
12.1.1 Moving Between Systems ...................12–1
13 Troubleshooting ................................13–1
13.1 Troubleshooting.................................13–1
MCW Handset User’s Guide – 3
GCA70–353 Contents
This page remains blank intentionally.
MCW Handset
1.1 MCW Handset
This drawing illustrates the MCW (Multi-Cell Wireless) handset keypad
and display. See 1.2 Handset Icons on page 1–2 and Special Handset
Keys on page 1–3 for details on special handset keys and icons that
appear in the display.
MCW Handset User’s Guide 1 – 1
GCA70–353 MCW Handset
1
Idle message
Date
Time/Call Duration
Icon Display Area
Volume/Search Keys
Search Keys
MCW Handset

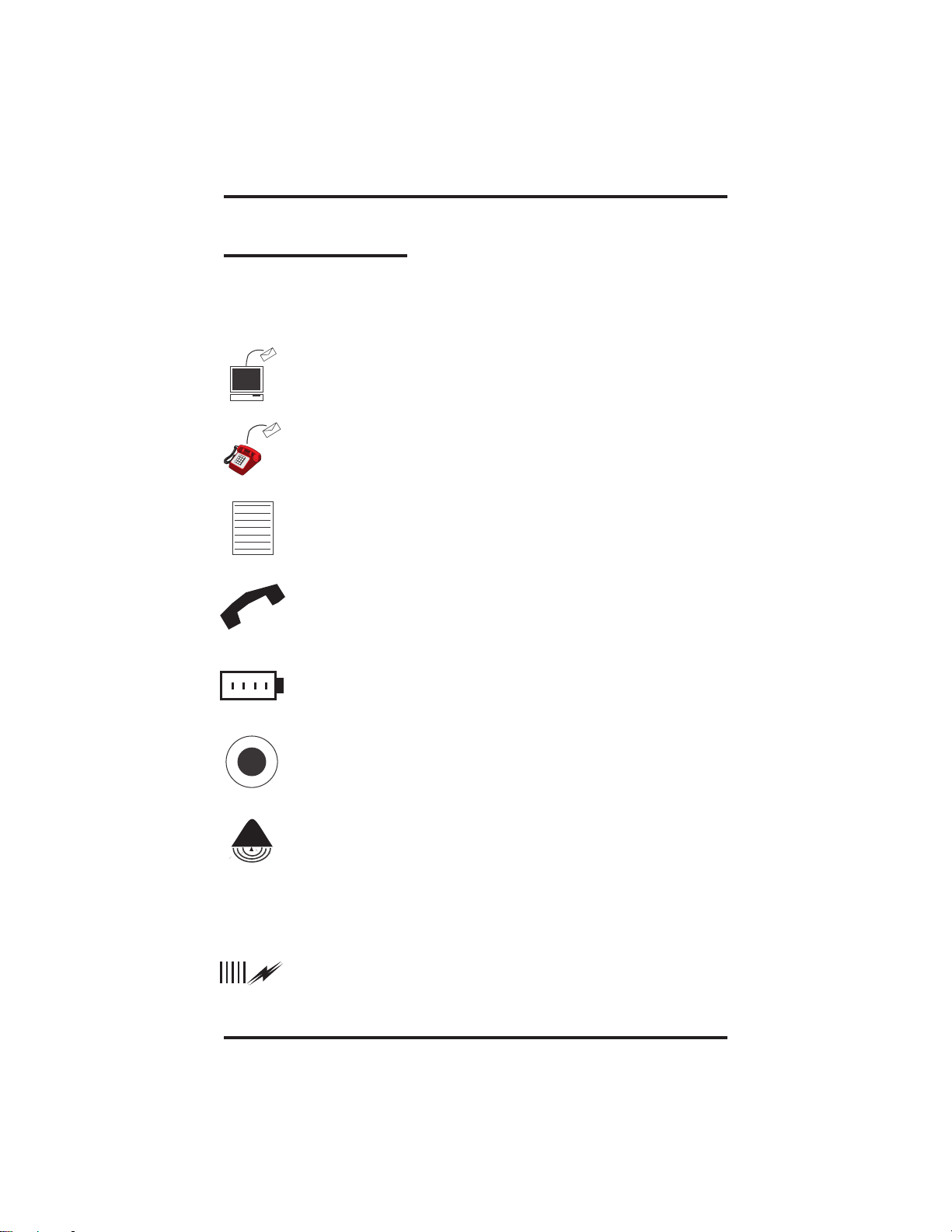

1.2 Handset Icons
Some icons are displayed all the time and others only under certain
conditions. The icons marked with an asterisk are for future use.
1 – 2 MCW Handset User’s Guide
MCW Handset GCA70–353
You have e-mail messages.*
You have voice mail messages.*
You have a message.
The handset is off-hook or ringing.
Battery Strength. The bars indicate
battery strength (1 = low, 4 = high).
A call is parked on the handset loop.*
The handset is ringing. The bars beneath the bell
indicate the currently configured ring volume.
ABC The handset is in alpha mode—you can use the keypad
to enter letters in the display (used in speed dialing).
The handset is locked onto a base station. The bars indicate signal
strength. You can make and receive calls only when the lock is on.
1.3 Special Handset Keys
PWR—Turns handset power on and off.
FLSH—Performs hook flash (allows access to host switch features).
FCN—When phone is in use or off-hook, lets you use other keys to
perform preprogrammed features like call back, transfer, call wait, and
conference. Places an idle handset in menu mode to change aspects of
handset operation like ringer volume and type, time format, and auto-
answer operation.
—Increases listening volume, and scrolls through menu options and
speed dial list.
—Decreases listening volume, scrolls through menu options and speed
dial list, and mutes handset microphone.
STO—Stores speed dial numbers and the handset idle message.
RCL—Recalls numbers stored in memory (used in speed dialing).
MCW Handset User’s Guide 1 – 3
GCA70–353 MCW Handset
ABC—Switches handset between numeric and alphanumeric modes for
entering speed dial names.
CALL—Places handset off-hook or sends dialed digits to the switch.
END—Places handset on-hook and exits handset from RCL, FCN, STO,
and ABC modes.
CLR—Erases one or more digits in the display, deletes speed dial
numbers, mutes the ringer on an incoming call, and cancels the current
state of an active handset.
—Scrolls forward through speed dial list and locks/unlocks the
handset keypad.
—Scrolls backwards through speed dial list.
1 – 4 MCW Handset User’s Guide
MCW Handset GCA70–353
#¯
#
