CONVERSip EP300 User (MP5000)
TABLE OF CONTENTS
1. INTRODUCTION................................................................9
1.1 Positioning the EP300.......................................................10
1.2 Making the Connections...................................................12
1.3 Adjusting the Volume .......................................................13
1.4 Using the LCD Menu........................................................13
2. MAKING CALLS..............................................................19
2.1 Making a Call to Another Extension ................................19
2.2 Making a Call to an Outside Party....................................20
2.3 Redialing a Previously Dialed Number ............................22
2.4 Making a Call Using a Speed Dial Button........................23
2.5 Making a Call by Dialing a Speed Dial Bin .....................24
2.6 Making a Call to a User Name .........................................24
2.7 Calling the Attendant........................................................25
3. ANSWERING CALLS ......................................................27
3.1 Answering a Call in your Pickup Group...........................28
3.2 Answering a Call While on a Call ....................................28
4. PROCESSING CALLS .....................................................31
4.1 Muting the Microphone ....................................................31
4.2 Using Call Hold ................................................................31
4.3 Retrieving a Held Call ......................................................32
Contents
viii Comdial May ‘04
4.4 Parking Calls.....................................................................32
4.4.1 Placing an Outside Call in a Park Orbit....................33
4.4.2 Retrieving an Outside Call from a Park Orbit ..........33
4.4.3 Handling Park Recalls ..............................................33
4.5 Transferring a Call ............................................................34
4.6 Establishing a Multi-Party Conference.............................35
4.6.1 Ad-Hoc Conferences.................................................35
4.6.2 Meet-Me Conferences...............................................36
4.7 Forwarding Calls to Another Extension ...........................37
4.8 Using Call Pickup.............................................................37
4.9 Feature Access Codes .......................................................38
APPENDIX A SPECIFICATIONS......................................39
CONVERSip EP300 User
May ‘04 Comdial 9
1. INTRODUCTION
Before you start using your EP300, take a quick look at its layout.
The endpoint has three soft keys, 24 programmable buttons, seven
fixed function buttons, volume up and down buttons, an LCD, and a
standard dial pad.
When your new EP300 arrives, the system installer unpacks the
phone and connects the line cord to a network jack. The following
sections describe a few initial adjustments that allow you to quickly
begin making and answering calls.

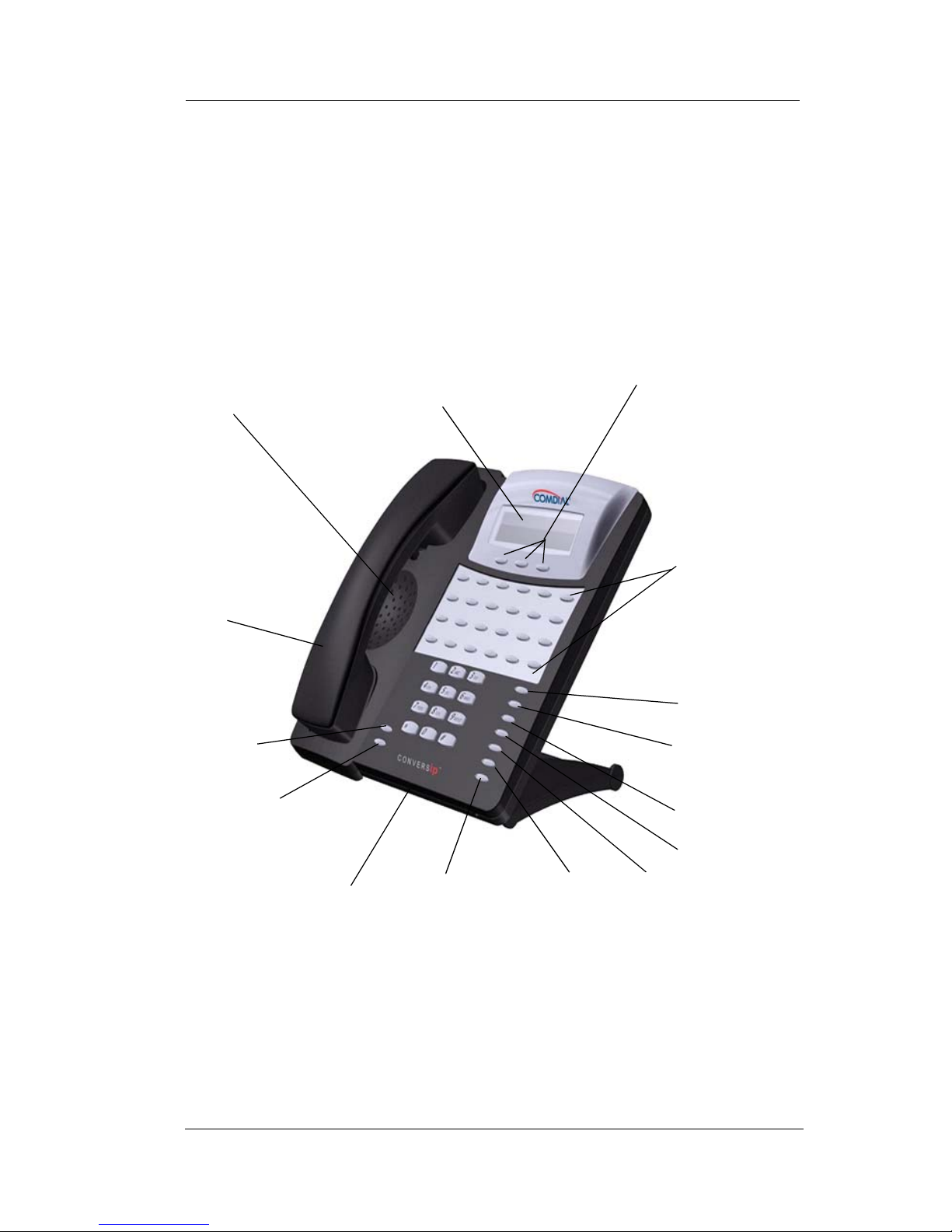

handset
speaker LCD soft keys
(not programmable)
programmable
buttons
hold
transfer/
conference
redial
headset
speaker
mute
dial/answer
volume down
microphone opening
volume up
Introduction
10 Comdial May ‘04
1.1 Positioning the EP300
You should adjust the position of the EP300 on your desk or table to
suit your individual needs and maximize the performance of the
sound activated features. When using your EP300 as a speakerphone,
the microphone and loudspeaker are farther from you than when you
use a handset. Some positioning tips to consider include:
• For the microphone to best detect your voice, speak within three
feet of it and face the speakerphone.
• Background noise may prevent the sound-activated switches
from operating properly. Avoid placing the speakerphone
where it will detect sounds from typewriters, keyboards,
printers, paging systems, and other equipment.
• Place the EP300 on a hard surface and away from table edges.
Do not place the EP300 in corners or enclosures. Do not let
obstructions come between you and the microphone.
The EP300 has an adjustable pedestal to allow you to select the most
comfortable viewing angle. When you receive the EP300, the ped-
estal is in its lowest position—flush against the pedestal.
