Instruction Sheet 860481019

Issue 4, November 2012

M2400 and M2400A Patch Panel Instructions

For RoHS Inquiries:

CommScope Inc.

Corke Abbey, Bray

Co. Dublin, Ireland

Attn: Legal Department

Page 1 of 7

General

The M2400 and M2400A modular panels are highly flexible 24-port, front or rear accessible patch panel

assemblies available in GigaSPEED, PowerSUM, or UNJ configurations. When installed with M-series or UNJ

information outlets, modular patch cords, and cables, they are an integral part of the CommScopeconnectivity

system. The panels mount in a standard 19-inch (483 mm) equipment rack with universal hole spacing.

Ordering information is listed below:

Material ID Part No. Description

760118323 M2400-1U-GS M2400 GS panel (GigaSPEED)

760118315 M2400-1U-PS M2400 PS panel (PowerSUM/UNJ)

760118349 M2400A-1U-GS M2400A GS panel (GigaSPEED)

760118331 M2400A-1U-PS M2400A PS panel (PowerSUM/UNJ)

M2400 Patch Panel M2400A Patch Panel

How to Contact Us

•To find out more about CommScope® products, visit us on the web at http://www.commscope.com/

•For technical assistance:

- Within the United States, contact your local account representative or technical support at

1-800-344-0223. Outside the United States, contact your local account representative or

Authorized Business Partner.

- Within the United States, report any missing/damaged parts or any other issues to

CommScope Customer Claims at 1-866-539-2795. Outside the United States, contact your

local account representative or Authorized Business Partner.

Tools Required

•Phillips head screwdriver

860481019

Instruction Sheet www.commscope.com

Page 2 of 7

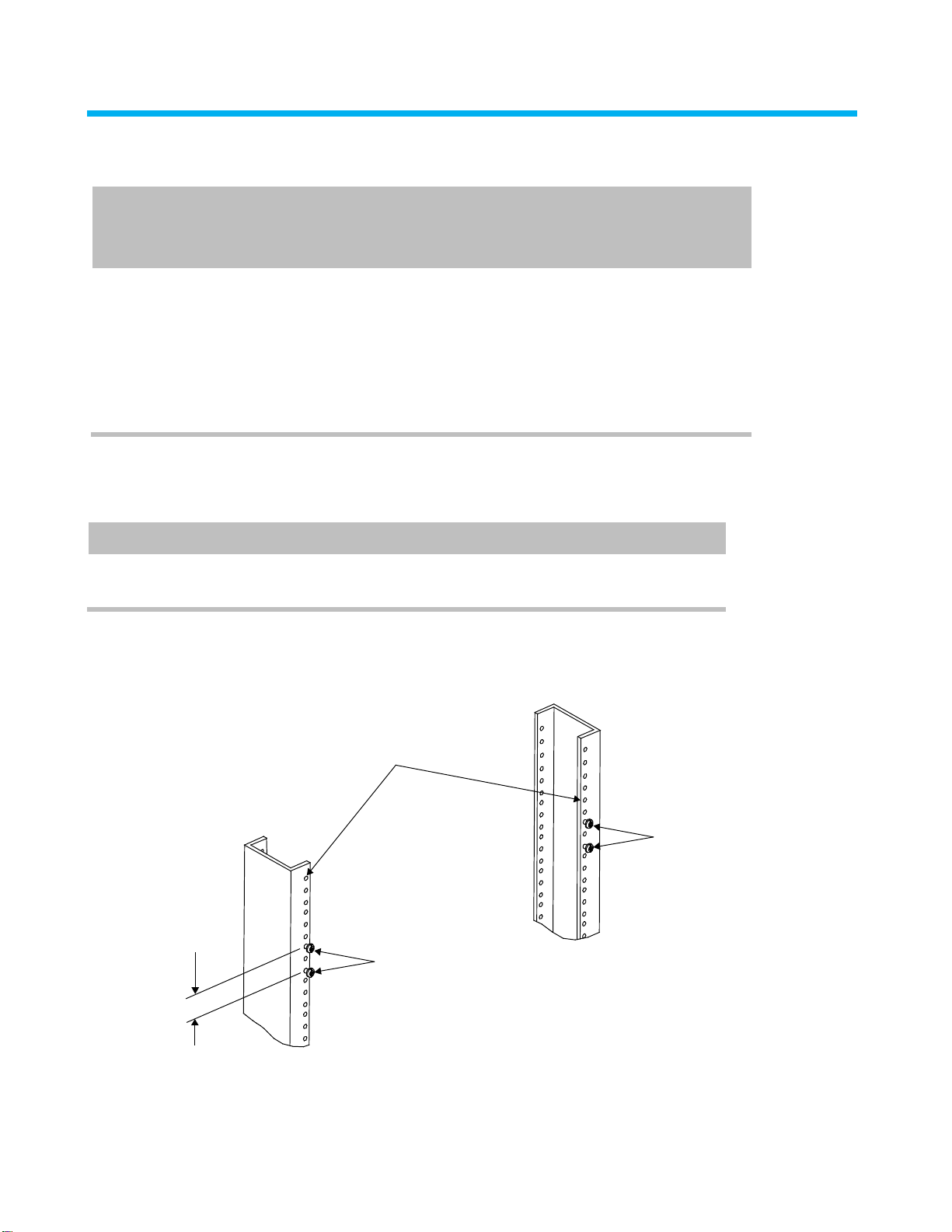

Parts List

Verify parts against the parts list below:

Quantity

Description

M2400 Panel M2400A Panel

PS GS PS GS

―

M2400 panel assembly

―

M2400A panel assembly

―

Panel end caps

―

MPS/UNJ outlet caps

―

MGS outlet caps

12-24 x 1/2” mounting screws

Label sheet

Instruction sheet

Separately Orderable Items

A separately orderable rear cable management bar is available for use with the M2400/M2400A panel and a

separately orderable removal tool kit is required for use with the panel.

Material ID Description

760104737 Rack mountable rear cable management bar

760122713 Outlet removal tool kit (5 pack)

Step 1A – M2400 Flat Panel Installation (Skip to Step 1B for Installation of M2400A

Angled Panel)

Install Mounting Screws

12-24 x 1/2” screw

1U panel

spacing

19-inch equipment rack

1. Partially install four 12-24 x 1/2” screws in equipment uprights in a 1U panel spacing as shown.

www.commscope.com

860481019

Issue 4, November 2012

Page 3 of 7

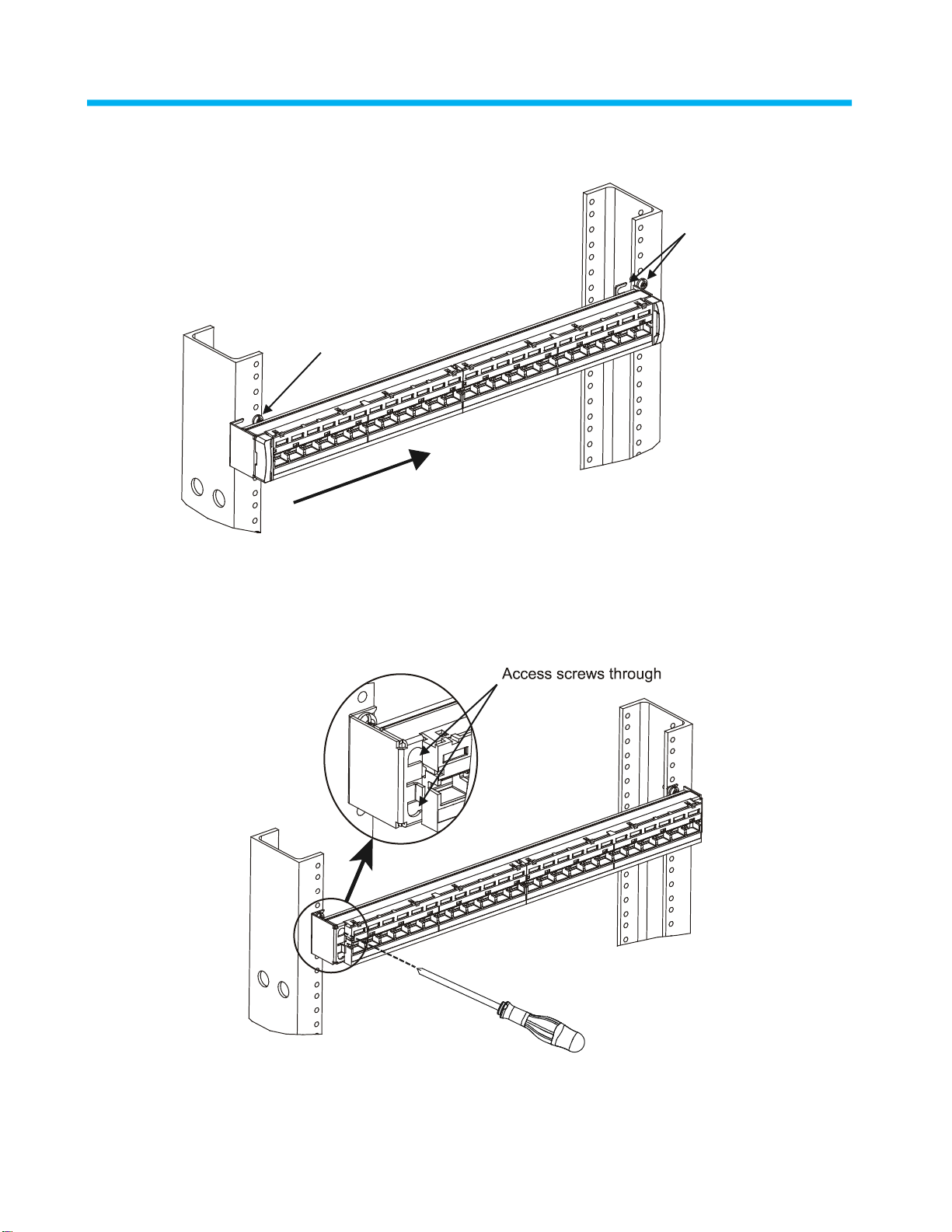

Install Panel on Rack

Align slots

in panel

with screws

Slide panel to right

to engage screws

12-24 x 1/2”

screw

1. Position panel against rack rails offset to the left of the partially installed screws.

2. Align slots in panel with screws and slide panel to right to engage screws.

Secure Panel to Rack

holes in panel

1. Use a screwdriver to access screws through holes in panel. Tighten screws to secure panel to rack.

860481019

Instruction Sheet www.commscope.com

Page 4 of 7

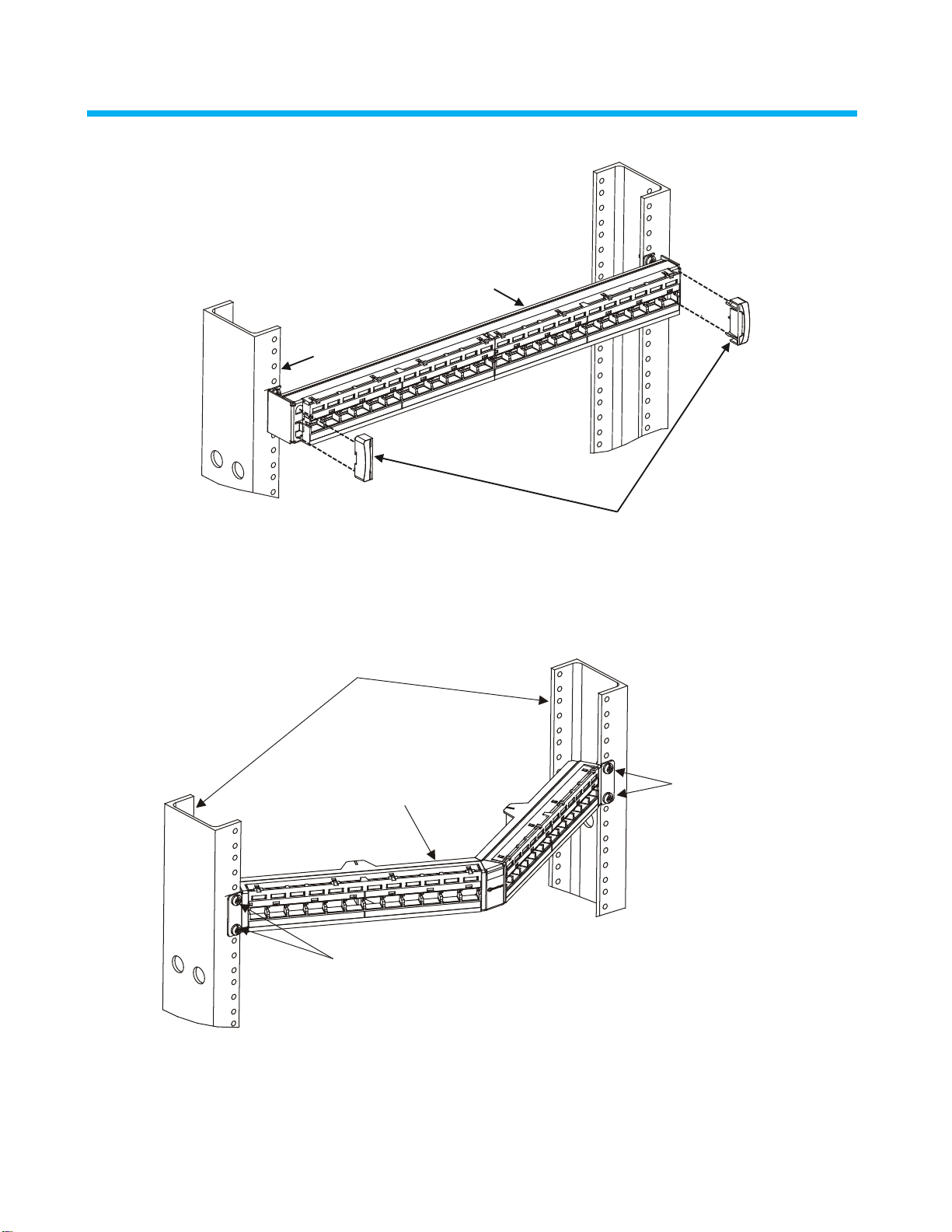

Install End Caps

Snap end caps into place

Panel

Rack

1. Snap end caps into place on panel as shown.

Step 1B – M2400A (Angled) Panel Installation

Install Panel on Rack

12-24 x ½” screws

19-inch equipment rack

M2400A panel 12-24 x ½” screws

1. Use four supplied 12-24 x ½” screws to secure panel to rack.

2. Connect cables to outlets per instructions provided with the individual outlets.

www.commscope.com

860481019

Issue 4, November 2012

Page 5 of 7

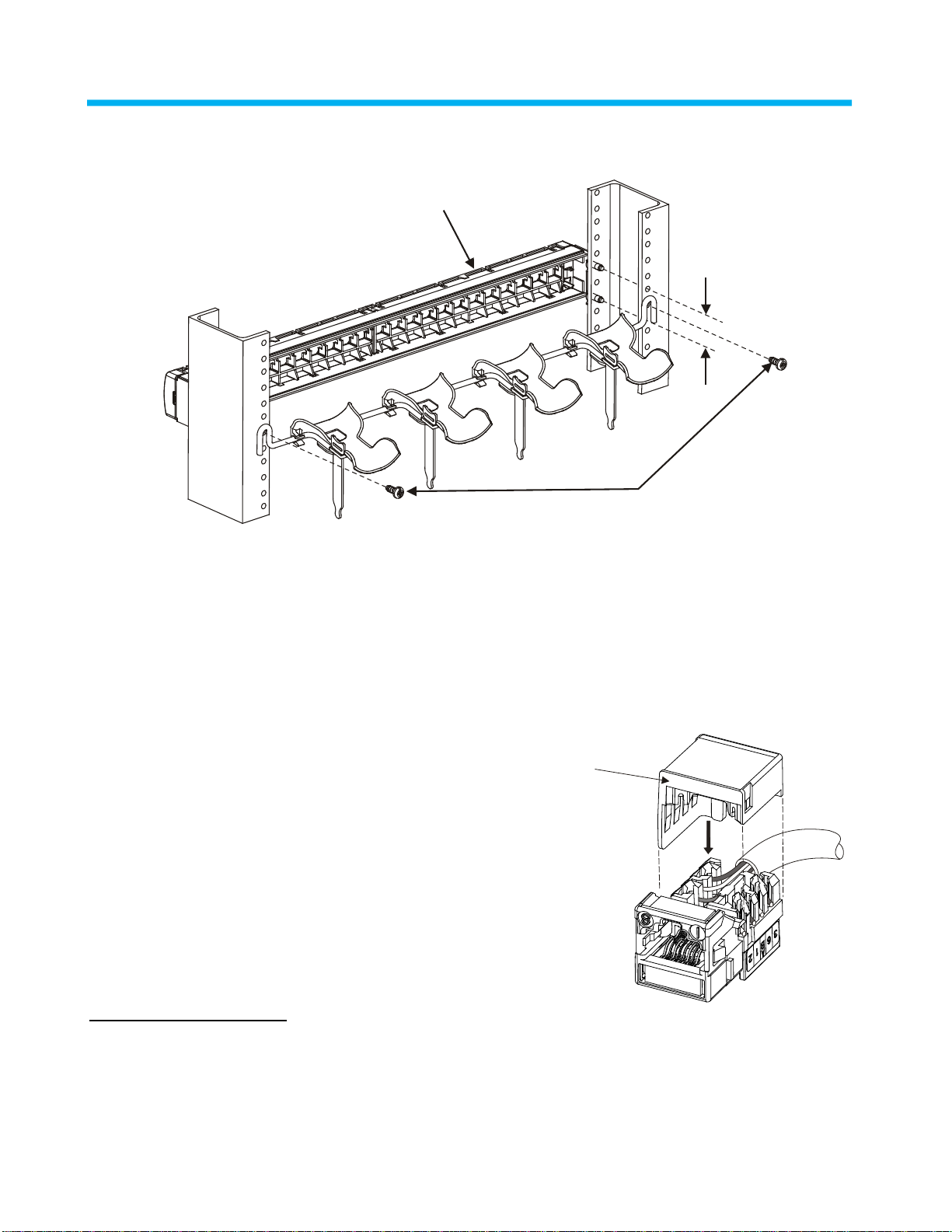

Step 2 ― Attach Separately Orderable Cable Management Bar

1U panel spacing

12-24 x 1/2” screws

M2400 panel shown

1. Attach cable management bar to rear of equipment rack using the four provided 12-24 x 1/2” screws as

shown. Bar should be level with lower row of outlets.

2. Assemble cable management bar components per instructions provided with the bar.

Step 3 – Terminate Outlets, Install Modular Caps on Outlets, and Populate Panel

1. Terminate cables to outlets per the instructions

provided with the individual outlets.

Note: Use a D914 impact tool (on HI setting)

with M110 cutting blade and hand puck or the

JackRapid* termination tool to punch down

conductors. Trimming conductors with side-cutters

or fine edge cutters is not allowed due to the tight

spacing of the outlets.

2. After termination of outlets, snap the provided

modular caps onto the outlets.

3. Populate the panel with outlets, then using the

instructions provided with the cable bar, route and

secure cables to bar using the provided hook-and-

loop straps.

*Trademark of Fluke Networks.

Modular cap

860481019

Instruction Sheet www.commscope.com

Page 6 of 7

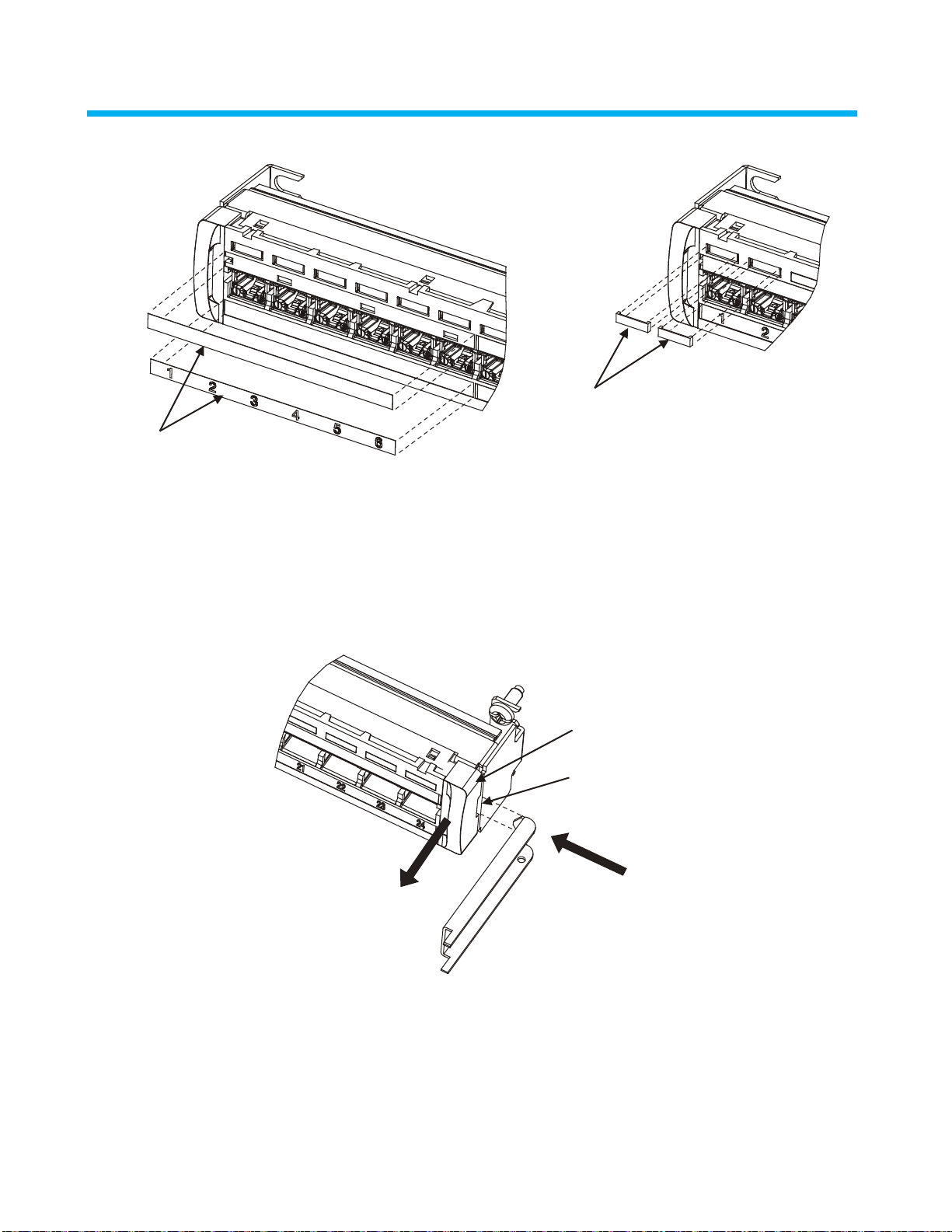

Step 4 – Install Port Designation Labels and Icons

Labels for port

designation

Icons

1. Apply labels and icons to front of panel as shown for port designation.

Step 5 – Using Module Removal Tool (Part of Removal Tool Kit 760122713)

To Remove End Cap

Insert tool into slot

Slot

End cap

1. Insert provided tool into slot as shown.

2. Use tool to pry end cap loose from panel.

www.commscope.com

860481019

Issue 4, November 2012

Page 7 of 7

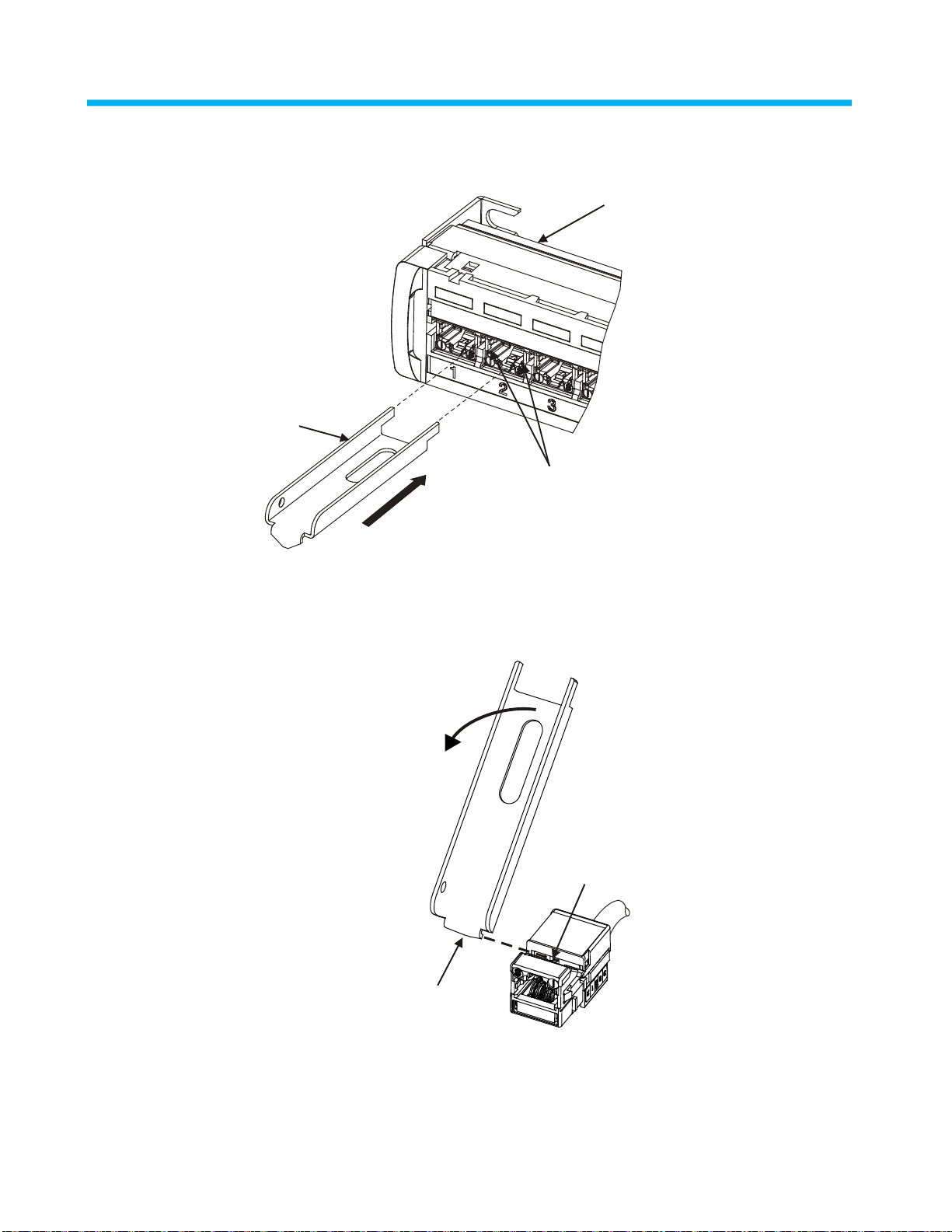

To Remove an Outlet

Locking tabs

M2400 panel shown

Removal tool

1. Position tool as shown and insert into front of outlet to depress locking tabs.

2. Remove outlet from rear of panel.

To Remove Modular Cap

Insert end of tool into

slot under cap

Slot

Pivot tool forward

to disengage cap

1. Insert tool into slot as shown and pivot forward to disengage modular cap for removal from outlet.
