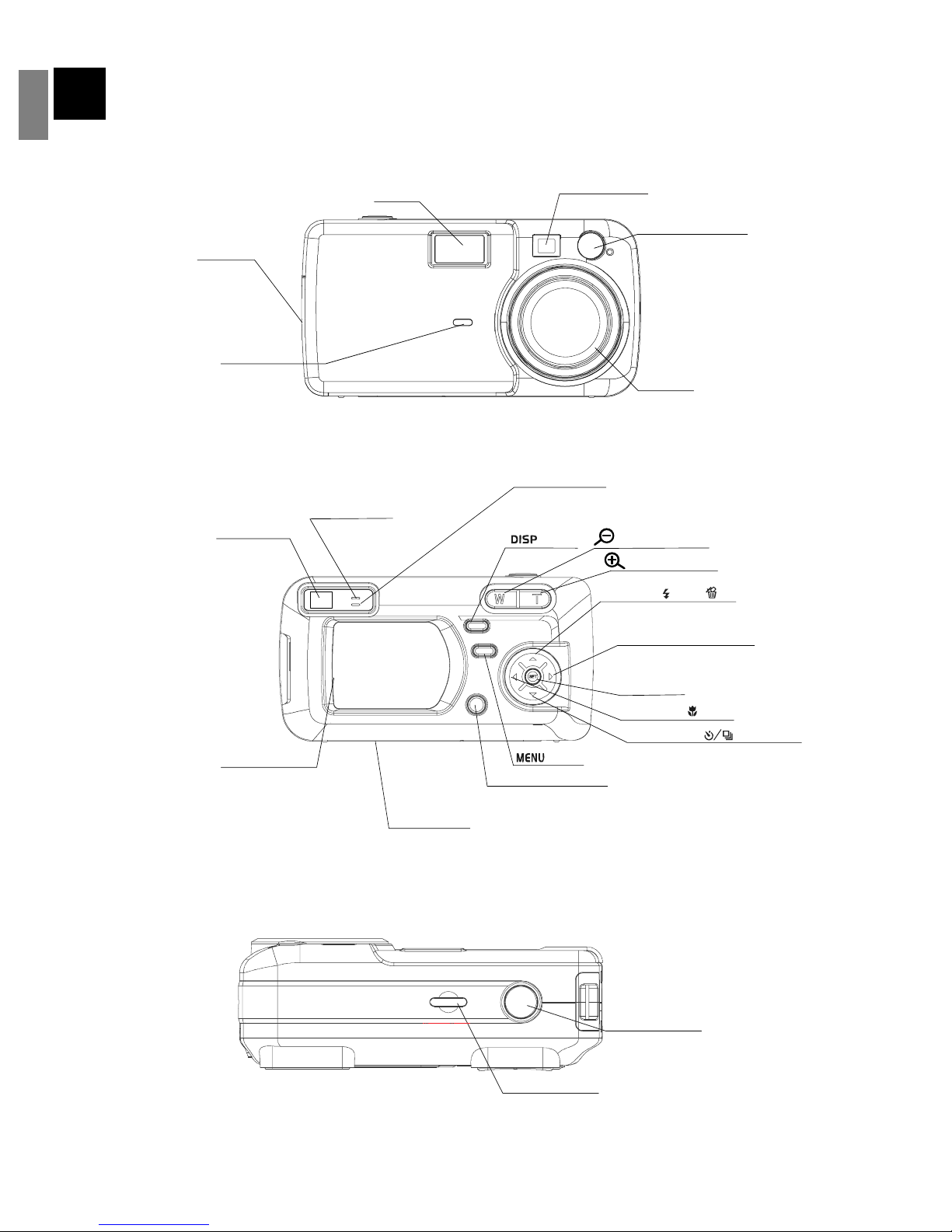

CAMERA COMPONENTS

Front

Rear

Top

Self-portrait mirror

Flash Viewfinder

Lens

Self-Timer/Red-Eye

Reduction LED

Battery/Memory

Card Door

Macro

Drive mode

Flash/ Erase

Up button/

Right button/ Quick View

Down button/

Left button/

button

Camera mode button

LCD screen

SET button

Flash Ready LED

Auto Focus (AF) LED

Viewfinder

Tripod Socket

W (zoom out) button

T (zoom in) button

Shutter button

Power button

ENU

Side

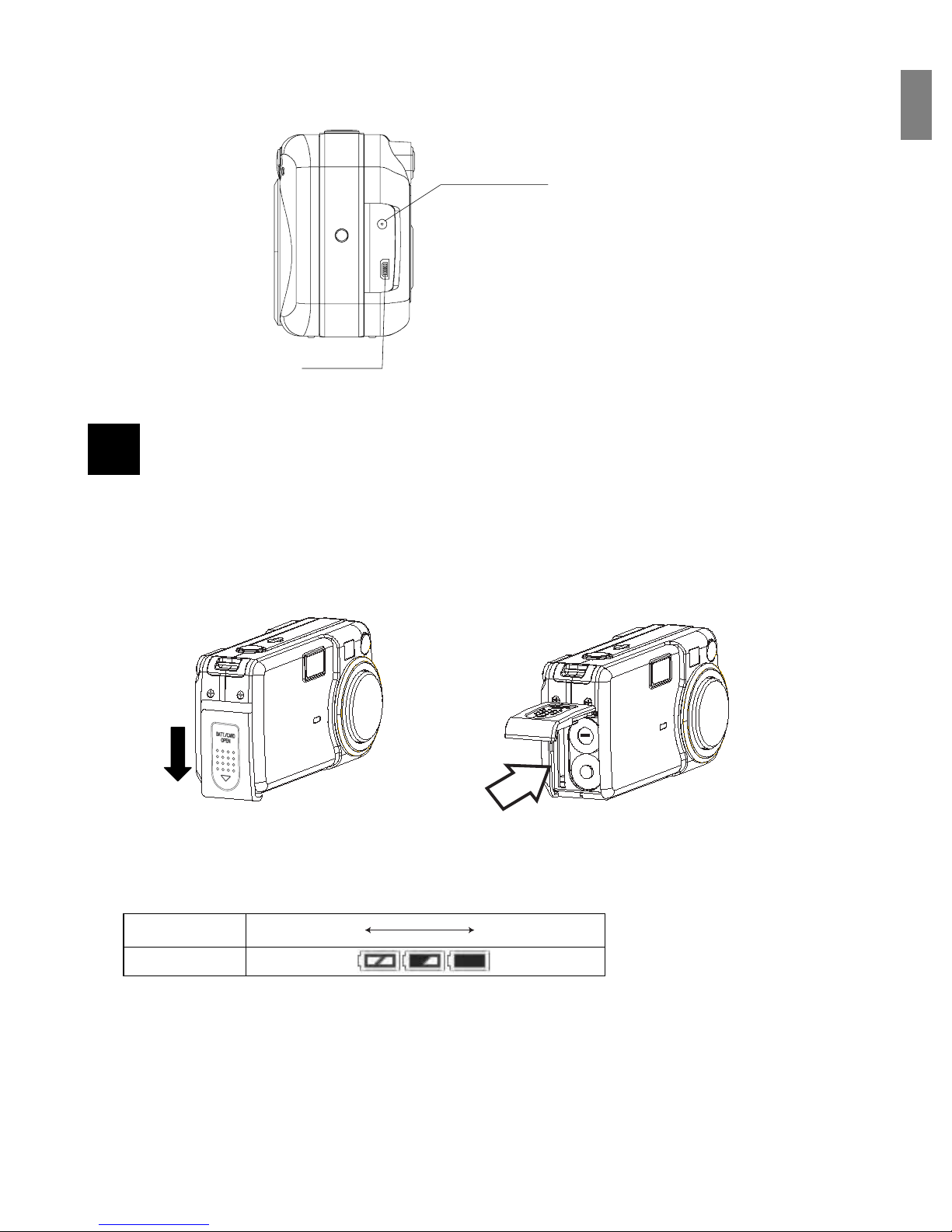

INSTALLING THE BATTERIES

Insert two (2) AA-size alkaline batteries (included with the camera).

1. Be sure that the camera power is off.

2. Slide the battery/memory card door in the direction of the arrow, and lift it open.

3. Insert two AA batteries with the positive (+) and negative (-) poles matching the directions indicated inside

the battery cover.

4. Close the Battery/Memory Card door.

Battery Status Indications

The battery power level indicator represents the level of power of the batteries. The meaning of each icon is as

follows:

DC IN terminal

USB port

Charge Level High Low

Indicator

ENU

INSTALLING AN SD CARD

1. Turn off the camera.

2. Slide the Battery/Memory Card door in the direction of the arrow

to open the door.

3. Insert the memory card as shown in the diagram.

TURNING THE POWER ON / OFF

Press and hold the POWER button for more than 1 second to turn

the camera on.

To turn off the camera

Press the power button to turn off the camera.

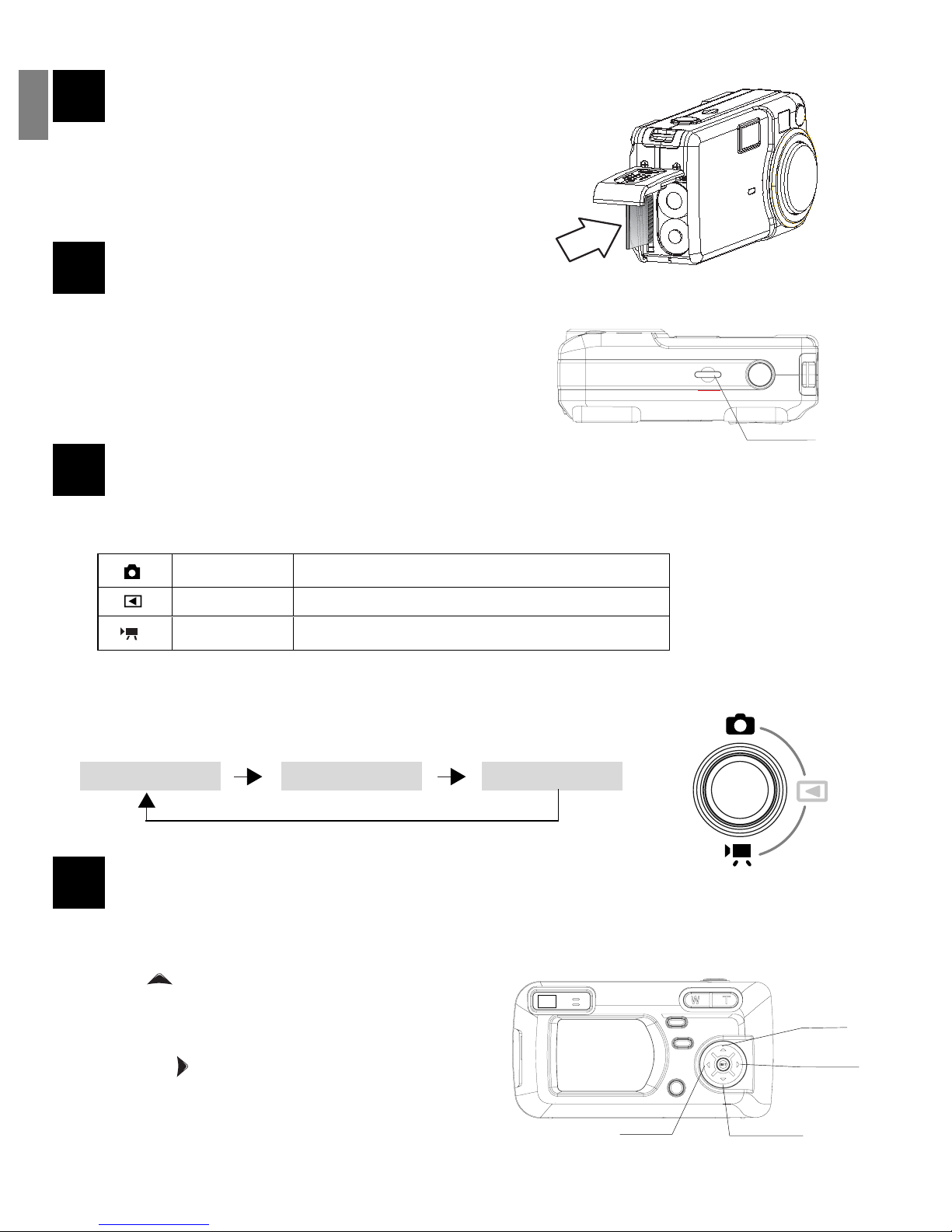

USING THE CAMERA MODE BUTTON

Use the Camera Mode button to change shooting mode.

The camera mode changes as shown in the following diagram when the Camera Mode button is pressed.

OPERATING THE MULTI-CONTROLLER

The multi-controller is used to set shooting mode, to move cursor when the camera Menu is shown, and to

confirm the selection.

Up Button ( )

• To set the Flash mode in Shooting Mode.

• To delete files in Review Mode.

• To move the cursor up when MENU screen is shown.

Right Button ( )

• To enter Quick View mode.

• To move the cursor to right when MENU screen is shown .

• To enter submenu.

Power button

Shooting Mode

Review Mode

Video Mode

For shooting still images

For viewing the recorded images and video clips

For shooting video clips

Shooting Mode Play Mode Movie Mode

Up button

Right button

Down button

Left button

ENU

Down Button ( )

• To set Continuous Shot in Shooting Mode.

• To set Self-Timer in Shooting Mode and Video Mode.

• To move the cursor down when MENU screen is shown.

Left Arrow ( )

• To set Macro shooting in Shooting Mode and Video Mode.

• To move the cursor left when MENU screen is shown.

SET Button

• To enter submenu.

• To confirm the setting.

USING THE ZOOM FEATURE

The camera has a 3x optical zoom lens with an effective

zoom range 5.8 mm to 17.4 mm (equivalent to 37 mm to

111 mm in 35 mm film format) as well as 4x digital zoom

capability.

Telephoto / Wide Angle

Press Wto zoom out for a wide angle shot.

Press Tto zoom in for a telephoto shot.

BASIC STILL IMAGE SHOOTING

In this mode, all you have to do is press the shutter button

and let the camera do everything else.

1. Set the Camera Mode button to .

2. Aim the camera at the subject.

3. Press the T or W button to zoom in or out.

4. Press the Shutter button halfway down to activate the auto-focus until AF LED stops blinking and the white

AF Frame turned into green.

• The shutter speed and aperture values appear on the LCD monitor.

5. Press the Shutter button fully down to capture the image.

AF Frame

Aperture value

Shutter Speed

Mode

W mode

T mode

Focus Range

10 cm (3.94 inch) to infinity ()

50 cm (19.89 inch) to infinity ()

ENU

REVIEWING THE IMAGE AFTER SHOOTING

The quick playback function is available in both Shooting Mode and

Video Mode.

1. Press to view the just captured photo or video clip.

• To delete the file, press . Then press and to

select YES or NO, and then press SET to confirm.

2. Press again to return to shooting mode.

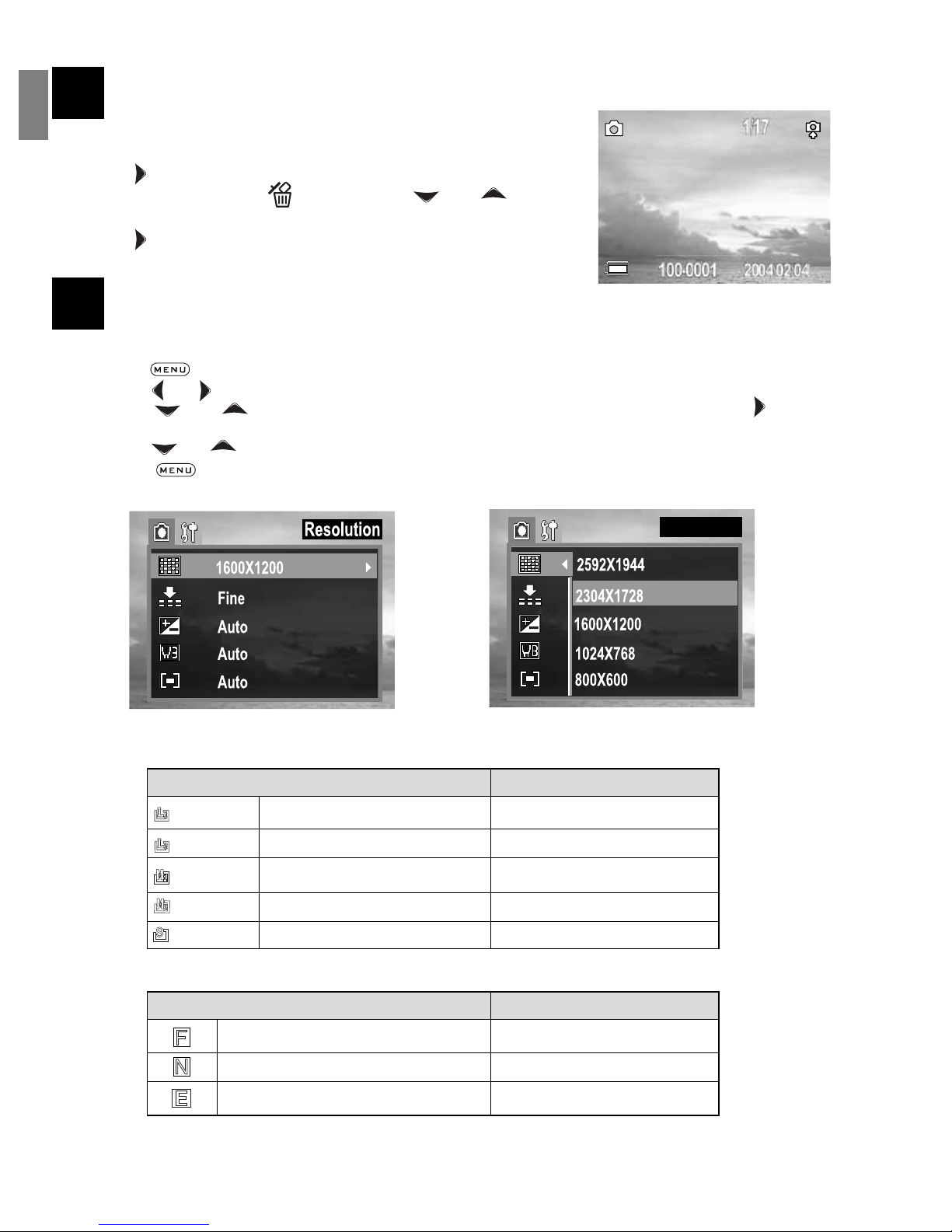

SETTING THE IMAGE QUALITY AND RESOLUTION

You can change the image quality and resolution to suit your purpose.

1. Press the button.

2. Press the or arrow to select the REC Menu.

3. Press the or arrow to select Resolution or Quality then press the SET button or arrow to

enter its submenu.

4. Press the or to select the settings you wish to set then press the SET button.

5. Press the button twice to close the menu window.

Resolution

(Large 1)

(Large 2)

(Medium 1)

(Medium 2)

(Small)

Resolution

2592x1944 (fine, normal)

2304x1728 (fine, normal)

1600x1200 (fine, normal)

1024x768 (fine, normal)

640x480 (fine, normal)

Purpose

Print large prints

Print on small size paper

Send images by e-mail

Shoot more images

Image Quality

Fine (5x compression rate)

Normal (8x compression rate)

Economy (12x compression rate)

Purpose

Shoot high quality images

Shoot normal quality images

Shoot more images

ENU

USING THE FLASH

Use the flash according to the guidelines below.

1. Press the button to switch between flash modes.

• The selected flash mode icon appears on the LCD monitor.

2. Shoot the image.

INFORMATION DISPLAYED ON THE LCD MONITOR

The LCD displays information such as the camera settings, remaining image

capacity and shooting date etc.

Shooting Mode

Playback Mode

Auto

Force On

Force Off

Red-eye reduction, Auto

The camera judges if a flash is required. If the

environment is too dark, the flash will fire.

The flash always fires.

The flash does not fire.

The camera will automatically detect when the

flash is needed and the flash will fire after a short

delay to prevent Red-Eye phenomenon.

Flash icon

Memory Storage Type

Recordable

Images

Battery Status Shake

Warning

AF Frame

Shooting

Mode

Shutter

Speed

Aperture

Value

Metering

Mode

White Balance

Exposure

Flash

Mode

Drive

Mode

Macro

Mode Resolution

Setting

Compression

Setting

+0.3

File Number

Battery Status

Shooting

Mode

Current filenumber /

total filenumber Memory Storage

Type

Shooting Date

FRA

COMPOSANTS DE L’APPAREIL

Avant

Arriére

Dessus

Viseur

Déclencheur

Bouton On/Off

FRA

Côté

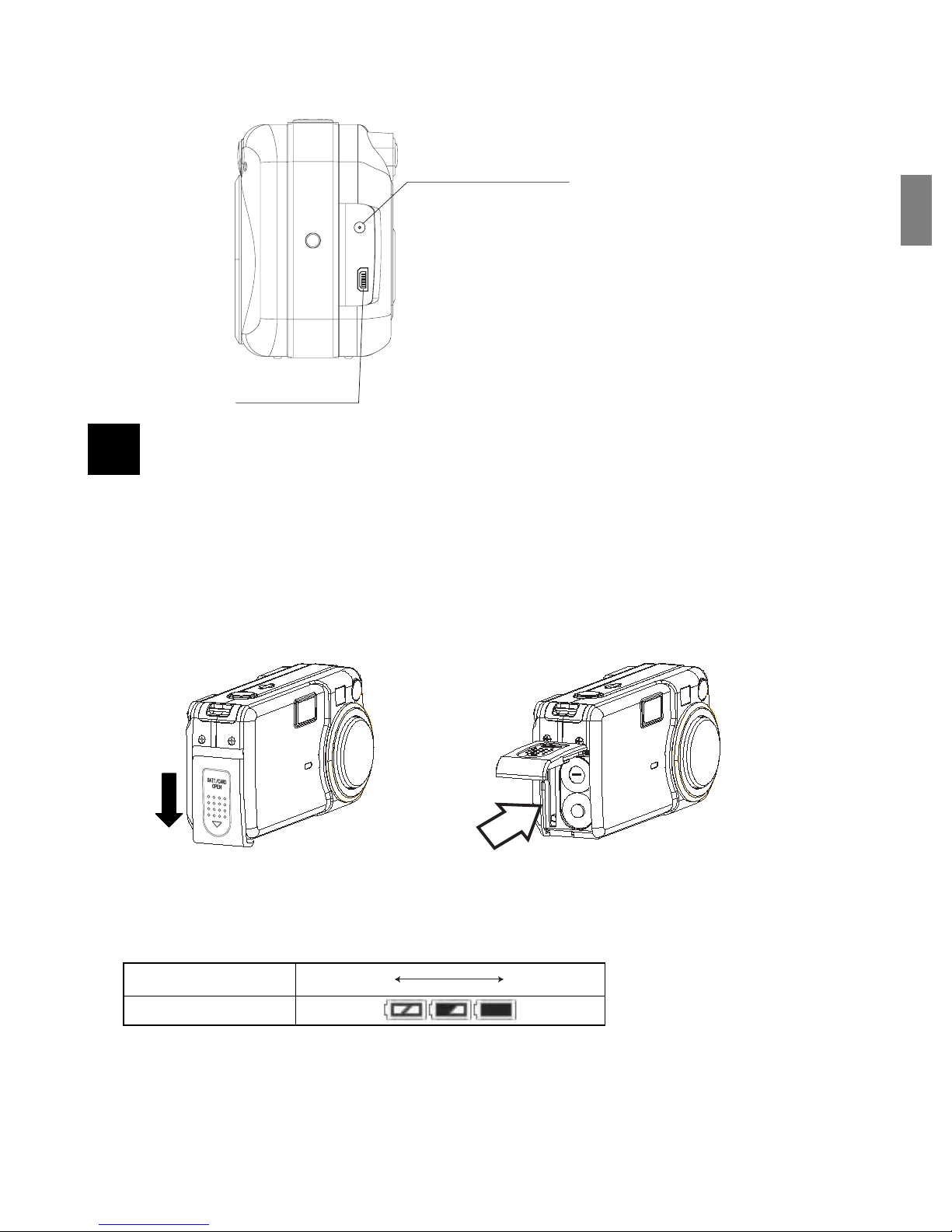

INSTALLATION DES PILES

Placez deux (2) piles alcalines AA (livrées avec l’appareil photo).

1. Vérifiez que l’appareil ne soit pas en marche.

2. Faites glisser le volet du compartiment de la carte-mémoire/des piles dans le sens indiqué par la flèche et

soulevez-le pour ouvrir le compartiment.

3. Insérez deux piles AA avec les extrémités positives (+) et négatives (-) vers la borne correspondant aux

directions indiquées à l’intérieur du volet du compartiment des piles.

4. Fermez le volet du compartiment de la carte-mémoire et des piles.

Indications sur l’ tat de l’accumulateur

Le voyant de niveau des piles affiche le niveau de charge des piles. Signification de chaque icône :

Branchement

courant continu

Port USB

Niveau de charge Élevé Faible

Indicateur
