35mm Fully Automatic Camera

With LCD

Instruction Manual

Thanks for buying this camera. Before using the camera, please read this

instruction manual thoroughly to ensure correct use.

This camera satisfies the requirements of the EU (European Union)

regarding safety, public and consumer protection. This product is in

conformity with the standards of BS EN 61000-6-3:2001: CISPR22: 1998

Class B. BS EN 61000-6-1: 2001:IEC 61000-4-2: 1995, IEC 61000-4-3:1997.

Introduction

Red-eye reduction

DX setting

Self-timer

Night scene mode

Date Imprinting

Film winding

Film rewinding

Power Source

Dimension

Weight

High light LED

ISO 50 - ISO 3200

10 seconds delay

Yes

Built-in type

Automatic winding

(1) Automatic rewinding

(2) Power mid-roll rewinding

3V CR123 lithium battery x 1 pc

116mm (W) x 66.7mm (H) x 44.2mm (D)

approx. 197g

Specifications and designs are subject to change without notice.

Specifications

Type

Film format

Focusing

Focusing range

Lens

Exposure control

Viewfinder

Shutter speed

Flash

135mm 3.3X zoom compact camera with LCD display

24 x 36mm

Active infrared auto focus system

Auto mode: 0.9m~infinity

38mm (F6.3) to 125mm (F12.7) 5 element 5 groups zoom lens

"Step Zoom, 3 retractable barrel sections"

Programmed AE shutter

Real image big zoom finder with AF mark

1/2~ 1/500 second

Four-way Flash (Auto, on/off, red -eye reduction) Recycle

time arround 5 seconds

Flash range W:0.9-3m T:0.9-2m GNO W:11.5 T:15

oContents P2

oPrecaution / Care and Storage P3

oNomenclature (Description of parts) P4~8

oOperations:

Attaching the strap / Loading the batteries P9

Power On/Off / Battery check P10

Date / Time adjustment P11

oTaking pictures

©Loading the film P12

©Auto Focus P14

Mode selection---------Auto Flash mode / Flash on / Flash off P16

Landscape / Night scene P17

Red-eye Reduction / Self-timer P18

Remote Control (Optional) P19

©Auto rewinding / Mid-Roll Rewinding P20

©Troubleshooting P21~22

©Specifications P23~24

Contents

Precaution / Care and Storage

In order to get the best performance from this sophisticated designed

camera and keep safe-use of it, the following needs to be specially noticed:

1. The camera is not water resistant, and should not be used outdoors if it's raining or

snowing.

2. Protect the camera from dust, moisture, sudden impact, and excessive heat.

3. Don't attempt to disassemble the camera yourself, since there is high-voltage

circuitry inside.

4. Please use a lintless cloth to clean gently in one direction the surface of lens when

cleaning. Do not use chemically treated tissues intended for cleaning eyeglasses.

5. The battery may be shorted when exposed to high temperature, or disposed of in

fire.

6. Remove the battery when the camera is not used in a long time.

7. Keep batteries away from children.

8. Keep the auto-focus windows clean to ensure accurate focusing. If they get dirty,

wipe them clean with soft cloth.

9. Pad the button of the camera with foam-rubber when traveling in a car, ship, or

airplane. Violent vibration could cause damage to the camera.

10.Make sure the tripod screw fits the camera before installing.

AF Lamp

Finder eyepiece

Spool

Film Tip top

Tripod bush

Film cartridge

chamber

Back cover

Battery cover

Battery switch

strap eyelet

Problem

Self-timer mode does not

work

The picture is blurred

Possible cause

.If the camera is now on the

Date setting mode

.You did not aim the

autofocus spot correctly.

.The lens glass is not clean

.You jiggled the camera

when you pressed the

shutter release button.

.You did not use a tripod

when shooting in the night-

scene mode.

Solution

.cancel the date setting

mode

.Make sure that the

autofocus spot is on your

subjects, or use the

autofocus lock to take the

picture.

.Clean the lens

.Hold the camera still with

both hands and press the

shutter release button

gently.

.use a tripod.

Auto film re-wind

Automatic start at end of film, automatically stop upon completion of rewinding. The

power will shut off automatically

1. After the end of the film has been reached, the film will automatically rewind.

2. When the film starts to rewind, the frame counter starts to counter down and "E" will

display on the LCD panel when the film rewinding is completed.

3. Open the back door to unload the film.

Mid-roll rewind

The film may be rewound before the roll of the film is finished. Press the " " button

to mid-roll rewind the film if you don't want to continue taking the remaining film.

Slide the small loop end of the strap

through the strap eyelet (Fig.1) and then

pass the other end thr

ough the loop and

tie the strap onto the strap eyelet (fig.2)

Loading the battery

1.Turn off the power

2.Open the battery chamber cover

3.Insert one CR123 lithium battery with the

correct positive (+) and negative (-) polarity.

Note:

1.Before shooting, please check the battery power at first.

2.Be sure to re-set the date after changing a new battery.

3.When traveling or planning to take many pictures, it is recommended to bring a

spare battery just in case.

Fig.2

Fig.1

LCD Indicators

Red-eye reduction

Flash indicator

(on/off/charging)

Night scene

Battery check

Landscape

Film counter

Self-timer

Date / Time imprinting

Remote control

(Optional)

Attaching the strap

Red-Eye reduction - Built-in, lamp will light for a period 1.0 seconds before the flash.

1. Press mode button until red-eye reduction mark " " shown on LCD panel

2. Shooting with flash mode in dark places, the subject's eyes may appear red in the

picture. This phenomenon is known as "red-eye" and occurs when flash reflects back

from the retina. This mode can contract the pupils of the subject and reduce the

chances of red-eye.

3. As there is a delay effect for the red-eye reduction lamp to function, please press the

button and hold the camera steady until shutter releases.

Self-timer

1. Press the " " button until the " " mark appears on the LCD. This mode allows

you to join the picture you are taking with the camera on a steady support.

2. Press the shutter release button.

3. The self-timer lamp will light up for approx. 7 seconds, then blink for approx. 3

seconds. After that, the shutter will release. It could combine with all kinds of the flash

modes.

4. To press the Power button could cancel the self-timer shooting.

Auto Flash - The camera will flash automatically when in a low light.

Flash on mode: Press the Mode button until " " is displayed on the LCD. The flash

will fire whenever taking pictures. In backlit situations, it is recommended to use this

mode.

Flash off mode: Press the Mode button until " " is displayed on the LCD. The flash

will not fire even in a low light. When you don't want to use flash for a more nature

effect or when the use of flash is forbidden in some places.

* It is recommended to use a tripod (tripod socket) or place the camera on another firm

support when taking pictures in dark places.

1. Turn on the power. When you turn the camera on, the lens cover automatically opens.

2. Hold the camera steady with both hands, and be sure not to block the flash, autofocus

window or lens with your fingers.

3. If you want to enlarge the subjects, press the zoom Tele (T) button, and press Wide (W)

button to take wide-angle shots. The lens can be zoomed out and in at six positions

between Tele and Wide freely subject to user's selection.

* Focus range: 0.9m~°¤

4. Look through the finder eyepiece and compose

your subjects within the AF frame mark.

5. Press the shutter release button halfway, and the

AF (green) lamp will light up in the same time,

then fully press it to take a picture.

Note:

When " " on the LCD panel is blinking, which indicates the flash is charging.

After the blinking stops, you can continue taking the next picture.

1. Turn on the power.

2. For date/time adjustment, press "DATE" button until " " is blinking, and then

press the " " button to set the desired date.

3. Repeat (2) step until the "hour", "minute" , "year" and "month" time are set all

correct.

* Calendar year: 2001 to 2031 are stored in memory.

4. After you finish, press "DATE" button to exit the adjustment mode.

5. If the Date imprinting is not desired, press "DATE" button to select "-----" mode.

Taking pictures

Date and Time Adjustment (YMD/HM)

MODE

25 18:15

MODE

26 18 15

'02 6 26

26 18 15

'02 6 26

MODE

'02 6 26

'02 1 1

'02 6 1

1234

1. Aim the subjects through the finder eyepiece.

2. Center the auto-focus frame mark over the main subjects, and then press the release

button halfway down to lock the focus.

3. While still pressing the button halfway down, move the camera until your subjects are

where you want them within the frame.

4. Press the shutter button completely down to take the picture.

Auto Focus (Focus Lock)

1.Check through the film cartridge confirmation window to make sure there is no film in

the camera.

2.Slide the back cover opening latch upward to open the back cover.

3.Load the film cartridge and pull the film tip across to the film tip mark.

4.Make sure that the film lies flat and is positioned between the film guides.

5.Close the back cover, and check if the film counter on the LCD panel automatically

advances to the first frame, then "1" displays on the LCD panel.

Note:1.Be sure not to open the film cover after you start taking pictures, or you will ruin

the film.

2.If "1" does not appear on the LCD after loading the film, it means that the film is

not loaded properly. Please reload the film correctly.

Loading the film

123

'02 6 26

Mode selection

Six operating modes are available and will appear on the LCD panel in the following

sequence when you press the Mode button.

1. Auto Flash ( No any symbol) 2. Red-eye reduction

3. Flash on 4. Flash off

5. Landscape mode 6. Night scene mode

Flash Distance Range

Depending on the film speed in use, the flash covers the following distances.

ISO Film Speed

ISO100

ISO400

ISO800

ISO1600

Wide - 38mm

0.9m~3.07m

0.9m~6.14m

0.9m~8.7m

0.9m~12.3m

Tele-125mm

0.9m~2.0m

0.9m~4m

0.9m~5.6m

0.9m~8m

* DX setting:

Method: Automatically setting by reading DX code (when using DX film)

Film sensitive setting: ISO 50~ISO 3200

Landscape mode: Press the Mode button until the " "mark appears on the LCD.

This is used for taking clear landscape picture or photographing remote scenes through

glass. The flash does not fire in this mode, so the flash off is set automatically.

Note

The mode function will be cancelled automatically after each time shooting.

Night Scene mode: Press the Mode button until the " " mark appears on the LCD.

This mode is effective when taking pictures of people with an evening or nocturnal

background.

A slower shutter speed is set in this mode. The use of a tripod is recommended to prevent

the camera from shaking when Night scene mode is selected.

Close-up frame: When taking pictures in the near distance, please focus your subjects

within the frame

AF frame mark: Place the AF frame over the subjects you want to take.

Viewfinder

Close-up frame

Picture Frame

AF (Auto Focus lock) frame mark

Power on/off

Press the power button. When power is on, the lens cap will open and LCD is set to

auto mode.

Note:

The power will be turned off automatically after being idle for 7 minutes.

Checking the battery power

The battery power shows on the LCD by the indicator anytime.

1 : Battery in good condition

2 : Replace battery with a new one

3 : The battery has run out. No function can be used except the film rewinding.

* Battery can be replaced if there is a film inside.

1. Please hold your camera on a steady supports (tripod).

2. Press the " " button to select " " mode, and then aim your subjects through

viewfinder eyepiece to compose in the picture.

3. When the controller signal transmitter is pointed toward the camera and the

transmitter button is pressed, the remote control operation indicator will blink for 2

seconds before shooting.

Remote Control (Optional)

Problem

LCD panel is blank

Film does not advance

Film does not re-wind

The shutter does not release

Troubleshooting

Possible cause

.Battery is weak, expired or

improperly inserted.

.Battery is weak, expired or

improperly inserted.

.Film completely used. There

are no more pictures

remaining.

.Film does not load properly.

.Battery is weak, expired or

improperly inserted.

.The power is turned off.

.The battery has expired

." " is blinking

."E" shown on the LCD

Solution

.Replace or re-load the

battery correctly.

.Replace or re-load the

battery correctly.

.Replace or re-load the film

correctly.

.Re-load the film.

.Replace or re-load the

battery correctly.

.Turn the power on

.Replace the battery

.Please await until the flash

is fully charged.

.Replace the film with a new

one.

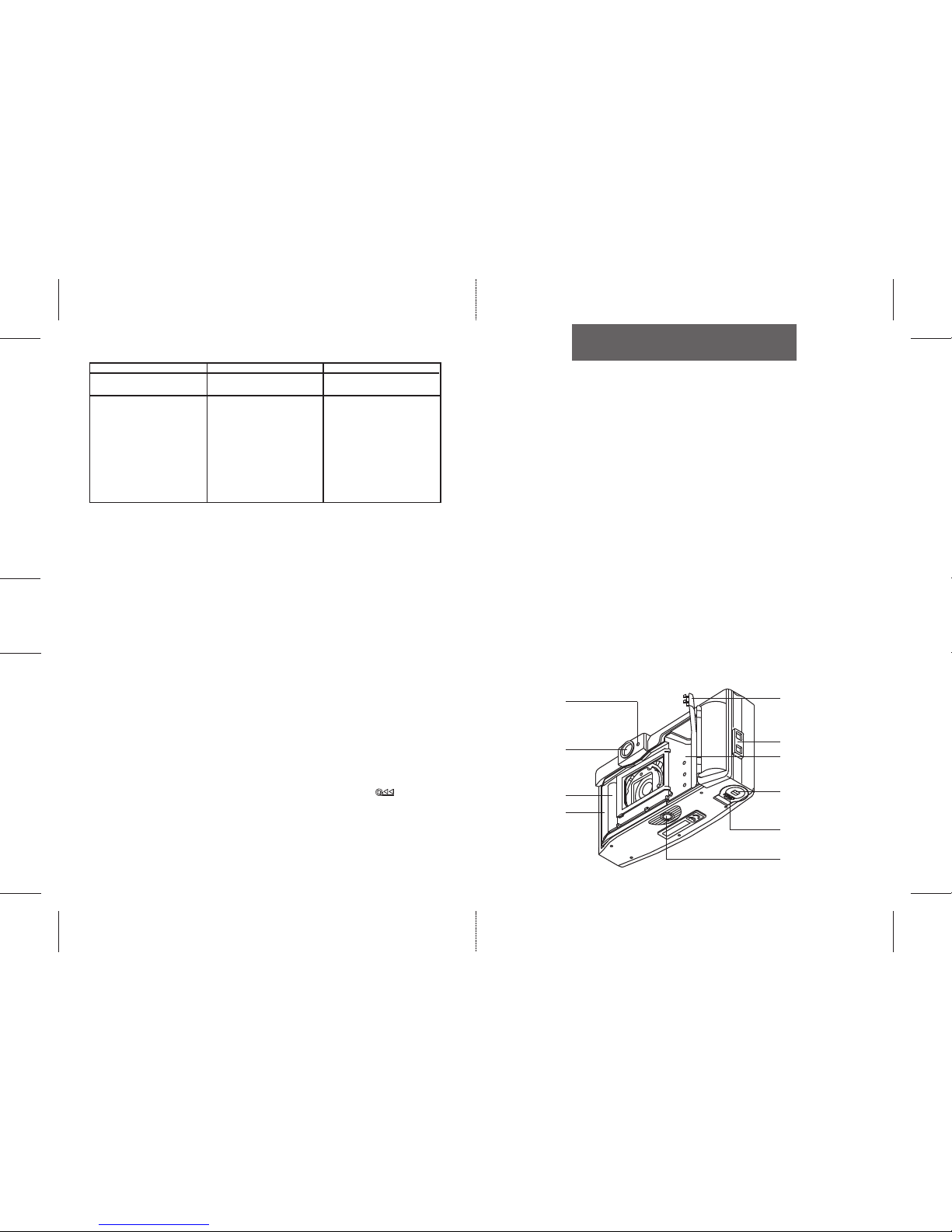

Nomenclature

Shutter release button

Red-eye reduction

indicator

Self-timer indicator

Back cover switch

Remote control

(Optional)

AF window

Flash

View finder

Lens / Lens cap

MODE

AF Lamp

Finder eyepiece

LCD Panel

Mid-roll

rewinding

Zoom (W/T) button

Film confirmation

window

Power button

Date set button

Self-timer /

Remote control

set button

Mode button

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali Concord Camera Macchina fotografica digitale

Concord Camera

Concord Camera JENOPTIK C 3.1 SL Manuale utente

Concord Camera

Concord Camera Eye-Q Duo LCD Manuale utente

Concord Camera

Concord Camera 3341Z Questio Manuale utente

Concord Camera

Concord Camera Eye-Q 2100 Manuale utente

Concord Camera

Concord Camera 3.1 Megapixels Digital Camera Manuale utente

Concord Camera

Concord Camera Eye-Q 3132z Manuale utente

Concord Camera

Concord Camera Eye-Q 2133z Manuale di istruzioni

Concord Camera

Concord Camera Eye-Q Go Eye-Q Go LCD Camera Manuale utente

Concord Camera

Concord Camera Eye-Q 3X Manuale utente

Concord Camera

Concord Camera Eye-Q 3340z Manuale utente

Concord Camera

Concord Camera DUO 1300 Guida rapida

Concord Camera

Concord Camera Eye-Q 4363z Manuale utente

Concord Camera

Concord Camera Eye-Q 3042 AF Manuale utente

Concord Camera

Concord Camera Eye-Q 3345z Manuale utente

Concord Camera

Concord Camera Eye-Q 2133z Manuale utente

Concord Camera

Concord Camera 470AF Manuale utente

Concord Camera

Concord Camera 3043 Manuale utente

Concord Camera

Concord Camera PZ1400 Manuale utente

Concord Camera

Concord Camera Eye-Q 4363z Manuale utente

Concord Camera

Concord Camera Eye-Q Duo LCD Guida rapida

Concord Camera

Concord Camera 4340z Manuale utente

Concord Camera

Concord Camera Eye-Q 5330z Manuale utente

Concord Camera

Concord Camera Eye-Q Easy Eye-Q Easy Digital Camera Manuale utente

Concord Camera

Concord Camera Eye-Q Mini Manuale utente

Manuali Macchina fotografica digitale popolari di altre marche

Mercury

Mercury 350K Manuale utente

Pentax

Pentax Optio LS 465 Manuale utente

Sanyo

Sanyo VPC-S1085 Manuale utente

GE SMART A1255 Manuale utente

Point Grey

Point Grey Gazelle Manuale utente

Nikon

Nikon COOLPIX A Manuale utente

Pentax

Pentax P-5 Manuale utente

BlazeVideo

BlazeVideo A280 Manuale utente

Sony

Sony MCA-20 Manuale utente

Sony

Sony Alpha DSLR-A290 Manuale utente

ATIK Cameras

ATIK Cameras One Manuale utente

CohuHD Costar

CohuHD Costar 3930 Series Manuale utente

Leica

Leica M10-R Manuale utente

FujiFilm

FujiFilm FinePix A700 Manuale utente

Lorex

Lorex LNZ81P25 Series Manuale utente

GE J1470S Manuale utente

Sony

Sony A6700 Guida utente

Canon

Canon EOS ELAN7 Manuale utente
