This Quick Start Guide provides a quick reference for operating your

new digital camera. Refer to the User’s Guide, which can be found

on the CD-ROM and a hard copy in your Concord Eye-Q 3340z box,

for detailed instructions on how to use all of your camera’s features.

Before using the camera, make sure to read all safety instructions

and precautions outlined in the User’s Guide.

QUICK START GUIDE

ENGLISH

CAMERA OVERVIEW

Top/Front

Bottom/Back

AWB

0005

⁄ ⁄

2048

AWB

2048

⁄ ⁄

0005

AWB

0005

⁄ ⁄

2048

AWB

2048

⁄ ⁄

0005

1. Flash Sensor

2. Shutter button

3. Flash

4. On/Off switch

5. Lens/Lens Cover

6. Viewfinder

7. Self-timer/Red-Eye

Reduction LED

8. Mini-USB port

9. TV-Out port

10. Flash Ready LED

11.Viewfinder

12. Diopter wheel

13. Auto-Focus LED

14. LCD

15. Tripod Socket

16. Reset Button

17. Flash/Thumbnail

Button

18. Joystick/OK

button/

Zoom button

19. Wrist Strap

Holder

20. Battery/Memory

Card Door

21. Mode Switch

22. Battery

Compartment

23. Memory Card

Slot

24. Menu Button

25. LCD On/Off

Button

Kimba QS Guide-6L(513734-00) 11/1/03 10:09 AM Page 1

CAMERA OVERVIEW

Attaching the Wrist Strap

Please attach the wrist strap to prevent dropping the camera.

LOADING THE BATTERIES

The camera can use 2x AA alkaline, lithium or Ni-MH rechargeable batteries to operate.

1. Open the Battery/Memory Card door. (fig.1.11)

•Press the Battery/Memory Card door, slide the door down and lift it open.

2. Insert the batteries according to the polarity indicators on the inner side of the

Battery/Memory Card door. (fig.1.12)

3. Shut the Battery/Memory Card door and press it up to close it securely. (fig.1.13)

LCD ICONS

A. Resolution G. Image Quality

B. Camera Mode H. Frame Counter

C. Memory card I. Macro

D. Flash J. Self-Timer

E. White Balance K. Zoom Bar

F. Battery Level L. Date / Time

AWB

0005

07 ⁄ 04 ⁄ 2003 02:40

2048

AWB

2048

07 ⁄ 04 ⁄ 2003 02:40

0005

: Single Shot

: Continuous Shot

: Review

: Video Clips

AWB

0005

⁄ ⁄

2048

AWB

2048

⁄ ⁄

0005

fig.1.11 fig.1.12 fig.1.13

Kimba QS Guide-6L(513734-00) 11/1/03 10:09 AM Page 2

GETTING STARTED

INTERNAL MEMORY/INSERTING THE MEMORY CARD

The camera has 16MB internal memory that can be used right away. The camera can also

use secure digital (SD) memory cards (not included) to store images and video clips.

1. Open the Battery/Memory Card door. (fig.1.1)

2. Insert the memory card as indicated by the diagram. (fig.1.2)

•Please insert the card in straight, not on an angle.

3. Shut the Battery/Memory Card door and press it up to close it securely. (fig.1.3)

TURNING THE CAMERA ON AND OFF

The On/Off Switch is located in the front of the camera.

1. Slide the On/Off Switch down to power the camera on. (fig.1.4)

•The lens cover will open.

•The LCD will turn on automatically

2. To turn the camera off, slide the On/Off Switch upwards.

(fig.1.5)

Note:

The camera will automatically power off after 30 seconds of

inactivity even the ON/OFF switch is in the "ON" position.

Press the shutter button to power the camera back on.

fig.1.2

fig.1.4

fig.1.5

fig.1.1 fig.1.3

Kimba QS Guide-6L(513734-00) 11/1/03 10:09 AM Page 3

GETTING STARTED

SETTING THE LANGUAGE

1. Press the joystick , to highlight the language you would like to use.

2. Press to select.

3. The next screen will read “Are You Sure?” press the joystick to select No or Yes.

4. Press to select.

•If you select No, you will return to the Language select screen.

•If you select Yes, all menu screens will be displayed in the new language.

SETTING THE DATE AND TIME

1. Press the joystick to highlight the specific option.

•The selection will blink when it is highlighted.

2. Press the joystick to change the option in the blinking position until you reach the

desired setting.

3. Press to set the date or time.

Note:

•If the battery is removed or dead for more than 4 minutes, the date and time will

return to their default settings.

•SET DATE/TIME! will appear on the LCD. If you do not wish to set the date and time,

press the shutter button slightly to cancel the reminder.

LANGUAGE OPTION

English

Français

Deutsch

Italiano

RETURN SET

⁄ ⁄

Rec

2048

⁄ ⁄

AWB

2048

⁄ ⁄

AWB

2048

⁄ ⁄

AWB

2048

⁄ ⁄

0000 0000

0000

⁄ ⁄

Rec

Español

Nederlands

RETURN SET

LANGUAGE OPTION

⁄ ⁄

Rec

2048

⁄ ⁄

AWB

2048

⁄ ⁄

AWB

2048

⁄ ⁄

AWB

2048

⁄ ⁄

0000 0000

0000

⁄ ⁄

Rec

Are You Sure?

Yes

RETURN SET

⁄ ⁄

Rec

2048

⁄ ⁄

AWB

2048

⁄ ⁄

AWB

2048

⁄ ⁄

AWB

2048

⁄ ⁄

0000 0000

0000

⁄ ⁄

Rec

ADJUST DATE

01 ⁄ 01 ⁄ 2002

RETURN SET

⁄ ⁄

Rec

2048

⁄ ⁄

AWB

2048

⁄ ⁄

AWB

2048

⁄ ⁄

AWB

2048

⁄ ⁄

0000 0000

0000

⁄ ⁄

Rec

ADJUST TIME

01:01AM

RETURN SET

⁄ ⁄

Rec

2048

⁄ ⁄

AWB

2048

⁄ ⁄

AWB

2048

⁄ ⁄

AWB

2048

⁄ ⁄

0000 0000

0000

⁄ ⁄

Rec

Kimba QS Guide-6L(513734-00) 11/1/03 10:09 AM Page 4

TAKING A PICTURE

Taking a picture with the viewfinder or LCD:

1. Turn the camera on.

2. Set the camera to ( ) Camera Mode. (fig.1.1)

3. Frame the subject in the viewfinder or LCD.

4. Press the shutter button half-way to activate the auto-focus until the green AF LED

stops blinking. (fig.1.2)

5. Press the shutter button fully to capture the image. (fig.1.3)

SETTING THE FLASH

1. Press the Flash button next to the LCD repeatedly until the desired mode appears on

the LCD.

TAKING PICTURES

fig.1.2 fig.1.3

fig.1.1

: Auto Flash



: Red-Eye Reduction



: Fill-in Flash



: Flash off



: Night Mode

Kimba QS Guide-6L(513734-00) 11/1/03 10:09 AM Page 5

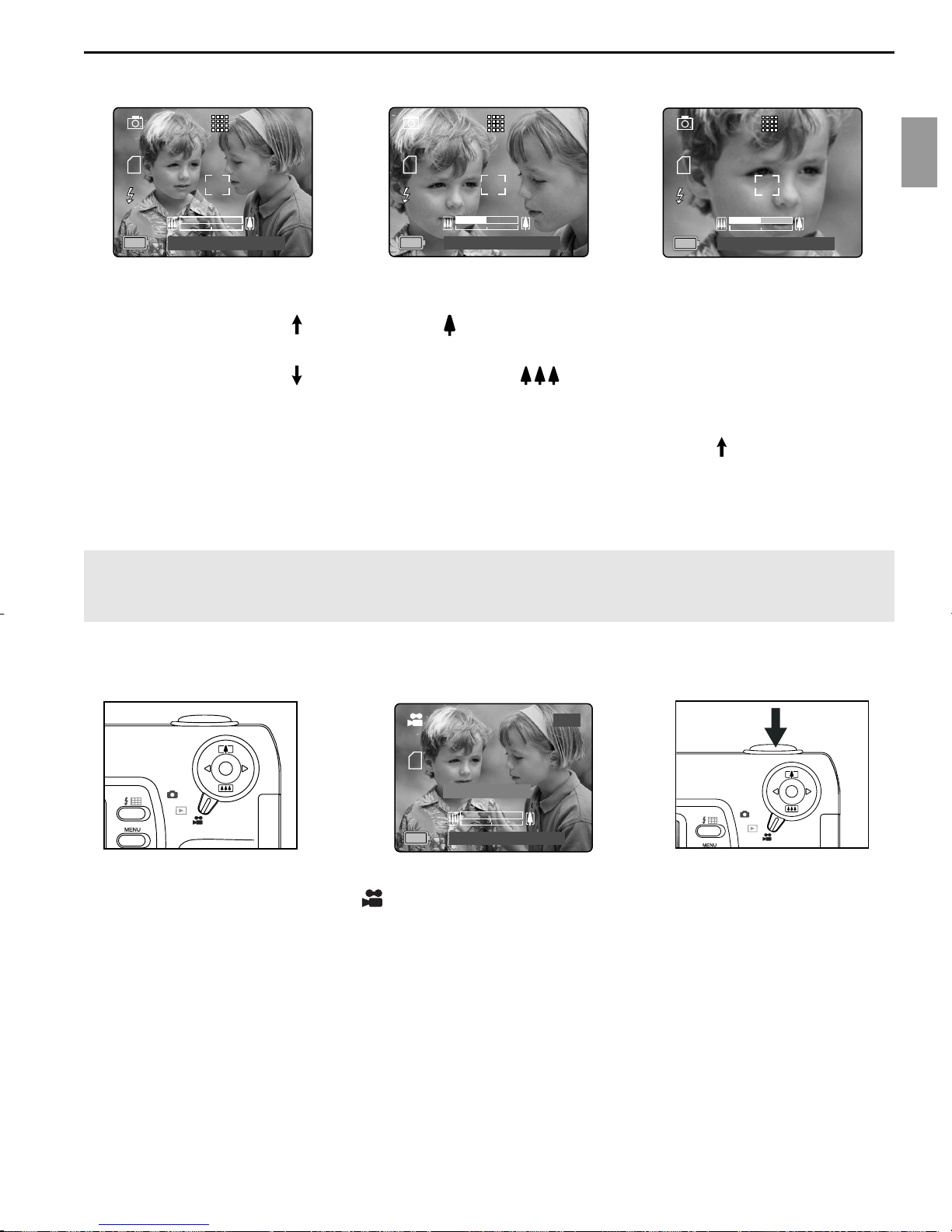

TAKING PICTURES / TAKING VIDEO CLIPS

TAKING PICTURES WITH ZOOM

HOW TO USE OPTICAL ZOOM

1. Press the joystick towards the ( ) tele position. (fig.1.1)

•The zoom bar will display the zoom position on the LCD. (fig.1.2)

2. Press the joystick to zoom towards the ( ) wide-angle position.

HOW TO USE DIGITAL ZOOM

1. At the maximum optical zoom level, continue to press the joystick until the digital

zoom is activated. (fig.1.3)

•There will be a short delay before the digital zoom is activated.

•The zoom bar will turn orange when digital zoom is being used.

Note: The 4x digital zoom combined with the 3x optical zoom can give up to 12x

magnification to your pictures.

TAKING VIDEO CLIPS

To record a video clip:

1. Slide the Mode Switch to ( ) Video Clip Mode.

2. Position the subject in the viewfinder or LCD.

3. Press the shutter button half-way to activate the focus until the green AF LED stops

blinking.

4. Press the shutter button fully to capture a continuous video clip.

•Internal Memory can take video clips up to 10 seconds.

•Memory cards can take continuous video clips until the memory is used.

To stop recording:

1. Press the Shutter button again to stop recording.

2. The camera will continue recording until the memory limit has been reached.

⁄ ⁄

Rec

2048

⁄ ⁄

AWB

2048

⁄ ⁄

AWB

2048

⁄ ⁄

AWB

2048

07 ⁄ 04 ⁄ 2003 02:40

0000 0000

0000

⁄ ⁄

Rec

⁄ ⁄

Rec

2048

⁄ ⁄

AWB

2048

07 ⁄ 04 ⁄ 2003 02:40

AWB

2048

⁄ ⁄

AWB

2048

⁄ ⁄

00000000 0000

0000

⁄ ⁄

Rec

⁄ ⁄

Rec

2048

⁄ ⁄

AWB

2048

⁄ ⁄

AWB

2048

07 ⁄ 04 ⁄ 2003 02:40

AWB

2048

⁄ ⁄

0000 0000

0000

⁄ ⁄

Rec

fig.1.2 fig.1.3

fig.1.1

07 ⁄ 04 ⁄ 2003 02:40

Shutter to Rec

Rec

0:01

2048

⁄ ⁄

AWB

2048

⁄ ⁄

AWB

2048

⁄ ⁄

AWB

2048

⁄ ⁄

0000 0000

0000

⁄ ⁄

Rec

Kimba QS Guide-6L(513734-00) 11/1/03 10:09 AM Page 6

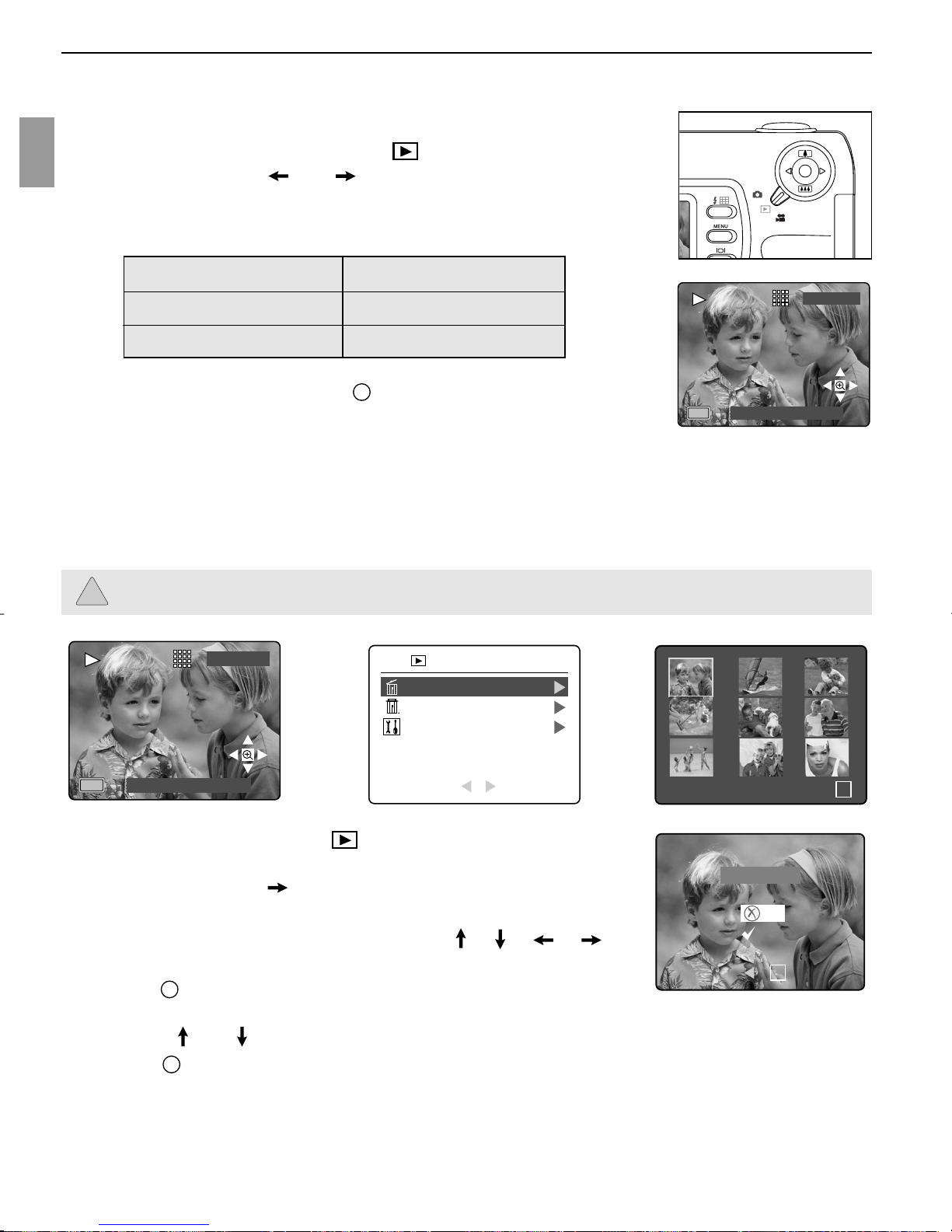

REVIEWING YOUR FILES

Using REVIEW mode:

1. Slide the Mode Switch towards ( ).

2. Press the joystick or to scroll through each file.

3. The file type can be found in the upper left hand corner of the

LCD.

File Format File Type

JPG Picture

AVIVideo Clip

4. To review video clips, press to play when a video clip (AVI)

is displayed on the LCD.

DELETING YOUR FILES

Delete One

Once a file is deleted, it cannot be recovered.

1. Slide the mode switch to ( ) Review Mode.

2. Press MENU.

3. Press the joystick when Delete One is highlighted.

4. The next screen will display the stored pictures and video

clips as thumbnails. Press the joystick , , ,

to highlight the file you want to delete.

5. Press to select.

6. The next screen will read "Are You Sure?" press the

joystick or to highlight No or Yes.

7. Press to select.

•If No is selected, no change will be made, and you will return to the Delete One

thumbnail view.

•If Yes is selected, the selected file will be deleted.

⁄ ⁄

Rec

JPG

0001-0005

2048

⁄ 04

⁄ 2003 02:40

AWB

2048

⁄ ⁄

AWB

2048

⁄ ⁄

AWB

2048

⁄ ⁄

0000 0000

0000

⁄ ⁄

Rec

⁄ ⁄

Rec

JPG

0001-0005

2048

⁄ 04

⁄ 2003 02:40

AWB

2048

⁄ ⁄

AWB

2048

⁄ ⁄

AWB

2048

⁄ ⁄

0000 0000

0000

⁄ ⁄

Rec

Delete One

Delete All

Setup

RETURN SELECT

REVIEW

⁄ ⁄

Rec

2048

⁄ ⁄

AWB

2048

⁄ ⁄

AWB

2048

⁄ ⁄

AWB

2048

⁄ ⁄

0000 0000

0000

⁄ ⁄

Rec

 Delete

⁄ ⁄

Rec

2048

⁄ ⁄

AWB

2048

⁄ ⁄

AWB

2048

⁄ ⁄

AWB

2048

⁄ ⁄

0000 0000

0000

⁄ ⁄

Rec

Are You Sure?

Yes

RETURN SET

⁄ ⁄

Rec

2048

⁄ ⁄

AWB

2048

⁄ ⁄

AWB

2048

⁄ ⁄

AWB

2048

⁄ ⁄

0000 0000

0000

⁄ ⁄

Rec

Kimba QS Guide-6L(513734-00) 11/1/03 10:09 AM Page 7

CONNECTING THE CAMERA TO THE COMPUTER

DOWNLOADING PICTURES AND VIDEO CLIPS ONTO YOUR COMPUTER

Note: Windows 98/98SE users must install the camera driver first. Windows 2000

users must install DirectX in order to view video clips on the computer.

Please refer to the Installation Guide section on page 38 in the User's Guide for more

information on installing the drivers and software found on the CD-ROM.

Caution: Do not insert or remove the memory card when the camera is connected to

the computer.

FOR WINDOWS USERS

Downloading Pictures and Video Clips onto your computer:

1. Connect the camera to the computer.

2. Double-click on My Computer.

3. Double-click Removable Disk.

4. Double-click DCIM.

5. Double-click 100CD330.

•The stored pictures (JPG) and video clips (AVI) stored in the memory card will be

displayed.

6. Click and drag the files into a directory in your computer to save them.

•To select all files, click Edit > Select all.

FOR MACINTOSH USERS

1. Connect the camera to the computer.

•After a few moments, the external hard drive will appear on the desktop.

2. Double-click the “untitled” removable drive that is on your desktop.

3. Double-click DCIM.

4. Double-click 100CD330.

The stored pictures (JPG) and video clips (AVI) stored in the memory card will be

displayed.

5. Drag and drop the image you want to save in the computer.

•To select all files, click Edit > Select all.

Concord, Concord Eye-Q and the Concord Eye-Q logo are registered trademarks or trademarks of Concord Camera Corp., in the

United States and/or other countries. Microsoft and Windows are either registered trademarks or trademarks of Microsoft

Corporation in the United States and/or other countries. Mac and Macintosh are registered trademarks or trademarks of Apple

Computer, Inc. in the U.S. and other countries. All other brands and product names are either registered trademarks or trademarks

of their respective owners.

Kimba QS Guide-6L(513734-00) 11/1/03 10:09 AM Page 8

Altri manuali per Eye-Q 3340z

Questo manuale è adatto per i seguenti modelli

Indice

Lingue:

Altri manuali Concord Camera Macchina fotografica digitale

Concord Camera

Concord Camera 2040 - Manuale utente

Concord Camera

Concord Camera Eye-Q 4363z Manuale utente

Concord Camera

Concord Camera 1500 Manuale utente

Concord Camera

Concord Camera Eye-Q 3132z Manuale utente

Concord Camera

Concord Camera 3341Z Questio Manuale utente

Concord Camera

Concord Camera 4340z Manuale utente

Concord Camera

Concord Camera Eye-Q 3345z Manuale utente

Concord Camera

Concord Camera 4060 AF Manuale utente

Concord Camera

Concord Camera 3341Z Questio Manuale utente

Concord Camera

Concord Camera Eye-Q 2100 Manuale utente

Concord Camera

Concord Camera Eye-Q Duo LCD Guida rapida

Concord Camera

Concord Camera Eye-Q 2133z Manuale di istruzioni

Concord Camera

Concord Camera 4340z Manuale utente

Concord Camera

Concord Camera Eye-Q 3042 AF Manuale utente

Concord Camera

Concord Camera 6340z Manuale utente

Concord Camera

Concord Camera JENOPTIK C 3.1 SL Manuale utente

Concord Camera

Concord Camera Eye Q Duo 1.3 Mega Pixels Camera Manuale utente

Concord Camera

Concord Camera 4360Z Questio Manuale utente

Concord Camera

Concord Camera Eye-Q 3103 Manuale di istruzioni

Concord Camera

Concord Camera Eye-Q 4363z Manuale utente

Concord Camera

Concord Camera Eye-Q Easy Eye-Q Easy Digital Camera Manuale utente

Concord Camera

Concord Camera 5340z Manuale utente

Concord Camera

Concord Camera Eye-Q Go Eye-Q Go LCD Camera Manuale utente

Concord Camera

Concord Camera PZ1400 Manuale utente

Manuali Macchina fotografica digitale popolari di altre marche

Mercury

Mercury 350K Manuale utente

Pentax

Pentax Optio LS 465 Manuale utente

Sanyo

Sanyo VPC-S1085 Manuale utente

GE SMART A1255 Manuale utente

Point Grey

Point Grey Gazelle Manuale utente

Nikon

Nikon COOLPIX A Manuale utente

Pentax

Pentax P-5 Manuale utente

BlazeVideo

BlazeVideo A280 Manuale utente

Sony

Sony MCA-20 Manuale utente

Sony

Sony Alpha DSLR-A290 Manuale utente

ATIK Cameras

ATIK Cameras One Manuale utente

CohuHD Costar

CohuHD Costar 3930 Series Manuale utente

Leica

Leica M10-R Manuale utente

FujiFilm

FujiFilm FinePix A700 Manuale utente

Lorex

Lorex LNZ81P25 Series Manuale utente

GE J1470S Manuale utente

Sony

Sony A6700 Guida utente

Canon

Canon EOS ELAN7 Manuale utente
