CONCORD Eye-Q 4363z

Quick Start Guide

DZ3343 QSG(514339-00)-E 111 4/19/04, 11:23:05 AM

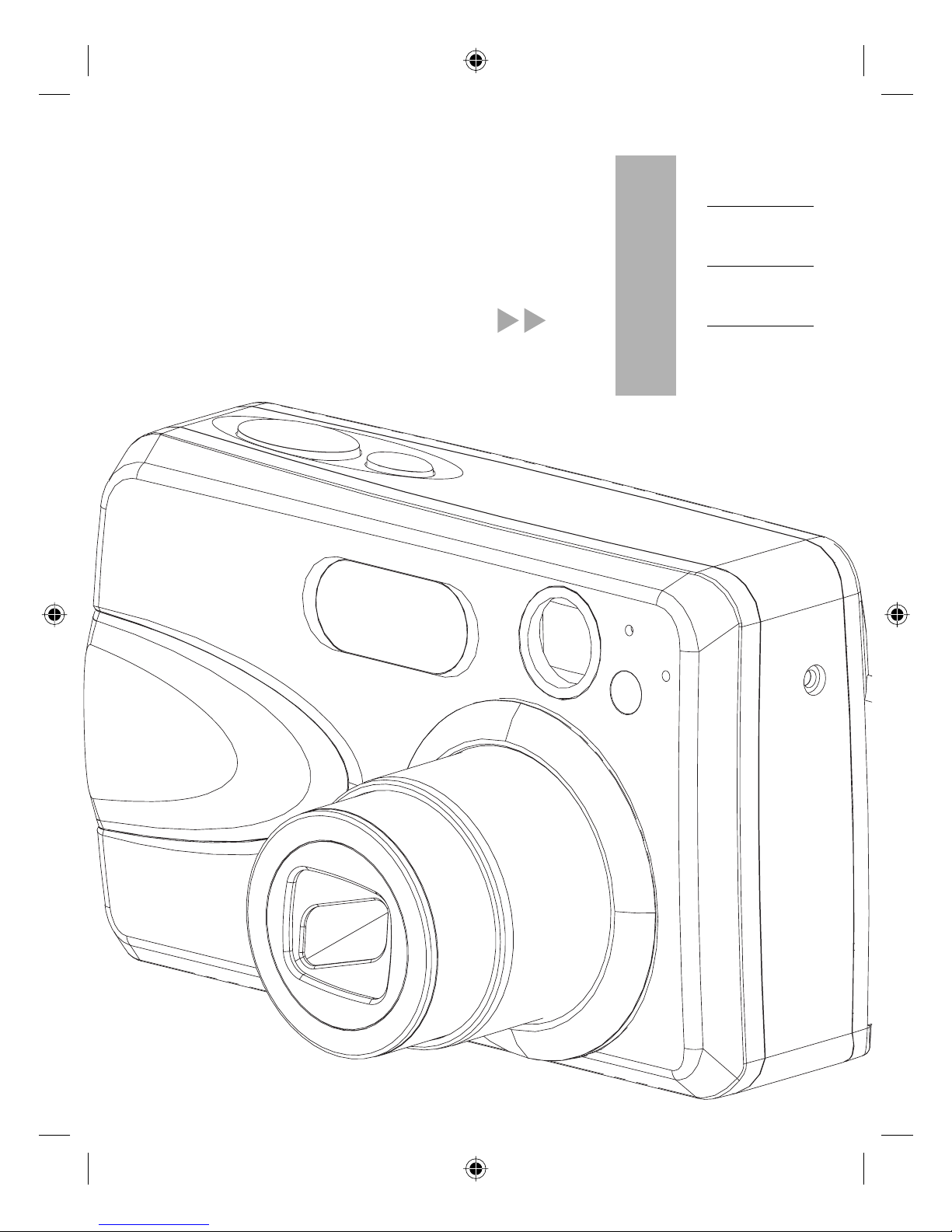

This Quick Start Guide provides a quick reference for operating your

new digital camera. Refer to the User’s Guide, which can be found

on the CD-ROM and a hard copy in your Concord Eye-Q 4363z box,

for detailed instructions on how to use all of your camera’s features.

Before using the camera, make sure to read all safety instructions and

precautions outlined in the User’s Guide.

QUICK START GUIDE

DZ3343 QSG(514339-00)-E 1 4/19/04, 11:23:06 AM

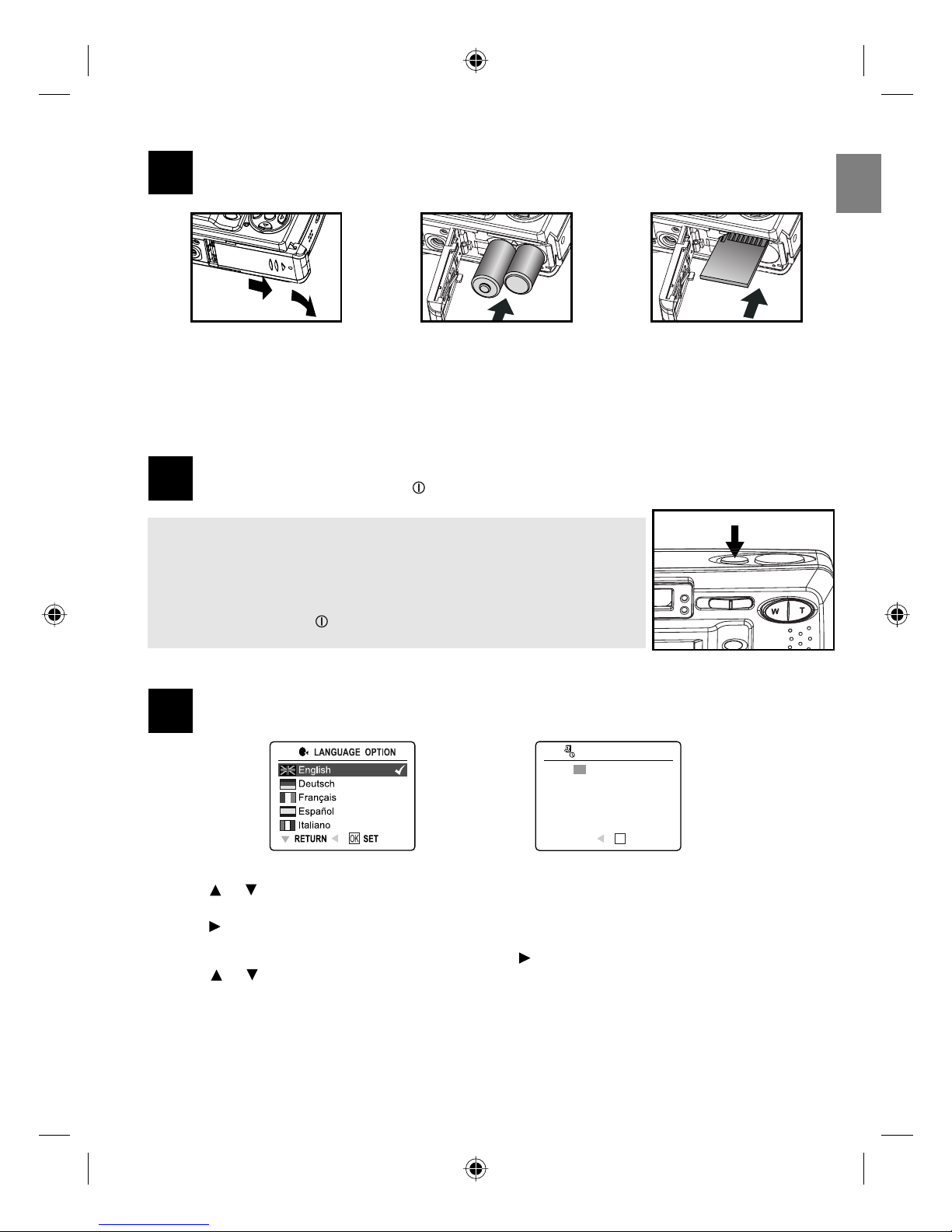

LOADING THE BATTERIES AND THE SD MEMORY CARD

1. Open the Battery/Memory Card door. (fig.1.1)

2. Insert the batteries and the SD memory card (sold separately). (fig.1.2-1.3)

3. Close the door.

TURNING THE CAMERA ON

Press and hold the Power button ( ) for about 3 seconds to turn the camera on.

Note: To extend battery life,

• The LCD will be off after 1 minute of inactivity. After the LCD is

automatically turned off, the Flash Ready LED blinks. Press either button

to reactivate the LCD.

• The camera will automatically power off after 2 minutes of inactivity. Press

and hold the Power ( ) button for about 3 seconds to turn the camera

back on.

SETTING THE LANGUAGE, DATE AND TIME

When the camera is powered on for the first time, the Language, Date and Time menus will appear.

1. Press or to highlight the language you would like to use. (fig. 1.1)

2. Pressing the OK button in to select. The next screen shows date/time setup page. (fig. 1.2)

3. Press to highlight the Date field, the Time fields, the Date Format field or the Time Format field. The

selected segment will blink.

• When the Time Format field is reached, keep pressing , the cursor will wrap around the date field.

4. Press or to change the number in the blinking position.

5. Press the OK button to exit date/time setting. The next screen displays live viewfinder.

fig.1.1 fig.1.2 fig.1.3

AWB

⁄ ⁄

AWB

⁄ ⁄

AWB

⁄ ⁄

AWB

⁄ ⁄

AWB

⁄ ⁄

AWB

⁄ ⁄

DATE/TIME SETUP

01 - 01 - 2004

01 : 01 AM

MM - DD - YYYY

12 - HOUR

RETURN SET

fig. 1.1 fig. 1.2

DZ3343 QSG(514339-00)-E 2 4/19/04, 11:23:06 AM

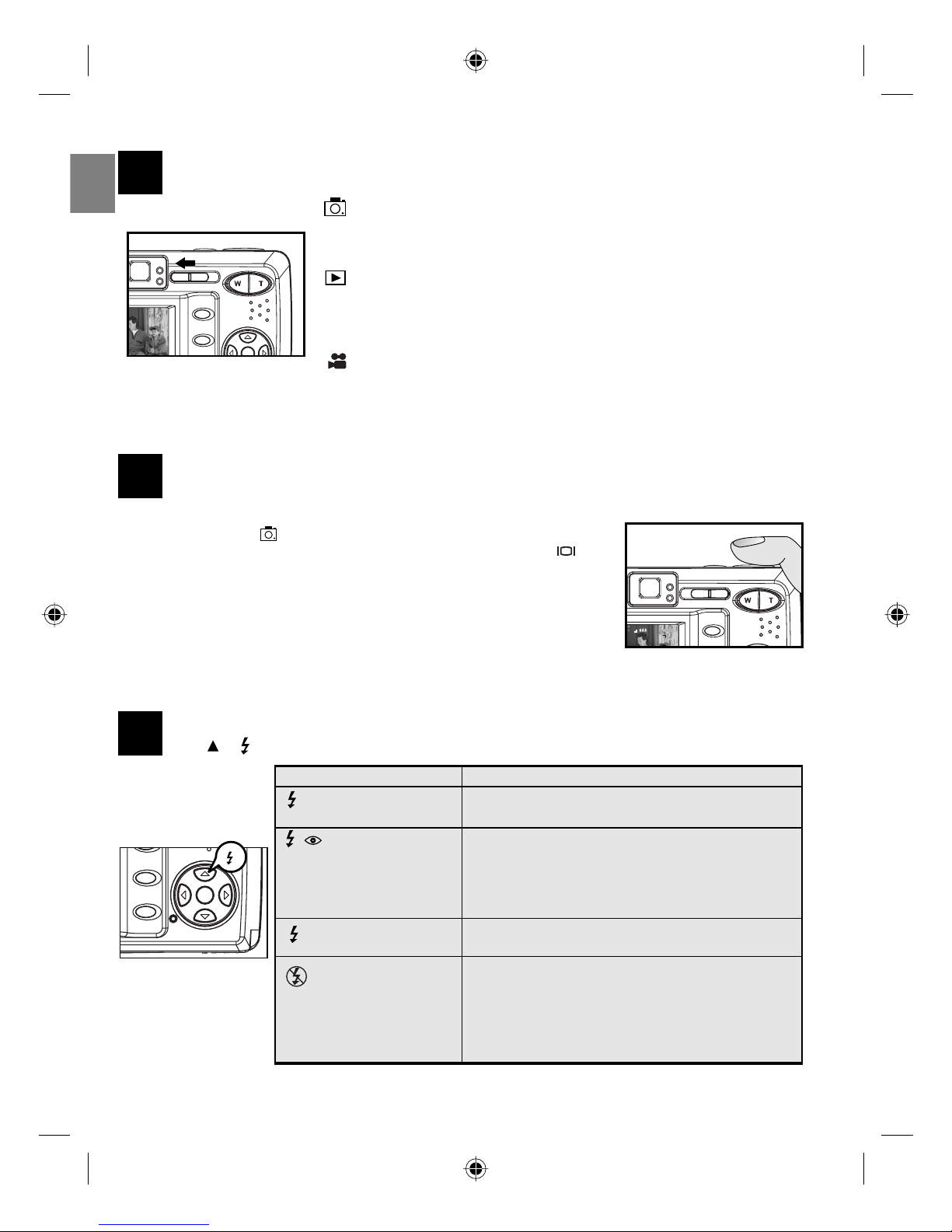

SETTING THE CAMERA’S OPERATIONAL MODE

To change the camera operational mode, slide the mode switch horizontally to the corresponding

position.

TAKING PICTURES

1. Turn the camera on.

2. Set the camera to ( ) Camera mode.

The LCD can be switched off to save battery power by pressing the ( )

button.

3. Frame the subject in the viewfinder or LCD.

4. Press the shutter button half-way to activate the auto-focus until the green AF

LED stops blinking and the AF frame turns green.

5. Press the shutter button fully to capture the image.

• When the image has been captured, the Flash Ready LED next to the

viewfinder will blink to indicate that the image is being stored.

SETTING THE FLASH

Press / repeatedly until the desired indicator appears on the LCD.

AWB

⁄ ⁄

AWB

⁄ ⁄

AWB

⁄ ⁄

AWB

⁄ ⁄

AWB

⁄ ⁄

AWB

⁄ ⁄

Camera Mode

Use the camera mode to take pictures or to customize your camera settings

for picture taking.

Review Mode

Use the review mode to browse through images and video clips, to delete

images and video clips, to play a slide show, or to transfer the images/video

clips from the internal memory to the SD card.

Video Clip Mode

Use video clip mode to capture video clips with sound or to customize your

camera settings for video clip recording.

AWB

⁄ ⁄

28/45

AWB

⁄ ⁄

AWB

⁄ ⁄

AWB

⁄ ⁄

AWB

⁄ ⁄

AWB

⁄ ⁄

AWB

⁄ ⁄

AWB

⁄ ⁄

AWB

⁄ ⁄

AWB

⁄ ⁄

AWB

⁄ ⁄

AWB

⁄ ⁄

Flash Mode Description

Auto Flash (Default) The camera judges if a flash is required. If the

environment is too dark, the flash will file.

Auto + Red-Eye Use this mode to significantly reduce the

occurrence of “red- eye” in flash photography.

The camera will automatically detect when the

flash is needed and the flash will fire after a short

delay.

Flash ON Flash will fire in any lighting condition.

The “red-eye” reduction function is included also.

Flash off The flash will not fire in this mode. Please use

this mode if you want to capture the mood of the

ambient lighting or to use the available light in

places where flash photography is prohibited,

such as museums.

DZ3343 QSG(514339-00)-E 3 4/19/04, 11:23:19 AM

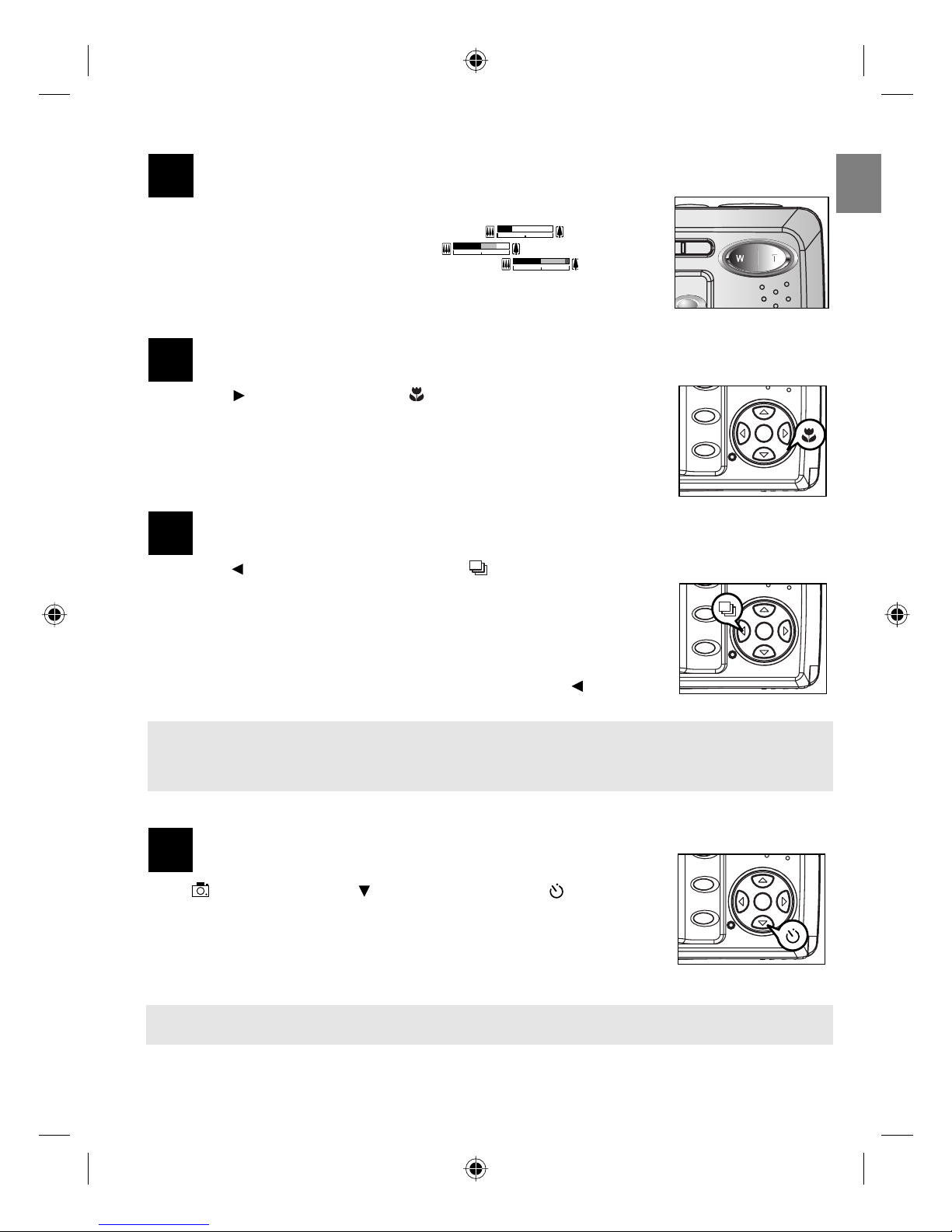

USING THE ZOOM

1. Press T(Tele) to zoom in your subject.

• The optical zoom status is shown in white color ( ).

• The digital zoom status is shown in blue ( ). When digital

zoom reaches 6x, the zoom bar will change to red ( ).

2. Press W(Wide) to zoom out.

Note: The image quality may degrade slightly with digital zoom.

CLOSE-UP SHOOTING

1. Press the button. The Macro icon ( ) will be displayed on the LCD.

2. Frame the subject in the LCD.

• The best shooting range is from 10 cm to 60 cm. (4 in. – 23.6 in.)

3. Press the shutter button half-way to activate the focus until the green AF LED

stops blinking and the AF frame turns green.

4. Press the shutter button fully to take the picture.

TAKING CONTINUOUS PICTURES

1. Press the button. The Continuous Shot icon ( ) will be displayed on the LCD.

2. Frame the subject in the LCD screen and press the shutter button half-way to

activate the focus until the green AF LED stop blinking and the AF frame turns

green.

3. Press the shutter button fully to capture the pictures.

• The camera will automatically capture 7 continuous images at approximately 3

images per second in 1600 x 1200 resolution.

4. If you do not want to take continuous pictures anymore, press the button until

disappears from the LCD.

Note:

• In continuous shooting mode the flash is disabled as the recharging time will slow it down.

• The LCD will be blank when the images are taken in the Continuous Shooting Mode.

TAKING PICTURES WITH SELF-TIMER

1. In ( ) Camera Mode, press button, the self-timer icon ( ) appears on

the LCD.

2. Place the camera on a flat surface or tripod.

3. Use the LCD to compose the picture, and then press the Shutter button to

activate the Self-Timer.

The Self -timer LED will blink slowly for 7 seconds, faster for the remaining 3

seconds and then the image will be captured.

Note: The Self-Timer is automatically deactivated once the image is taken.

AWB

⁄ ⁄

AWB

⁄ ⁄

AWB

⁄ ⁄

AWB

⁄ ⁄

AWB

⁄ ⁄

AWB

⁄ ⁄

AWB

⁄ ⁄

AWB

⁄ ⁄

AWB

⁄ ⁄

AWB

⁄ ⁄

AWB

⁄ ⁄

AWB

⁄ ⁄

AWB

⁄ ⁄

AWB

⁄ ⁄

AWB

⁄ ⁄

AWB

⁄ ⁄

AWB

⁄ ⁄

AWB

⁄ ⁄

DZ3343 QSG(514339-00)-E 4 4/19/04, 11:23:48 AM

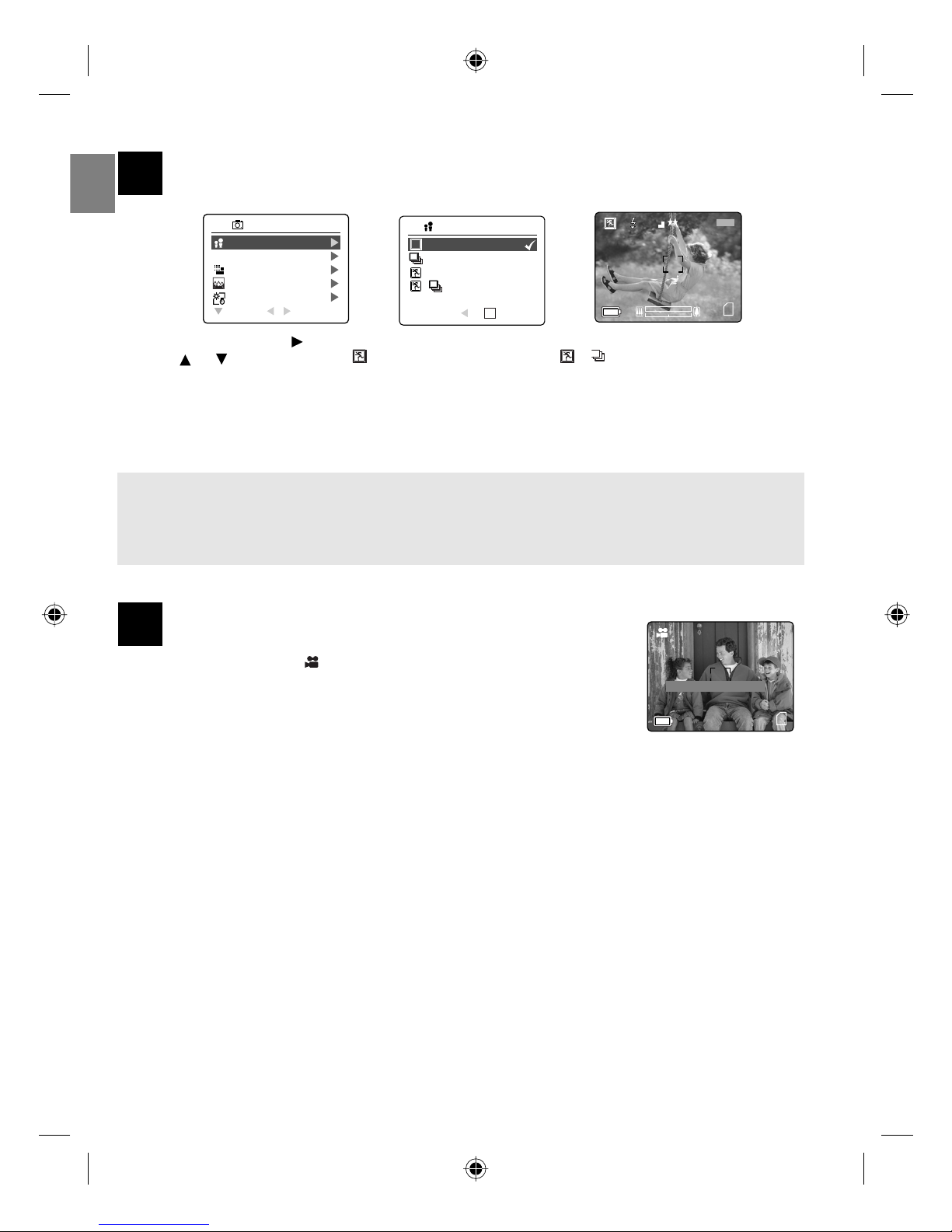

TAKING PICTURES IN SPORT MODE

This mode is used to shoot sports and other high-speed activities. The camera will automatically choose

a higher shutter speed and wider aperture to capture fast-moving action without blur.

1. In the main menu, press to enter the capture mode submenu.

2. Press or to highlight Sport ( ) Sport + Continuous shot or ( + ).

3. Press OK to enter the mode.

4. Frame the subject in the LCD.

5. Press the shutter button half-way to activate the focus until the green AF LED stops blinking and the AF

frame turns green.

6. Press the shutter button fully to take the picture.

Note:

• Flash ON will be turned off when Sport mode is selected.

• Hold your camera steady to prevent blurriness. It is recommended to either place your camera on a

steady surface or use a tripod.

TAKING VIDEO CLIPS

The camera can capture video clips with sound.

1. Slide the Mode Switch to ( ) Video Clip Mode.

• The time limit is showing on the upper right corner of the screen.

2. Position the subject in the LCD.

3. Press the shutter button half-way to activate the focus until the green AF LED

stops blinking and the AF frame turns green.

4. Press the shutter button fully to capture a continuous video clip. The time

recorded will be shown on LCD. The camera can take video until the memory is full.

5. To pause recording, press OK once. Press OK again to resume recording.

To stop recording:

1. Press the Shutter button again to stop recording.

2. The camera will continue recording until the memory limit has been reached.

AWB

CAPTURE MODE

QUALITY SETUP

IMAGE SIZE

SCENE SELECTION

WHITE BALANCE

RETURN SELECT

CAMERA MODE

AWB

28/45

AWB

CAPTURE MODE

RETURN SET

X2X1

28 SEC

1 SEC A

AWB

Press Shutter to Record

28 SEC

DZ3343 QSG(514339-00)-E 5 4/19/04, 11:24:16 AM

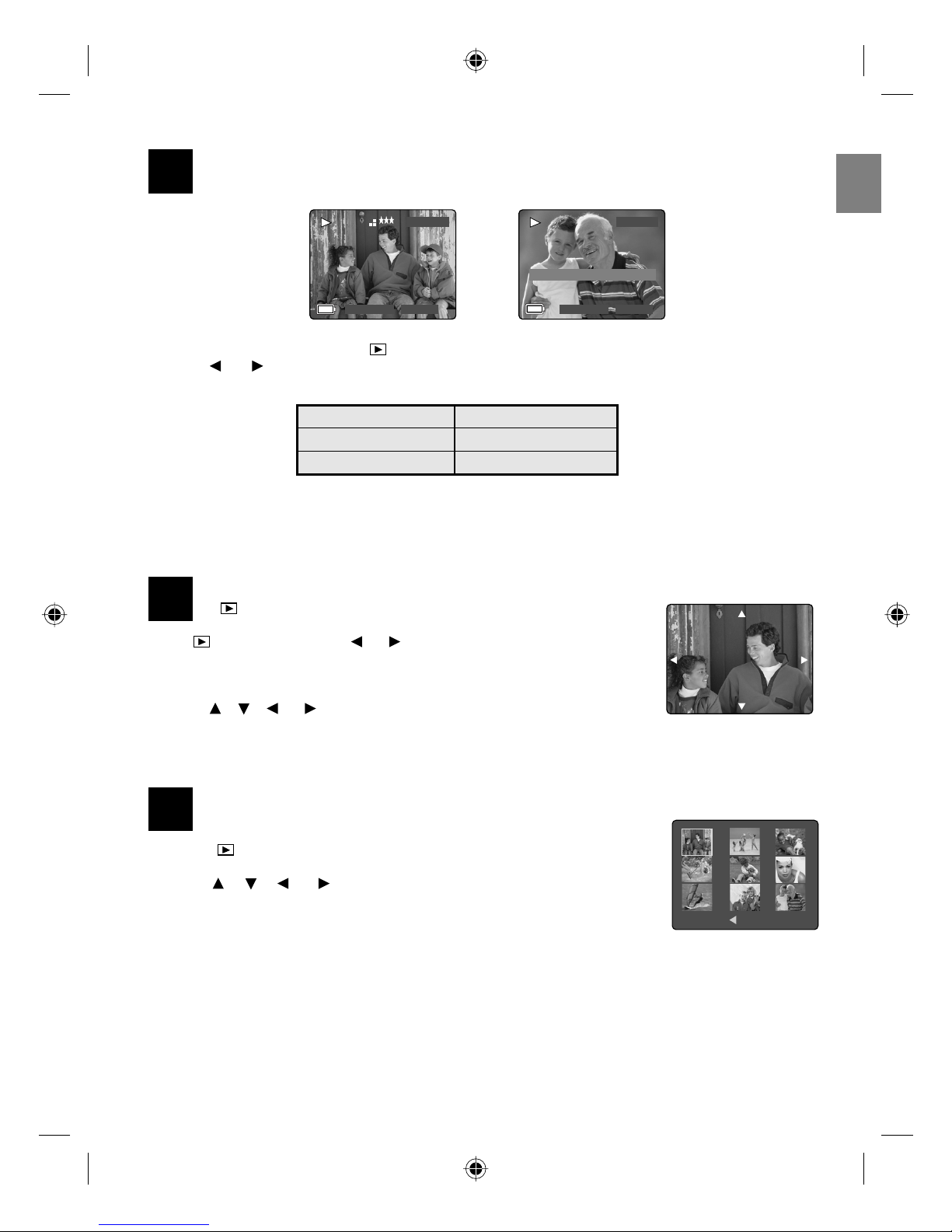

REVIEWING THE PICTURES/VIDEO CLIPS

1. Slide the Mode Switch towards ( ) . The lens will retract after 30 seconds in review mode.

2. Press or or to scroll through each file.

• The file type and frame counter will be displayed on the LCD.

File Indication File Type

JPEG Still Picture

AVI Video Clip

3. When a video clip icon (AVI) is displayed on the LCD, press the OK button to play the video clip.

Note: You may press the OK button to pause and resume playing video clip.

ENLARGING THE PICTURES

In ( ) Review Mode, you can enlarge your pictures to take a closer

look at the subject on the LCD.

1. In ( ) Review Mode, press or to scroll through the stored pictures

and video clips.

2. While viewing a stored still picture, press the Tbutton to get different

magnifications.

3. Press , , or to navigate in the picture. When the picture can pan

no farther in one direction, the directional arrow will disappear.

4. Press Wbutton to zoom out.

REVIEWING YOUR FILES IN THUMBNAIL

1. In the ( ) Review Mode, press Wbutton, nine thumbnail images or video

clips will appear on the LCD display in a few seconds.

2. Press , , or to look through all the pictures and video clips. The

selected picture or video clip will have a red border.

3. Press the OK button to view the picture or video clip in full screen.

0001/0003

X2X1

2004:03:30 13:30:41

28 SEC

1 SEC A

AWB

28 SEC

0001/0003

Press OK to view/pause Video

2004:03:30 13:30:41

28 SEC

1 SEC A

AWB

28 SEC

1 SEC A

AWB

28 SEC

AWB

MENU 0012/0012

AWB

DZ3343 QSG(514339-00)-E 6 4/21/04, 3:47:24 PM

X2X1

Are You Sure?

Yes

SELECT

28 SEC

1 SEC A

AWB

28 SEC

DELETING YOUR FILES

1. In ( ) Review mode, press button once, the screen will read “Are you sure?”

Press button twice, the screen will read “Delete All Are you sure?”

2. Press or to highlight No or Yes.

3. Press the OK button to select.

• If No is selected, no change will be made.

• If Yes is selected, the file will be deleted.

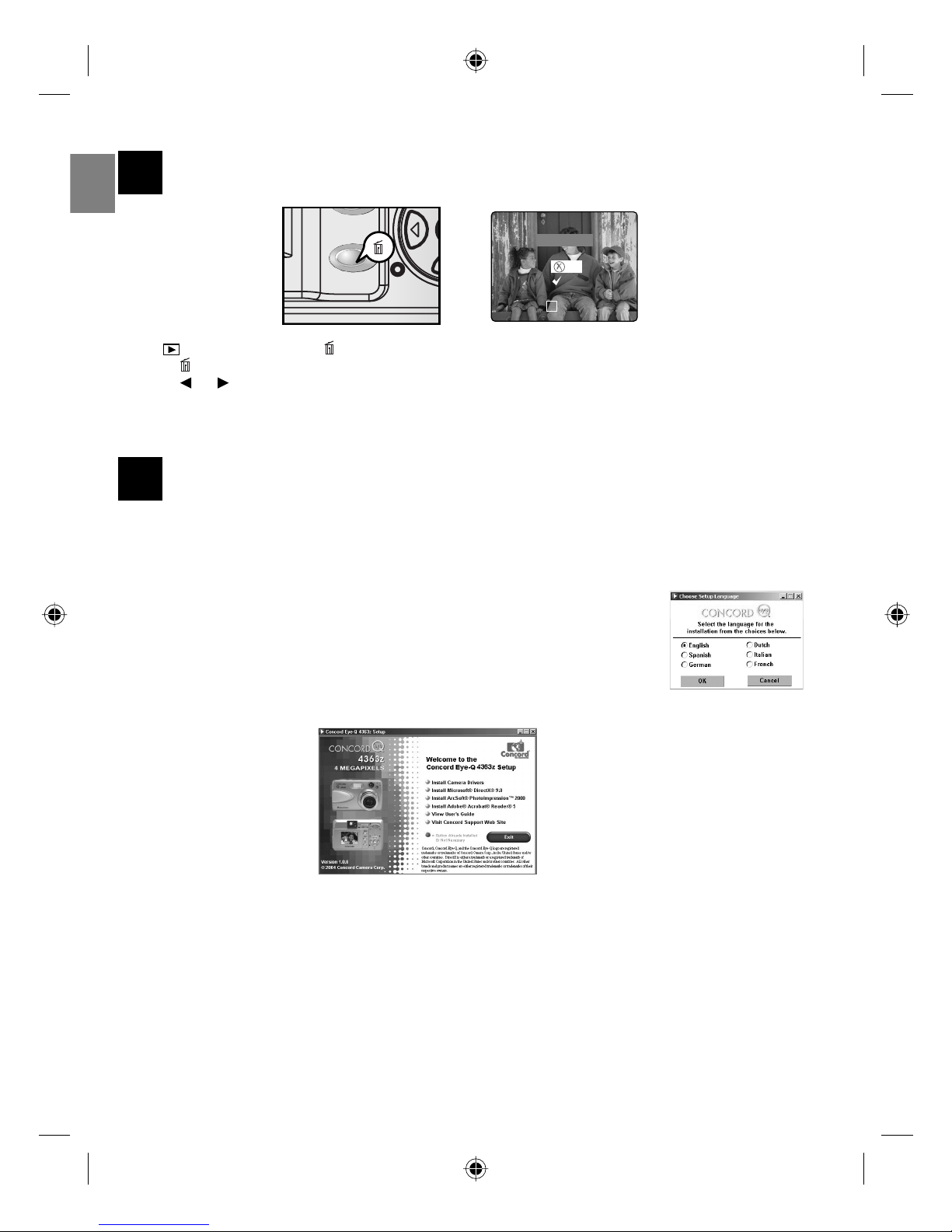

SOFTWARE INSTALLATIONS (WINDOWS)

1. Insert the CD-ROM included in your camera’s packaging into your computer’s CD-ROM drive.

The language selection screen props up.

Note: If the installer does not start automatically within 30 seconds after the CD-

ROM has been inserted, click on “My Computer” either on the Desktop or in the Start

Menu and locate the CD-ROM Drive, then double click on the CD-ROM Drive icon.

2. Select the language. Click [OK]. The installation screen will appear.

3. Click on the items to be installed and proceed to the installation by following the

splash screen.

DZ3343 QSG(514339-00)-E 7 4/19/04, 11:25:36 AM

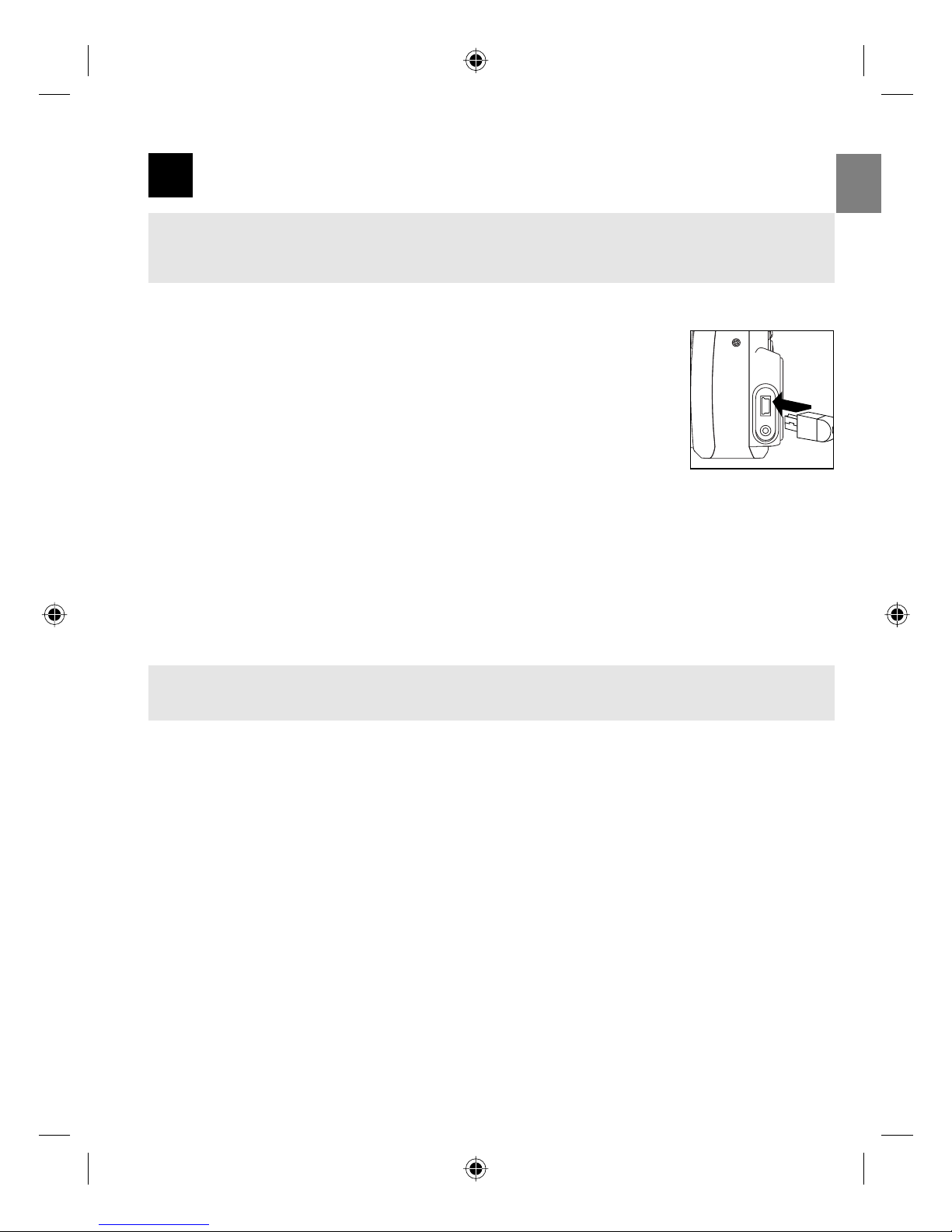

DOWNLOADING PICTURES/VIDEO CLIPS ONTO YOUR COMPUTER

Note: Windows 98/98SE users must install the camera driver and DirectX first in order to download the files

and to view video clips on the computer. Windows 2000 users must install DirectX in order to view video clips

on the computer. Please refer to the Installation Guide for more information.

FOR WINDOWS USERS

1. Connect the camera to the computer.

2. Double-click on My Computer.

3. Double-click Removable Disk.

4. Double-click DCIM.

5. Double-click 100_4363.

• The pictures (JPEG) and video clips (AVI) stored in the memory card will be

displayed.

6. Click and drag the files into a directory in your computer to save them.

• To select all files, click Edit > Select all.

FOR MACINTOSH USERS

1. Connect the camera to the computer.

• After a few moments, the external hard drive will appear on the desktop.

2. Double-click the “untitled” removable drive that is on your desktop.

3. Double-click DCIM.

4. Double-click 100_4363.

• The pictures (JPEG) and video clips (AVI) stored in the memory card will be displayed.

5. Drag and drop the image you want to save in the computer.

• To select all files, click Edit > Select all.

Note: You may also transfer the stored pictures and video clips on your memory card onto your computer

by using a memory card reader. (Sold separately)

Concord, Concord Eye-Q and the Concord Eye-Q logo are registered trademarks or trademarks of Concord Camera Corp., in the United States

and/or other countries. Microsoft and Windows are either registered trademarks or trademarks of Microsoft Corporation in the United States

and/or other countries. Mac and Macintosh are registered trademarks or trademarks of Apple Computer, Inc. in the U.S. and other countries. All

other brands and product names are either registered trademarks or trademarks of their respective owners.

DZ3343 QSG(514339-00)-E 8 4/19/04, 11:25:49 AM

Altri manuali per Eye-Q 4363z

Indice

Lingue:

Altri manuali Concord Camera Macchina fotografica digitale

Concord Camera

Concord Camera 5345z Manuale di istruzioni

Concord Camera

Concord Camera 4360Z Questio Manuale utente

Concord Camera

Concord Camera Eye-Q 5330z Manuale utente

Concord Camera

Concord Camera 3043 Manuale utente

Concord Camera

Concord Camera Eye-Q 5330z Manuale utente

Concord Camera

Concord Camera 2040 - Manuale utente

Concord Camera

Concord Camera Eye-Q Easy Eye-Q Easy Digital Camera Manuale utente

Concord Camera

Concord Camera Eye-Q Duo LCD Manuale di istruzioni

Concord Camera

Concord Camera 5340z Manuale utente

Concord Camera

Concord Camera 6340z Manuale utente

Concord Camera

Concord Camera Eye-Q 4062AF Manuale utente

Concord Camera

Concord Camera Eye-Q 5330z Manuale di istruzioni

Concord Camera

Concord Camera Eye-Q 3132z Manuale utente

Concord Camera

Concord Camera 5345z Manuale utente

Concord Camera

Concord Camera 5040 Manuale utente

Concord Camera

Concord Camera Eye-Q 3132z Manuale utente

Concord Camera

Concord Camera Eye-Q 3042 AF Manuale utente

Concord Camera

Concord Camera 4340z Manuale utente

Concord Camera

Concord Camera Concord Eye-Q Eye-Q 3042AF Manuale utente

Concord Camera

Concord Camera Eye-Q 2133z Manuale utente

Concord Camera

Concord Camera Eye-Q 3X Manuale utente

Concord Camera

Concord Camera Eye-Q Go Eye-Q Go LCD Camera Manuale utente

Concord Camera

Concord Camera Eye-Q 2133z Manuale di istruzioni

Concord Camera

Concord Camera 5345z Manuale utente

Manuali Macchina fotografica digitale popolari di altre marche

Mercury

Mercury 350K Manuale utente

Pentax

Pentax Optio LS 465 Manuale utente

Sanyo

Sanyo VPC-S1085 Manuale utente

GE SMART A1255 Manuale utente

Point Grey

Point Grey Gazelle Manuale utente

Nikon

Nikon COOLPIX A Manuale utente

Pentax

Pentax P-5 Manuale utente

BlazeVideo

BlazeVideo A280 Manuale utente

Sony

Sony MCA-20 Manuale utente

Sony

Sony Alpha DSLR-A290 Manuale utente

ATIK Cameras

ATIK Cameras One Manuale utente

CohuHD Costar

CohuHD Costar 3930 Series Manuale utente

Leica

Leica M10-R Manuale utente

FujiFilm

FujiFilm FinePix A700 Manuale utente

Lorex

Lorex LNZ81P25 Series Manuale utente

GE J1470S Manuale utente

Sony

Sony A6700 Guida utente

Canon

Canon EOS ELAN7 Manuale utente
