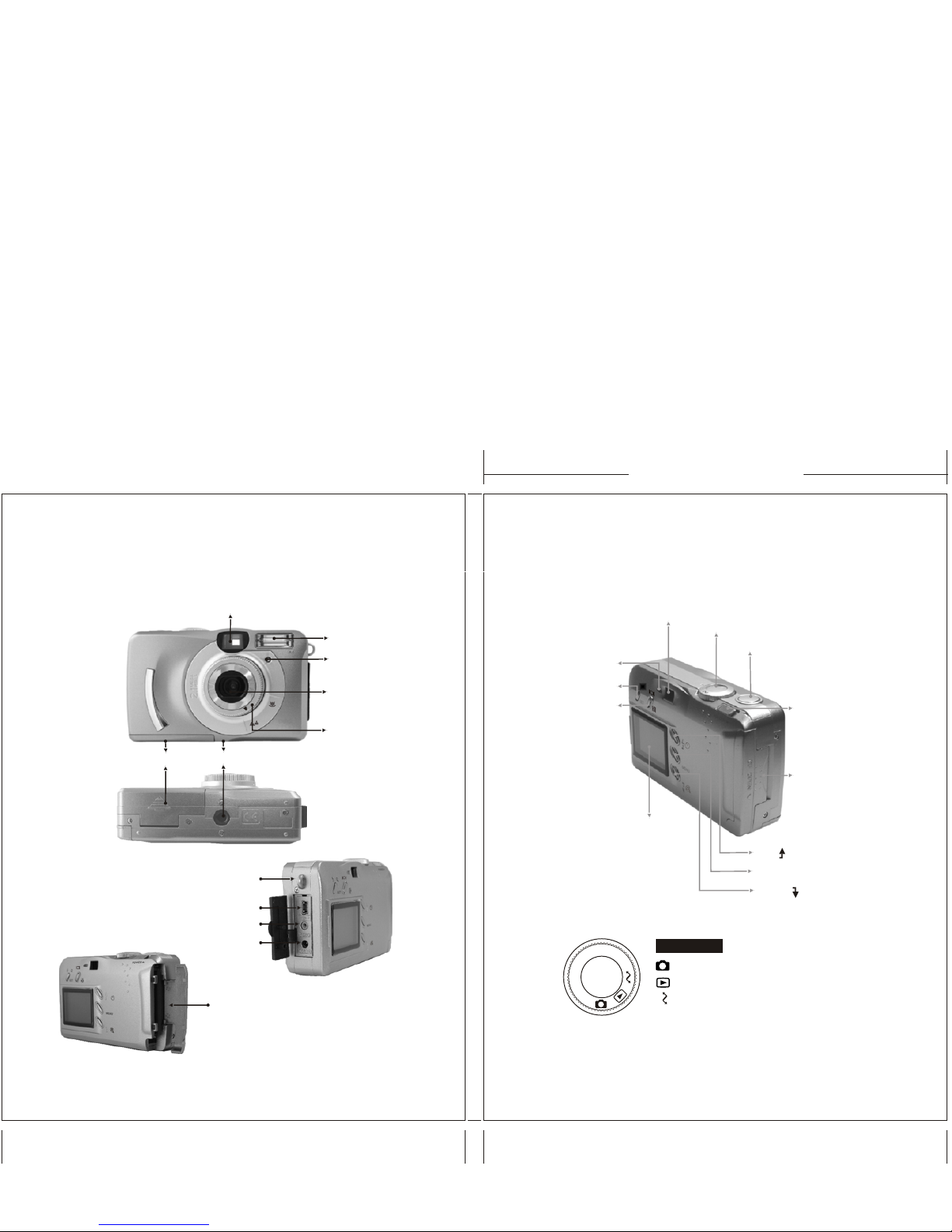

Product Overview Product Overview

Lens

Viewfinder

Flash

Self-timer

Indicator LED

Battery Cover

Focus Ring

Tripod Socket

USB Terminal

Strap Eyelet

TV out Terminal

DC Power

Terminal

Memory Card Slot Cover

Power Switch

Mode Dial

Shutter Button

Viewfinder

Up ( ) Direction Button

Menu Button

Down ( ) Direction Button

TFT LCD Monitor

Memory Card

Slot Cover

Disp Button

Set Button

Ready LED

Mode Dial

Camera

Review

PC Connection

165mm+-2

122mm+-2

4 5

165mm+-2

122mm+-2

6 7

Getting Started Loading the Camera Batteries

Congratulations on the purchase of your new camera. Your camera has

been carefully engineered and manufactured to give you dependable

operation. Read this manual before operating the camera to become

more familiar with it.

Package Contents

Concord Eye-Q 2100 Digital Camera

CD ROM with Camera Drivers for Windows

98/98SE/2000/ME/XP and Mac OS 9.X only

4 AAA Batteries

Camera Pouch

MGI Software CD ROM

User's Manual

Quick Start Guide

USB Cable

Video Cable

Wrist Strap

Attaching the Wrist Strap

To help ensure the camera is

not dropped, place the wrist

strap on the camera.

1.Open the Battery Cover, by

pushing and sliding it towards

the front of the cover.

2. Load the batteries into the

battery chamber following the

Polarity indicators (+ -)

3. Close the Battery Cover until

you hear it click closed.

Note:

The use of an ACAdapter is recommended if you expect to use the camera

for a long period. Make sure the AC adapter meets the specification

requirement of 5V/2.0A maximum. The positive terminal of the AC

Adapter inserts into the cameras DC power terminal.

Mode Dial Settings

Located on the top of the camera, the Mode Dial moves the camera to

different operational modes.

Camera Mode - For picture taking. You can take photographs

from 15cm (6 inches) to infinity.

Review Mode -Review your pictures from the CF memory or

internal memory on the TFT or on an external monitor with the

video cable.

PC Connect Mode -Connect your camera to a computer, and

download the images.

165mm+-2

122mm+-2

8 9

Turning the Camera On and Off

Slide the Power switch to the right.

You will hear a beep; the ready light will

flash then remain steady. The camera is

then powered on.

To power the camera Off, slide the power switch to the right.

Turning the TFT Display On and Off

Yourcamera comes with a protective film over the

TFT display during shipping.

Remove the covering to have a clear view of the

display.

To turn the TFT On and Off, Press the button just above the

TFT display.

Note:

The icons on the TFT display the status of the current camera settings

and conditions.

See Page 9 for more information on your TFT icons.

EV Adjustment

+2.0EV

Date/Time Indicator

White Balance

AWB

Daylight

Tungsten

Fluorescent

Cloudy

AWB

Resolution

800x600

1600x1200

Macro

Number of Images

CF Card Inside

Battery Power

Digital Zoom

Image Quality

Super Fine

Fine

Normal

TFT Icons

Flash Mode

Fill-in Flash

Red-eye Reduction

Night

Flash Off

Depth Of Field

Enhancement

Auto Flash

AWB

165mm+-2

122mm+-2

Checking the Battery level

Before using the camera, turn it on and check the battery status. The

lower right corner of the TFT display has the following battery level

indicators.

Full - Battery is fully charged

Low - replace soon

Depleted - replace with new batteries.

Suggested Battery Brands

To ensure optimal performance of your camera, the use of internationally

known brands of extended life alkaline batteries is recommended.

Extended use of these features can reduce battery life:

Using the TFT as a viewfinder

Reviewing pictures on the TFT

Using the flash

Note:

* See Pg. 40 Tips Safety and Maintenance for more information on

batteries.

Choosing Internal Memory or CF card

The Concord Eye-Q 2100 camera is equipped with 8MB of internal

memory. The camera supports CompactFlash™ Type I cards for

additional picture storage capabilities.

Inserting a CF card

1. Open the Memory Card Slot Cover.

2. Insert the CompactFlash™ Card

3. Close the Memory Card Slot cover. You will

hear the cover snap when it is closed.

Note:

If a new CompactFlash™ card is used the card needs to be formatted.

Please see Pg. 25 for instructions on formatting your CompactFlash™

card.

Internationally recognized brands of CompactFlash™Cards greater than

8MB are recommended for the Eye-Q 2100 digital camera.

When the Memory Slot door is opened the camera automatically powers

off.

Taking a Picture

Use the Camera Mode setting to take pictures or to customize your

cameras settings for picture taking.

1. Turn Dial Mode to Camera Mode.

2. Use the TFT to frame your subject.

If you wish to conserve battery power, use the viewfinder to frame your

subject.

3. Check the focus ring on the

front of the camera for correct

setting

4. Press shutter button half

way down to set the exposure,

then completely down to take

the picture.

The TFT will show a quick preview of the image and then return to live

mode for more picture taking.

The preview can be turned off, see Customizing Your Camera on Page 23.

** Note:

Focus Ring must be set correctly or pictures will be out of focus.

See Next Page.

Setting the Focus Range

The Concord Eye-Q 2100 camera can focus on subjects as close as 15cm

(6 in) to infinity. If the Focus ring is not set correctly the images will be

out of focus.

Photography Tips

Macro Mode allows you get close to

your subject.

Photography Tips

Macro Mode allows you get close to your subject.

Frame the subject in the TFT display, and not the viewfinder.

Take a test picture, to see if the flash is required or not. You can review

the picture in the TFT and then

delete.

Macro Mode-

15cm – 40cm

(6 in- 15in)

Normal Mode-

50cm (20 in)-infinity

Using the Flash

When taking pictures at night, indoors or outdoors in shadows, use the

flash on your camera. The camera flash is effective when you are

0.75cm to 3 m (2.5 ft. to 9 ft.) from the subject.

When in Camera Mode, Press the Set button to choose the flash setting.

The flash status icon displayed on the TFT will change as you press the

Set button.

Auto – The camera judges if a flash is required. If the

environment is too dark, the flash will fire.

Fill in Flash – Flash will fire in any lighting conditions

Red-Eye-Reduction – flash will fire to help eliminate Red

Eye, flash resets to Auto

Night Mode-decreasing the shutter speed to capture more

light, the camera needs to be placed on a tripod when used

in Night Mode

Flash Off- Flash will not fire under any lighting conditions.

Depth of Field Enhancement – Under cloudy or low light

conditions for subjects that are at a distance or

landscapes.
