6.0 Megapixels Digital Camera

Quick Start Guide

6340 QSG 516085-00 11/1/04, 9:40 AM2

This Quick Start Guide provides a quick reference for operating

your new Camera. Refer to the User’s Guide, which can be found

on the CD-ROM, for detailed instructions on how to use all of your

camera’s features. Before using the camera, make sure to read all

safety instructions and precautions outlined in the User’s Guide.

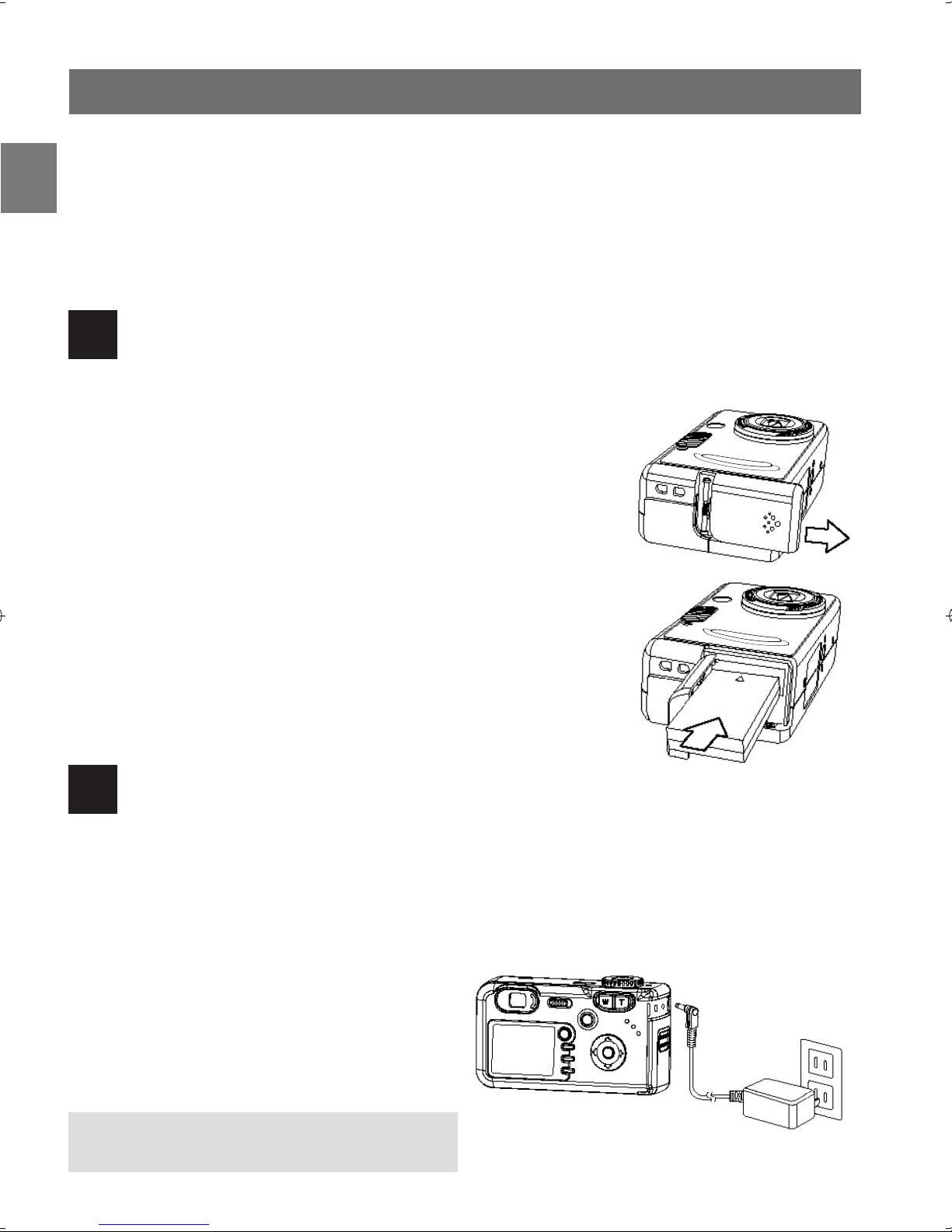

1 INSTALLING THE BATTERY PACK

The camera can use either the supplied 3.7V 900 mA Rechargeable Battery Pack or the Compact Power

Adapter as power source. Charge the Battery Pack before you use it.

1. Slide the Battery/Memory Card Door in the direction of the buttons.

2. Insert the battery pack in the direction of the button marked on the

battery pack.

3. Close the Battery/Memory Card Door.

2 CHARGING THE BATTERY PACK

1. Put the battery pack inside the camera body.

2. Connect the DC plug of the power adapter to the camera’s DC-IN in terminal. Plug the other end of the

adapter into a power outlet.

• While charging the battery pack, the green Self-Timer/Charge LED located at the front side of the

camera will light up. When charging is complete, the LED will turn off.

3. Unplug the adaptor from AC outlet first and then from the camera when charging is not needed.

Note: The camera can be used while charging.

QUICK START GUIDE

ENU

6340 QSG 516085-00 11/1/04, 9:40 AM1

ENU

3 INSERTING AN SD CARD

The digital camera is equipped with a 16 MB internal memory. If no SD card

is inserted in the camera, all pictures/video clips recorded by the camera will

be stored in the internal memory. When SD card is inserted in the camera, all

pictures and video clips recorded by the camera will be stored on the SD card

1. Turn off the camera.

2. Slide the Battery/Memory Card Door in the direction of the button to open

the door.

3. Insert the SD card in the direction as shown in the figure aside.

4. Close the Battery/Memory Card Door.

4 TURNING THE CAMERA ON

Slide the Power Switch to the right side and hold it until the green status LED lights up. It takes about 2

seconds to power on the camera.

Note:

1. You may also press and hold the button for more

than 1 second to turn the camera on in Review mode to

review the stored pictures/video clips.

2. If the camera cannot be powered on, the batteries may be

drained. Recharge the battery and try again.

5 SETTING THE LANGUAGE

1. Press the MENU button.

2. Press the button to select the Setup Menu.

3. Press the or button to select the desired Language.

4. Press the or button to select a Language.

5. Press the MENU button to close the menu window.

Power switch

Status LED (green)

6340 QSG 516085-00 11/1/04, 9:40 AM2

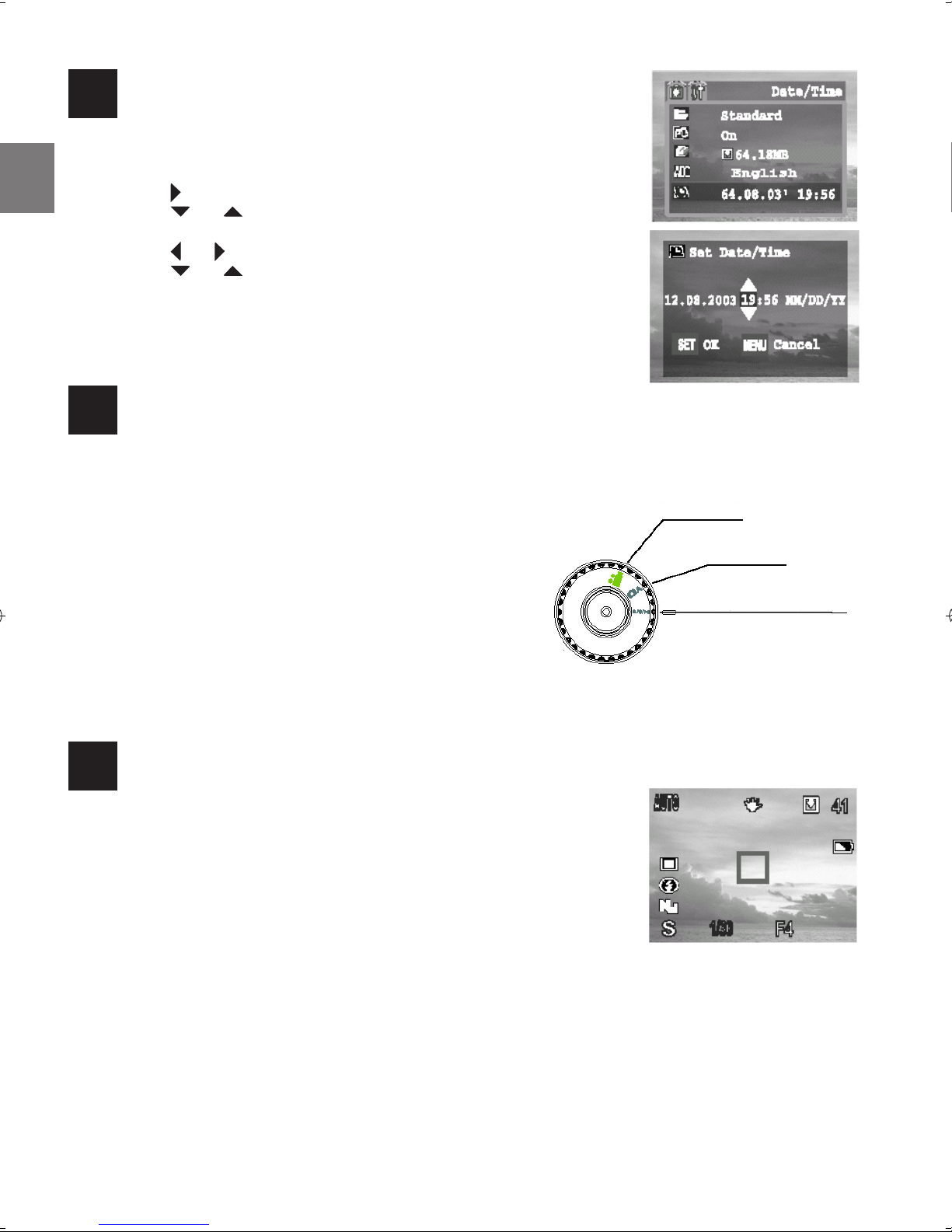

6 SETTING THE DATE AND TIME

1. Turn on the camera.

2. Press the MENU button.

3. Press the button to select the Setup Menu.

4. Press the or button to select Date/Time and then press the OK

button.

5. Press the or button to select a field to change.

6. Press the or button to set the values.

7. Press the OK button.

8. Press the MENU button to close the menu window.

7 USING THE MODE DIAL

Use the mode dial to switch between the three shooting modes:

The A/S/M (advanced) mode include:

• A Mode: Aperture Priority Mode, that is, the Aperture value

can be set manually, while the shutter speed is set

automatically.

• S Mode: Shutter Speed Priority Mode, that is, the Shutter

speed can be set manually, while the Aperture will

be set automatically.

• M Mode: Both Aperture and Shutter Speed can be set

manually.

8 TAKING PICTURES

1. Turn the Mode dial to A mode or A/S/M mode.

2. Frame the subject in the LCD.

• For best result, stand at least 0.8 m (2.62 ft.) away from the subject in

normal mode.

3. Press T or W button to zoom in or out the subject.

4. Press the Shutter button down halfway and hold there for a few seconds.

• When the camera has finished focus, the blue Auto Focus indicator will

appear. If auto focus failed, the white AF frame will change from white into red. In this case, please

release the Shutter and recompose.

5. Press the Shutter button fully down.

Movie mode

Auto mode

A/S/M (Advanced) mode

ENU

6340 QSG 516085-00 11/1/04, 9:40 AM3

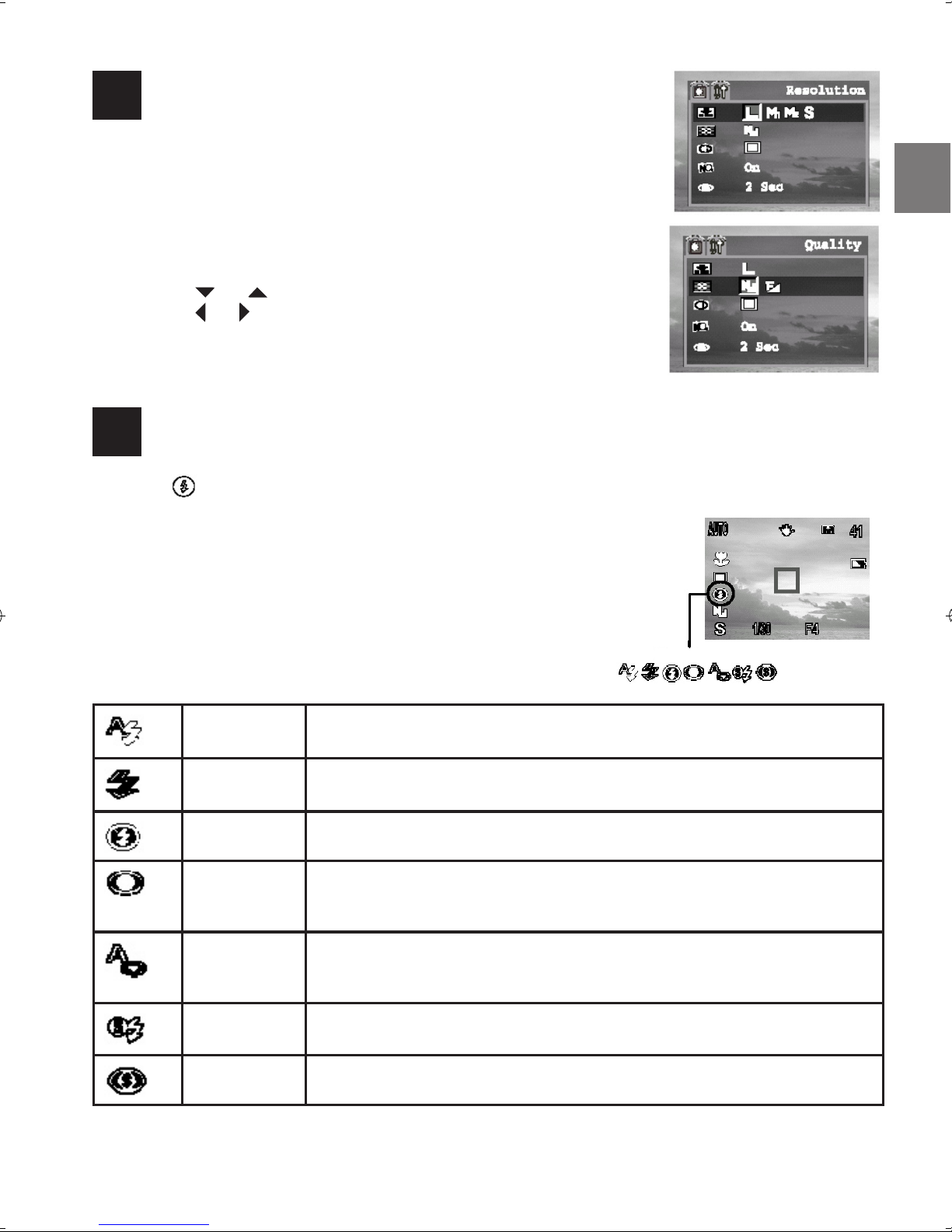

9 SETTING IMAGE QUALITY AND RESOLUTION

You can change the image quality and resolution settings to suit your shooting

purpose. Image resolution determines the size of a captured image. Higher

resolution images contain more details and have larger file sizes. Image quality

determines the amount of compression used to reduce the size of the stored

image file in order to economize space in the memory.

1. Press MENU button.

2. Press the or button to select image Resolution or Quality.

3. Press the or button to select a value.

4. Press the MENU button to close the menu window.

SETTING THE FLASH

Press the button to switch between flash modes. The selected flash mode appears on the LCD monitor.

Auto The flash fires automatically according to the lighting condition.

Force On The flash always fires.

Force Off The flash does not fire.

Red-eye

reduction,

Force on

The flash always fires and will fire after a short delay to reduce red-eye

phenomenon.

Red-eye

reduction,

Auto

The flash fires automatically according to the lighting condition, and the flash

will fire after a short delay to reduce red-eye phenomenon.

Slow sync. When the shutter speed is slow, the flash will fire after the shutter is full open

but before it closes.

Slow Red-Eye Combine the red-eye reduction function and slow sync. function.

ENU

Flash icon

6340 QSG 516085-00 11/1/04, 9:40 AM4

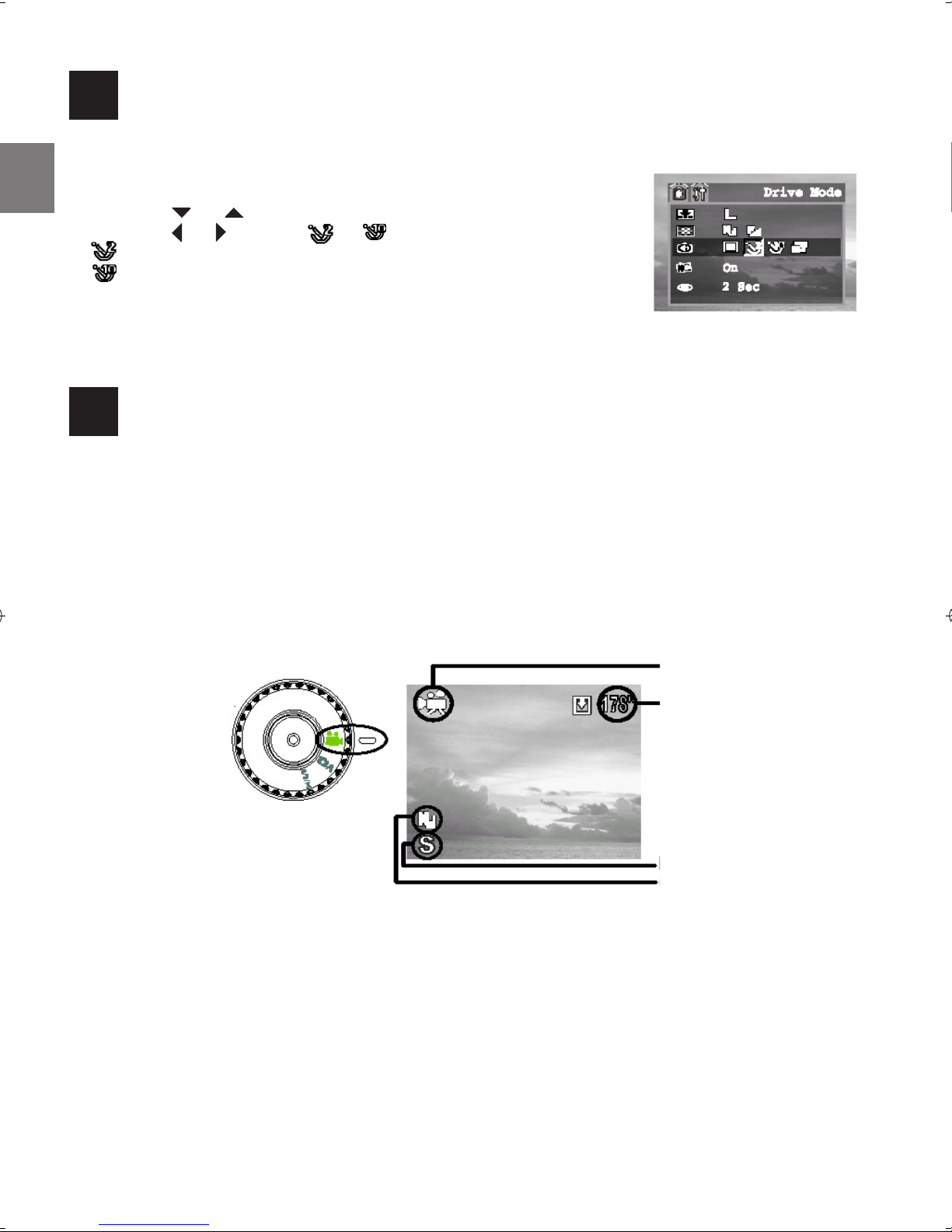

TAKING PICTURES WITH THE SELF-TIMER

Use the self-timer to set a delay from the time the shutter button is pressed to the time the image is shot.

1. Press the MENU button.

2. Press the or button to select Drive Mode.

3. Press the or to select or .

: Shoot image two seconds after the Shutter is fully pressed down.

: Shoot image ten seconds after the Shutter is fully pressed down.

4. Press the MENU button to close the menu window.

5. Shoot the image.

RECORDING MOVIE CLIPS

The digital camera can shoot video clips with sound. The resolution can be set to either at L (640 x 480) or at

S (320 x 240) when using SD card as storage.

1. Turn the Mode dial to video mode.

The LCD monitor displays the maximum recording time (in seconds).

2. Press the Shutter button fully down to start record. The movie mode icon turns into red. The recording

time counter starts to count.

3. Press the Shutter button again to stop recording. Otherwise, the camera will stop recording automatically

when the memory limit has been reached.

Movie mode

Maximum recording time

Resolution (L/S)

Quality (F/N)

ENU

6340 QSG 516085-00 11/1/04, 9:40 AM5

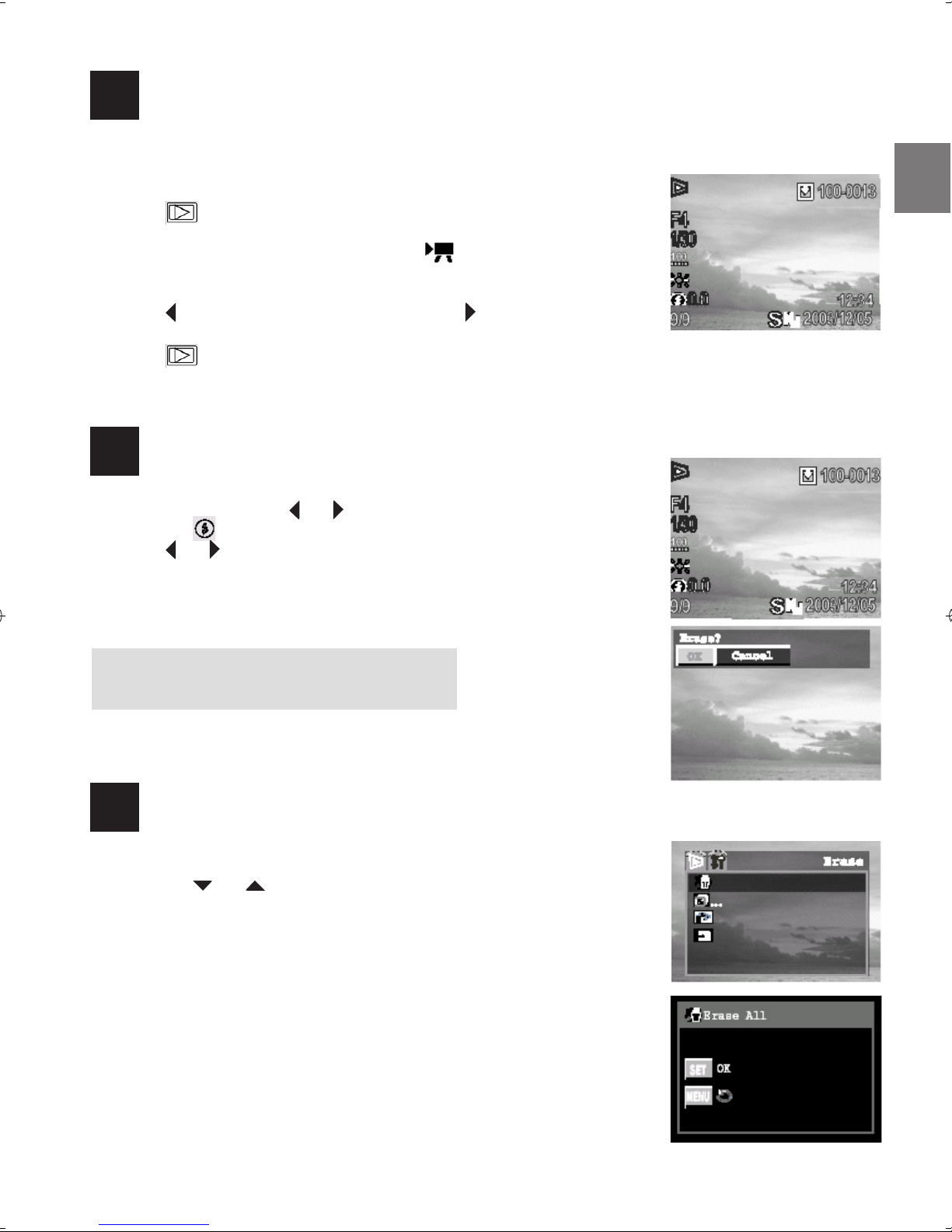

REVIEWING THE STORED FILES

You can view the recorded pictures and video clips on the LCD monitor. The playback function is available in

each shooting mode.

1. Press to view the captured photo or video clip. The last recorded

image or video clip appears on the LCD monitor.

• If the file is video clip, the vide clip icon ( ) will be shown on the right

side of the LCD. Press OK to play the video clip. Press OK again to

pause or resume.

2. Press to move to the previous file and press to move to the next

file.

3. Press or the Shutter button to return to shooting mode.

DELETING ONE FILE

1. In Review mode, press or button to search for the unwanted file.

2. Press the button to enter deleting menu.

3. Press or button to select Yes or No.

4. Press OK to confirm.

• If No is selected, no change will be made.

• If Yes is selected, the file will be deleted.

Note: Files deleted cannot be recovered.

Exercise caution before erasing a file.

DELETING ALL FILES

1. In Review mode, press the MENU button the enter review menu screen.

2. Press the or to select Erase All.

3. Press OK to enter its sub-menu.

4. Press OK again to confirm. All unprotected files will be deleted.

• If you decided not to delete all the files, press the MENU button to exit

ENU

6340 QSG 516085-00 11/1/04, 9:40 AM6

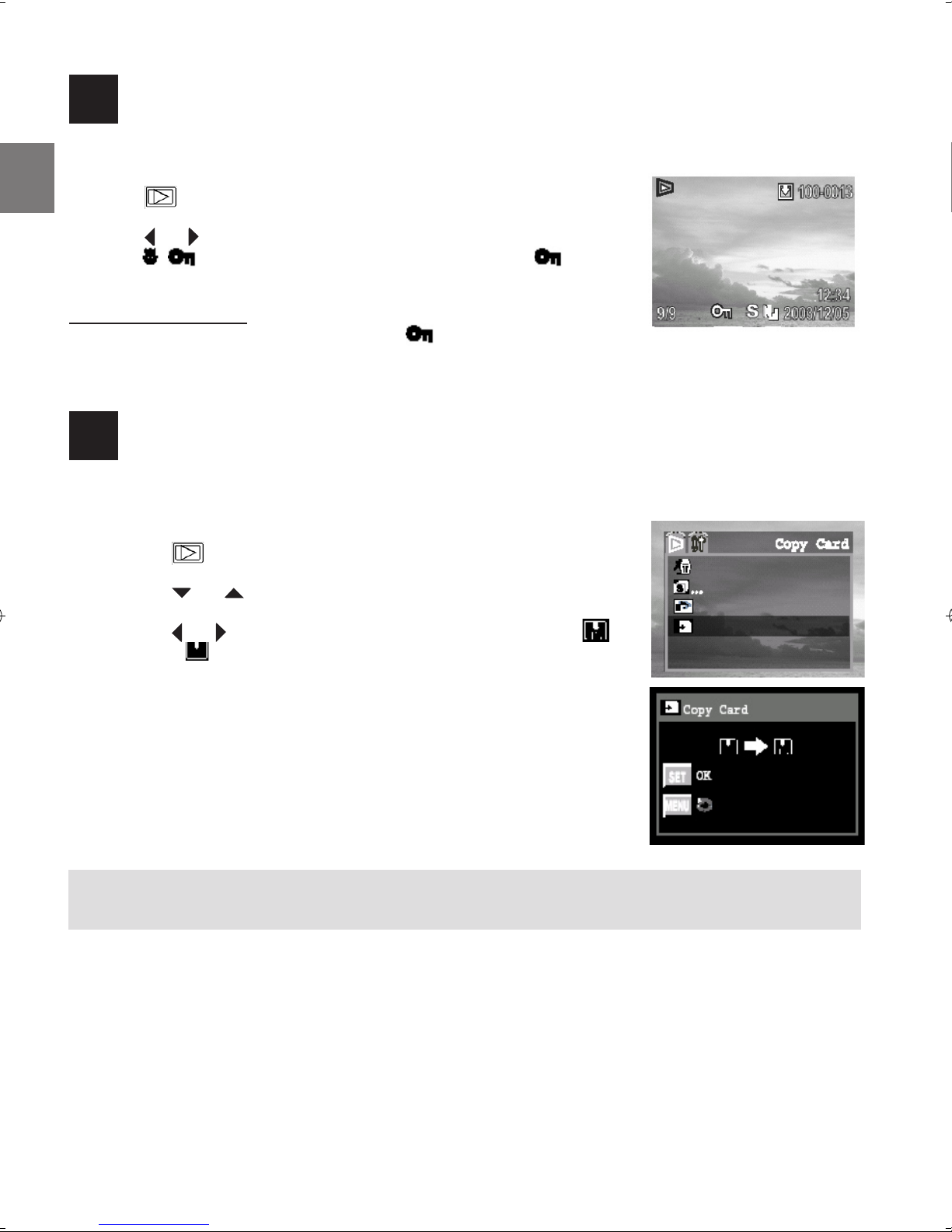

PROTECTING YOUR FILES

You can protect important files from being accidentally erased.

1. Press to view the captured photo or video clip.

The last recorded image or video clip appears on the LCD monitor.

2. Press or button to search for the file to be protected.

3. Press button to protect the image. The protect icon ( ) appears

on the LCD monitor for all protected images.

To remove the protection, follow the steps 1 to 3 above to remove protection.

When the file is un-protected, the protect icon ( ) will disappear.

COPYING FILES

The camera allows you to copy all files from the camera’s internal memory to an SD card or from an SD card

to the internal memory (if free memory space is enough).

1. Press the button to enter Review mode

2. Press the MENU button.

3. Press the or to select Copy card.

4. Press OK to enter its submenu.

5. Press the or to select copy direction: from internal memory ( )

to SD card ( ), or in reverse direction.

6. Press the OK button to confirm.

7. Press the MENU button to close the menu window.

Note: When the free memory is not enough to hold the transferred files, the remaining files will be kept at

their original place.

ENU

6340 QSG 516085-00 11/1/04, 9:40 AM7

DOWNLOADING FILES ONTO YOUR COMPUTER

Note for Windows 98 users: Install the camera driver first, otherwise you will not be able to download the

files.

Note for all Windows users: The Quick Time Player must be installed before proceeding to view the video

clips on your computer.

For Windows Users

1. Connect the camera to the computer.

2. Double click “My Computer”.

3. Double click “Removable Disk”.

4. Double click “DICM”.

5. Double Click “100_6340”.

• The pictures and video clips stored in the memory will be displayed.

6. Drag and drop the files you want to save in the computer.

• To select all files, click Edit > Select all.

For Macintosh Users

1. Connect the camera to the computer.

• After a few moments, the external hard drive will appear on the desktop.

2. Double-click the “Concord” removable drive that is on your desktop.

3. Double-click DCIM.

4. Double Click “100_6340”.

5. Drag and drop the files you want to save in the computer.

• To select all files, click Edit > Select all.

Note: You may also transfer the stored pictures and video clips on your memory card onto your computer

by using a memory card reader (sold separately).

Concord and the Concord logo are registered trademarks or trademarks of Concord Camera Corp., in the United States and/or

other countries. Microsoft and Windows are either registered trademarks or trademarks of Microsoft Corporation in the United

States and/or other countries. Mac and Macintosh are registered trademarks or trademarks of Apple Computer, Inc. in the U.S.

and other countries. All other brands and product names are either registered trademarks or trademarks of their respective

owners.

ENU

6340 QSG 516085-00 11/1/04, 9:40 AM8

Altri manuali per 6340z

Indice

Lingue:

Altri manuali Concord Camera Macchina fotografica digitale

Concord Camera

Concord Camera Eye-Q Mini Manuale utente

Concord Camera

Concord Camera Eye-Q 3103 Manuale di istruzioni

Concord Camera

Concord Camera Eye-Q 5330z Manuale utente

Concord Camera

Concord Camera Eye-Q 3132z Manuale di istruzioni

Concord Camera

Concord Camera Eye-Q Duo LCD Manuale utente

Concord Camera

Concord Camera Eye-Q 3340z Manuale utente

Concord Camera

Concord Camera Eye-Q 4062AF Manuale utente

Concord Camera

Concord Camera 3341Z Questio Manuale utente

Concord Camera

Concord Camera Eye-Q 4363z Manuale utente

Concord Camera

Concord Camera Eye-Q 3103 Manuale utente

Concord Camera

Concord Camera 2040 - Manuale utente

Concord Camera

Concord Camera 5340z Manuale utente

Concord Camera

Concord Camera 6340z Manuale utente

Concord Camera

Concord Camera 4360Z Questio Manuale utente

Concord Camera

Concord Camera PZ3300 Manuale utente

Concord Camera

Concord Camera 6340z Manuale utente

Concord Camera

Concord Camera 3047 Manuale utente

Concord Camera

Concord Camera 470AF Manuale utente

Concord Camera

Concord Camera Eye-Q Duo LCD Manuale utente

Concord Camera

Concord Camera Concord Eye-Q Eye-Q 3042AF Manuale utente

Concord Camera

Concord Camera 4060 AF Manuale utente

Concord Camera

Concord Camera Eye-Q 2133z Manuale utente

Concord Camera

Concord Camera 5340z Manuale utente

Concord Camera

Concord Camera Eye Q Duo 1.3 Mega Pixels Camera Manuale utente

Manuali Macchina fotografica digitale popolari di altre marche

Mercury

Mercury 350K Manuale utente

Pentax

Pentax Optio LS 465 Manuale utente

Sanyo

Sanyo VPC-S1085 Manuale utente

GE SMART A1255 Manuale utente

Point Grey

Point Grey Gazelle Manuale utente

Nikon

Nikon COOLPIX A Manuale utente

Pentax

Pentax P-5 Manuale utente

BlazeVideo

BlazeVideo A280 Manuale utente

Sony

Sony MCA-20 Manuale utente

Sony

Sony Alpha DSLR-A290 Manuale utente

ATIK Cameras

ATIK Cameras One Manuale utente

CohuHD Costar

CohuHD Costar 3930 Series Manuale utente

Leica

Leica M10-R Manuale utente

FujiFilm

FujiFilm FinePix A700 Manuale utente

Lorex

Lorex LNZ81P25 Series Manuale utente

GE J1470S Manuale utente

Sony

Sony A6700 Guida utente

Canon

Canon EOS ELAN7 Manuale utente
