Concord Camera Eye Q Duo 1.3 Mega Pixels Camera Manuale utente

ENGLISH ..................................................................................................1

FRANÇAIS ................................................................................................6

ESPAÑOL ................................................................................................11

CONTENTS

Duo QS Guide (3L) 8/7/02 9:33 am Page 1

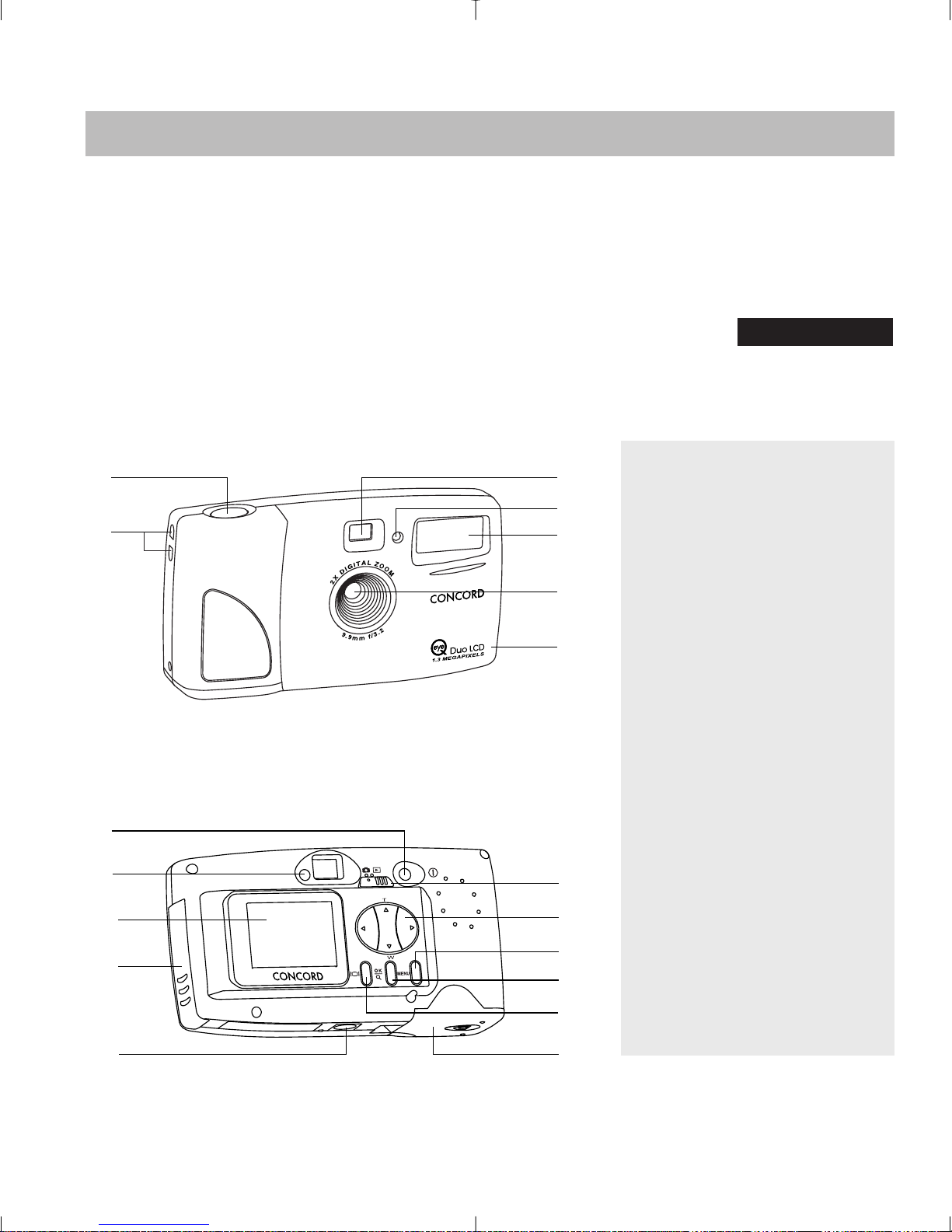

FRONT/TOP

1. Shutter Button

2. Lug for Neck / Wrist Strap

3. Viewfinder

4. Self-timer LED

5. Flash

6. Ir Filter and Lens

7. Interchangeable Face Plate

8. Power Button

9. Camera Ready LED

10. LCD

11. Cable Connection Panel

12. Tripod Socket

13. Mode Switch

14. Navigation Button

15. Menu Button

16. OK Button

17. LCD On/Off Button

18. Battery Door

QUICK START GUIDE

This Quick Start Guide provides a quick reference for operating your new digital

camera. Refer to the User’s Guide, which can be found on the CD-Rom and a hard copy

in your Concord Eye-Q Duo LCD box, for detailed instructions on how to use all of your

camera’s features. Before using the camera, make sure to read all safety instructions

and precautions outlined in the User’s Guide.

QUICK START GUIDE

ENGLISH

BACK/BOTTOM

Duo QS Guide (3L) 8/7/02 9:33 am Page 2

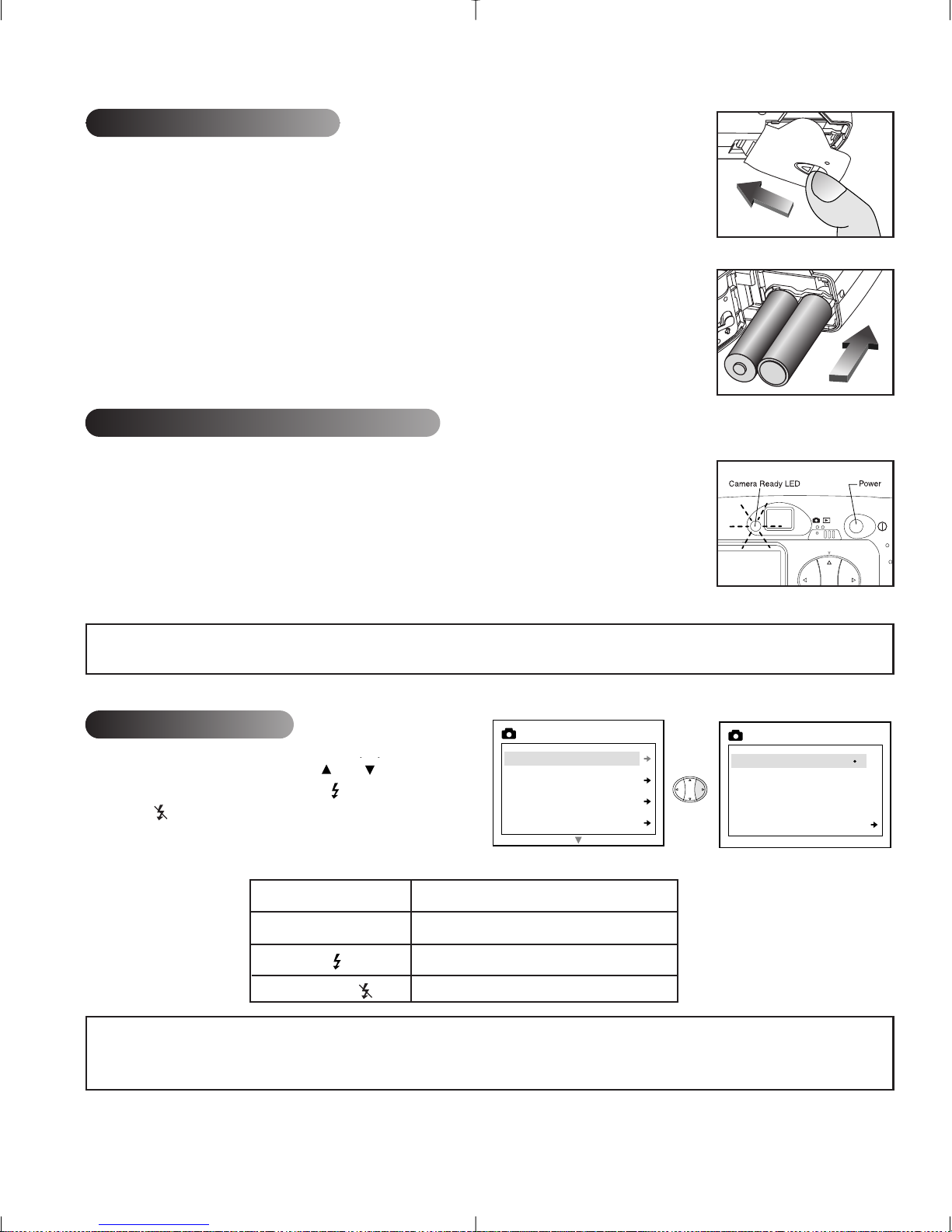

LOADING THE BATTERIES

The Concord Eye-Q Duo LCD uses 2 LR6 AA batteries.

To load the batteries:

1. Locate the battery door on the bottom of the camera.

2. Slide the button on the battery door toward the center of the camera.

(fig.1.1)

3. Lift the battery door to open.

4. Insert the batteries with the positive terminal toward the + sign, and the

negative terminal toward the - sign. (fig.1.2)

5. Close the battery door.

TURNING THE CAMERA ON AND OFF

When the camera is turned on, the camera ready LED on the back of the

camera blinks and the LCD displays the current settings.

1. Press the Power button.

2. The camera is ready for picture taking when the camera ready LED stops

blinking and LCD icons appear on the LCD. (fig.1.3)

3. To turn the camera off, press the Power button.

Note: To change this setting, please refer to the TV Mode section of the User’s Guide for further

instruction.

SETTING THE FLASH

1. In the FLASH menu, press or to choose

between Auto ( A ), Flash ( ), and Flash

Off ( ).

2. Press OK to select the flash mode and press

MENU to exit.

Flash Status Distance from subject

Auto ( A ) 8.5ft (2.5m)and 3.9ft (1.2m).

Flash ( ) 8.5ft (2.5m)and 3.9ft (1.2m).

Flash Off ( ) 3.9ft (1.2m) to infinity

Note: The flash may need time to recharge between photos. While it is charging the camera

ready LED blinks. When it stops blinking you are ready to take another picture. If the batteries

are low, the flash will not work. Insert fresh batteries.

fig.1.1

fig.1.2

fig.1.3

Modo

Calidad

Flash

MENÚ PRINC

Auto

Flash

Flash Off

Main Menu

FLASH

Duo QS Guide (3L) 8/7/02 9:33 am Page 3

TAKING PHOTOS

1. Set the camera to Camera Mode by moving the Mode Switch to .

2. Position the subject in the viewfinder OR the LCD.

3. Gently press the Shutter button (fig.1.4) and keep the camera still until

the camera ready LED next to the viewfinder flashes. (fig.1.5)

4. When the image has been captured, the camera ready LED next to the

viewfinder begins to blink. This indicates that the image is being

processed.

5. A preview of the image will be displayed on the LCD for 2 seconds after

it is captured and the file counter number displayed in the LCD will be

updated.

TAKING VIDEO CLIPS

1. When Video Clip is highlighted in the MODE menu and press .

2. Press the Shutter button to begin recording a continuous video clip.

3. Press the Shutter button again to stop recording.

4. The camera will continue recording until the memory is full.

5. When the recording is completed, the camera will return to Camera Mode.

Note: If you would like to cancel your video clip session before pressing the Shutter button,

press MENU to exit.

USING THE MMC

In addition to internal memory, the camera features an external memory port that uses a removable

MultiMediaCard (MMC) that allows you to store additional images. When the MMC is inserted, the

camera uses it as its default memory. The stored images and video clips in the internal memory will

be transferred automatically to the MMC, and all photos taken from that point will be stored on it.

When the MMC is removed from the camera, the images will remain stored on the MMC until deleted.

fig.1.4

fig.1.5

Mode

Quality

Flash

MAIN MENU

Auto

Flash

Flash Off

Main Menu

FLASH

PRESS SHUTTER TO STOP

Duo QS Guide (3L) 8/7/02 9:33 am Page 4

Inserting the memory card:

1. Locate the battery door on the bottom of the camera.

2. Slide the button on the battery door toward the center of the camera.

3. Lift the battery door to open.

4. Insert the MMC in the direction specified on the card. (fig.1.6)

5. Close the battery door.

NOTE: If an MMC with insufficient memory is inserted, there will only be a partial transfer and

the MMC will be filled. Please insert an MMC with sufficient memory.

DELETE ONE FILE:

To delete a single file from the

internal memory:

1. Slide the mode switch

towards .

2. Press MENU.

3. When Delete is highlighted in the MAIN MENU, press .

4. When Delete One is highlighted in the DELETE menu, press .

5. The next screen will read "Delete This File?" Press or to highlight No or Yes and press OK to select.

6. If Yes is selected, the file will be deleted.

7. If No is selected, no change will be made.

SOFTWARE INSTALLATION

NOTE: Do not connect the camera to your computer before the camera drivers and software

installation is completed.

Installing the Camera Drivers and ArcSoft Applications:

1. Insert the CD-ROM included in your Concord Eye-Q Duo LCD box.

2. The installation screen appears on the computer’s monitor. Follow the software installation

instructions on your screen to install the software.

3. When the CD-Rom installation is finished, connect your camera to the computer to complete installation.

4. Follow the on-screen instructions to complete the installation.

NOTE: If your computer has the CD-ROM automatic installation disabled,click on START. Select

MY COMPUTER and locate the CD-ROM Drive. Double click on the CD-ROM Drive icon to show its

contents. Double-click on the file named SETUP.EXE and follow the instructions on your screen.

SPECIAL FEATURES

PC Video Clips (Window only)

The Concord Eye-Q Duo LCD has the ability to capture video clips on your computer by using the

ArcSoft VideoImpression software. To edit, manipulate or create video clips using all the features

that VideoImpression offers, follow these simple steps.

fig.1.6

Delete One

Delete All

Main Menu

DELETE

THIS FILE?

Yes

DELETE ONE

Delete

Thumbnail

Brightness

Exit

MAIN MENU

Duo QS Guide (3L) 8/7/02 9:33 am Page 5

1. Follow the steps from the Connecting the camera to the computer section in the User’s Guide.

2. Launch the ArcSoft VideoImpression software by clicking on Start-Programs-ArcSoft Camera Suite

and choose VideoImpression from the application list on your screen.

3. Click on the NEW icon.

4. Click on the CAPTURE icon.

Recording Video Clips:

1. Follow steps 1-4 above.

2. Click on the RECORD icon. To stop recording, press the ESC button on your keyboard or click the

PAUSE icon on your screen.

To save your video, simply click on the SAVE icon and follow the on-screen instructions.

Web Camera (Window only)

You may also use the Concord Eye-Q Duo LCD as a web cam and video conferencing camera. It will

work with many popular video conferencing software titles.

Using the camera as a Web Camera:

1. Follow the steps from the Connecting the camera to the computer section in the User’s Guide.

2. Launch Microsoft NetMeeting software.

3. After NetMeeting is launched, go to Tools-options-video.

4. Select the Concord Duo LCD driver under the Video Properties section and then click OK.

5. To start the video, click on the start video icon.

6. Follow the NetMeeting on-screen instructions, or refer to NetMeeting’s Help section.

NOTE: If you do not have NetMeeting already installed on your computer, please visit

www.microsoft.com for instructions on how to obtain a copy.

Interchangeable Face Plates

The Concord Eye-Q Duo LCD comes with one extra removable face plate that

allows you to change the look of your camera.

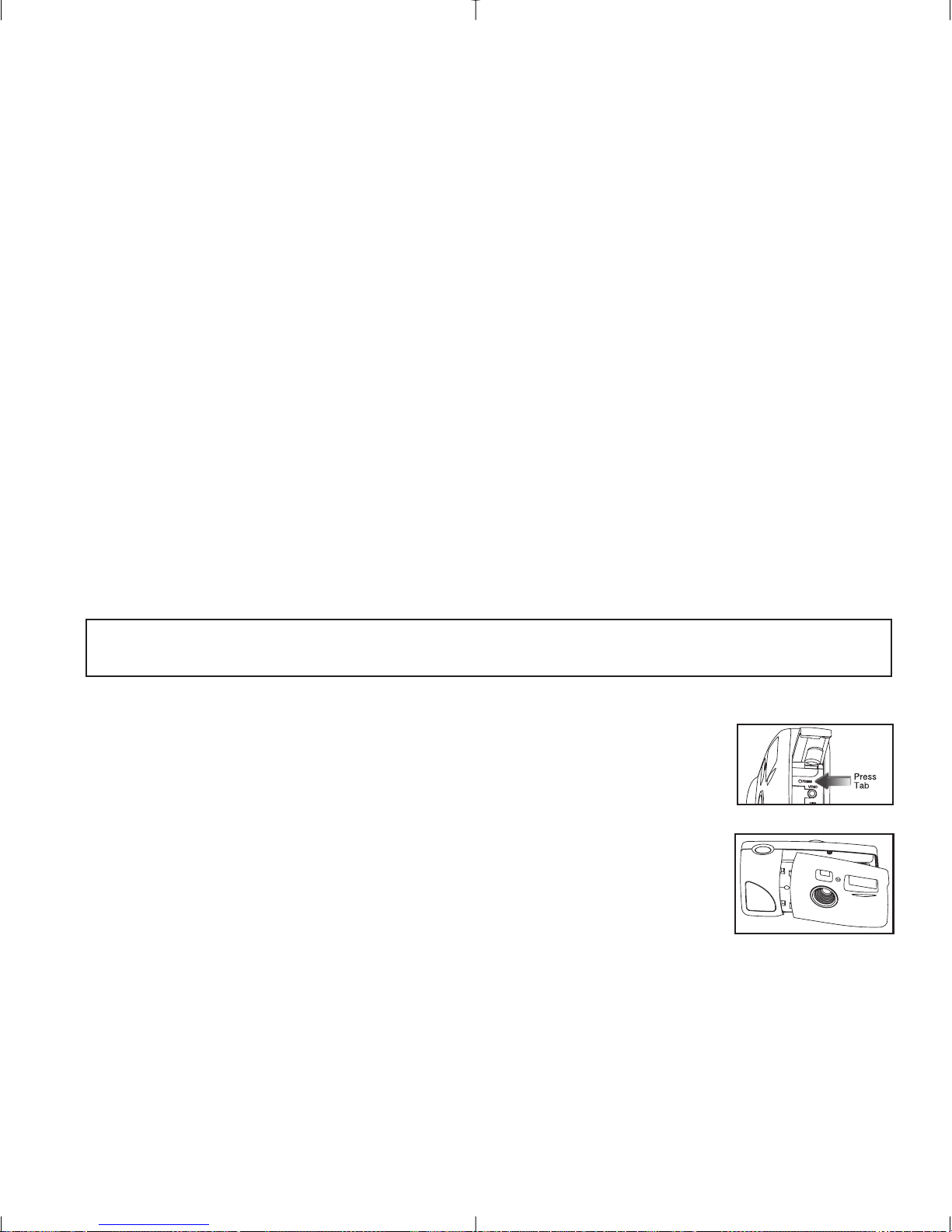

Changing the face plate:

1. Open the Cable Connection panel by sliding the door in the downward

direction and then lifting it until it is open as displayed in fig.1.7.

2. Push down on the Press tab and gently lift the face plate to remove.

(fig.1.7)

3. Insert the face plate by aligning its tabs with the grooves on the camera as

indicated in the illustration and snapping it into place. (fig.1.8)

Concord, Concord Eye-Q and the Concord Eye-Q logo are registered trademarks or trademarks of Concord Camera Corp., in

the United States and/or other countries. Microsoft and Windows are either registered trademarks or trademarks of

Microsoft Corporation in the United States and/or other countries. Mac, Macintosh and Power Mac are registered trademarks

or trademarks of Apple Computer, Inc. in the U.S. and other countries. All other brands and product names are either

registered trademarks or trademarks of their respective owners.

fig.1.7

fig.1.8

Duo QS Guide (3L) 8/7/02 9:33 am Page 6

FRANÇAIS

AVANT/DESSUS

1. Déclencheur

2. Fixation pour dragonne

3. Viseur

4. Indicateur Lumineux de la

Minuterie Automatique

5. Flash

6. Filtre Ir et objectif

7. Boitier Interchangeable

8. Bouton d’Alimentation

9. Indicateur Lumineux Prêt à

l’Emploi de votre Appareil-


10. LCD

11. Panneau de Branchement du

Câble

12. Prise d’Adaptation sur

Trépied

13. Bouton Mode

14. Bouton de Fleches

15. Bouton Menu

16. Bouton OK

17. Écran LCD Sous tension/Hors

tension

18. Trappe du Compartiment à

Piles

GUIDE DE DEMARRAGE RAPIDE

Les références de ce guide de démarrage rapide vous permettent d’utiliser rapidement

votre nouvel appareil digital. Pour des explications plus détaillées sur toutes les

caractéristiques de votre appareil, veuillez lire le guide de l’utilisateur qui se trouve sur

le CD-Rom situé dans le coffret du Concord Eye-Q Duo LCD. Avant d’utiliser l’appareil,

veuillez lire toutes les instructions de sécurité et de précaution décrites dans ce guide.

GUIDE DE DEMARRAGE RAPIDE

ARRIERE/BASE

Duo QS Guide (3L) 8/7/02 9:33 am Page 7

INSERTION DES PILES

Le Concord Eye-Q Duo LCD fonctionne avec 2 piles LR6 AA.

Insertion des piles

1. Localisez la porte du compartiment à pile au bas de l’appareil.

2. Poussez le bouton sur la porte du compartiment vers le milieu de

l’appareil. (schéma 1.1)

3. Soulevez la porte du compartiment à pile pour l’ouvrir.

4. Insérez les piles côté positif vers le signe + et côté négatif vers le

signe-. (schéma 1.2)

5. Fermez la porte du compartiment à pile.

MARCHE ET ARRET DE L’APPAREIL

Lorsque l’appareil est en marche, le LED d’appareil "prêt"au dos de l’appareil

se met à clignoter et le LCD de contrôle affiche les réglages de l’appareil.

1. Appuyez sur le bouton Power (Alimentation).

2. L’appareil est prêt à prendre des photos lorsque le LED d’appareil "prêt"

cesse de clignoter et que les icônes du LCD apparaissent. (schéma 1.3)

3. Pour éteindre l’appareil, appuyez sur le bouton Power.

Note: Pour changer ce réglage, consultez la section Mode TV du guide de l’utilisateur pour des

instructions supplémentaires.

FLASH

1. Dans le menu FLASH, appuyez sur ou

pour choisir entre Flash automatique ( A ),

Flash ( ), et Flash hors fonction ( ).

2. Appuyez sur OK pour sélectionner le mode

de flash et appuyez sur MENU pour sortir.

État du flash Distance du sujet

Automatique ( A ) 2,5 m et 1,2m.

Flash ( ) 2,5 m et 1,2m.

Flash hors fonction ( ) 1,2 m jusqu'à l'infini

Nota: Il est possible que le flash ait besoin d'être rechargé entre deux photos. Lors de la charge,

l'indicateur prêt à l'emploi DEL clignote. Lorsqu'ils arrêtent tous deux de clignoter, vous pouvez

prendre une nouvelle photo. Si la pile est usée, le flash ne fonctionnera pas. Changez les piles.

schéma.1.1

schéma.1.2

schéma.1.3

Mode

Qualité

Flash

Auto

Actif

Inactif

FLASH

Duo QS Guide (3L) 8/7/02 9:33 am Page 8

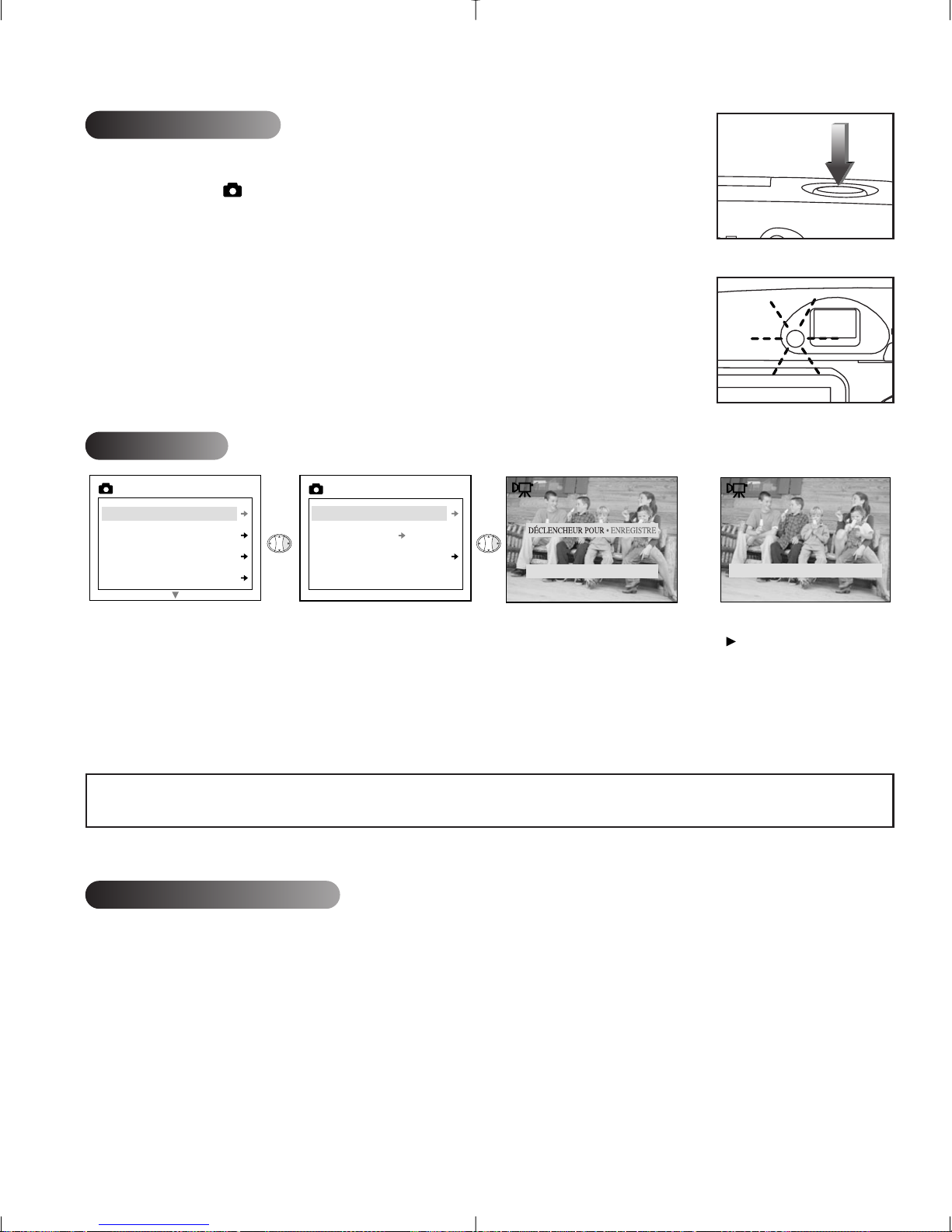

PRISE DE PHOTOS

1. Réglez l'appareil photo sur le mode photographie en mettant le bouton

de mode sur .

2. Faites en sorte de voir le sujet dans le viseur OU l'écran LCD.

3. Appuyez doucement sur le déclencheur (schéma. 1.4) et ne bougez pas

jusqu'au clignotement de l'indicateur prêt à l'emploi DEL situé près du

viseur (schéma. 1.5).

4. Après la prise de vue, cet indicateur DEL commencera à clignoter pour

indiquer que la photo est en cours de traitement.

5. Un aperçu de la photo sera affiché sur l'écran LCD pendant 2 secondes

après la prise de vue, et le nombre de photos affiché sur le compteur

de l'écran LCD sera mis à jour.

CLIPS VIDÉO

1. Lorsque Video Clip est sélectionné dans le menu MODE SELECT, appuyez sur .

2. Appuyez sur le déclencheur pour entamer l'enregistrement d'un clip vidéo continu.

3. L'indicateur prêt à l'emploi DEL clignotera pendant cet enregistrement.

4. Appuyez de nouveau sur le déclencheur pour arrêter l'enregistrement.

5. L'appareil photo continuera d'enregistrer le clip jusqu'à ce que sa mémoire soit pleine.

Nota: À la fin de l'enregistrement du clip vidéo, l'appareil photo se remettra en Mode

photographie.

UTILISATION DE LA MMC

En plus de la mémoire interne, l’appareil dispose d’un port mémoire externe pouvant accueillir une

carte multimédia amovible vous permettant d’enregistrer des photos supplémentaires. Lorsque vous

insérez une MMC, l’appareil l’utilise en tant que mémoire par défaut. Les photos et clips vidéo

enregistrés sur la mémoire interne sont alors transférés automatiquement sur la MMC, et toutes les

photos que vous prenez à partir de ce moment là sont sauvegardées sur la carte. Lorsque vous

retirez la MMC de l’appareil, les photos restent sauvegardées sur la MMC jusqu’à ce que vous les

effaciez.

schéma.1.4

schéma.1.5

Mode

Qualité

Flash

Clip vidéo

Minuterie Non

MODE

MENU POUR ARRÊTER

DÉCL POUR ARRÊTER

Duo QS Guide (3L) 8/7/02 9:33 am Page 9

Questo manuale è adatto per i seguenti modelli

Indice

Lingue:

Altri manuali Concord Camera Macchina fotografica digitale

Concord Camera

Concord Camera Eye-Q 5330z Manuale utente

Concord Camera

Concord Camera Eye-Q Mini Manuale utente

Concord Camera

Concord Camera Eye-Q 2133z Manuale di istruzioni

Concord Camera

Concord Camera 4340z Manuale utente

Concord Camera

Concord Camera 3341Z Questio Manuale utente

Concord Camera

Concord Camera Eye-Q Duo LCD Manuale utente

Concord Camera

Concord Camera 5345z Manuale utente

Concord Camera

Concord Camera Eye-Q 2100 Manuale utente

Concord Camera

Concord Camera Eye-Q Go Eye-Q Go LCD Camera Manuale utente

Concord Camera

Concord Camera Eye-Q 3345z Manuale utente

Concord Camera

Concord Camera Eye-Q Duo LCD Manuale utente

Concord Camera

Concord Camera DUO 1300 Guida rapida

Concord Camera

Concord Camera 5340z Manuale utente

Concord Camera

Concord Camera PZ1800 Manuale utente

Concord Camera

Concord Camera PZ1400 Manuale utente

Concord Camera

Concord Camera PZ3300 Manuale utente

Concord Camera

Concord Camera JENOPTIK C 3.1 SL Manuale utente

Concord Camera

Concord Camera Concord Eye-Q Eye-Q 3042AF Manuale utente

Concord Camera

Concord Camera 2040 - Manuale utente

Concord Camera

Concord Camera Eye-Q 3340z Manuale utente

Concord Camera

Concord Camera Eye-Q 3X Manuale utente

Concord Camera

Concord Camera Eye-Q Duo LCD Manuale di istruzioni

Concord Camera

Concord Camera Eye-Q 3132z Manuale utente

Concord Camera

Concord Camera Eye-Q 5330z Manuale di istruzioni

Manuali Macchina fotografica digitale popolari di altre marche

Mercury

Mercury 350K Manuale utente

Pentax

Pentax Optio LS 465 Manuale utente

Sanyo

Sanyo VPC-S1085 Manuale utente

GE SMART A1255 Manuale utente

Point Grey

Point Grey Gazelle Manuale utente

Nikon

Nikon COOLPIX A Manuale utente

Pentax

Pentax P-5 Manuale utente

BlazeVideo

BlazeVideo A280 Manuale utente

Sony

Sony MCA-20 Manuale utente

Sony

Sony Alpha DSLR-A290 Manuale utente

ATIK Cameras

ATIK Cameras One Manuale utente

CohuHD Costar

CohuHD Costar 3930 Series Manuale utente

Leica

Leica M10-R Manuale utente

FujiFilm

FujiFilm FinePix A700 Manuale utente

Lorex

Lorex LNZ81P25 Series Manuale utente

GE J1470S Manuale utente

Sony

Sony A6700 Guida utente

Canon

Canon EOS ELAN7 Manuale utente
