CONEN LITE Series Manuale utente

ASSEMBLY INSTRUCTION

Adjustable wallmounted stand

with anti-collision

Conen Produkte GmbH | Conenstr. 4 | 54497 Morbach-Gonzerath | Germany | +49 6533 75 100 I www.conenmounts.com

CONEN/01/2020

RLI12090WK

A C

B E

F G

D D

J KI

4 x M8 x 16 4 x M6 x 16

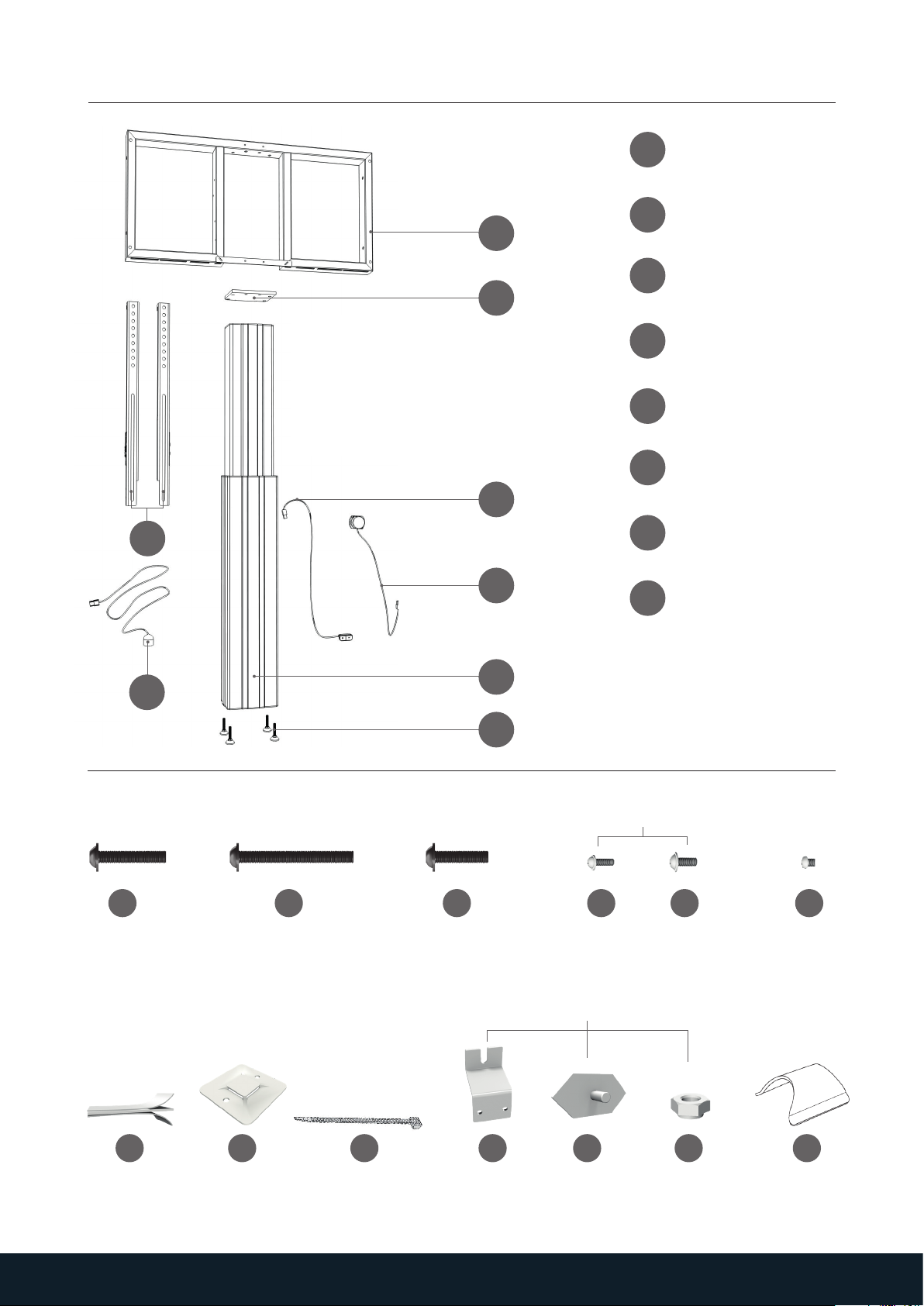

PACKAGE CONTENTS

2 x M8 x 50

Lenshead Allen

screw with ﬂange

2 x M8 x 40

Lenshead Allen

screw with ﬂange

1 x

Cable tie

2 x M8 x 80

Lenshead Allen

screw with ﬂange

2 x M5 x 8

Lenshead Allen

screw

1 x

Adhesive strip 1 x

Cable base

Lenshead Allen screw with

ﬂange

Depending on

the display

2 x

Trapezoidal

sliding block

2 x M8

Self-locking nut

2 x

Z-Bracket

For wall mounting

Leveling feets

Center column

Adapter plate

Remote control

VESA brackets

Anti-Collision sensor

Power cable

Display mount

3 x

Cable clamp

Conen Produkte GmbH | Conenstr. 4 | 54497 Morbach-Gonzerath | Germany | +49 6533 75 100 I www.conenmounts.com

136

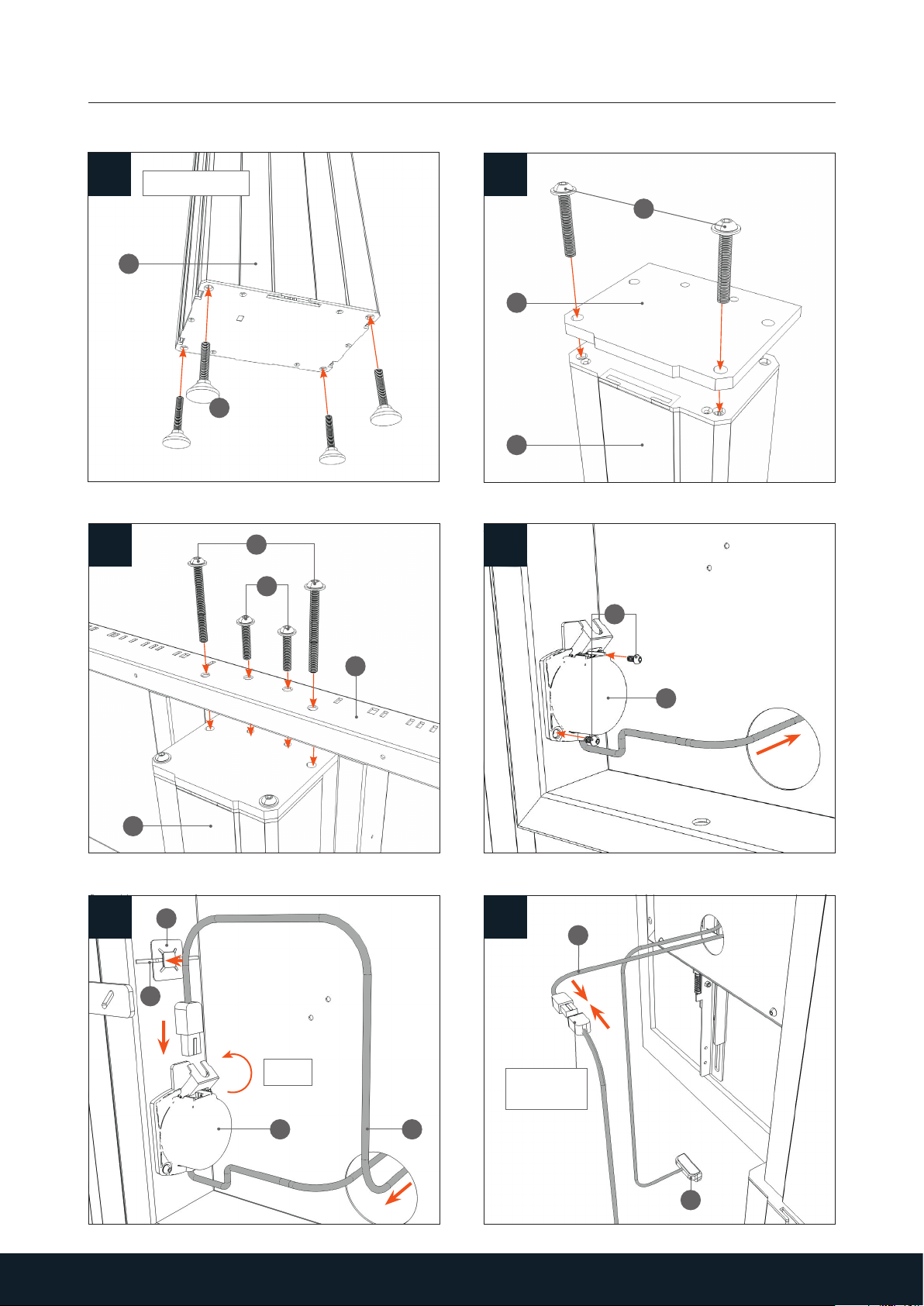

MOUNTING INSTRUCTIONS

Alternative 1

Click RJ plug

(column)

Conen Produkte GmbH | Conenstr. 4 | 54497 Morbach-Gonzerath | Germany | +49 6533 75 100 I www.conenmounts.com

10 11

7 8

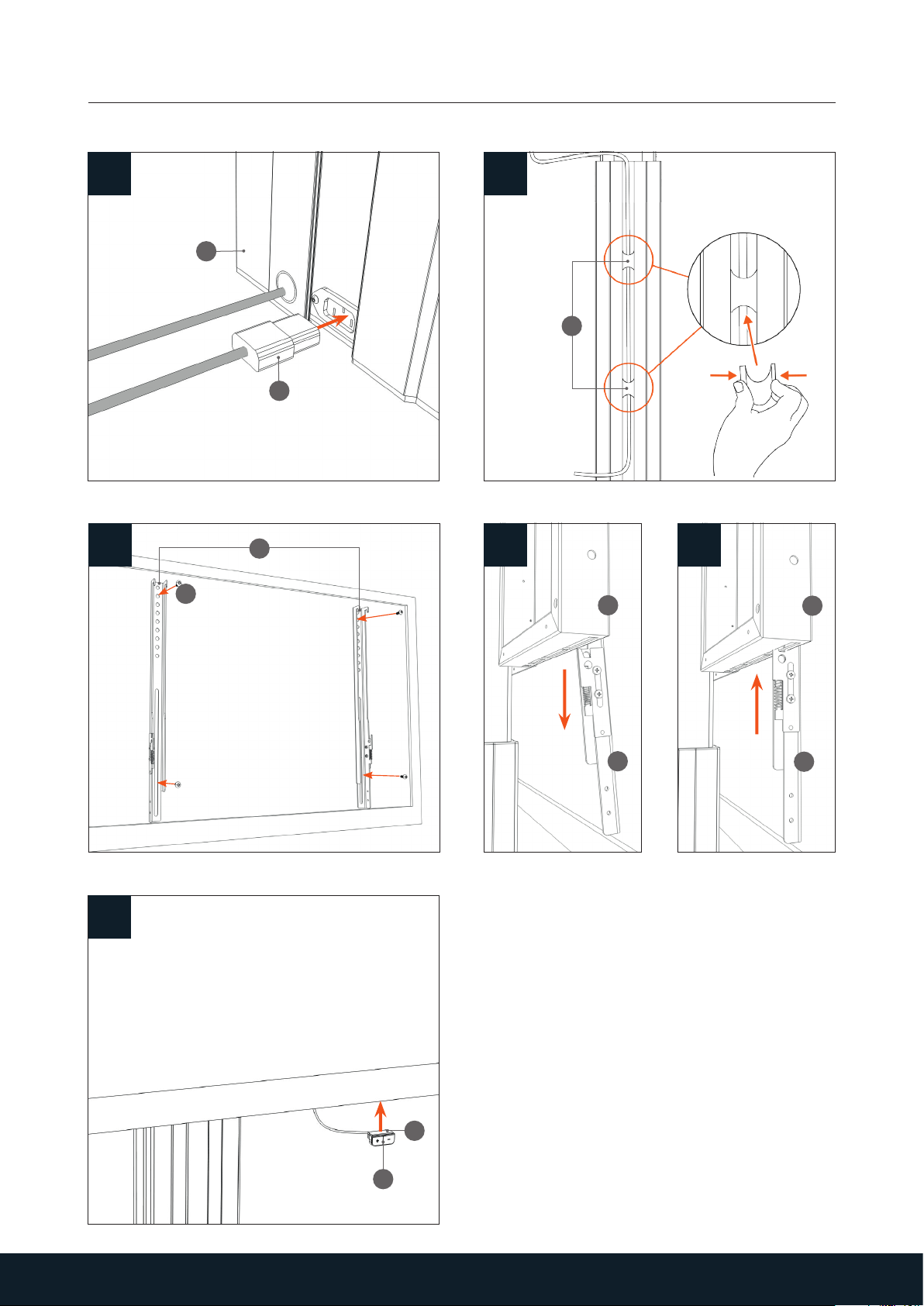

MOUNTING INSTRUCTIONS

Conen Produkte GmbH | Conenstr. 4 | 54497 Morbach-Gonzerath | Germany | +49 6533 75 100 I www.conenmounts.com

100 mm / 4.0"

150 mm / 5.9"

10 1114 15

1 1

12 1316 17

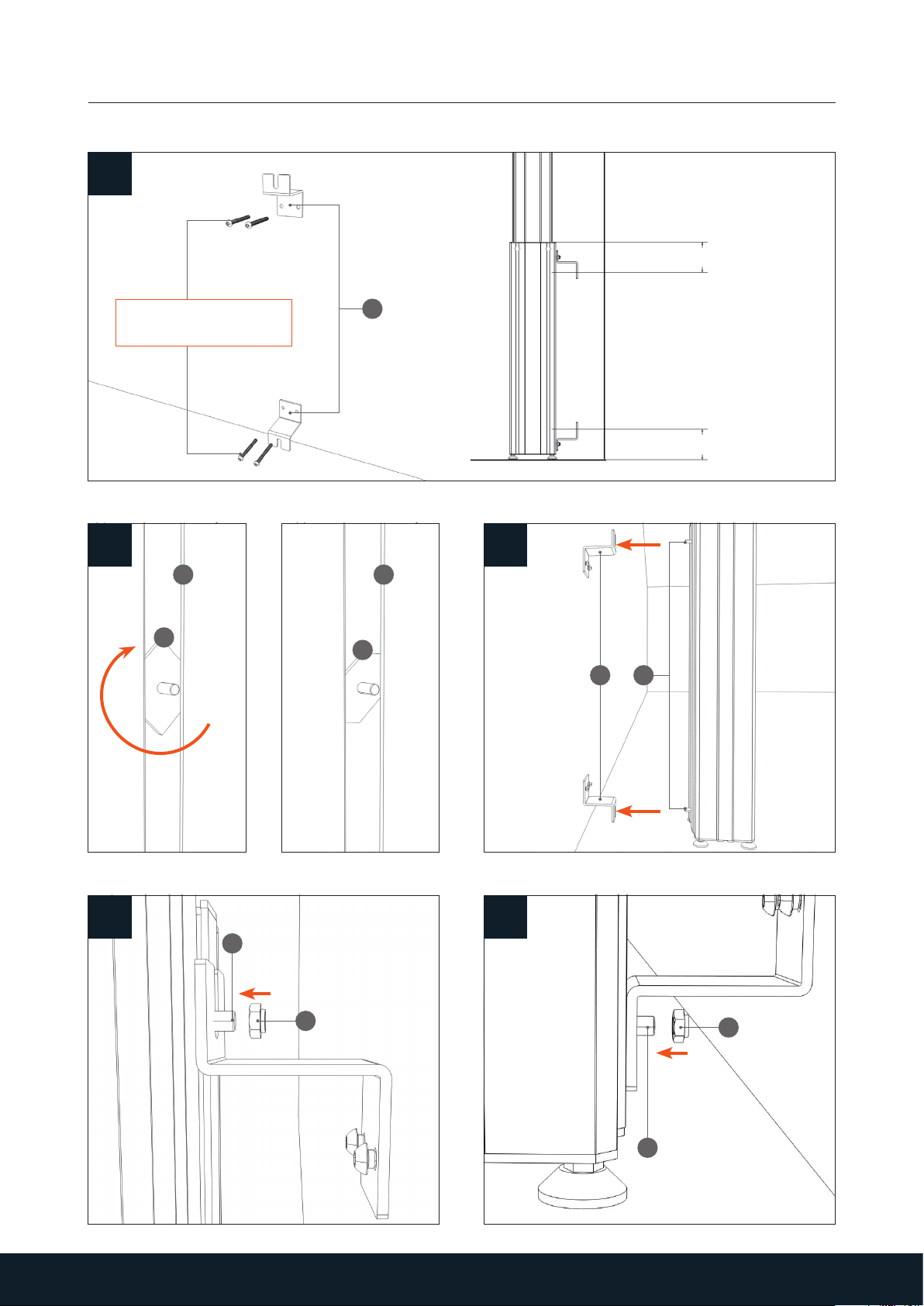

MOUNTING INSTRUCTIONS

Wall mounting material

not included

Conen Produkte GmbH | Conenstr. 4 | 54497 Morbach-Gonzerath | Germany | +49 6533 75 100 I www.conenmounts.com

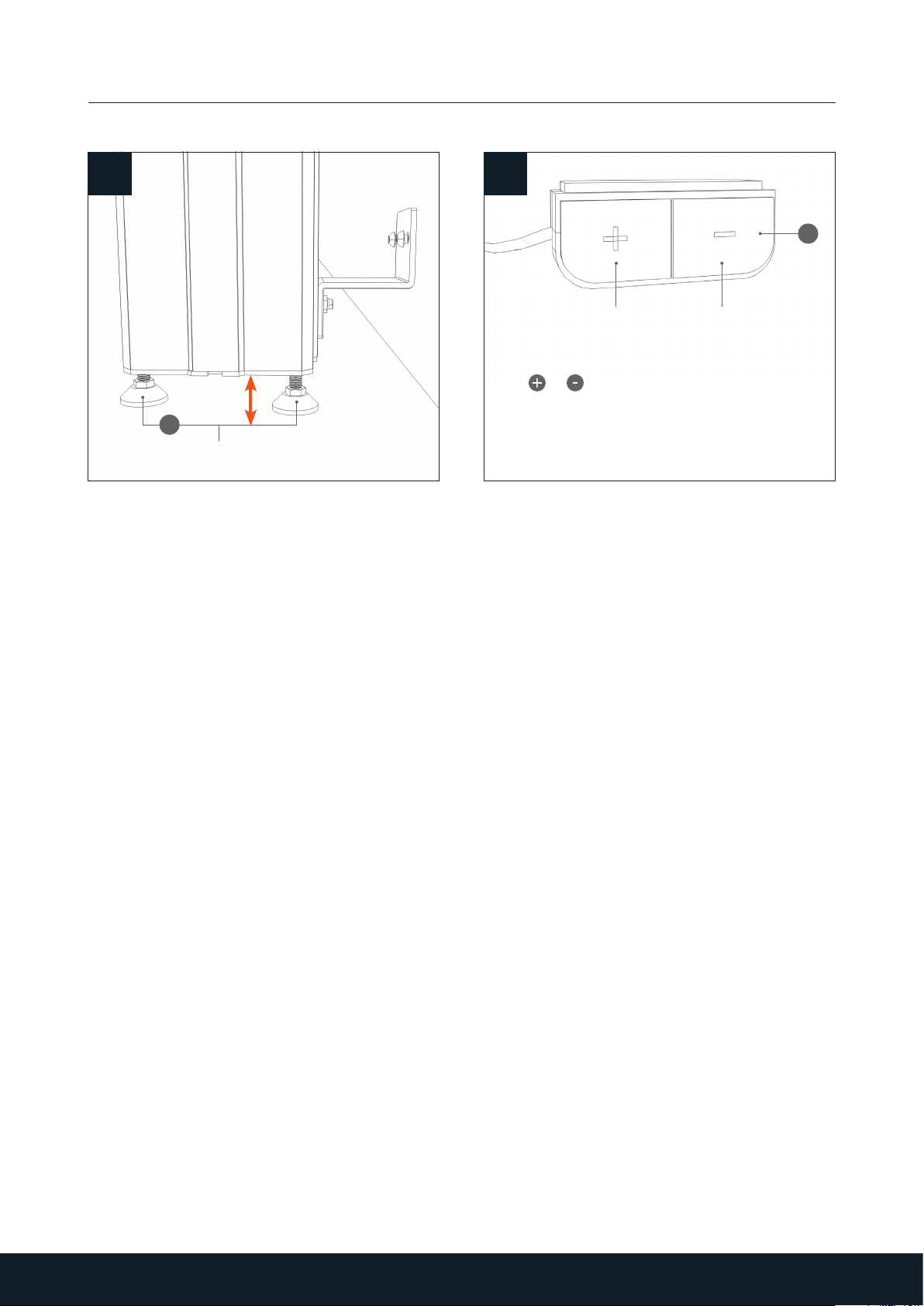

MOUNTING INSTRUCTIONS

To adjust the height, keep pressed down the but-

ton or on the control unit.

Relasing the button will immediately stop the

movement. In case of emergency, just unhand the

control unit (deadman switch).

Up Down

Align by turning

Conen Produkte GmbH | Conenstr. 4 | 54497 Morbach-Gonzerath | Germany | +49 6533 75 100 I www.conenmounts.com

101

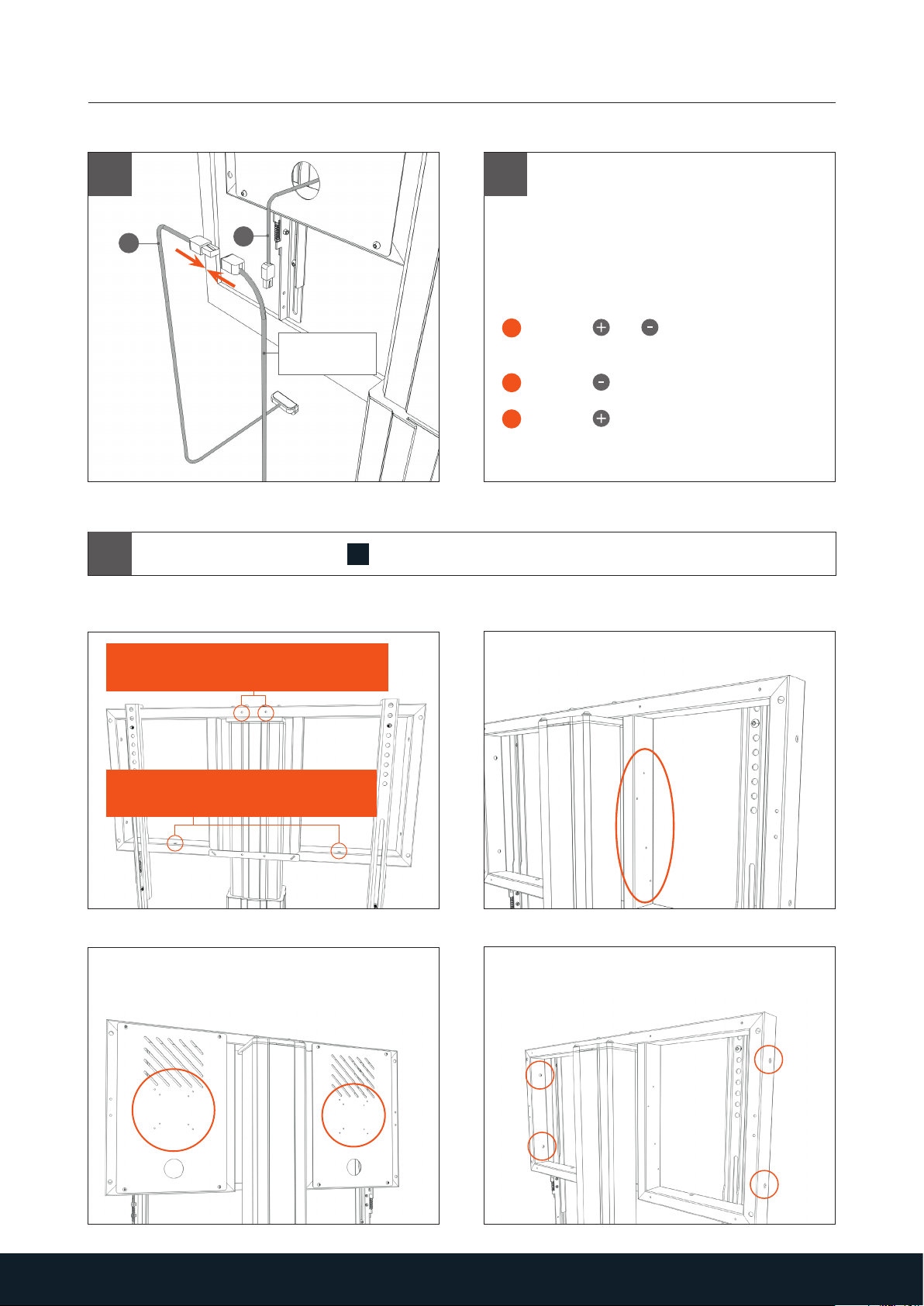

TROUBLE SHOOTING

VESA pattern to secure mini-PC

VESA 100 x 100 + 75 x 75

Mounting holes to secure a power strip

Then continue with point 9 of mounting instructions.

Trouble Shooting:

1Press key and simultaneously until you

hear 1 x audio signal

2Press key until you hear 3 x audio signal

3Press key and hold on until the column

reached the maximum position and you can

hear 2 x audio signal.

System is pre-calibrated.

PLEASE RECALIBRATE ONLY IN CASE OF

ERROR.

Mounting holes to secure transport handles

RJ plug

(column)

Mounting holes to secure

keyboard tray

Mounting holes to secure a video

conference tablet

Conen Produkte GmbH | Conenstr. 4 | 54497 Morbach-Gonzerath | Germany | +49 6533 75 100 I www.conenmounts.com
