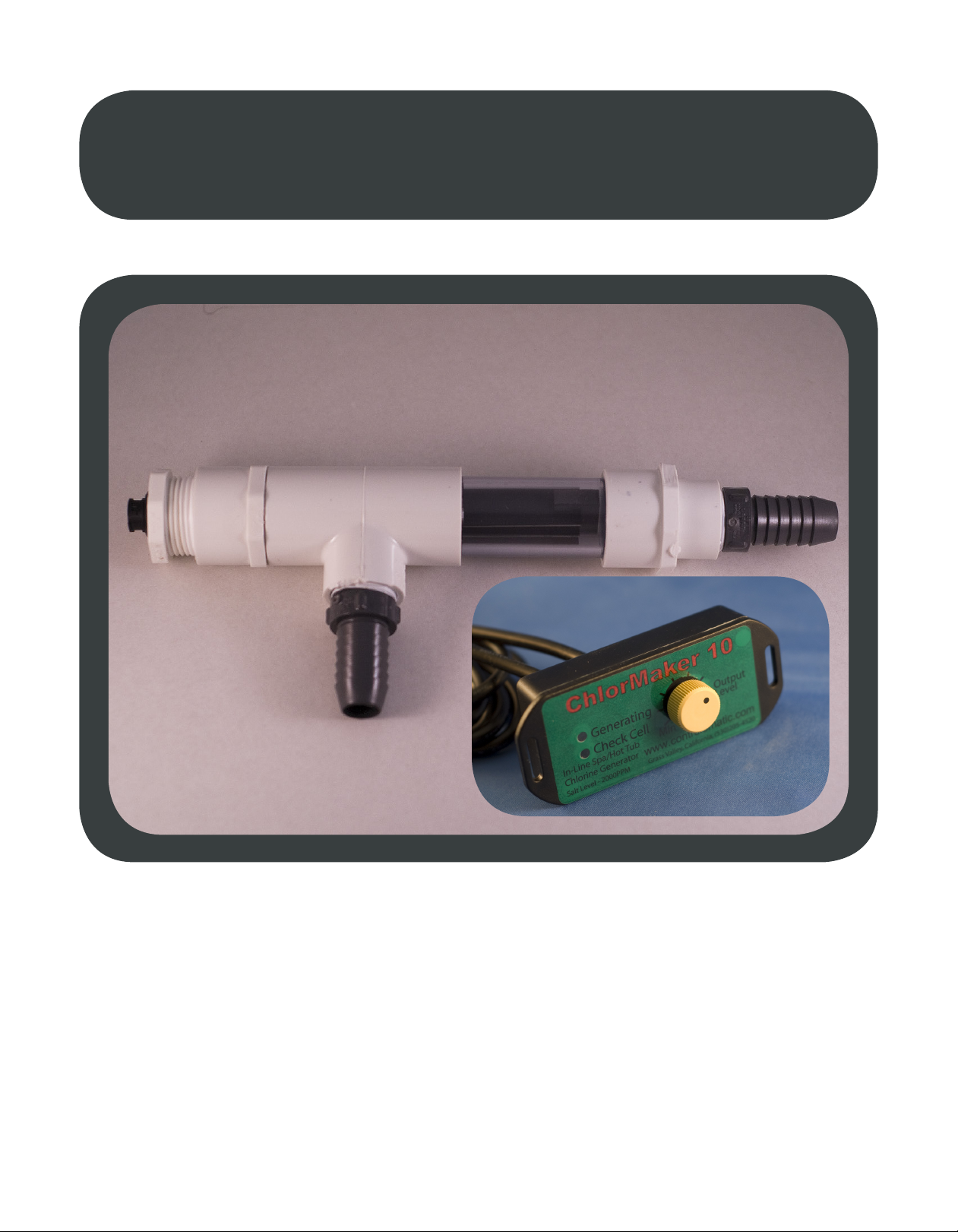

CHLORMAKER
TM
OPERATING
INSTRUCTIONS
INTRODUCTION
ChlorMaker is a semi-automated, salt water chlorine generation system specically designed for portable spas up
to 1,250 Gallons. ChlorMaker generates chlorine from a small amount of ordinary salt (Sodium Chloride, NaCl)
dissolved in the spa water. The amount of salt added is very small in relation to the volume of the water in the spa.
It’s about 90% less concentration than ocean water and below the typical taste level of most humans.
The small addition of salt also benets users by providing a softening effect on the water, leaving hair and skin feel-
ing smoother and healthier than with traditional sanitizing products. Only 2.5 cups of salt per 100 gallons of water
is all it takes for ChlorMaker to produce fresh, pure chlorine leaving your water clean and clear day after day.
IMPORTANT SAFETY INSTRUCTION
WARNING: Use ChlorMaker only according to these instructions. Any modication or misuse of this product
will void the warranty.
WARNING: Install ChlorMaker in accordance with all national and local electrical, plumbing, safety, and other
applicable codes.
WARNING: Connect ChlorMaker to a GFCI (ground fault circuit interrupt) or GFI (ground fault interrupt)
protected 110 or 220 VAC power source only.
WARNING: Protect the power supply and outlet from exposure to the elements including direct sun, rain, snow,
condensation, etc.
WARNING: DO NOT allow children to operate ChlorMaker unless under adult supervision.
WARNING: DO NOT insert objects into, or tamper with ChlorMaker’s body in any way. Inserting metal objects
into the body may cause damage and void the warranty.
WARNING: DO NOT operate ChlorMaker if damaged in any way.
WARNING: DO NOT pull on the cord to disconnect the Power Supply from power source. Do not allow the
cord to rest on sharp edges or corners or to be walked upon. Do not drop, throw, or otherwise
rough handle ChlorMaker.
WARNING: Unit must be disconnected from power source before performing any maintenance or
troubleshooting operations.
CAUTION: Leave spa cover open at least 30 seconds to allow trapped gases to escape prior to use.
CAUTION: If unit is not working properly, or has been damaged in any way, contact technical support
immediately at 1-530-205-4520.
CAUTION: Measure water quality parameters and adjust if necessary prior to each spa use.
CAUTION: Make sure all spa electrical components and power cords have been thoroughly inspected by a
licensed electrician prior to using ChlorMaker.
WATER PREPARATION & MAINTENANCE
To ensure proper operation, the spa must be drained, rinsed, relled with fresh water, and balanced to the recom-
mended levels indicated in this section before installing the product. Use the test strips to measure water chem-
istry and verify that the water has been balanced properly. Replacing the lter is recommended but not required
unless the spa was previously sanitized with a hydrogen peroxide system. The combination of hydrogen peroxide
and chlorine may cause gum-like build up, water discoloration, and skin irritation.
It is important to properly maintain your spa for the health and safety of its users. Spas are unique in both size and
usage patterns. TechniChlor will signicantly reduce the amount of spa maintenance required, but chemical check-
ups including chlorine levels and PH are recommended before each use. Proper water maintenance will prolong
the life of TechniChlor and the spa. The following table describes generally accepted optimum water chemistry for
portable spas.
PARAMETER RECOMMENDED LEVEL
Free Chlorine 3.0 to 5.0 PPM
PH Balance 7.2 to 7.6
Total Alkalinity 80 to 120 PPM
Calcium Hardness 150 to 300 PPM
It is recommended that chlorine and PH levels are checked before each use, or at least once per week when not in
use. Alkalinity, Calcium Hardness, and Salt Concentration should be checked at least once per month. It is recom-
mended that the spa is manually shocked after high usage (example: after a party with multiple users), or biweekly
if used frequently. Always remember to leave the spa circulating for several hours before retesting. Phosphates in
the spa water will increase the demand for chlorine and will reduce the life expectancy of the generator. Remove
Phosphates upon start up and each month there after. Phosphate Remover can be purchased at any local Pool &
Spa supply store.
WARNING: Consistent chlorine levels above 5.0 PPM or consistent salt concentration levels above 5,000
PPM may lead to corrosion of metal components in the spa.
WARNING: Consistently low Calcium Hardness levels below 150 PPM may lead to spa equipment damage
and failure. Make sure Calcium Hardness levels are within the recommended range above.
SALT REQUIREMENT
ChlorMaker can generate both Chlorine or Bromine. It all depends on which sanitizer the user prefers. Use So-
dium Chloride Salt if you prefer Chlorine Generation and Sodium Bromide Salt if you prefer Bromine. Please Note:
Each salt requires a different level of salinity for ChlorMaker to operate effectively.
CHLORINE SALT - SODIUM CHLORIDE (NaCl): Raise Salt Level to 2,000 PPM (Parts Per Million). Ap-
proved salts include “pool salt” made for salt water chlorine generating systems, canning and pickling salt from
your local market, and some water softener salts that are 99% pure sodium chloride or better. Some high-end,
mineral enriched salts can be used but require higher quantities to achieve 2,000 PPM sodium chloride salt
level. These approved salts are generally available at pool & spa supply stores, home improvement centers and
On-Line stores in a variety of sizes. Never use rock salt or salts that have more than 1% “anti-caking agents”,
“yellow prussiate of soda”, or “sodium ferrocyanide”. These compounds may cause surface staining. Please use
chart below.
BROMINE SALT - SODIUM BROMIDE (NaBr): Raise Salt Level to 3,000 PPM (Parts Per Million). There
are several manufacturers of Sodium Bromide Salt to choose from. Please make sure the Sodium Bromide you
purchase is 99% pure or better. Ask your local pool and spa dealer for assistance. Please use chart below.
Chart is Based on 100 Gallons or 379 Liters of Spa Water
SALT TYPE POUNDS CUPS
99% Pure Sodium Chloride (NaCl) - Pool, Pickling, Canning &
Other Fine Grain Salts 1.4 2.3
99% Pure Sodium Chloride (NaCl) - Water Softener & Other
Coarse Grain Salts 1.5 2.5
Hymalayan Salt Fine Grain Salt (Mineral Enriched) 1.8 2.9
Dead Sea Salt Coarse Grain Salt (Mineral Enriched) 2.5 5.0
99% Pure Sodium Bromide (NaBr) Fine Grain Salt 2.5 4.0
The amount of salt to add and dissolve is dependent upon the size of the spa. Determine the volume of water in
gallons or liters by checking the spa owner’s manual or use any internet volume calculator.
99% Pure Sodium Chloride (NaCl) Coarse Grain Example For a 350 Gallon Spa: Divide 350 Gal by 100 Gallons
then multiply answer by 2.5 Cups. (350 / 100 = 3.5 x 2.5 = 8.75 Cups)
99% Pure Sodium Bromide (NaBr) Fine Grain Example For a 1,326 Liter Spa: Divide 1,326 Liters by 379 Liters
then multiply answer by 4.0 Cups. (1,326 / 379 = 3.5 x 4.0 = 14 Cups)
Simply pour the recommended amount of salt directly into the spa water to bring the concentration to the recom-
mended level. Turn the spa jets on to help dissolve the salt. Warmer water will aid in dissolving the salt faster. If
the water is cold it may take several hours for the salt to fully dissolve.
WARNING: Do not turn ChlorMaker on until all the salt has fully dissolved.
SALT LEVEL INDICATOR
ChlorMaker will indicate if the salt level is within the recommended range listed above. When the “Generating”
LED light is on, the “Check Cell” LED light should be off if the salt is at the recommended level. Please see below.
Check Cell Light Flashing: Salt Level Too High
Check Cell Light Off: Salt Level Within Normal Range
Check Cell Light On (Not Flashing): Salt Level Too Low
IMPORTANT: It is important to occasionally check that the lights are indicating proper salt level. Always
use Salt Test Strips to check the salt level and adjust the water according to the Test Strips. If Test Strips
Show Too High: remove some water from the spa and replace with fresh water. Re-test and adjust as nec-
essary. If Test Strips Show Too Low: Add salt. Re-Test and adjust as necessary.
PRODUCT INSTALLATION
ChlorMaker is equipped with a 110/220 VAC Auto-Sensing Power Supply allowing ChlorMaker to be installed on
almost any spa with a 24 Hour Circulation Pump. Spa Dealers or Licensed Electricians are required to install
this product as they are familiar with the electrical codes in your area. ChlorMaker needs to be wired to
a power source that turns on & off when the spas continuous 24 hour circulating pump turns on & off.
ChlorMaker should only operate when water is circulating through the cell. Make sure the SPA is protect-

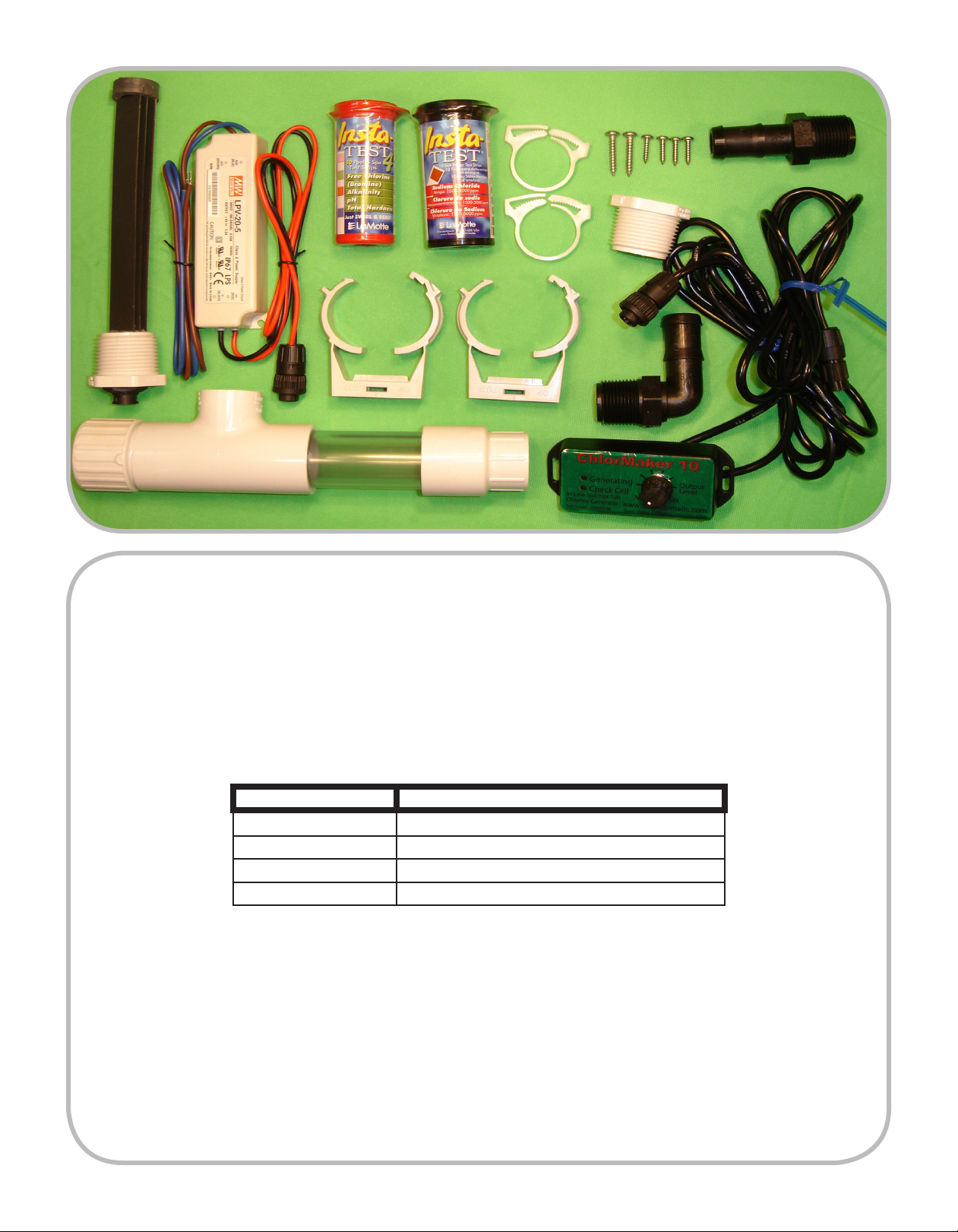

ed with a GFI protected circuit. Please see the general product layout below.
1. Prepare Spa For Installation: Shut down main power to spa and drain water completely. Open access
panel to the spa exposing the spas plumbing and spa pack. Open the access panel to the spa pack.
2. Find Power Supply Location: ChlorMaker’s power supply needs be fastened to a cool dry location
where water will not splash on it. Use the supplied screws to fasten power supply to spa compartment.
3. Find Pump Connection: Locate the spas pump connection inside the spas power pack. Many spa packs
have special connectors. It may be necessary to cut and splice ChlorMaker’s power supply cable to make the
connection. When routing the wires make sure they are protected from sharp edges in the spa cavity or spa
pack. Refer to Diagram 1 for wiring layout.

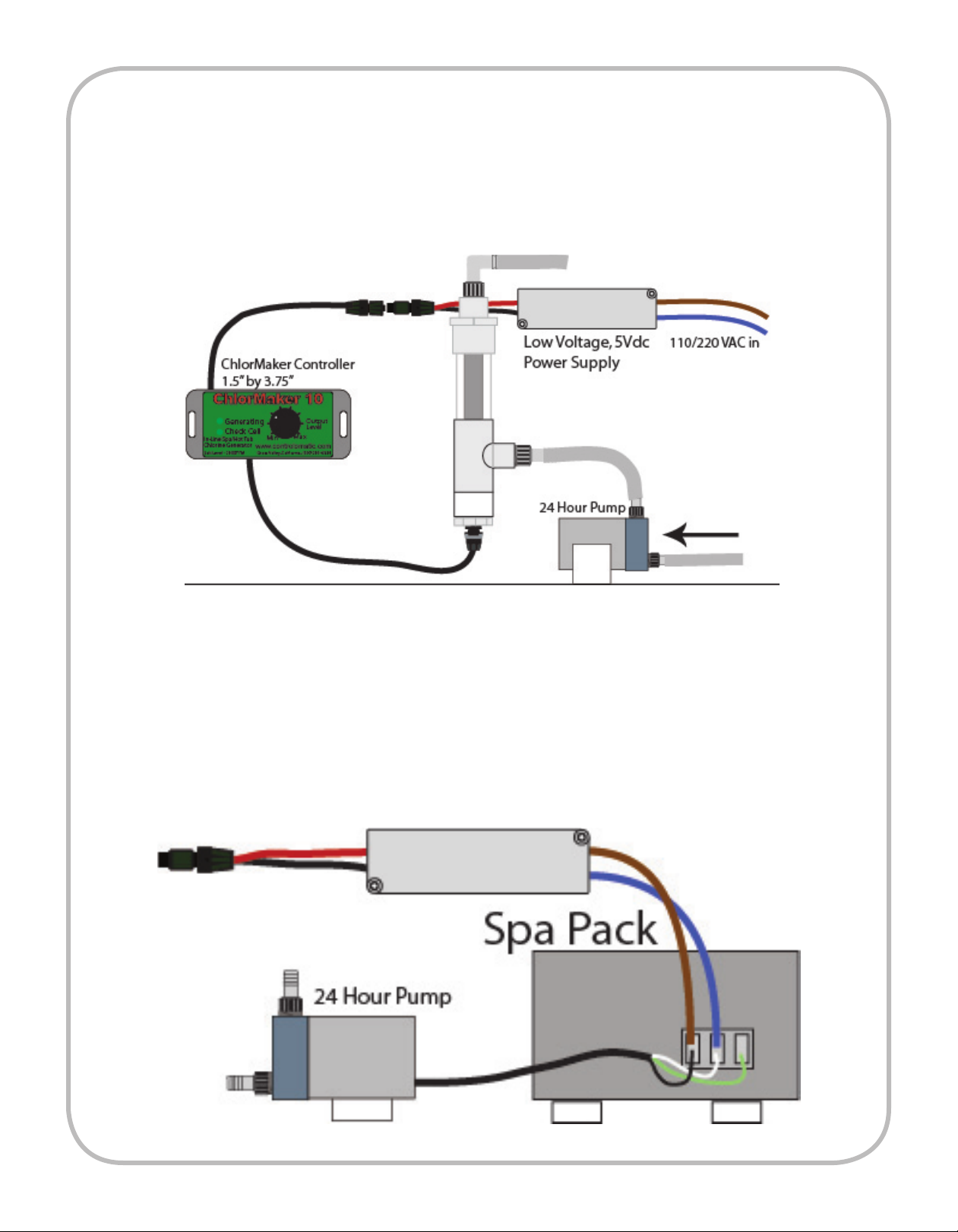

DIAGRAM 1
PRODUCT LAYOUT
Power Supply
4. Find 24 Circulation Plumbing: Locate the continuous (24 Hour) circulating pump and the 3/4 inch tub-
bing connected to the pump. The ChlorMaker cell should be installed on the OUTPUT side of the pump. The
tube will need to be cut and reconnected to the ChlorMaker cell. Refer to DIAGRAM 2 Item (B). Additional
tubing may be needed if the existing tube is not long enough or is hard to access. Additional tubing is avail-
able at most hardware stores. The location of the cell should have no obstructions at the cable end of the cell
to allow for cell removal, replacement and cleaning.
5. Fasten ChlorMaker Cell: Find a location near the OUTPUT side of the continuous (24 Hour) circu-
lating pump where the tube can be cut and reconnected to the cell. The location should be visible
to allow for inspection of the titanium plates through the clear part of the cell. The location should
also have no obstructions at the cable end of the cell to allow for removal of the cell plates if plate
cleaning is needed. Mount the cell using the two supplied brackets shown in DIAGRAM 2 Item (A).
Cell Orientation: The cell must be mounted vertically to prevent chlorine gas from being
trapped in the cell.
6. Connect Tubing To Cell: Cut the existing tube and reconnect the ends to the two 3/4 inch barb t-
tings on the cell. Use the supplied clamps at (B) to securely fasten the tube to the barbs on the cell.
Note that some water will spill from the cut tube even though the spa has been drained or shut-off.

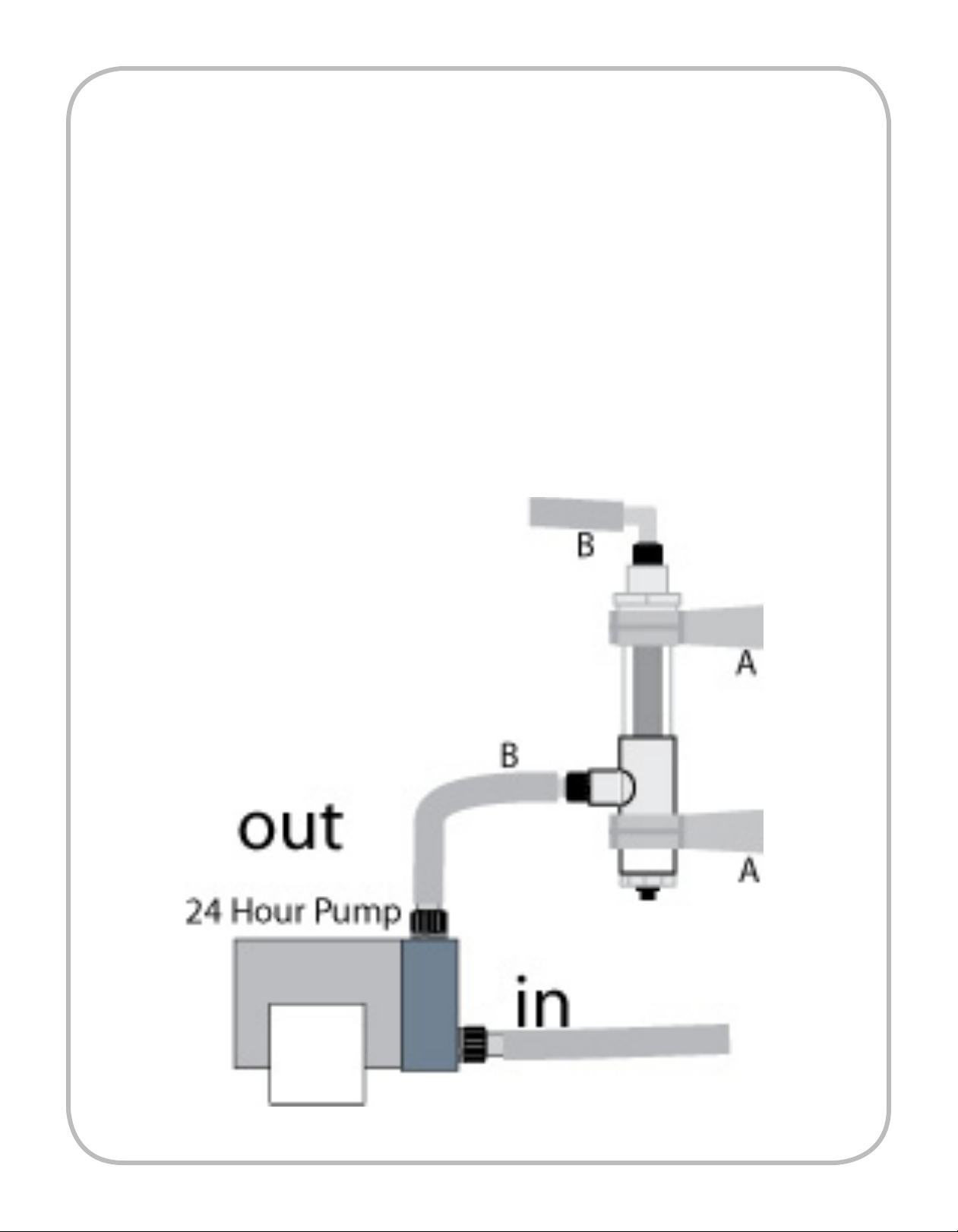

DIAGRAM 2
7. Mounting The Control Panel: Find a location in the spa skirting that will give easy access to the spa
cabinet & spa pack. Drill a 3/4” Hole to allow the Control Panel cables to run through. Use silicone caulking
to seal the hole once the cables are run through. Use the provided mounting screws to securely fasten the
control panel to the spa skirting making sure the control panel completely covers the 3/4 inch hole.
8. Control Panel Connections: Connect the control panel cell cable to the ChlorMaker Cell. This cable will
be identied with black tape near the connection end. Connect the control panel power supply cable to the
black power supply. CAUTION: Do not turn spa power on until the spa has been relled with water and
salt has fully dissolved. Refer to DIAGRAM 3.
9. Rell Spa & Add Salt: Recheck all plumbing connections to make sure all are tight. Rell spa with water
and pour/dissolve the recommended amount of salt in the water (See “Salt Requirement Section). Please
make sure the salt is fully dissolved before proceeding to the next step.
10. Turn Spa Power ON: When ChlorMaker is turned on, the LED Lights will alternate ashing 11 times indicat-
ing the unit has power and is getting ready to make chlorine. After the 11th ash, ChlorMaker will be off in
stand-by for 11 seconds. After the 11 second pause, ChlorMaker will begin the chlorine generation process.

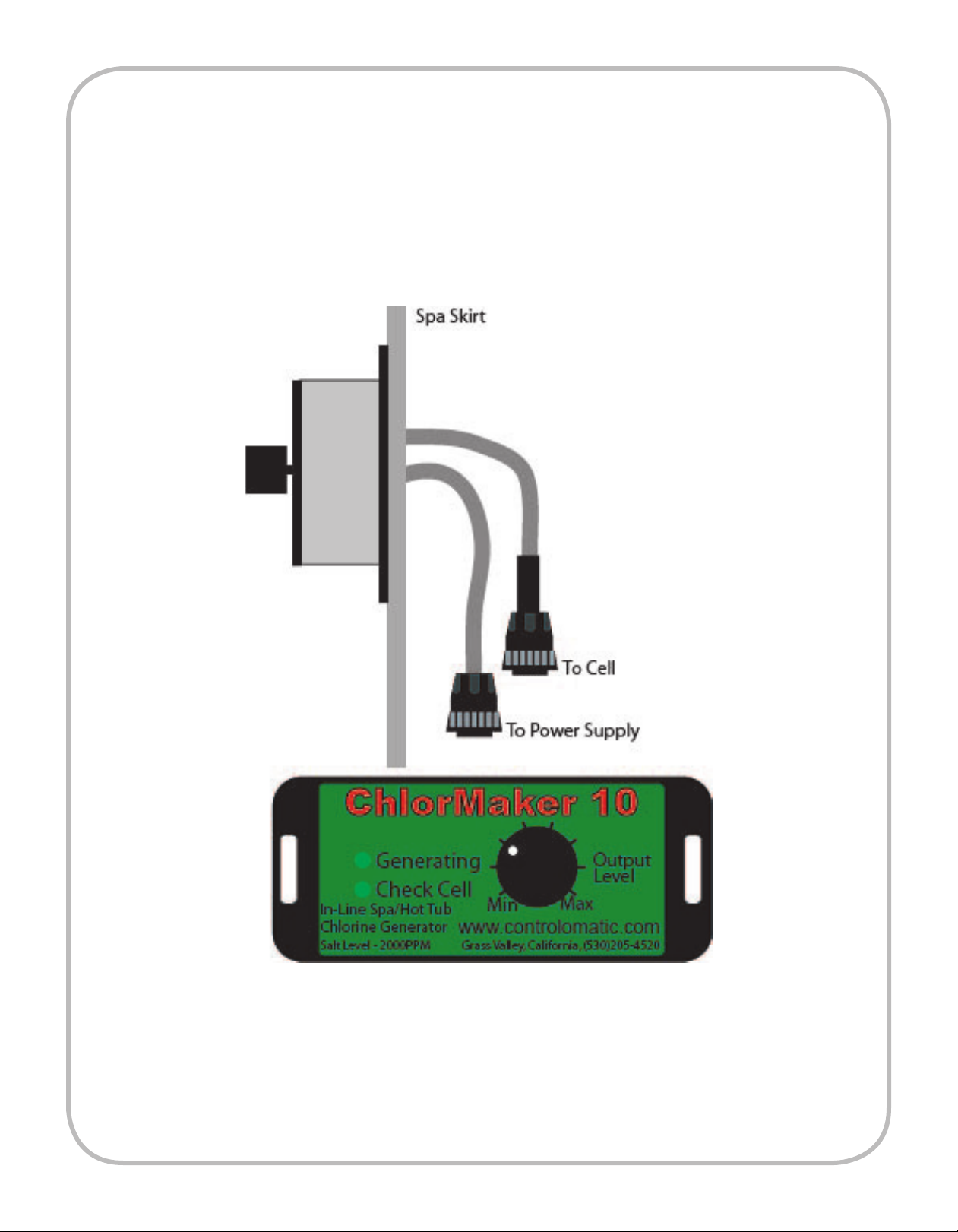

DIAGRAM 3
Control Panel
Side View
BOOST MODE
Boost Mode is designed to replenish chlorine that was just used during the last spa use. Activating Boost Mode will
take ChlorMaker out of stand-by and re-start the production of chlorine at the power level it is currently set at. To
activate Boost Mode simply turn the dial up 1 power level, wait a few seconds, then turn the dial back down to its
original setting. After a few brief moments, ChlorMaker will re-start the chlorine production process at the original
power level.
SELECTING THE RIGHT POWER LEVEL
Selecting the right power level requires some testing and adjustment. There are many factors that affect the
sanitizing needs of a spa such as: Frequency of spa use, number of people, if there is an Ozone Generator, spa
temperature, last drain and rell, etc. However, after the testing and adjustment period, TechniChlor will take care
of your sanitation needs day after day. As a starting point, please program TechniChlor and set the power level to
the general recommendations shown in the chart below.
Power
Level
TechniChlor
Spa (Gallons)
1 to 3 Less than 200
4 200 to 300
5 300 to 400
6 400 to 500
7 to 10 500 and above
Test the Chlorine Level with test strips after 1 to 2 days. When testing, the best readings are always done about an
hour after restarting TechniChlor with a double tap to initiate chlorine production at the beginning of a power level
cycle. If the chlorine level is LOW, increase the power level by one level. If the chlorine level is HIGH decrease
the power level by one level. Wait a day or so after this initial adjustment, re-test and repeat as necessary until a
consistent chlorine residual has been achieved. If the chlorine level is VERY high or VERY low, adjust by 2 levels,
as needed.
IMPORTANT NOTE: If the chlorine level is zero 24 hours after installation, the initial chlorine demand on
the spa may be above what TechniChlor can produce to break away from zero. In this case, manually add
chlorine or shock (according to the product label) to assist in the initial set-up.
If spa usage drops (vacation, winter, etc), it is important to re-set the power level down several levels. If usage
signicantly increases, (return from vacation, etc) it is important to adjust the power level up accordingly. Always
retest and adjust the power level as needed.
TROUBLE SHOOTING
It is always a good idea to revisit the user manual to make sure installation or maintenance steps were not over-
looked before referring to the trouble shooting section.
Problem Possible Causes Corrective Action
Consistently Low
Chlorine
Power level too low Increase the power level
Plates need cleaning Soak the unit in Vinegar for 30 minutes
Low salt level Adjust the salt level as necessary - use test strips
Large bather load Additional chlorine or shock may be needed
Just doesn’t keep up Remove organic material, such as leaves, etc.
Make sure the unit is at the lowest point in the spa
Clean the lter
Remove Phosphates
Shock the water
Consistently High
Chlorine
Power level too high Lower the power level
Plates Are Dirty
With White Or
Scale Build Up
Hard water, high calcium
and minerals in water.
Unplug power supply and reconnect to manually reverse
polarity. If still dirty, soak the unit in vinegar for 30 minutes.
Also reduce calcium level in water.
CLEANING & REVERSE POLARITY
ChlorMaker is uniquely designed with reverse polarity which is a self cleaning feature built in to every unit. How-
ever, there may be water conditions (very hard water) where the self cleaning design may not be able to keep up.
If this water condition exists in your area, a white buildup will be visible on the titanium plates. Periodically inspect
the plates by looking through the clear inspection pipe in the cell. If a build up exists, please follow the steps below.
1. Disconnect the control panel cell cable from cell and set the cable where it will not get wet.
2. Using two wrenches, place one on the cell “T” tting and the other on the cell cap where the cell cable con-
nector is. Carefully unscrew the cap making sure that the plates don’t get stuck as you unscrew the cap. You
should be able to see the plates turn as you unscrew the cap.
3. Pull the cap and plates out and set aside. Note: Water will be draining out at this point so quickly install
the spare cap included in the package to keep water from leaking. Do not tighten this cap.
4. Submerge the titanium plates in a cup of pure white vinegar (or mild acid) for approximately 15 to 30 minutes.
Rinse the plates off with fresh water. A small piece of wood can be used to carefully scrape off any buildup
prior to placing the plates in the mild acid.
5. Remove the temporary cap and insert and tighten the cap with the plates. Reconnect the control panel cell
cable to the cell.
LIMITED WARRANTY
Models: This warranty applies to ChlorMaker models referenced as “System”.
ControlOMatic, Inc. Warrants the system to be free of all defects in material and workmanship for one (1) year from
the original purchase date. The system includes the power supply unit, cable, electronics, and electrolytic genera-
tor for residential use only. The product must be installed properly and used in accordance with this manual and all
applicable local codes and regulations. This warranty is not transferable.
In no event shall ControlOMatic, Inc. be liable for consequential damages for breach of this warranty. Some states
do not allow the exclusion or limitation of incidental or consequential damages, so the above limitation or exclusion
may not apply. The warranty does not cover any loss or damage to the product due to improper installation, product
abuse, misuse, negligence, or improper maintenance of the system, pool or spa. The warranty does not cover any
loss or damage to the spa, spa components, users, or anything outside the system due to system failure. Purchas-
er assume all responsibility for using the system.
This warranty does not apply to any costs, repairs, services, damages, claims or losses for all of the following:
Service calls to correct the installation of the product, or to explain the usage of the system to the buyer, repairs
necessitated by use other than normal home use, damage resulting from misuse, unintended use, unforeseen use,
non pool or spa use, abuse, accidents, alterations, improper installation, or corrective work necessitated by repairs
made by anyone other than an authorized service technician.
THE FOREGOING WARRANTIES ARE CONTINGENT ON THE PROPER USE OF THE SYSTEM IN ACCOR-
DANCE WITH THESE INSTRUCTIONS AND SPECIFICATIONS AND SHALL NOT APPLY TO ANY SYSTEM
THAT HAS BEEN REPAIRED OR MODIFIED BY PERSONS OTHER THAN THE MANUFACTURER.
THE EXPRESS WARRANTIES SET FORTH IN THIS AGREEMENT ARE IN LIEU OF ALL OTHER WARRAN-
TIES, EXPRESS OR IMPLIED. MANUFACTURER HEREBY SPECIFICALLY DISCLAIMS ANY OTHER REPRE-
SENTATIONS OR WARRANTIES, EXPRESS OR IMPLIED, INCLUDING WITHOUT LIMITATION ANY WARRAN-
TIES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE.
IN NO EVENT WILL MANUFACTURER’S LIABILITY FOR ANY CLAIM, WHETHER IN CONTRACT, TORT OR
UNDER ANY OTHER THEORY OF LIABILITY, EXCEED THE AMOUNT NECESSARY TO REPAIR OR RE-
PLACE THE COVERED SYSTEM.
Damage to the system from improper water maintenance is not covered in this warranty.
Should any problem develop during the warranty period, go to: www.controlomatic.com to obtain the proper techni-
cal support phone number. You will need the serial number visible in the clear part of the system body. You may be
required to return the defective component, and if necessary, the component will either be repaired or replaced.
Indice
Altri manuali ControlOMatic Sistema di filtraggio dell'acqua
ControlOMatic
ControlOMatic TechniChlor Manuale utente
ControlOMatic
ControlOMatic MegaChlor Manuale utente
ControlOMatic
ControlOMatic ChlorMaker Manuale utente
ControlOMatic
ControlOMatic MegaChlor Manuale utente
ControlOMatic
ControlOMatic POOLWARDEN PW-Plus Manuale utente
ControlOMatic
ControlOMatic MegaChlor Manuale utente
ControlOMatic
ControlOMatic MegaChlor Manuale utente
